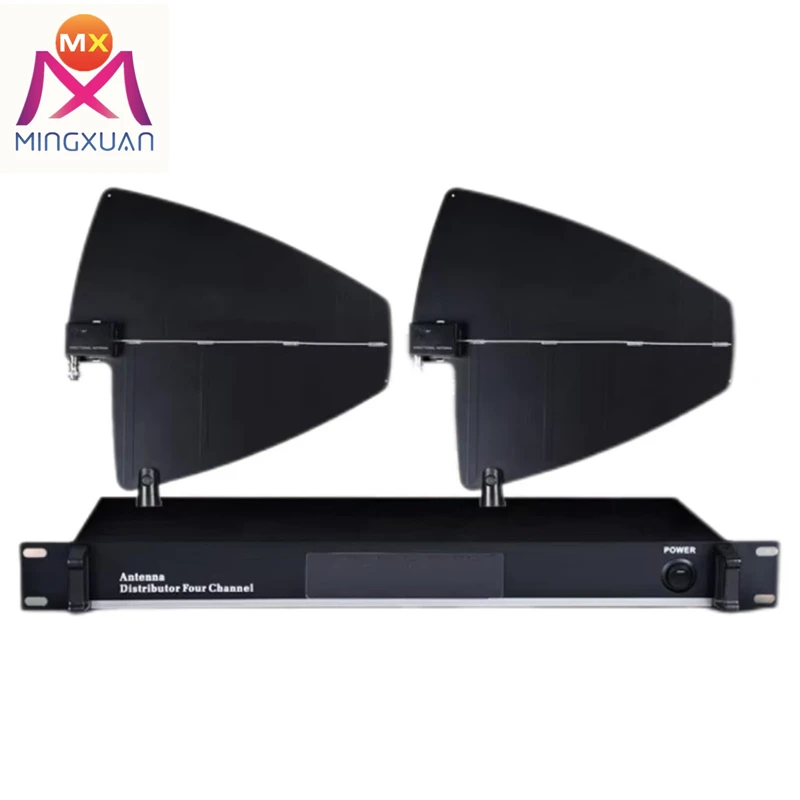

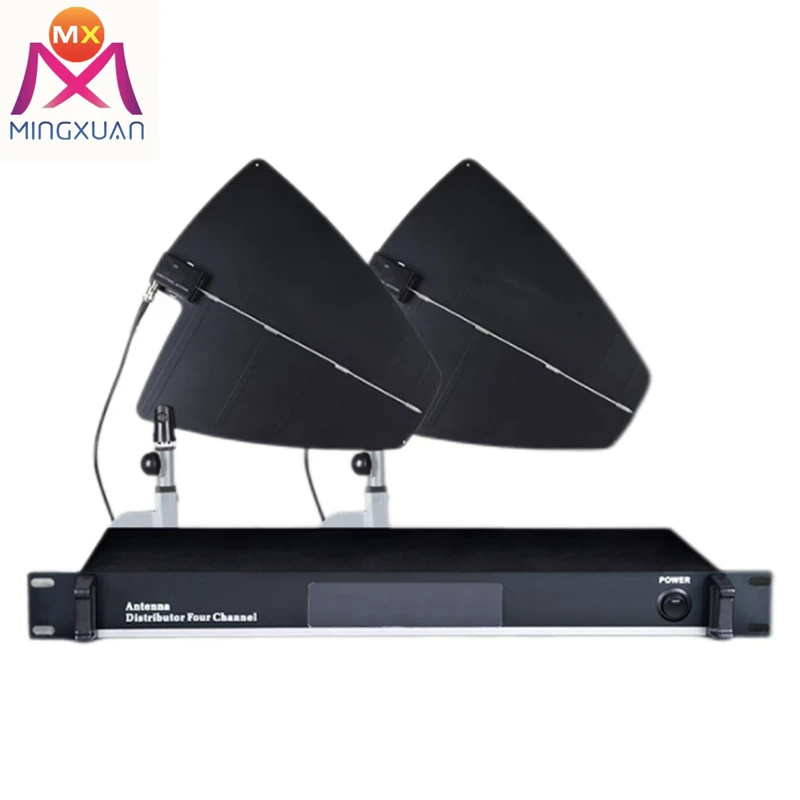

400m distance MHz radio mic antenna distribution system wireless distributed amplifier

Share on (1601280445223):


Price:$251.00

Quantity:


Product Overview

Description



specification














































































































Parameter
band range500-950MHz
band width450MHz
Input truncation point+22dBm
Gain+6-9dB(Center Band)
Impedance50 ohms
SocketTNC female
Power supply100-240V/50/60Hz
Power consumption170mA

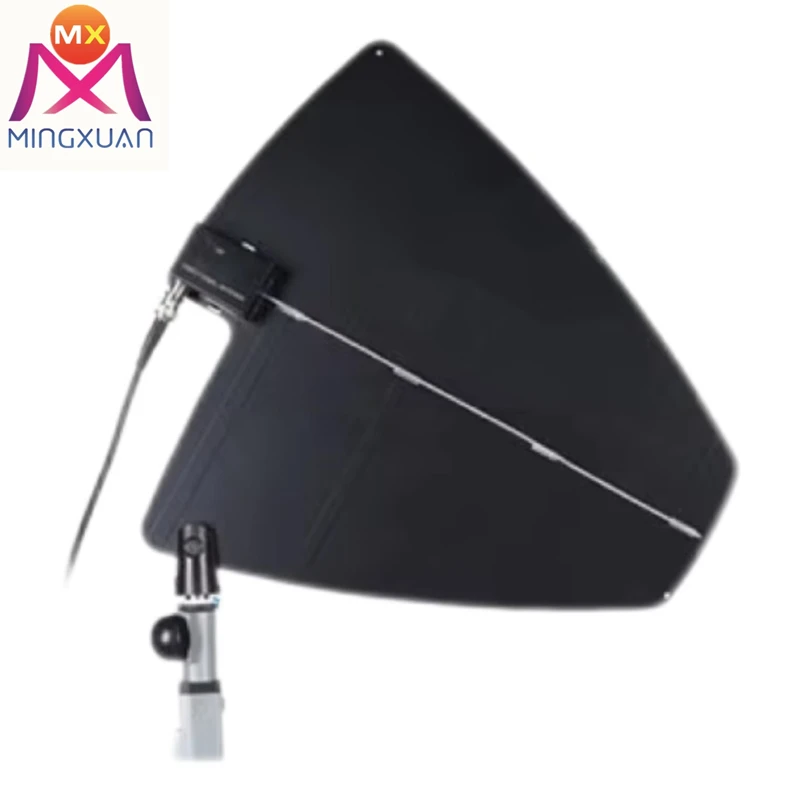

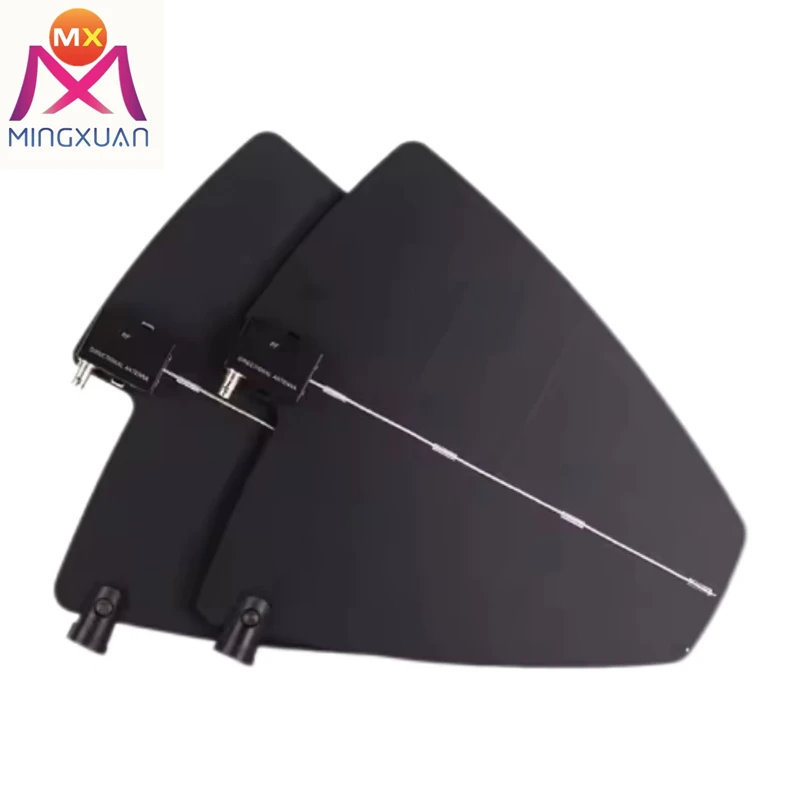

Antenna amplifier
Antenna input impedance50 ohms
Antenna output impedance50 ohms
Antenna input socketTNC
Antenna output socketTNC
gain13dB
bandwidth400MHz
Power supply current5V
size35 x 65 x 75 (mm)

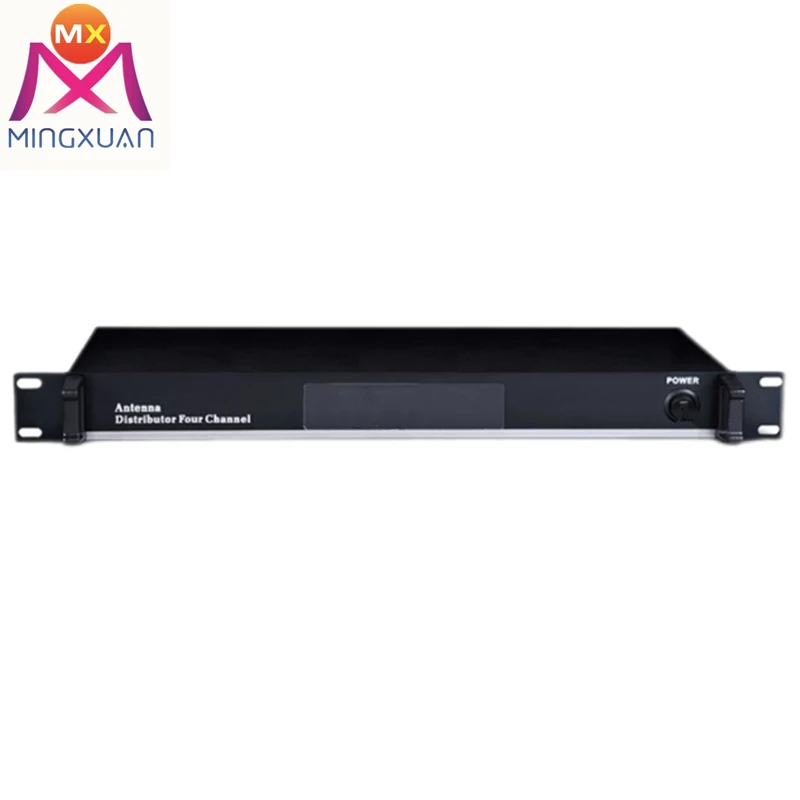

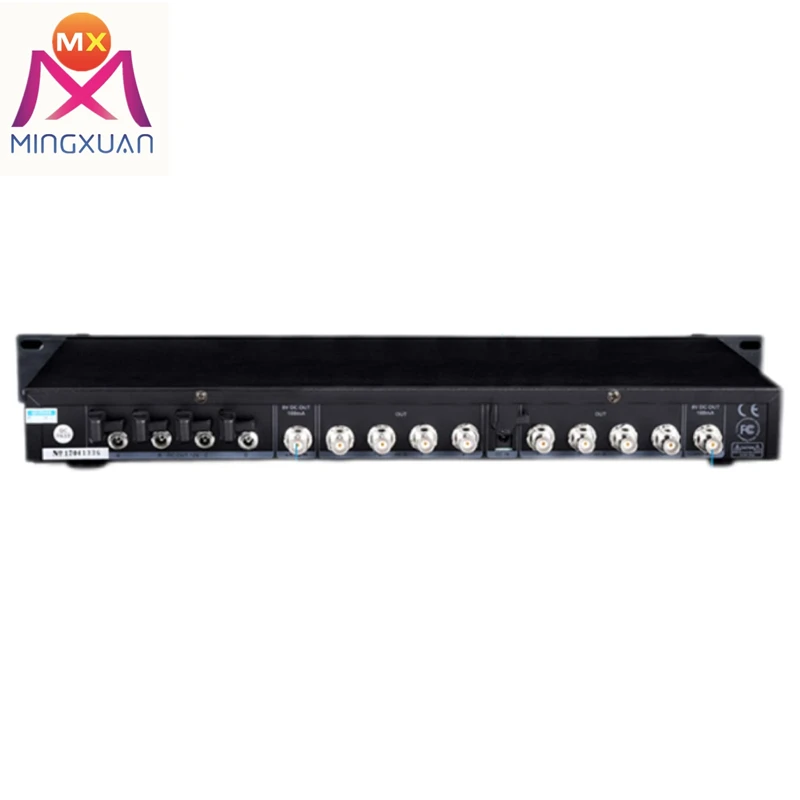

Antenna distributor
Antenna input impedance50 ohms
Antenna output impedance50 ohms
Antenna input socketTNC
Antenna output socketTNC
gain3dB
bandwidth40MHz
Power supply current12-18V 100mA
size45 x 410 x 160(mm)







Product Description









Packaging & Shipping


flight casecarton








Our Services


1. Provide professional person to communicate with you before the order.
2. Provide strict quality check for each part, each process before export.
3. Provide optimum system solution based on each client's specific requirement.
4. Provide complete post-sale service, including installation, technical guide and training.








Company Information


Guangzhou MingXuan Stage Light Equipment Co., Ltd was established in 2010, located in Guangzhou city. Mingxuan light is focus on high quality stage light products such as moving head, led par light, led wall washer light, laser, follow light, led dance floor , studio light , etc.


There are professional design team, sales team, customer service team and technical team to service all customer . Based on high quality & competitive prices & better service, our products have entered the Americas, Europe, Asia, Africa markets successfully, such as USA, Canada, UK, Germany, France, Singapore, Japan, Nigeria etc, and get good feedback.








FAQ


Q: Do you offer guarantee for the products?


A: Yes, we offer 2  years warranty to our products.





Q:What is your product range?


A:We are mainly offer all kind of stage lighting and audio-visual equipment etc.



Q: Can you help me to print our logo or company name on the products or package?
A: Of course. Your logo can be printed on the products or package.





Q: If the products broken during the warranty, what should I do?
A: If there is a problem with the products, please describe it and send videos or pictures to us to analyze. Then we will guide you how to fix it and provide spare parts on free if needed.
