Dual Purpose 12v Slimline LiFePO4 Batteries Lithium ion Battery 100ah 150ah 200ah Camping LFP battery with Bluetooth Display
- Category: >>>
- Supplier: Shenzhen Yichen S-Power Tech Co. Ltd.
Share on (1601280486181):
Product Overview
Description
Product Description

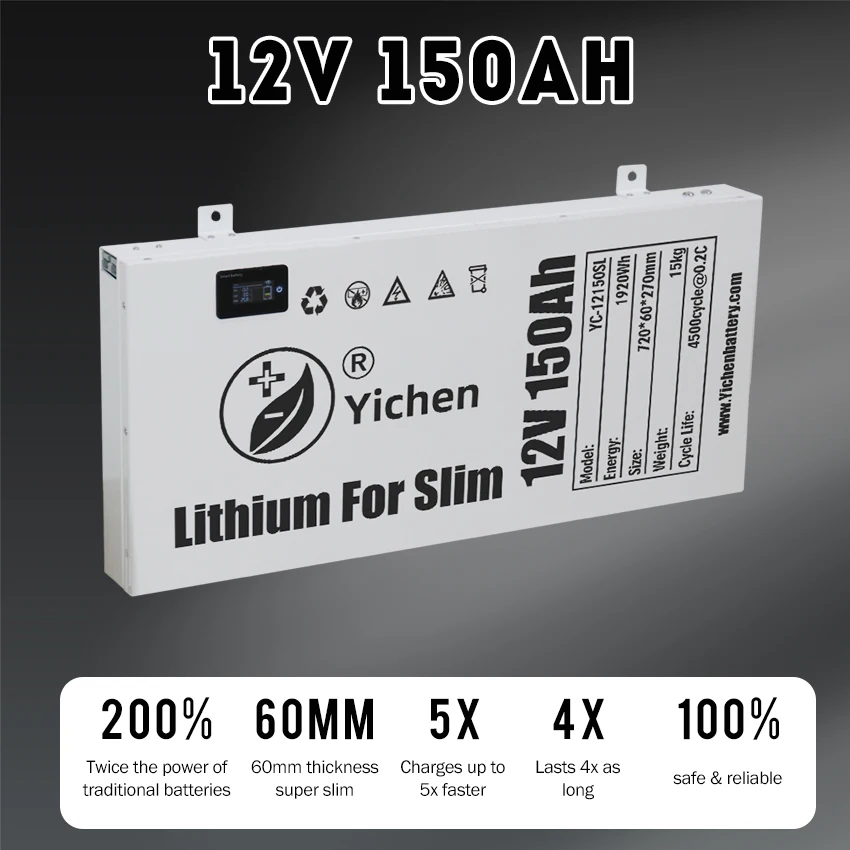

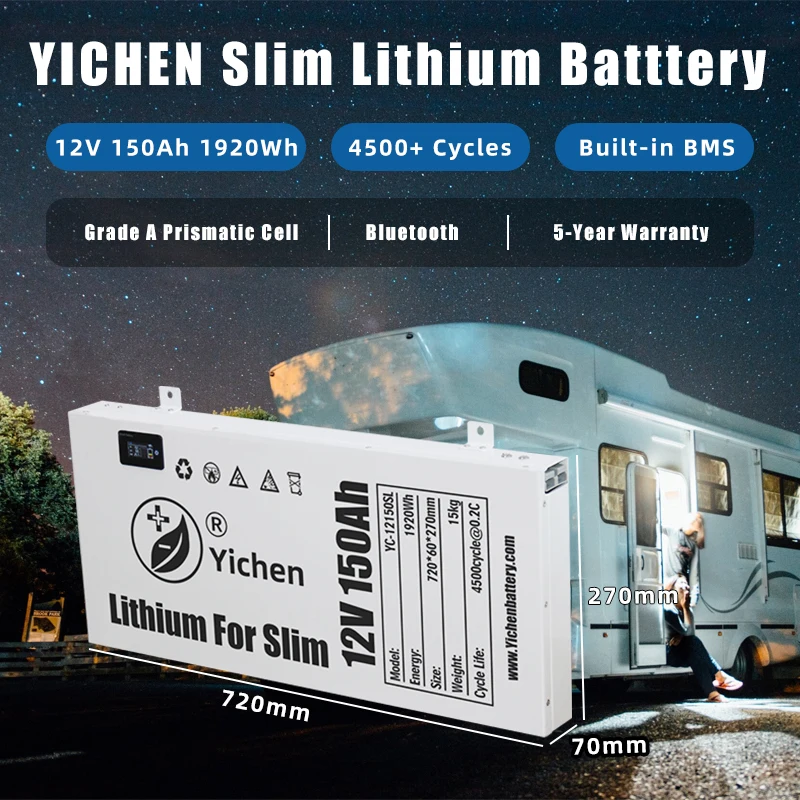

YICHENLFP 12V 150Ah Deep Cycle Lithium Battery
Slimline lithium batteries deliver reliable lithium battery technology in a convenient compact size. Slimline lithium batteries are perfect for any setup where space is limited, for example in campervans or caravans, or installing behind rear seats of dual cab utes. While a slimline lithium battery will use significantly less space than a regular lithium batteries, it will still generate the same power, and deliver the same remarkable depth of discharge.
Yichen offers both slimline lithium batteries and ultra-slim lithium batteries, so you can choose what best suits your setup:
*12V 60Ah
* 12V 90Ah
* 12V 100Ah
* 12V 150Ah
* 12V 170Ah
* 12V 184Ah
* 12V 200Ah
Yichen offers both slimline lithium batteries and ultra-slim lithium batteries, so you can choose what best suits your setup:
*12V 60Ah
* 12V 90Ah
* 12V 100Ah
* 12V 150Ah
* 12V 170Ah
* 12V 184Ah
* 12V 200Ah

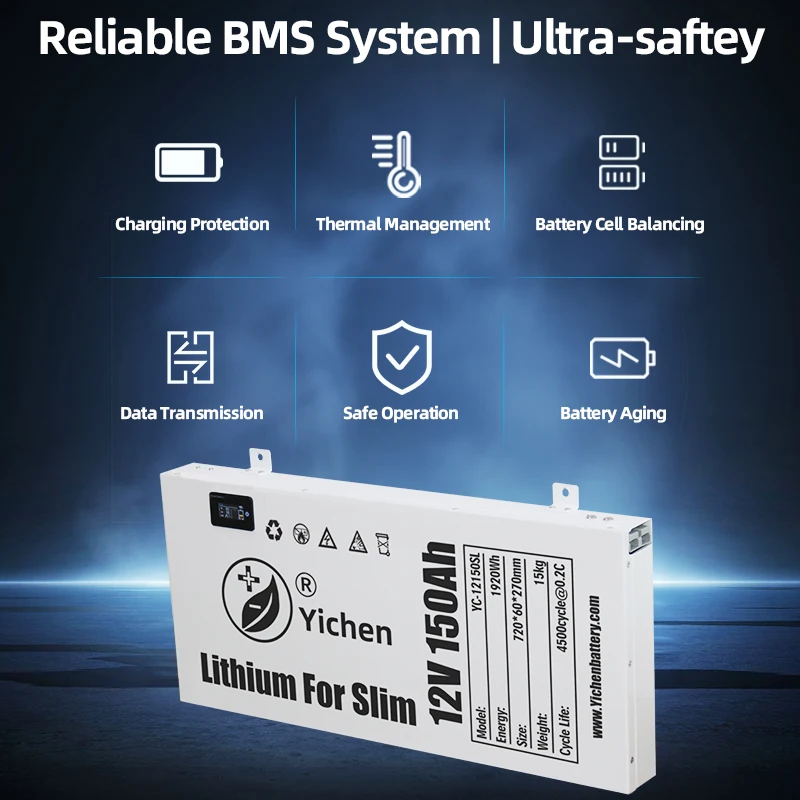

Battery Management Battery(BMS)
Three Typical Functions:
> Features high and low voltage disconnect functions, avoiding the effects of common battery failures such as overcharge,
over-discharge, overload, and short circuits on your device.
> Supports high-temperature charging or discharging cut-off.
> Balances each energy cell, ensuring YICHENLFP batteries perform better for longer.
> Features high and low voltage disconnect functions, avoiding the effects of common battery failures such as overcharge,
over-discharge, overload, and short circuits on your device.
> Supports high-temperature charging or discharging cut-off.
> Balances each energy cell, ensuring YICHENLFP batteries perform better for longer.
12V 200Ah Ultra-slim Lithium Battery with Bluetooth
> 70% lighter than lead acid batteries;
> Two to four times the service life (4000-6000 cycles);
> Battery Management Systems (BMS) with power terminal cut-off and recovery
> Our heater battery warms up the battery to enable a charger once battery is warmed up(optional);
> Cell balancing and low voltage/over voltage protection, short-circuit protection;
> Bluetooth technology to monitor battery status(optional);
> Maximize your energy potential with 99% Depth of Discharge (DOD);
> Drop in replacements (plug and play);
> Run as many needed in parallel;
> Can go up to 4 in series with this battery.
> Two to four times the service life (4000-6000 cycles);
> Battery Management Systems (BMS) with power terminal cut-off and recovery
> Our heater battery warms up the battery to enable a charger once battery is warmed up(optional);
> Cell balancing and low voltage/over voltage protection, short-circuit protection;
> Bluetooth technology to monitor battery status(optional);
> Maximize your energy potential with 99% Depth of Discharge (DOD);
> Drop in replacements (plug and play);
> Run as many needed in parallel;
> Can go up to 4 in series with this battery.
Specification
Electrical Characteristics | Model number | YCST-SL-12150-E |
Nominal Voltage | 12.8 V | |
Nominal capacity | 150 Ah | |
Energy | 2560 Wh | |
Internal Resistance | ≤ 3mΩ | |
Cycle life | ≥4500 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Cut-off Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 50A | |
Max. Charge Current | 200A | |
Standard Discharge | Continuous Current | 50A |
Max. Continuous Current | 50A | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP67 | |
Mechanical | Plastic Case | ABS |
Dimensions (mm) | 720*70*270mm | |
Weight | 18kg | |
Terminal | M8 | |
Function | Custom LCD, Bluetooth | |
Color | Black, Red, Grey and Yellow |
Application case
As a deep cycle rechargeable battery, it fits to various applications,such as Large Mobility scooter/Wheelchair,Golf buggy, RV caravans,Marine,Car Audio system,CCTV back up, Leisure,Solar,Wind,Off-grid,etc.
Suitable for cyclic and standby power applications.
Other SLA replacement LiFePO4 Batteries
Voltage | Capacity | Cell type | Max continuous discharge Current | Dimension |
12 | Lifepo4 prismatic | 70 | 260*167*210 | |
12 | Lifepo4 prismatic | 80 | 260*167*210 | |
12 | Lifepo4 prismatic | 100 | 330*174*220 | |
12 | Lifepo4 prismatic | 120 | 406*170*206 | |
12 | Lifepo4 prismatic | 150 | 330*174*220 | |
12 | Lifepo4 prismatic | 200 | 406*170*206 | |
12 | Lifepo4 prismatic | 250 | 520*268*230 | |
12 | Lifepo4 prismatic | 300 | 520*268*230 | |
24 | Lifepo4 prismatic | 50 | 330*174*220 | |
24 | Lifepo4 prismatic | 100 | 520*268*230 | |
48 | Lifepo4 prismatic | 60 | 520*268*230 |
Certificate
The company has been certified by TUV, UL, CE, CSA, CEC, JET, etc.
At present, it has customers in more than 50 countries and regions, The cumulative production capacity in the past 5 years is greater than 300MWh, <0.3% after sale problem in 5 years.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
