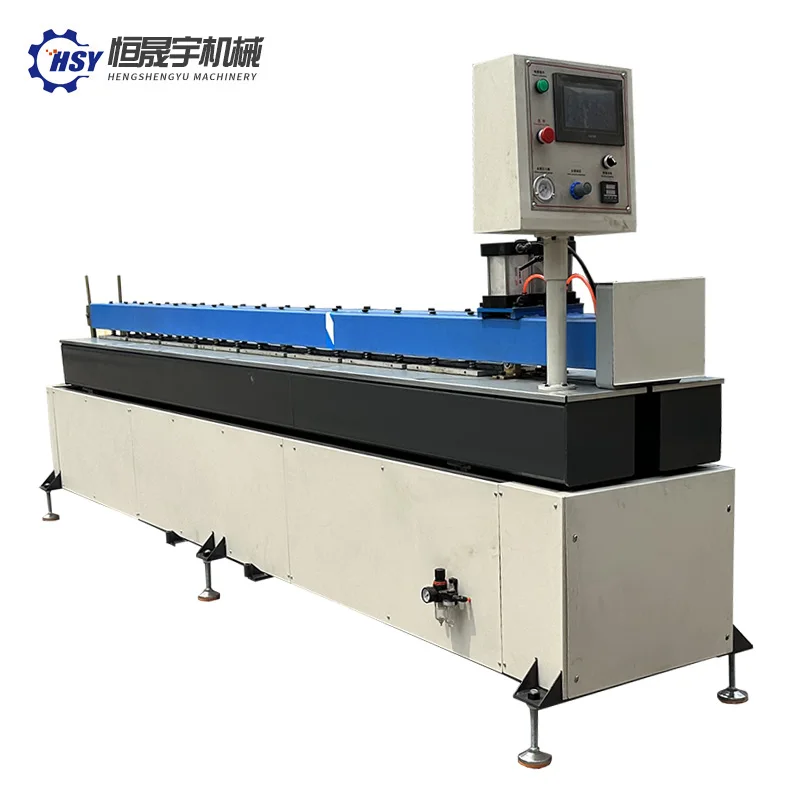

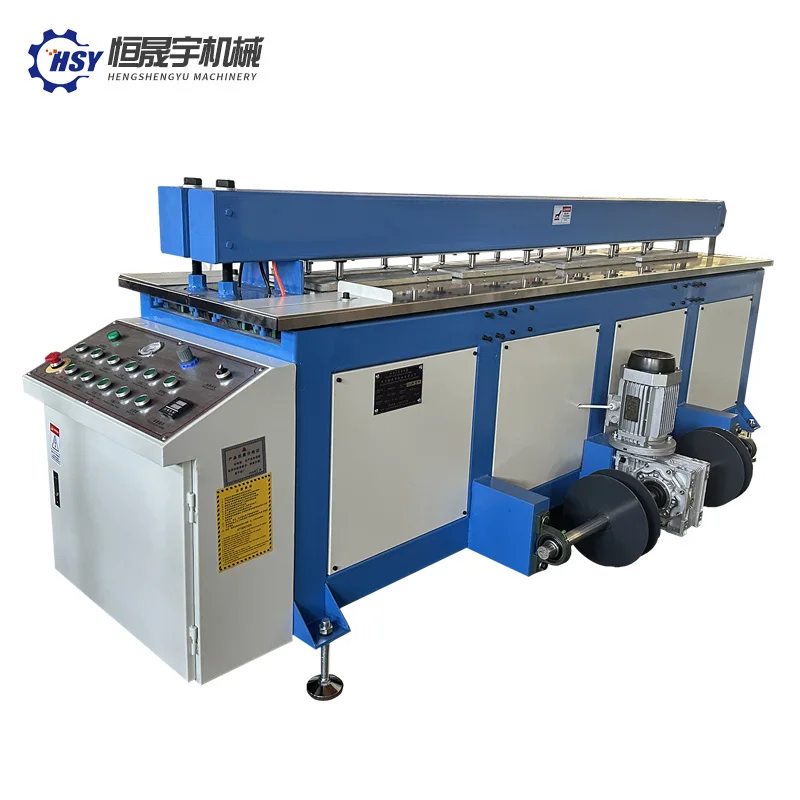

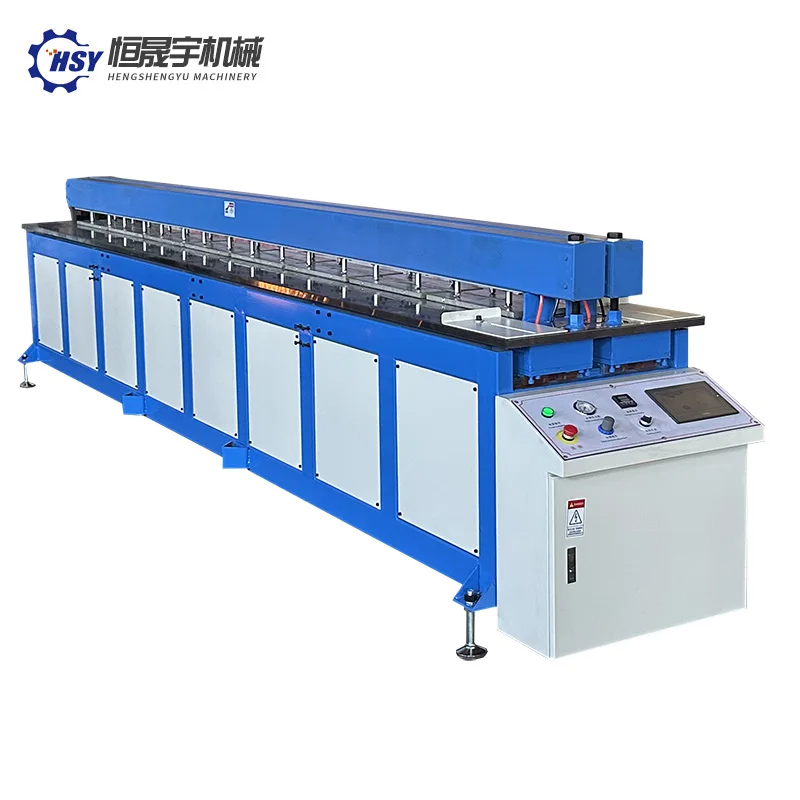

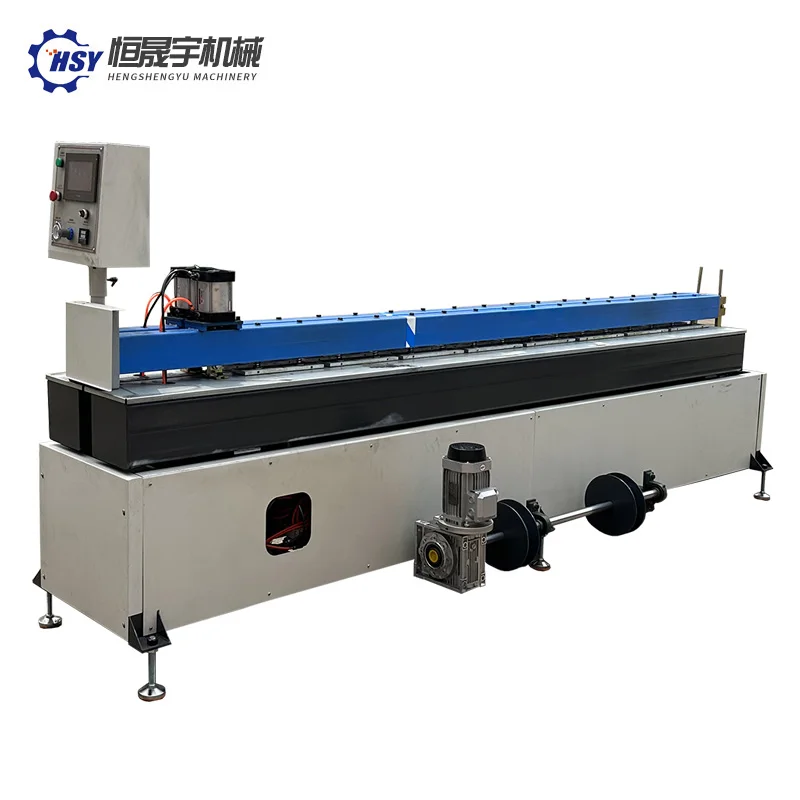

Plastic Sheet Welding Machine Fully Automatic Rolling Machine Plastic rolling round welding machine
- Category: >>>
- Supplier: Qingdao Hengshengyu Machinery Co. Ltd.
Share on (1601280499351):
Product Overview
Description
Products Description
1.Welding Type: horizontal weld and Rolling pipe PLC touch-panel control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing., suitable for weld and rolling thermoplastic plates made of HDPE,PP,PVC,PVDF,PPN,PPH...
2.Control system Siemens PLC, 7-inch color touch screen-Siemens.
3.Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
4.Data parametersare automatically set up according to the material a particular welding pressure, temperature and time. 5. 2mm to 50mm plastic sheet thickness horizontal weld is common capabilities. Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by. Integrated intensity of the rack, stable performance, transportation and installation more convenient.
Product Specifications
Model | HSY1500 | HSY2000 | HSY3000 | HSY4000 | HSY5000 | HSY6000 | HSY7000 | ||||||
Processing Thickness(mm) | 2-30 or 2~50mm | ||||||||||||
Processing Length(mm) | 1500mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm | 7000mm | ||||||
Range of Rolling Diameter(mm) | 250mm/350mm/≥650mm | ||||||||||||
Compressed Air Connection (bar) | 8-10bar | ||||||||||||
Rated Voltage | 220V,50/60HZ or Customized | 380V,50/60HZ or Customized | |||||||||||
Heating Power | 3kw | 3kw | 5kw | 6kw | 9kw | 9kw | 12kw | ||||||
Rolling Motor Power | 1.5kw | 2.5kw | 3kw | 4kw | 5.5kw | 5.5kw | 6kw | ||||||
Heating Element(Teflon coated T max= 260° C） | 1800*65*25mm | 2300*65*25mm | 3300*65*25mm | 4300*65*25mm | 5300*65*25mm | 6300*65*25mm | 7300*65*25mm | ||||||
Dimensions(mm) | 2550*1850*1100 | 3050*1850*1100 | 4050*1850*1100 | 6000*1850*1100 | 7000*1850*1100 | 8000*1850*1100 | 9000*1850*1100 | ||||||
Welding Material | Plastic sheet/board or hollow sheet made from HDPE,PP,PVC,PVDF,PPN,PPS,PPH...... | ||||||||||||
Product Details

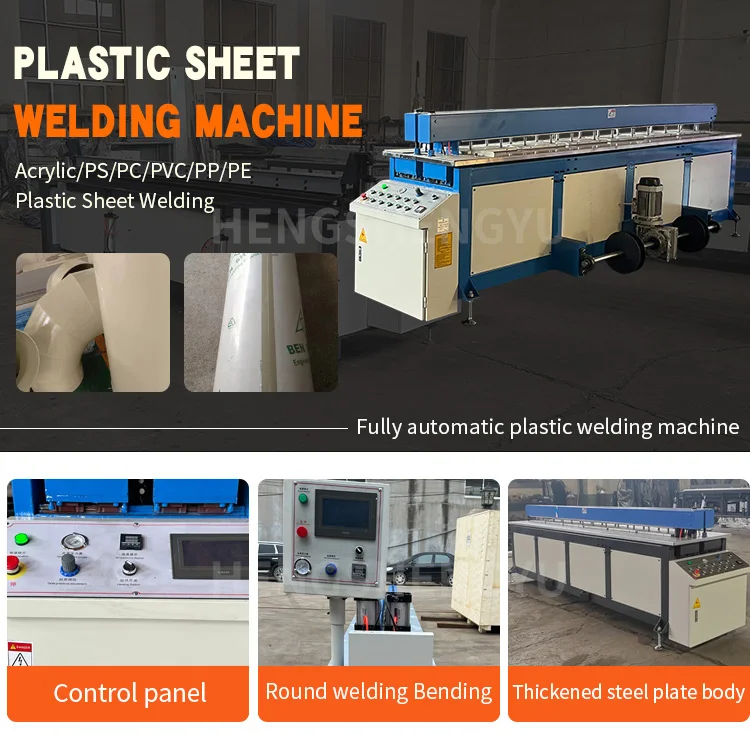

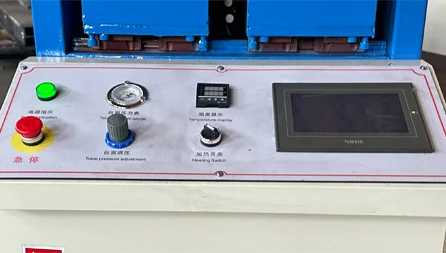

The overall system adopts PLC Siemens touch screen control, which makes your operation convenient, simple, fast, stable, safe, and most importantly, improves accuracy.
Bending

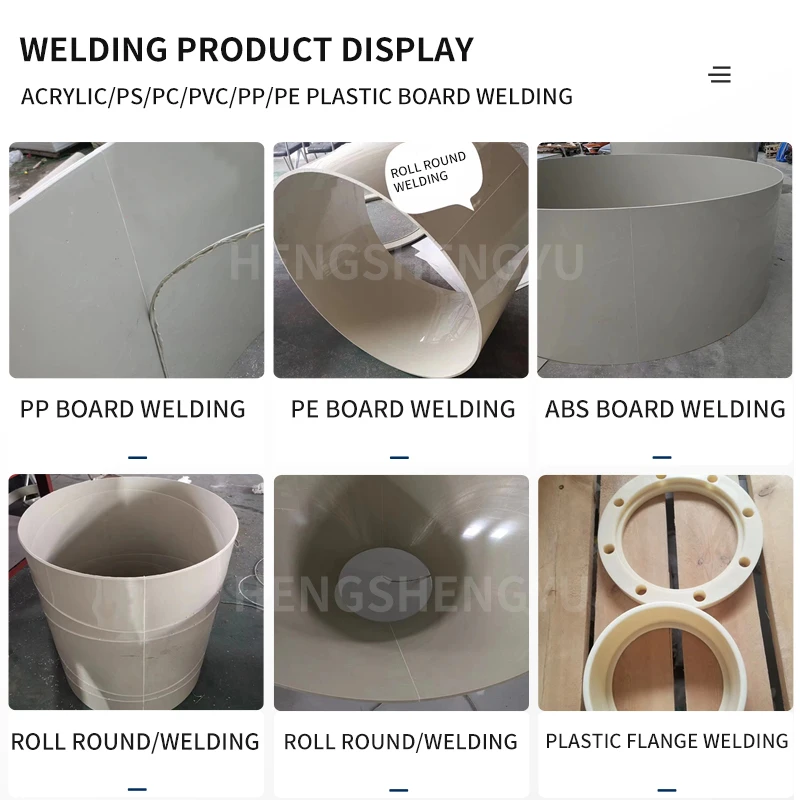

Customizable round welding and bending, multifunctional, one machine with two functions, convenient to use
OTHER DETAILS DISPLAY
Heating knife
Auxiliary rolling system
Reducer
Electrical

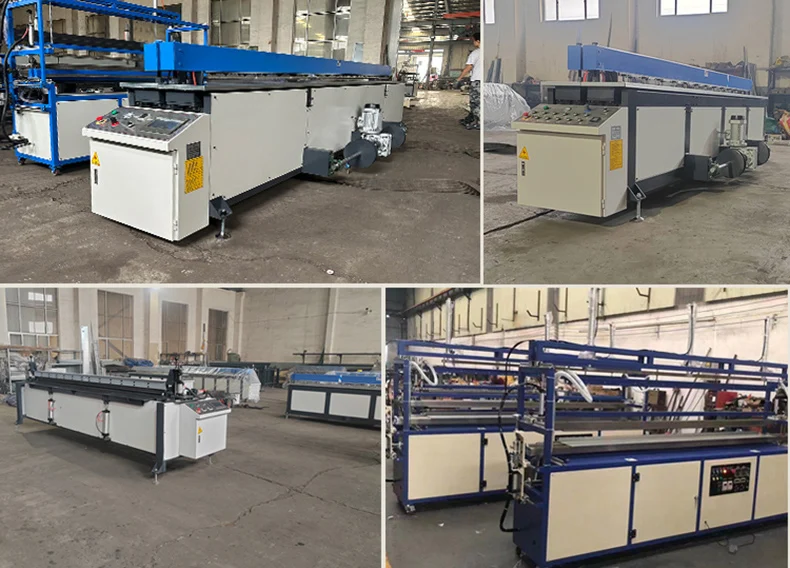

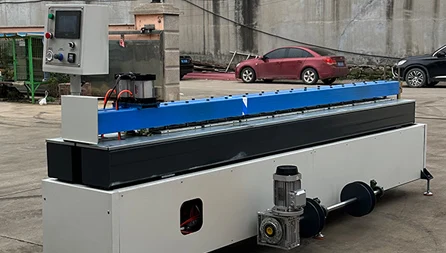

Product Display
Why Choose Us

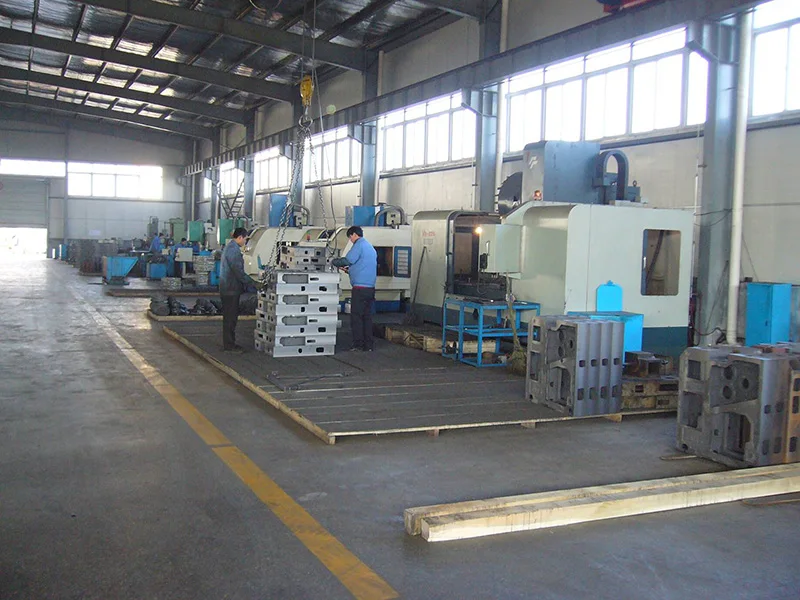

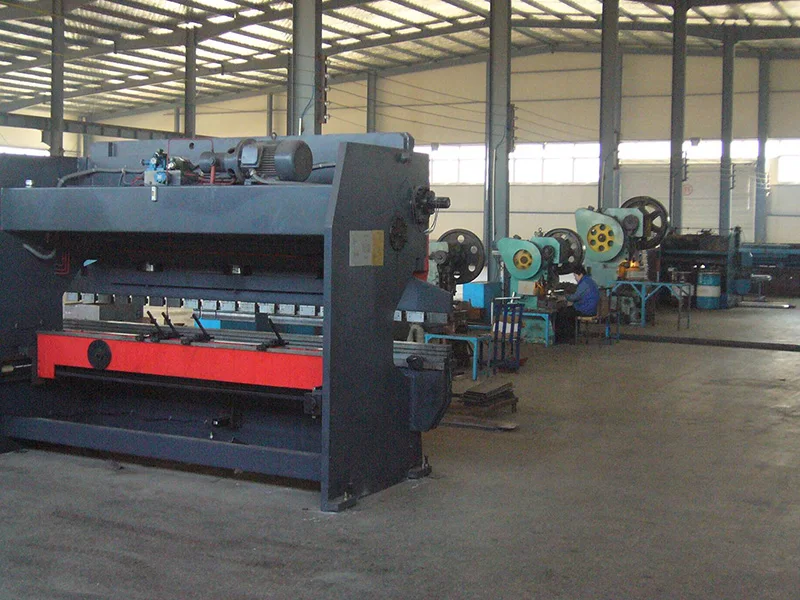

Qingdao Hengshengyu was founded in 2018, formerly known as "Qingdao Hengshengyu Machinery Co., Ltd." with a 30-year development history. It is mainly engaged in the research and development of metal deburring machines, flame cutting slag removal machines, flat wire drawing machines, metal sanding machines, woodworking sanding machines, water sandblasting machines, plastic processing welding bending equipment, acrylic bending and polishing equipment, etc. The company's headquarters is located in the West Coast New Area of Qingdao City, Shandong Province, with a factory area of 9000 square meters and more than 150 employees.
Our products have been exported to 60 countries and regions including the United States, Russia, Brazil, Argentina, Italy, Australia, Mexico, Denmark, South Korea, Malaysia, Vietnam, India, Poland, etc. Customers have given us high praise after using our equipment, and many of them have made multiple repurchases.
We mainly engage in professional customization of metal surface deburring equipment, woodworking board and other types of board surface polishing equipment, plastic welding, plastic bending and other equipment. After years of persistence and effort in metal surface grinding technology and automation equipment. The product is mainly used for sanding, grinding, deburring, polishing, drawing, etc. on metal surfaces. The fields of circular welding and plastic bending processing of plastic sheets. Customer first, daring to innovate "is the key to our success in the market. Professional, responsible, and shared "is the company's business philosophy. We hope to realize our value in society through the efforts of all employees of Hengshengyu Company.
Service
1. Installation video and User's Manuals and instructions with the machine.
2 .Remote training.
3. Overseas training
service, but the round-tickets and accommodation should be paid by client.
2 .Remote training.
3. Overseas training
service, but the round-tickets and accommodation should be paid by client.
AFTER-SALES SERVICE
1. Respond to the buyer's demand within 24 hours via email or the platform's official communication tool, and send relevant
documents or materials remotely.
2. Free replacement parts, delivery of parts within 48 hours (except imported parts or customized parts, subject to the parts list
agreed by the buyer and seller).
documents or materials remotely.
2. Free replacement parts, delivery of parts within 48 hours (except imported parts or customized parts, subject to the parts list
agreed by the buyer and seller).
FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you Packing list/Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you Packing list/Sales contract for customs clearance.
Q: How about warranty?
A: Please tell us your product information, then we can recommend the suitable machine to you.
Q. It's not convenient for me to go to China, but I want to see the condition of the machines
in the factory. What should I do?
A: If it's not convenient to come to China, our sales manager can take you to know the factory by online video conference.
