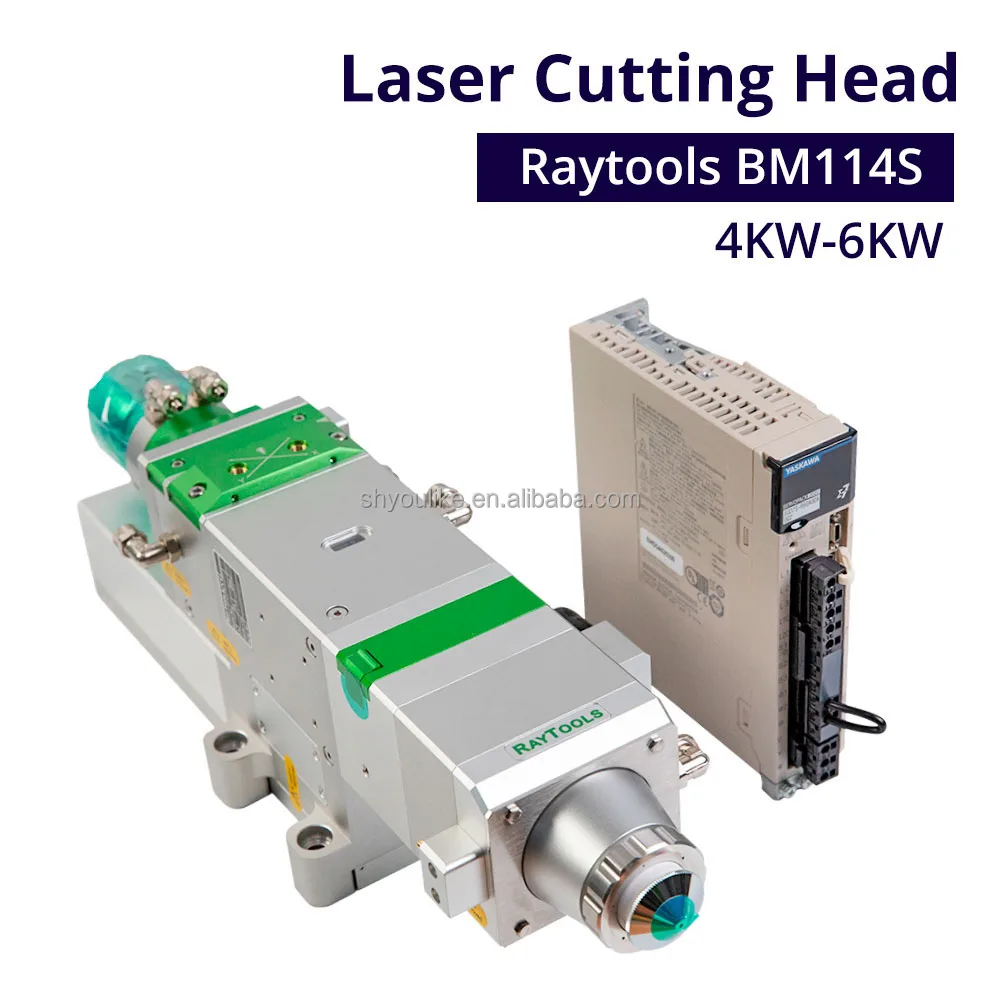

Raytools Laser Cutting Head BM114S








Description
The BM114S series is an automatic focusing fiber cutting head released by Swiss RAYTOOLS AG in 2018. The product is equipped with internal servo motor and internal driver units, which can drive the focus lamp to change position automatically in the range of about 25mm by linear mechanism. Users can continuously focus through setting program to finish the rapid perforation of thick plates and the automatic cutting of plates of varies thickness and material. The product can be equipped with D37 composite lens group to integrate the beam, a variety of interface settings, so that it can be used with a variety of fiber lasers; optimized optical and water-cooled design allows the laser head work under high power steadily for a long time.




Product Advantages
 Optimized optical configuration and smooth and efficient airflow design;
 Automatic focusing range + 10 ~ -15mm, adjustment accuracy 0.05mm;
 Equipped with D37 composite lens, the maximum fiber input power can carry 6KW;
 Maximum acceleration of focus lens driver 10m / s2, maximum speed 10m / min;
 The drawer type lens holder make the replacement of protective lens more quickly and easier
 The composite lenses were used for collimation and focusing to obtain the best optical quality and cutting effect;
 Equipped with QBH, QD and other fiber interfaces can match with various fiber lasers.


Specification


Power Rating
≤6KW
Clear Aperture
37mm
Collimator Focal length
100mm
Focusing Focal length
150mm/200mm
Collimating protective glass
φ38mm*1.5mm
Focus protective glass
φ37mm*7mm
Auto focus range
+10～-12mm
Assist gas Pressure
≤30bar
Weight
～6.5kg
