16500 3.7v 1200mAH Lithium ion Battery for Consumer Electronics, All kinds of lamps and lanterns
- Category: >>>
- Supplier: Dongguan Qiaotou Jieyouth Electronic FactoryDongguan Factory
Share on (1601280512119):
Product Overview
Description
Product Description

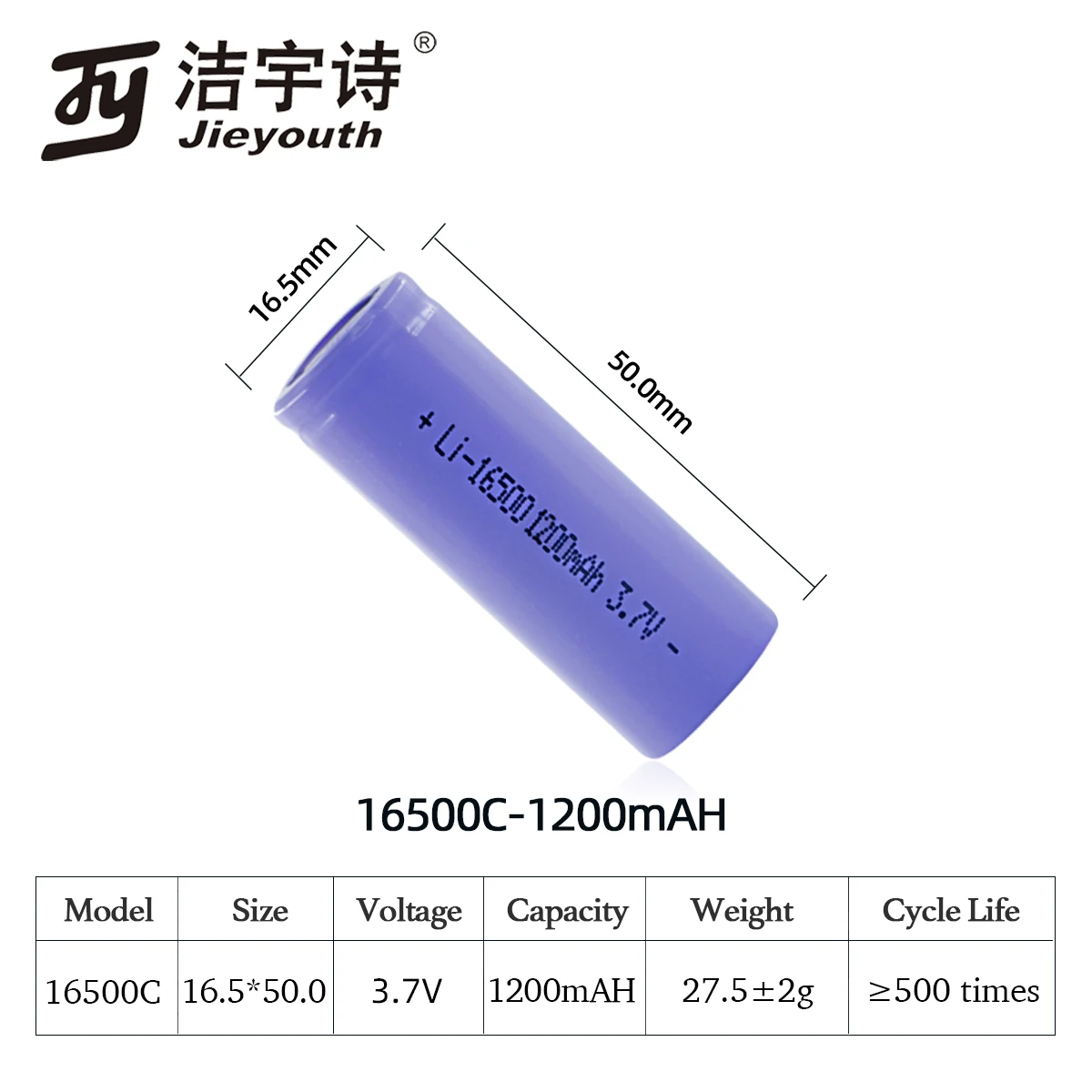

Model | 16500C |
Nominal voltage | 3.7V |
Nominal capacity | 1200mAh |
Diameter | 16.5mm－0.7 |
Height | 50.0mm－0.6 |
Weight | 27.5±2g |
Standard Charge | CC/CV,0.2C5A, 4.20V |
Standard Discharge | CC,0.2C5A, 3.00V |
End-of-charge Voltage | 4.20V±0.05V |
End-of-charge Current | 0.02C5A （At CV mode） |
End-of-discharge Voltage | 3.00V |
Charging Time | 8.0hours（standard charge） |
Quick Charge Current | 1.0C5rate |
Quick Discharge Current | 2.0C5rate |
Maximum instantaneous pulse discharge current | 3.0C5rate |
Initial Impedance | Max:55mΩ |
Operating temperature | Charging： 0℃~45℃ Discharging：-20℃~60℃ |
Storage temperature | -5℃~35℃ |
Storage Humidity | ≤75% RH |
Standard environmental condition | Temperature： 25±2℃ Humidity : 45-75%RH Atmospheric Pressure： 86-106 KPA |
Temperature Dependence of Discharge Capacity | -10℃:50% 0℃:80% 15℃:90% 25℃:100% 40℃:100% |
Cycle Life | ≥500 times |
Related products
Our Company
Dongguan jieyushi battery factory specializes in the production of lithium manganese needle batteries, lithium manganese button batteries, lithium-ion batteries, alkaline batteries and various related assembled batteries. The product quality is extremely guaranteed, high capacity, high leak proof and storage performance are recognized by the industry and customers.

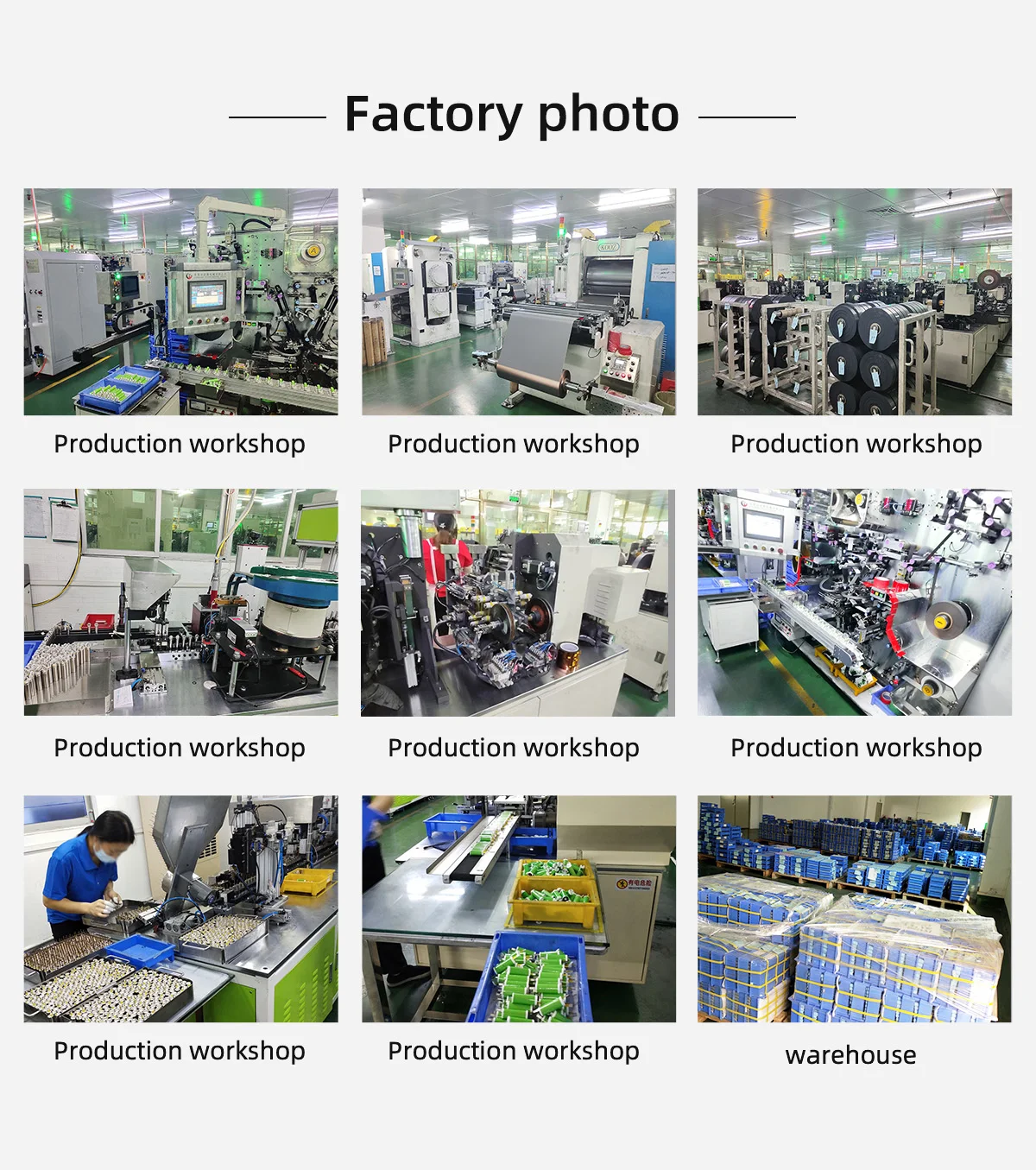

We have three factories, located in Dongguan and Huizhou,and the total plant area is about 20,000 square meters with more than 300 employees.
Our company has a strong ability of production and development innovation. We can develop all kinds of new battery products according to customers' requirements. The company has 20 years of experience in battery quality control, R & D and production. We have several invention patents such as lithium manganese needle battery, Our products can be used in many fields,such as LED Light, Toys, E-cigarettes, Power Bank, Notebook Computers, Consumer Household Appliances, Medical Beauty Equipments, Power Tools, Model Aircraft, Communication Equipments, Energy Storage and other Electronic products.
“ honesty first, quality first”, Welcome friends from all walks of life to inquire and negotiate.
We have three factories, located in Dongguan and Huizhou,and the total plant area is about 20,000 square meters with more than 300 employees.
Our company has a strong ability of production and development innovation. We can develop all kinds of new battery products according to customers' requirements. The company has 20 years of experience in battery quality control, R & D and production. We have several invention patents such as lithium manganese needle battery, Our products can be used in many fields,such as LED Light, Toys, E-cigarettes, Power Bank, Notebook Computers, Consumer Household Appliances, Medical Beauty Equipments, Power Tools, Model Aircraft, Communication Equipments, Energy Storage and other Electronic products.
“ honesty first, quality first”, Welcome friends from all walks of life to inquire and negotiate.
Certificate
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(20.00%),South Asia(15.00%),Eastern Asia(8.00%),North
America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Central
America(5.00%),Western Europe(5.00%),Mid East(5.00%),Oceania(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about
51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Li-ionbattery,pin type lithium battery,lithium button cell battery,Alkaline button cell battery,high votage alkaline batteries,alkaline batteries
4. why should you buy from us not from other suppliers?
Dongguan Jieyouth Electronics Factory proffesional in pin type lithium,lithium button cell battery,Alkaline button cell battery,high votage alkaline batteries,alkaline batteries,OEM battery is available.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2011,sell to Domestic Market(20.00%),South Asia(15.00%),Eastern Asia(8.00%),North
America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Central
America(5.00%),Western Europe(5.00%),Mid East(5.00%),Oceania(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about
51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Li-ionbattery,pin type lithium battery,lithium button cell battery,Alkaline button cell battery,high votage alkaline batteries,alkaline batteries
4. why should you buy from us not from other suppliers?
Dongguan Jieyouth Electronics Factory proffesional in pin type lithium,lithium button cell battery,Alkaline button cell battery,high votage alkaline batteries,alkaline batteries,OEM battery is available.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
