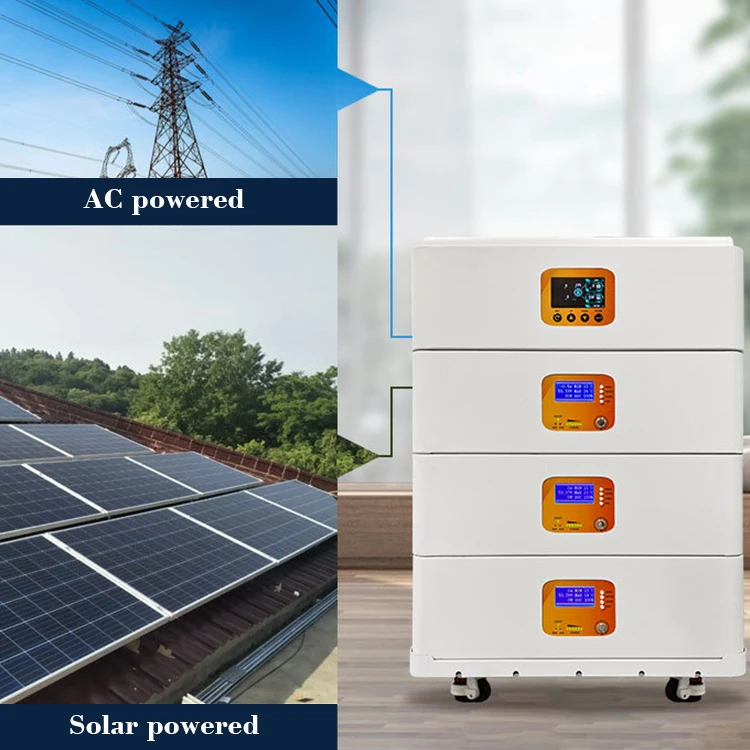

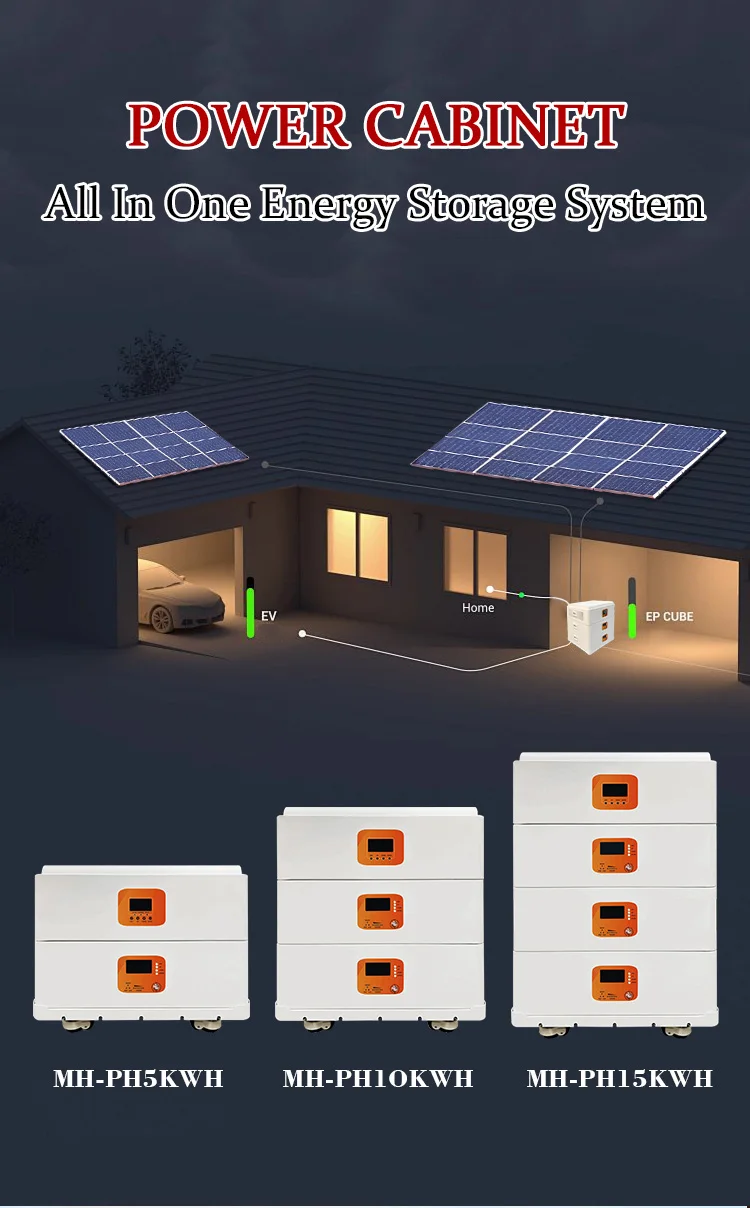

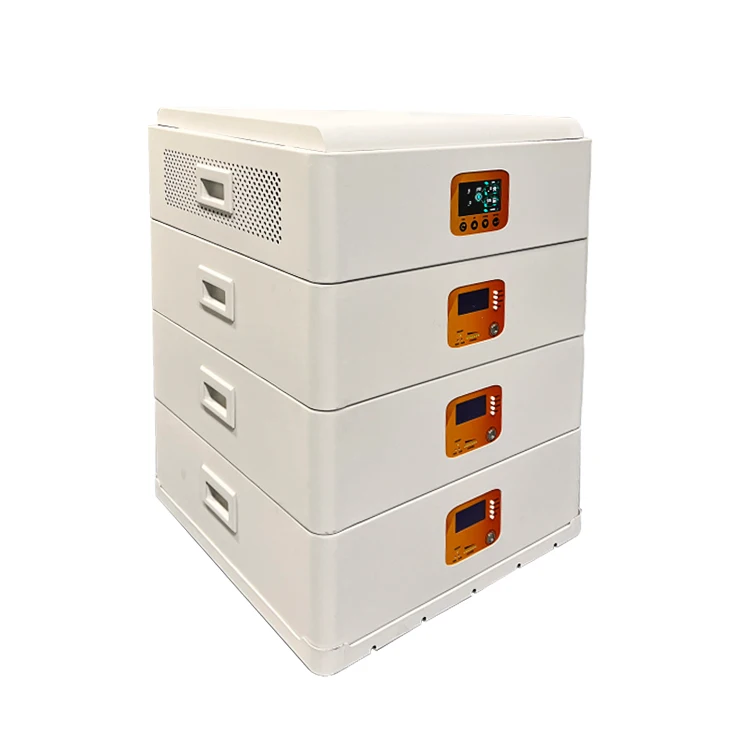

Solar Power Hybrid All in One Smart BMS 5KWH 10KWH 15KWH Hybrid Home Energy Storage System for Sale
- Category: >>>
- Supplier: Minghui Lighting Co. Ltd.
Share on (1601280547028):
Product Overview
Description
Product Description
COMPREHENSIVE PARAMETERS | |||

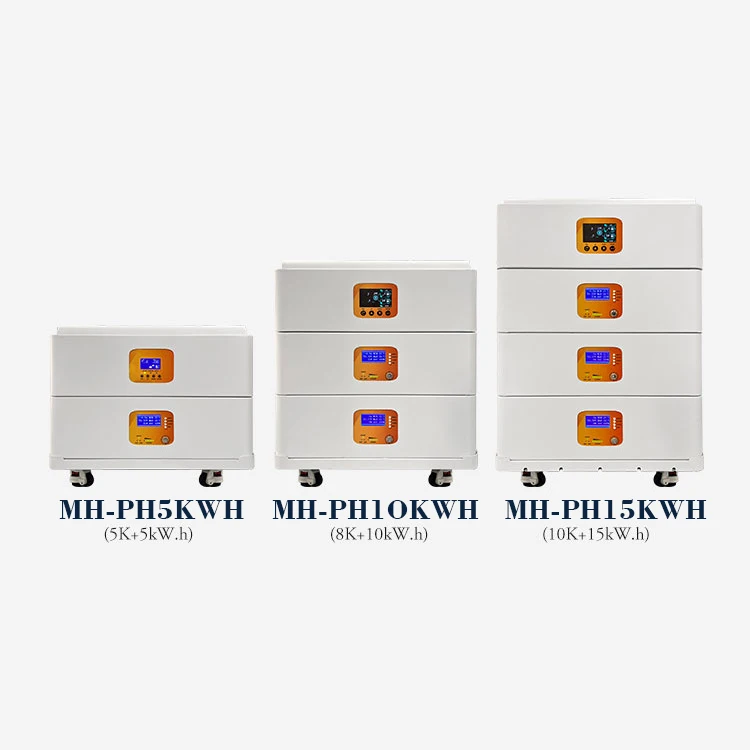

| Item | 5KWH | 10KWH | 15KWH |
Battery Voltage | 40V~58.4V | ||
Storage Capacity | 5120WH | 10240WH | 15360WH |
Weight | 130KGS | 222KGS | 285KGS |

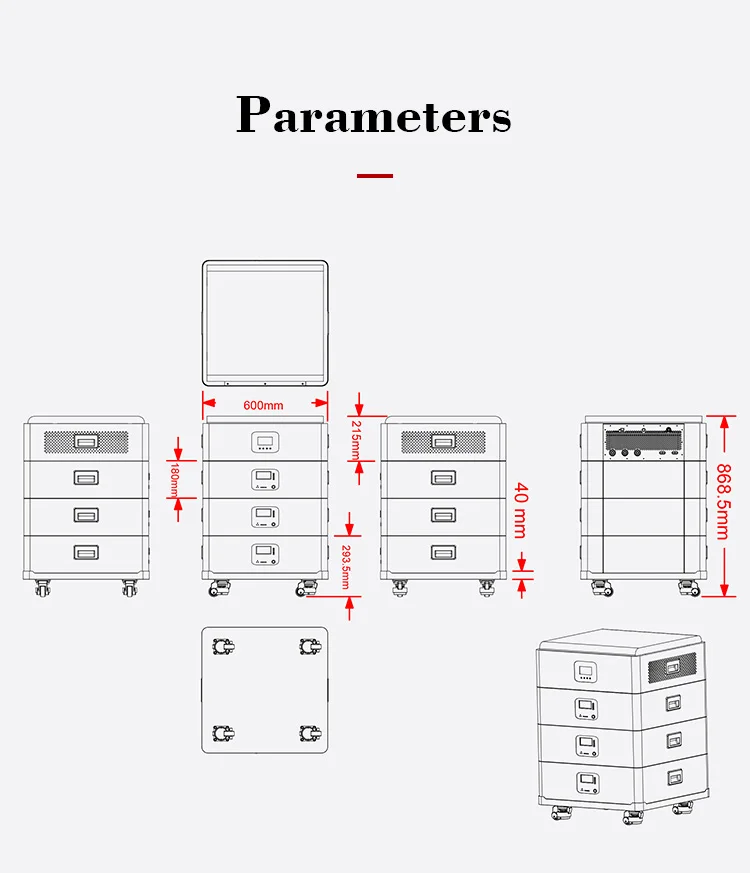

External Dimension(mm) | 830*600*210 | 1150*600*210 | 600*600*850 |
Warranty | 3 Years | ||
Type of batter | LiFePO4 | ||
Capacity | 102Ah | ||
Battery Cycle Life | 4000 | ||
Modular Structure | 1P16S | 1P16S*2 | 1P16S*3 |
Capacity for assembled cell discharging by 0.2C | ≥100Ah | ||
Standard Charge Condition | Charge with 0.5C constant current and 58.4Vconstant voltage, charge to 58.4V,continue charging till current declineto ≤0.01C | ||
Maximum Charge Current | 100A | ||
Maximum Discharge Current | 100A | ||
Internal Resistance | ≤80mΩ Assemblage Impedance | ||
Cycle Life | ≥4000@25℃,80%EOL | ||
Recommend Charging Temperature | 0℃~50℃ | ||
Recommend Discharging Temperature | -15℃~50℃ | ||
Storage Temperature | -15℃~50℃ | ||
Humidity | 0-90% | ||
Maximum Altitude | 3000m | ||
FUNCTIONAL CONFIGURATION | |||

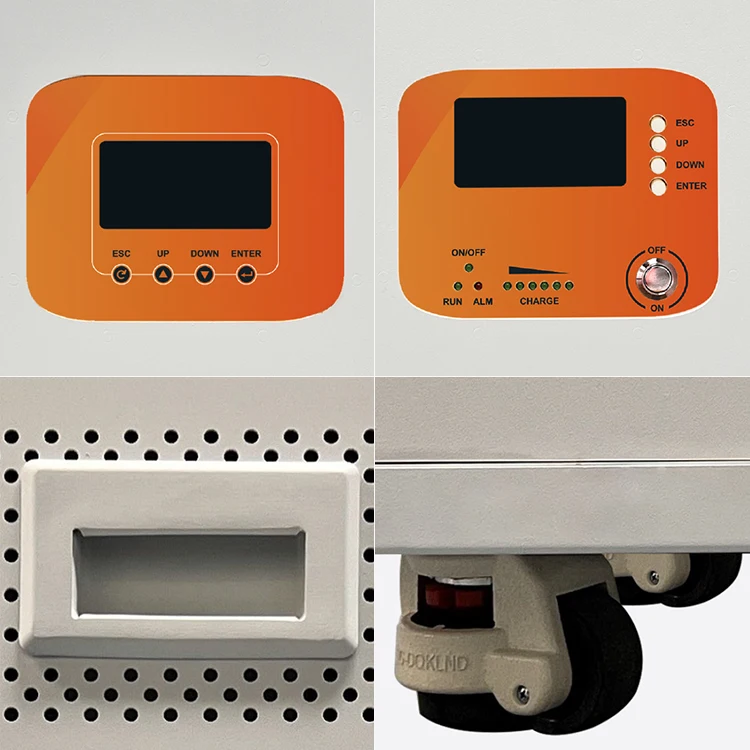

LED Panel | YES | ||
Communication | RS485,CAN,RS232 | ||
IP Rating | IP21 | ||
Inverter | 5KW | 8KW | 15KW |
LED Power Display | Traficc Light Display | ||
BMS Control | |||
Package Size (mm) | Inverter : 675*395*275 ; Battery : 675*515*265 ; Base : 610*220*95 | ||
CERTIFICATION | |||
Safety | IEC62109-1, IEC62109-2,UL1741 | ||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||
RoHS | Yes | ||
Company Profile
Packaging & Shipping
1.Standard export packaging for all customers.
2.Special packaging instruction is also welcomed, but with different cost.
3. DHL / FedEx / UPS / TNT, Door-to-Door.
4. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving.
5. Your designated forwarders are welcomed.
FAQ
1. Samples free?
Sample costs will be returned back after bulk order confirmed.
2. What is the MOQ?
Sample orders are acceptable.
3. Payment term?
T/T, Paypal and Western Union is available.
4. Delivery time?
Samples are in stock, bulk order can be delivered in 10-20 working days
counted from deposit received date.
5. Customized color box?
Welcomed.
6. How about after sales service?
Six hours highlow voltage aging test before packing. <1% bad lamp.
Bad lamp can be replaced with a new one requiring photos or video by emails once approved.
