GPS sync Dry contact alarm LED ICAO Medium Intensity Type B aircraft warning light For Telecom Tower
- Category: >>>
- Supplier: Hunan Chendong Technology Co. Ltd.
Share on (1601280555651):
Product Overview
Description
Aircraft Warning Light For Telecom Tower
It is PC and steel omnidirectional red LED aviation obstruction light. It is used to remind pilots that there are obstacles at night, and to pay attention in advance to avoid hitting obstacles.
Application
Suitable for installation on fixed buildings and structures, such as power towers, communication towers, chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles to warn aircraft.
Product Description
Key Feature
* Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 92%, quite high impact resistance and fits the bad environment very well.
* Holder of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
* Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.
* Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environmental protection.
* Holder of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
* Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.
* Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and environmental protection.
* Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller.
* Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.
* Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
* The circuit of the light has surge protection, so that the light is suitable for a harsh environment.
* Integral structure, protection level of Ip66.
* GPS synchronizing function is available.
* Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.
* Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
* The circuit of the light has surge protection, so that the light is suitable for a harsh environment.
* Integral structure, protection level of Ip66.
* GPS synchronizing function is available.

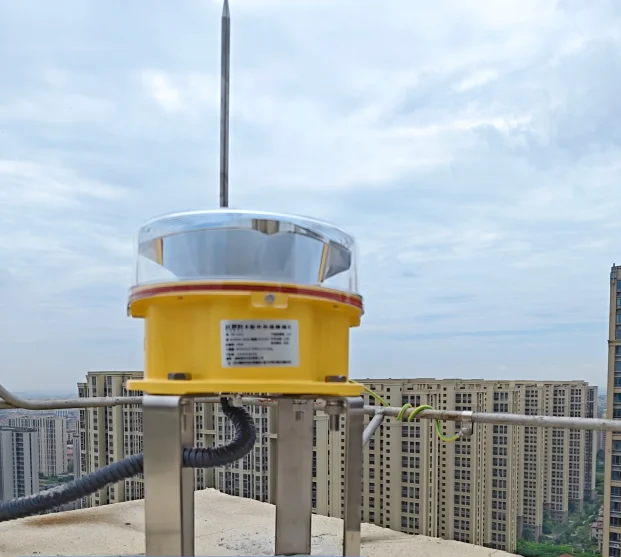

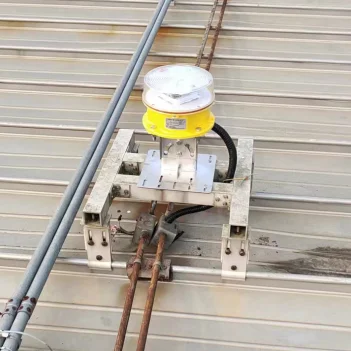

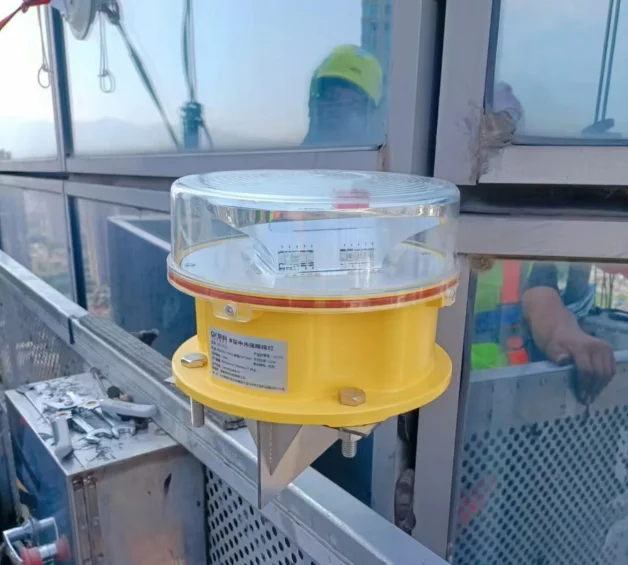

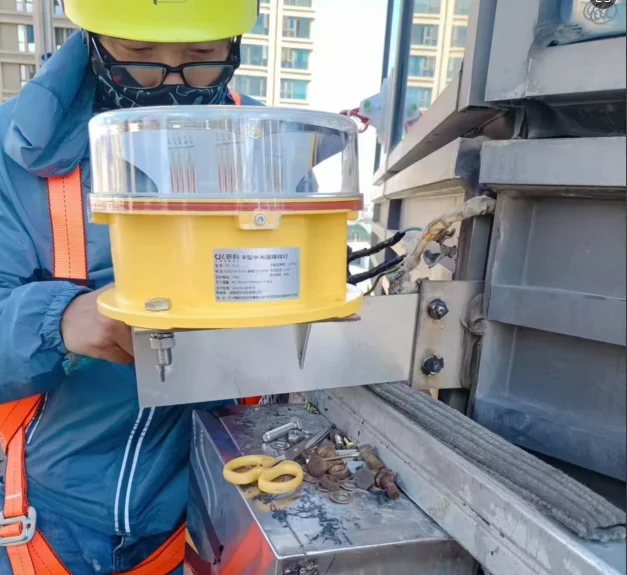

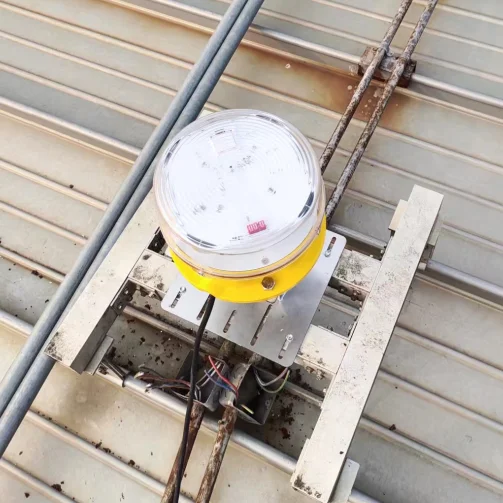

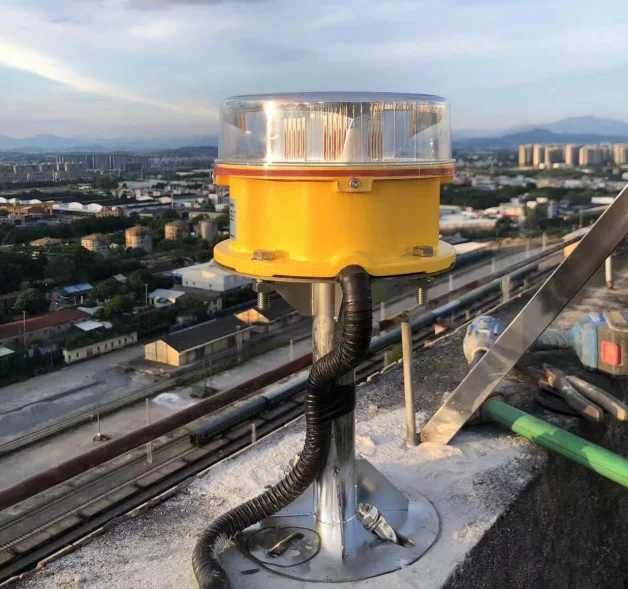

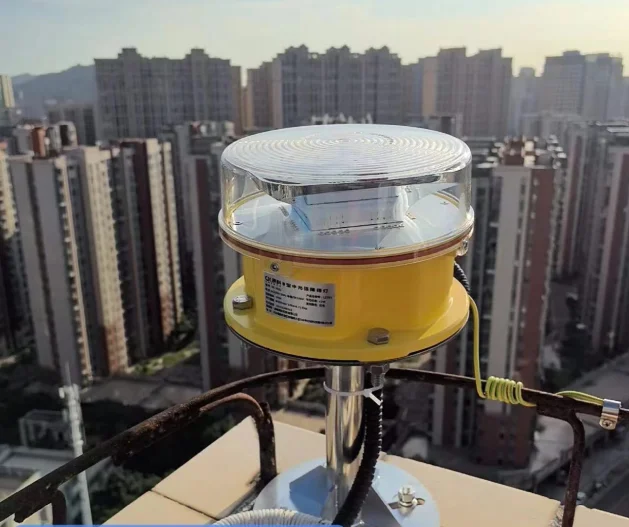

Project Picture
Production Parameter
Light Characteristics | Physical Characteristics | ||||
Light source | LED | Body/Base Material | Aluminum Alloy, aviation yellow painted | ||
Color | Red | Lens Material | Polycarbonate UV stabilized,good impact resistance | ||
Lifespan of LED | 100,000hours | Overall Dimension(mm) | Ф210mm×140mm | ||
Light intensity | 2000cd at night | Mounting Dimension(mm) | 126mm×126 mm -4×M10 | ||
Photo sensor | 50Lux | Weight | 1.9kg | ||
Flash frequency | Steady / Flash | Environmental Factors | |||
Beam Angle | 360° horizontal beam angle | Ingress Grade | IP66 | ||
≥3°vertical beam spread | Temperature Range | -55℃ to 55℃ | |||
Ordering Code
Main P/N | Type | Power | Flashing | NVG Compatible | Options |
CK-15 | [Blank]:2000cd | AC:110VAC-240VAC | Type C :Steady | [Blank]:only Red LEDS | P:Photocell |
CK-16 (Blue Bottom) | DC1:12VDC | F20: 20FPM | NVG:only IR LEDs | G: GPS | |
CM-13 (Red Color Lamp Cover) | DC2:24VDC | F30:30FPM | RED-NVG:dual Red/IR LEDs | D:Dry Contact (connect BMS) | |
DC3:48VDC | F40:40FPM |
