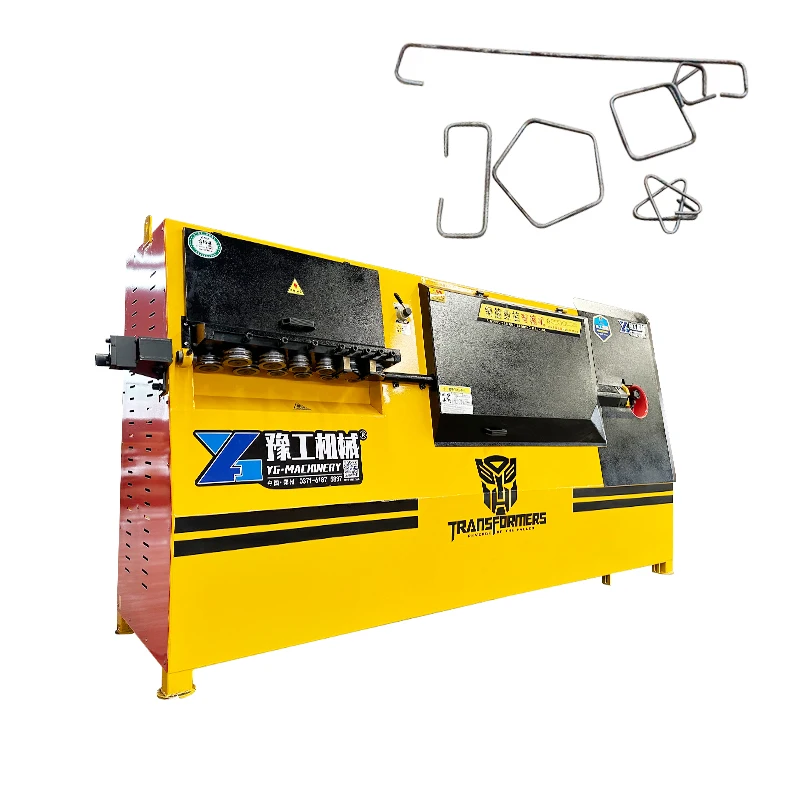

Stirrup wire steel bar bending machine fully automatic stirrup bending machines
- Category: >>>
- Supplier: Zhengzhou Yugong Construction Machinery Co. Ltd.
Share on (1601280569986):
Product Overview
Description
Specification
Automatic stirrup bending machine (hydraulic cutting ) | ||||||
Processing diameter (single ) | 4-10mm round bar4-8mm rebar | Processing diameter (Double) | 4-8mm round bar4-6mm rebar | |||
Bending angle | 180 degree | Center pin diameter | 16.18.20 | |||
Maximum towing speed | 60m/min | Shape of stirrup | ≥100 types | |||
Maximum bending speed | 800 degree / second | Working temperature | -5 ℃-40 ℃ | |||
Size | 2600*880*1700mm | Length accuracy | ±1mm | |||
Weight | 1150 kg | Angle accuracy | ±1degree | |||
Color | Yellow (customized ) | Average power consumption | 4.5kw/h | |||
Processing pieces | ≤2 pieces at same time | Total power | 14.3kw | |||
Product Description

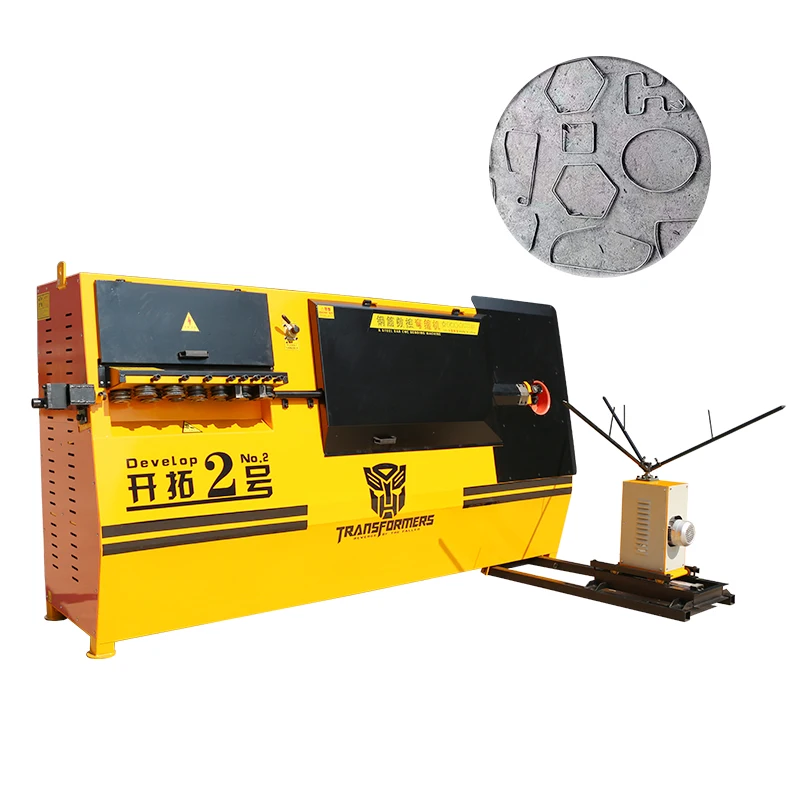

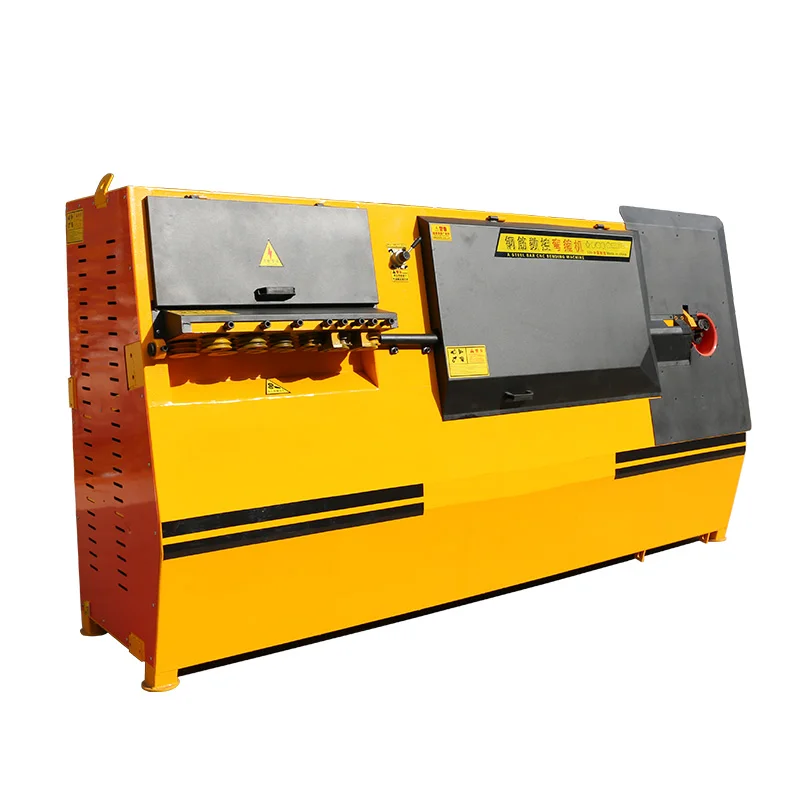

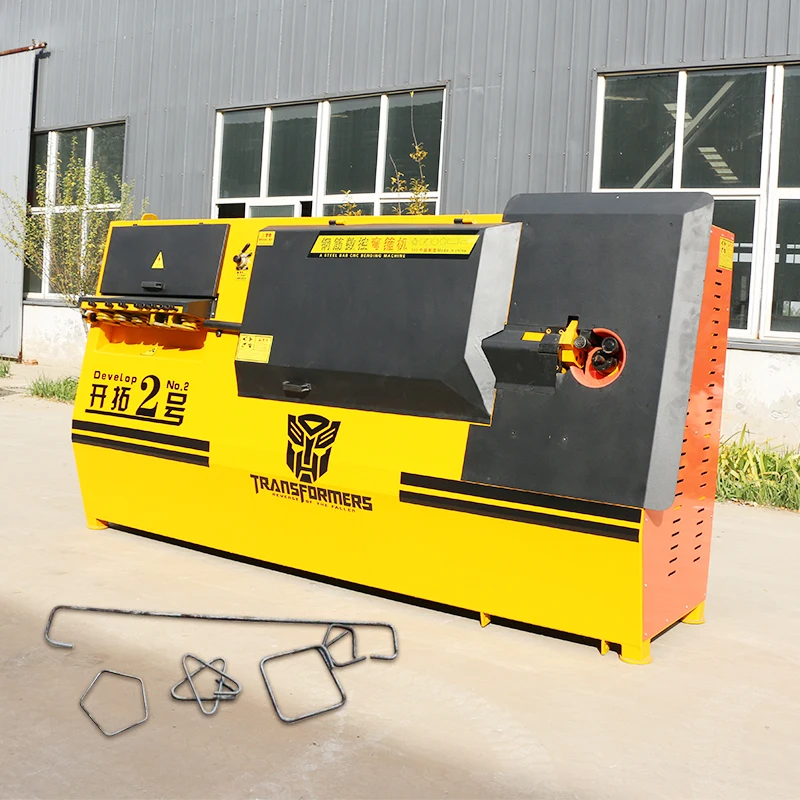

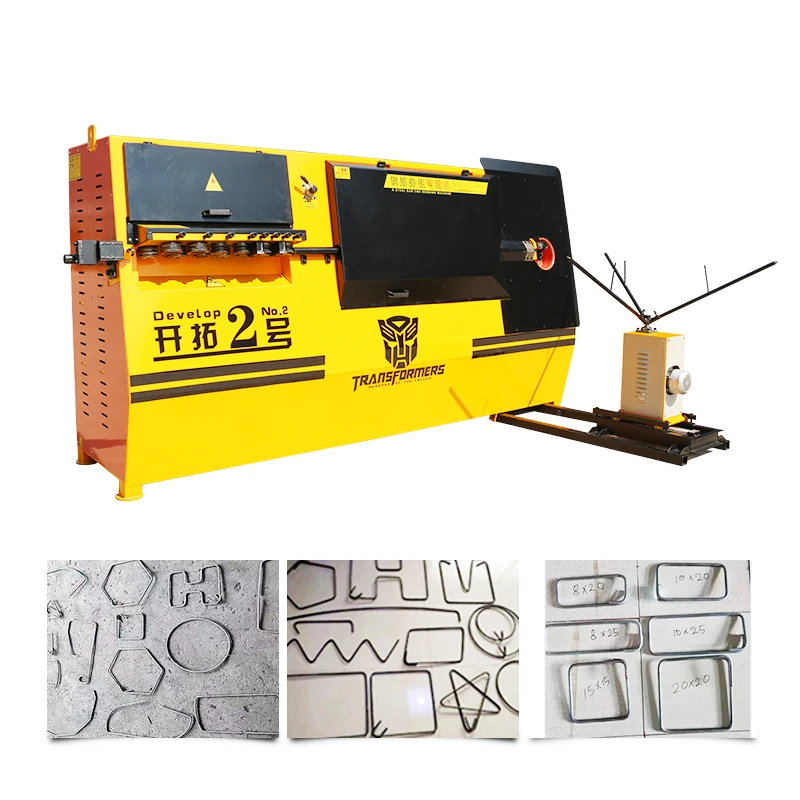

CNC automatic stirrup bending machine
1. Frictional progressive feeding mechanism with high accuracy and no harm to steel bar rib.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter diameter.
7. Bending scope of coiled steel bar ranges from 4mm to 10mm.
8. Synchronous belt drive with high accuracy and low cost of maintenance.
9. Hydraulic Controlling system.
2. The benders apply double line feeding system, which can greatly increase the productivity and reduce the labor intensity.
3. With the function of quick back and forth bending, the double vane bending die has improved its bending performance.
4. Powerful hydraulic shearing mechanism with good reliability.
5. The powerful memory database provides hundreds of shapes for using.
6. Quick-adjusting system has the function of machine diameter diameter.
7. Bending scope of coiled steel bar ranges from 4mm to 10mm.
8. Synchronous belt drive with high accuracy and low cost of maintenance.
9. Hydraulic Controlling system.
Packing & Delivery
Company Profile
FAQ
1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free. You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free. You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
