High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine
High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine
High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine
High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine
High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine
High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine
High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine

High quality Plastic bottle film packing bag, plastic casing crushing strong crusher machine

Share on (1601280585801):


Price:$4,100.00

Quantity:


Product Overview

Description



Product Overview

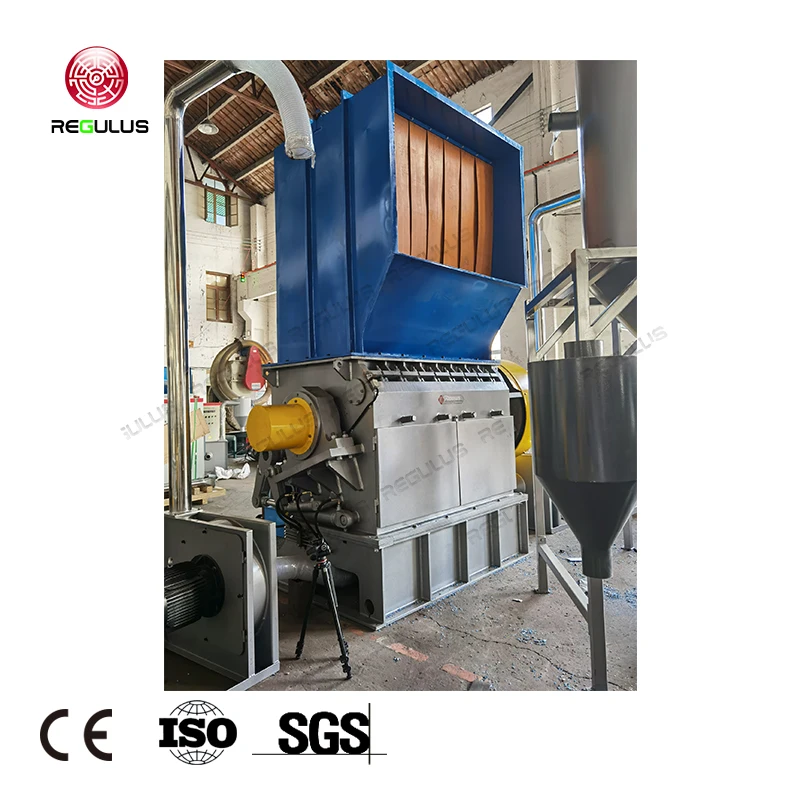

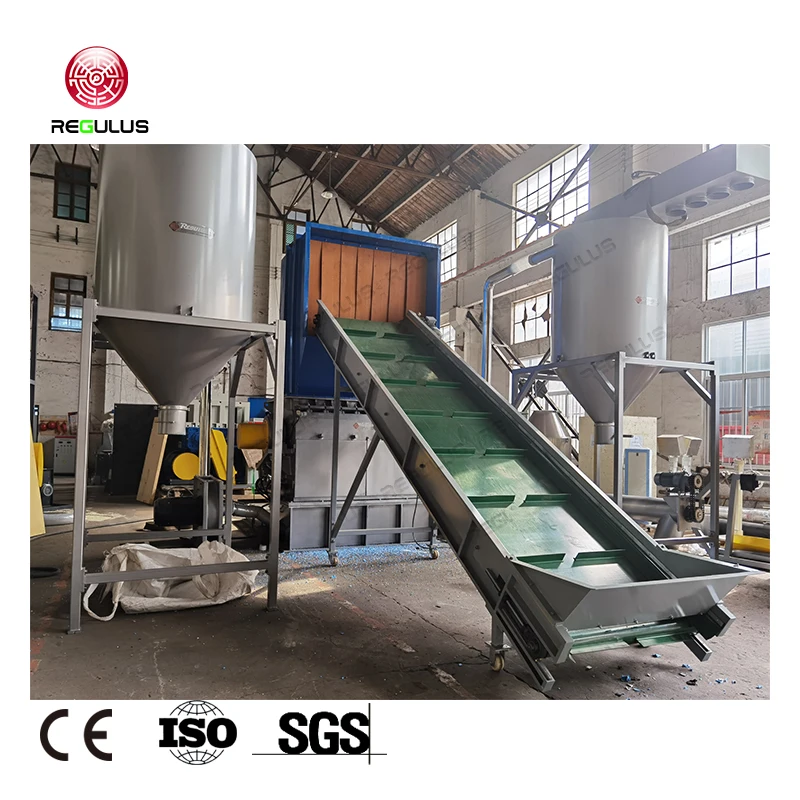

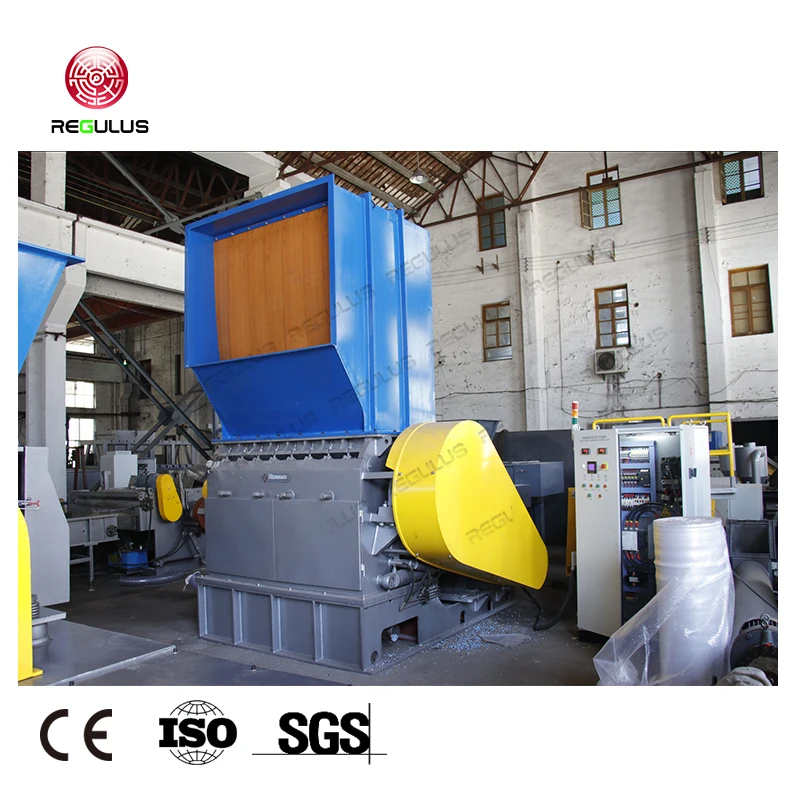

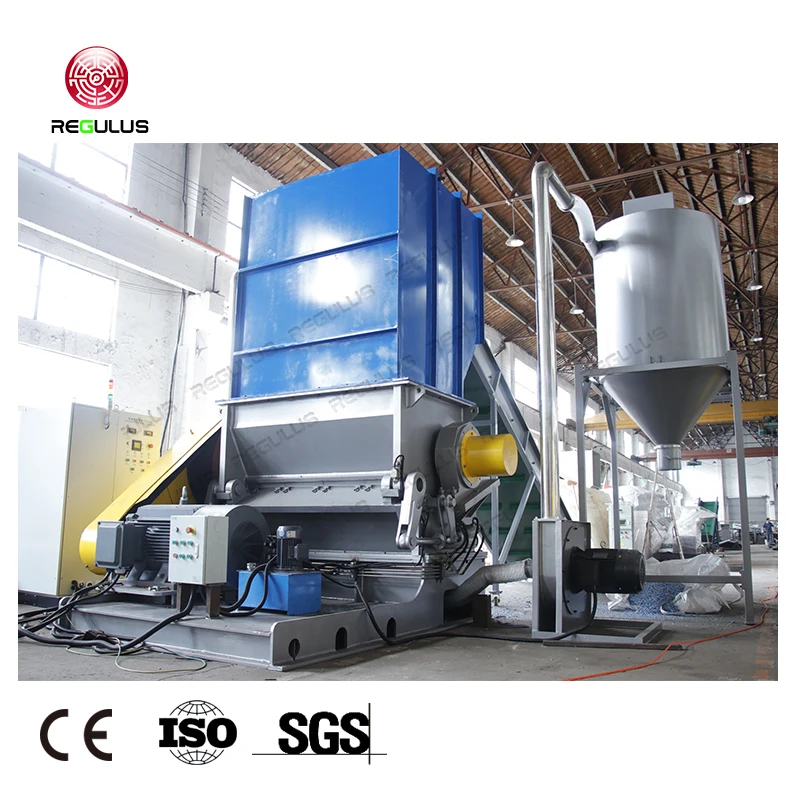

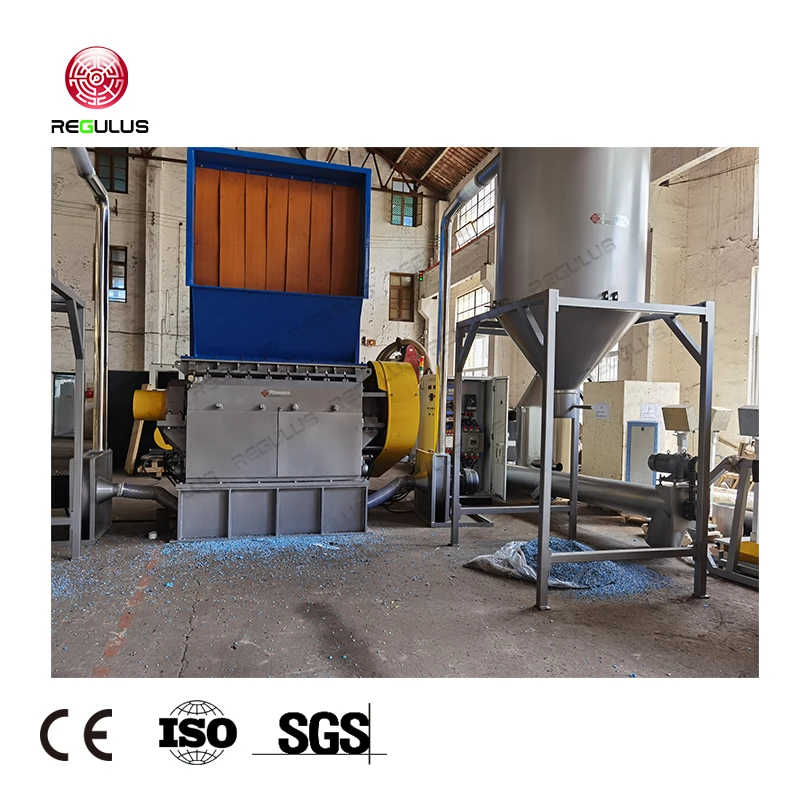

Plastic Granulator Crusher

The Plastic Granulator Crusher has PC series and SWP-SERIES.They are heavy duty, high speed precision granulation machines designed for the rapid size reduction of various types of material in a single pass. The material is cut cleanly between the rotor and fixed knives, and cut down to a regrind size determined by the screen holes on the fitted screen.


Applications:
1. Plastics:molding, profiles, films, etc.
2. Rubber: tire, rubber, rubber products, etc.
3. Paper and paperboard - confidential documents, production waste, packaging materials, etc.
4. Copper cables - household, telecommunication and industrial cables, including s.w.a.
5. Textiles - carpets (rolls and tiles), etc.
6. Foam - production waste, etc.



Ton Bags
Films
Plastic Lump




Product Description


Motor
Blade
electrical cabinet


Screen
Rotor
Hopper


Specification


SMALL & MEDIUM GRANULATOR

The PC26-PC52 range of crushers is our conventional range of small to medium size crushers.
The body of the machine is made of welded by rigid steel structure.
Suitable for processing a wide range of materials including: plastic lump, sheet, plastic film, rubber, etc.




Model
PC3260
PC3280
PC4280
PC42100
PC52100
Dimension L*W*H(mm)
1600*1450*1790
1600*1650*1790
1800*1750*2450
1800*1950*2450
2000*2150*3200
Cutting chamberA*B（mm）
600*320
800*320
800*420
1000*420
1000*520
Feeding port height C (mm)
1450
1450
1800
1800
2200
Rotor Diameter（mm）
320
320
420
420
520
Main Shaft Speed（r/min)
580
580
530
530
462
Screen Mesh（mm）
14
14
14
14
14
Rotor-knives（PCS）
18
24
24/6
30/6
30/6
Stator-knives（PCS）
4
4
4
4
4
Main Motor Power（kw）
22
30
37
45
55
Weight(kg)
1480
1680
2880
3550
4650


HEAVY-DUTY GRANULATOR

The PC52-PC80 range of crushers is our large range of crushers, it is design for recycling the hard and thickness materials,such as proximate matter tubes, large size solid materials, defective products etc.




Model
PC25120
PC66120
PC66160
PC80160
Dimension L*W*H(mm)
2000*2350*3200
2450*2250*3750
2450*2750*3750
2800*2950*4100
Cutting chamber/D（mm）
1000*520
1200*660
1600*660
1600*800
Feeding port height C (mm)
2200
2650
2650
2800
Rotor Diameter（mm）
520
660
660
800
Main Shaft Speed（r/min)
462
415
415
415
Screen Mesh（mm）
14
14
14
14
Rotor-knives（PCS）
6
6/10
12/20
12/20
Stator-knives（PCS）
4/6
6
8
8
Main Motor Power（kw）
55/75
90/110
132
132/160
Weight(kg)
5120
7650
9650
11500


SWP-SERIES GRANULATOR

The SWP crusher is range of crushers, it is design for shredded machine head materials and pipes. Plastic objects with a wall thickness of less than 10 mm,etc.The material is cut cleanly between the rotor and fixed knives, and cut down to a regrind size determined by the screen holes on the fitted screen.




Model
SWP400
SWP500
SWP600
Dimension L*W*H(mm)
2200*900*1800
2200*1050*2100
2400*1300*2300
Cutting chamber/D（mm）
400*400
500*500
600*660
Feeding port height C (mm)
1500
1600
1800
Rotor Diameter（mm）
400
500
660
Main Shaft Speed（r/min)
462
415
415
Screen Mesh（mm）
14
14
14
Rotor-knives（PCS）
12
15
18/6
Stator-knives（PCS）
2
2
2/4
Main Motor Power（kw）
15/22
22/30
45/55
Weight(kg)
1500
1900
2800


Company Profile


Regulus machinery is professional development manufacturing plastic extrusion and recycling equipment suppliers, the use of science and technology with the "Human Element" to conatantly improve products to progress, to more than 80 countries and regions offer a wide range of products and services.We have to "become the world's top industry suppliers" for the vision, the spirit of the firm creed we best meet the market demand, while also continue to strengthen our competitiveness. With our many years of experience in technology, research and development capabilities, manufacturing process and mold technology to serve customers for the purpose, in the design and manufacture of products reflects the suitability of customer feedback and market.




Certifications




Packing and Delivery




COOPERATION BRAND




SALES AND SERVICE NETWORK




FAQ


1.Who are we?
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Africa(15.00%),Southeast Asia(10.00%),North America(10.00%),South America(9.00%),Eastern Asia(8.00%),Mid East(6.00%),Northern Europe(6.00%),Eastern Europe(6.00%),South Asia(4.00%),Oceania(2.00%),Central America(2.00%),Western Europe(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Waste plastic recycling machine,plastic extruder, plastic pipe profile extrusion machine,plastic agglomerator,plastic shredder

4.Why should you buy from us not from other suppliers?
ZHANGJIAGANG REGULUS MACHINERY Co., Ltd. is a group company. We are a professional manufacturer of plastic recycling machines and plastic extrusion lines. We devote ourselves to the development,research and production of plastic machinery in China.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Russian
