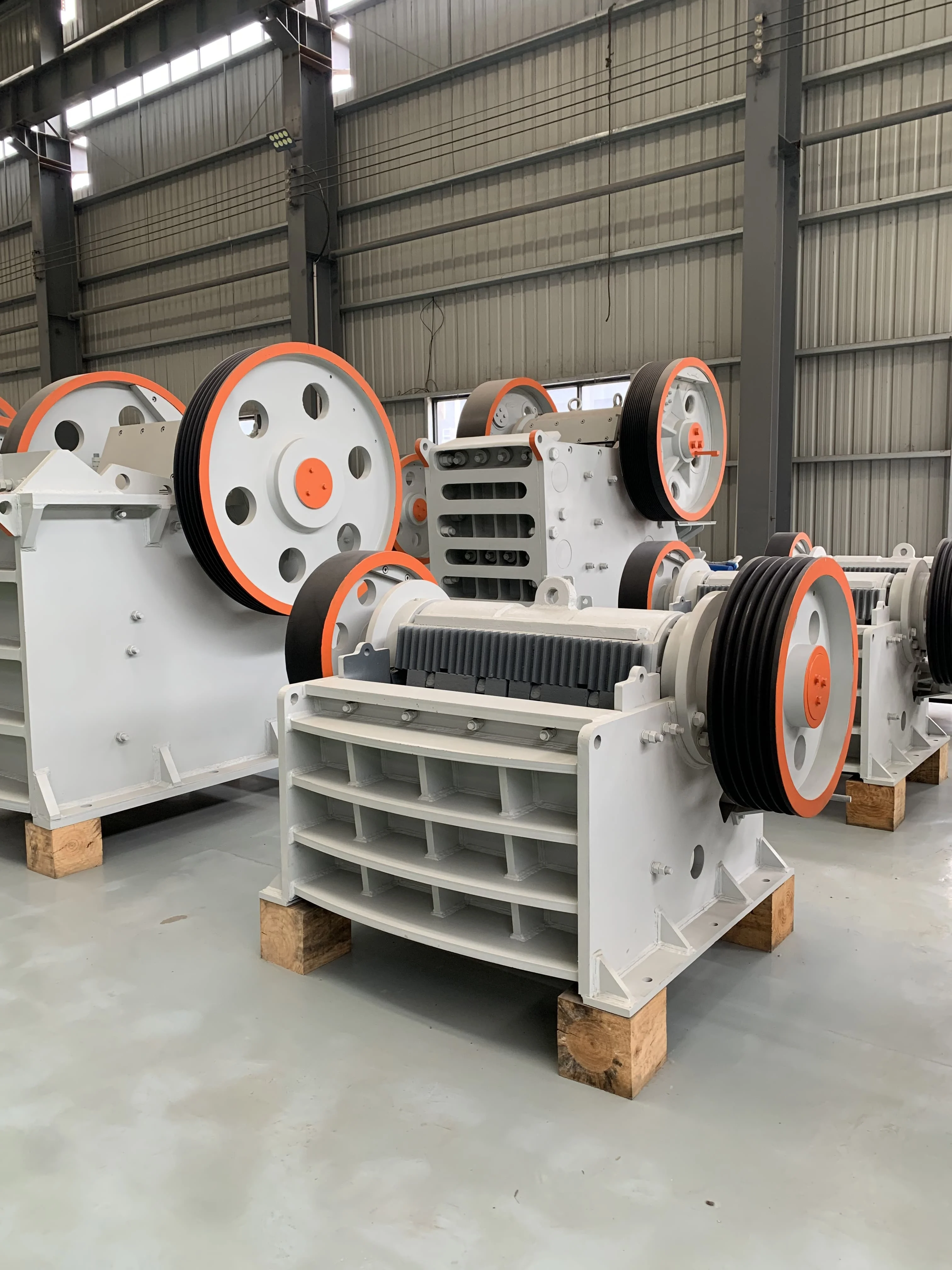

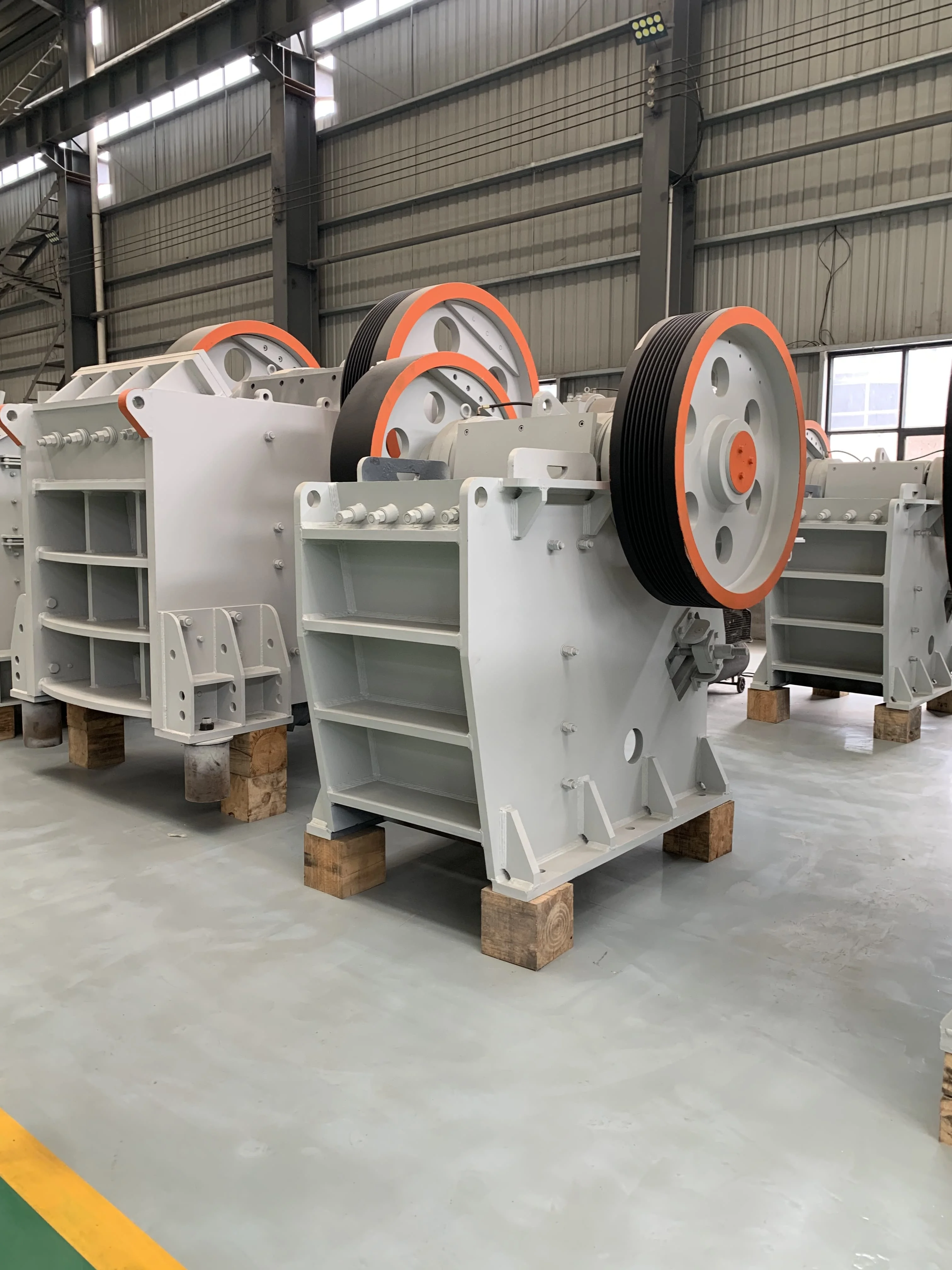

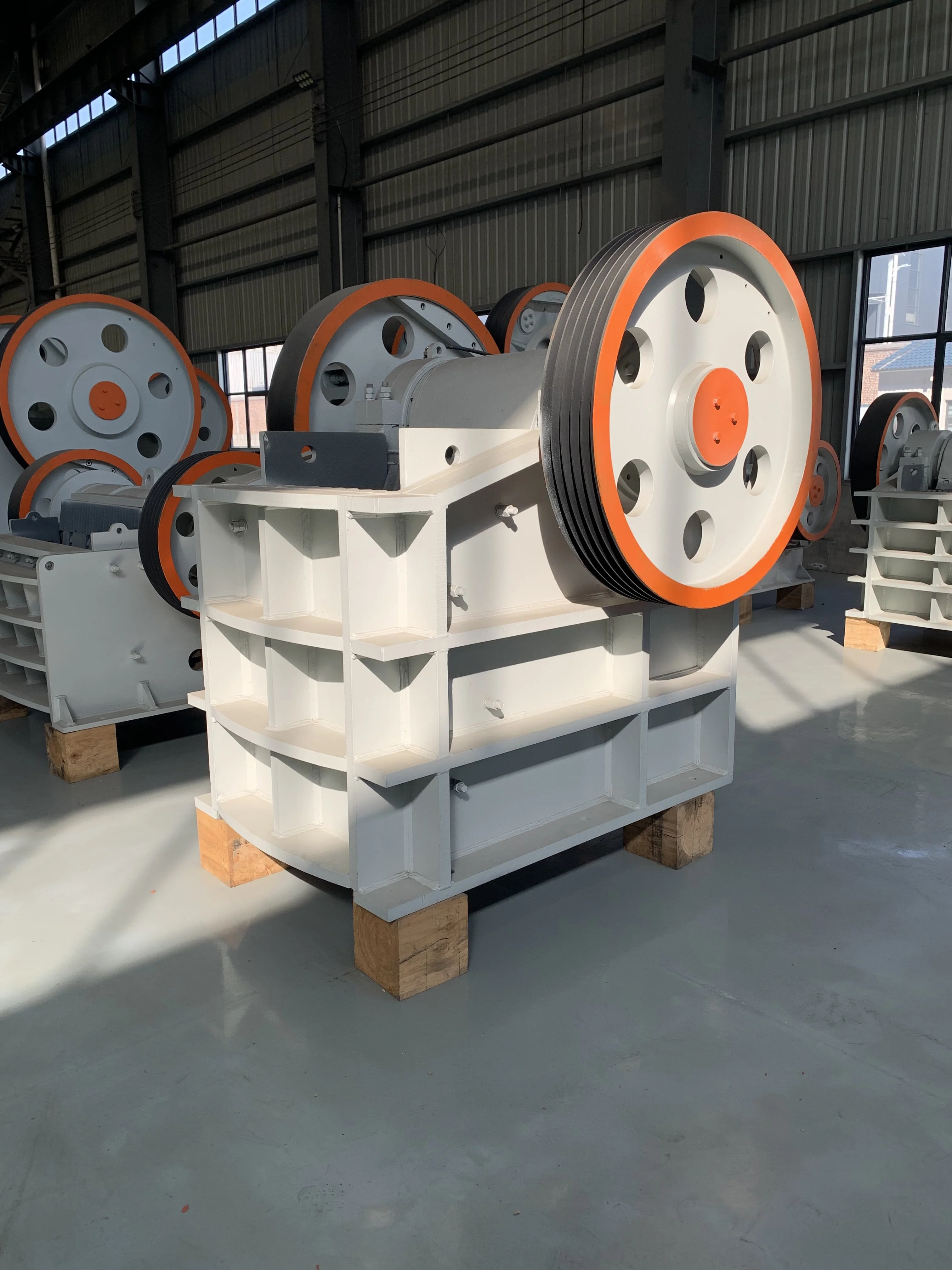

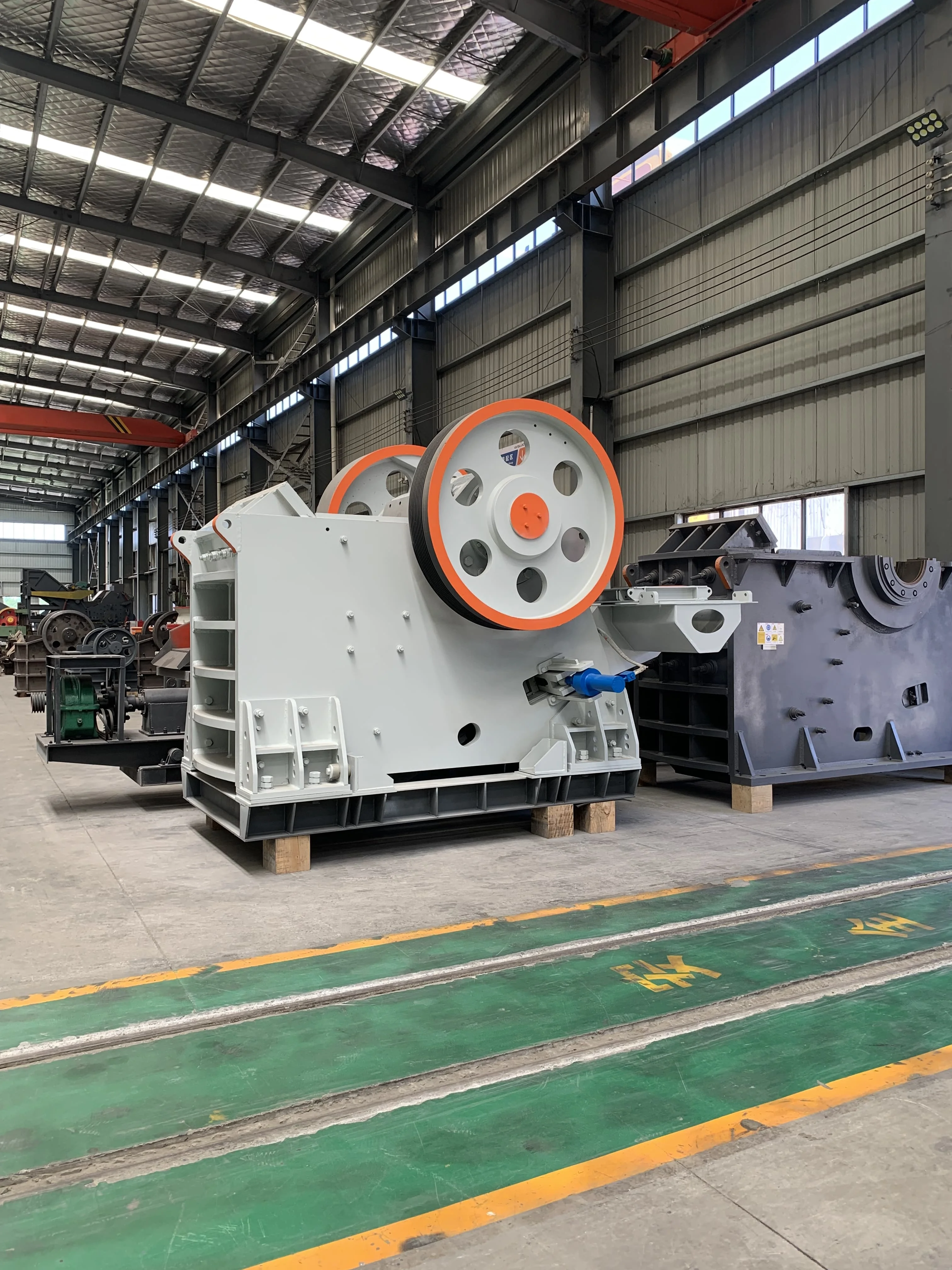

PE500*750 Jaw Crusher
- Category: >>>
- Supplier: Henan Xuefu Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601280653868):
Product Overview
Description
Recommend Products
Jaw Crusher
Jaw crusher is suitable for 350 MPa material crushing in mining, rock, chemical, and other industries Primary crushing of large materials to small size.

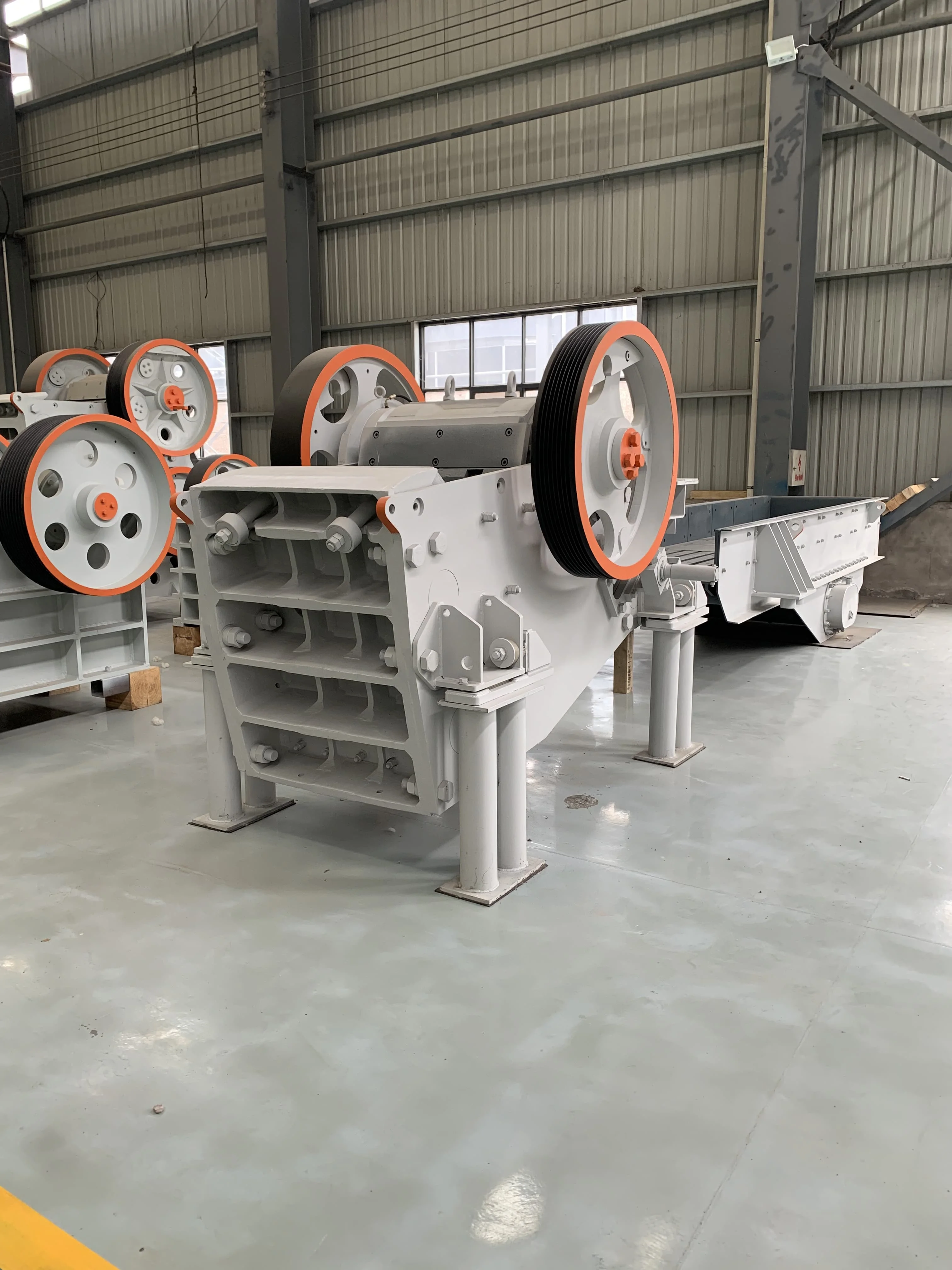

Steel frame version jaw crusher
The small jaw crusher can be designed as a steel frame version, free of concrete foundation.
Available with electric motor or diesel engine as power source
Various models with capacities from 1-60 tons per hour
Available with electric motor or diesel engine as power source
Various models with capacities from 1-60 tons per hour
Mobile Jaw Crusher
Customizable mobile version of many types of jaw crusher
1-350 tons per hour capacity
Mobile jaw crusher with tire version
Crawler Jaw Crusher
Mobile Jaw Crusher with Frame
With feeder, conveyor, or complete production line
1-350 tons per hour capacity
Mobile jaw crusher with tire version
Crawler Jaw Crusher
Mobile Jaw Crusher with Frame
With feeder, conveyor, or complete production line
Product Paramenters
Title goes here.
Jaw crusher is suitable for applying to the fields of mining, metallurgy, building materials, etc. It is able to deal with medium size crushing of all kinds of ores and large materials.
When the jaw crusher is working, the power source drives the pulley and eccentric shaft to reciprocate, and the jaws are spaced apart to extrude the crushing operation.
model number | Motor power | Material mouth | hourly rate | External dimensions | weight | |||||||
kw | Feed inlet | Discharge port | t/h | mm | kg | |||||||
mm | mm | |||||||||||
PE60*100 | 1.5 | 60*100 | 3-10 | 0.01-0.02 | 370×210×270 | 35 | ||||||
PE100*250 | 2.2 | 100*250 | 5-30 | 0.3-0.8 | 580×440×510 | 470 | ||||||
PE150*250 | 5.5 | 150*250 | 10-30 | 0.5-1.2 | 720×660×850 | 710 | ||||||
PE200*300 | 7.5 | 200*300 | 10-40 | 0.8-1.6 | 910×750×990 | 830 | ||||||
PE200*350 | 11 | 200*350 | 20-40 | 2-5 | 1000×870×990 | 1280 | ||||||
PE250*400 | 15 | 250*400 | 20-40 | 8-20 | 1300×1090×1270 | 1600 | ||||||
PE300*500 | 22 | 300*500 | 30-60 | 15-30 | 1530×1630×1430 | 3200 | ||||||
PE400*600 | 30 | 400*600 | 40-100 | 20-50 | 1730×1730×1630 | 5500 | ||||||
PE500*750 | 55 | 500*750 | 50-120 | 35-90 | 1980×2080×1870 | 8800 | ||||||
PE600*900 | 75 | 600*900 | 60-165 | 75-150 | 2190×2206×2300 | 14500 | ||||||
PE750*1060 | 110 | 750*1060 | 80-190 | 110-280 | 2660×2430×2800 | 23000 | ||||||
PE870*1060 | 132 | 870*1060 | 90-220 | 160-380 | 2720×2640×2950 | 35000 | ||||||
PE900*1200 | 160 | 900*1200 | 95-230 | 250-450 | 3380×2870×3330 | 42000 | ||||||
PE1000*1200 | 200 | 1000*1200 | 100-250 | 300-580 | 3520×2960×3450 | 57000 | ||||||
PE1200*1500 | 220 | 1200*1500 | 120-330 | 450-900 | 4200×3300×3500 | 88000 | ||||||
PE1500*1800 | 280 | 1500*1800 | 160-420 | 600-1300 | 51603660×4248 | 138000 | ||||||
Fine Jaw Crusher | ||||||||||||
PEX100*600 | 7.5 | 100*600 | 10-30 | 2-8 | 760×1130×630 | 800 | ||||||
PEX150*750 | 15 | 150*750 | 20-40 | 5-20 | 1200×1530×1060 | 1700 | ||||||
PEX250*1000 | 30 | 250*1000 | 25-65 | 15-40 | 1560×1950×1390 | 4600 | ||||||
PEX250*1200 | 37 | 250*1200 | 25-65 | 20-60 | 2140×1660×1500 | 7500 | ||||||
PEX300*1300 | 55 | 300*1300 | 35-80 | 40-100 | 2320×1950×1600 | 8600 | ||||||
PEX500*1500 | 110 | 500*1500 | 55-150 | 50-150 | 2450×2070×1880 | 13800 | ||||||
Details Images
Jaw crusher sectional structure diagram
Casting high manganese steel wear-resistant tooth plate
.Casting high manganese steel wear-resistant liner
Product packaging
According to the selected jaw crusher model corresponding to the size of the corresponding board packing or direct container and spare parts list, accessory list with the payment.
Different jaw crusher combinations of different models or configurations correspond to corresponding sizes and packaging
Why Choose Us
Company Profile
Henan Xuefu Machinery Equipment Co.
Engaged in building materials processing production equipment industry for many years, the main products are
Building Material Processing Machinery: Jaw Crusher, Impact Crusher, Cone Crusher, Vibrating Feeder, Mobile Crusher, Vibrating Screen, Ball Mill, Hammer Sand Making Machine, Grinding Mill, etc.
Building material processing machinery: block molding machine, free-burning brick machine
Edible Oil Processing Machinery: Screw Oil Press Hydraulic Oil Press Olive Oil Press Rapeseed Oil Press Peanut Oil Press Refining Oil Production Line
Manufacturing of machined parts
Engaged in building materials processing production equipment industry for many years, the main products are
Building Material Processing Machinery: Jaw Crusher, Impact Crusher, Cone Crusher, Vibrating Feeder, Mobile Crusher, Vibrating Screen, Ball Mill, Hammer Sand Making Machine, Grinding Mill, etc.
Building material processing machinery: block molding machine, free-burning brick machine
Edible Oil Processing Machinery: Screw Oil Press Hydraulic Oil Press Olive Oil Press Rapeseed Oil Press Peanut Oil Press Refining Oil Production Line
Manufacturing of machined parts
Manufacturing Technique
FAQ
Title goes here.
Jaw crusher can crush granite with hardness in how much
The jaw crusher can crush granite basalt basalt pyrophyllite limestone calcite feldspar iron ore copper ore and other stones up to 350 MPa.
What kind of mobile form can the jaw crusher be made into?
The jaw crusher can be customized according to the customer's needs or the site or the production capacity
Jaw crusher in frame version without foundation
Mobile Jaw Crusher with Tires
Crawler Jaw Crusher
or a mobile jaw crusher with cone crusher and screen.
The jaw crusher can be customized according to the customer's needs or the site or the production capacity
Jaw crusher in frame version without foundation
Mobile Jaw Crusher with Tires
Crawler Jaw Crusher
or a mobile jaw crusher with cone crusher and screen.
How big are all the jaw crusher mass production? What are the spare parts? How to realize the solution to the problem of off-site replacement parts?
The smallest jaw crusher is PE60*100, which is a small one for laboratory use with an hourly output of several dozens of kilograms.
The smallest jaw crusher is PE60*100, which is a laboratory jaw crusher with a capacity of several tens of kilograms per hour, with a capacity of 1-800 tons per hour for rock crushing in mines.
The regular spare parts of jaw crusher are manganese steel plates and liners and bearings are the main parts of jaw crusher.
Communicate with us online, we will show you the replacement of each part in 3D or video.
The smallest jaw crusher is PE60*100, which is a small one for laboratory use with an hourly output of several dozens of kilograms.
The smallest jaw crusher is PE60*100, which is a laboratory jaw crusher with a capacity of several tens of kilograms per hour, with a capacity of 1-800 tons per hour for rock crushing in mines.
The regular spare parts of jaw crusher are manganese steel plates and liners and bearings are the main parts of jaw crusher.
Communicate with us online, we will show you the replacement of each part in 3D or video.
