WER9060 industrial laser cutting machine Leather/acrylic/wood/felt/fabric cutting machine wood laser engraving machine

Share on (1601280671522):


Price:$1,180.00-3,280.00

Quantity:


Product Overview

Description



Product Description


WER9060 industrial laser cutting machine Leather/acrylic/wood/felt/fabric cutting machine laser engraver machine 150w

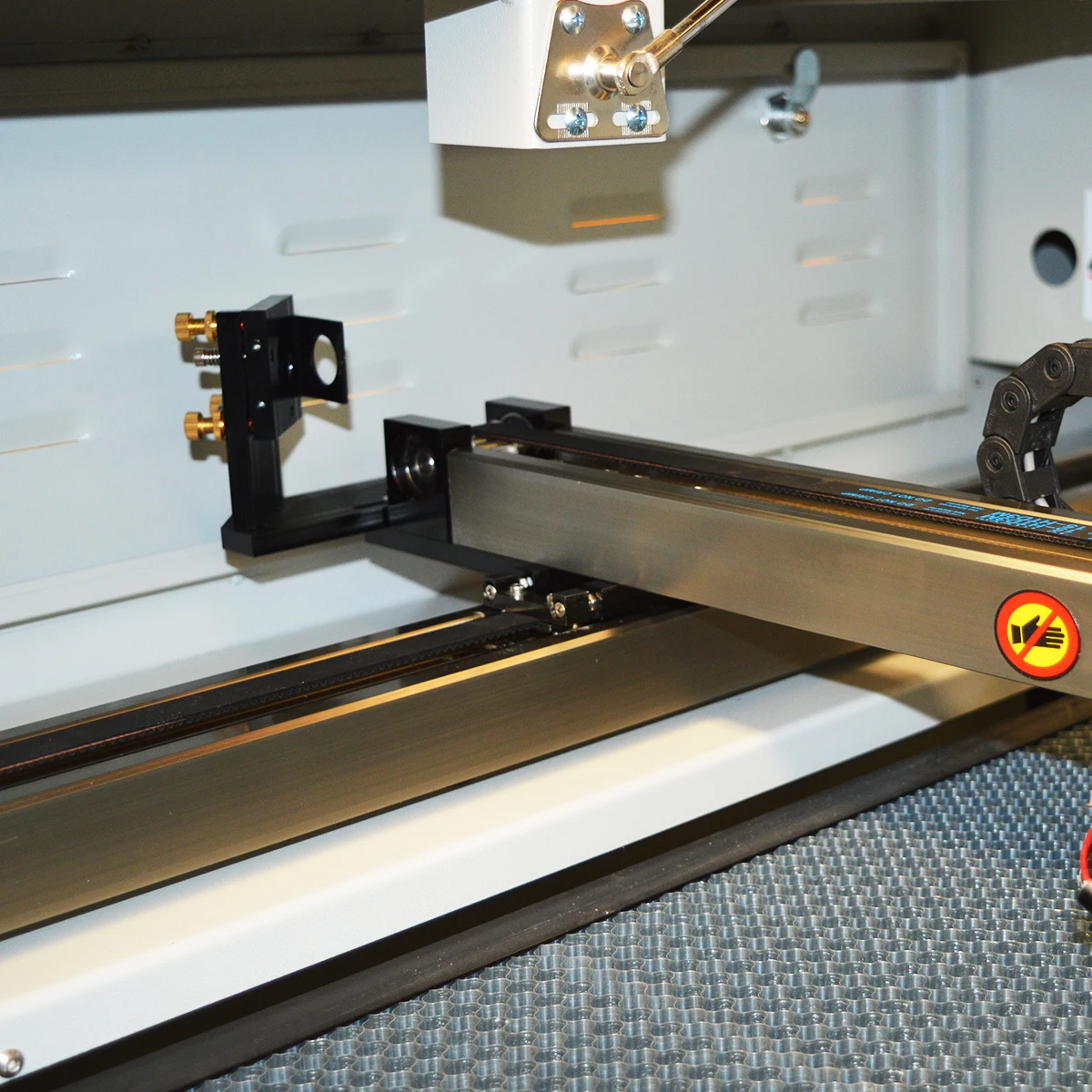

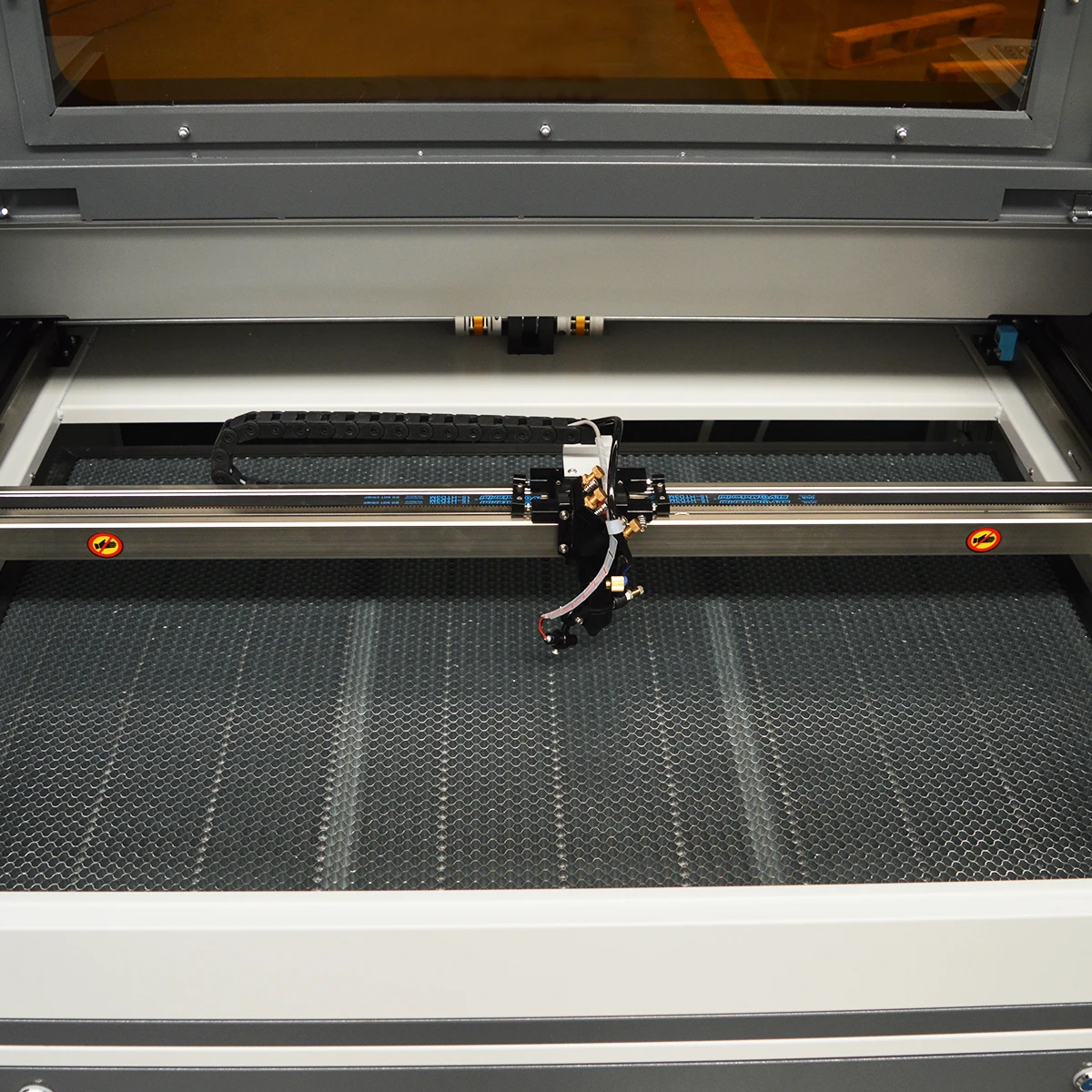

1. Work area
-- X Y Linear guide
-- 900×600 mm work area
2. Laser head
-- import industrial laser head
-- high speed and precision

3. Chain and thick leather strap.
-- high speed and precision
-- high load capacity and rigidity



4. Step motor
-- 57 stepping motor
-- 3M 15mm synchronous belt reducer

5. Up-down table
-- very stable
-- Electric lift about 25cm
-- high load capacity

6. Ruida 6445 controller
-- Compatible with lightburn
-- Supports off-line work

-- Engraving and cutting at the same time


7.Optional blade platform
-- high load capacity
-- simple to clean

8.laser tube
-- long service life
-- stabilize output

-- EFR/RECI brand
9.Increased stent
-- easy to install
-- easy to move on




Related products

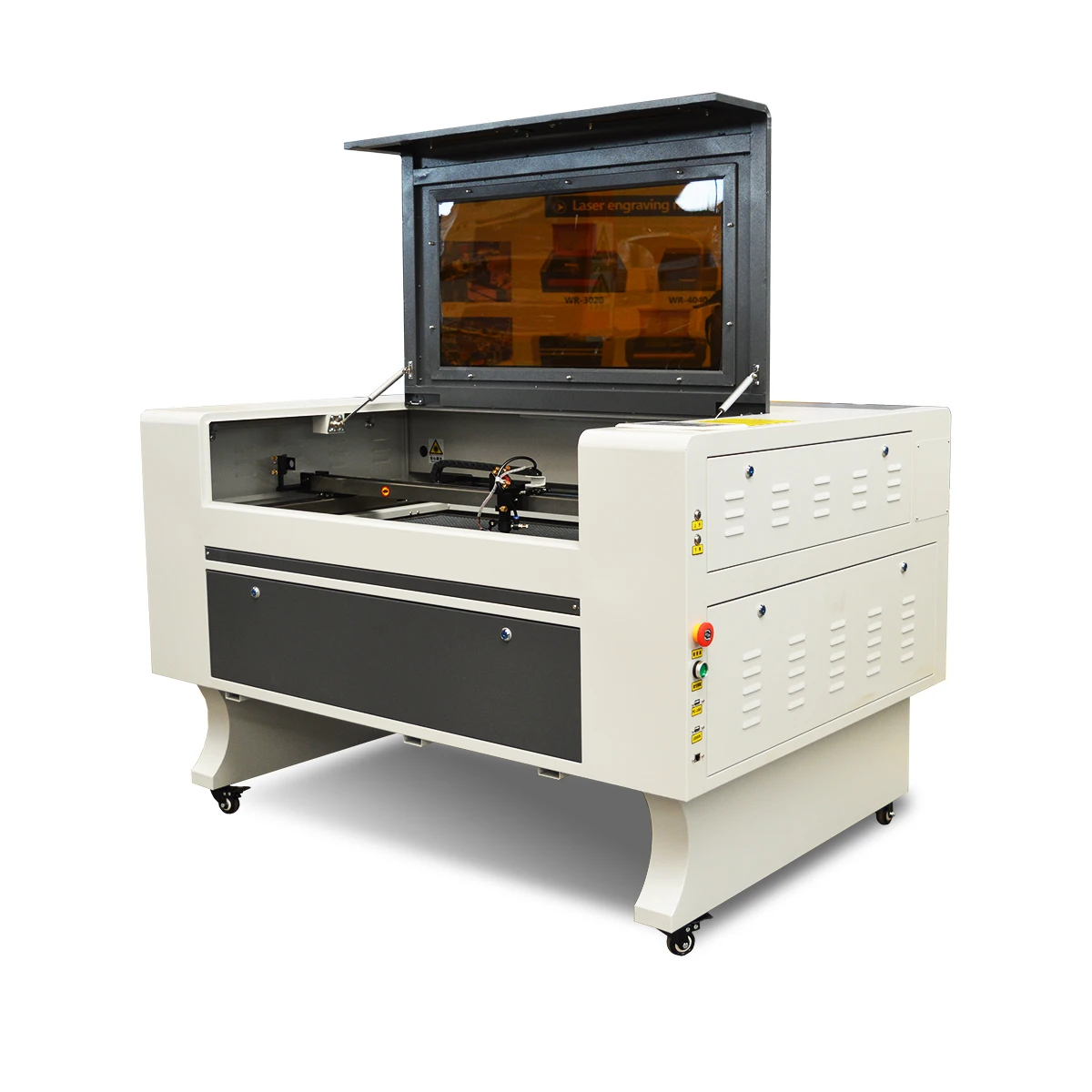

WER6040

Working area: 600×400 mm
Controller: Ruida 6445
Power: 50W/60W/80W/100W
Positioning way: red light
cooling mode: water cooling
Motor: Leadshine 57 stepper motor
Weight: 150 kg
Machine size: 140×78×60 cm
Packing size: 160×90×85 cm
Engraving speed: 1-1000 mm/s
Cutting speed: 1-300 mm/s
lifting Range: Electric lift 1-250 mm

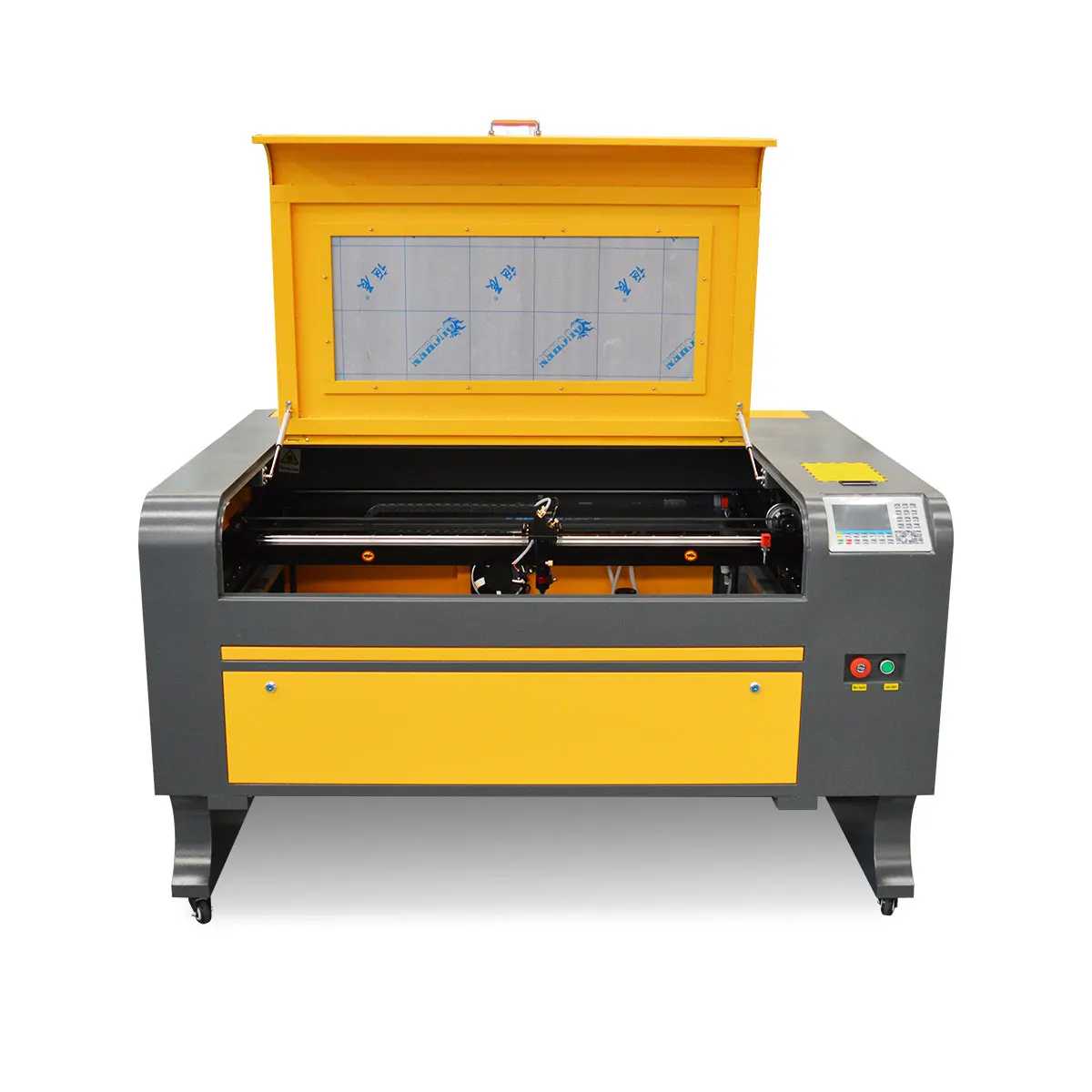

WER1080


Working area: 1000×800 mm
Controller: Ruida 6445
Power: 60W/80W/100W/130W/150W
Positioning way: red light
cooling mode: water cooling
Motor: Leadshine 57 stepper motor
Weight: 230 kg
Machine size: 156×118×60 cm
Packing size: 178×132×80 cm
Engraving speed: 1-1000 mm/s
Cutting speed: 1-300 mm/s
lifting Range: Electric lift 1-250 mm

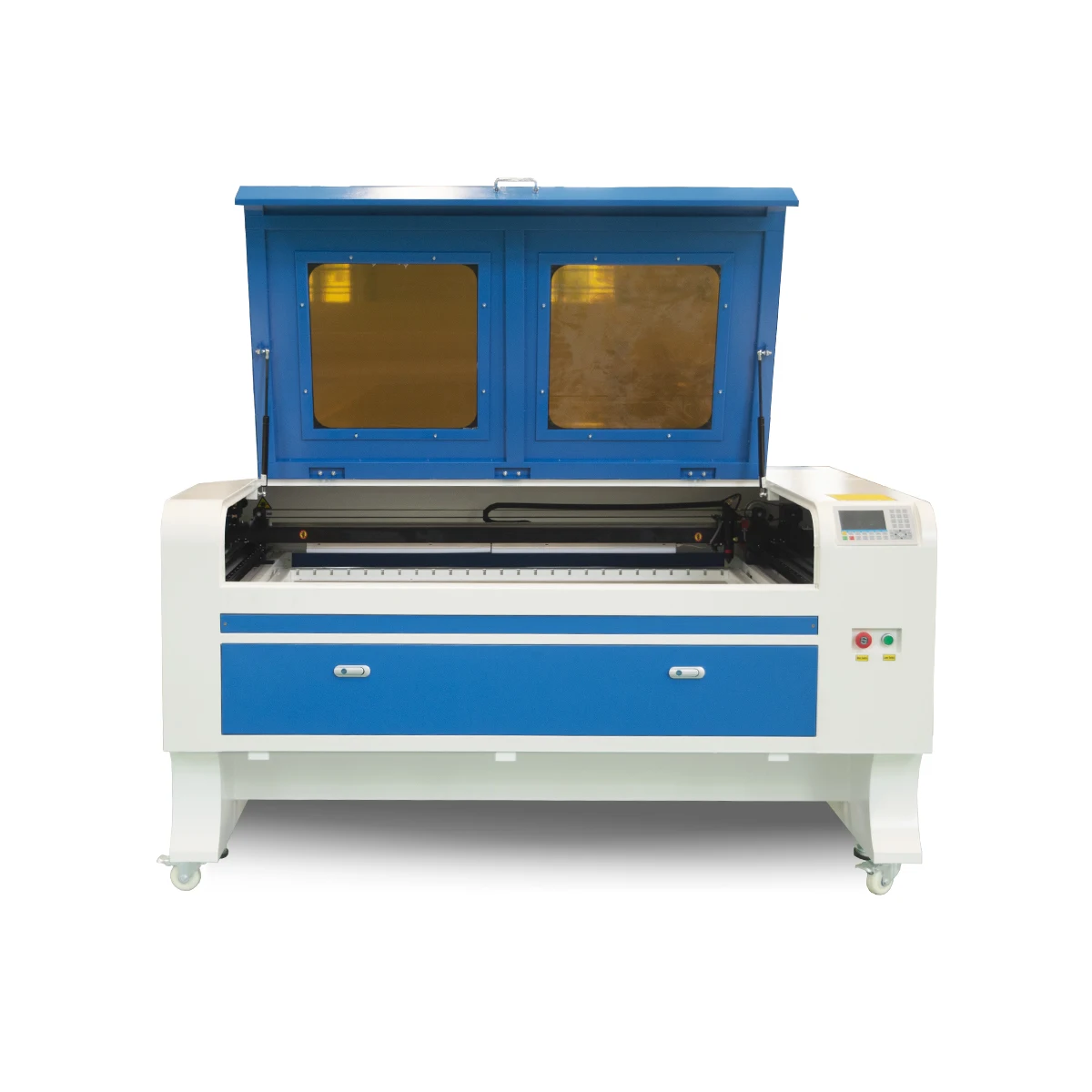

WER1310


Working area: 1300×1000 mm
Controller: Ruida 6445
Power:
80W/100W/130W/150W/180W
Positioning way: red light
cooling mode: water cooling
Motor: Leadshine 57 stepper motor
Weight: 430 kg
Machine size: 185×139×99 cm
Packing size: 212×151×85 cm
Engraving speed: 1-1000 mm/s
Cutting speed: 1-300 mm/s

lifting Range: Electric lift 1-250 mm

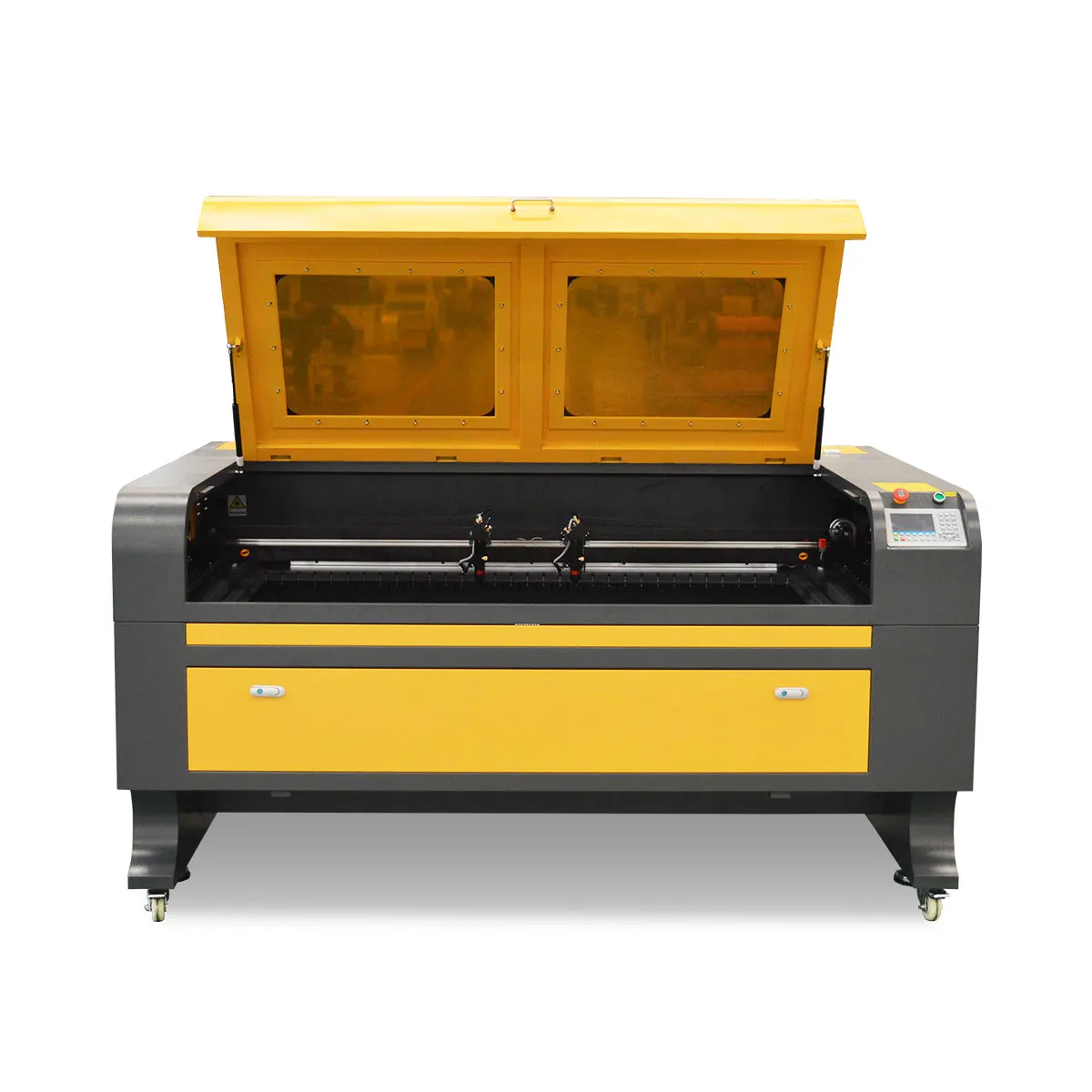

WER1610


Working area: 1600×1000 mm
Controller: Ruida 6445
Power:
80W/100W/130W/150W/180W
Positioning way: red light
cooling mode: water cooling
Motor: Leadshine 57 stepper motor
Weight: 550 kg
Machine size: 215×153×133 cm
Packing size: 228×152×128 cm
Engraving speed: 1-1000 mm/s
Cutting speed: 1-300 mm/s
lifting Range: Electric lift 1-250 mm

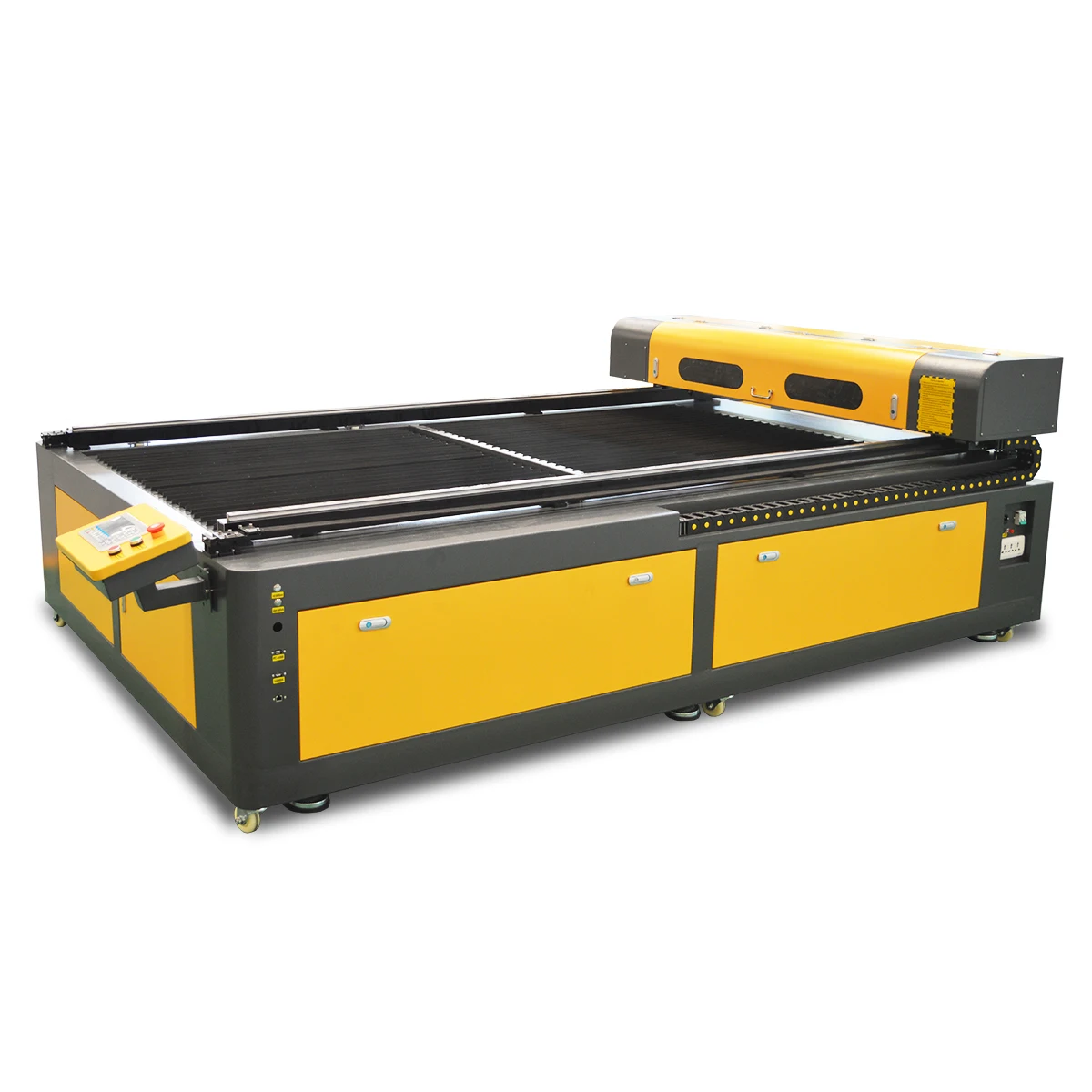

WER1325


Working area: 1300×2500 mm
Controller: Ruida 6445
Power:
100W/130W/150W/180W/300W
Positioning way: red light
cooling mode: water cooling
Motor: Leadshine 57 stepper motor
Weight: 800 kg
Machine size: 298×202×105 cm
Packing size: 320×222×132 cm
Engraving speed: 1-1000 mm/s
Cutting speed: 1-300 mm/s

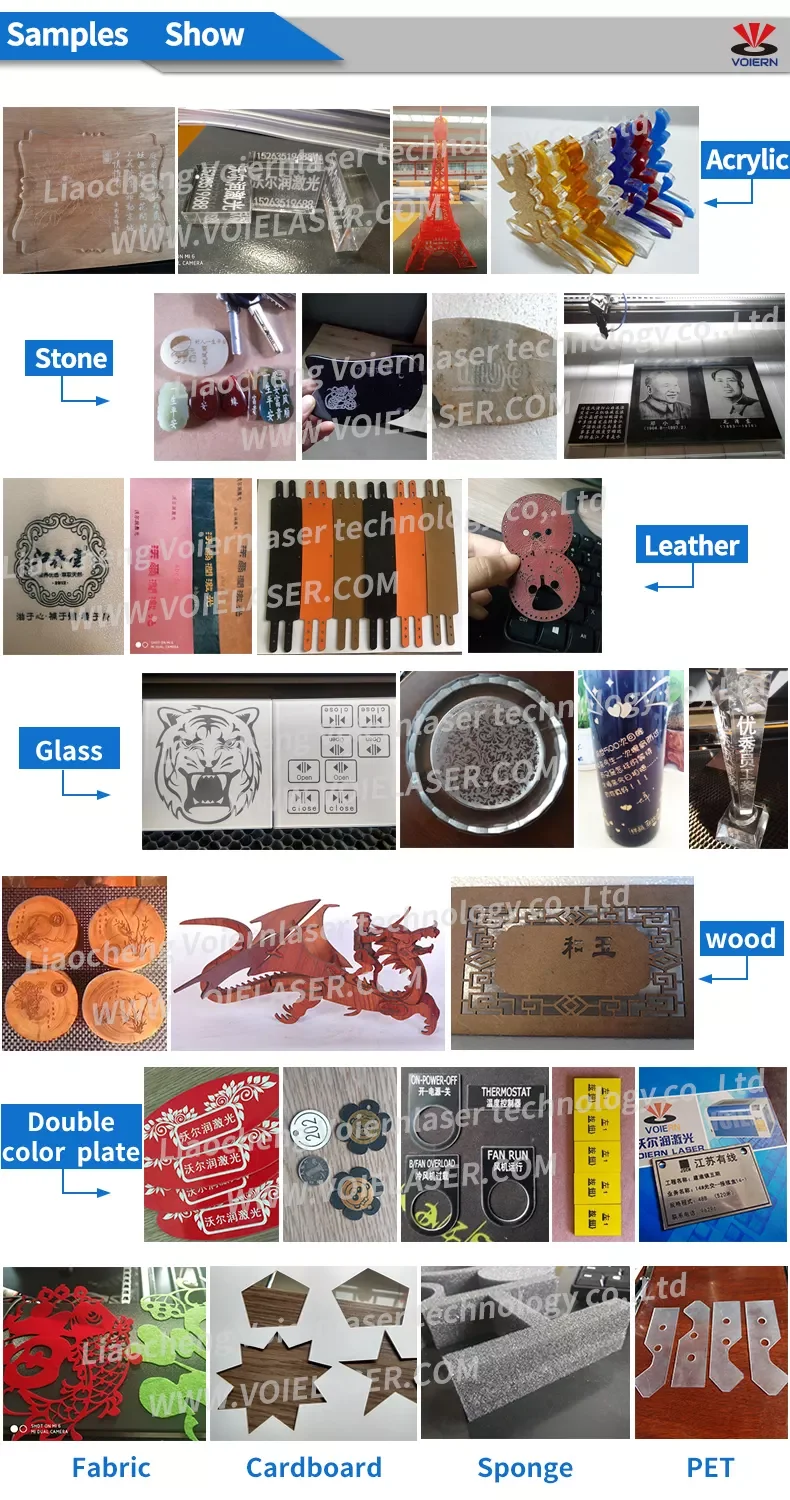

Samples Show






Company Introduction



Voiern Laser Technology is located in Liaocheng High-tech Industrial Development Zone. Our company is mainly committed to research, development and production of laser engraving, cutting and marking machines in many fields. Covering R&D, production,sales, and customization of various high-end laser equipment.The products are mainly used in scientific research teaching and electronic materials, LEDs, advertising materials, medical supplies, handicrafts, textiles,clothing, footwear, auto parts,furniture, and other industrial fields.








Contact us




Specification


Model
WER6040
Controller
RUIDA control system
Laser power
60w 80w 100w 130w 150w
Machine Dimension
1400x950x58mm
Working area
600 x 400 mm
Machine Color
Blue-White, gray-yellow
Engraving speed maximum
1-1000mm/s
Cutting speed
1-100mm/s
Laser Type
Sealed CO2 laser tube
Cooling Type
Water cooling protection system
Water Protection
Yes
Position Way
Red light positioning
Locating Precision
≤0.01mm
Work Platform
Fixed/Honeycomb/Lift platform
Lift Range
Electric adjustment 100mm
Power Supply
AC220V/110V 50HZ
Net Weight
150 kg
Packaging
Standard plywood case
System Environment
WindowsXP/win7/8
Compatible Software
RuiDa support import Coreldraw,AI,CAD software for carving,etc
Operating temperature
5°C -45°C
256 Color separation output
Support
360 degree slope engraving
Support
Off line working (Non-internet)
Support


Our products can be selected according to the customer's work needs.If you want more details,contact us please!
1. Equipped with Taiwan imported linear guide rail
2. Rapid cutting function for curved lines:any curved line can be cut successively and rapidly.
3. High-performance motherboard: support U disk to read, with power continuous carving, slope carving, color separation output and other functions
4. Design software of CAD、AI、Coreldraw are all supported for friendly human-computer interface and demand of the industries on-the-spot.

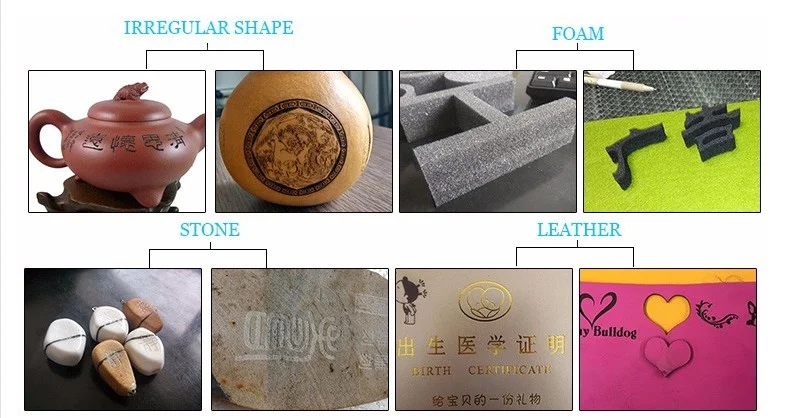

Applicable Materials:acrylic,double-color sheet,MDF,non-metal materials like leather, cloth,rubber,wooden boards,bamboo products,organic glass,plastics,marble,jade,crystal,etc.




FAQ


1. who are we?
We are based in Shandong, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(10.00%),South Asia(10.00%),Eastern Asia(9.00%),Africa(8.00%),North America(7.00%),Eastern Europe(7.00%),South America(6.00%),Mid East(5.00%),Western Europe(4.00%),Central America(4.00%),Northern Europe(4.00%),Southern Europe(4.00%),Oceania(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Laser Equipment (Laser Engraving Machine,Laser Cutting Machine,Laser Marking Machine)

4. why should you buy from us not from other suppliers?
According to the actual requirements of customers, the company can specially design the laser machinery products for meeting the technical requirements better. In recent years, more and more customers are rebuying from us.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Russian
