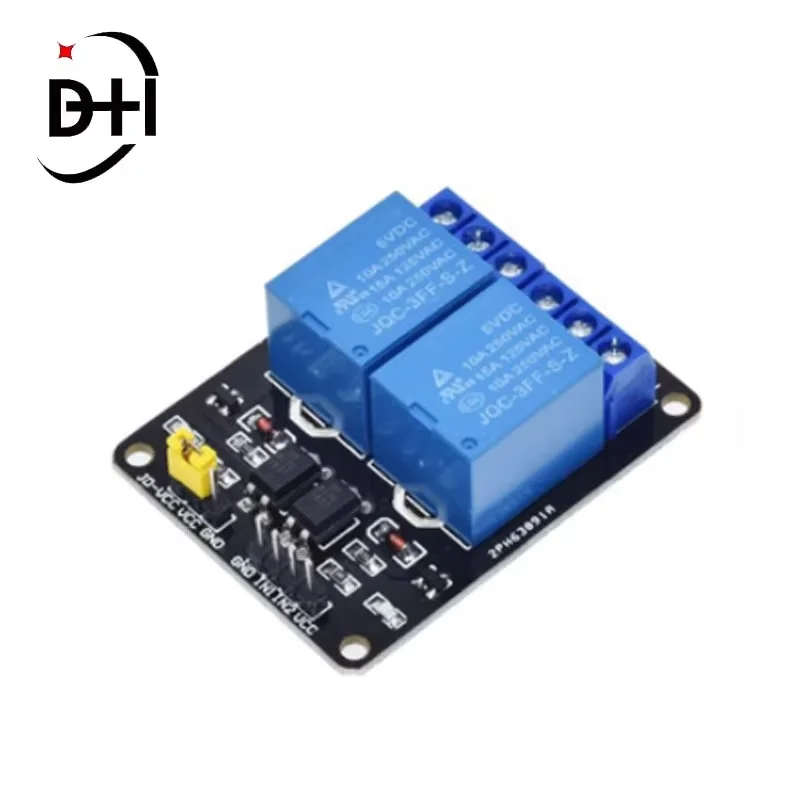

5V 2 Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic 5V 10A 2 Channel Relay Module
5V 2-Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic 5V 10A 2 Channel Relay Module
5V 2-Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic 5V 10A 2 Channel Relay Module
5V 2-Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic 5V 10A 2 Channel Relay Module
5V 2-Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic 5V 10A 2 Channel Relay Module
5V 2-Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic 5V 10A 2 Channel Relay Module

5V 2 Channel Relay Module Shield for Arduino ARM PIC AVR DSP Electronic 5V 10A 2 Channel Relay Module

Share on (1601280683060):


Price:$0.49 - $0.54

Quantity:


Product Overview

Description



Company Profile




Shenzhen Dongheng Electronic Technology Co., Ltd. was established in Huaqiangbei, Shenzhen in 2018. We are a professional enterprise specialized in electronic components (ICs, sensors, modules, RF wireless Bluetooth modules, digital voltmeter, DC power converter), cables (HDMI, VGA, DVI, USB, RCA, DB9, Game, Cat5e/6e, Optical Fiber , FireWire, Displayport Cables), integrated circuit, development boards (MCU, ST, GY, network signal, Bluetooth Wi-Fi, programming, display modules, lithium battery protection boards, sensors, etc.), LCD liquid crystal displays, robot DIY learning kits, etc. We always insist on product quality and customer service as the core of development. We provide customers with one-stop procurement with a wide variety of product categories and very competitive prices, and gradually build up the cooperation and credit of customers at home and abroad.


Products Description


Parameters:
1. Size: 50.5mm (L) * 38.5mm (W) * 18.5 (H)
2. Weight: 31g
3. PCB color: black
4. There are 4 fixing screw holes around the board with a diameter of 3.1mm, which is convenient for installation and fixation
5. High quality Songle relay with single pole double throw shall be selected as the relay. One common end, one normally open end, one normally closed end
6. Optocoupler isolation, good anti-interference
7. Low level pull in and high level release. The status indicator light is on when it is pulled in, and off when it is released
8. VCC is the system power supply, JD_ VCC is the relay power supply. Plug in the jumper cap

Electrical parameters:
Power supply voltage: 5VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC

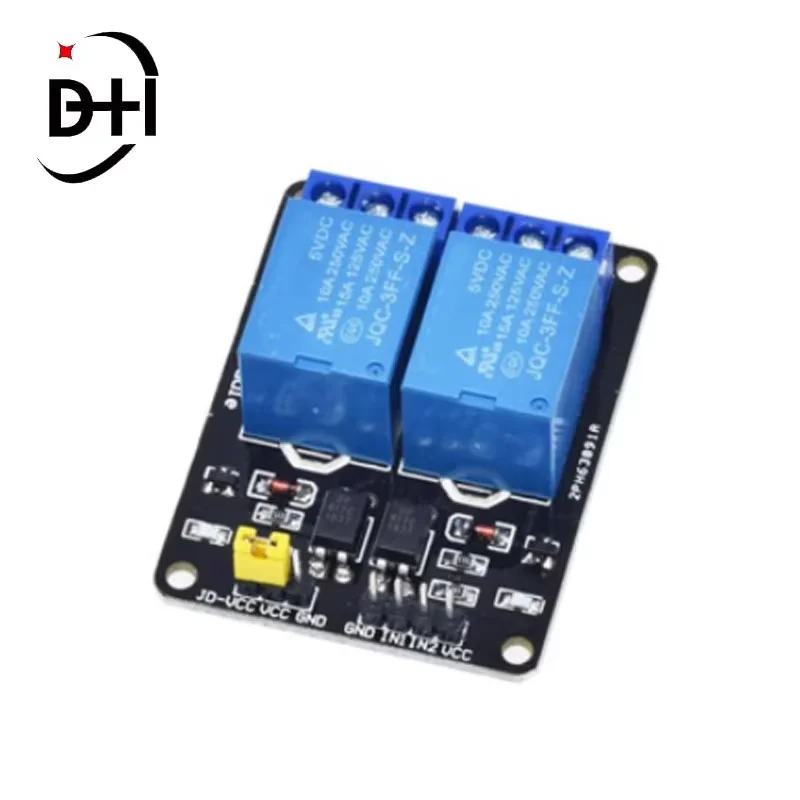

Wiring instructions:
VCC: system power supply positive pole
GND: system power cathode
IN1 -- IN2: relay control port
(Please do not reverse the connection. If the module is burnt, we will not replace it.)




Product packaging




FAQ


1.What can you buy from us?

Electronic Components,Cables,Integrated Circuit,Development Boards,3D Printer Parts, DIYLearning Kits, etc.

2.How can I get samples? Can it be used as an example ?

Please bear the sample cost and courier cost before we receive the first order.
We will refund the sample fee to you within your first order.

3.Can you provide BOM procurement for customers?

Yes, if you send the BOM to our customer service, we will provide you with a complete quotation ASAP.

4. Why should you buy from us not from other suppliers?

Shenzhen Dongheng Electronic Technology Co., Ltd. always insist on product quality and customer service as the core of development. We provide customers with one-stop procurement with a wide variety of product categories and very competitive prices!

5. What services can we provide?
Accepted Delivery Terms: Please contact with us；
Accepted Payment Currency: Please contact with us;
Accepted Payment Type: Please contact with us.
