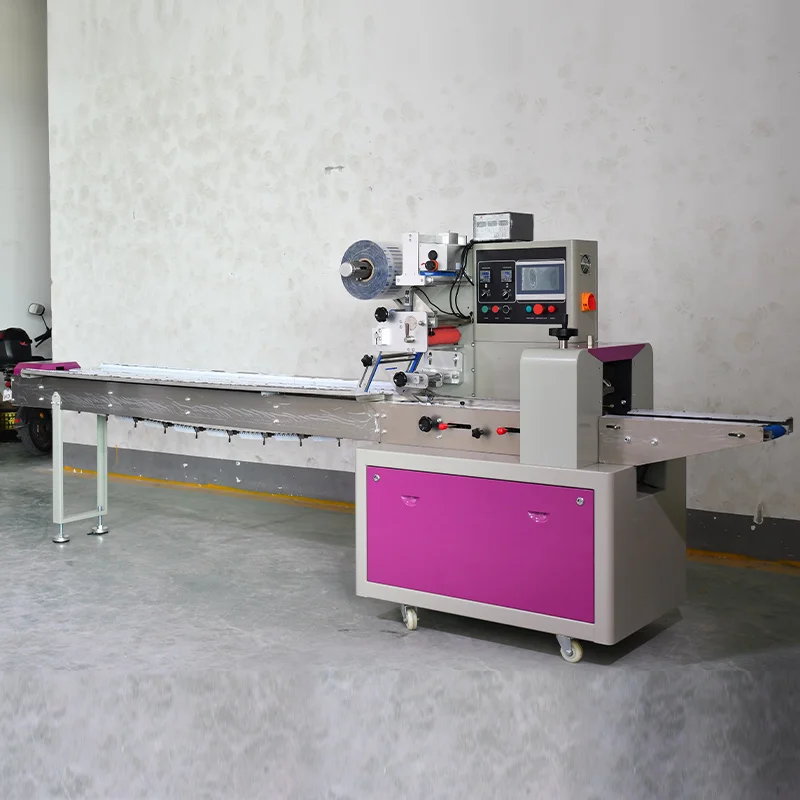

DZB 250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine
DZB-250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine
DZB-250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine
DZB-250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine
DZB-250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine
DZB-250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine
DZB-250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine

DZB 250S Low Cost Manual Automatic Chocolate Candy Bar cookie Flow Pack Horizontal Food Pillow Packing Machine

Share on (1601280718954):


Price:$4,300.00 - $5,100.00

Quantity:


Product Overview

Description











Machine Model
DZB-250S
Machine Capacity
40-230pcs/min
Bag Length
60-230mm
Bag Width
30-110mm
Product Height
Max. 45mm
Film Width
Max. 250mm
Film Roll Diameter
Max. 320mm
Voltage
220V 50-60Hz 3KW
220V 50-60Hz 3KW

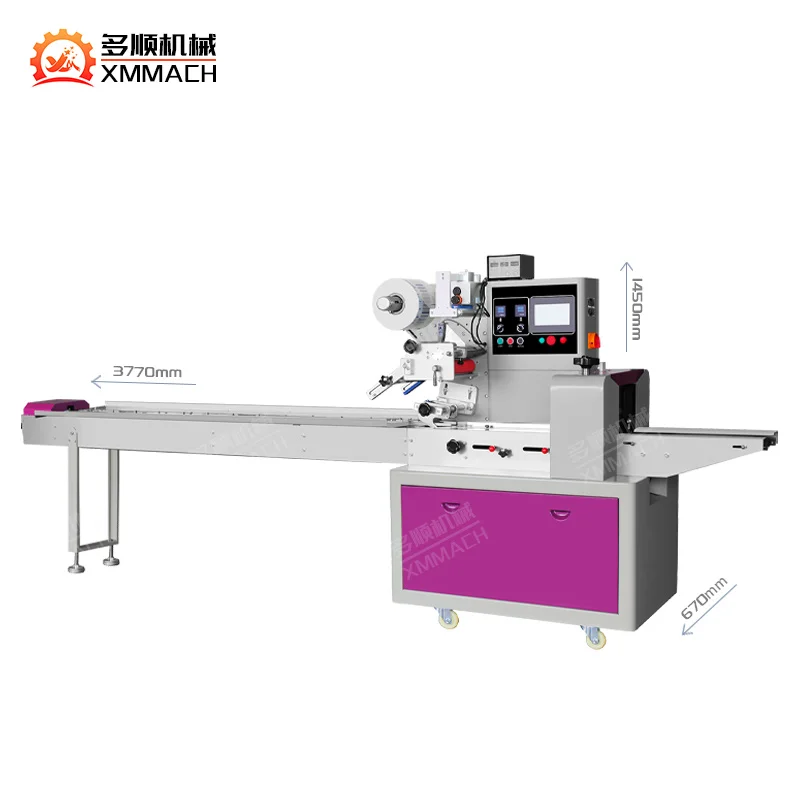

3770*670*1450mm
Machine Weight
425kg


Product Application

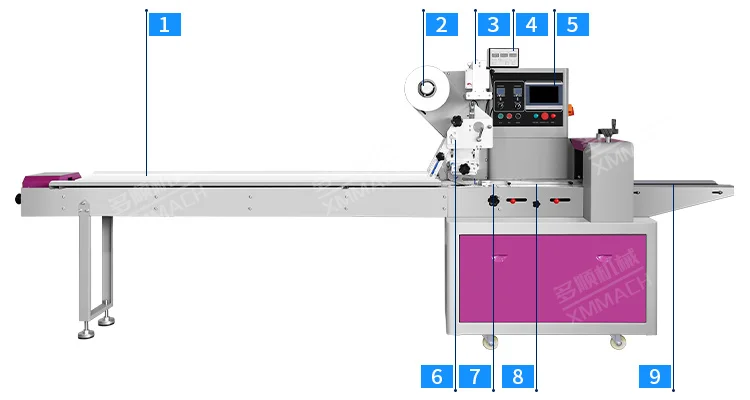

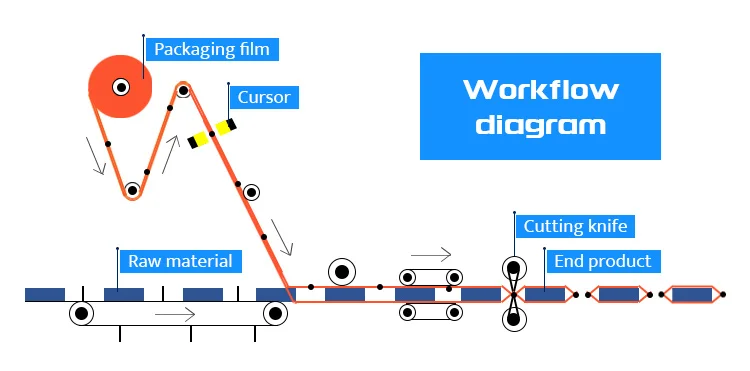

Product Description




1. feeding belt
2. packaging material
3. coding device
4. coding controller
5. operating panel
6. bag former
7. former
8. sealing area
9. outlet

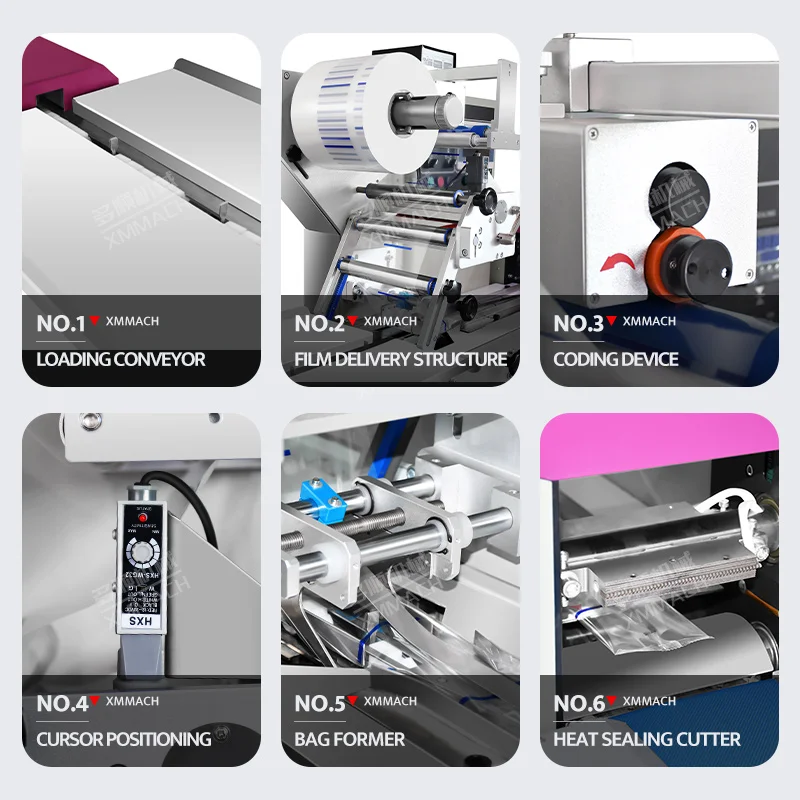

Loading Conveyor:

The conveyor is made of SUS304 material for long service time. It can automatically adjust the width and height of the pouch according to different requires. It is suitable for tray products and no tray products.

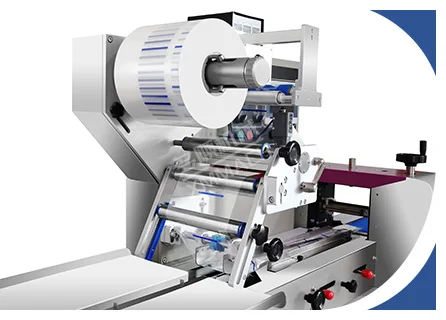

   Film Delivery Structure:

Folding plastic film in two or three
layers and rolling it after folding
makes it difficult for the film to
reset and deform. It enhances the
toughness of the plastic film.

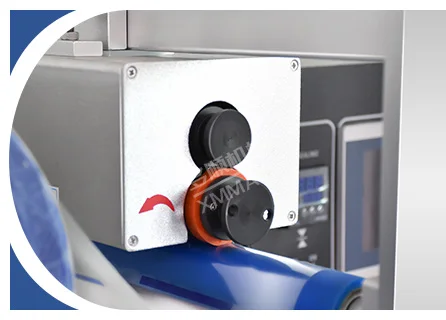

Coding Device:

Tracking and printing production dates, batch numbers and so on, with fast printing speed, wide printing area and flexible printing layout.

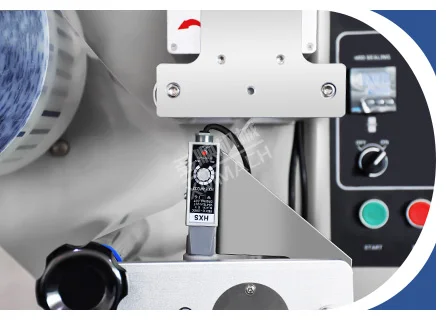

   Cursor:

Using a cursor electric eye to track
the eye mark of the film roll to
prevent deviation during the film
roll process.

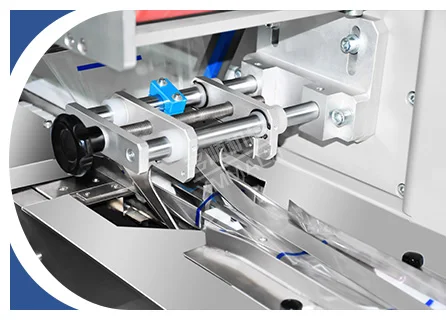

Bag Former:

It can automatically adjust the width of different packaging bags, and makes rolled film into packaging bags.

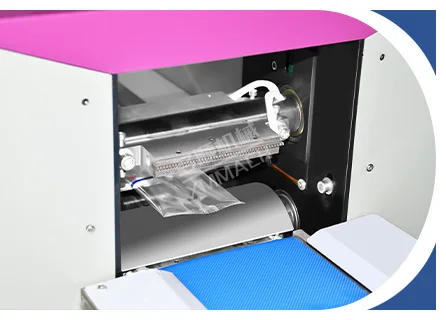

   Heat Sealing Cutter:

The cutter is made of hardness
alloy, it has constant temperature.
The cutter cuts pouches one by
one accurately. Fast thermal
conductivity and long service life.

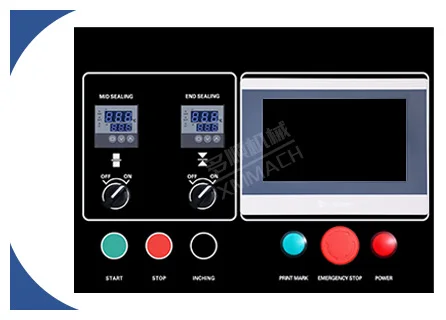

Operating Panel:

Touch screen with some simple buttons, easy operation. The machine is equipped with an emergency stop switch for safe working.

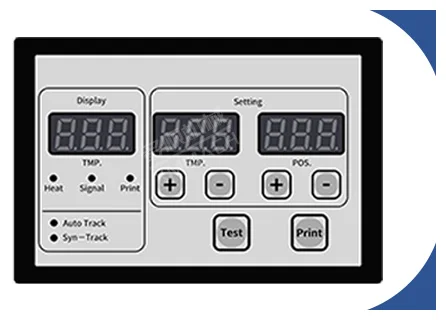

   Coding Controller:

This device is used for controlling
the coding functions, including
start, stop and adjusting coding
speed.


Product Parameter


Machine Model
DZB-250S
DZB-350S
DZB-450S
Machine Capacity
40-230pcs/min
40-230pcs/min
40-150pcs/min
Bag Length
60-230mm
90-320mm
150-440mm
Bag Width
30-110mm
50-160mm
60-210mm
Product Height
Max. 45mm
Max. 65mm
Max. 75mm
Film Width
Max. 250mm
Max. 350mm
Max. 450mm
Film Roll Diameter
Max. 320mm
Max. 320mm
Max. 320mm
Voltage
220V 50-60Hz 3KW
220V 50-60Hz 3KW
220V 50-60Hz 3KW
Machine Dimensions
3770*670*1450mm
3770*720*1450mm
4020*820*1450mm
Machine Weight
425kg
475kg
550kg
