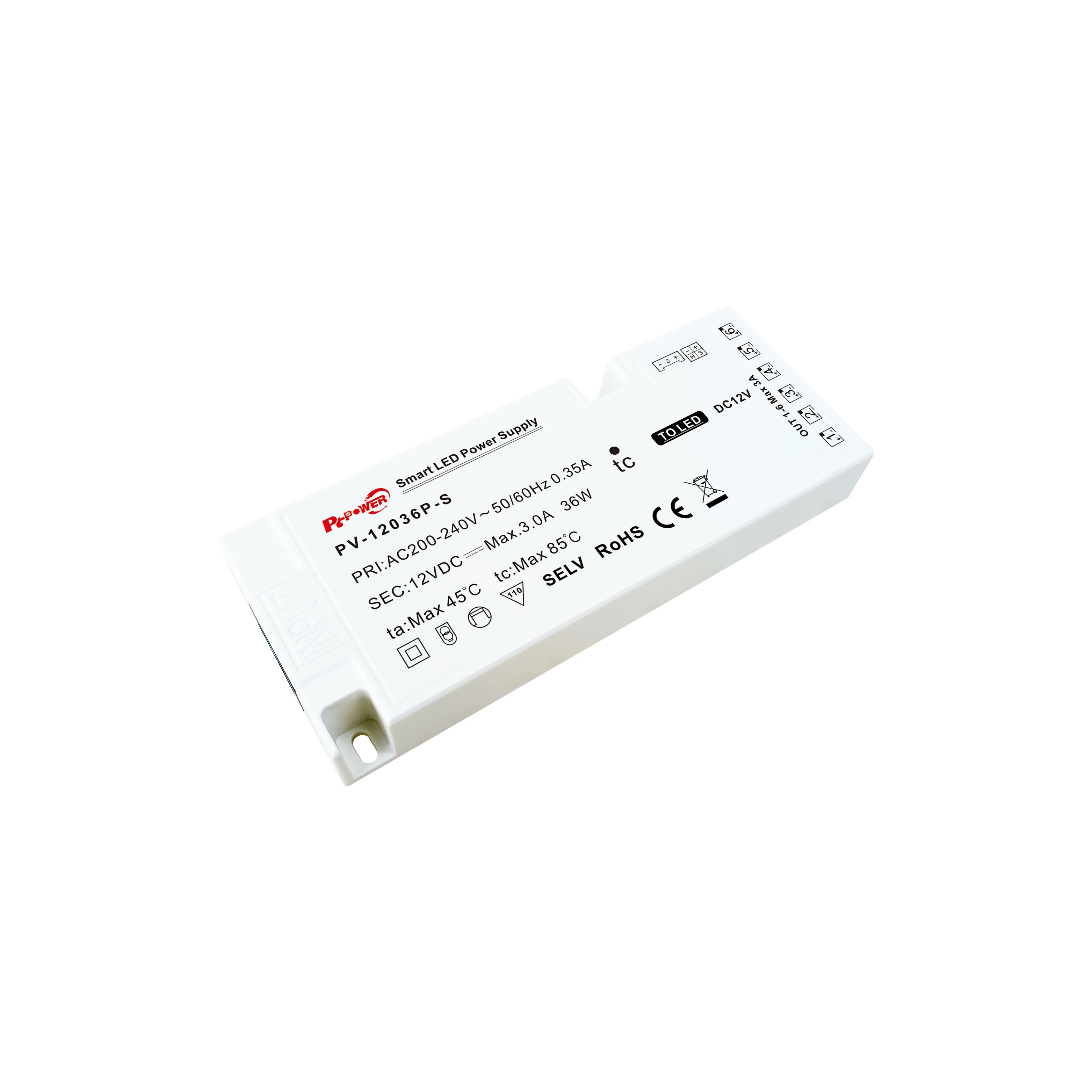

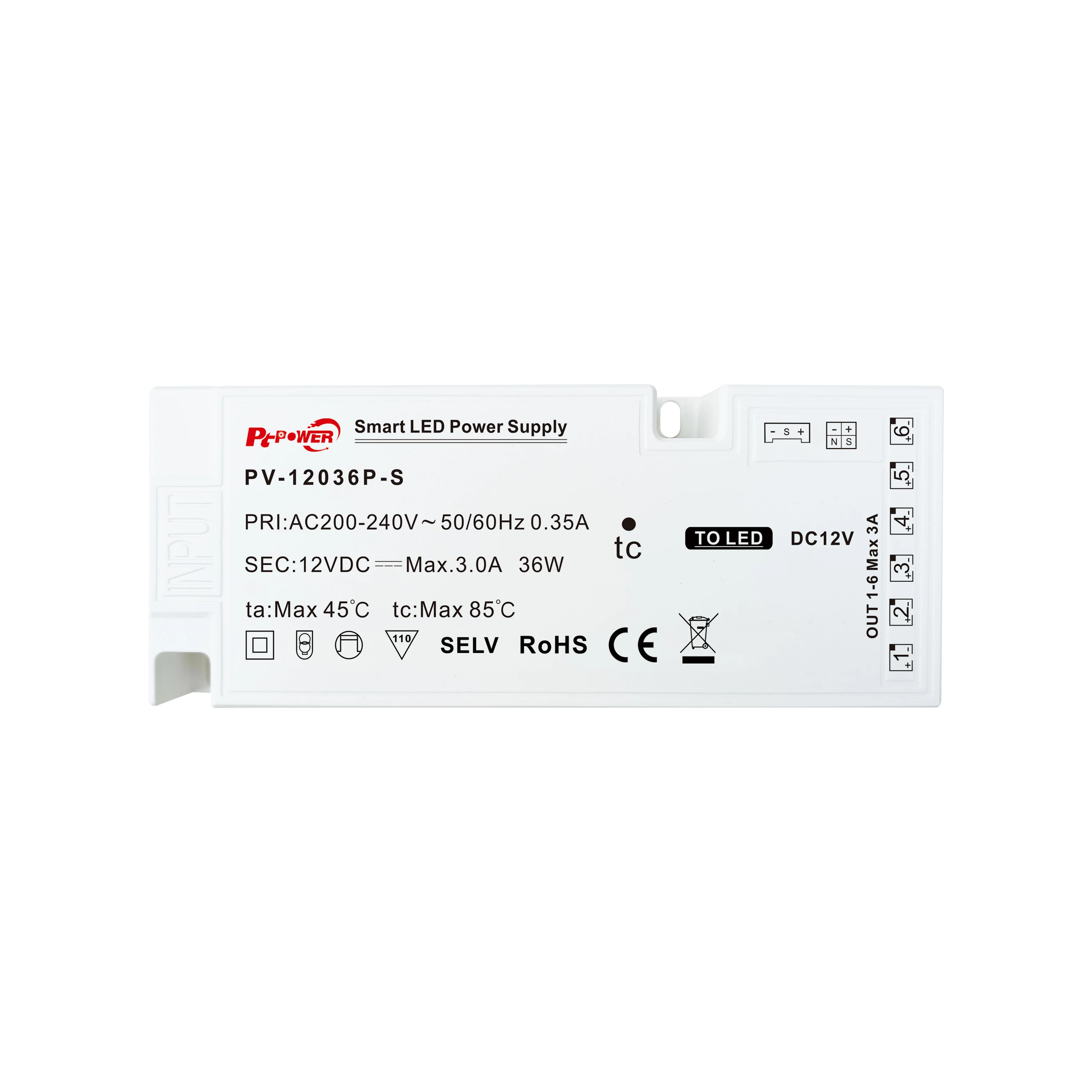

  • Ultra thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver
Ultra thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver
Ultra-thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver
Ultra-thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver
Ultra-thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver
Ultra-thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver
Ultra-thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver
Ultra-thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver

Ultra thin Switching Power Supply LED Driver 36W for Mirror Light Cabinet Furniture Lighting LED Driver

Share on (1601280737346):


Price:

Quantity:


Product Overview

Description







Model No.：
PV-12036P-S
PV-24036P-S
Output
Rated Output Voltage
12V
24V
Output current Range
0-3A
0-1.5A
Rated Output Power
36W
Output Voltage Precision
±3%
Output Ripple and Noise
＜240mVP-P
480mVP-P
Load Regulation
±2%
Start/Rise Time
<1000ms/230VAC
Retention Time
20ms/230VAC
Input
Input Voltage Range
100-240VAC
Input Frequency Range
50-60HZ
Power Efficiency
>85%
Leak Current
＜3mA/230VAC
Protection
Overload Protection
When the load current exceeds 110-140% of the output current, the power supply will enter protection state. Protection Mode:
Hiccup Mode.
Short Circuit Protection
Protection mode: hiccup mode. When the short-circuit fault is removed, the power supply will automatically resume work.
Working Environment Protection
Working Temperature
-30℃-65℃
Storage Temperature
-40℃-80℃
Ingress Protection Rating
90%RH non condensing, refer to IP33
Shockproof Character
10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
Temperature Coefficient
±0.03%℃ (0-50℃)
Security Features
Security Standard
IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1
Withstand Voltage
I/P-O/P:2KVAC,I/P-FG:500VAC
Insulation Resistance
I/P-O/P:>100M Ohms/500VDC/25℃/70% RH
EMC
EN55032:2015 EN55024:2010+A1 EN 61000-3-2:2014 EN 61000-3-3:2013
Others
MTBF
≥313.3KHours (25℃)
Outter Size
133*58*18mm(L*W*H)
Weight/PCS
100g












FAQ


Q1: Are you a manufacturer? If yes, in which city?
A1: Yes, we are a professional manufacturer located in Zhuhai. Welcome to visit us. Please kindly inform us of your schedule before your arrival, and we will prepare to pick you up.

Q2. What is the warranty for your LED power supplies?
A2: We offer LED power supplies with warranties of 2 years, 3 years, and 5 years to accommodate various market demands.

Q3. Do you offer free samples?
A3: Yes, free samples are available, but the buyer is responsible for the shipping costs.

Q4. Does your LED power supplies are original?
A4: Yes, all of our LED power supplies are 100% brand new originals.

Q5. What is your delivery date?
A5: The delivery date for our products is typically between 3 to 15 days after payment receipt, depending on your order quantity.

Q6. Can you help me make my own design? How about the sample fee and sample time?
A6: Certainly, we have a professional development team dedicated to designing new projects. We offer OEM and ODM services to many customers. You can share your ideas or provide us with drawings, and we will develop it accordingly. Regarding samples, the lead time is typically around 15 to 30 days. The sample fee is determined based on the material and size of the product. If the sample meets your satisfaction, the sample fee can be refunded after regular mass orders.
