milling machine head vise for milling machine with pneumatic tool clamping optional
- Category: >>>
- Supplier: Jiangsu Hoston Machine Tools Co. Ltd.
Share on (1601280738472):
Product Overview
Description
Main Features:

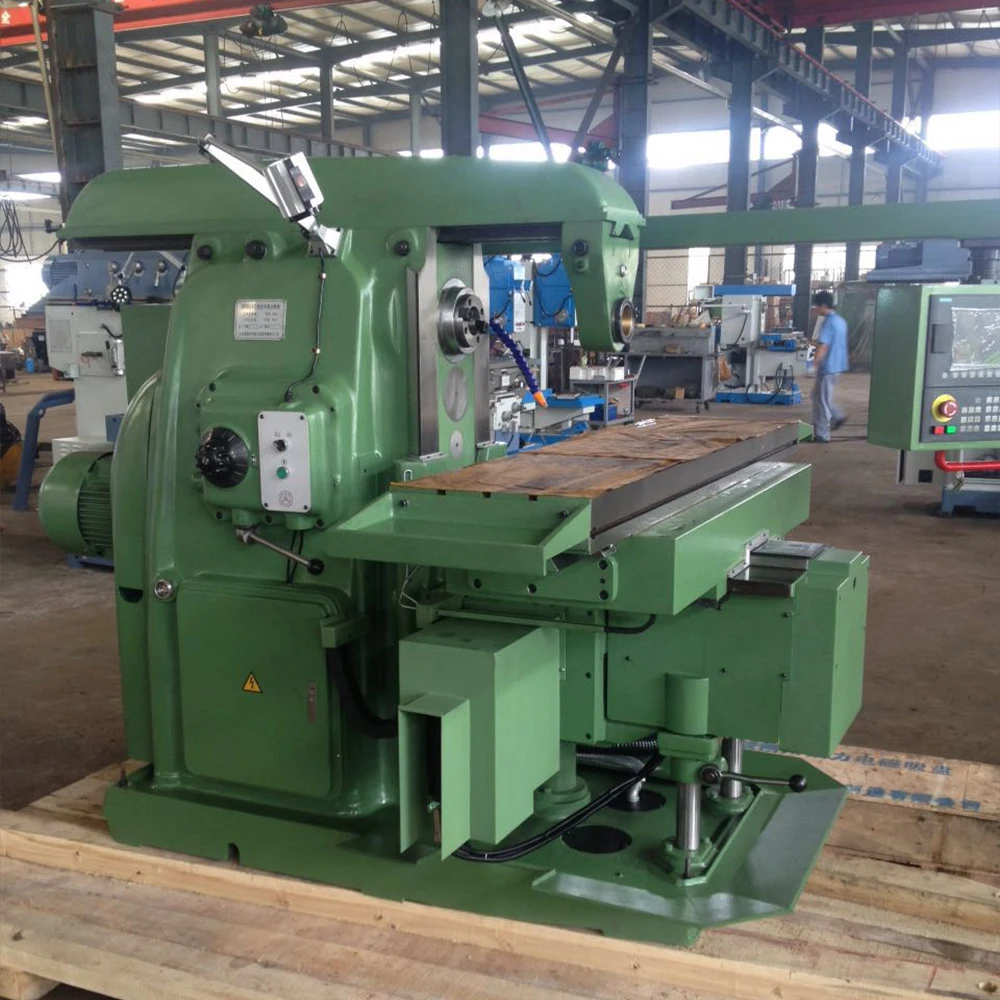

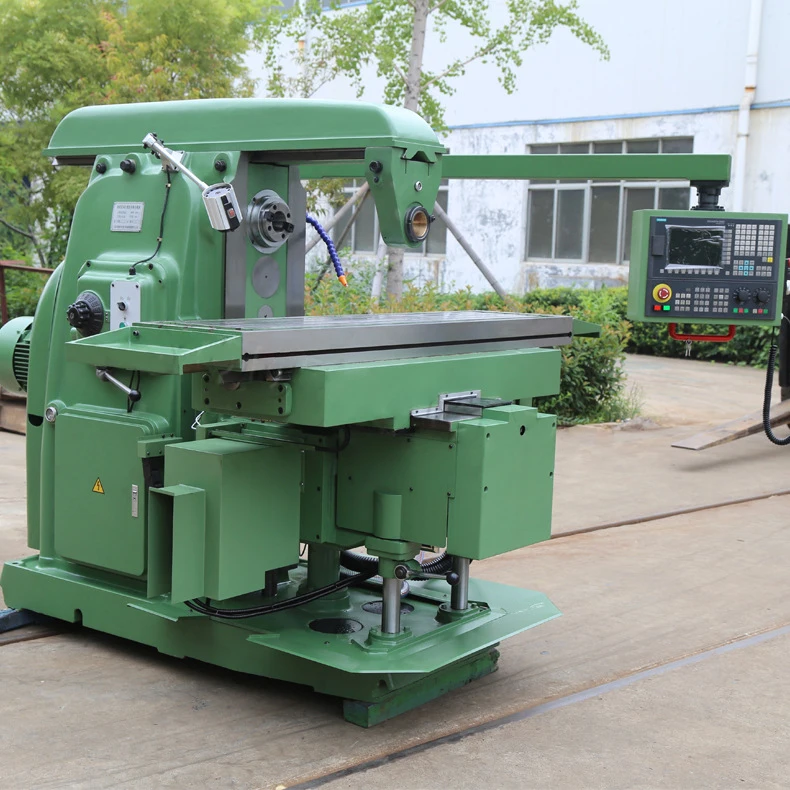

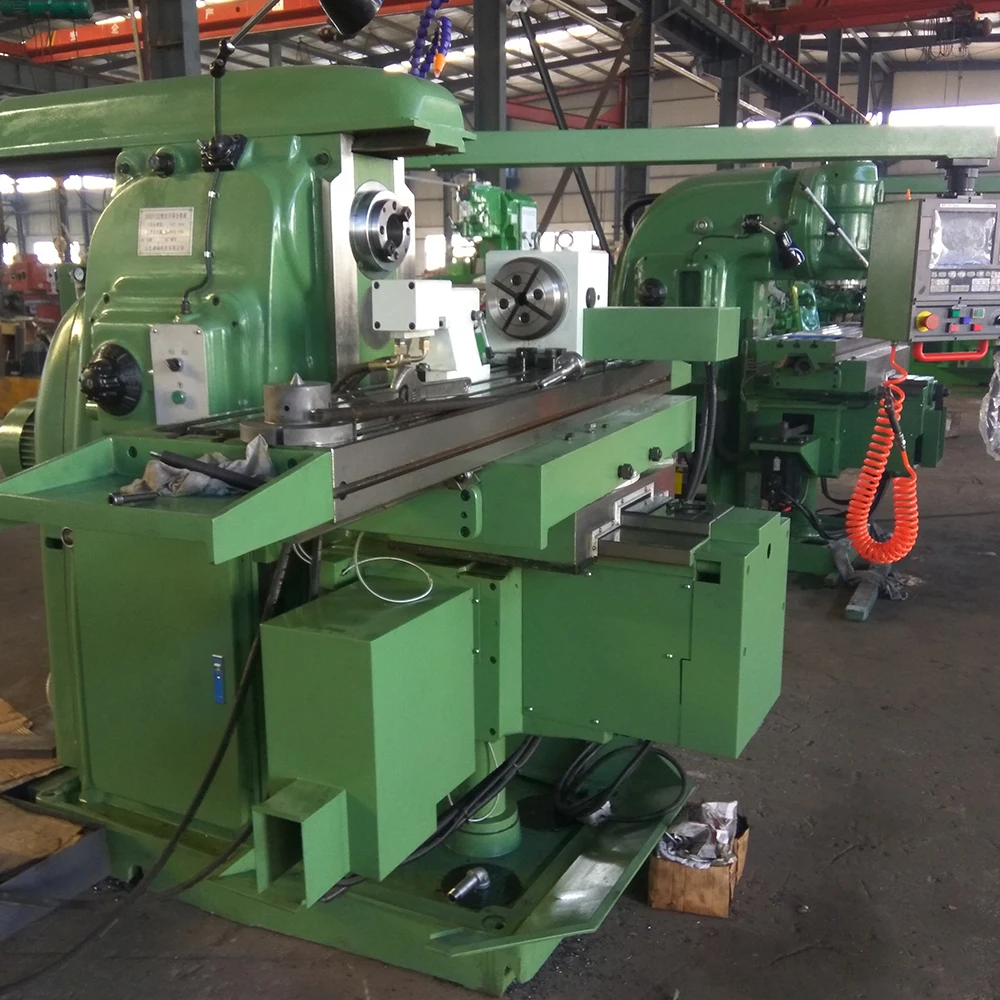

1. CNC horizontal lifting platform milling machine is good rigidity, can bear heavy load cutting work.
2. CNC milling machine with enough power and wide range of spindle speed. High speed cutting can be made by using hard alloy cutter, and the cutting efficiency can be fully played.
3. The spindle speed has impulse device, easy to change, the machine can quickly and effectively brake.
4. Good reliability, economical and practical, cost-effective.
Technical Parameters:
Specification | Units | XK5040 | XK5032 |
Table size | mm | 1700*400 | 1600*320 |
T slots (N/W/D) | mm | 3/18/90 | 3/18/70 |
Longitudinal travel | mm | 1000 | 900 |
Cross travel | mm | 350 | 310 |
Vertical travel | mm | 385 | 350 |
Table longitudinal feed (auto) | mm/min | 6-3200 | |
Table cross feed (auto) | mm/min | 6-3200 | |
Table vertical feed (auto) | mm/min | 3-1600 | |
Distance between spindle and table surface | mm | 80-465 35-385 | |
Spindle hole taper | - | ISO50 (7:24) | |
Spindle speed step | step | 18 | |
Spindle speed range | t/min | 30-1500 | |
Max.swivel angle of head | - | ±45° | |
Stroke of spindle quill | mm | 85 | 70 |
Power of spindle motor | kw | 11 | 7.5 |
Torque of X/Y/Z axis AC servo motor | N.m | 15/15/23 | 10/10/18 |
CNC system | - | Siemens 808D Advance | Siemens 808D Advance |
Overall size | mm | 2760*2160*2250 | 2040*1800*1910 |
Net weight | kg | 4200 | 2900 |
