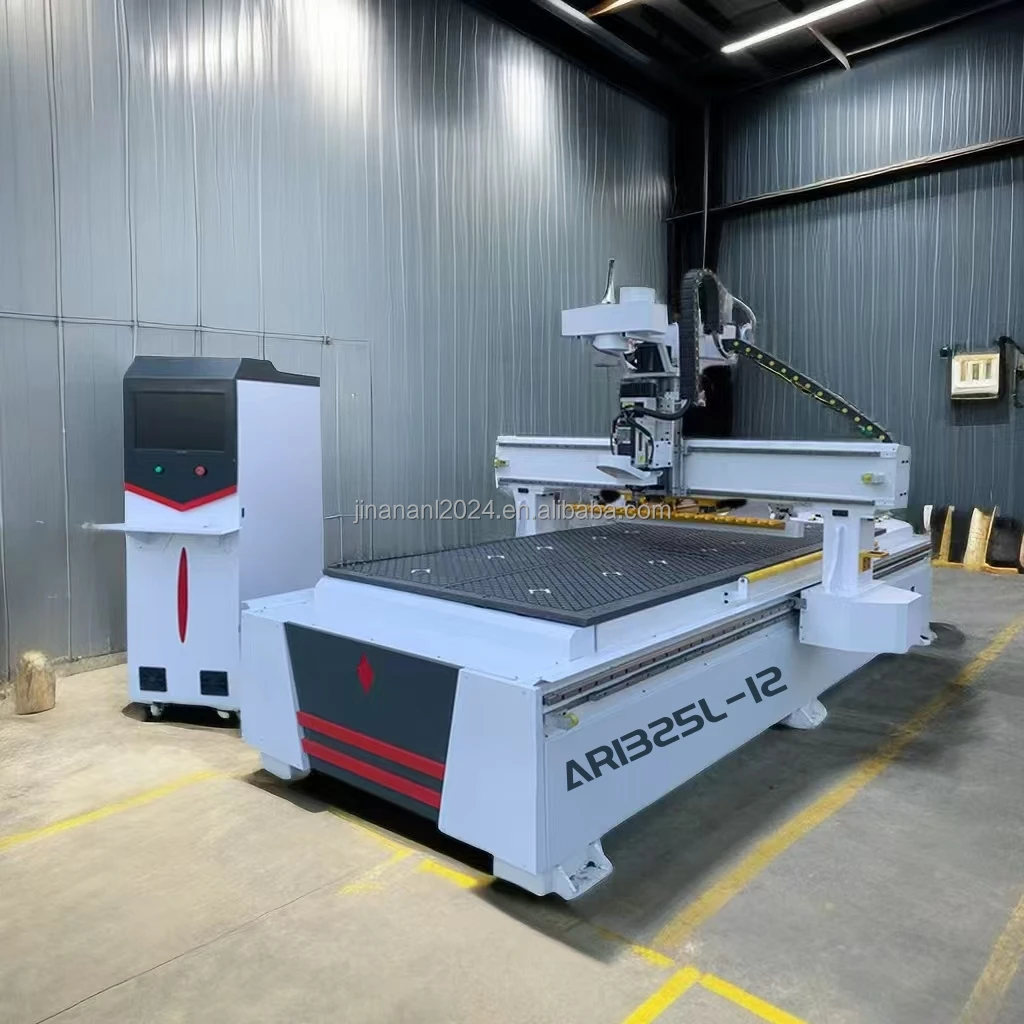

High quality Woodworking auto tool change AR1325L 12 ATC CNC Router with 12 pieces tools changer for furniture
- Category: >>>
- Supplier: Jinan Aurora Intelligent Equipment Co. Ltd.
Share on (1601280744546):
Product Overview
Description

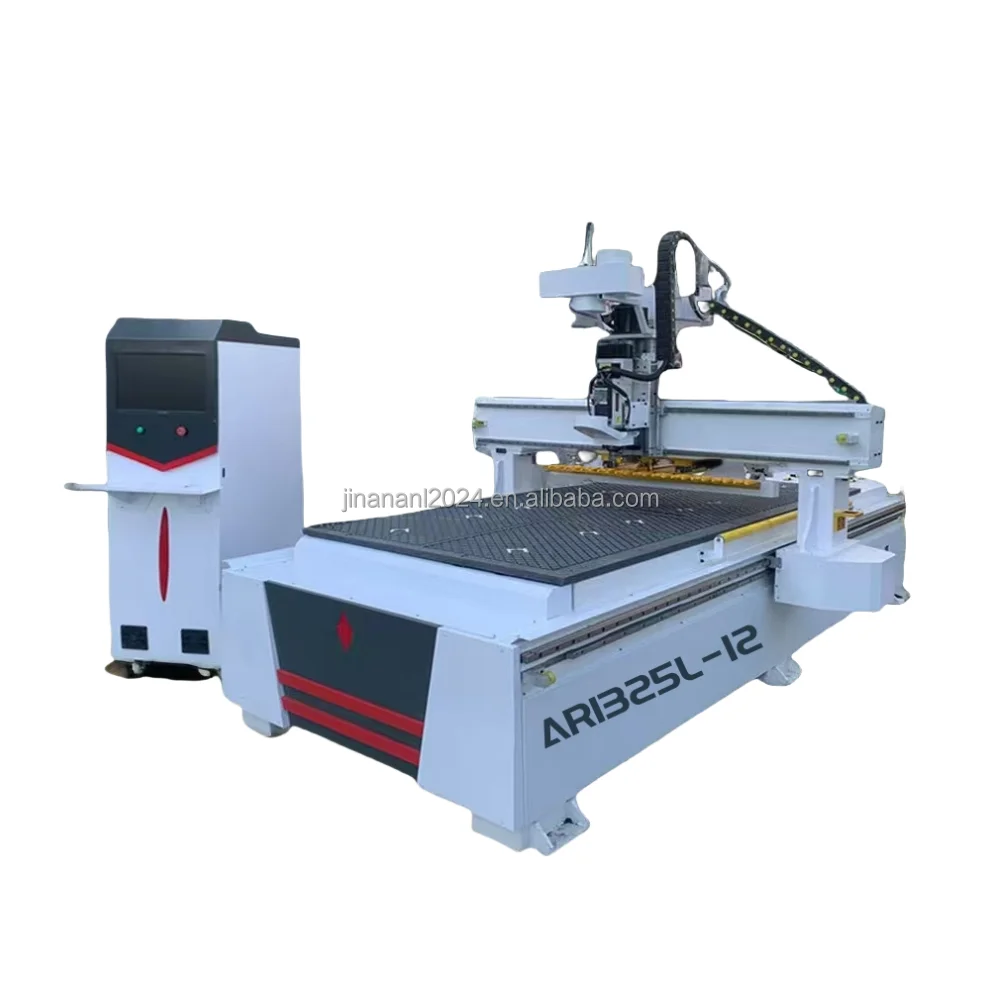

AR1325L-12 ATC CNC Router
Features:
1. Structural stability: Thick walled square tube welding, side plate tempering treatment bed body.
2. Processed by five sided milling center, aging treatment, sturdy and not deformed.
3. Super quality 9kw air cooled spindle with quick tool change, improve efficiency greatly.
4. Imported square linear guide rail to ensure the high precision of the machine and withstand large loads.
5. Equip with 12 pieces auto tool change magazine, with Taiwan LNC MW2200 ATC control system, which can change tools alternatively, auto tool sensor to compensate the tolerance of tool length.
6. Saves labor and can be connected to automatic loading and unloading.
Application:

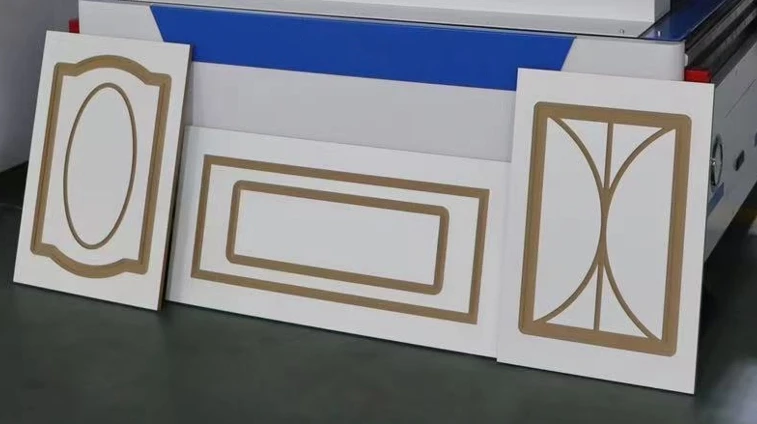

1) Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2) Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3) Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.

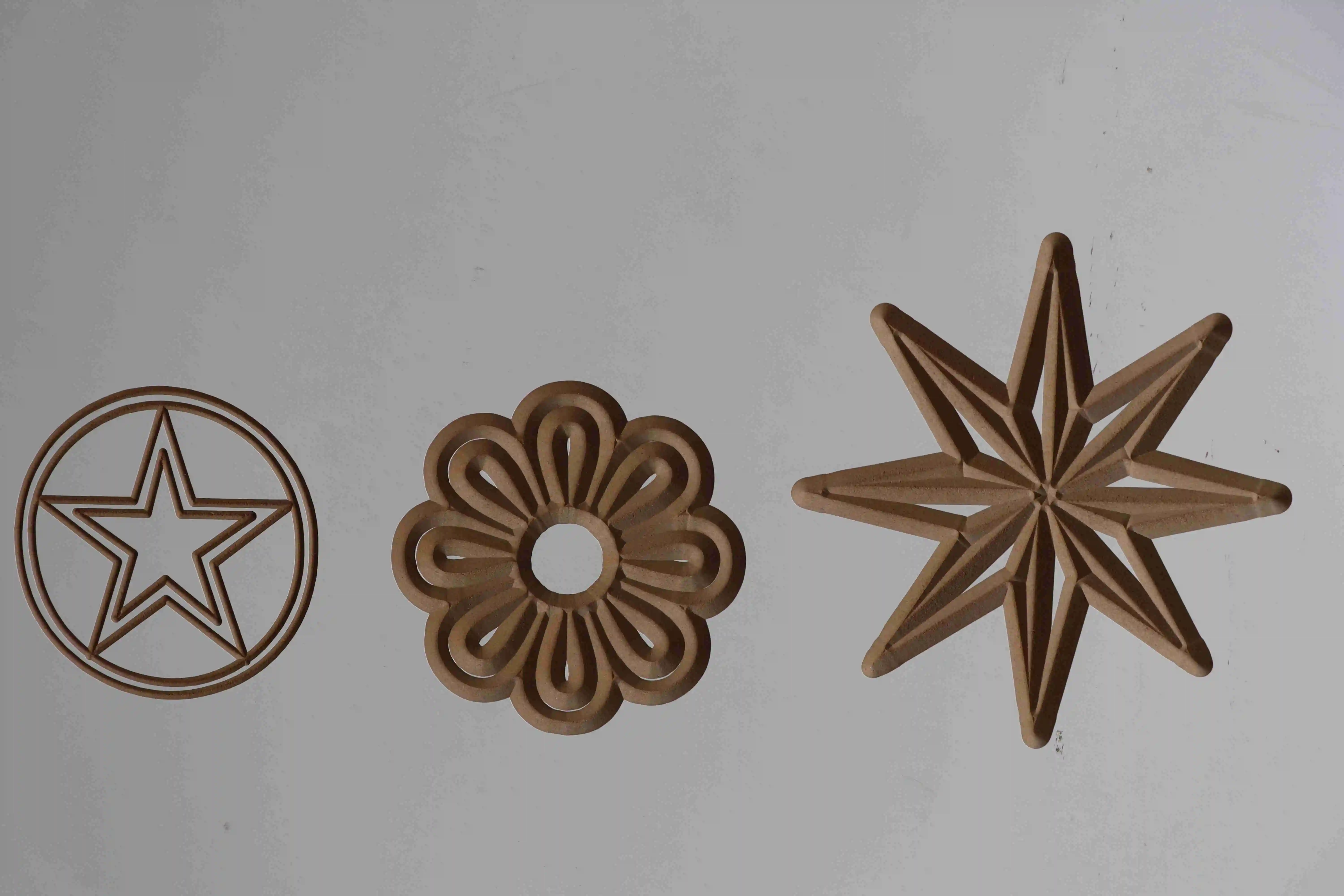

4) Other industry: image engraving, embossing, craft and gift industry
1. Structural stability: Thick walled square tube welding, side plate tempering treatment bed body.
2. Processed by five sided milling center, aging treatment, sturdy and not deformed.
3. Super quality 9kw air cooled spindle with quick tool change, improve efficiency greatly.
4. Imported square linear guide rail to ensure the high precision of the machine and withstand large loads.
5. Equip with 12 pieces auto tool change magazine, with Taiwan LNC MW2200 ATC control system, which can change tools alternatively, auto tool sensor to compensate the tolerance of tool length.
6. Saves labor and can be connected to automatic loading and unloading.
Application:
1) Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2) Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3) Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4) Other industry: image engraving, embossing, craft and gift industry
Technical Data:
Item | Model | AR1325L-12 ATC |
1 | X,Y,Z Working Area | 1300mm*2500mm*300mm |
2 | Traveling Pos Accuracy | ±0.02/300mm |
3 | Repositioning Pos Accuracy | ±0.03mm |
4 | Spindle Motor | HQD 9kw air cooled spindle special for tool changer |
5 | Spindle Speed | 0-24000RPM |
6 | Max. Speed | 0-100000mm/min |
7 | Max. Working Speed | 0-30000mm/min |
8 | Working Voltage | AC380V, 3 Phase, 50/60Hz (can do 220v) |
9 | Command | G Code, *uoo, *mmg, *plt *nc etc |
10 | Typeset Software | JDpaint (or any other G-code software) |
11 | Motor&Drive | 1500w servo |
12 | Tool Magazine | 12pcs ISO30 tool holder |
13 | Positioning Cylinders | X axis -2pcs, Y axis -3pcs |
14 | Collet | ER32 |
15 | X,Y Working Delicacy | <0.01mm |
16 | Software | Ucancam, Artcam, JDpanint etc |
17 | Running circumstance | Temperature: 0℃～45℃ Relative humidity: 30%～75% |
Machine Details

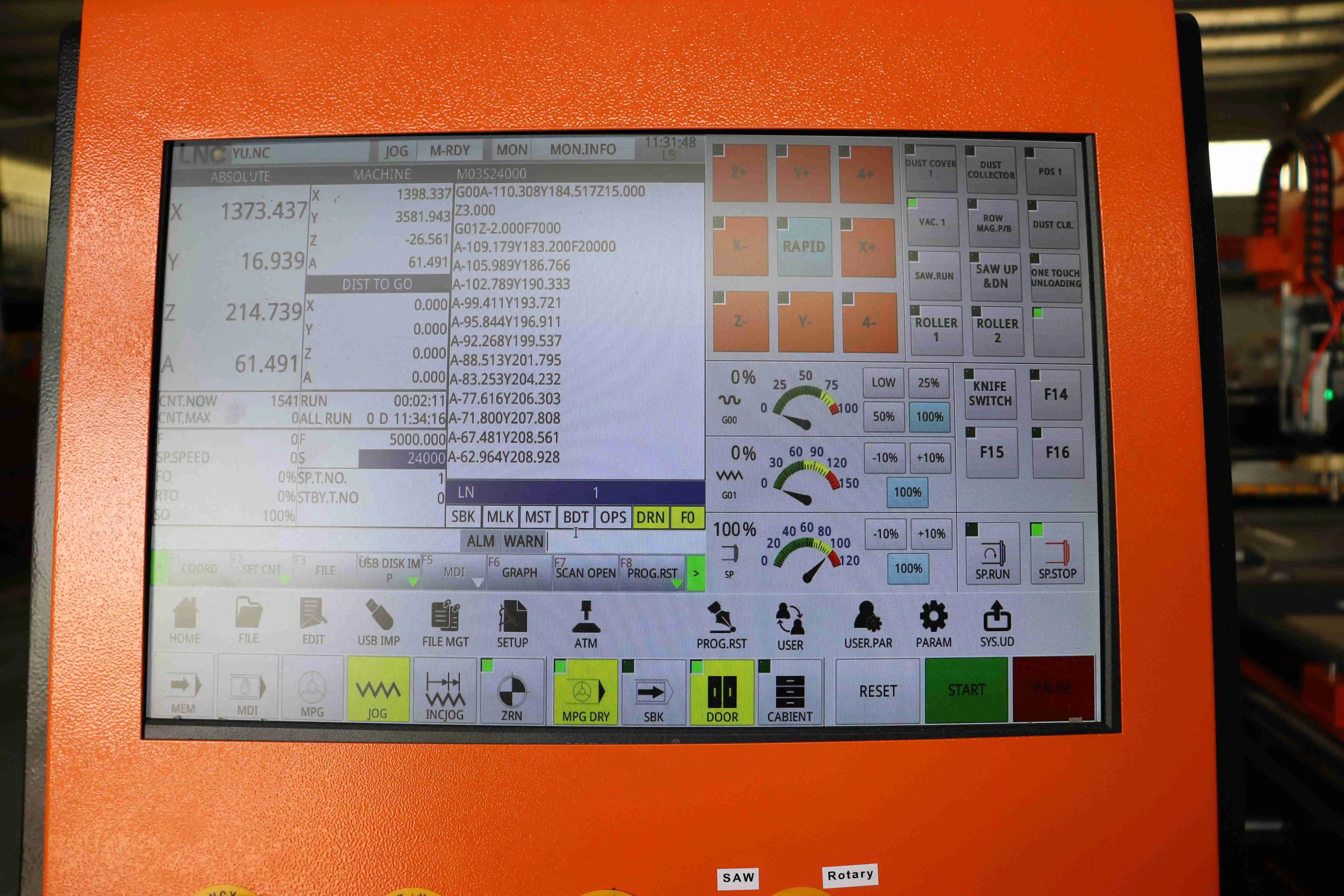

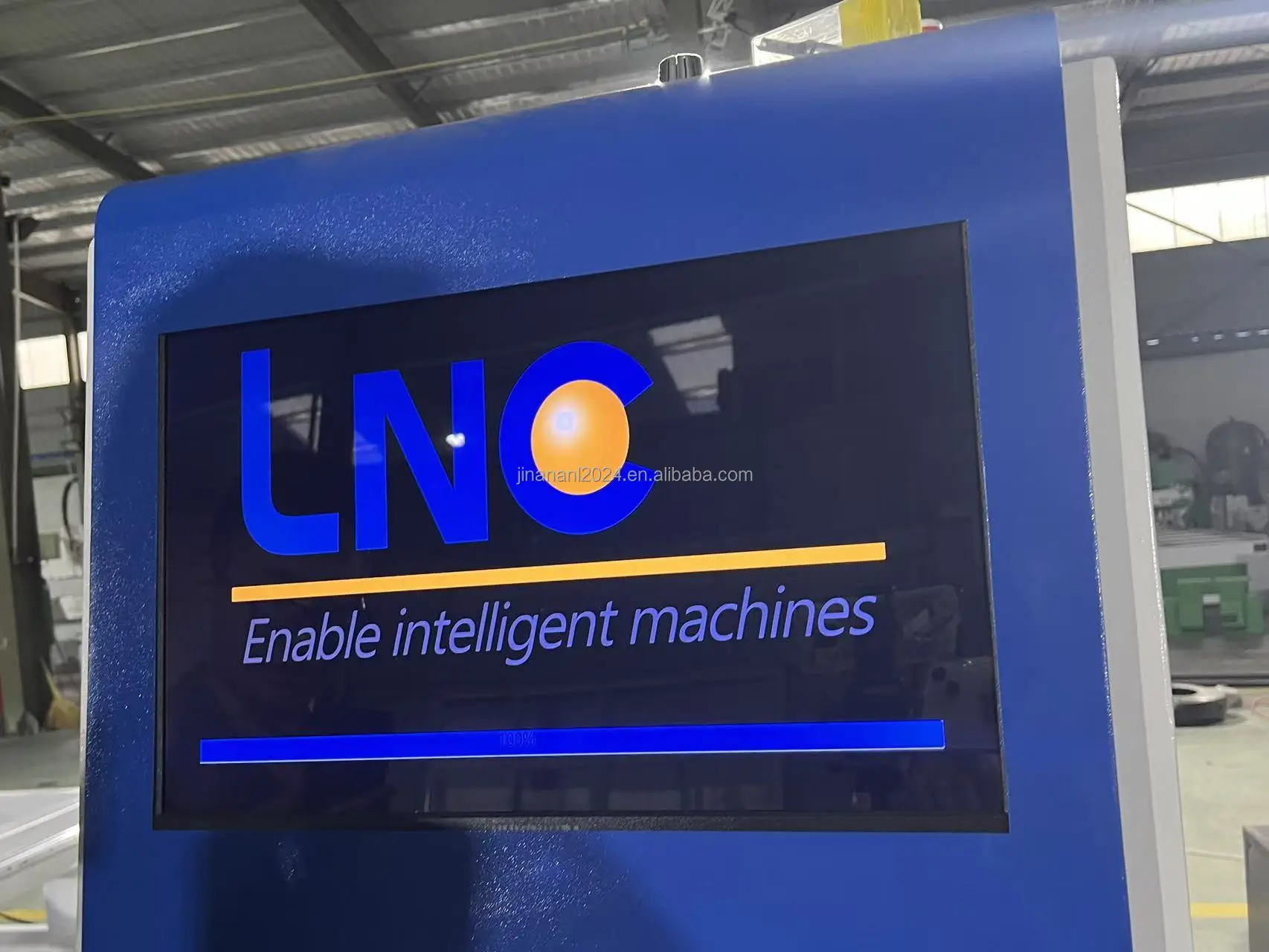

SYNTEC/ LNC Control System from Taiwan
Advanced system with big color display, with MPG control each axis move at slow speed and simulation function, stable and easy to Learn and operate.

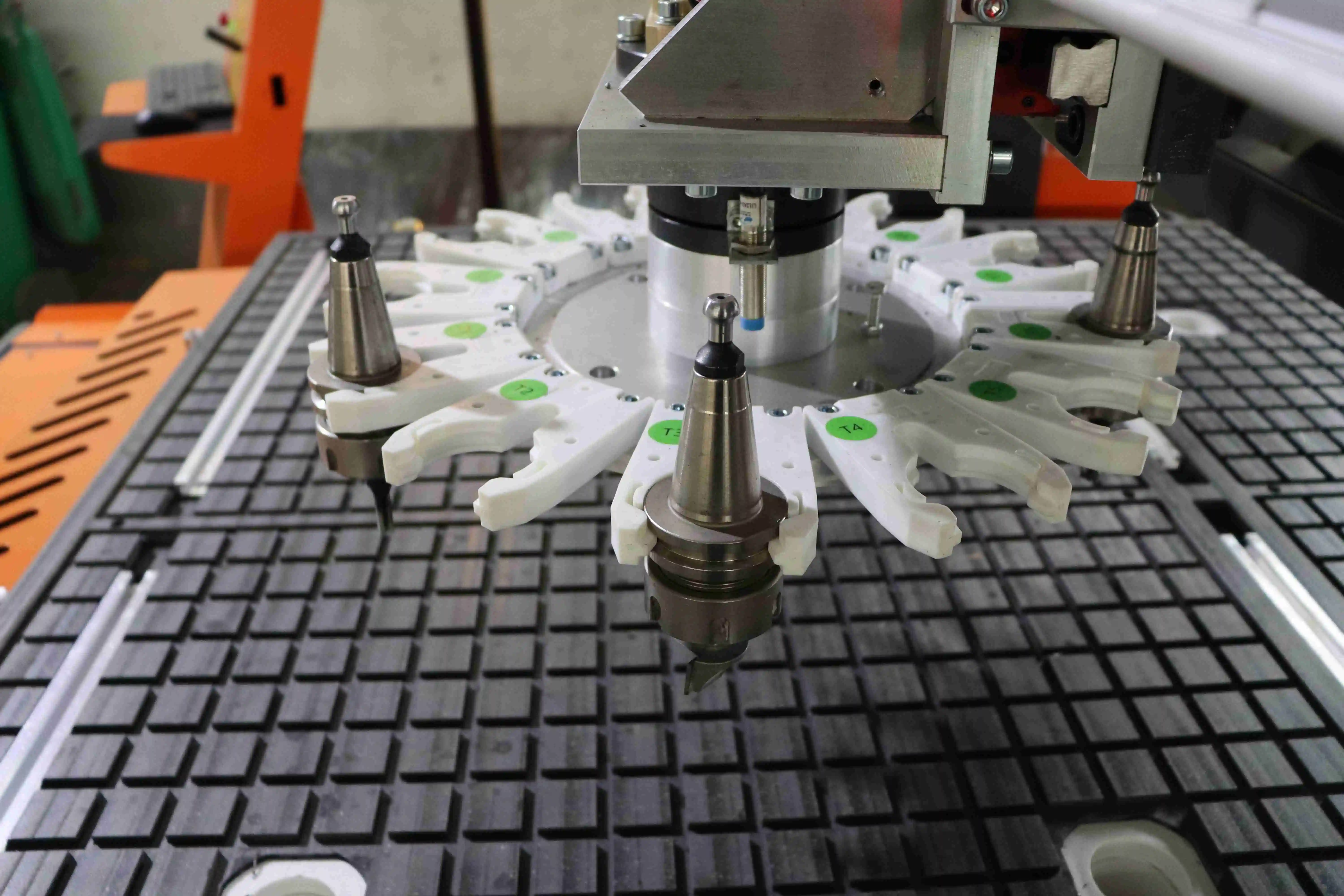

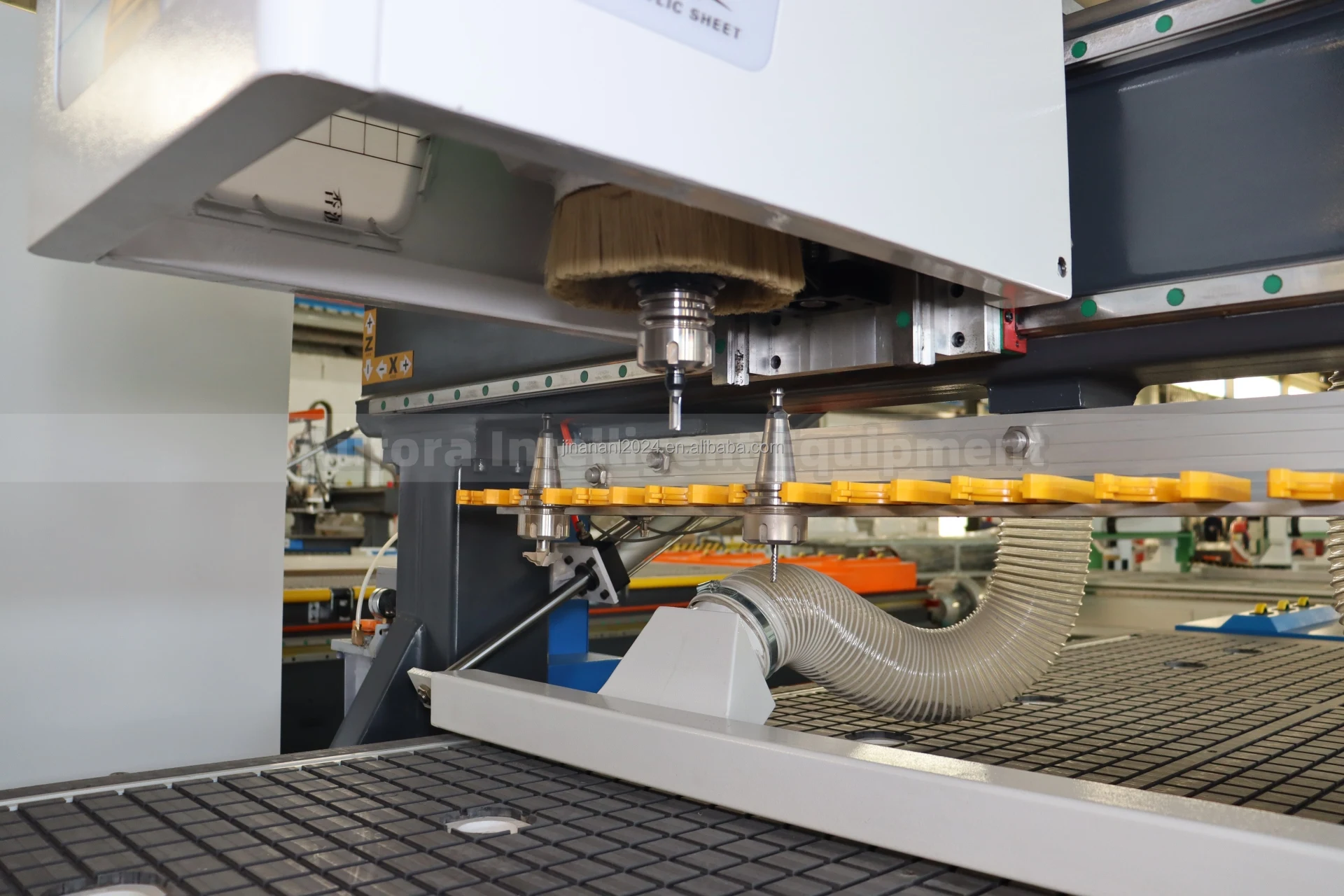

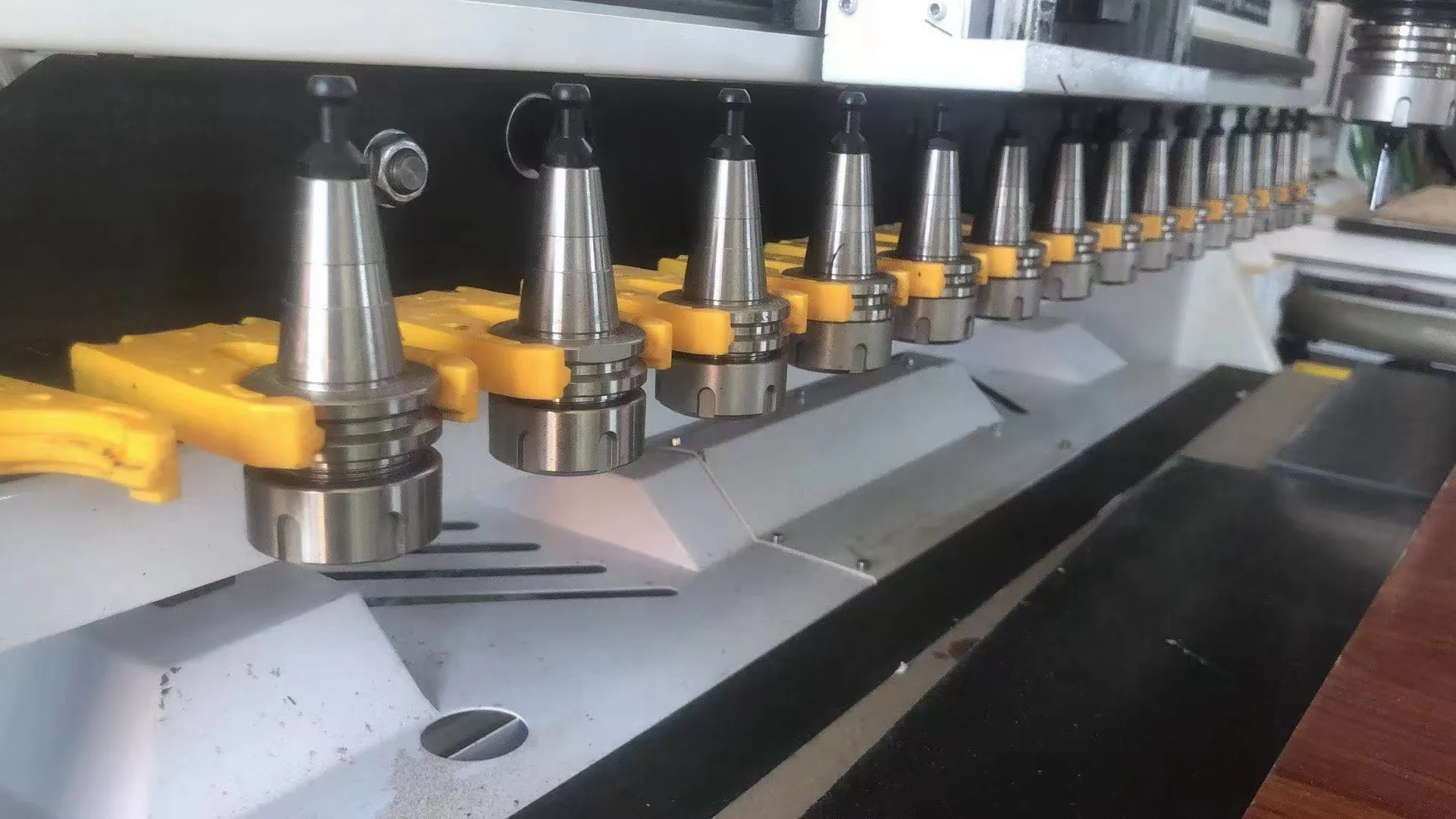

Tool Magazine
12-16 pieces linear or carousal movable ISO30 auto-tool changer magazine speeds up tool changes assuring faster cycle times increasing production throughput.

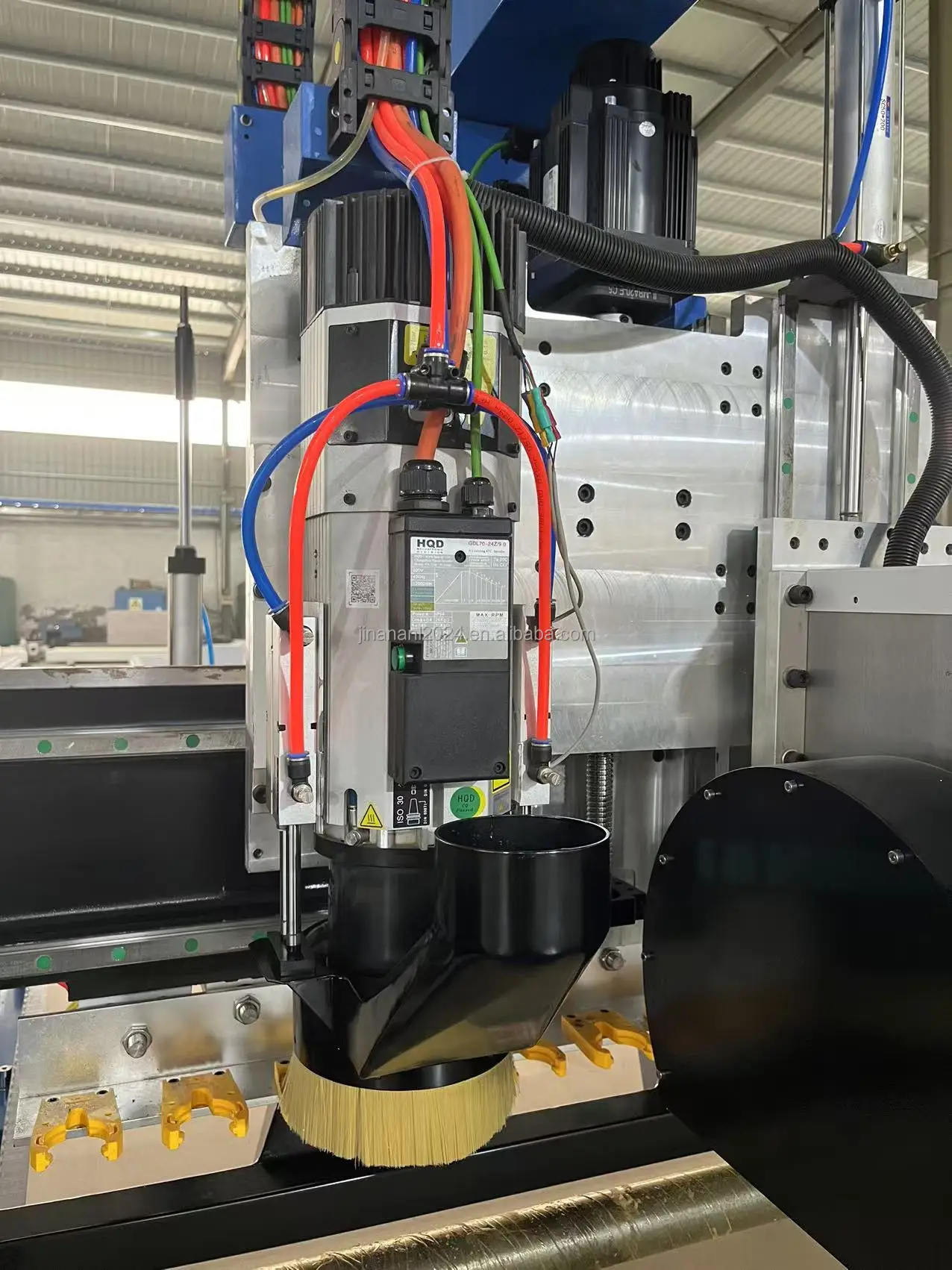

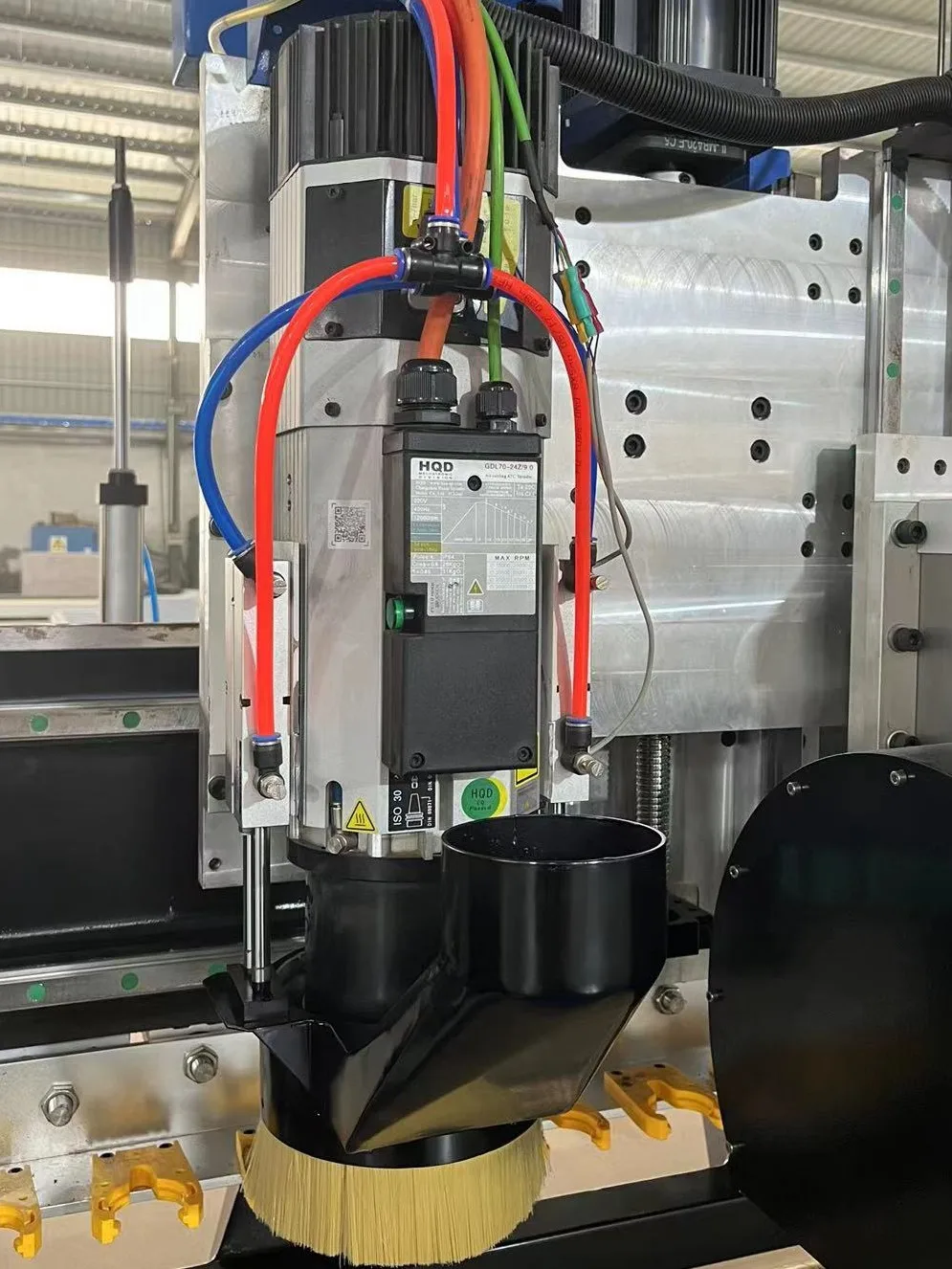

ATC 9kw air cooled Spindle
The ATC CNC Router comes standard with a high frequency automatic tool changer spindle. High precision spindle requires no maintenance, uses industry standard ER collets and lSO 30 tool holders. Fully programmable speeds from 6000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

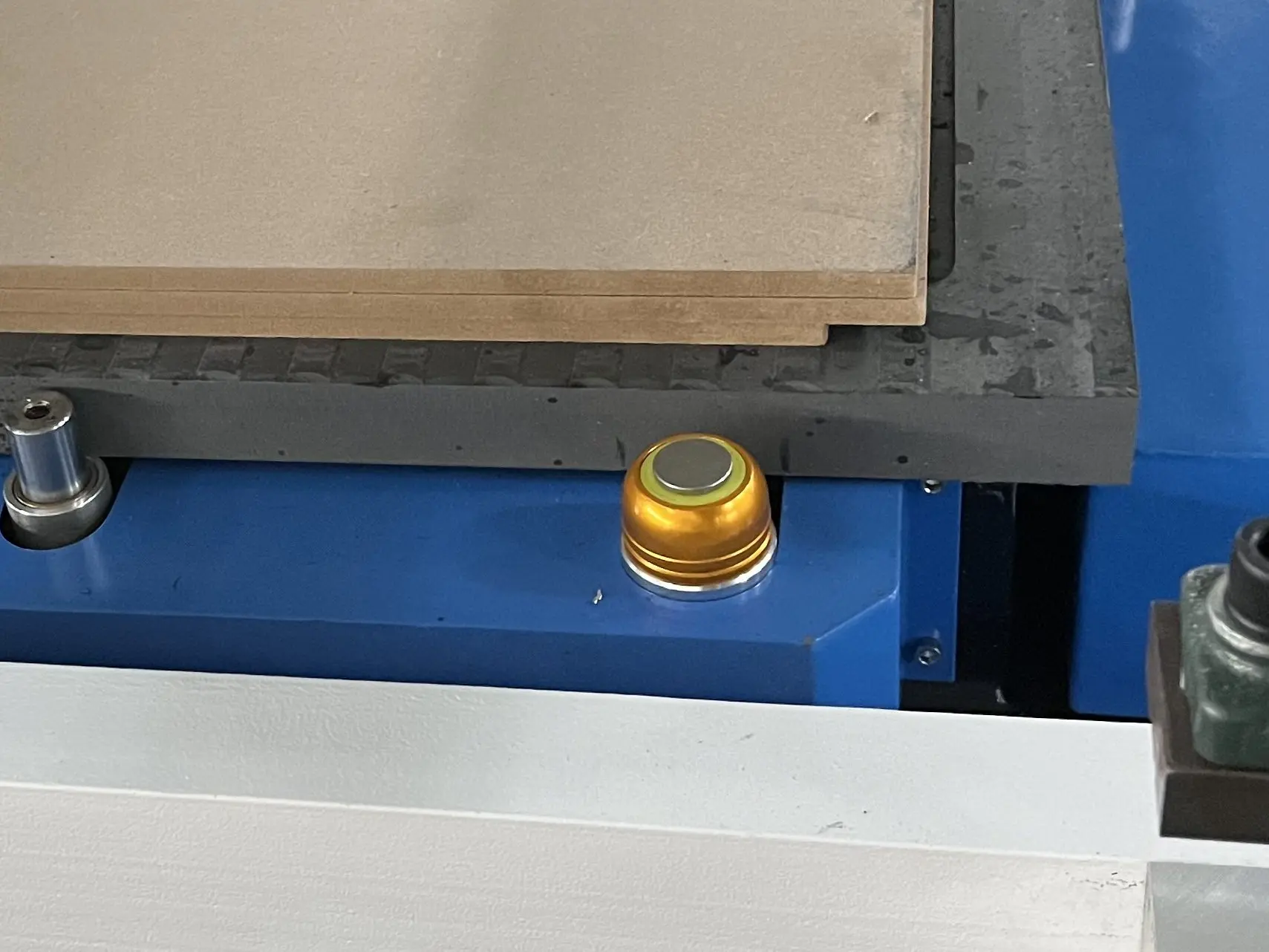

Auto Tool Sensor
High precision tool sensor will get each different tool length offset, wireless calibration help you set Z zero easily.

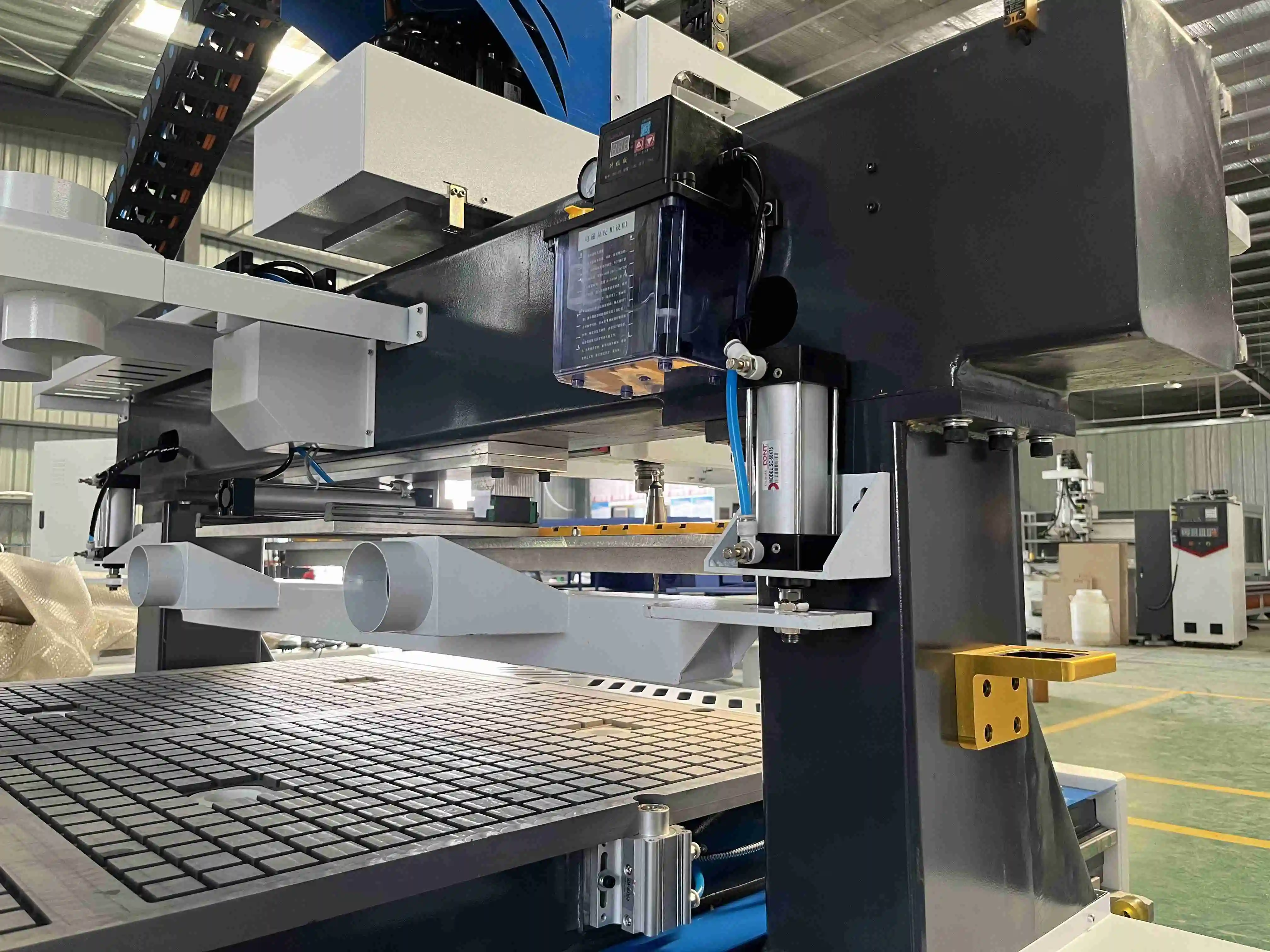

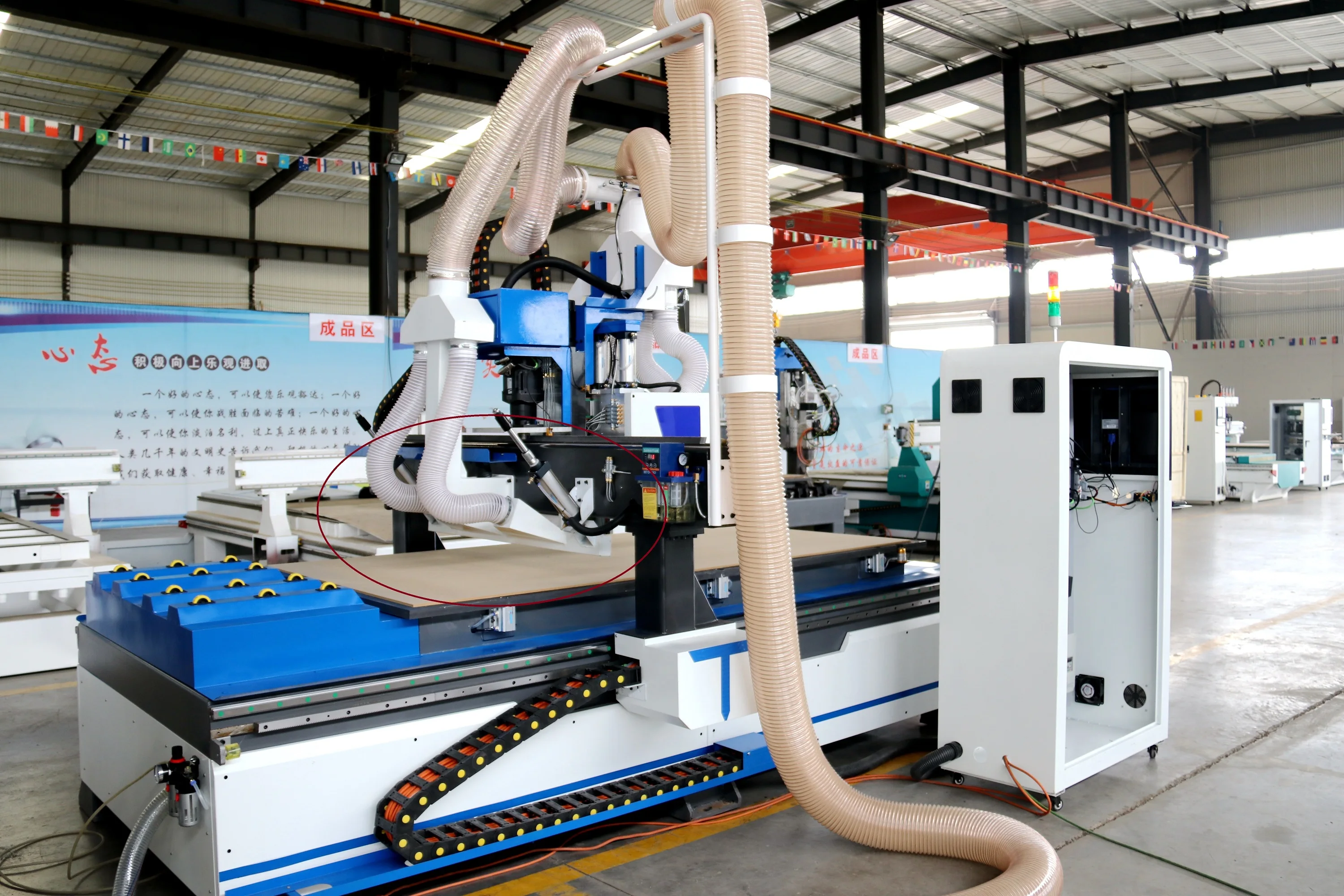

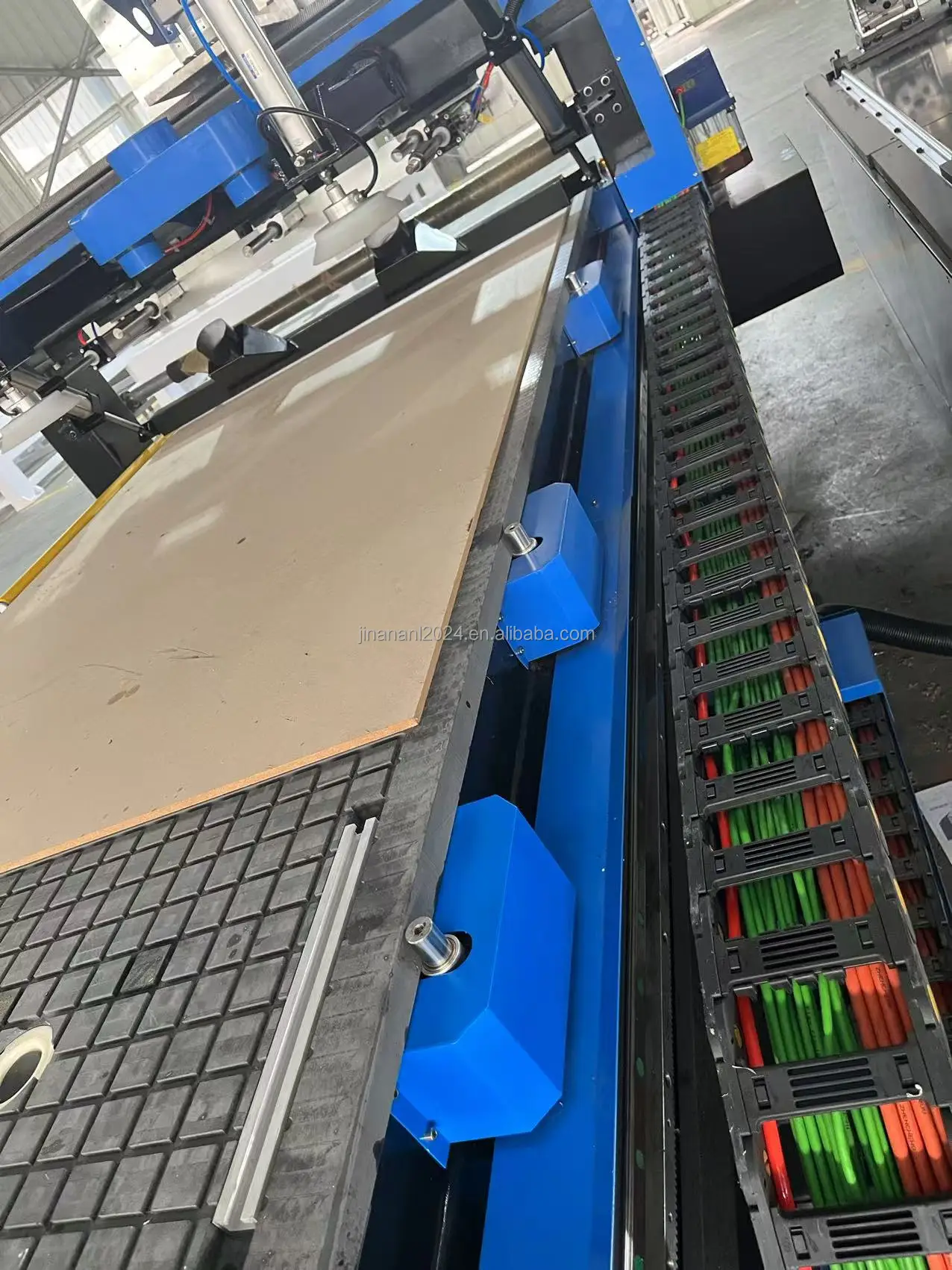

Auto pusher + dust removal
Machine comes with finished materials auto pushing and secondary dust removal device behind of the gantry for better dust removal effect during processing.
Machine comes with finished materials auto pushing and secondary dust removal device behind of the gantry for better dust removal effect during processing.
What else options can choose?
Rotary axis
Saw Blade for thick wood cutting
Boring head
Loading platform
Unloading conveyor table
Auto Label device

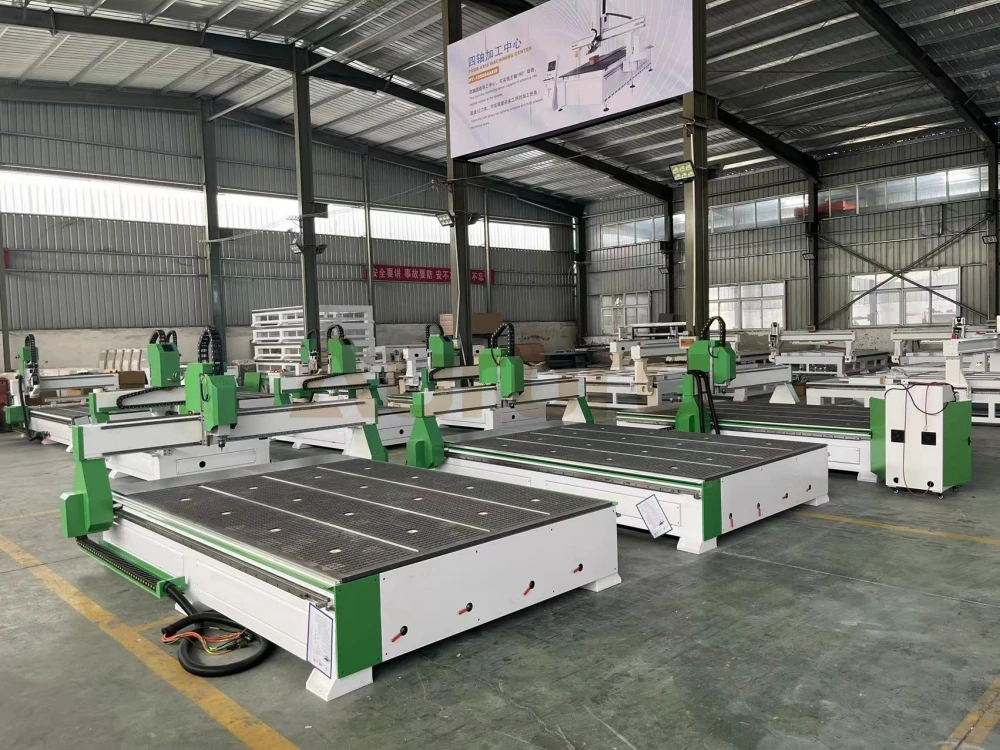

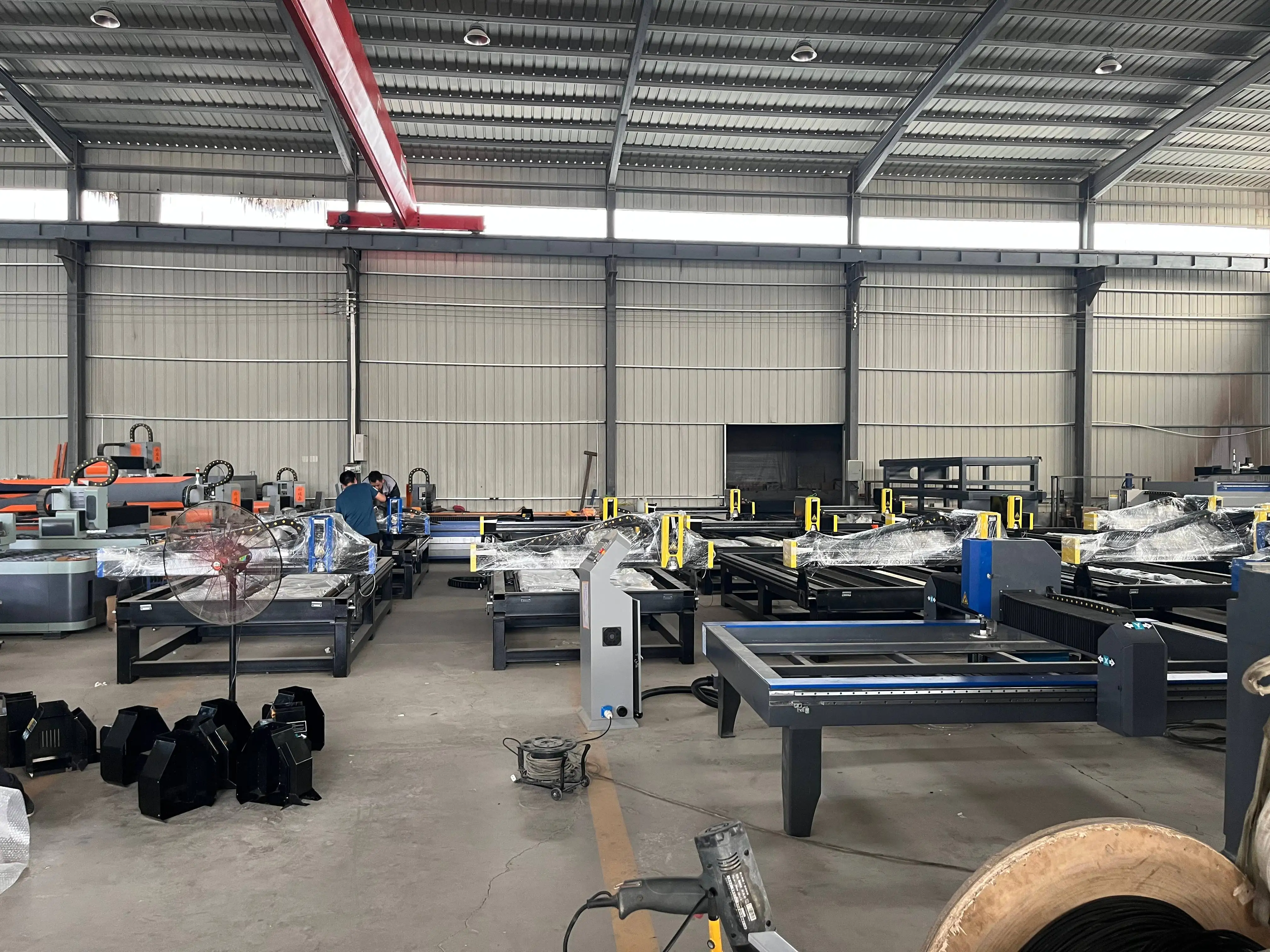

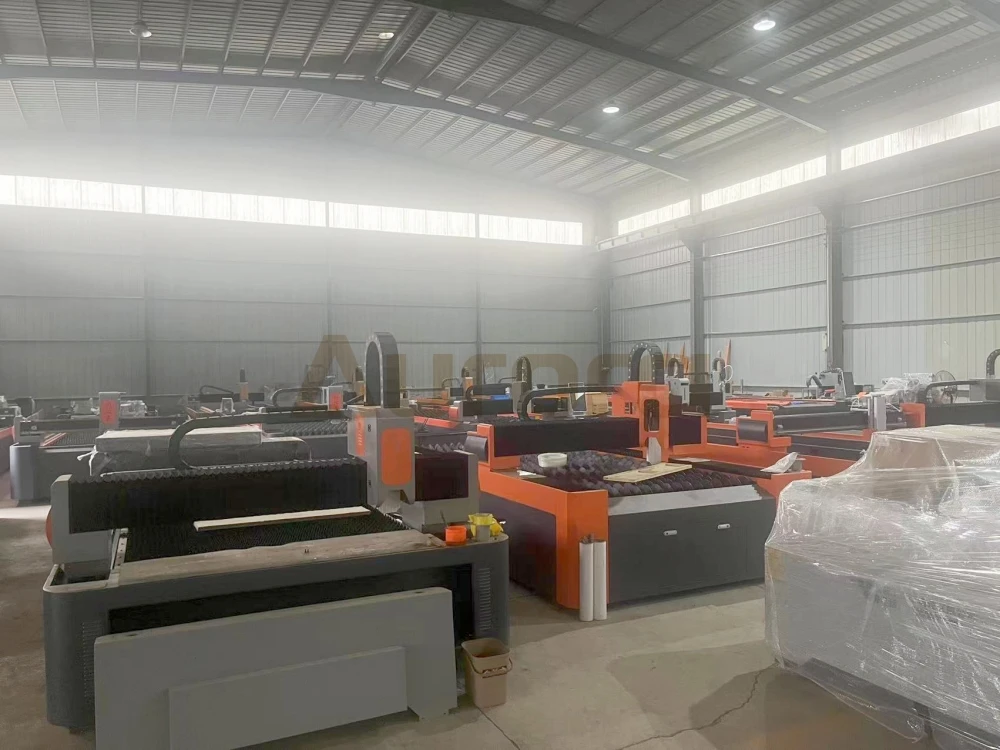

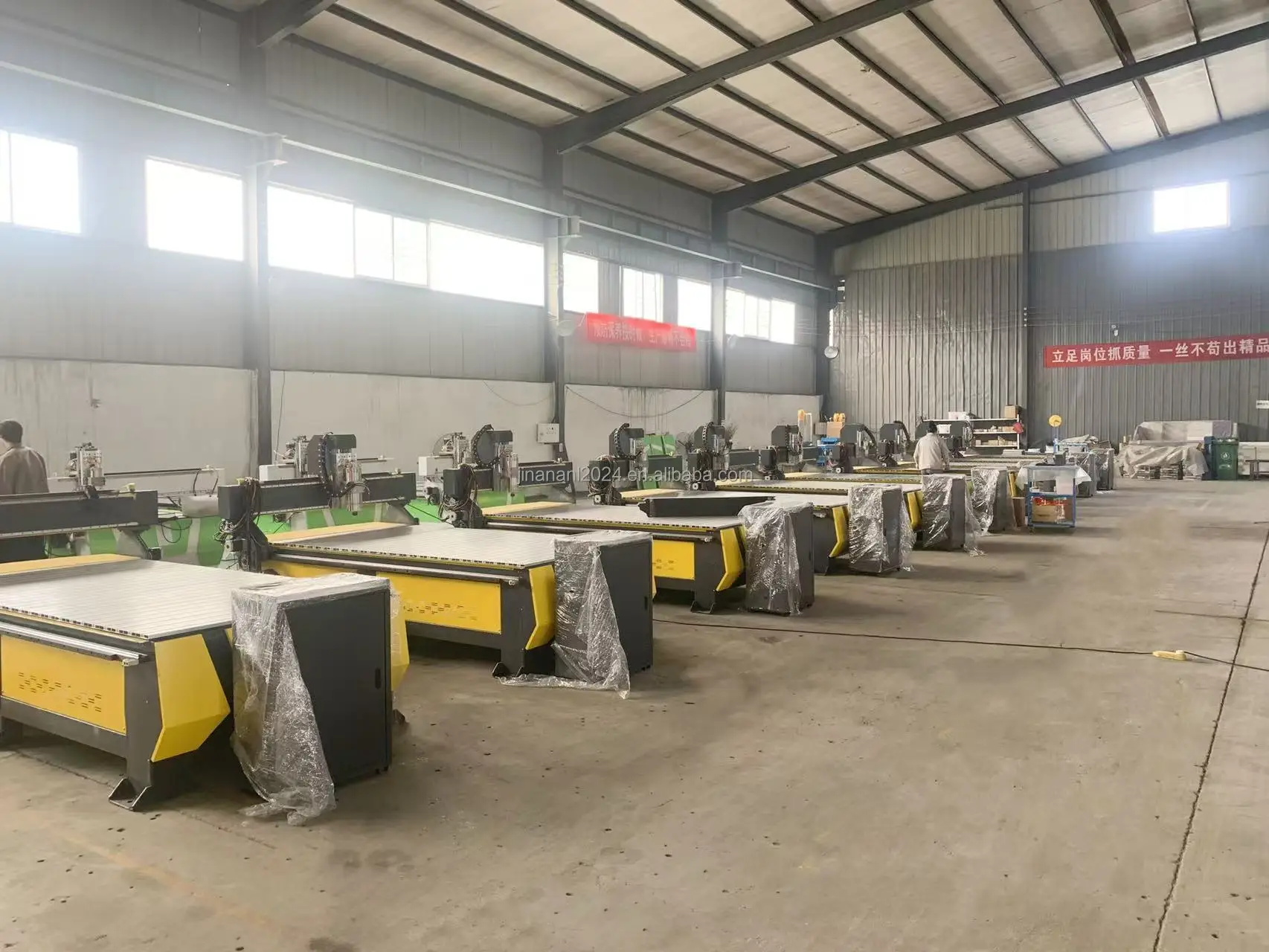

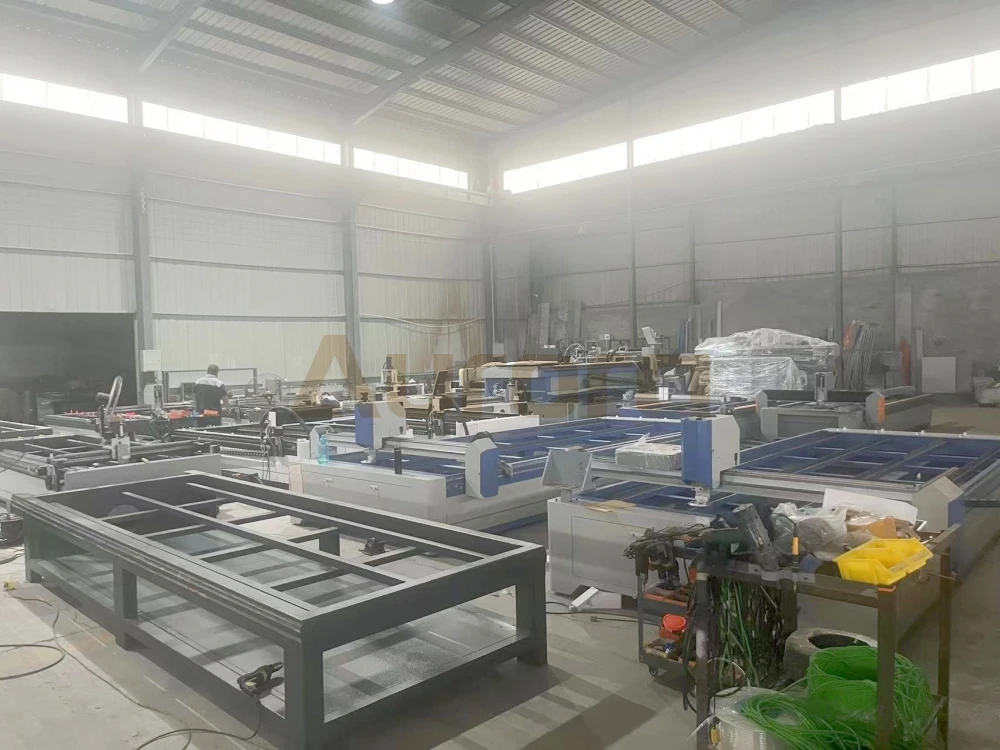

Our company

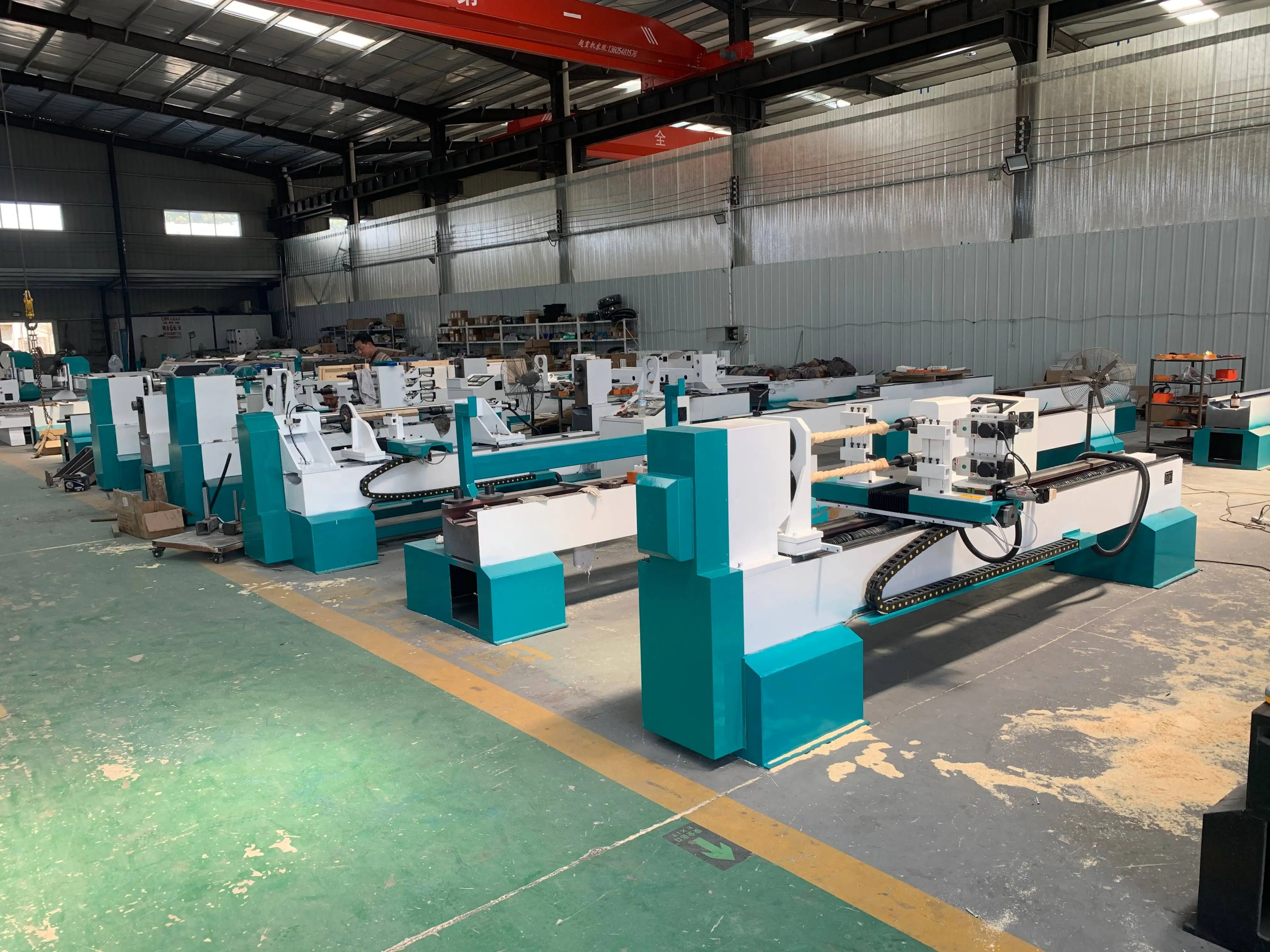

Jinan Aurora Intelligent Equipment Co.,Ltd. is located in Jinan City, Shandong Province, with a factory area of about 3,000 square meters. We focus on building innovative, reliable and efficient machines and customized service, including full automatic furniture production line, CNC Router, CNC Wood Lathe, and Metal plasma cutting machine, Laser cutting machine, especially for ATC CNC Router, 4 axis and 5 axis big CNC machines, we are at the forefront of the industry.
With rich manufacturing experience and professional pre-sales and after-sales services, Aurora customers are now in more than 180 countries around the world, and we have received a lot of highly praise and continue to attract more outstanding customers to cooperate.
With rich manufacturing experience and professional pre-sales and after-sales services, Aurora customers are now in more than 180 countries around the world, and we have received a lot of highly praise and continue to attract more outstanding customers to cooperate.

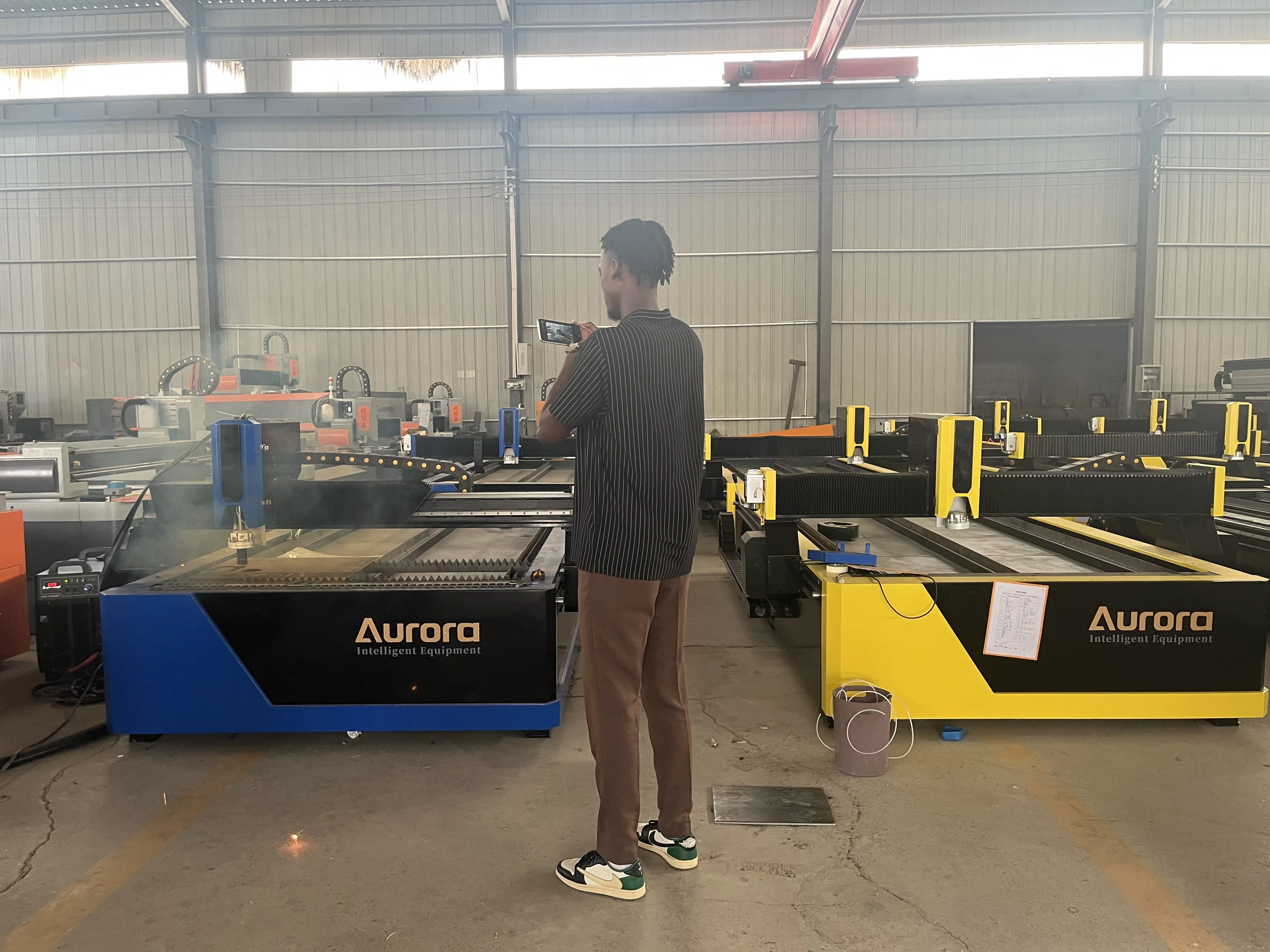

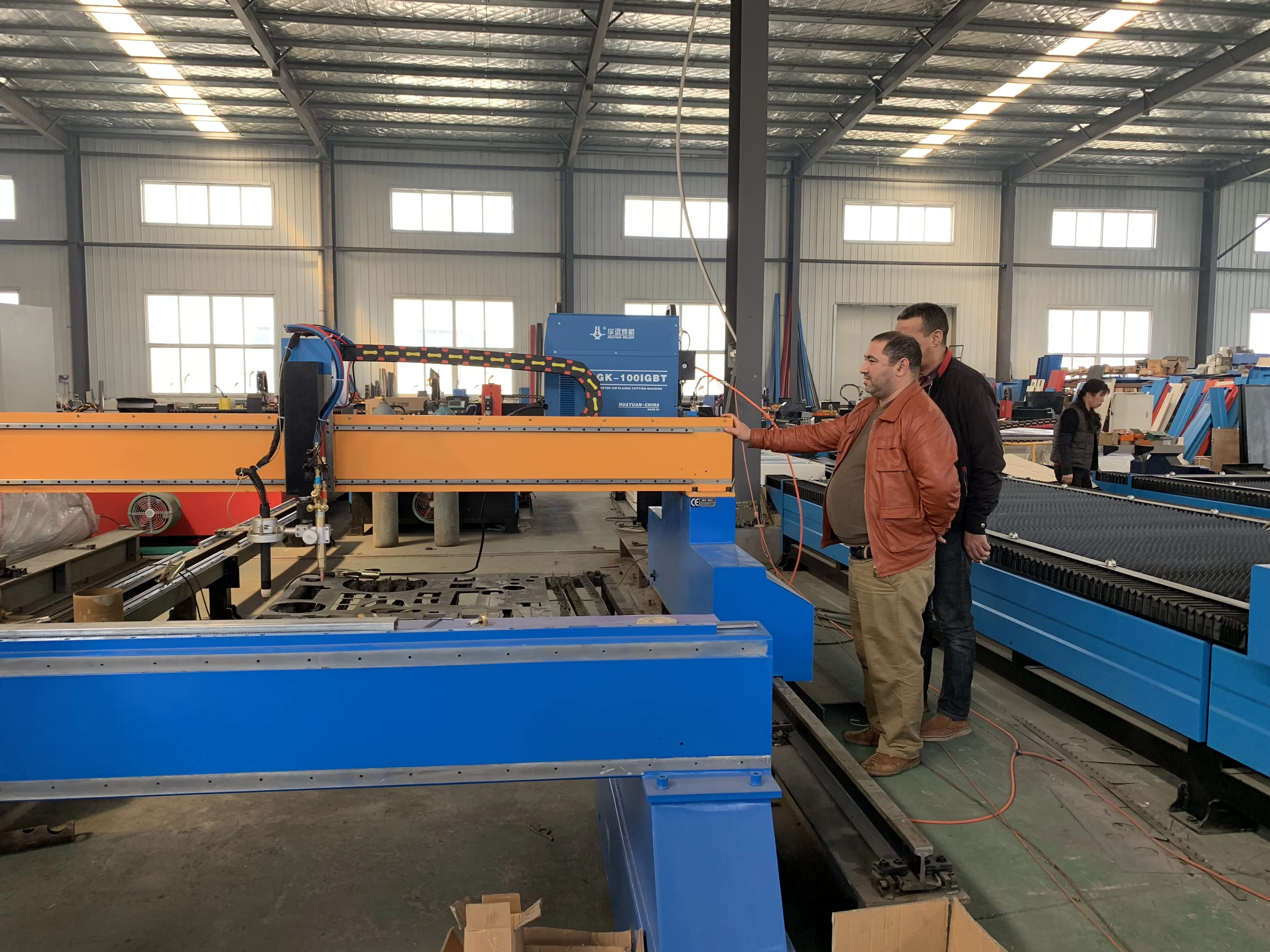

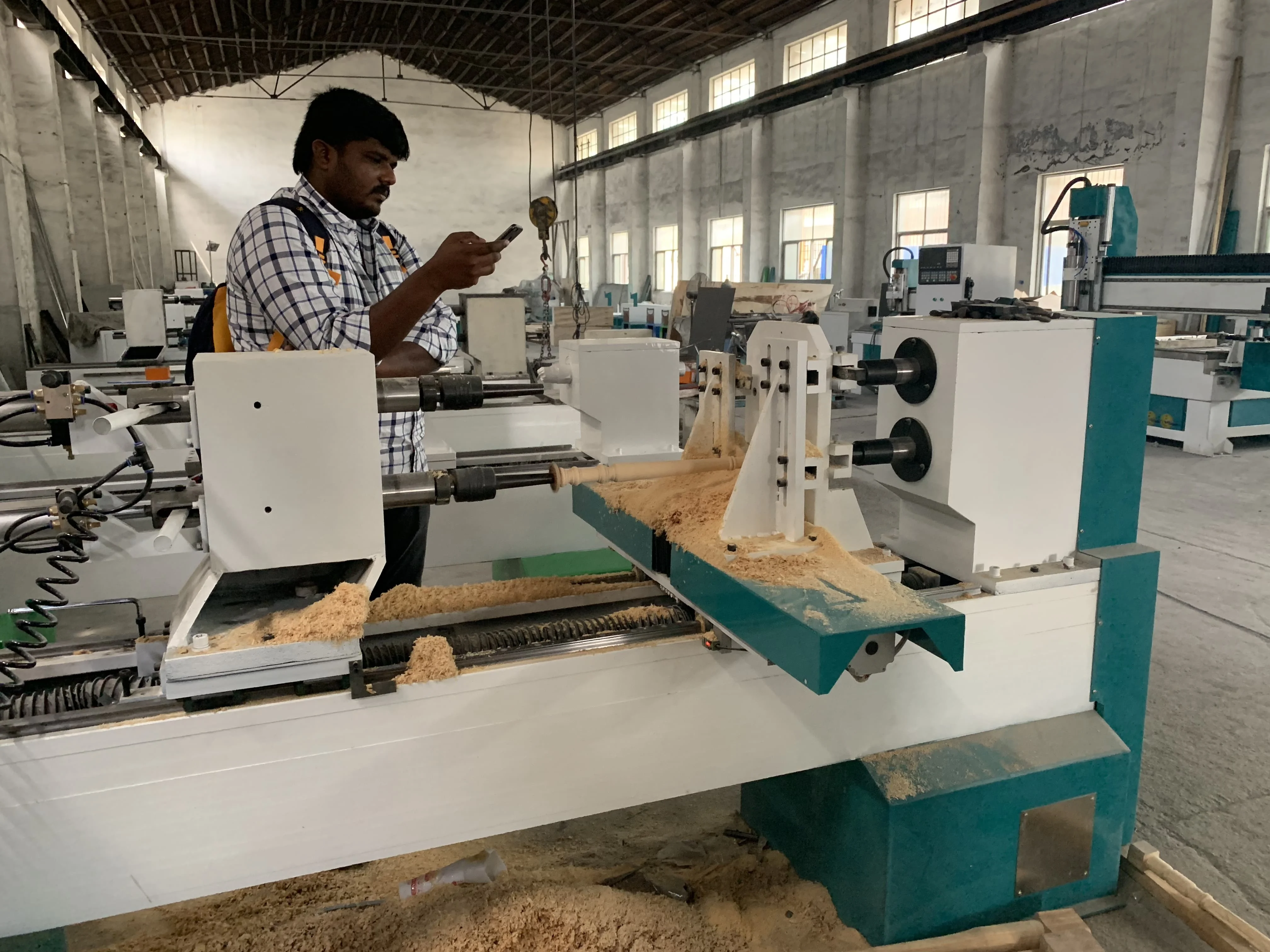

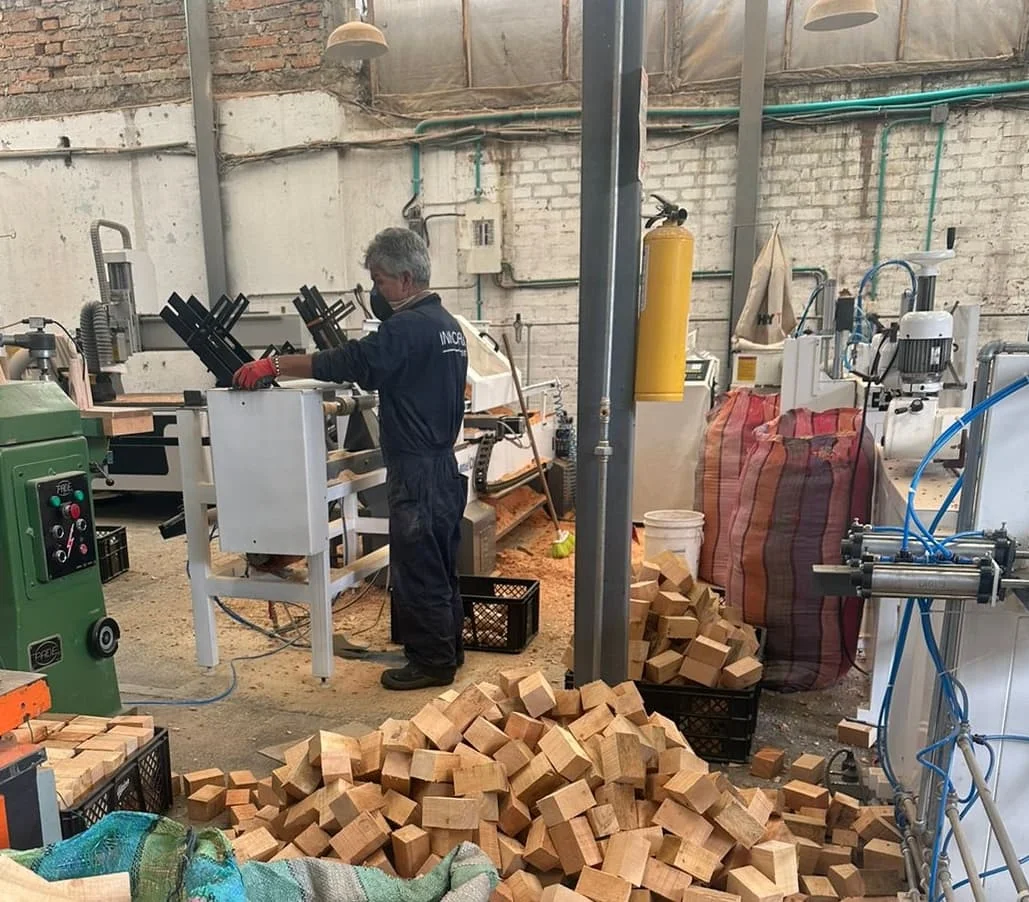

Aurora Customers

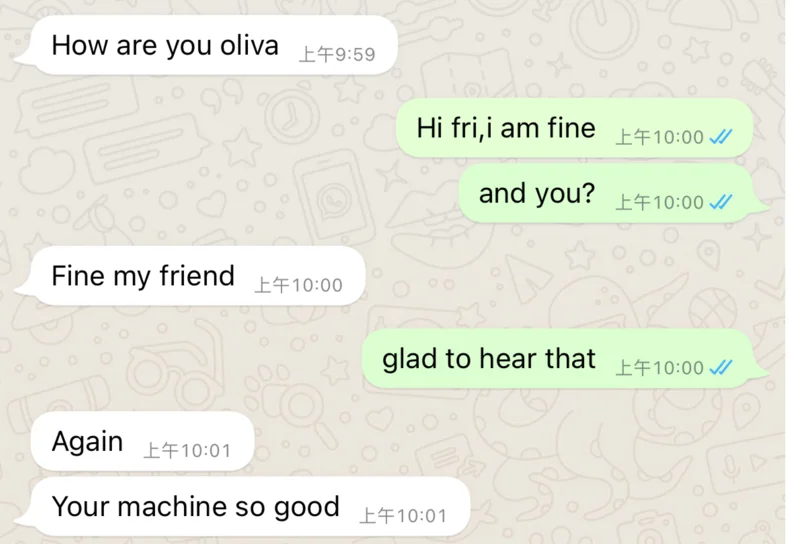

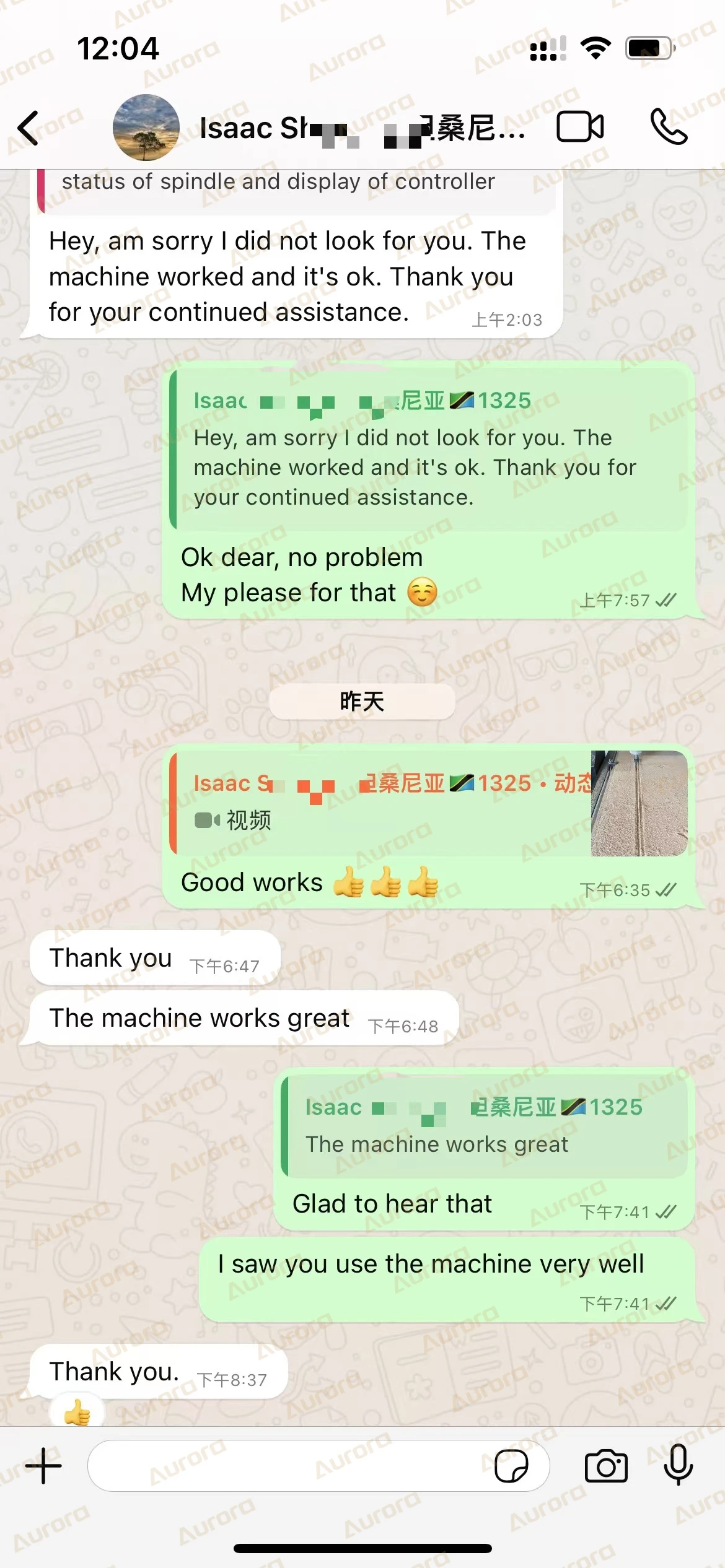

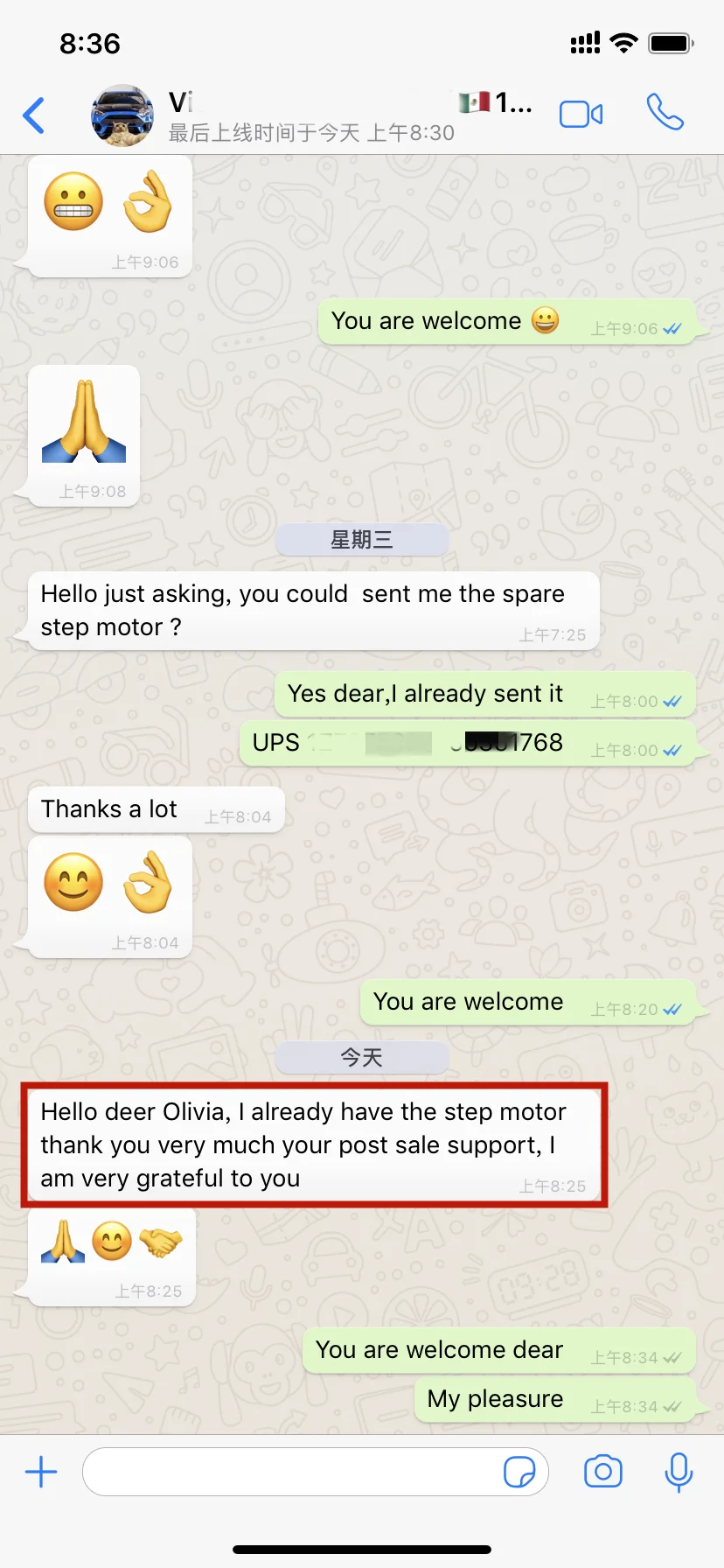

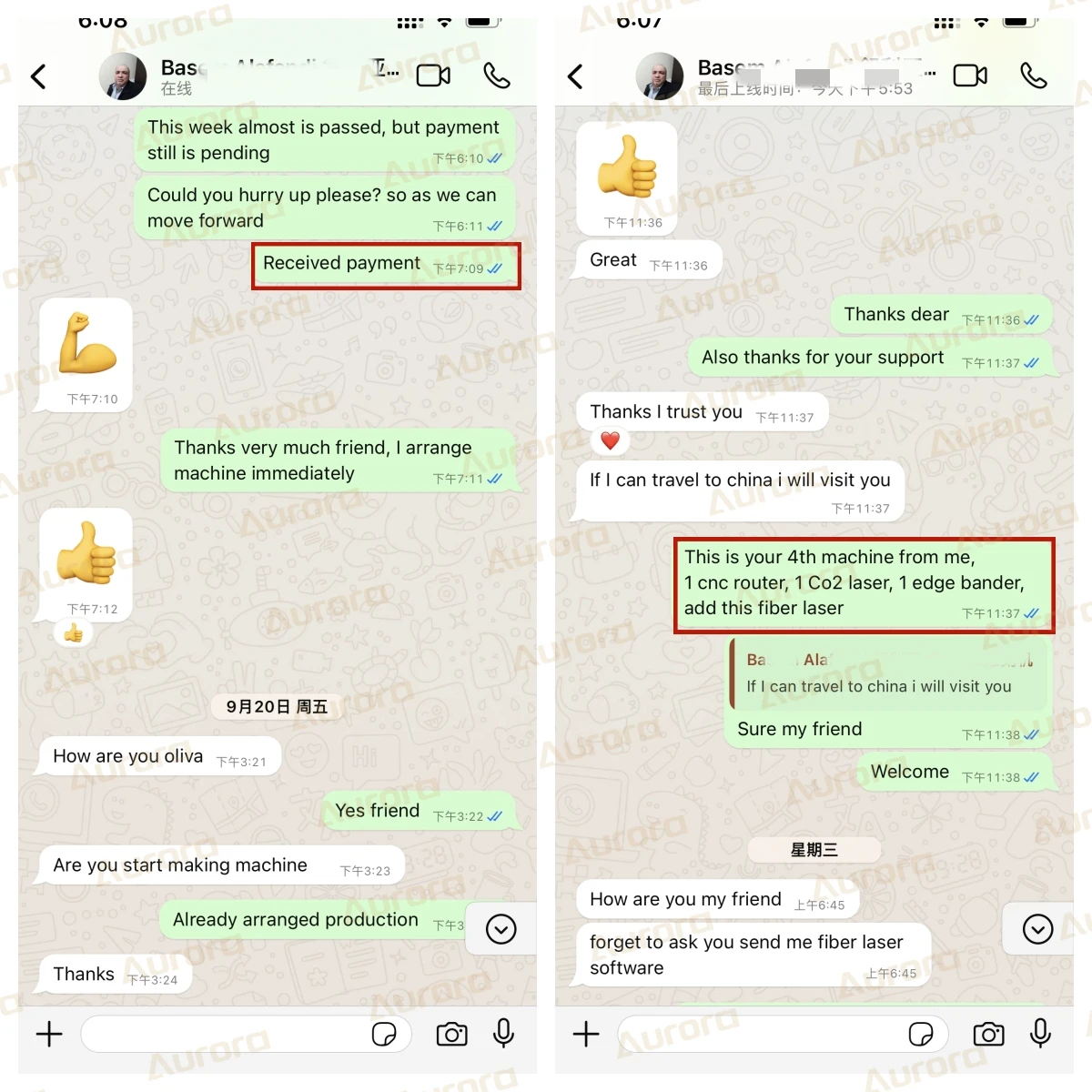

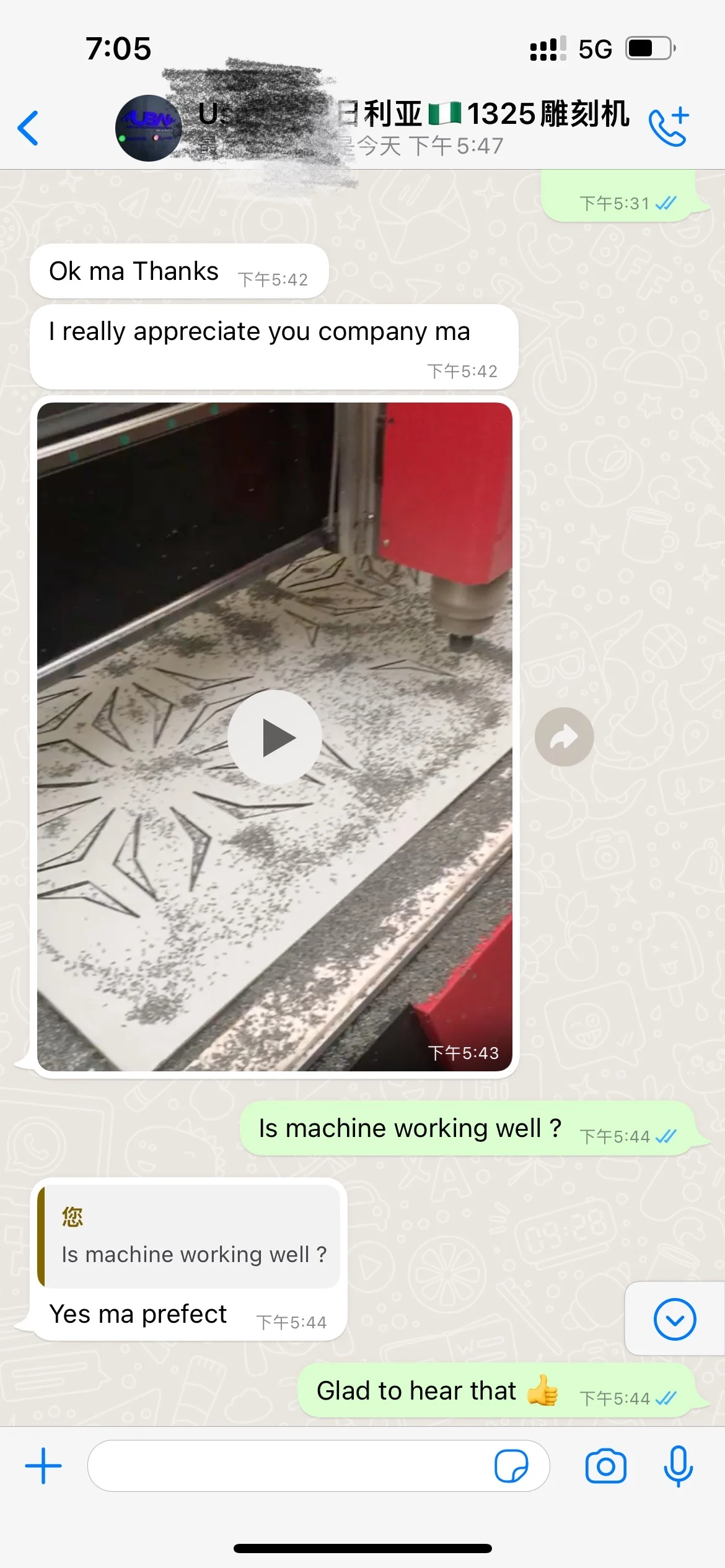

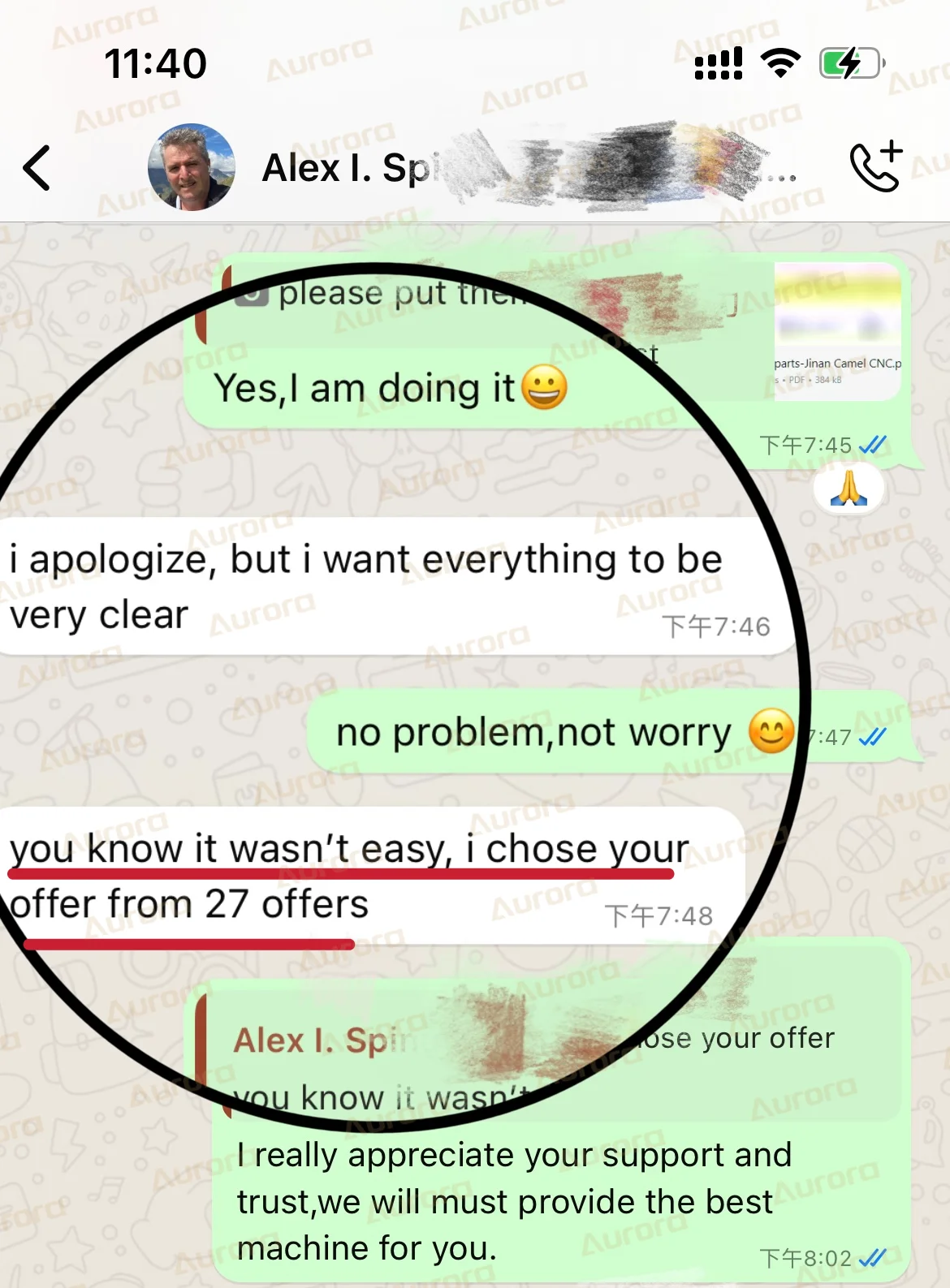

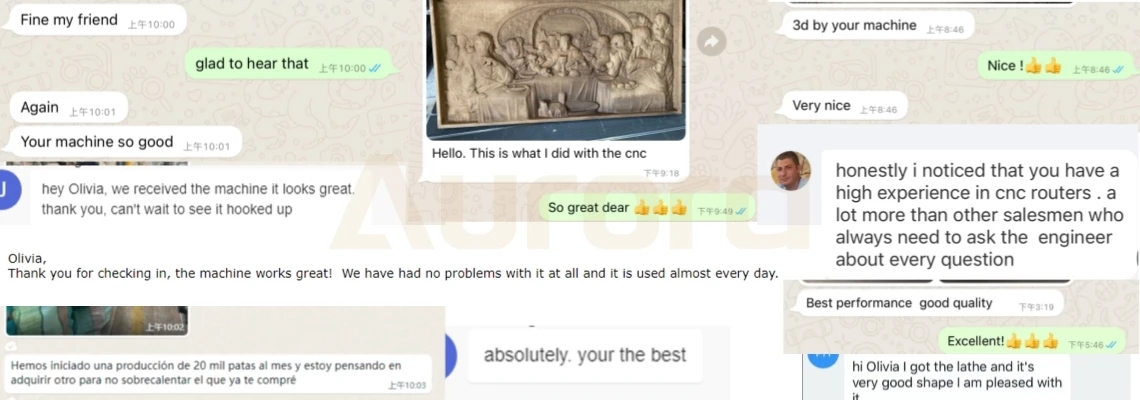

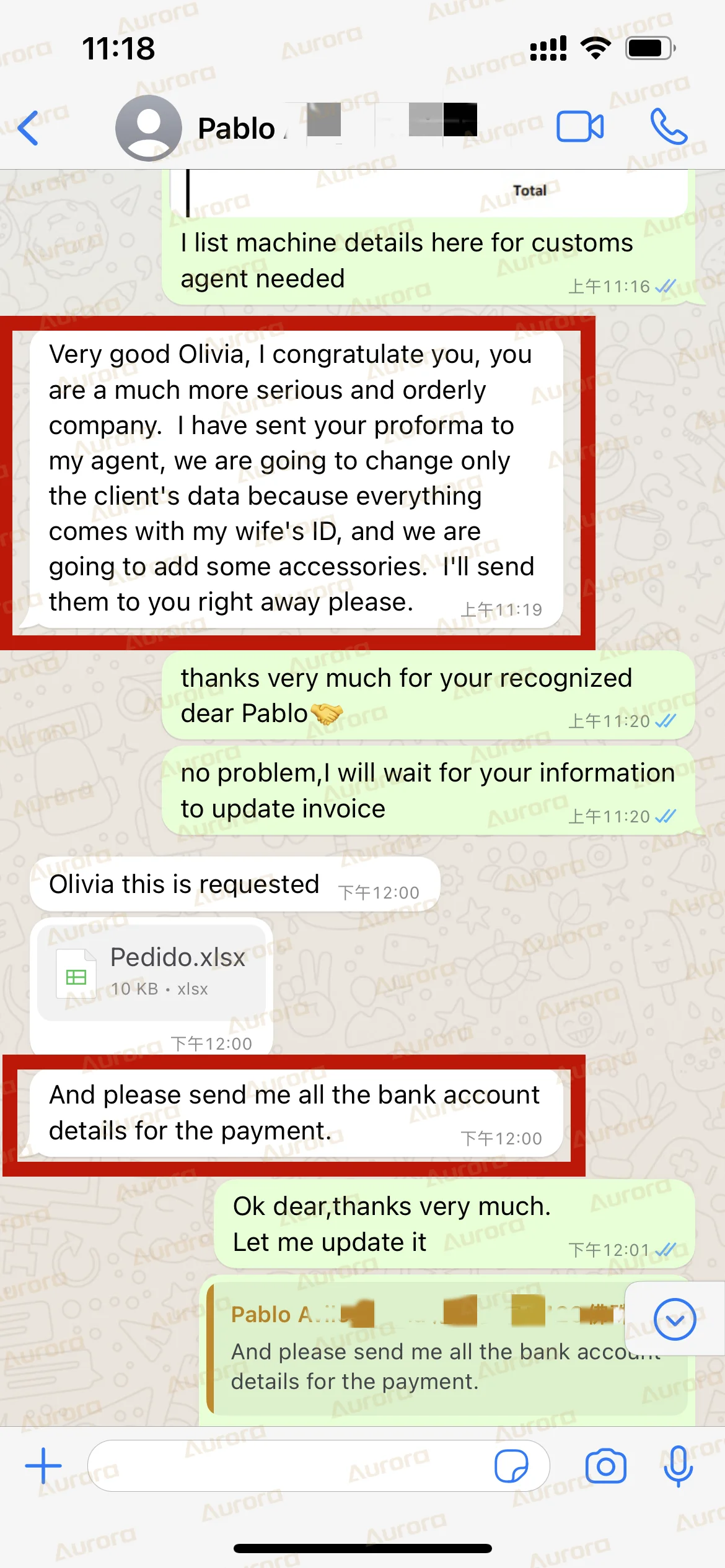

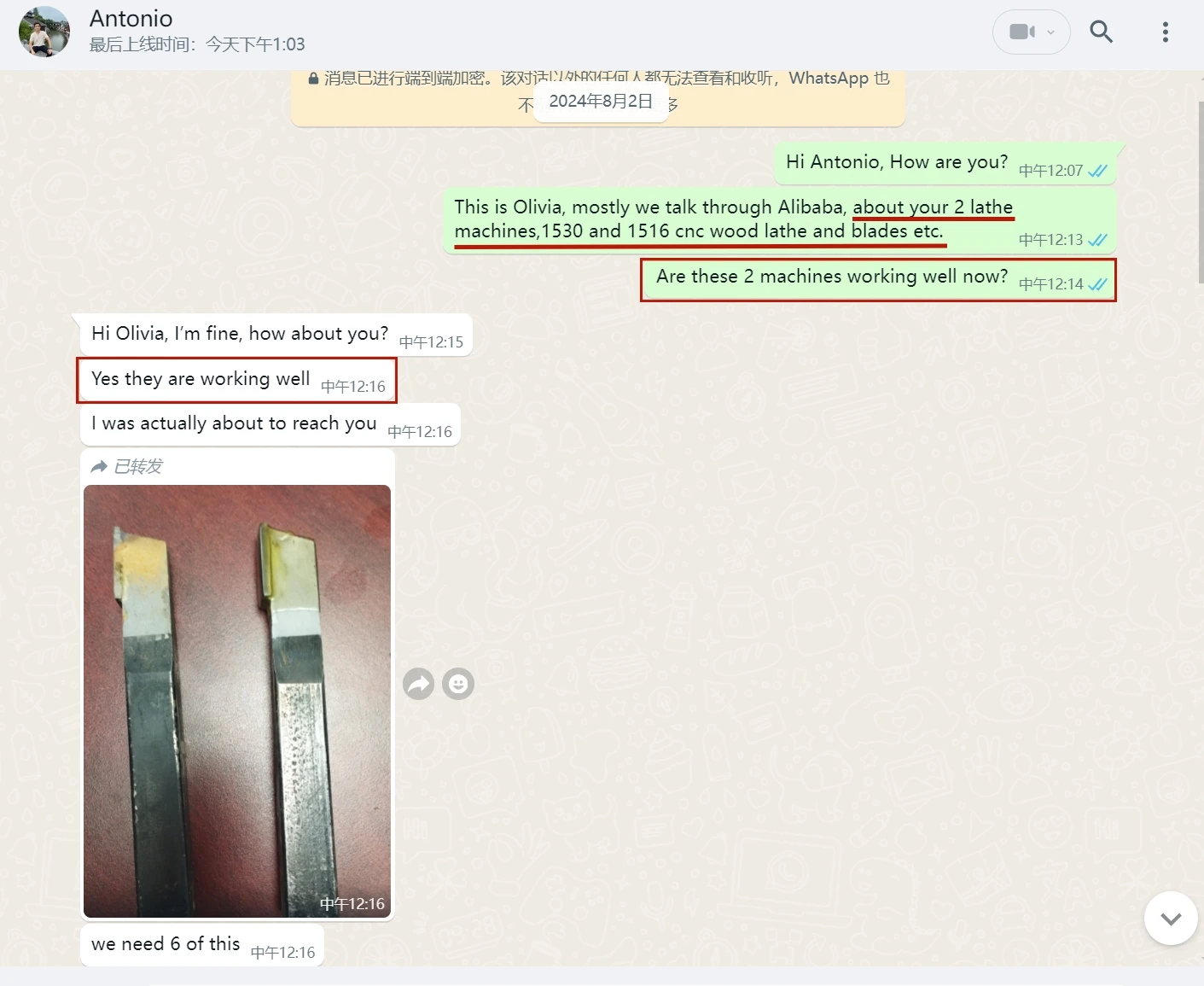

Company comments
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine
according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team
viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.

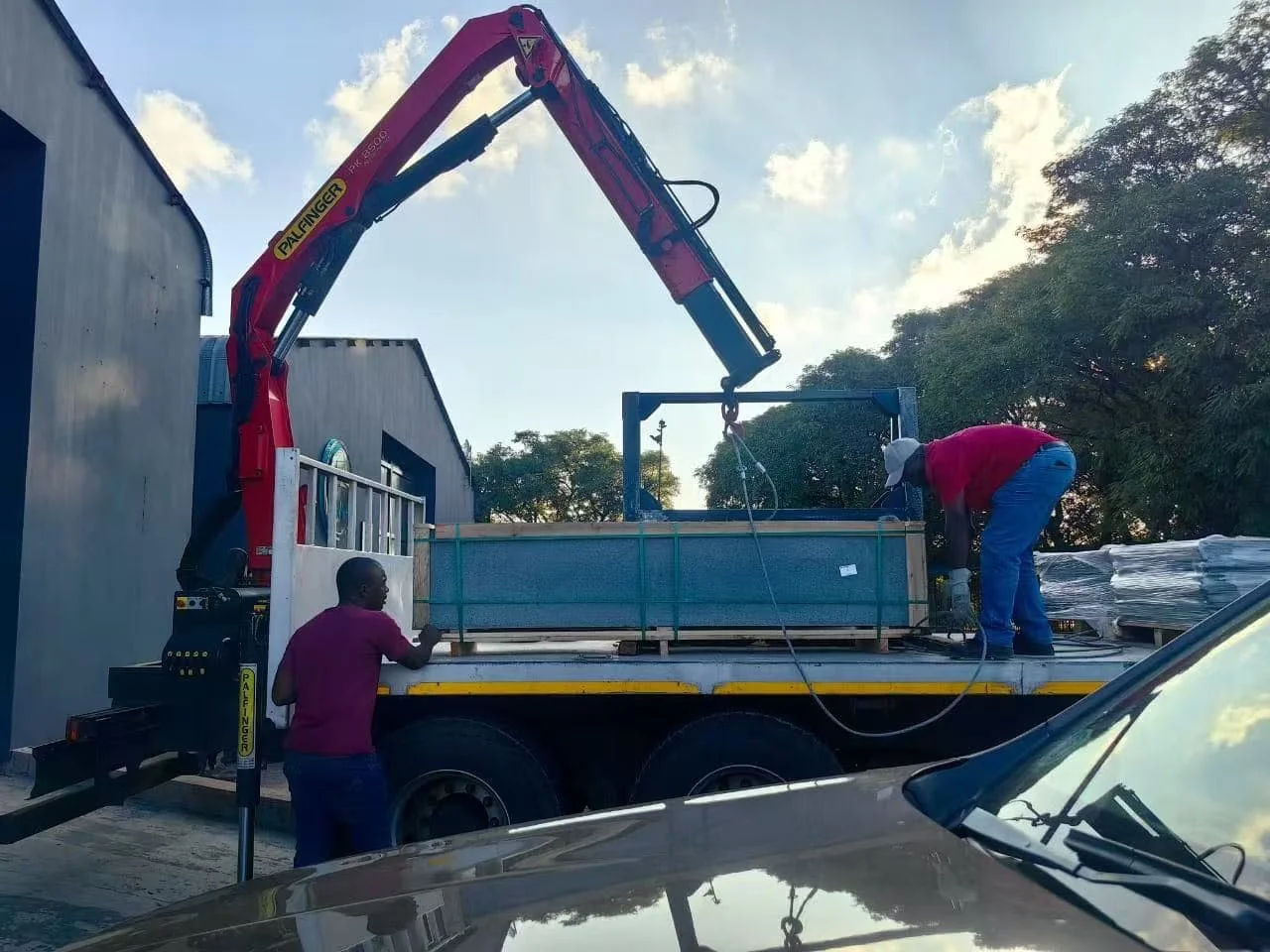

Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine
according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team
viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
