ODM 12V 200Ah Ultra Slim Rechargeable Lithium Battery Dual Purpose 12v Slimline LiFePO4 Batteries 200 Ah with BMS
- Category: >>>
- Supplier: Shenzhen Yichen S-Power Tech Co. Ltd.Shenzhen Ltd.
Share on (1601280793586):
Product Overview
Description
Products Description

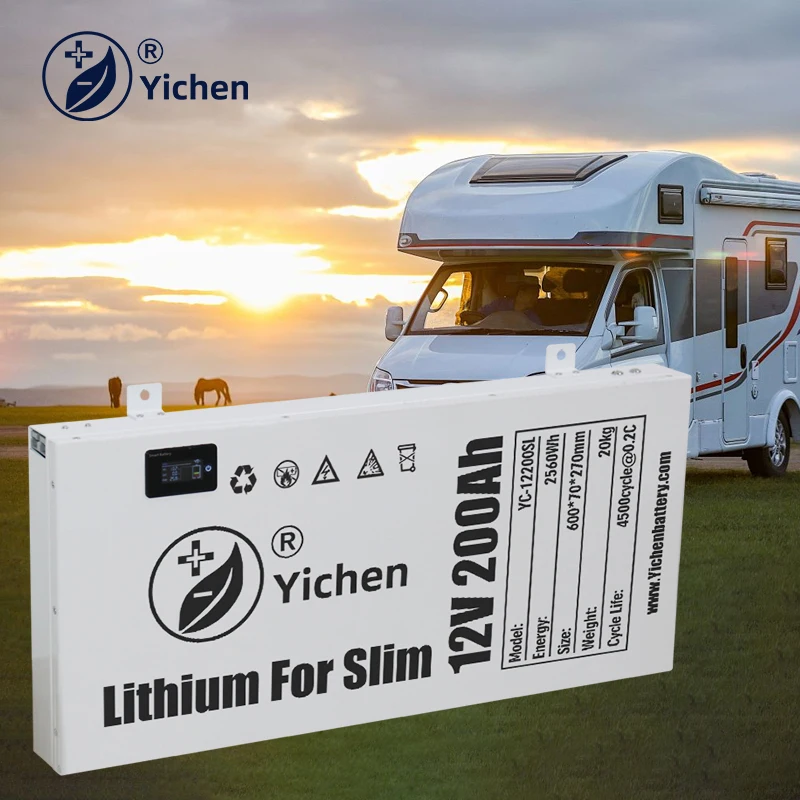

ODM 12V 200Ah Ultra Slim Rechargeable Lithium Battery Dual Purpose 12v Slimline LiFePO4 Batteries 200 Ah with BMS
Slimline lithium batteries deliver reliable lithium battery technology in a convenient compact size. Slimline lithium batteries are perfect for any setup where space is limited, for example in campervans or caravans, or installing behind rear seats of dual cab utes. While a slimline lithium battery will use significantly less space than a regular lithium batteries, it will still generate the same power, and deliver the same remarkable depth of discharge.
Yichen offers both slimline lithium batteries and ultra-slim lithium batteries, so you can choose what best suits your setup:
* 12V 60Ah
* 12V 90Ah
* 12V 100Ah
* 12V 150Ah
* 12V 170Ah
* 12V 184Ah
* 12V 200Ah
> Features high and low voltage disconnect functions, avoiding the effects of common battery failures such as overcharge,
over-discharge, overload, and short circuits on your device.
> Supports high-temperature charging or discharging cut-off.
> Balances each energy cell, ensuring YICHENLFP batteries perform better for longer.

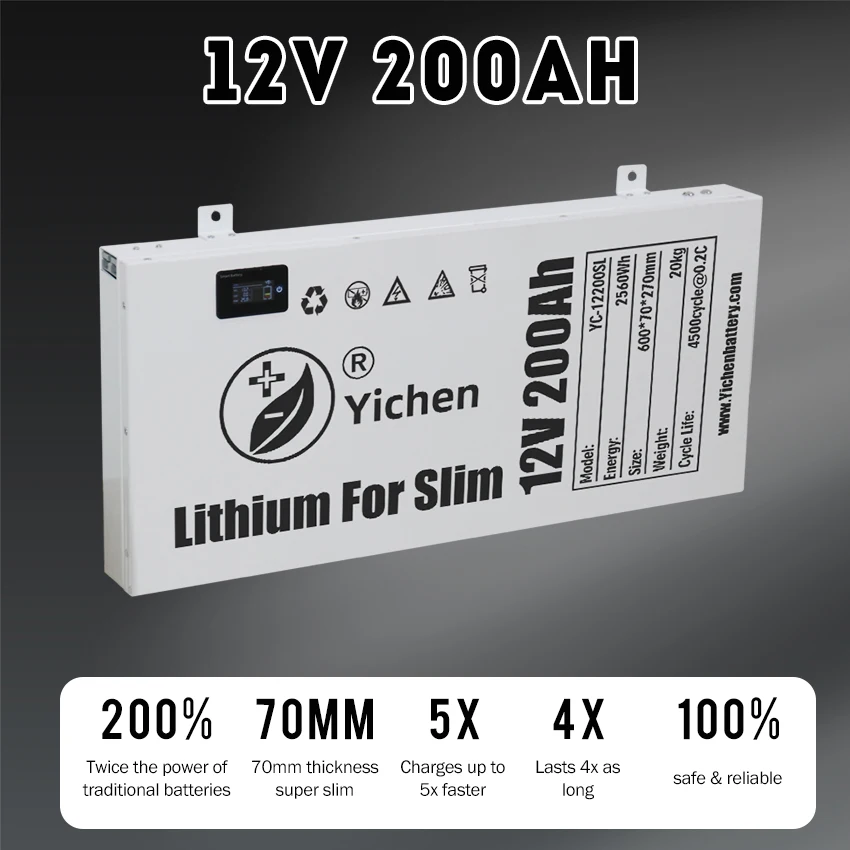

12V 200Ah Ultra-slim Lithium Battery with Bluetooth
> 70% lighter than lead acid batteries;
> Two to four times the service life (4000-6000 cycles);

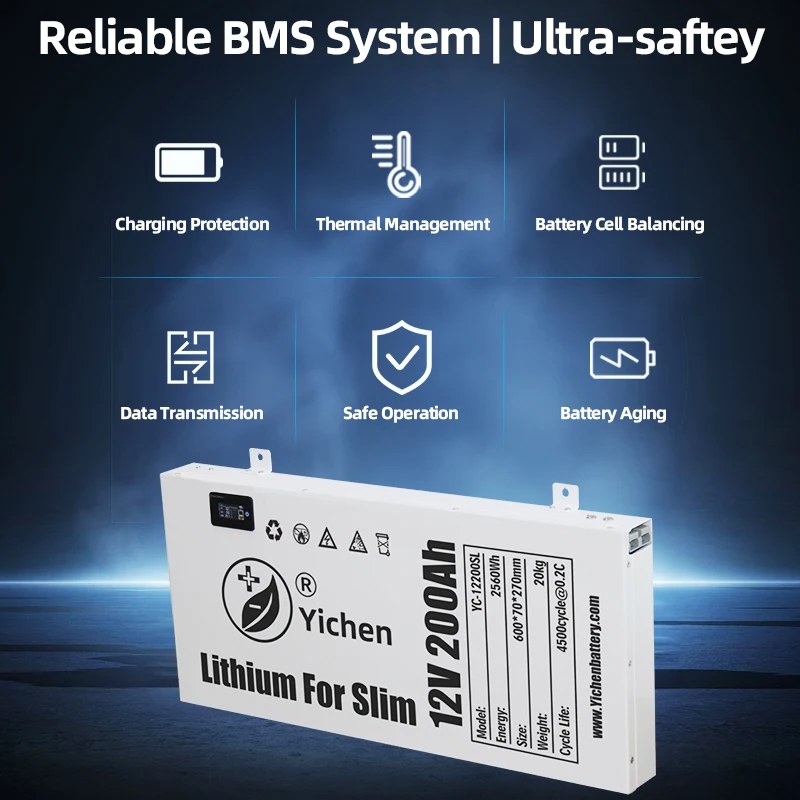

> Battery Management Systems (BMS) with power terminal cut-off and recovery
> Our heater battery warms up the battery to enable a charger once battery is warmed up(optional);
> Cell balancing and low voltage/over voltage protection, short-circuit protection;
> Bluetooth technology to monitor battery status(optional);
> Maximize your energy potential with 99% Depth of Discharge (DOD);
> Drop in replacements (plug and play);
> Run as many needed in parallel;
> Can go up to 4 in series with this battery.
> Two to four times the service life (4000-6000 cycles);
> Battery Management Systems (BMS) with power terminal cut-off and recovery
> Our heater battery warms up the battery to enable a charger once battery is warmed up(optional);
> Cell balancing and low voltage/over voltage protection, short-circuit protection;
> Bluetooth technology to monitor battery status(optional);
> Maximize your energy potential with 99% Depth of Discharge (DOD);
> Drop in replacements (plug and play);
> Run as many needed in parallel;
> Can go up to 4 in series with this battery.
Product Paramenters
Electrical Characteristics | Model number | YCST-SL-12200-E |
Nominal Voltage | 12.8 V | |
Nominal capacity | 200 Ah | |
Energy | 2560 Wh | |
Internal Resistance | ≤ 3mΩ | |
Cycle life | ≥4500 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Cut-off Voltage | 14.6±0.2V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 20A | |
Max. Charge Current | 100A | |
Standard Discharge | Continuous Current | 20A |
Max. Continuous Current | 200A | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP67 | |
Plastic Case | ABS | |

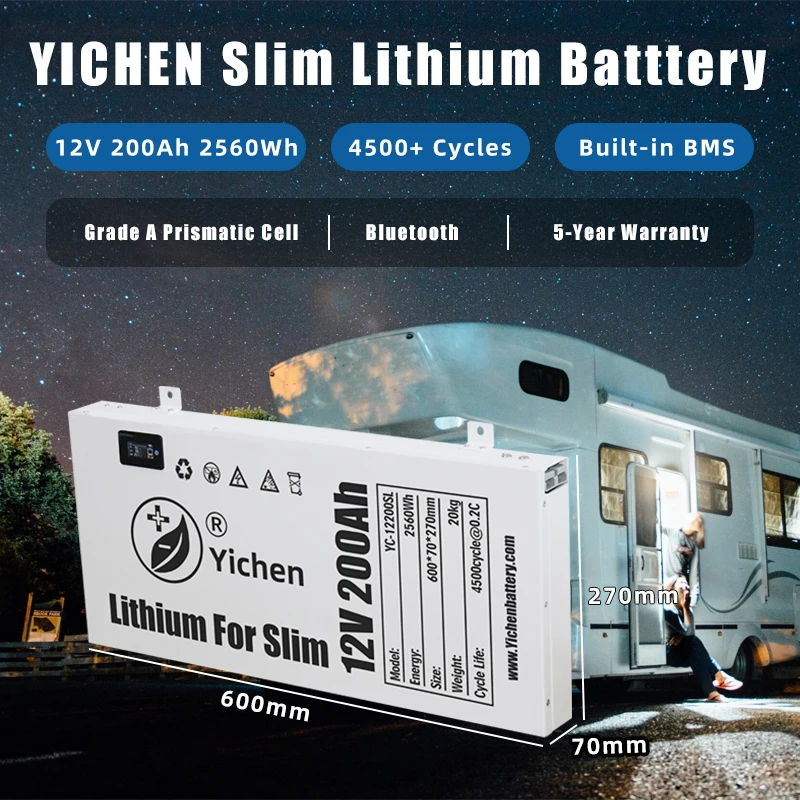

Dimensions (mm) | 600*70*270mm or customize | |
Weight | 25kg | |
Terminal | M8 | |

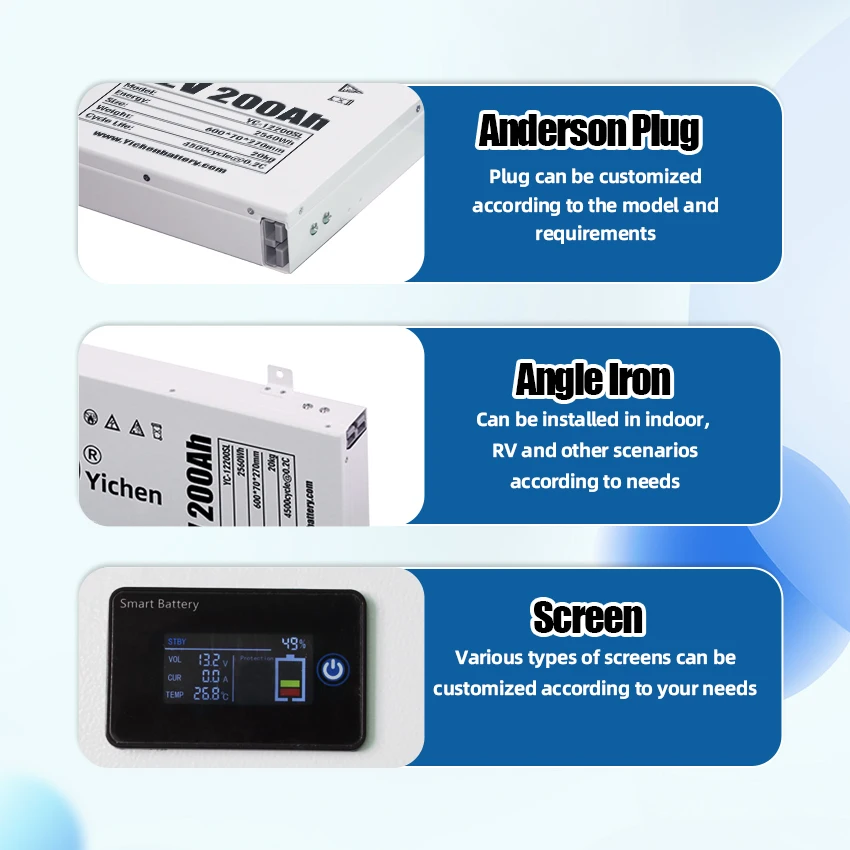

Function | Custom LCD, Bluetooth | |
Color | Black, Red, Grey and Yellow |
Features and Applications
hazardous gas. This versatility allows consumers to store battery banks in tight spaces without ventilation, or under their bed and sleep without worry. Right side up or upside down, you will be able to store power in places that you never thought possible.
In addition, because of its ultra-high energy density, you can store the most energy even in a very limited space. It can be used safely outdoors, such as solar power, RV, camper, golf cart, boat, fish finder...
Related Products
Model No. | Voltage | Capacity | Dimension | Weight |
12V | 60Ah | L260*W167*H210mm | 7kg | |
12V | 70Ah | L260*W167*H210mm | 8kg | |
12V | 80Ah | L260*W167*H210mm | 9kg | |
12V | 100Ah | L330*W174*H220mm | 11kg | |
12V | 120Ah | L406*W173*H236mm L330*W174*H220mm | 13kg | |
12V | 150Ah | L406*W173*H236mm L330*W174*H220mm | 15kg | |
12V | 200Ah | L406*W173*H236mm | 18kg | |
12V | 250Ah | L520*W268*H230mm | 22kg | |
12V | 300Ah | L520*W268*H220mm | 30kg | |
12V | 400Ah | L520*W268*H220mm | 39kg | |
24V | 50Ah | L330*W174*H220mm | 11kg | |
24V | 60Ah | L330*W174*H220mm | 12kg | |
24V | 100Ah | L520*W268*H230mm | 18kg | |
24V | 150Ah | L520*W268*H220mm | ||
24V | 200Ah | L520*W268*H220mm | 39kg | |
48V | 50Ah | L520*W268*H230mm | 18kg | |
48V | 100Ah | L520*W268*H220mm | 39kg |
Why Choose YichenLFP Battery?

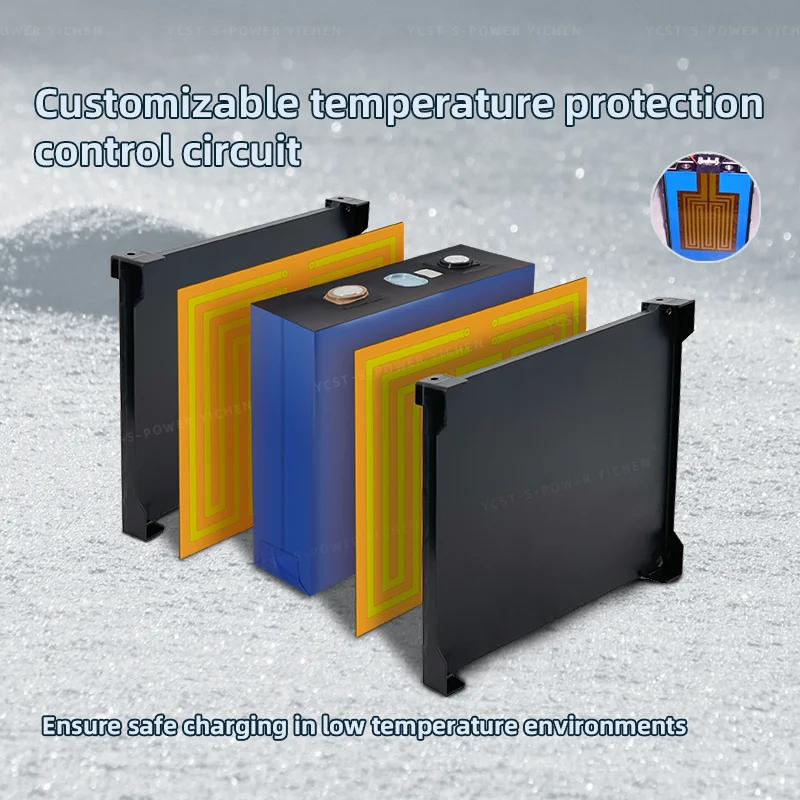

Customizable temperature protection control circuit
When the temperature of the battery is below 0°C , it's charge and discharge efficiency will decrease. And the battery's life will be reduced. At this time, the low temperature protection of the BMS will take effect . When the temperature is too low , the BMS will forcibly interrupt the charge and discharge process to protect the battery. Besides, we have added the function of low temperature heating . When detecting that the battery is in an environment below 0 ℃ , the circuit board will heat the battery slowly to create a suitable charging and discharging environment for the battery.

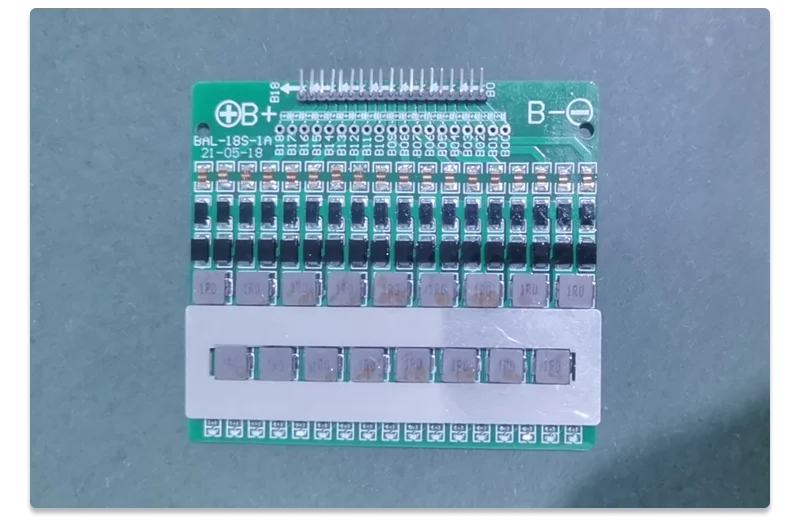

Active equalization module
Certification support
About production:
1. Our current production capacity is about 5300KWH / Month ( ≈ { 48V 100Ah } * 1000pcs / Month ) . If your monthly demand exceeds 5300KWH and you need our production , Please contact our salesperson three months in advance.
2. We are a medium-sized battery manufacturer . In addition to samples , the customization of individual products required by individuals will lead to very high
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .

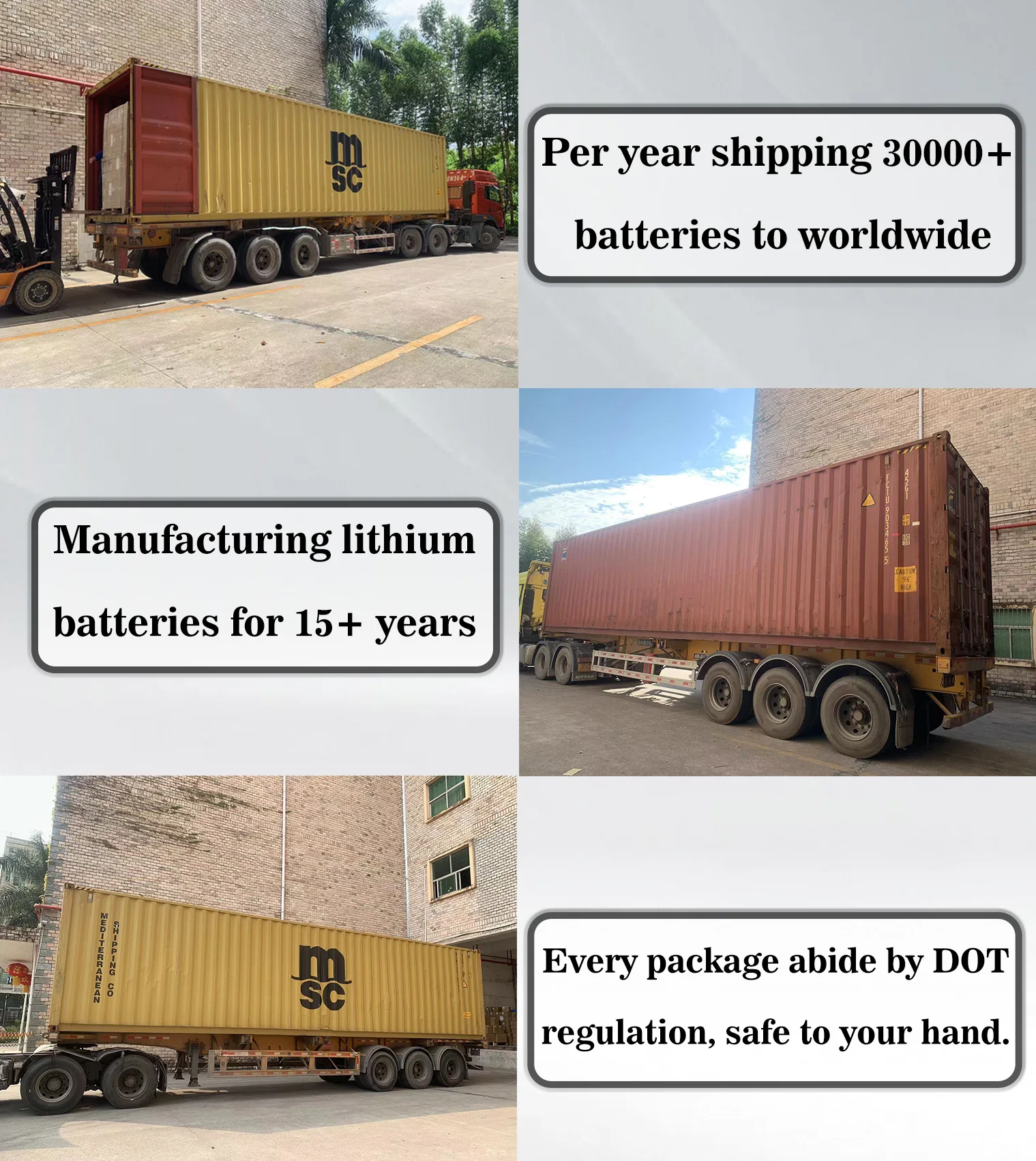

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
About US
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system, offer global technical support, Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS / Bt App / Rs485 / Rs232 / solution, and developed battery self-heating and Self-cooling(Water cooling). Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power. These products are used on Solar, Home storage battery, UPS, AGV, RVcar, Telecom Base Station, Golf Trolley Cart, Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Our Workshop & equipment
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes, welcome!
Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal, Western union, Escrow; and Mass order by T/T.
Q7: What kind of certificate can offer?
CE, RoHS, UN38.3, MSDS, etc, If need IEC-62133, PSE and others, please consult with us.
