OEM Custom Small SMT Solar PV modules 5v 6v 12v 3w 4w 5w 8w 10w 15w 20w 30w Mini SMT BC Cell Solar Panels For Camera
- Category: >>>
- Supplier: Shenzhen Shine Solar Co. Ltd.Shenzhen Ltd.
Share on (1601280810961):
Product Overview
Description
A Grade Mini Solar Panel BC Solar Cell 2W 5W 10W 20W 25W 20W 5V 6V 9V 12V 18V ETFE Sunpower SMT Small Solar panel for IoT device
Recommend Products
Product Parameter
We are 13 years OEM/ODM mini solar panels manufacturer Send inquires to get samples |
Max Power/Pmax | 15W or other power customized | ||||||
Max Power Voltage/Vmp | 18V ( for 12V system, other voltage is also available) | ||||||
Max Power Current/Imp | 0.83A | ||||||
Open Circuit Voltage/Voc | 21.6V | ||||||
Short Circuit Current/Isc | 0.92A | ||||||
Maximum System Voltage | 600V | ||||||
Series Fuse Rating | 10A | ||||||
Cell Efficiency | ＞23% | ||||||
Number of Cells in Series | 36 | ||||||

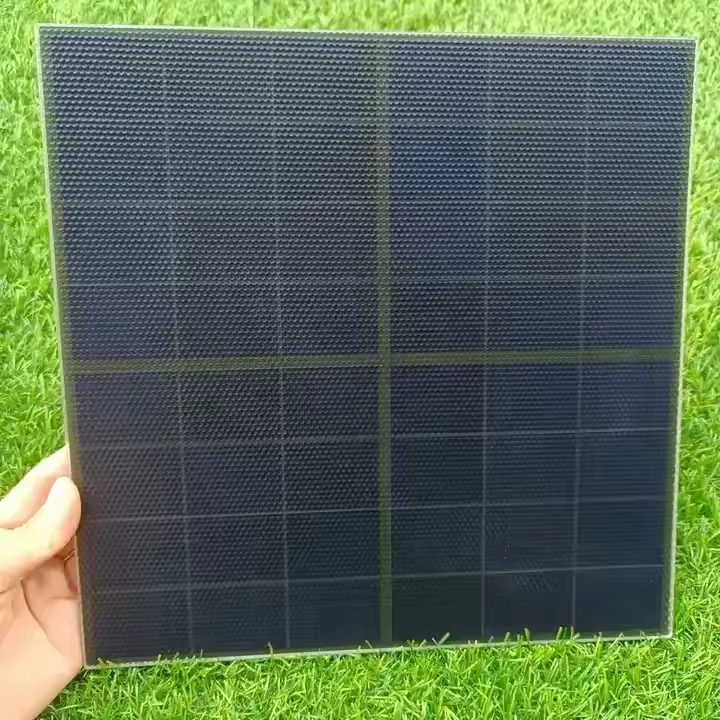

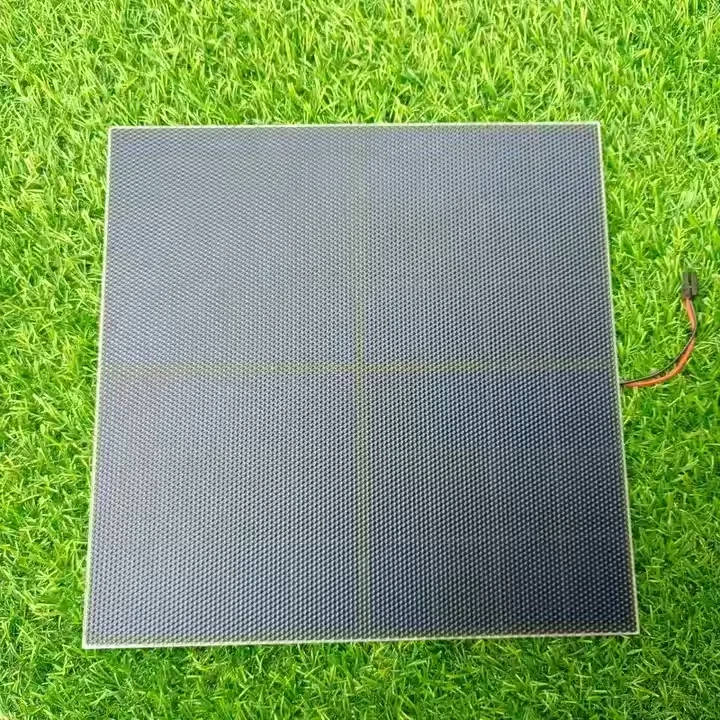

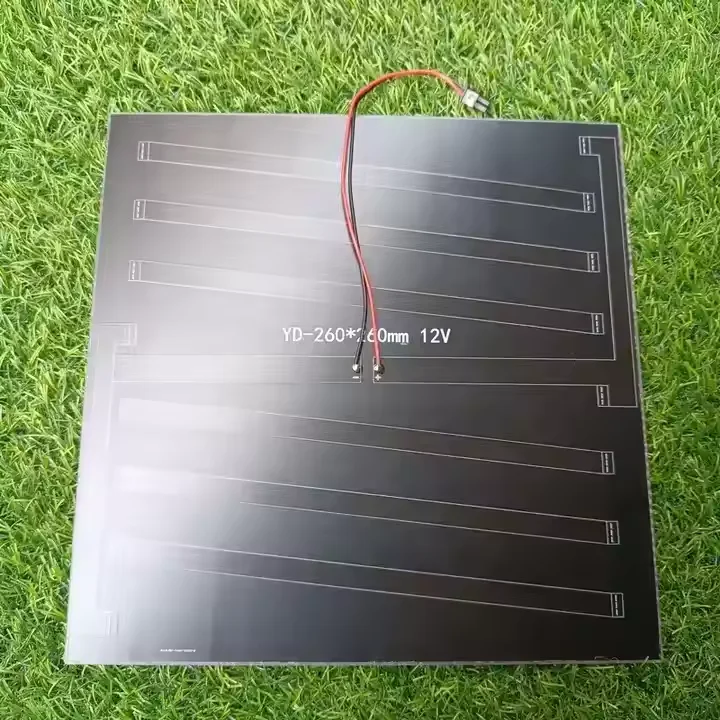

Size | 260x260x3mm or other custom size | ||||||
Max Power Tolerance | +（0~3W） | ||||||

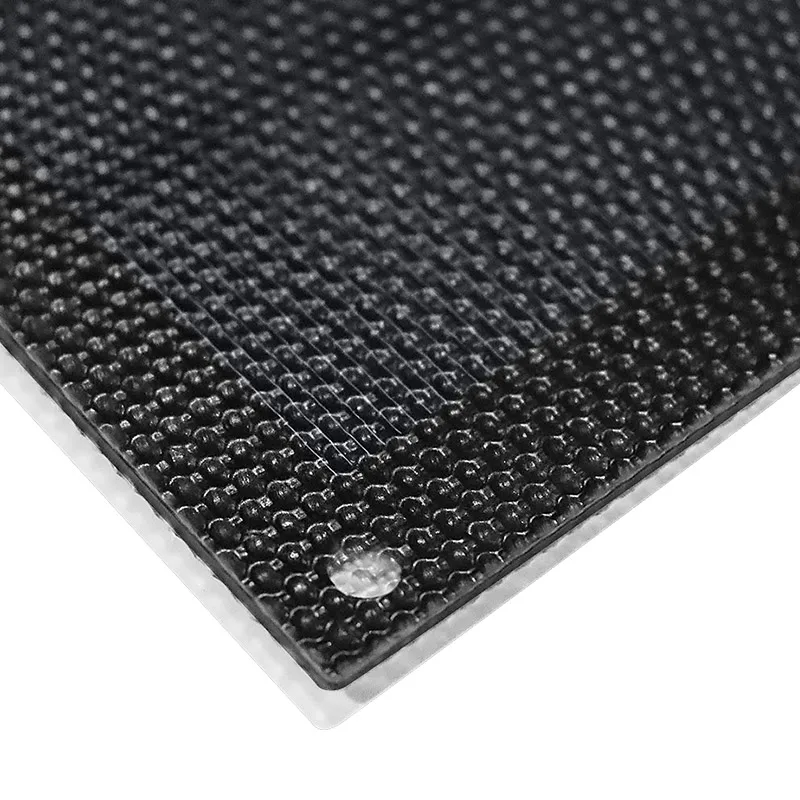

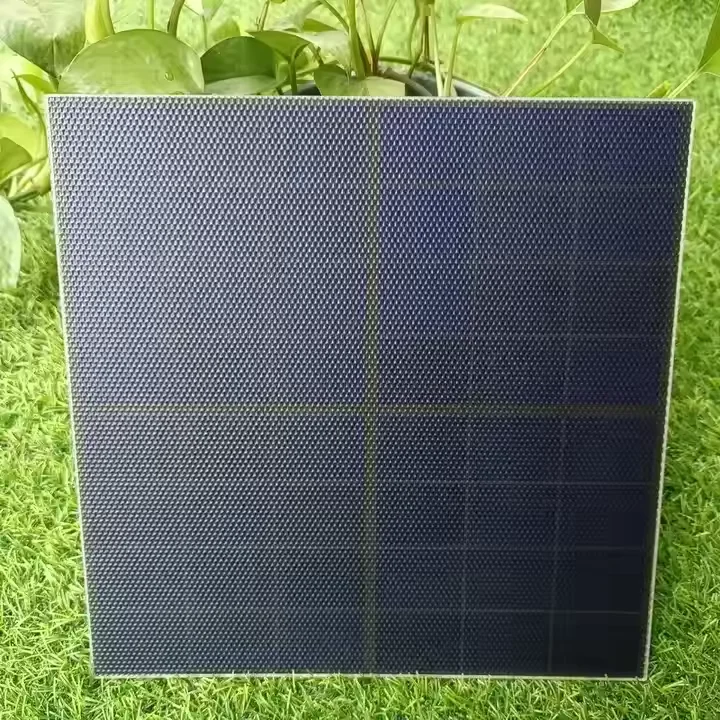

Introduce and Advantage of SMT Mini Solar Panel
1.SMT solar panels utilize Surface Mount Technology to solder solar cells onto PCB. SMT, an abbreviation for Surface Mount Technology, refers to the technique of soldering electronic components onto the surface of circuit boards.
2.Typically, SMT solar panels utilize IBC solar cells, like Sunpower high-efficiency solar cells or China made BC solar cells,
boasting an efficiency of up to 25%. IBC solar cells, characterized by their rear-side positive and negative terminals and closely spaced terminals within each group, can be cut into smaller sizes, allowing for higher power output compared to traditional solar panels in the same area. Meanwhile, allowing for the cell to be cut into smaller sizes. The traditional solar cell with busbar can not be used.
3. It is suitable for very small-sized solar panels requiring high output voltages, where traditional cell cutting and soldering processes are not feasible. SMT panels can achieve thinner profiles, as thin as 1mm, and smaller sizes, such as 10mm x 10mm or smaller. Moreover, SMT can be applied to Flexible Printed Circuits (FPCs), providing certain flexible functionalities.
The advantages of SMT solar panels include the ability to produce smaller-sized panels, suitable for mass production. However, SMT solar panels are limited in power and primarily target small power applications.
2.Typically, SMT solar panels utilize IBC solar cells, like Sunpower high-efficiency solar cells or China made BC solar cells,
boasting an efficiency of up to 25%. IBC solar cells, characterized by their rear-side positive and negative terminals and closely spaced terminals within each group, can be cut into smaller sizes, allowing for higher power output compared to traditional solar panels in the same area. Meanwhile, allowing for the cell to be cut into smaller sizes. The traditional solar cell with busbar can not be used.
3. It is suitable for very small-sized solar panels requiring high output voltages, where traditional cell cutting and soldering processes are not feasible. SMT panels can achieve thinner profiles, as thin as 1mm, and smaller sizes, such as 10mm x 10mm or smaller. Moreover, SMT can be applied to Flexible Printed Circuits (FPCs), providing certain flexible functionalities.

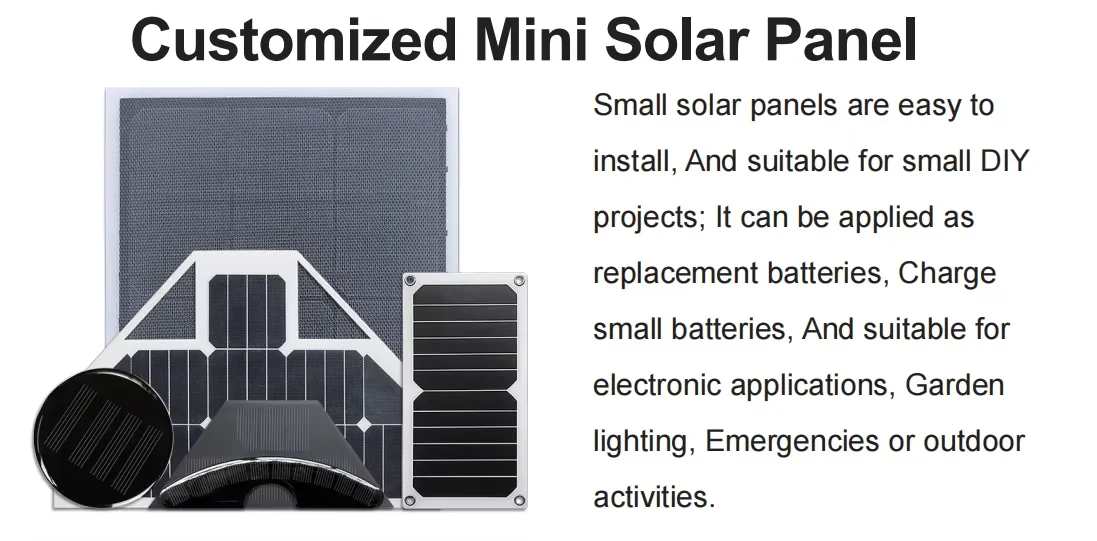

Some regular size small solar panels for your reference:
Battery voltage | Suitable panel voltage | Power | Size (mm) | Current |
1.2V | 2-4V | 0.5W | 68*45 or OEM | 125-250mA |
1W | 115*45 or OEM | 250-500mA | ||
3.7V | 5-9V | 1W | 110*60 or OEM | 110-200mA |
2W | 176*74 or OEM | 220-400mA | ||
3W | 150*120 or OEM | 330-600mA | ||
4W | 160*140 or OEM | 440-800mA | ||
5W | 165*165 or OEM | 550-1000mA | ||
6W | 200*200 or OEM | 660-1200mA | ||
12V | 18V | 3W | 150*150 or OEM | 166mA |
5W | 165*165 or OEM | 278mA | ||
8W | 165*298 or OEM | 440mA | ||
10W | 165*323 or OEM | 555mA | ||
15W | 310*340 or OEM | 830mA | ||
20W | 322*340 or OEM | 1110mA |
Why Chose Us
1. We are factory, controllable quality, competitive price, and support OEM.

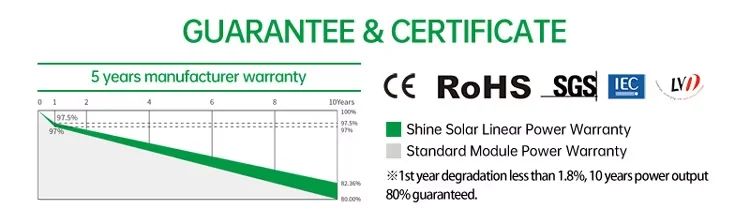

2. The quality of the product is reliable, provides more than 24 months warranty.
3. We have a special after-sales team to serve you 24 hours a day and help solve problems.
3. We have a special after-sales team to serve you 24 hours a day and help solve problems.

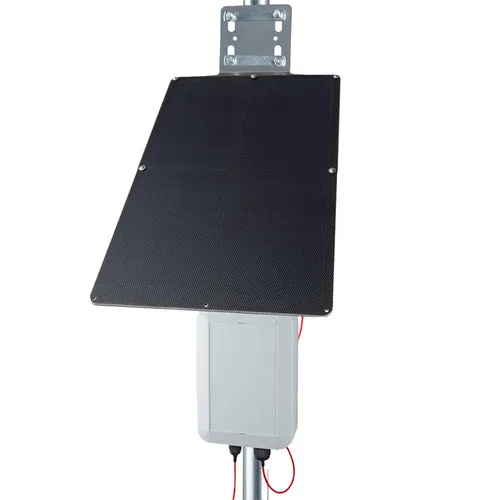

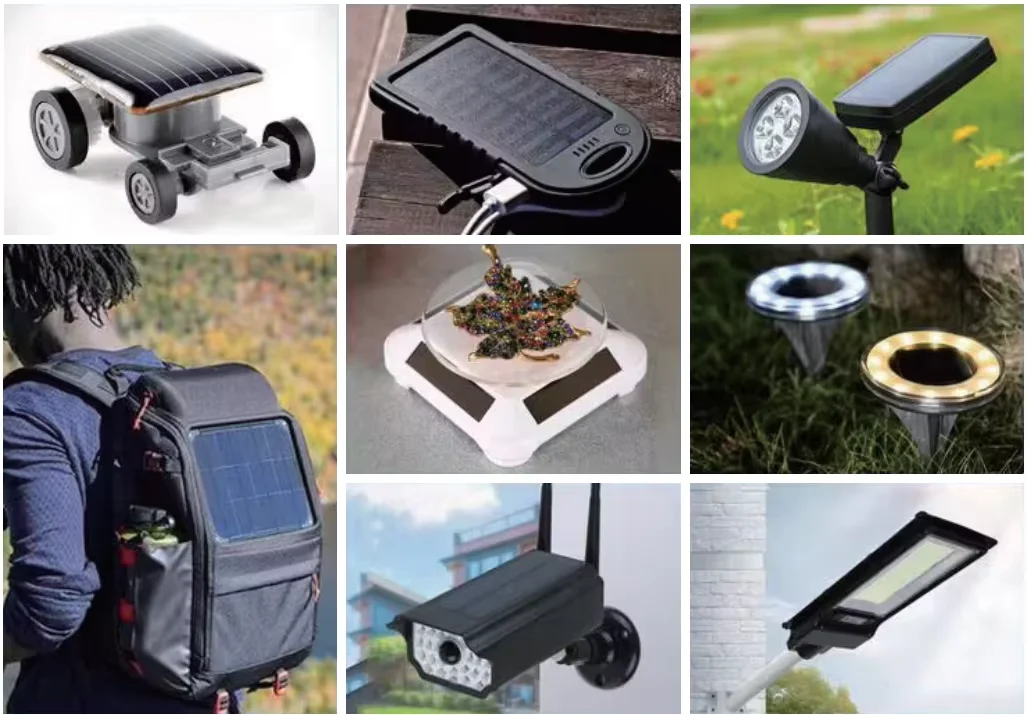

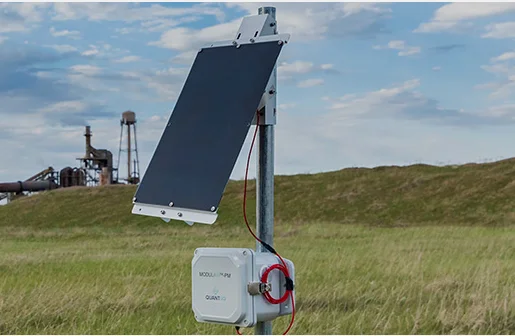

Application
Company Profile
Exhibition&Customer

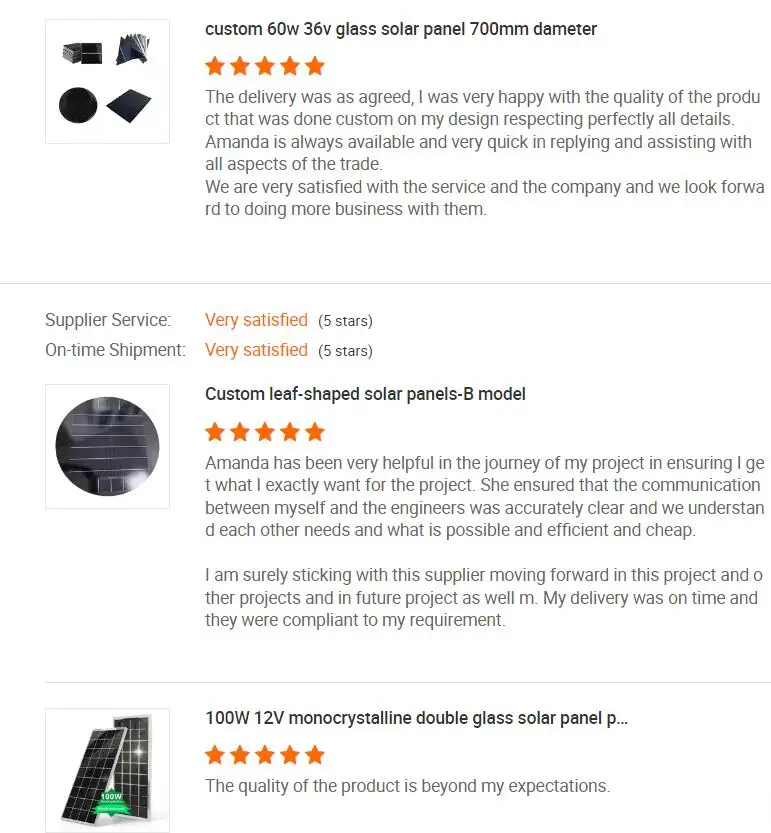

Client Feedback
FAQ
Q: Are you trading company or manufacturer?
We are the manufacturer, we have our own Factory, all the products we are selling are designed and manufactured by ourselves.
Q: What’s the difference of mono and poly?
The cells conversion efficiency is different, mono cells is 22.6%, poly is 18.3%, so mono is a little expensive than poly.
Q: Can you do OEM for my panels?
Yes. We support OEM & ODM
Q: How does Shine Solar assure product quality?
A: Our products have passed stringent international certification testing standards such as TüV Rheinland and UL, etc. Our
quality management system is accredited to ISO 9001 standards.
Q. Can I come visit your showroom and factory?
Welcome to visit our office and shop directly before establishing long-term business relationship.we are in SHENZHEN, CHINA.
Q: What is the payment term?
100% T/T in advance,
30%T/T in advance +70%T/T balance payment.
L/C, PAYPAL, WEST UNION
We are the manufacturer, we have our own Factory, all the products we are selling are designed and manufactured by ourselves.
Q: What’s the difference of mono and poly?
The cells conversion efficiency is different, mono cells is 22.6%, poly is 18.3%, so mono is a little expensive than poly.
Q: Can you do OEM for my panels?
Yes. We support OEM & ODM
Q: How does Shine Solar assure product quality?
A: Our products have passed stringent international certification testing standards such as TüV Rheinland and UL, etc. Our
quality management system is accredited to ISO 9001 standards.
Q. Can I come visit your showroom and factory?
Welcome to visit our office and shop directly before establishing long-term business relationship.we are in SHENZHEN, CHINA.
Q: What is the payment term?
100% T/T in advance,
30%T/T in advance +70%T/T balance payment.
L/C, PAYPAL, WEST UNION
