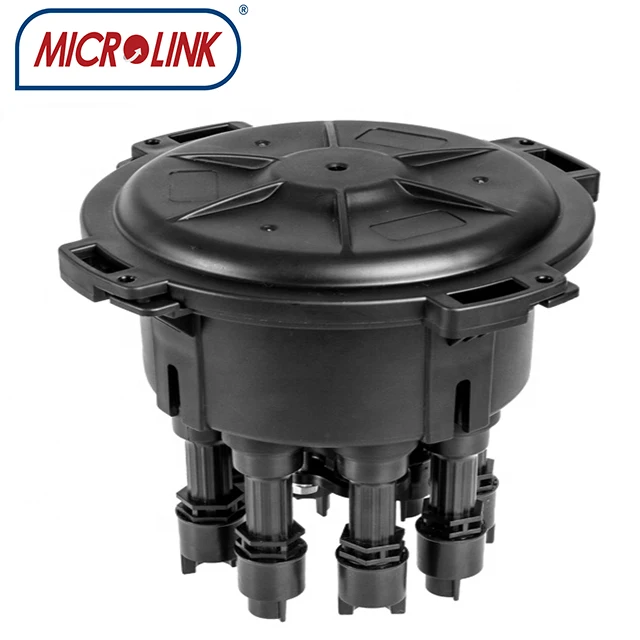

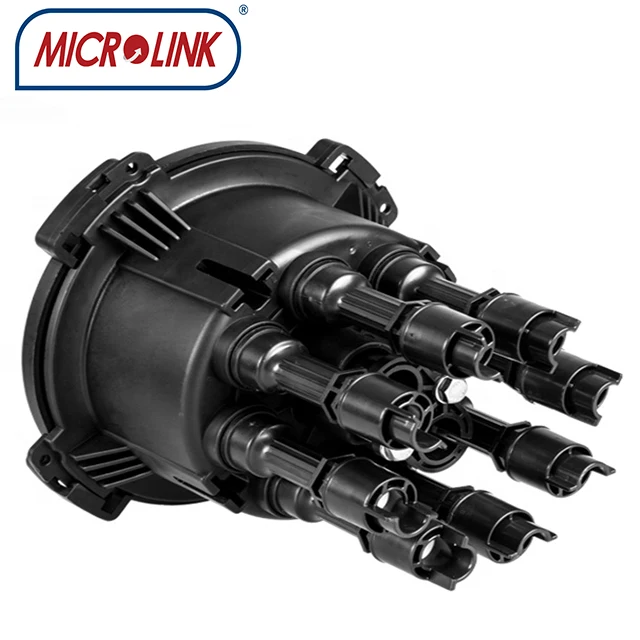

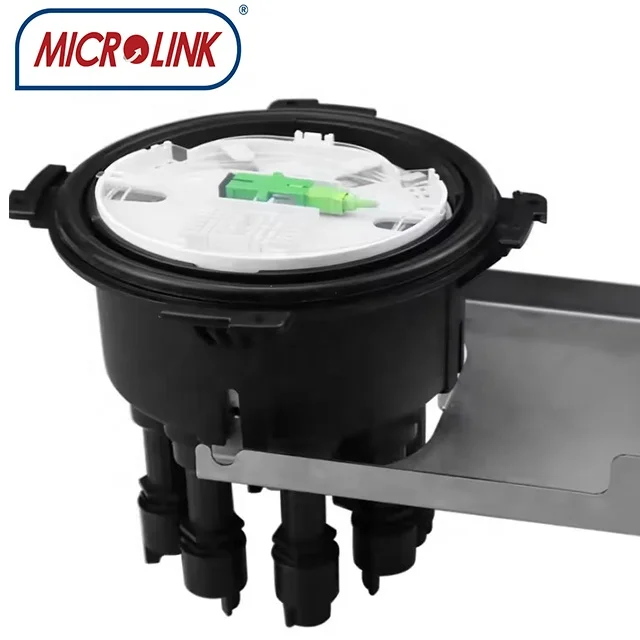

FTTH IP67 Outdoor 8F Fiber Optical Distribution Nap Box 8C FDB 8 Core FDP Terminal Box 2in 8out Dome type Splice Closure
- Category: >>>
- Supplier: Microlink Electronics Co. Ltd.
Share on (1601280818525):
Product Overview
Description
FTTH IP67 Outdoor 8F Fiber Optical Distribution Nap Box 8C FDB 8 Core FDP Terminal Box 2in 8out Dome type Splice Closure
Product Description
Description
Fiber optic fiber optical termination box is applicable PLC Splitter/ coupler to a terminal access links FTTH access system. It is especially for connecting and protection for FTTH fiber cable . This fiber optic terminal box applies
to the communications room and various network room wall or pole installation. The FTTH fiber terminal box is

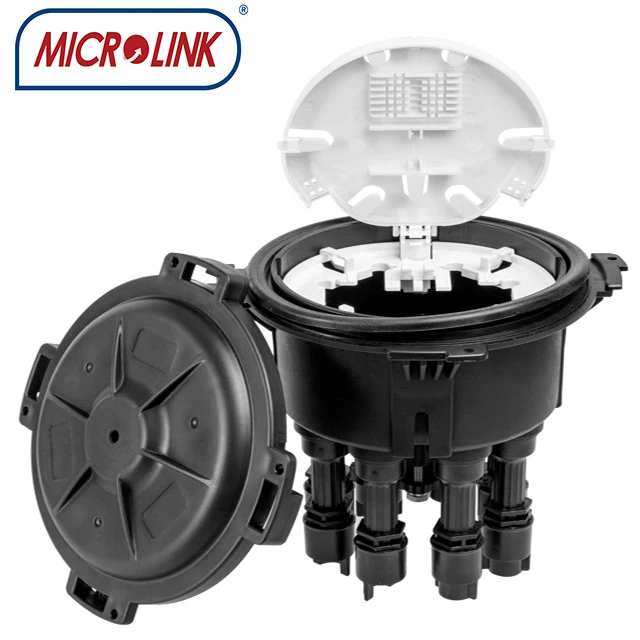

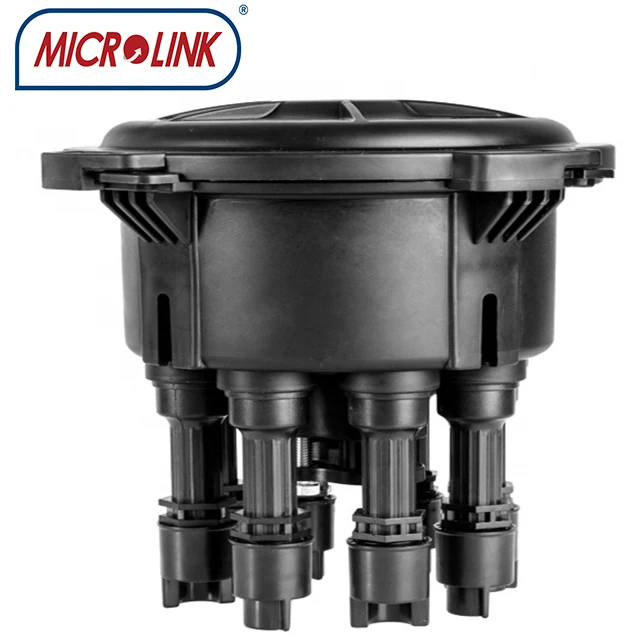

dome type.
Feature
High mechanical strength and sealing performance
Workable under harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
Anti-corrosion
IP68 rated Well water and dust proof
IP68 rated Well water and dust proof
High aging resist engineering plastic PPR body
Wide scope of application ( up to Max 8 cores)
Wide scope of application ( up to Max 8 cores)

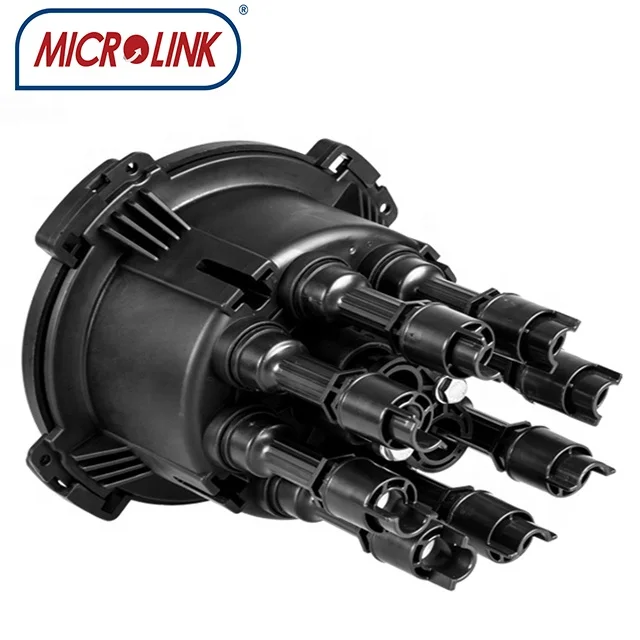

Wide cable OD appication (2 cable inlet ports for OD 7mm~15mm, 8 drop cable mechanical outlet ports for OD 3mm~5mm)

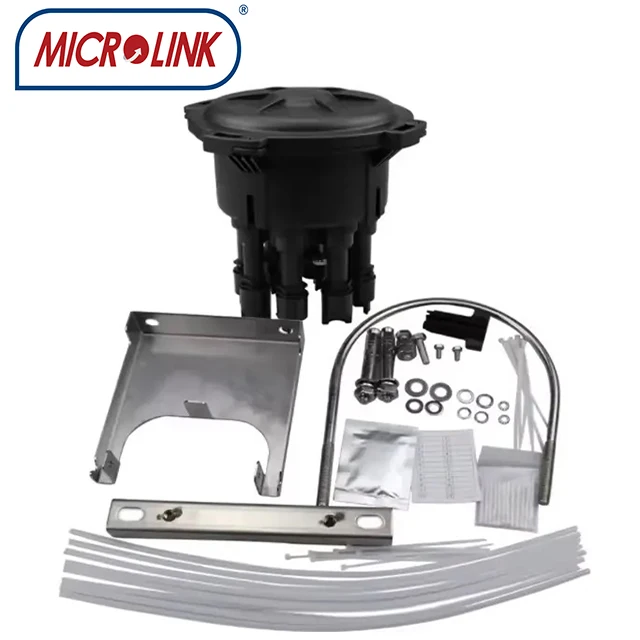

Easy clamp mount around pole or on wall
Easy maintenance ,rejoint and expand
Application
Widely used to connect or branch the outdoor optic cable fibers in-wall/pole applications.
Fully Mechanical sealing and re-open design, available for split with fast connectors without open the closure.
Simple inner structure and easy installation, is the best choice for the network construction.
Fully Mechanical sealing and re-open design, available for split with fast connectors without open the closure.
Simple inner structure and easy installation, is the best choice for the network construction.
DATESHEET
Item | 2in 8out Dome type Splice Closure | ||||||
Added Loss | less than 0.02dB | ||||||
Max.capacity of optical cable | 8 cores | ||||||
PLC type | 1x8 micro type PLC splitter | ||||||
Splicing Tray Count | 1 | ||||||
Interface | 2 inlet 8 outlet ( cable port 2 inlet + 8 drop cable outlet) | ||||||
Compatible Fiber Type | Bundle fiber | ||||||
Cable Diameter Range | Input Port: 7mm~15mm; Output Port: 3mm~ 5mm | ||||||
Axial Tension | more than 1000N/1min | ||||||
Stretching Resistance | 2000N/10 square centimeter (1min) | ||||||
Insulation resistance | over 2 × 10000MΩ | ||||||
Voltage Strength | 15KV/1min, no arcover or breakdown | ||||||
Pressure in the water | 50m/72hours | ||||||
Relative humidity | ≤85%(+30℃) | ||||||
Applicable temperature range | -40~+80℃ | ||||||
Thunder-proof Technical Data | The grounding device is isolated with the cabinet, isolation resistance is no less than 2 104 MΩ/500V (DC);IR≥2 104 MΩ/500V | ||||||
The withstand voltage between grounding device and cabinet is no less than 3000V (DC )/min, no puncture,no flashover; U≥3000V | |||||||
