EFD ferrite core

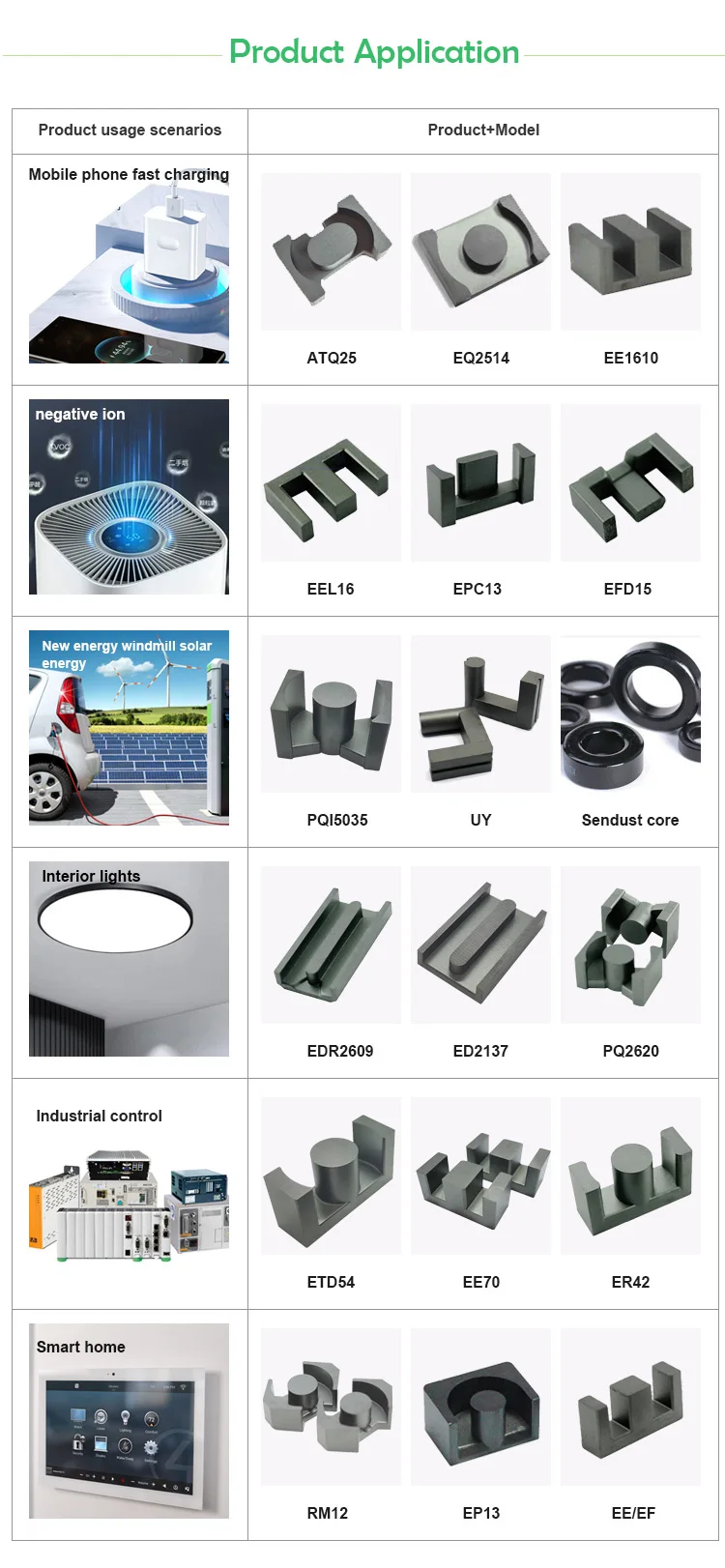

EFD TYPE CORE models, using scenarios covering lighting, smart home, industrial control, instrument machinery and so on.，More sizes can be obtained by contacting us directly

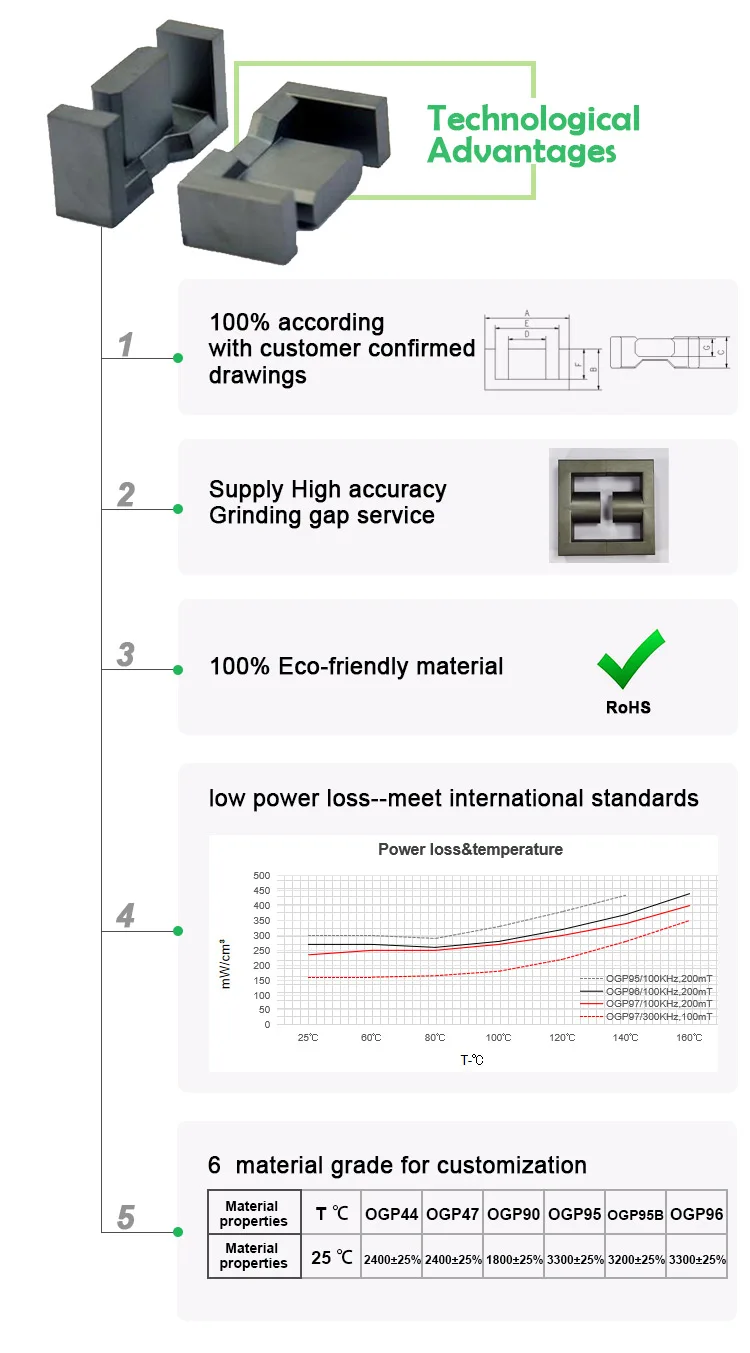

TYPE | Size | LE | AE | VE | AL | ||||||||
A | B | C | D | E | OGP44 | ||||||||
EFD10.5 | 10.50 | 5.20 | 2.70 | 4.55 | 7.65 | 23.7 | 7.2 | 171 | 700 | ||||
EFD1516 | 15.00 | 7.95 | 4.65 | 5.30 | 10.70min | 35.2 | 13.6 | 487.4 | 750 | ||||
EFD15.7-16 | 15.75 | 8.15 | 4.55 | 5.35 | 11.60 | 35.7 | 13.75 | 491.42 | 750 | ||||
EFD20 | 20.00 | 10.25 | 6.60 | 8.70 | 15.40 | 47.95 | 29.59 | 1418.7 | 1400 | ||||
EFD21-A | 21.00 | 10.45 | 6.60 | 8.80 | 16.40 | 48.33 | 30.33 | 1330.3 | 1500 | ||||
EFD25.6 | 25.60 | 12.65 | 9.06 | 11.28 | 19.65 | 59.38 | 50.85 | 3019.78 | 2200 | ||||
EFD30.7 | 30.70 | 15.45 | 9.00 | 14.60 | 24.70 | 69.94 | 57 | 3986.2 | 2400 | ||||
OGP Material | T ℃ | OGP44 | OGP47 | OGP90 | OGP95 | OGP95B | OGP96 |
μi-（10KHZ） | 25℃ | 2400±25% | 2400±25% | 1800±25% | 3300±25% | 3200±25% | 3300±25% |
BS-（H=1194A/m） | 25℃ | 500 | 500 | 530 | 500 | 510 | 500 |
100℃ | 400 | 400 | 440 | 400 | 410 | 410 | |
Core Loss Pcv（Kw/m³）-100KHZ,200mT | 25℃ | 650 | 650 | 700 | 350 | 360 | 350 |
60℃ | 430 | 430 | 520 | 290 | 350 | 300 | |
100℃ | 310 | 300 | 380 | 320 | 340 | 300 | |
120℃ | 400 | 400 | 520 | 350 | 380 | 340 |
