Fast Mixing Speed BOPP Granules Plastic Coloring Mixing Equipment PP Plastic Pellets Mix Color Machine
- Category: >>>
- Supplier: Zhangjiagang Regulus Machinery Co. Ltd.
Share on (1601281116582):
Product Overview
Description
Product Overview
Description
1. Working Principle:
This LSH series big vertical mixer machine (with heating for option) are able to perform uniform mixture for large volume of material in short mixing time by utilize the paddles the paddles rotation speed to gather the material from the bottom of drum center to the top, send the material flow back to the bottom and complete the mixing function in a short period of time.
2.Features:
1.Both mixing pail and vane are made of stainless steel,Vane can be disassembled.
2.Enclosed-type mining,featuring largecapacity,easy operation and high safety.
3.Dirctly driver by motor,not prone to slide,fast mixing speed and high efficiency.

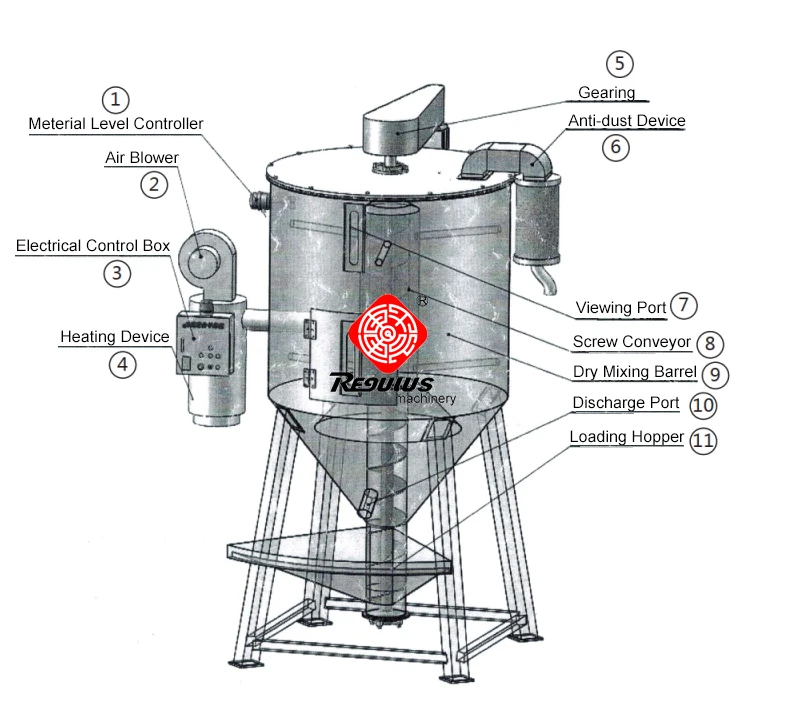

2.Structure:
The machine is designed as a two-stage spiral conveyer.
a) The first stage quickly feeds the raw materials into the barrel.
b) the second stage continuously raises the raw materials to the upper end of the barrel. The hot air flows from the center of the lower part of the barrel. It is blown to the surroundings, and the dynamic process of comprehensive heat exchange is penetrated smoothly from the gap of the moving raw material to the bottom.
As the materials are constantly tumbling in the barrel, the hot air is continuously conveyed from the center to achieve the mixing and drying simultaneously, saving time and energy. If you do not need a dryer, you need to turn off the hot air source and use only the mixing function. Suitable for mixing granules, crushed materials and masterbatches.
PRODUCT SPECIFICATIONS
Plastic Vertical Mixer Dryer Machine | ||||||||||
Model | LSH-500 | LSH-1000 | LSH-2000 | LSH-3000 | LSH-5000 | |||||
Capacity (Volume) | 800L/500kgs | 1600L/1000kgs | 3200L/2000kgs | 5400L/3000kgs | 5000kgs | |||||
Motor Power (KW/HP) | 2.2KW/3HP | 4KW/5.5HP | 5.5KW/3HP | 2.2KW/7.5HP | 11KW/15HP | |||||
Weight | 245kgs | 400kgs | 650kgs | 780kgs | 1050kgs | |||||

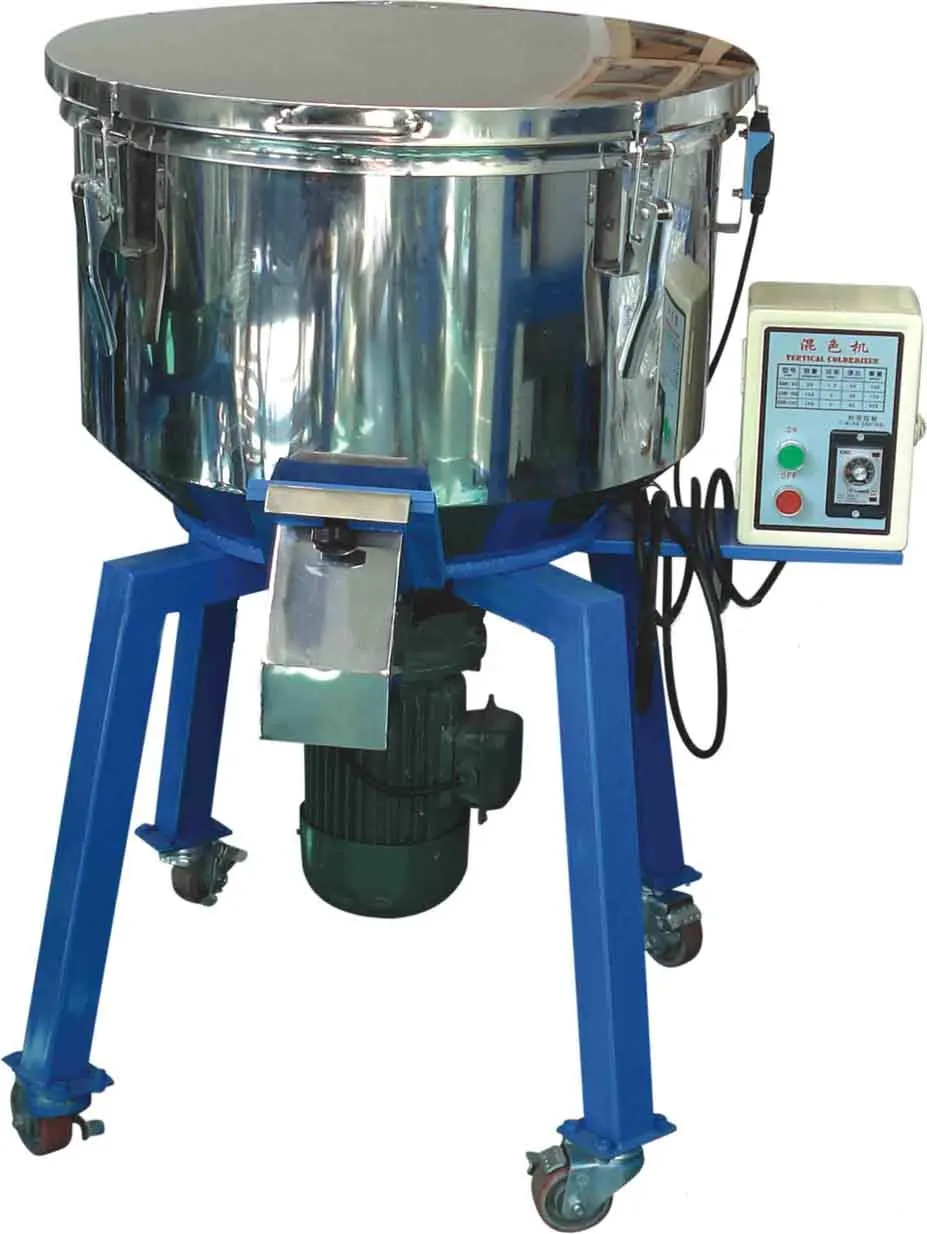

Plastic Vertical Color Mixer Machine | ||||||||
Model | HS-50VM | HS-100VM | HS-150VM | HS-200VM | ||||
Motor Power | 1.5 | 3 | 4 | 7.5 | ||||
Capacity(kg) | 50 | 100 | 150 | 200 | ||||
Tank diameter(mm) | 610 | 730 | 870 | 1000 | ||||
Dimensions(mm) | 130 | 180 | 280 | 320 | ||||
▲ CE certification available. ▲ Larger, more powerful models available based on your request. | ||||||||

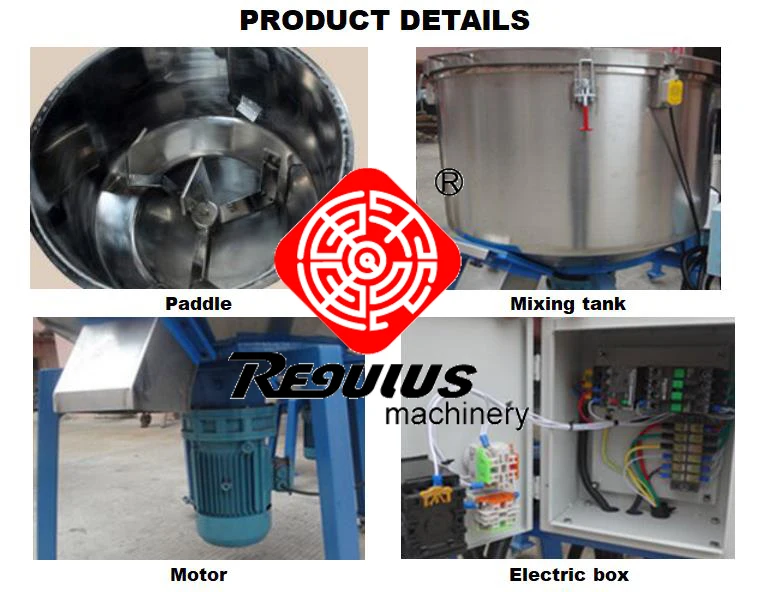

1. Vertical structure with castor wheels, small foot print and easy to move. |
2. Vertical reducer motor adopted ensure low noise and long operation hours. |
3. Fast complete mixing. Long energy consumption and high productivity. |
4. Pail cover and bottom parts are compress formed, precisely matched&durable |
5. Mixing timer able to set within 0-30 minutes. |
Successful Project
Project in Thailand
Project in Malaysia
Project in Russia
SIMILAR PRODUCTS

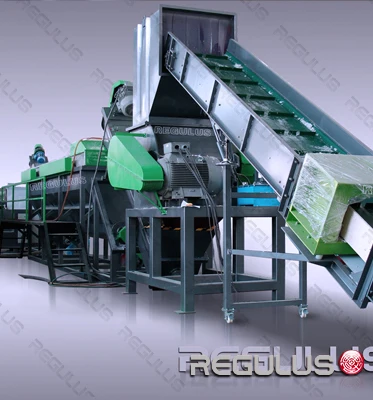

PE PP plastic washing machine
https://www.recyclingplas.com/plastic-washing-recycling-machine/ (website)
https://www.recyclingplas.com/plastic-pe-pp-washing-line (video)
https://www.recyclingplas.com/plastic-pe-pp-washing-line (video)

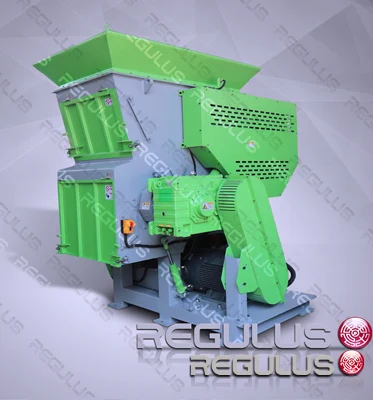

Shredder
https://www.recyclingplas.com/plastic-shredder-and-crusher-machine/ (website) https://www.recyclingplas.com/single-shaft-shredde (video)

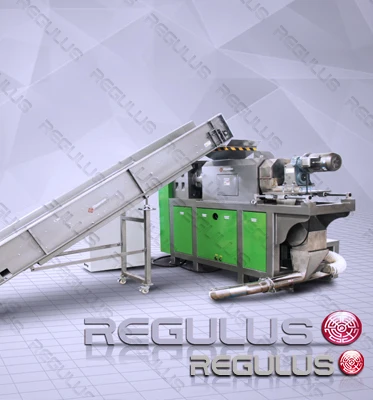

Plastic squeezing dryer
https://www.recyclingplas.com/plastic-squeezing-dryer/ (website)
https://www.recyclingplas.com/plastic-squeezing-drye (video)
Company Profile
REGULUS MACHINERY GROUP
Zhangjiagang Regulus Machinery CO.,LTD boasts teams of professional and high-efficient colleagues in technology, management, sales, and service. with our continuous efforts in technology development and product quality control, we have been adhere to the principle of putting customer's benefit at the first place by providing the most competitive technique in plastic industry within the shortest period of time to create a higher value for customer.

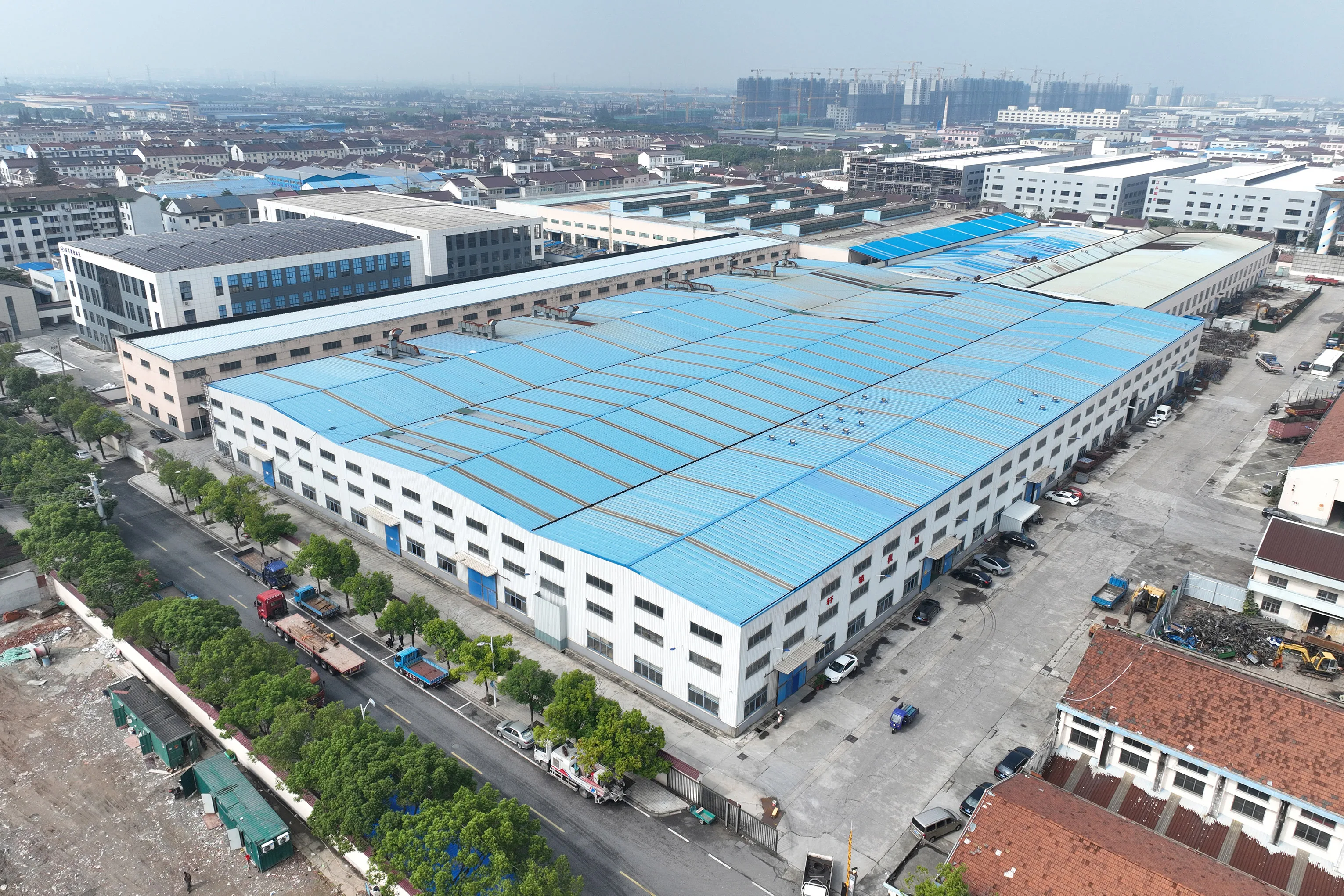

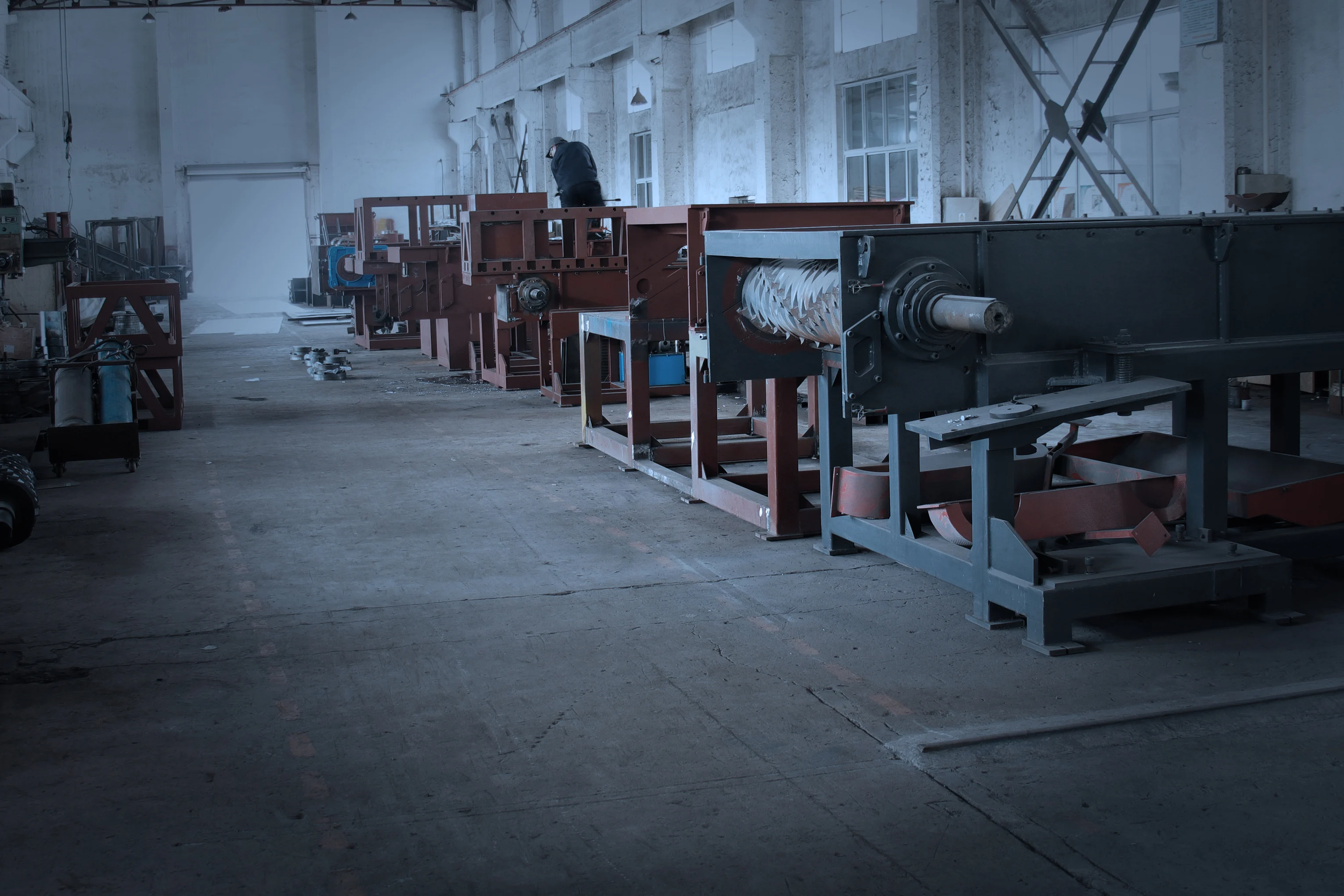

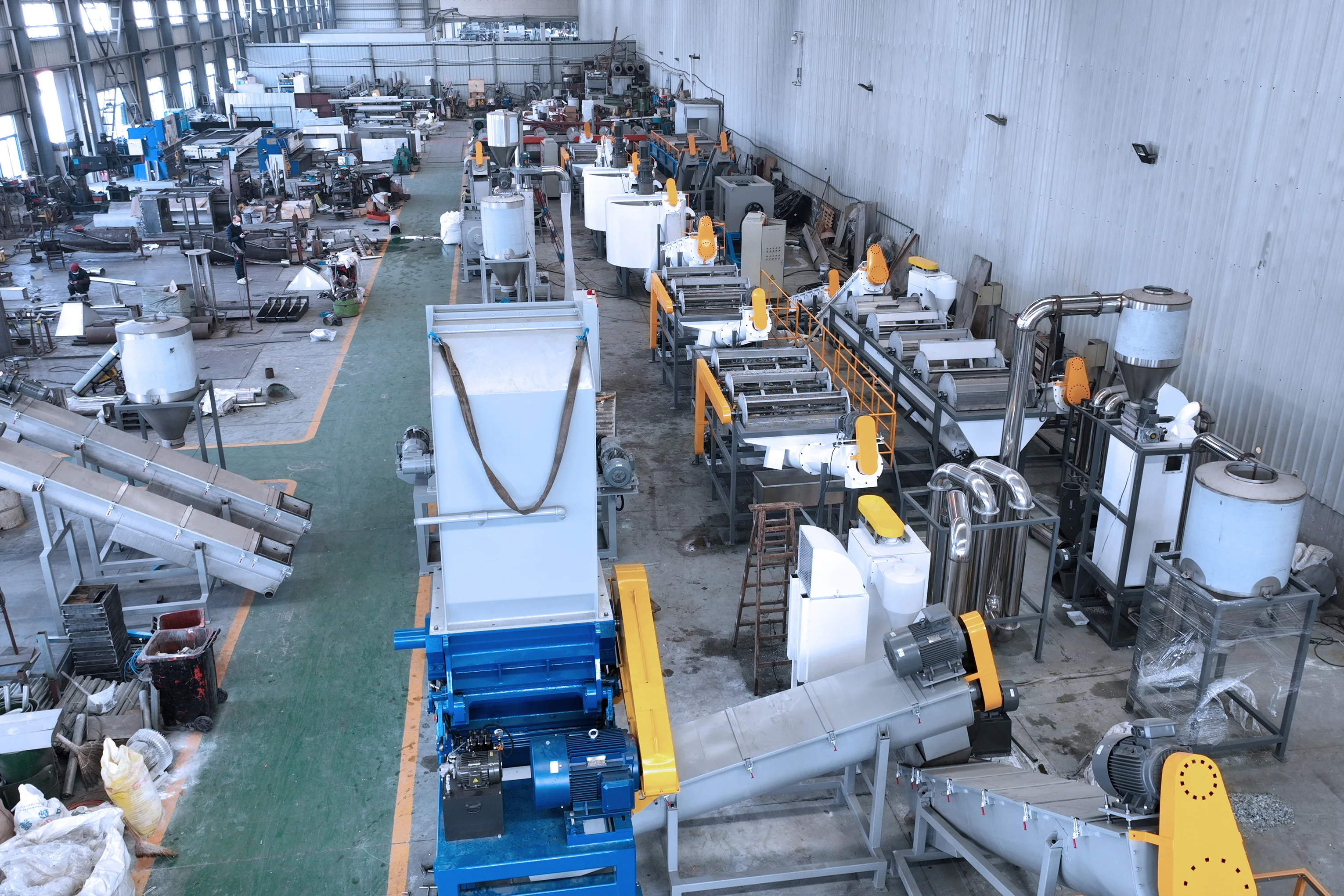

YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
REGULUS is professional manufacturer. Weclome you visit our factory. Regulus Machinery with own manufacture and developed & research team. In order to offer high efficiency after-sales service, our engineers are available to your factory for installation, commissioning, technical guidance and personnel training.
HOW TO ENSURE THE QUALITY

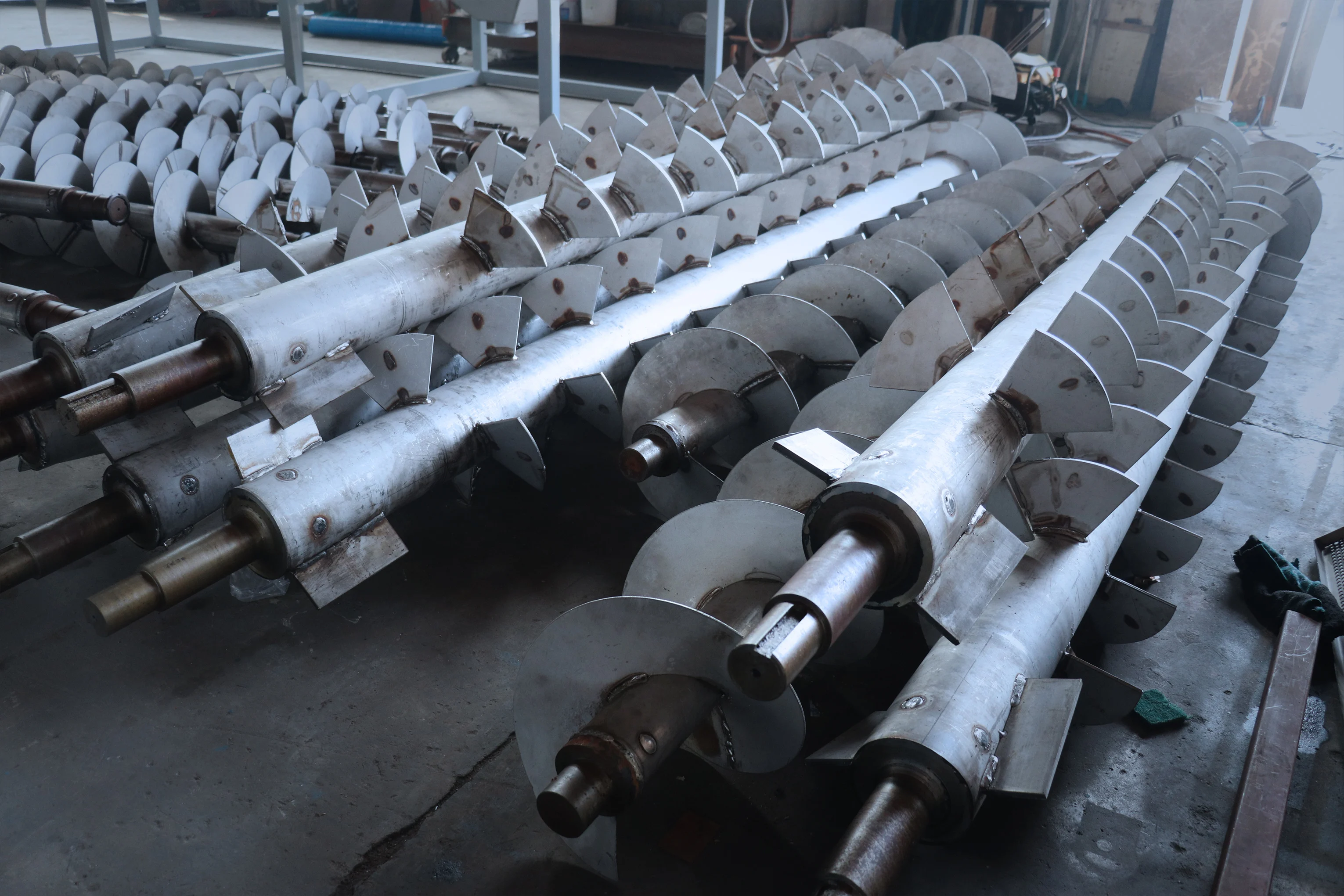

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strict control by inspecting personnel.
● Each assembly is in charge by a master who has working experience for more than 15 years
● After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
COOPERATION BRAND
Packing and Delivery
SALES AND SERVICE NETWORK

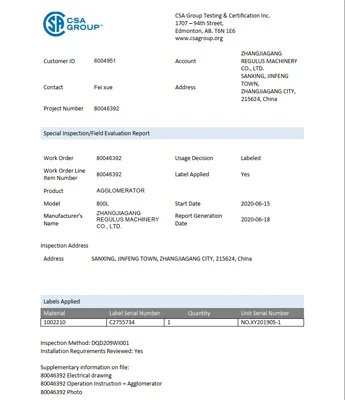

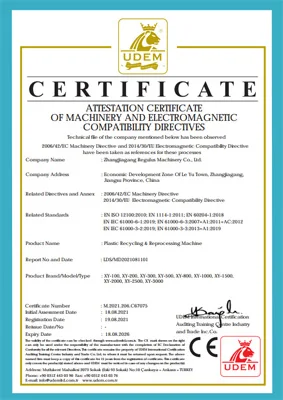

Certifications
FAQ
Q1. Which kind of waste plastic can your machine recycle?
A1. Our company mainly produces plastic PE PP PET PVC PA EPS PS ABS recycling machine.
Q2：How can we know what kind recycling machine is suitable for our waste plastic?
A1：You could contact us and send us your waste plastic pictures, and tell us your requirement of product capacity. Wwe will recommend you suitable waste plastic recycling equipment.
Q3: How can we guarantee quality?
A3: All of our workers has more than 10 years experience in producing the plastic machine, and we always final Inspection before delivery.
Q4:. What kind of plastic machine can we buy from your company?
A4: Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, PET Bottle Recycling Line, Plastic pipe and plastic profile Extrusion Line, Plastic agglomerator, Plastic Squeezing dryer Machine, Plastic Shredder, crusher, plastic mixer, plastic pulverizer.
Q5: What services can your company provide?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C
A1. Our company mainly produces plastic PE PP PET PVC PA EPS PS ABS recycling machine.
Q2：How can we know what kind recycling machine is suitable for our waste plastic?
A1：You could contact us and send us your waste plastic pictures, and tell us your requirement of product capacity. Wwe will recommend you suitable waste plastic recycling equipment.
Q3: How can we guarantee quality?
A3: All of our workers has more than 10 years experience in producing the plastic machine, and we always final Inspection before delivery.
Q4:. What kind of plastic machine can we buy from your company?
A4: Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, PET Bottle Recycling Line, Plastic pipe and plastic profile Extrusion Line, Plastic agglomerator, Plastic Squeezing dryer Machine, Plastic Shredder, crusher, plastic mixer, plastic pulverizer.
Q5: What services can your company provide?
A5: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C
