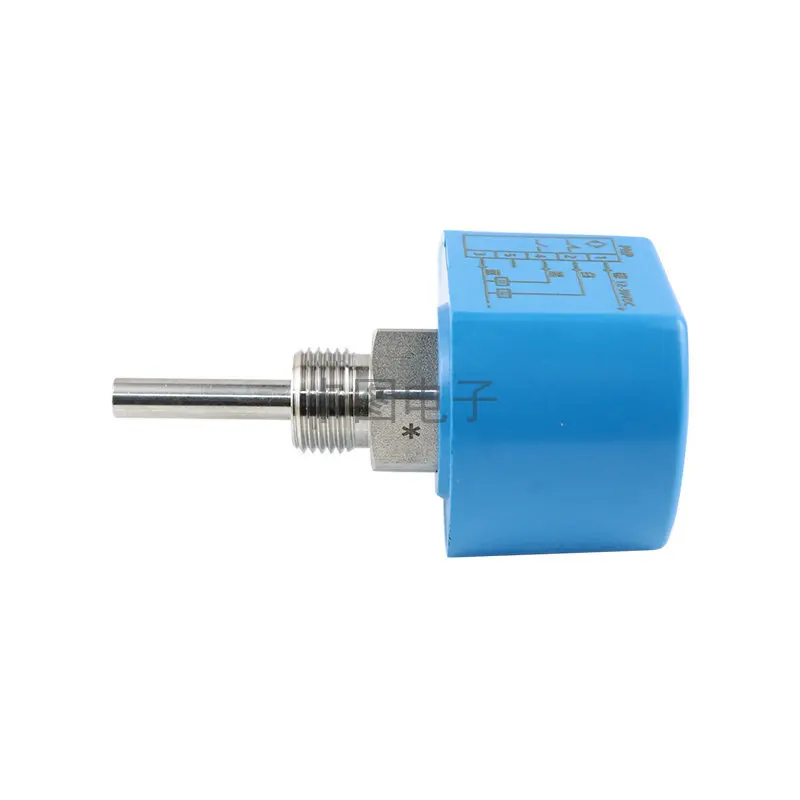

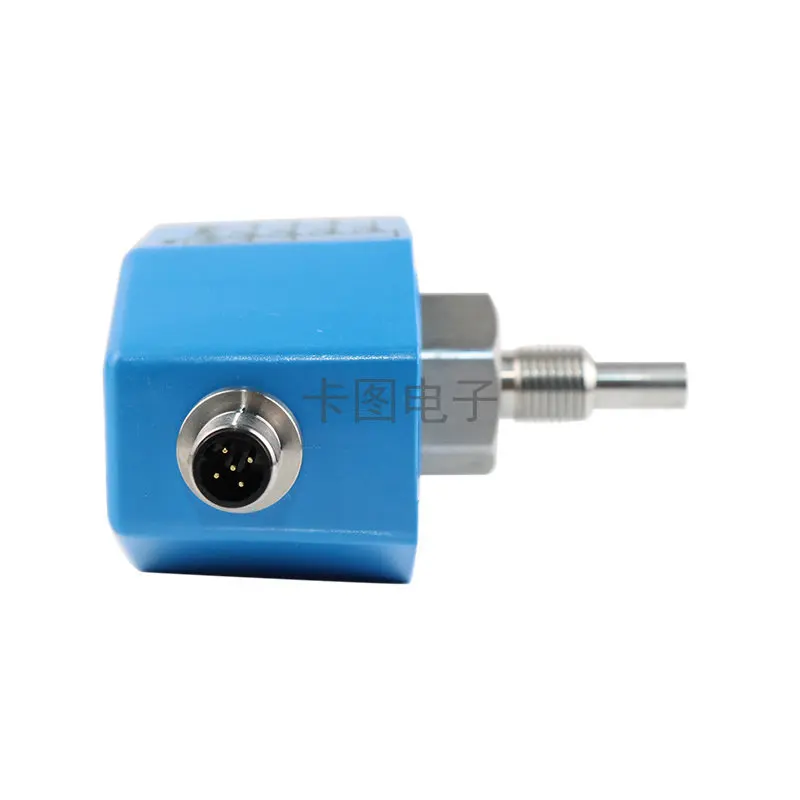

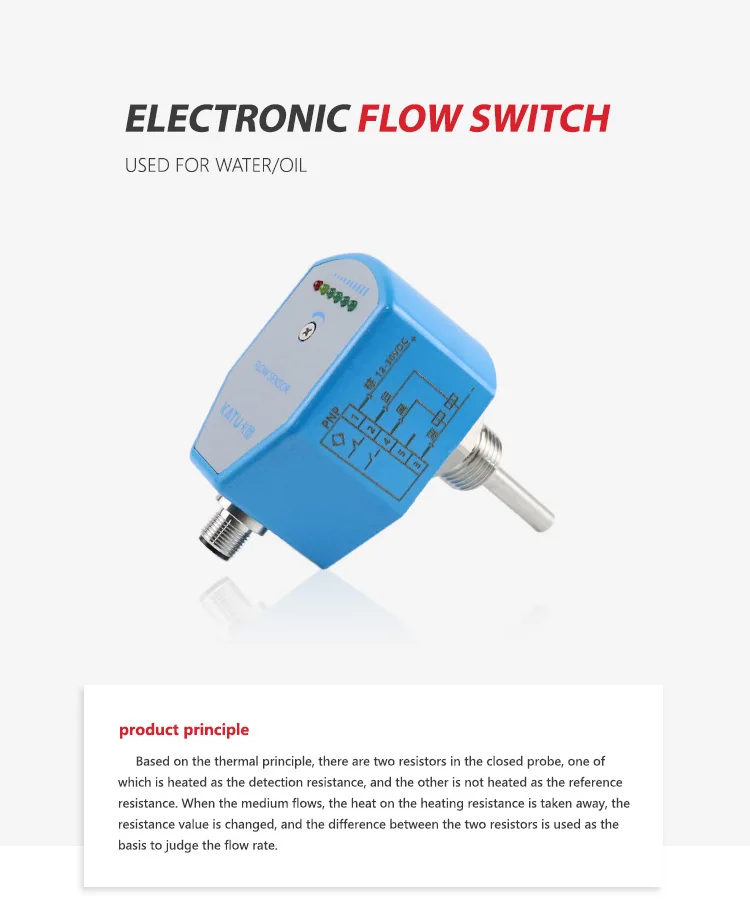

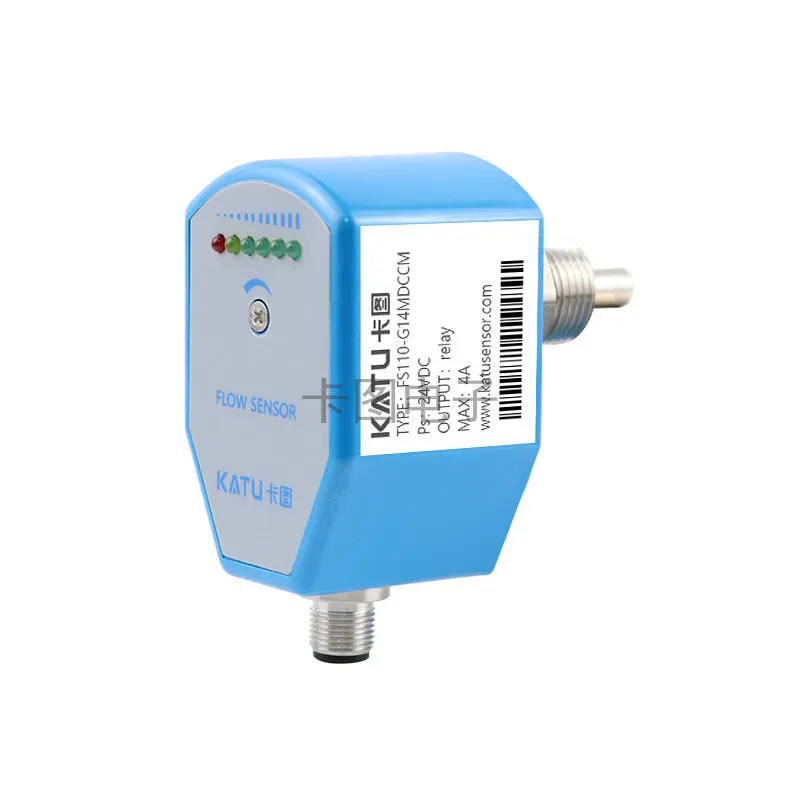

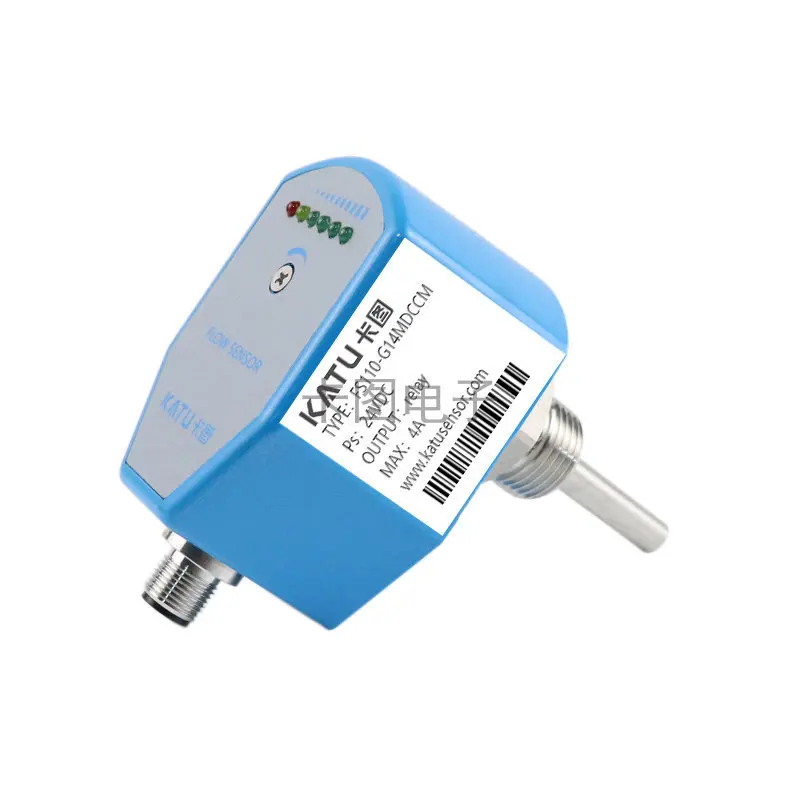

KATU FS110 stainless steel Liquid Flow Switch LED Indicators Flow Switch Sensor Water
- Category: >>>
- Supplier: Katu Electronics (kunshan) Co. Ltd.
Share on (1601281135925):
Product Overview
Description
practical application
Setting range: | 1... 150cm/s(water), 3... 300 cm/s (oil) |
Signal output: | PNP,NPN, relay, NORMALLY open + normally closed (SPDT) |
Power supply: | 24V±20%VDC or 230V±15%VAC |
Switching current: | maximum 400mA(PNP or NPN type), maximum 4A (relay type) No load current: Max. 80mA |
Flow indicator: | LED row (6 PCS) |
Setting mode: | potentiometer setting |
Pressure range: | 100bar |
Temperature gradient: | ≤4℃/s |
Response time: | 1-13s, typical value 2s |
Electrical protection: | reverse phase, short circuit, overload protection |
Protection grade: | IP67 |
Medium temperature: | -20... 80 ℃ |
Ambient temperature: | -20... 80 ℃ |
Storage temperature: | -20... 100 ℃ |
Wiring mode: | M12 plug-in/direct wire |
His material: | Probe: stainless steel Shell: PBT, |
Keyword | flow switch water flow switch electronic flow switch |

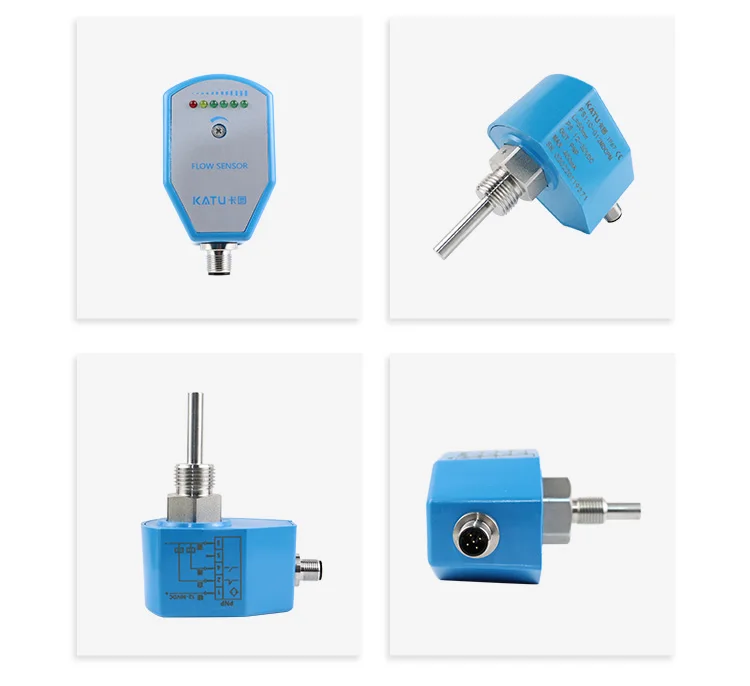

Details Images

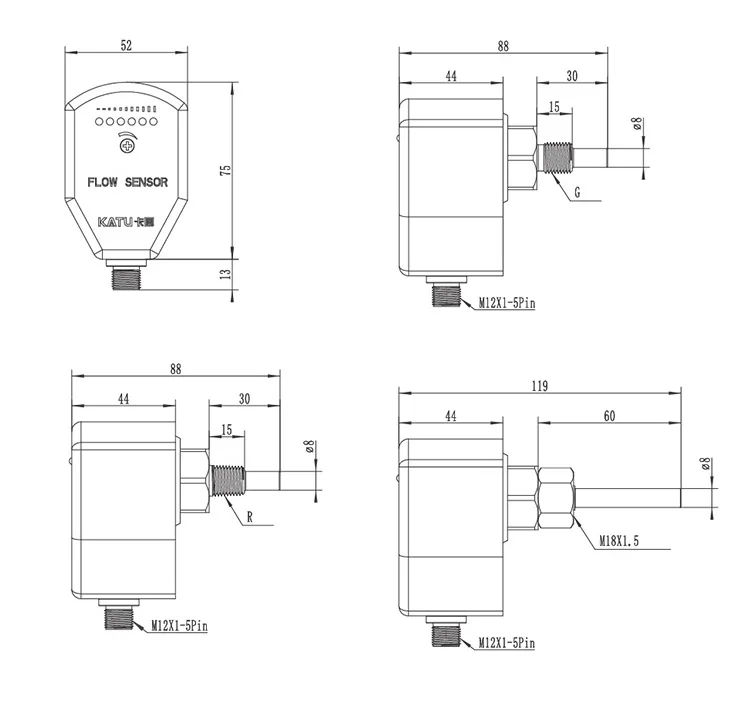

size

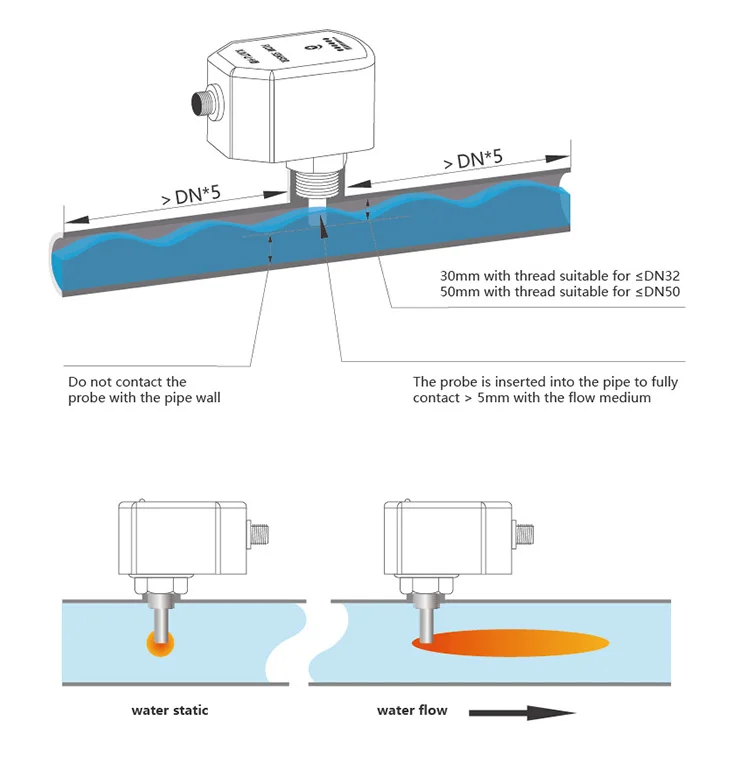

Installation Instructions
When installed vertically, the probe should be mounted on the tube section
flowing from bottom to top. When installed horizontally, the probe should
be shielded from air and precipitation.
flowing from bottom to top. When installed horizontally, the probe should
be shielded from air and precipitation.

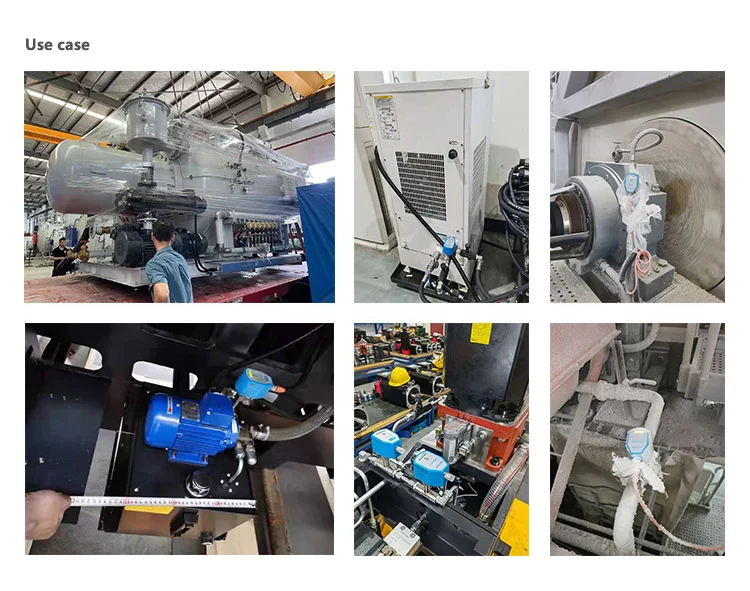

application
