Factory Price Original Generators KTAA19 G5 500KW Diesel Generator Price
Factory Price Original Generators KTAA19-G5 500KW Diesel Generator Price
Factory Price Original Generators KTAA19-G5 500KW Diesel Generator Price
Factory Price Original Generators KTAA19-G5 500KW Diesel Generator Price
Factory Price Original Generators KTAA19-G5 500KW Diesel Generator Price
Factory Price Original Generators KTAA19-G5 500KW Diesel Generator Price
Factory Price Original Generators KTAA19-G5 500KW Diesel Generator Price

Factory Price Original Generators KTAA19 G5 500KW Diesel Generator Price

Share on (1601281164767):


Price:$23,823.00 - $26,470.00

Quantity:


Product Overview

Description

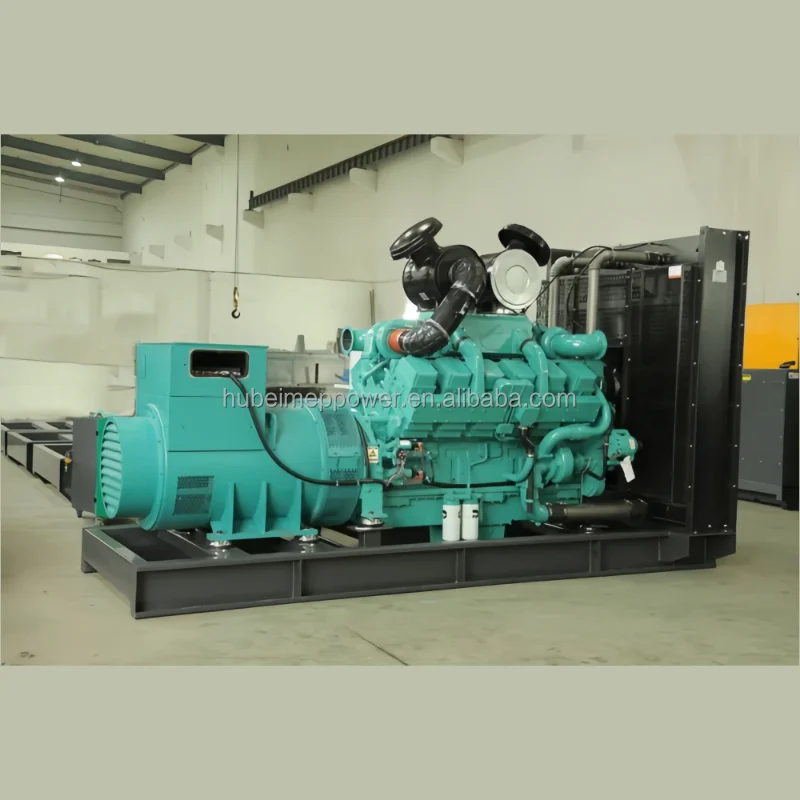

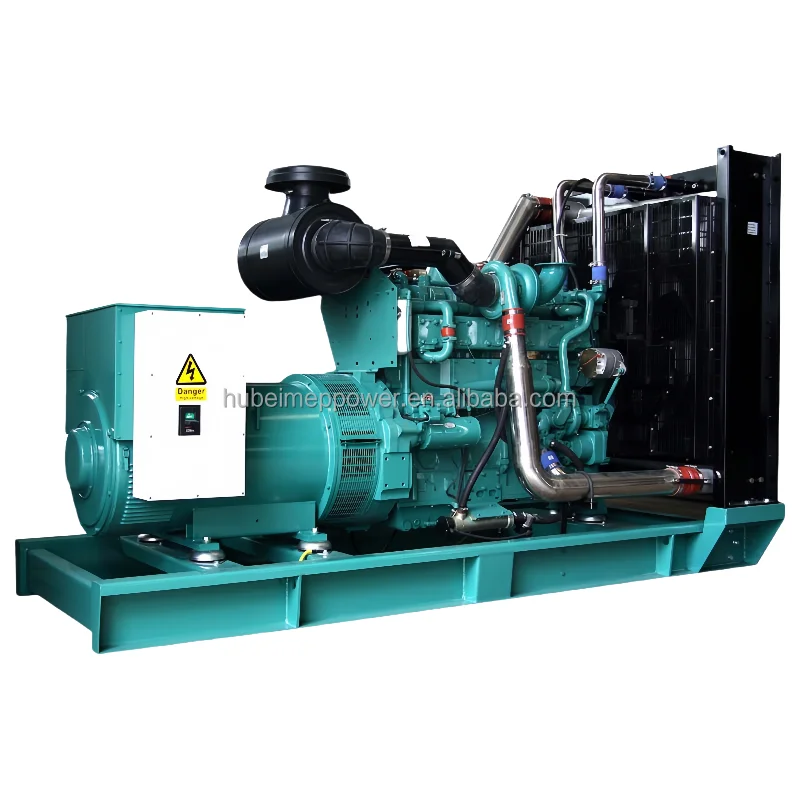

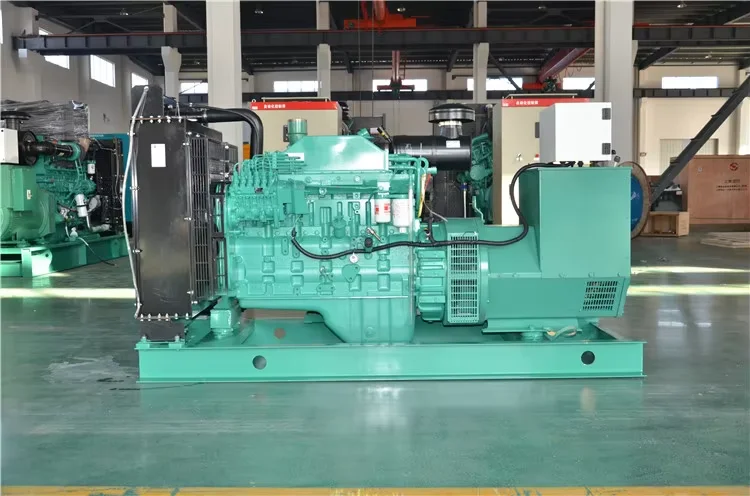

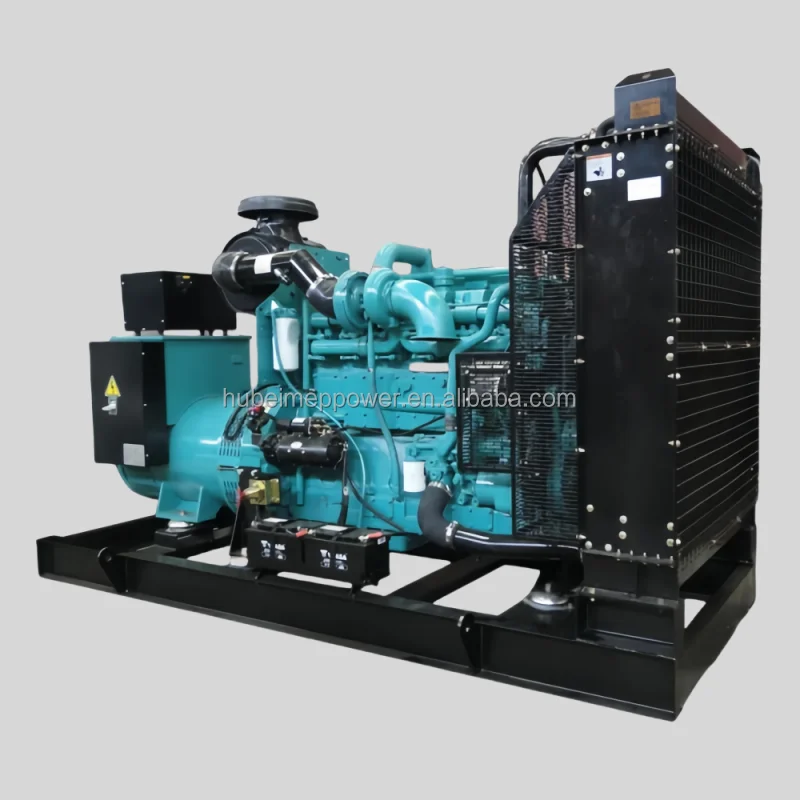

                                                          KTAA19-G5 Diesel Generator Sets 450KW
                                                                      Genertor set Technical Specification
Genertor set model:
HY-G450
Prime Power(kw/kva):
450kw/562.5kva
Standby power(kw/kva):
500kw/625kva
Output voltage:
400/230V
Frequency:
50HZ
Rated current:
810A
Rated Speed(RMP):
1500
Power factor:
COSΦ=0.8(lagging)
Fuel Consumption:
206L/hr
Battery rated capacity(AH):
135AH 2PCS
Gross Weight:
2900
Overall Dimension (L*W*H)mm
3000×980×1760

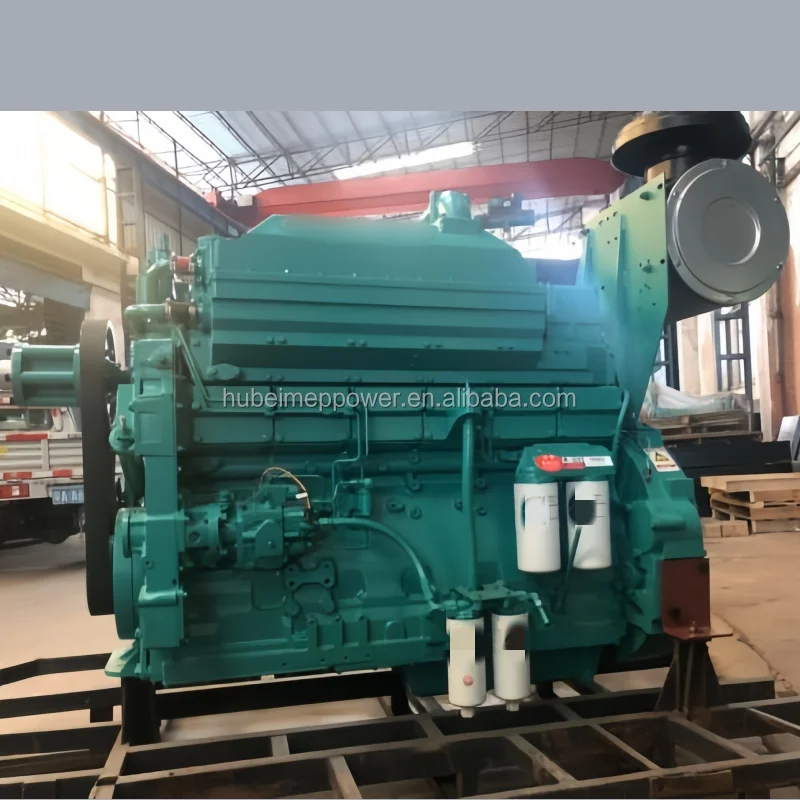

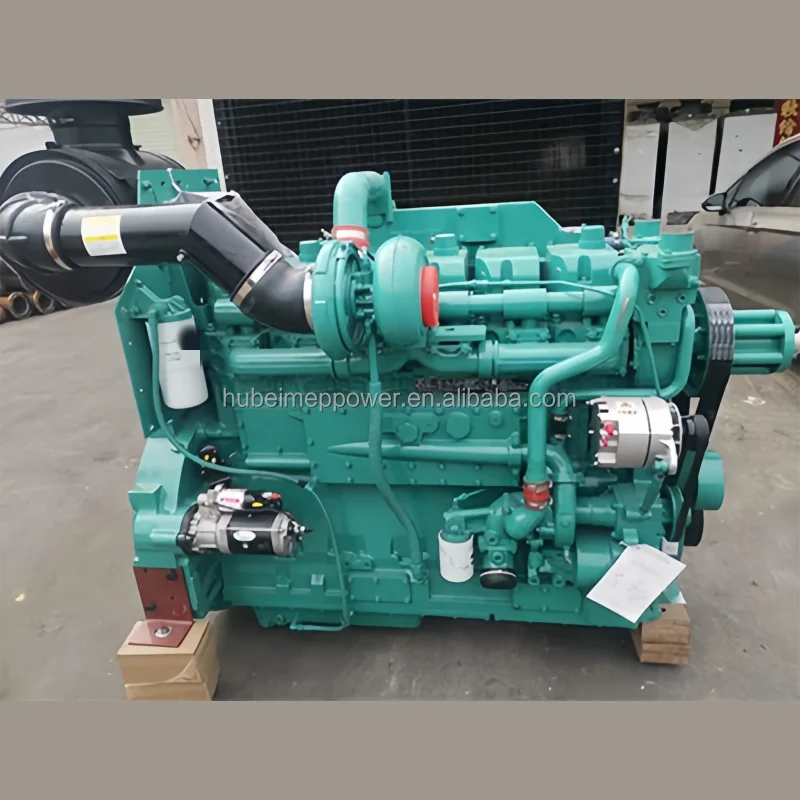

                                                                               Engine Technical Specification
Brand
CCEC
Engine Model:
KTAA19-G5
Cylinder NO.
6 Cylinders in-line
Prime Power(kw/HP):
470kw/639HP
Standby power(kw/HP):
555kw/755HP
Rated Speed(RMP):
1500rmp
Bore*Stroke(mm):
145×152
Displacement(L):
14L
Exhaust Tempreture(℃):
485
Lubricating Capacity(L):
36L
Liquid cooling capacity(L)
63.8L
Fuel Consumption(g/kW.h):
207g/kW.h
Oil Consumption(g/kW.h):
0.4g/kW.h
Aspiration Method:
Turbocharged
Starting System:
Electrical start
Cooling System:
water cooling
Governor Type:
Electrical Control
                                                                           Alternator Technical Specification
Brand:
HY
Model:
HY-G450
Rated Capacity（kW/KVA）：
450kw/562.5kva
Output voltage:
400/230V
Exclosure degree:
IP22
Insulation degree:
H
Connecting type:
3PH star, 3PH-DELTA


















Q1. Sample Service
R1: Engines and generator sets are large equipment and free samples are not available.Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q2. Customized Service Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
R2: We provide OEM&ODM services, have owner design department, can provide design sketch free for you. plsCummins 6CTA8.3-G1 Diesel Generator Sets 150KW
feel free contact to us with your any enquiresCummins 6CTA8.3-G1 Diesel Generator Sets 150KW
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q3. About the Delivery Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
R3: Our stock products can send to you within 3-7 days, the custimzed products after confirm the requirements can be ship out within 15-30 days.
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q4. About Payment Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
R4: Alipay, Wechat ,T/T or L/C ，T/T is acceptable 70% deposit along with PO released. 100% before shipment,Cummins 6BTA5.9-G2 Diesel Generator Sets
payment terms can be negotiable with long term business relation.
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q5.What kind of warranty do these parts have?
For Genuine engines we offer 12 months or 1000 working hours warranty which come first! For OEM engines we offer 8 months warranty and 800 working hours warranty which come first! Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q6.How i can get the price ?Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
Please contact us and provided us with your engine serial or other information necessary to identify your parts,then we will check and send you quotation
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q7.How to choose delivery ways？Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
By air:Large order with big size and heavy ,urgent
By sea:Large order with big size and heavy, not urgent
By express:Little parts,small size and weight, no matter urgently or not, you should choose the wayCummins 6CTA8.3-G1 Diesel Generator Sets 150KW
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q8.How Do You Ship My Orders?Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
If you have your own freight forwarder, you can ask your freight forwarder to arrange the transportation, or we can also arrange the transportation for you
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Q9.What's your advantage? Cummins 6CTA8.3-G1 Diesel Generator Sets 150KW
Quotation manager assists the salesman to make the quotation before placing the order price will be double checked. Accountant manager keep control the payment from the bank if anything will inform the sales and buyers immediately .Quality of the parts controlled by the professional purchase managerCummins 6CTA8.3-G1 Diesel Generator Sets 150KWCummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3
Goods packed Sturdy and Moisture-proof by professional Warehousing staff ensure every product keep in good situation to our customer Cargo delivery to the sea/air port on time by fast and efficient logistic capacity.Cum
Cummins Diesel Generator Sets 4BT/6BT/6CT/6LTA899/NTA855/K19/K38/K50/QSM/62TAA13/QSZ/QSZ13/G1/G2/G3mins 6CTA8.3-G1 Diesel Generator Sets 150KW
