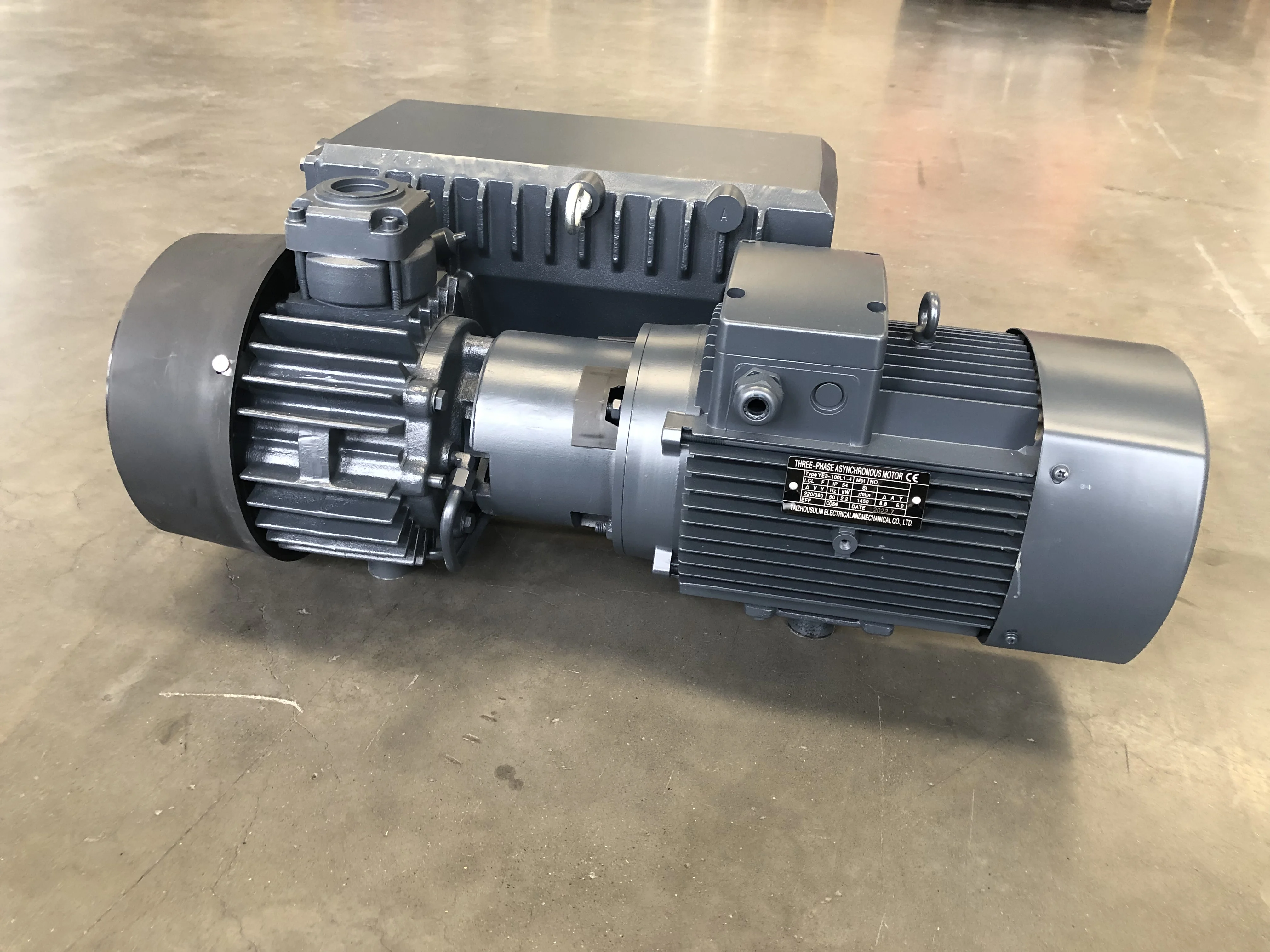

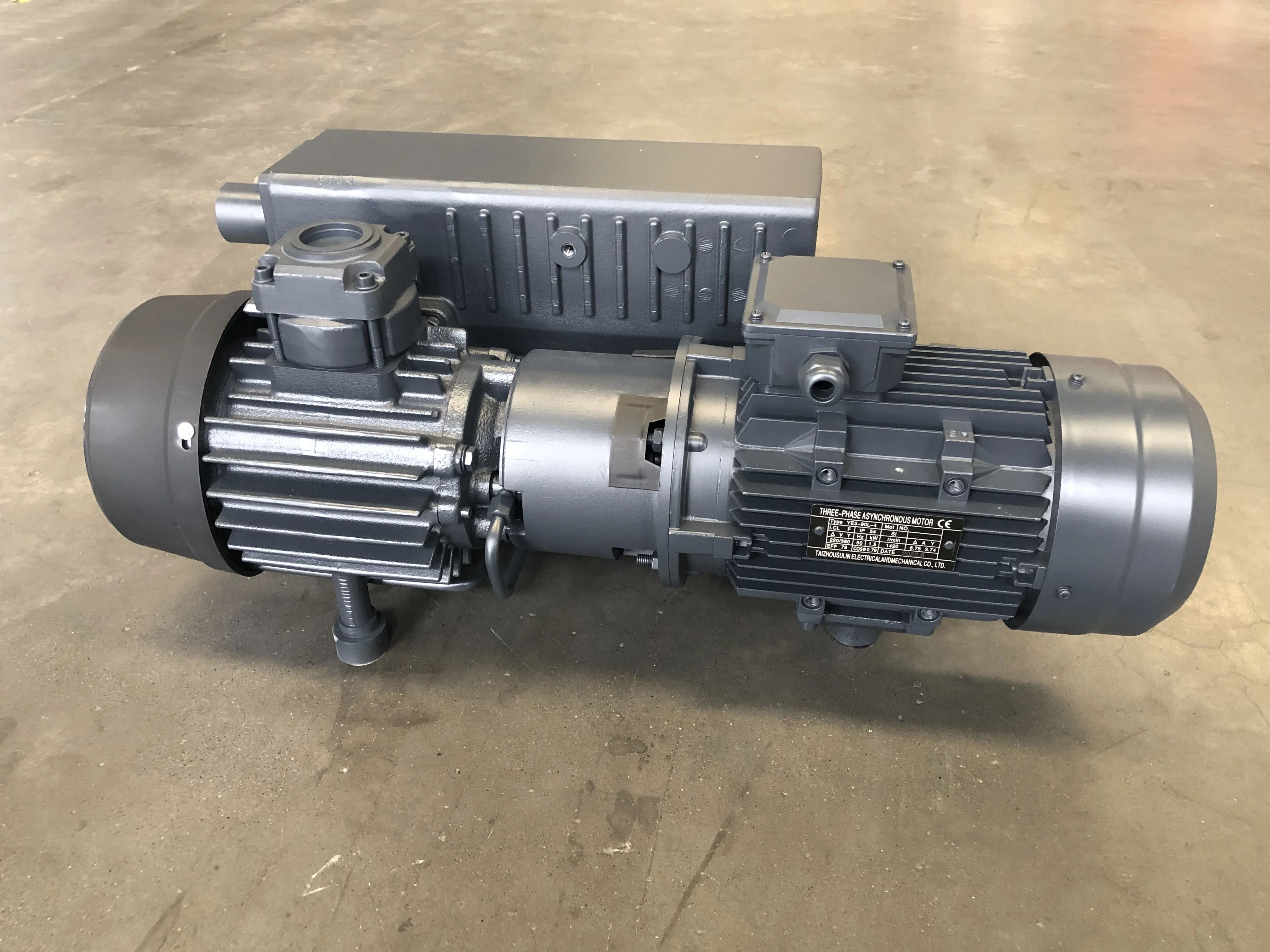

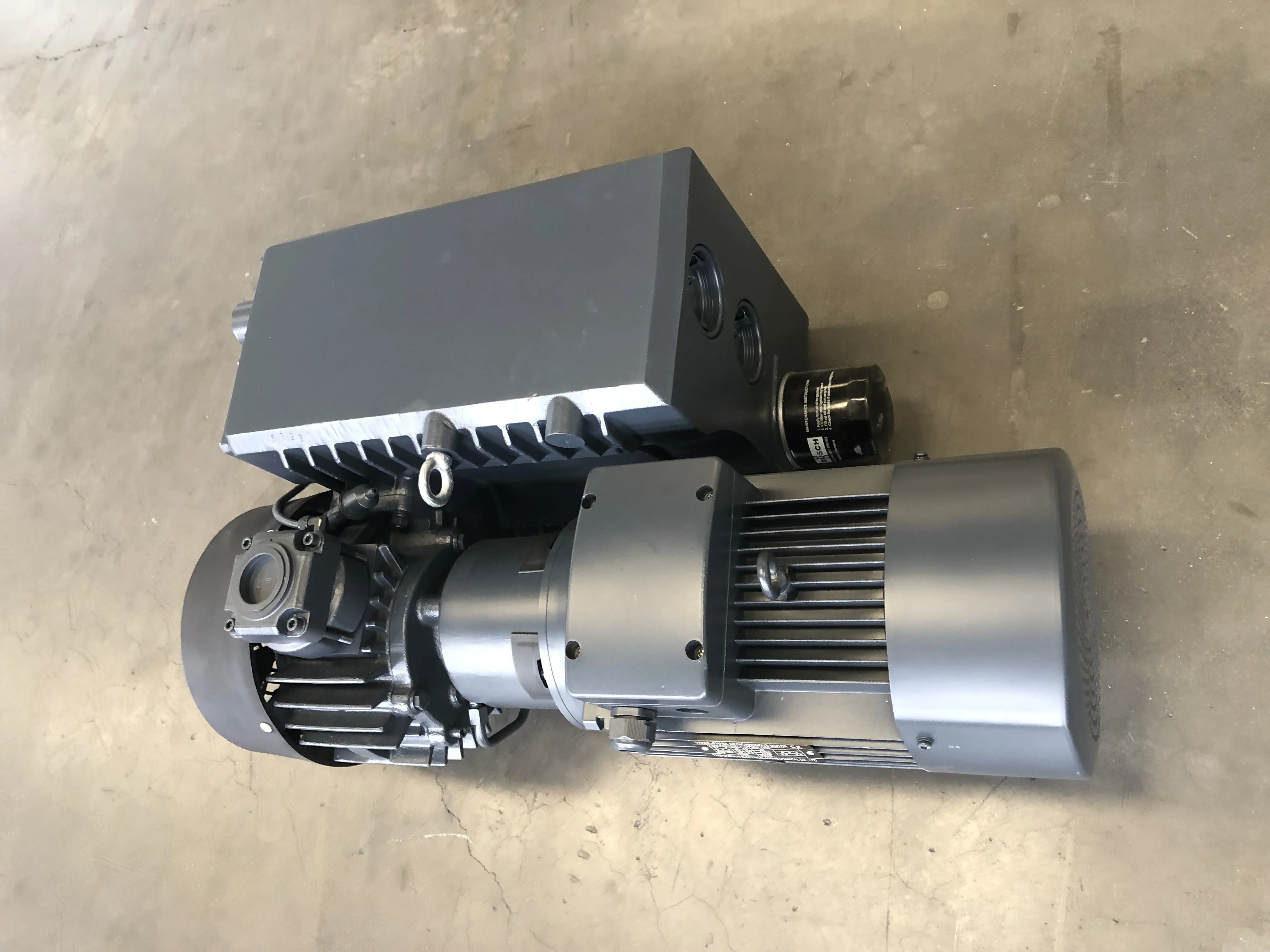

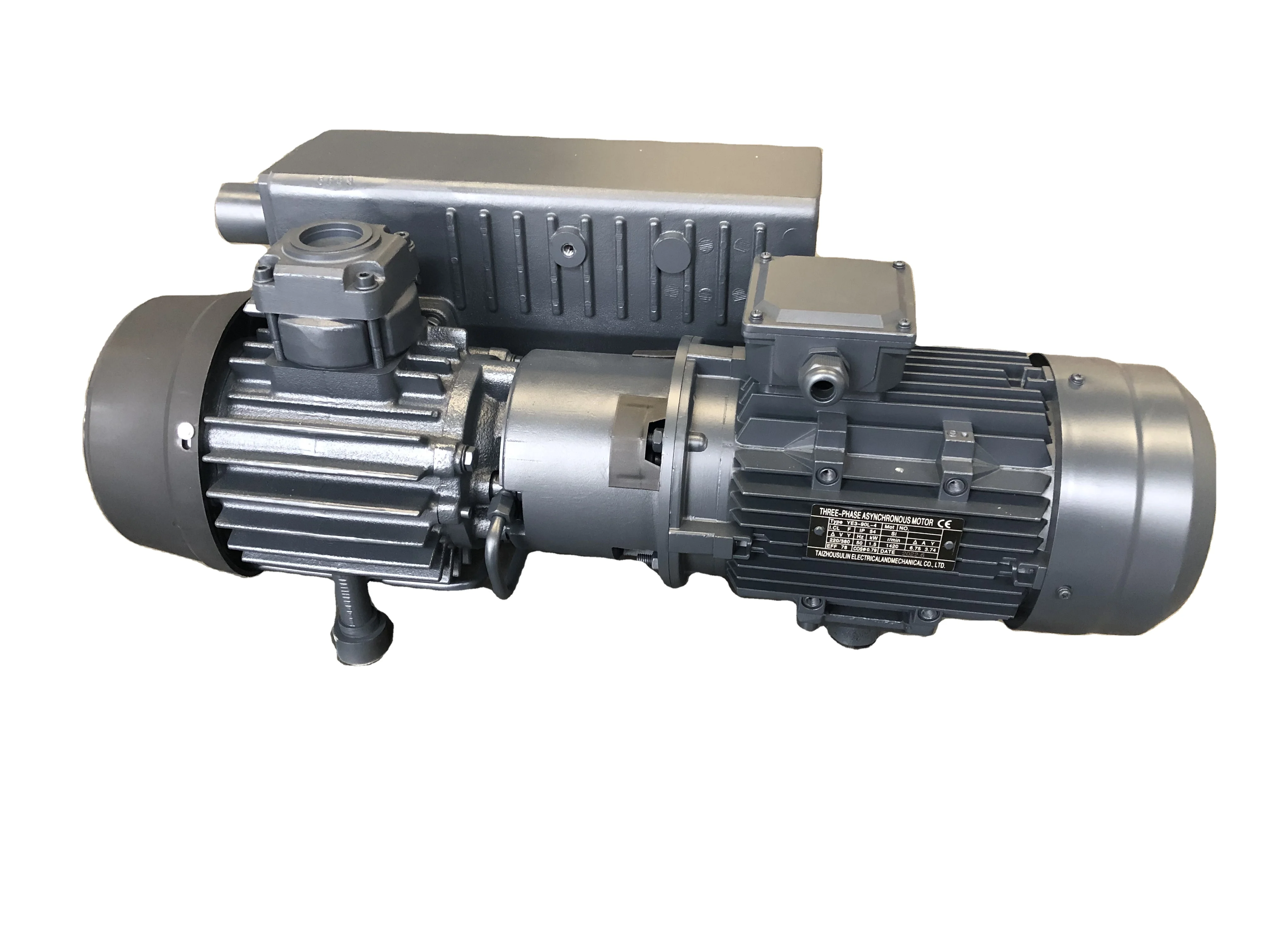

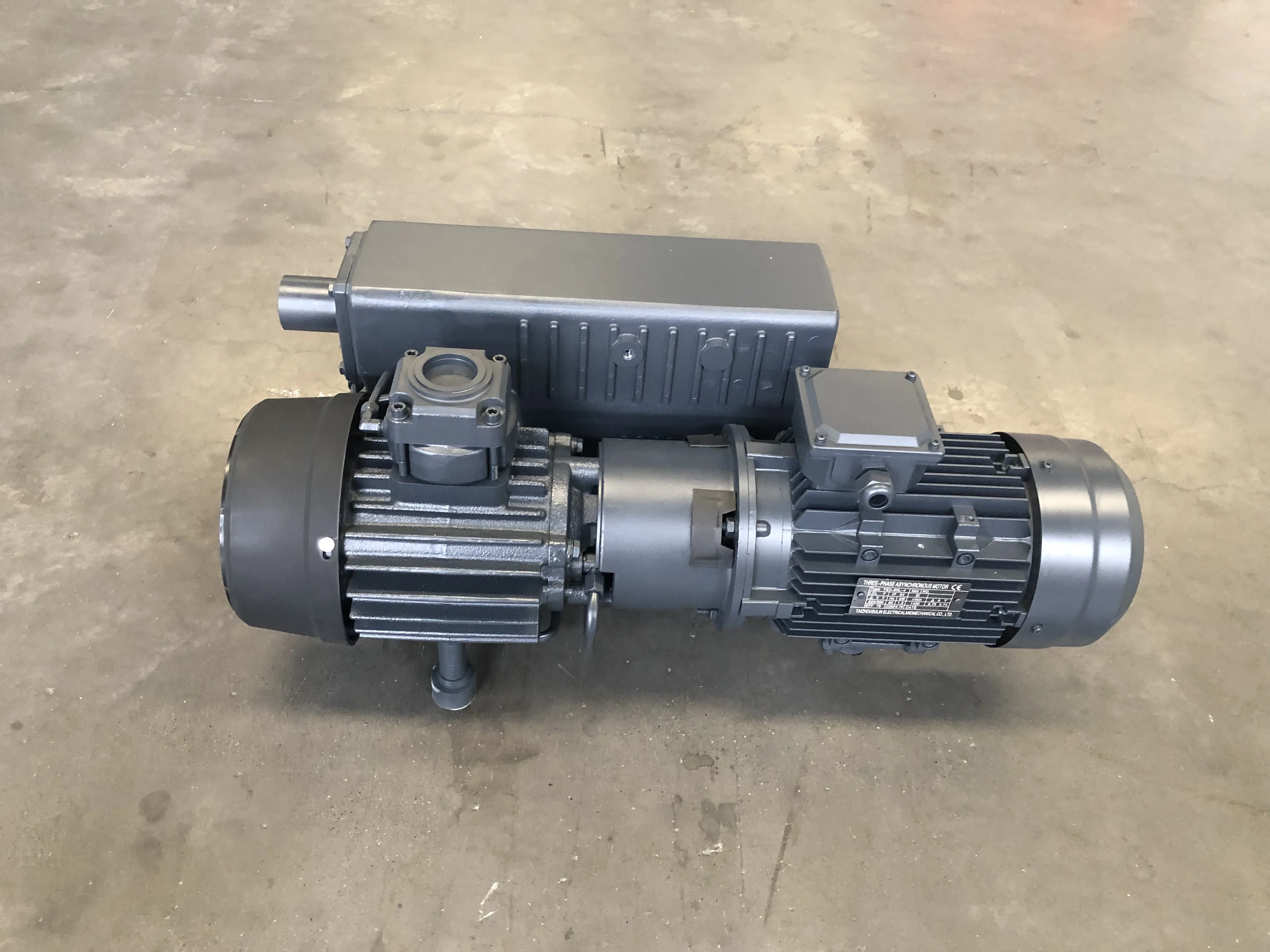

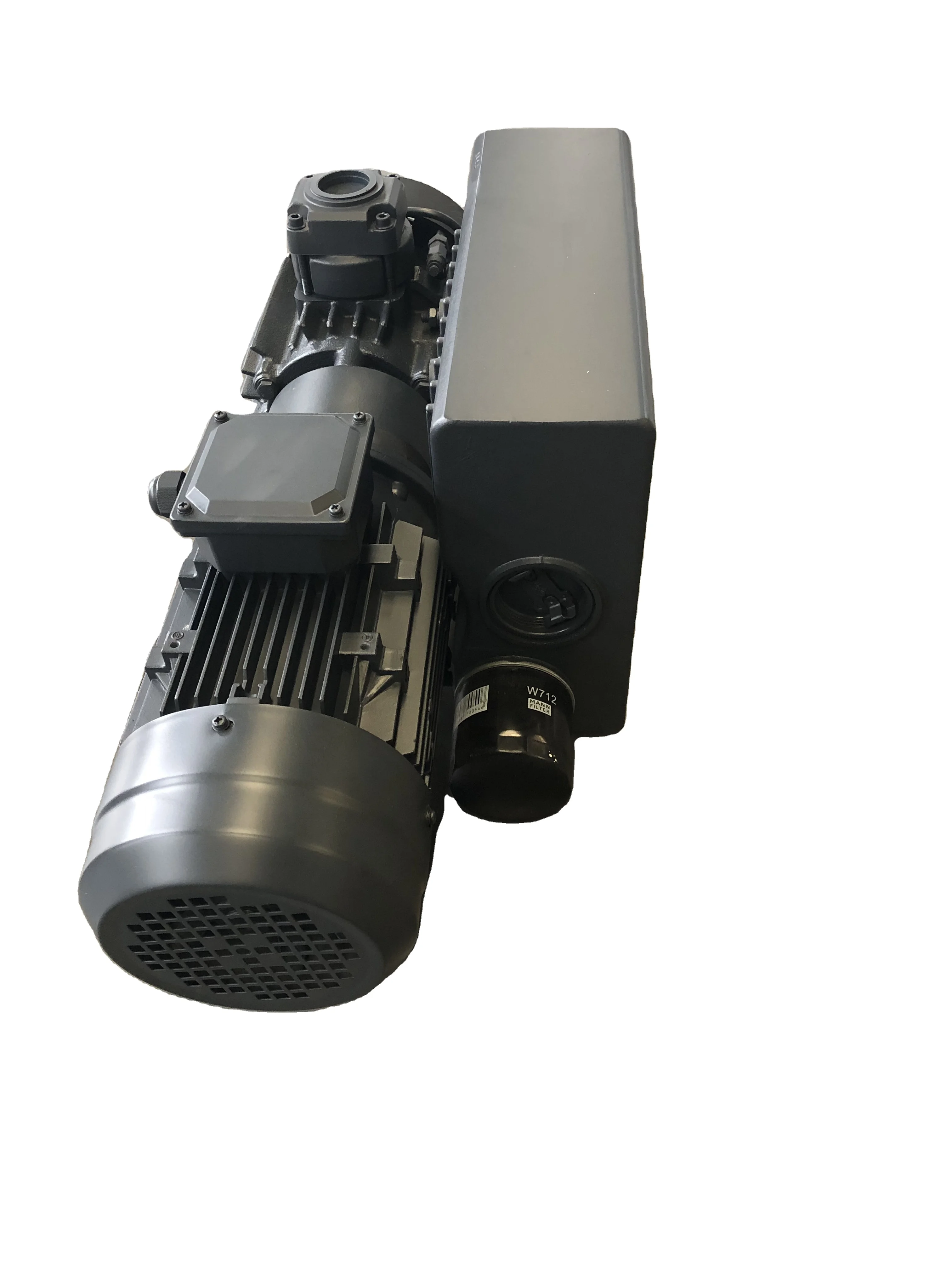

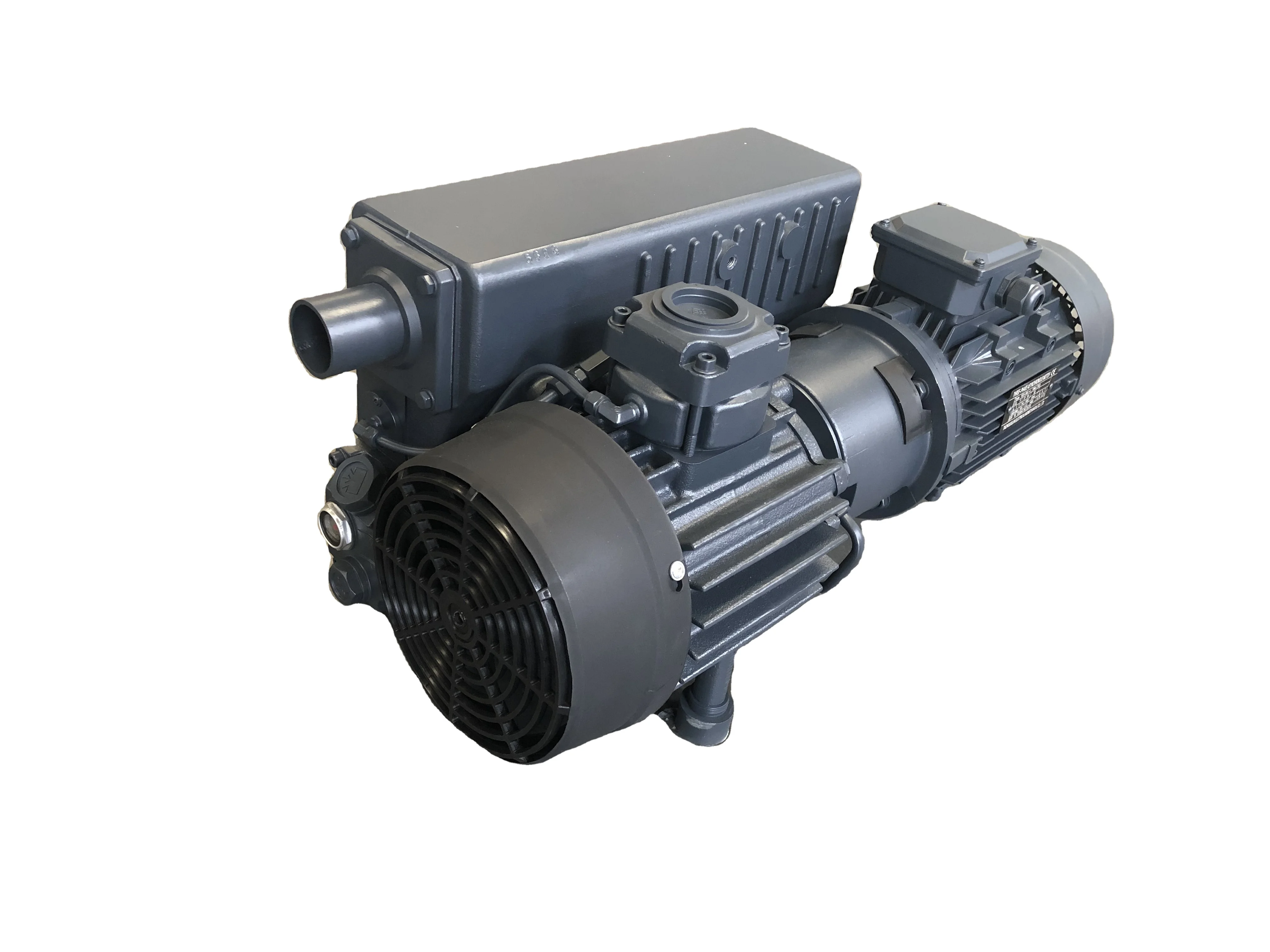

JQT 63(m3/h) Industrial Oil Pump Golden Bridge Oil Sealed Vane Rotary Vacuum Pump High Quality Oil lubricated Vacuum Pump
- Category: >>>
- Supplier: Jinan Golden Bridge Precision Machinery Co. Ltd.
Share on (1601281164867):
Product Overview
Description
Products Description
Oil vacuum pumps for applications requiring high vacuum levels and long run times
More models

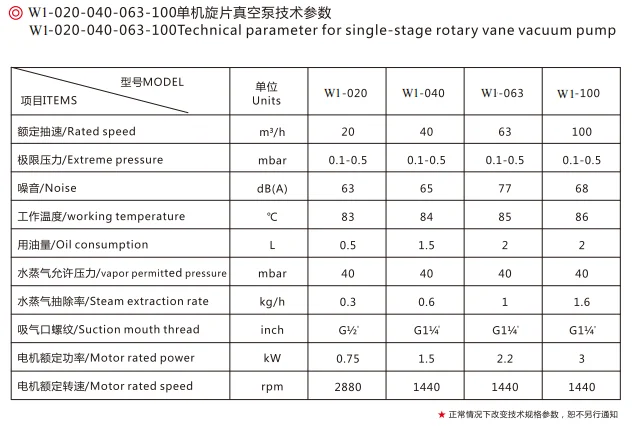

ITEMS\\MODEL | Units | W1.020 | W1.040 | W1.063 | W1.100 | W1.140 | W1.202 | W1.302 | ||
Rated speed | m3/h | 20 | 40 | 63 | 100 | 140 | 200 | 300 | ||
Extreme pressure | mbar | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1 | 0.1 | 0.1 | ||
Noise | dB(A) | 63 | 65 | 77 | 68 | 68 | 72 | 72 | ||
Working temperature | ℃ | 83 | 84 | 85 | 86 | 75 | 75 | 85 | ||
Oil consumption | L | 0.5 | 1.5 | 2 | 2 | 4.5 | 5 | 7 | ||
vapor permitted pressure | mbar | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||
Steam extraction rate | kg/h | 0.3 | 0.6 | 1 | 1.6 | 2.3 | 4 | 5 | ||
Suction mouth thread | inch | G½ | G1¼ | G1¼ | G1¼ | G1½ | G2 | G2 | ||
Motor rated power | kw | 0.75 | 1.5 | 2.2 | 3 | 4.5 | 4.5 | 7.5 | ||
Motor rated speed | rpm | 2880 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | ||
Company Profile
Since established in 1999, adhering to the enterprise culture of " Efficient, Pragmatic, Precise, Innovative", we have been
committed to the development and innovation of national industry and devoted to creating the most qualified products in factory automation. So far, we have possessed advanced machining types of equipment such as imported machining centers, CNC lathes, NC milling machines, CNC cutting machines, etc. Our products, with an excellent reputation, have been not only used by many domestic famous enterprises, but also exported to Europe, America, Africa, the Middle East, and Asian countries, etc..
committed to the development and innovation of national industry and devoted to creating the most qualified products in factory automation. So far, we have possessed advanced machining types of equipment such as imported machining centers, CNC lathes, NC milling machines, CNC cutting machines, etc. Our products, with an excellent reputation, have been not only used by many domestic famous enterprises, but also exported to Europe, America, Africa, the Middle East, and Asian countries, etc..

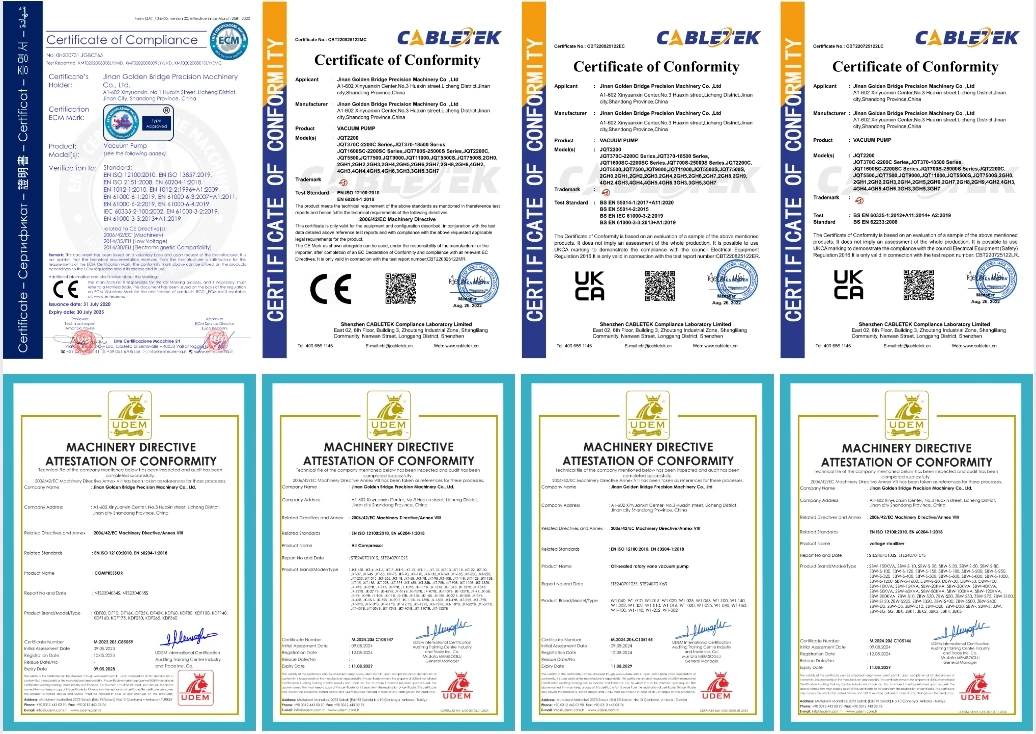

Certifications

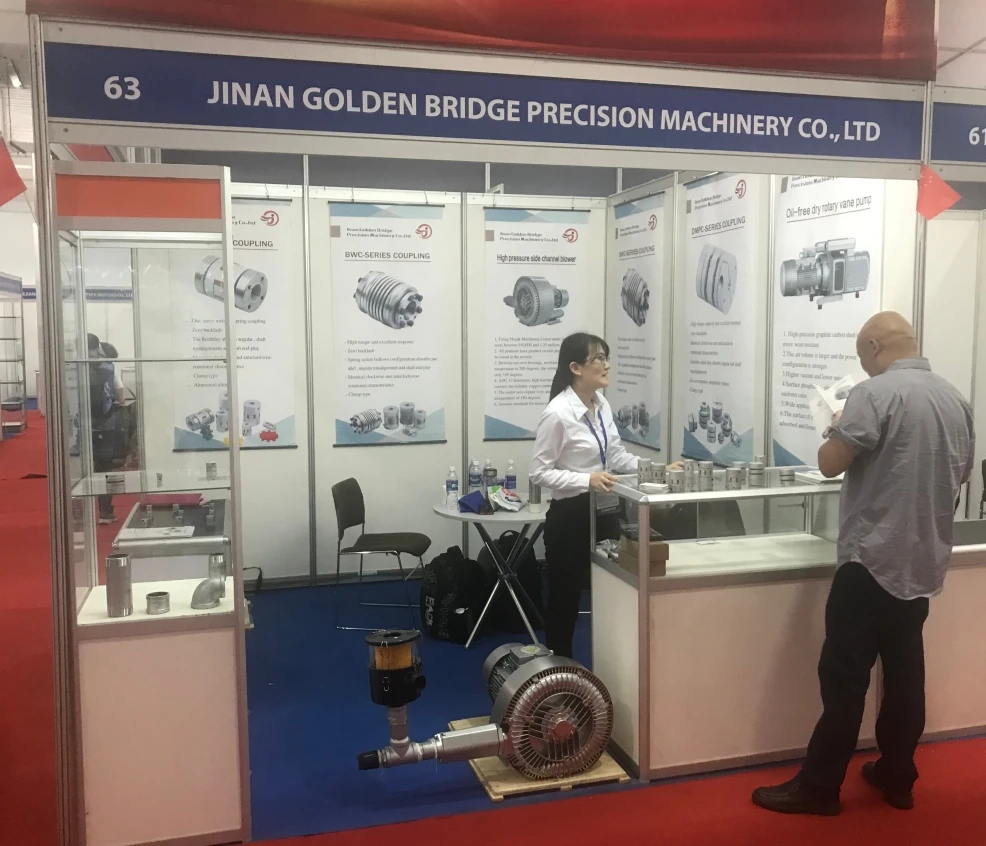

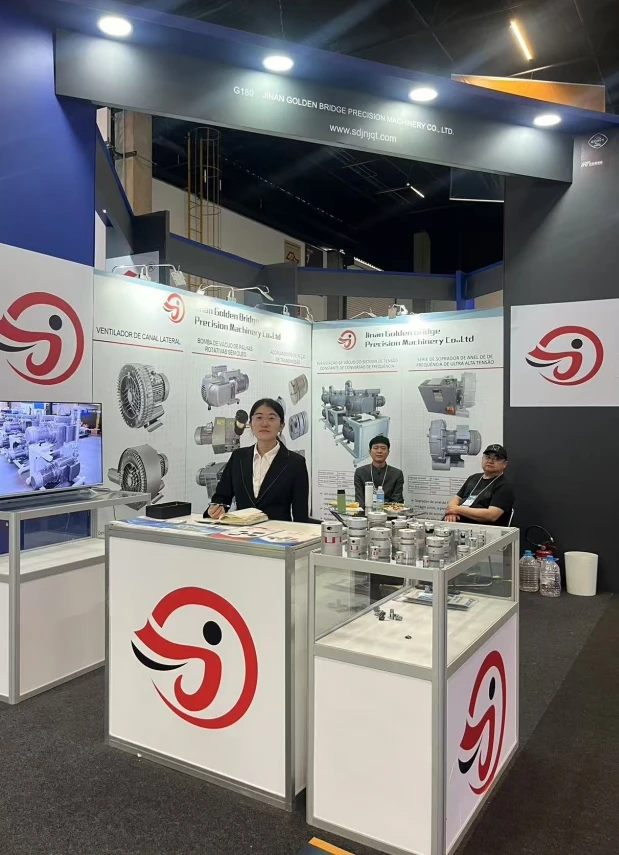

Exhibition
