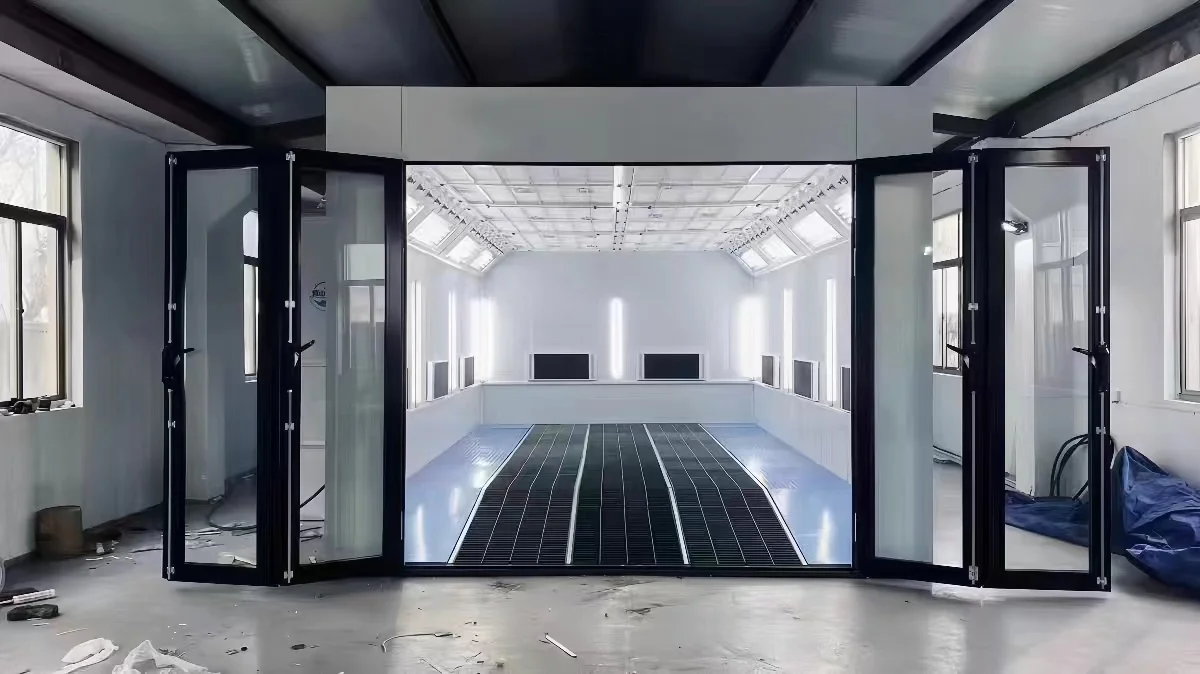

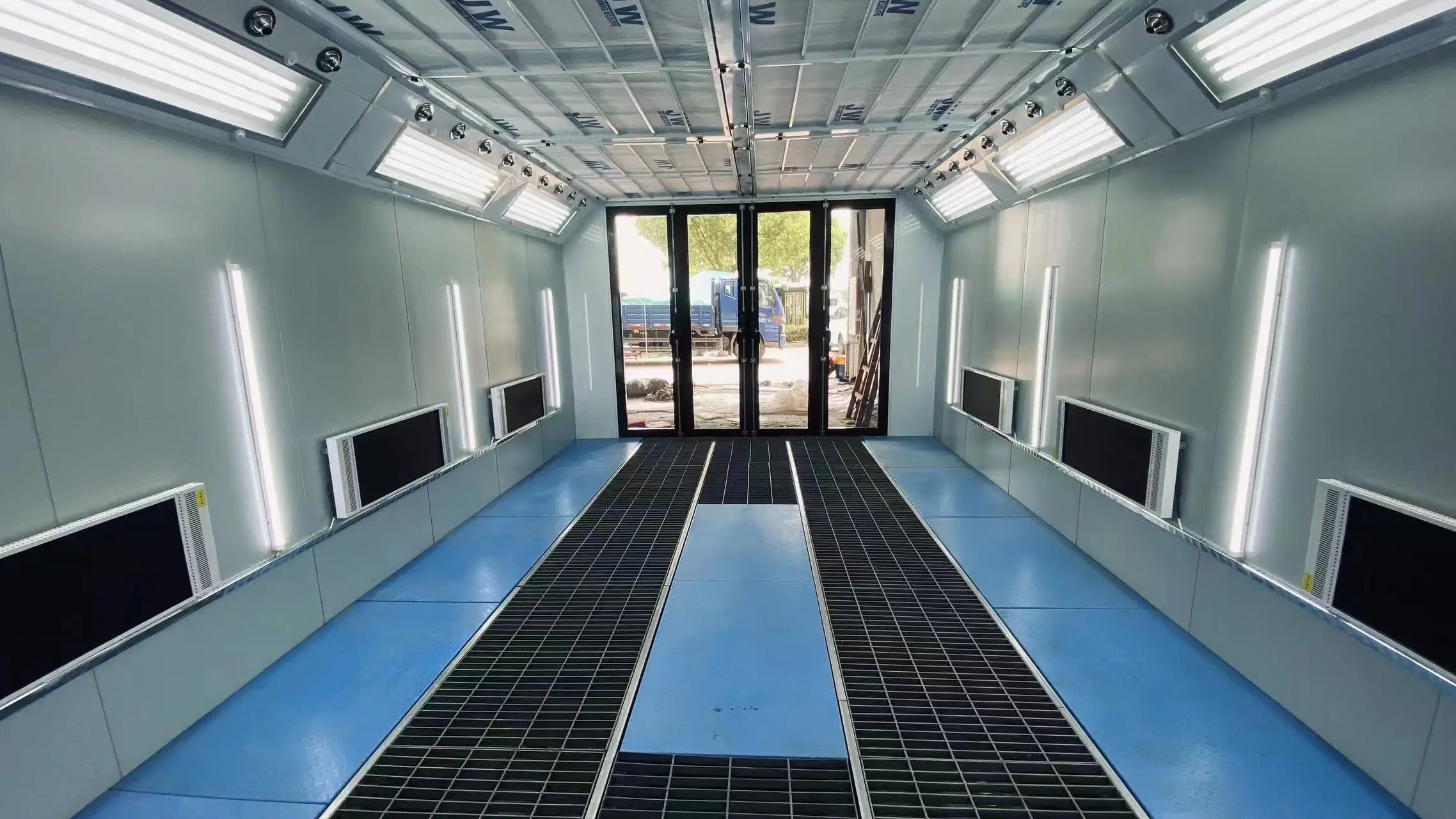

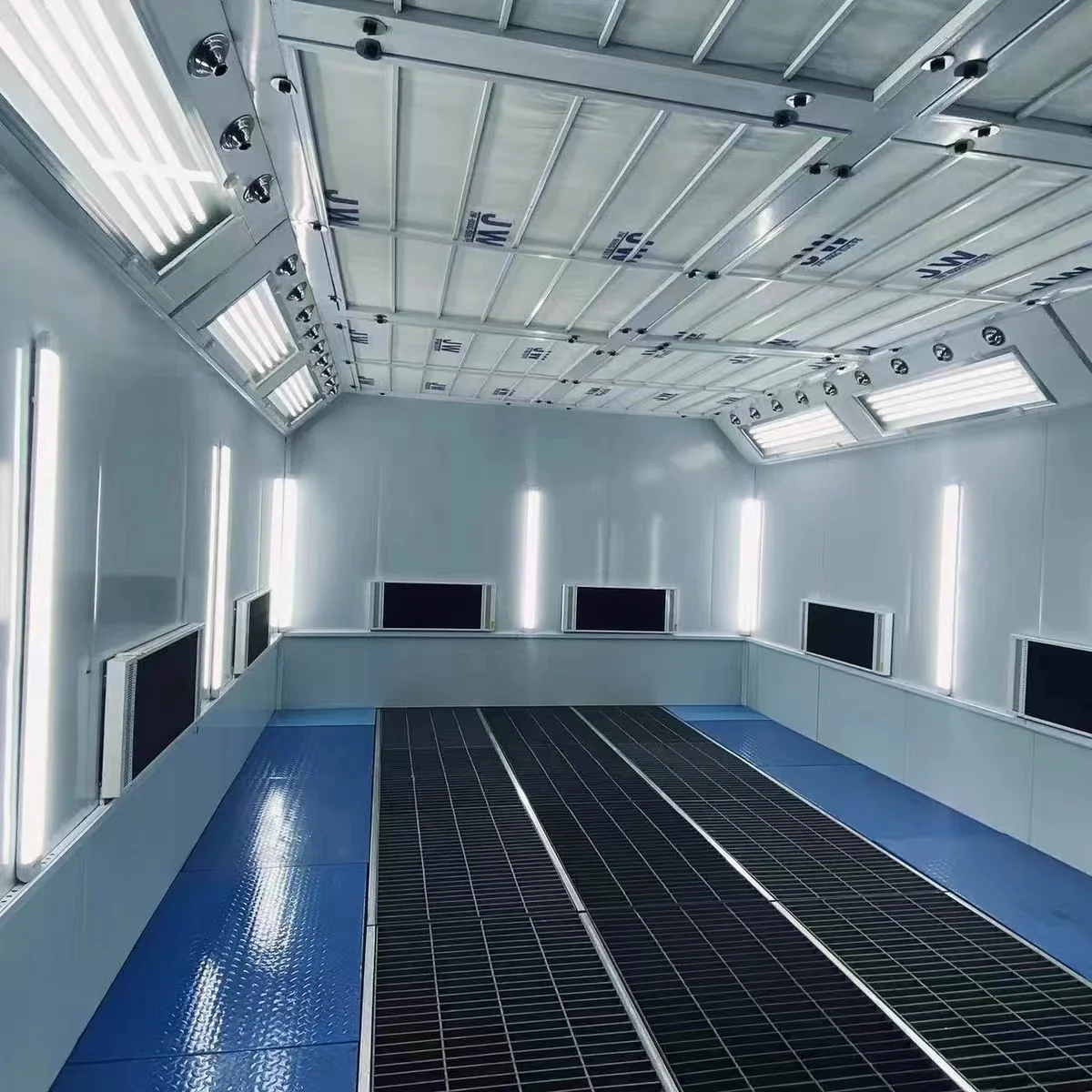

Auto Car spray Painting Drying Oven Heater Outdoor Automotive Powder Coating spray Paint booth For Sale Australia

Items

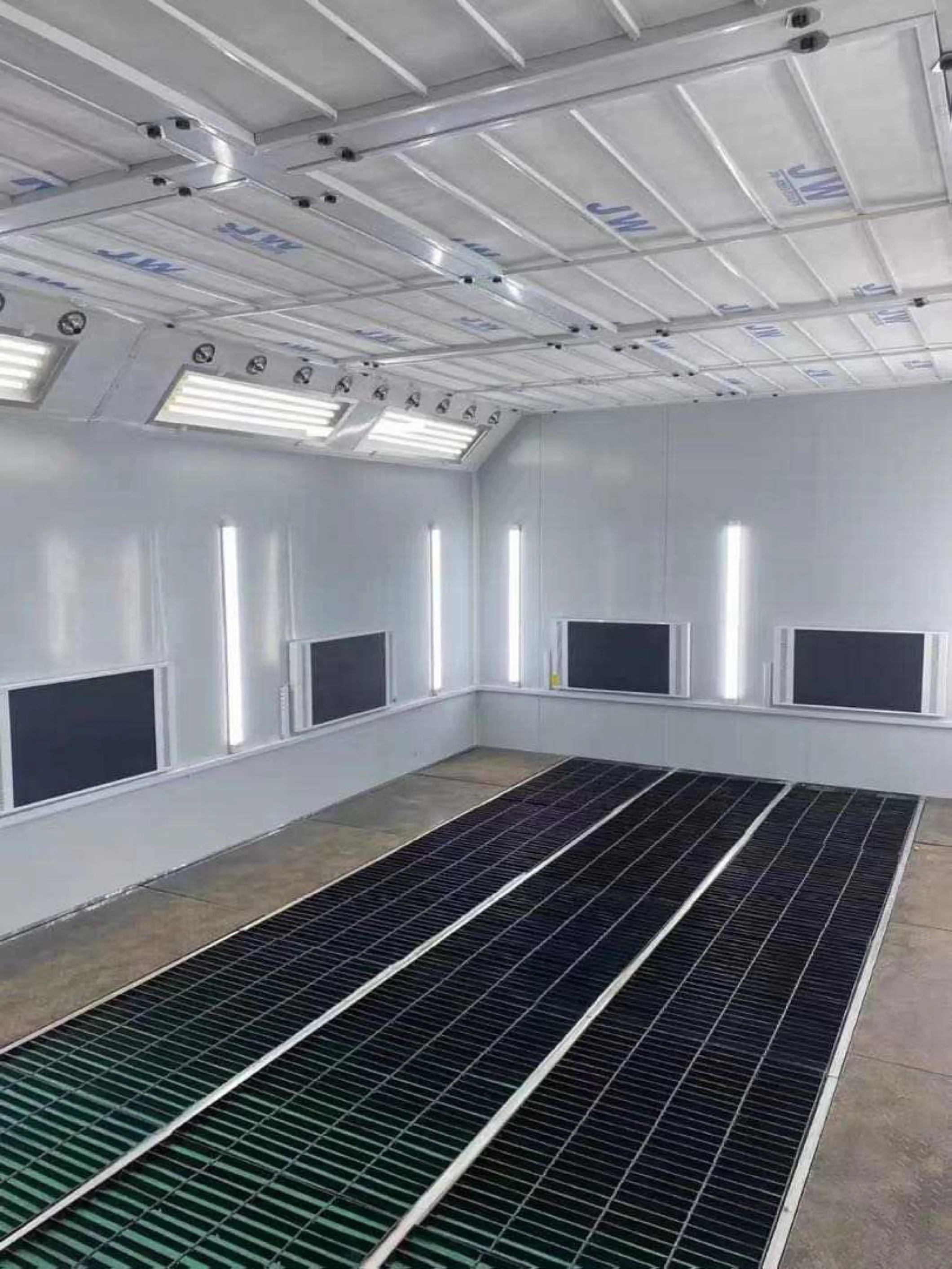

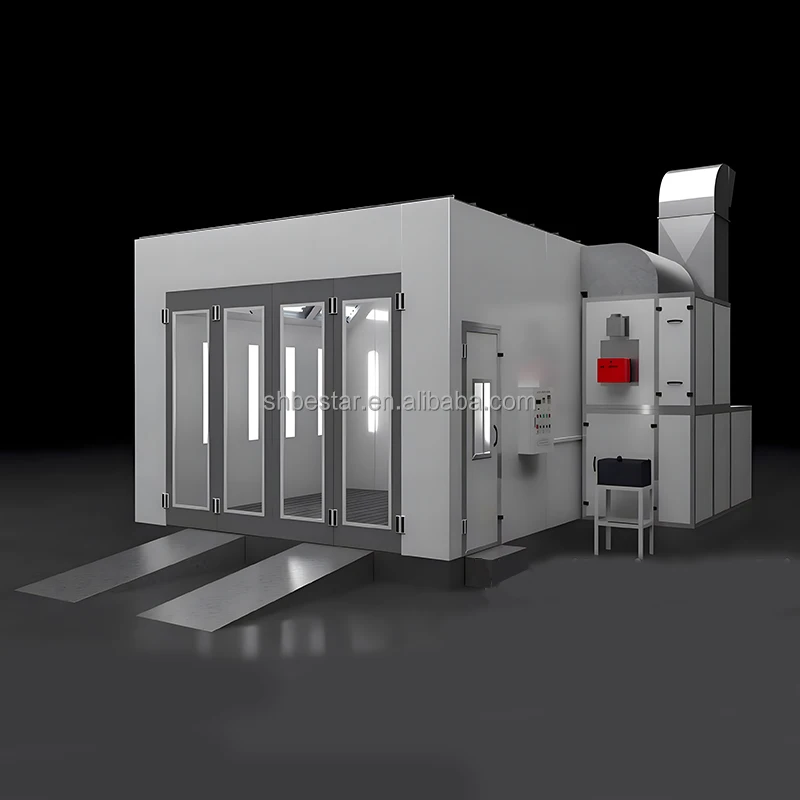

7M Luxury booth

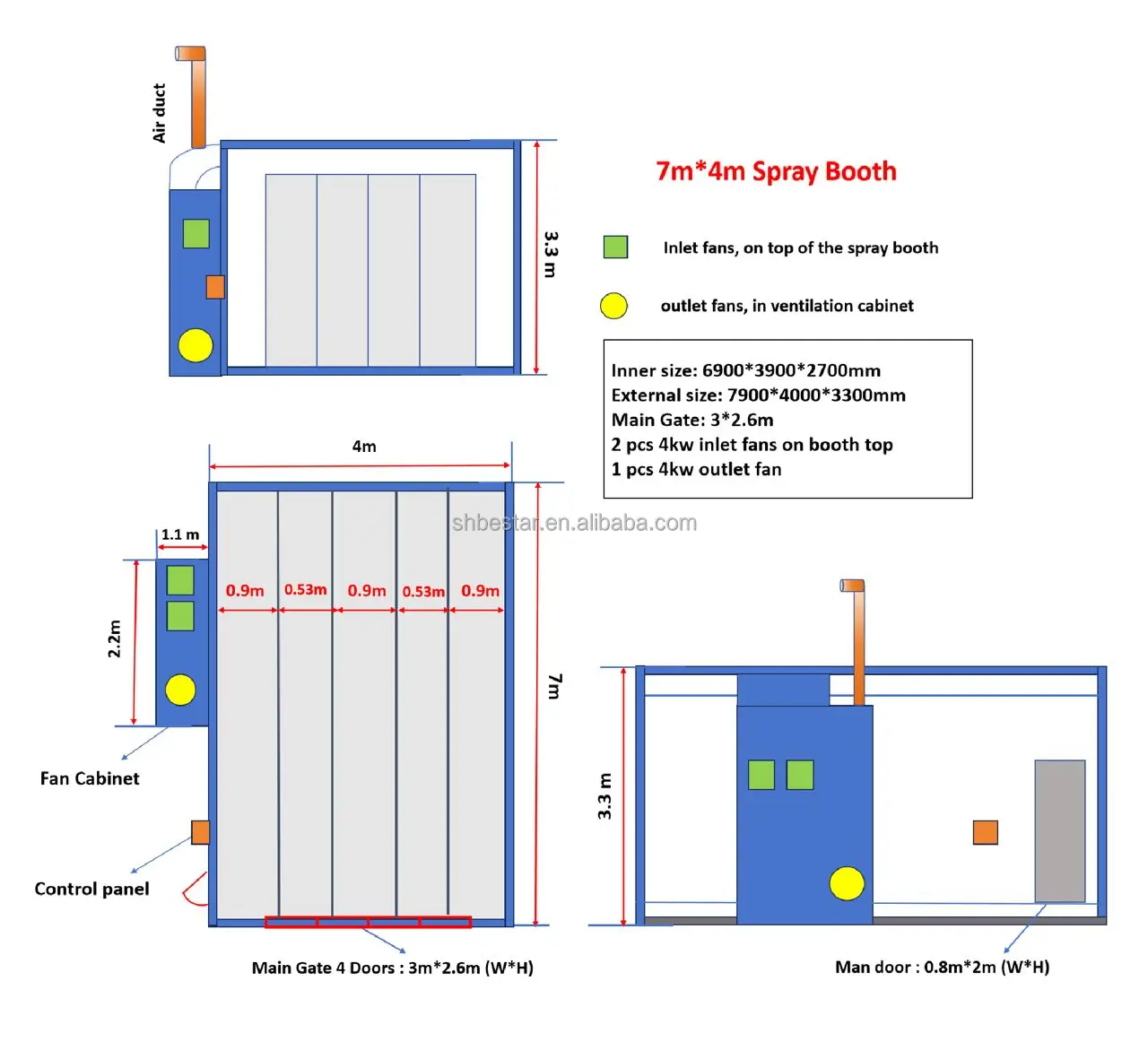

Inner size

6900*3900*2600mm (L*W*H)

Outer size

7000*5000*3300mm (L*W*H)

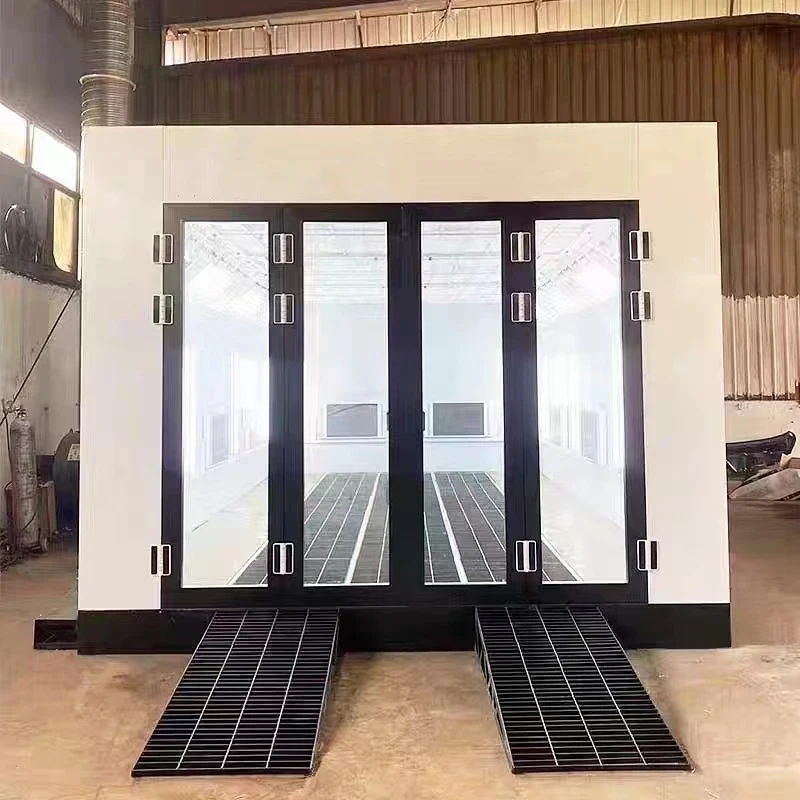

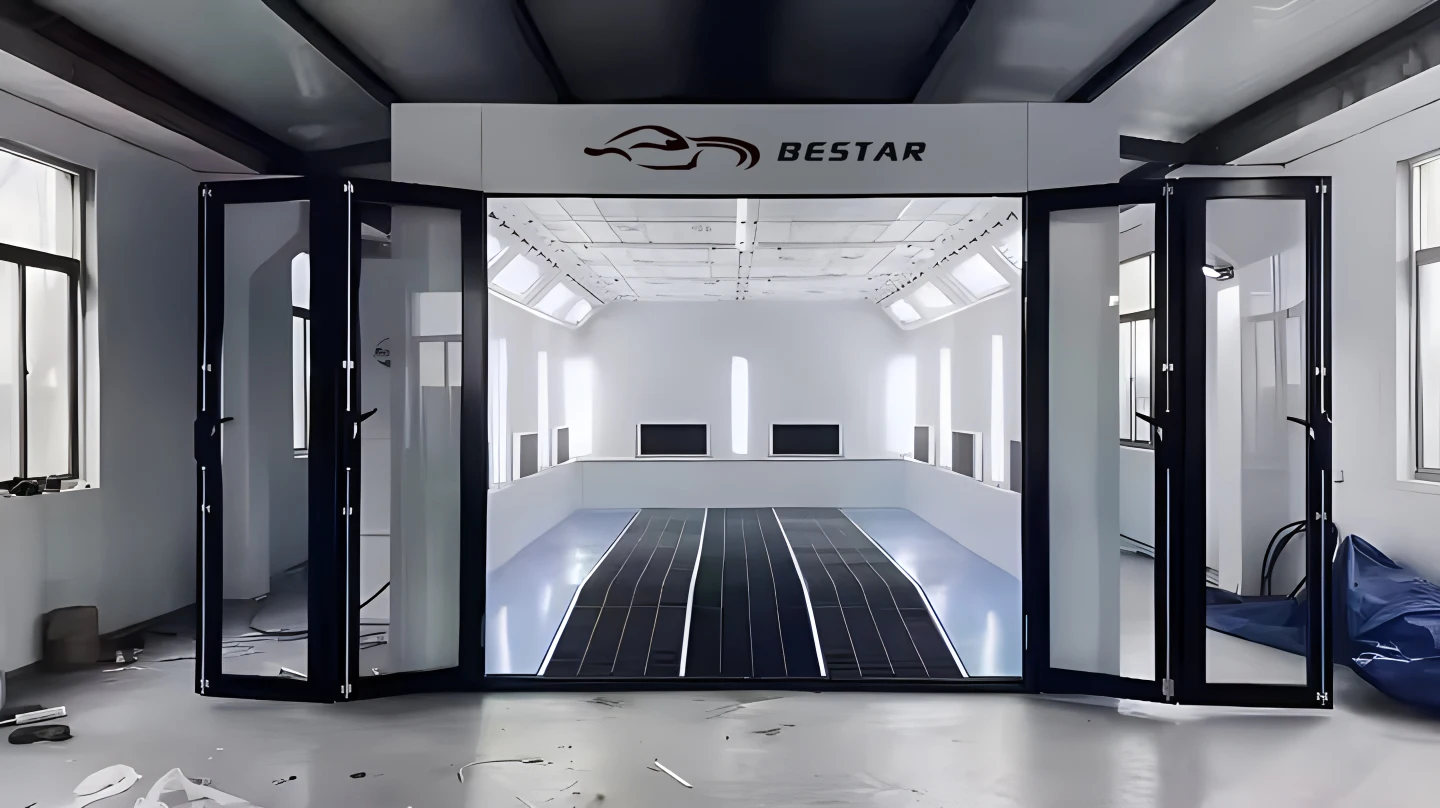

Entrance door

Four pieces metal structure front doors with big glasses, rust resistant, total 3000*2500mm(W*H), equipped with Handle & Lock, 5mm High temperature resistant glass

Side door

An 80*200cm side safety door
The side door installed in a wall panel, it can be put in any place of the spray booth

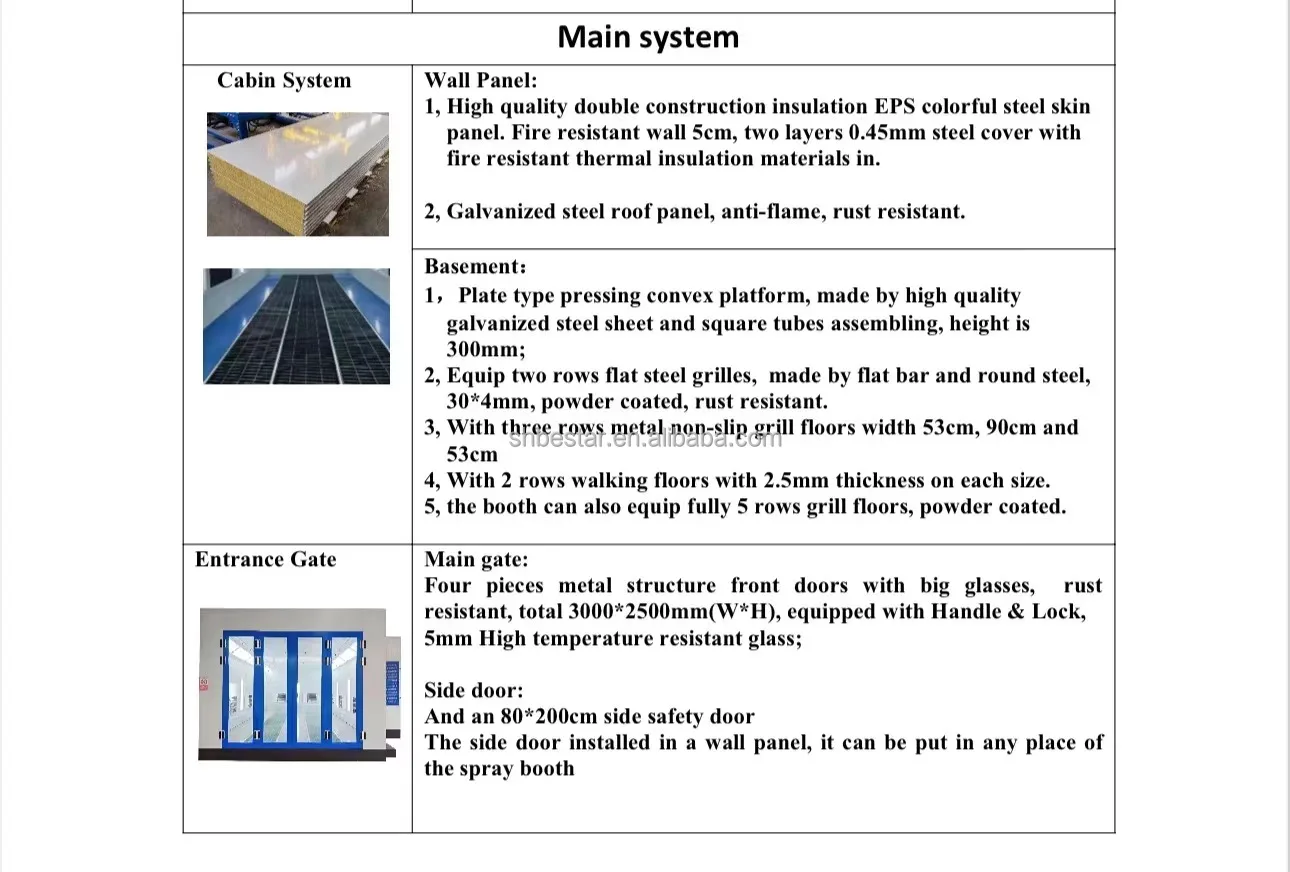

Main system

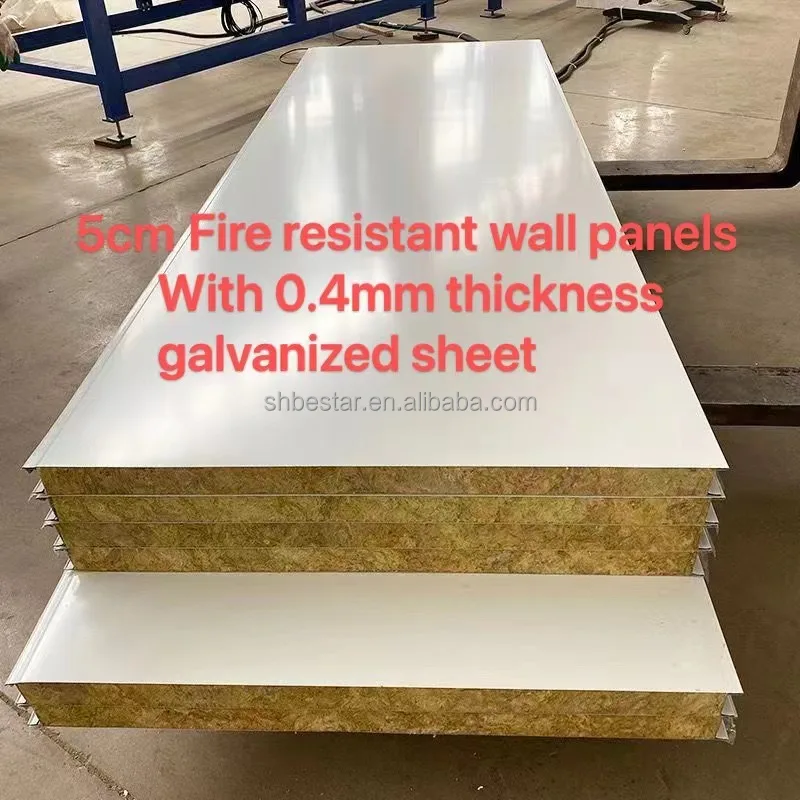

Wall panel

- High quality double construction insulation EPS colorful steel skin panel. Fire resistant wall 5cm, two layers 0.45mm steel
cover with fire resistant thermal insulation materials in. - Galvanized steel roof panel, anti-flame, rust resistant.

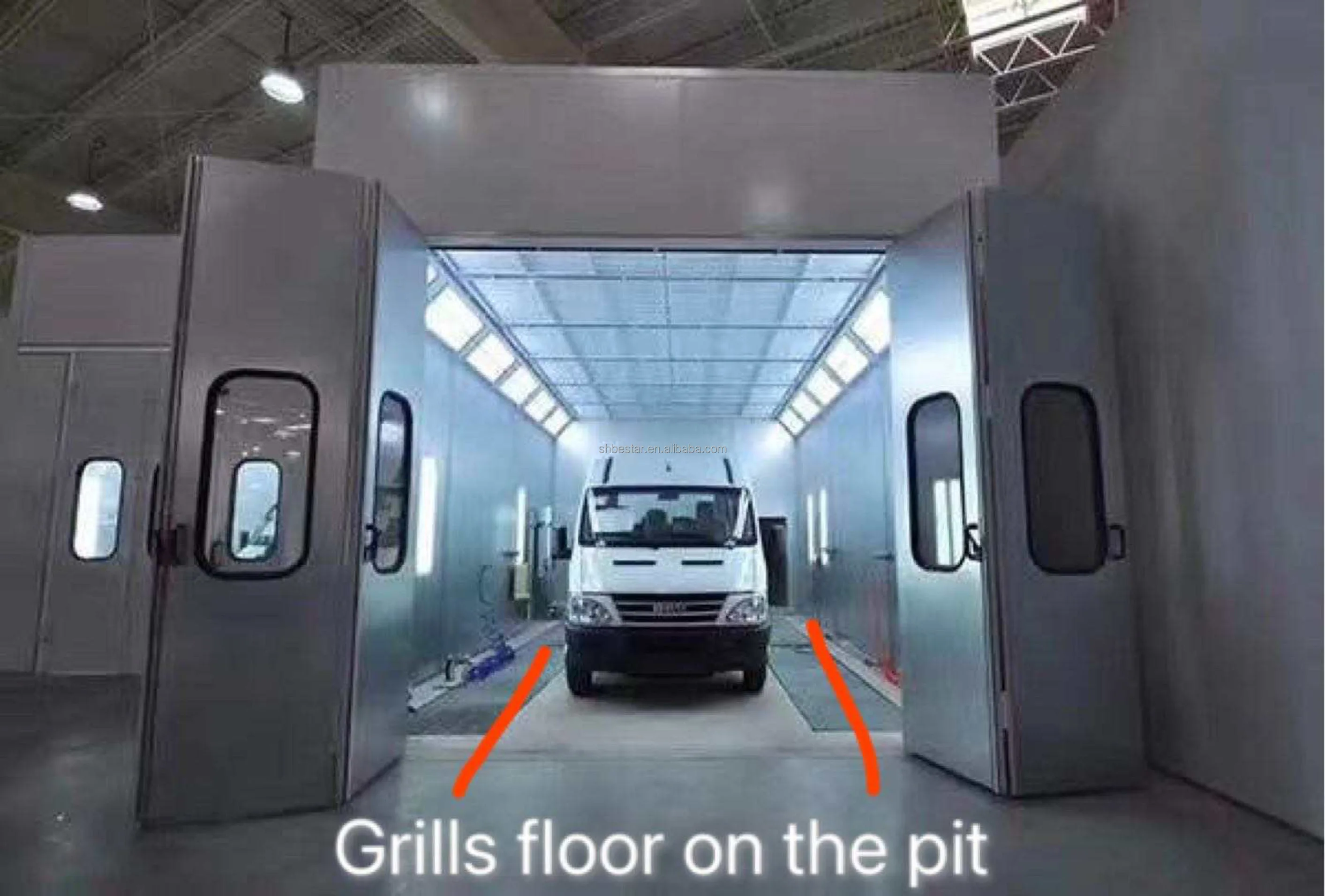

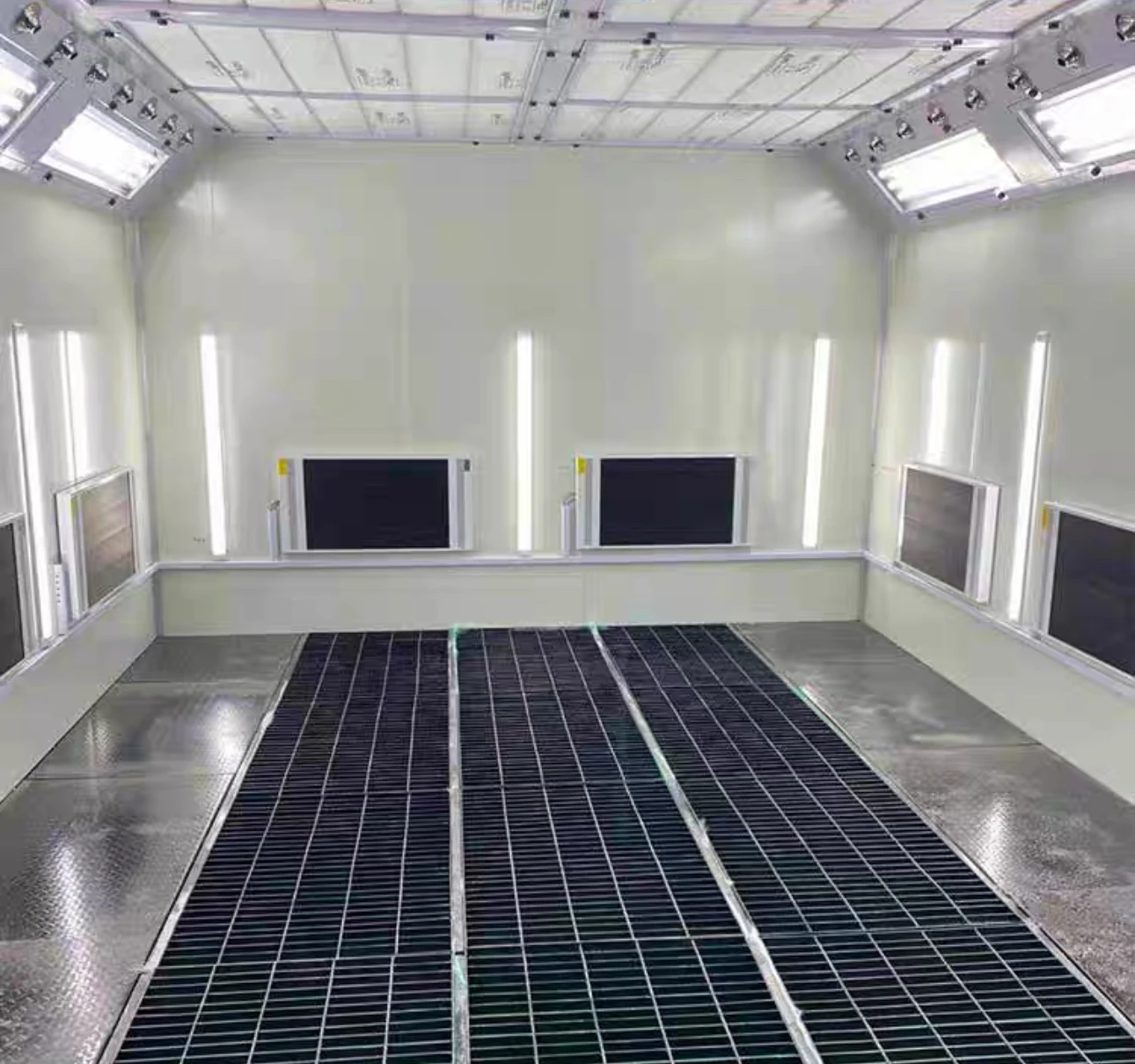

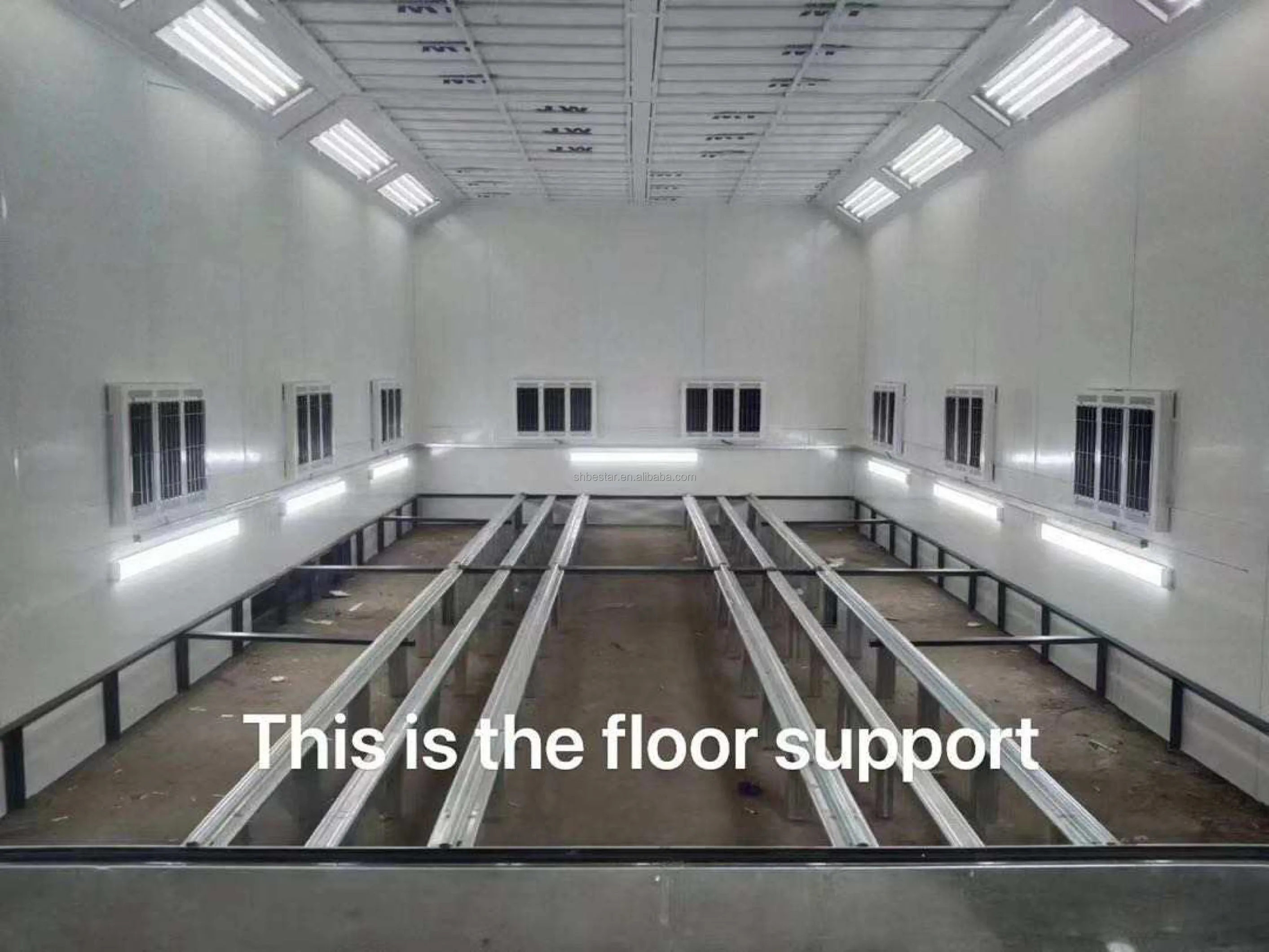

Basement

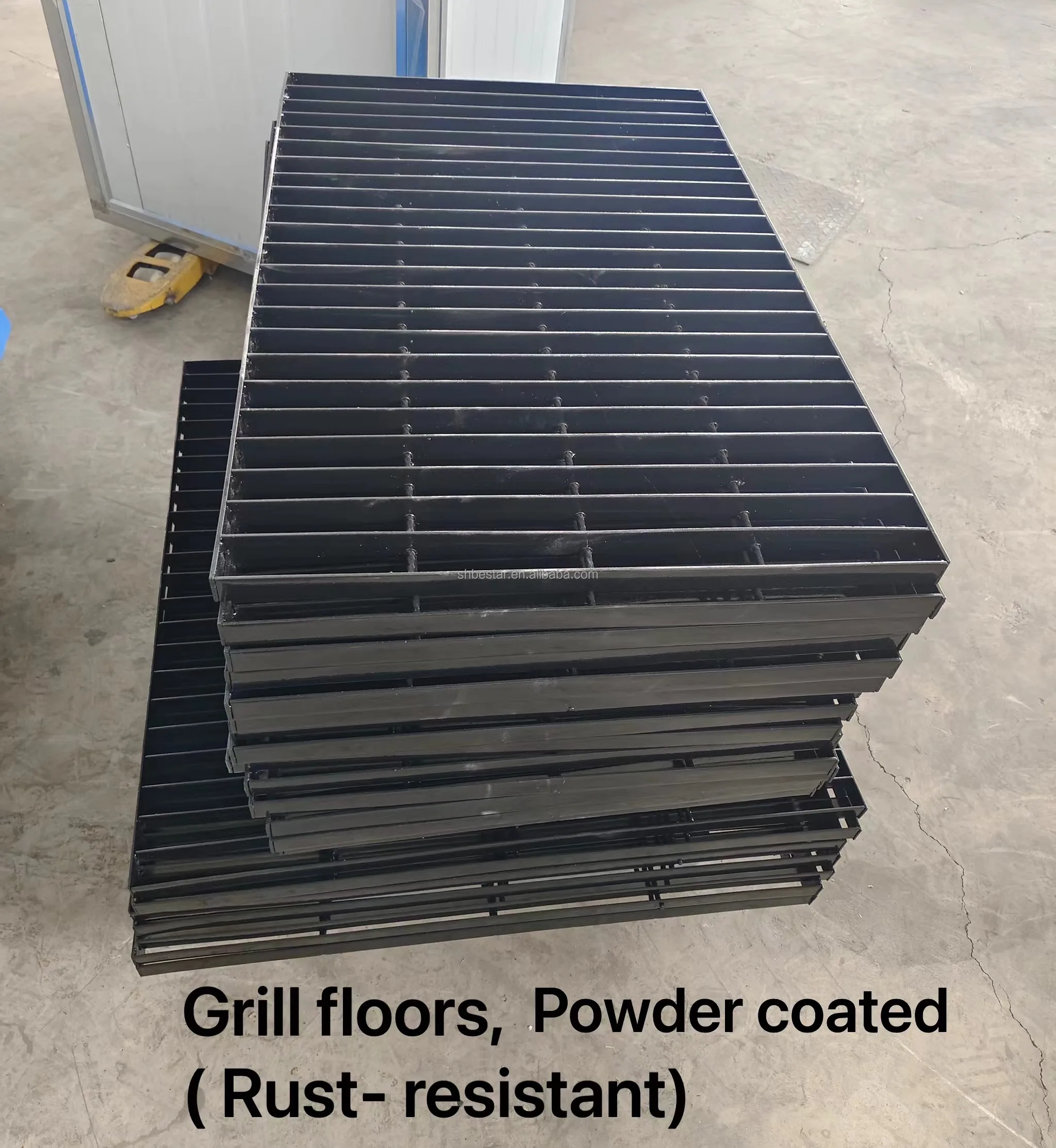

- Plate type pressing convex platform, made by high quality galvanized steel sheet and square tubes assembling, height is 300mm; -

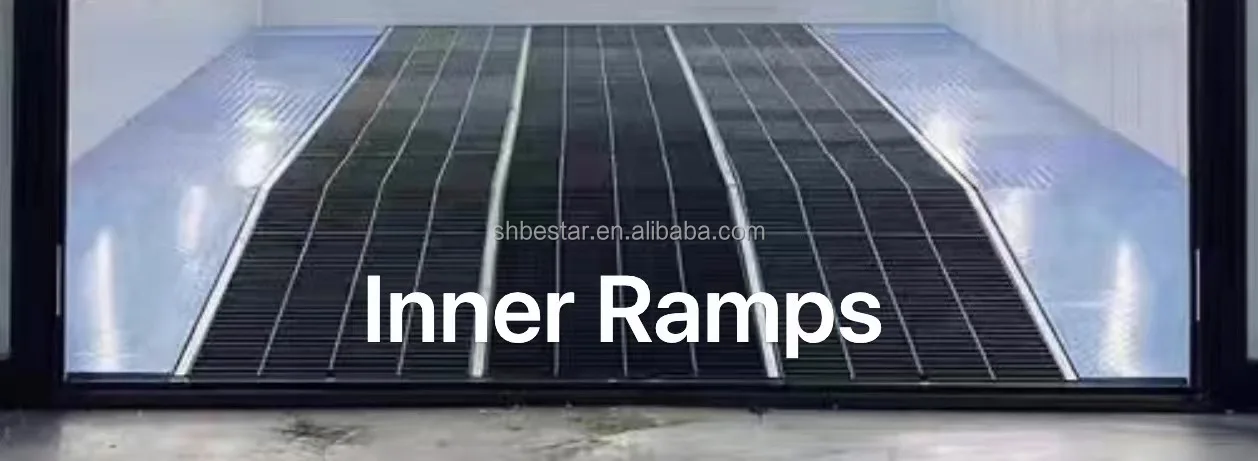

Equip two rows flat steel grilles, made by flat bar and round steel, 30*4mm, powder coated, rust resistant. - With three rows
metal non-slip grill floors width 53cm, 90cm and 53cm - With 2 rows walking floors with 2.5mm thickness on each size. - The booth
can also equip fully 5 rows grill floors, powder coated.

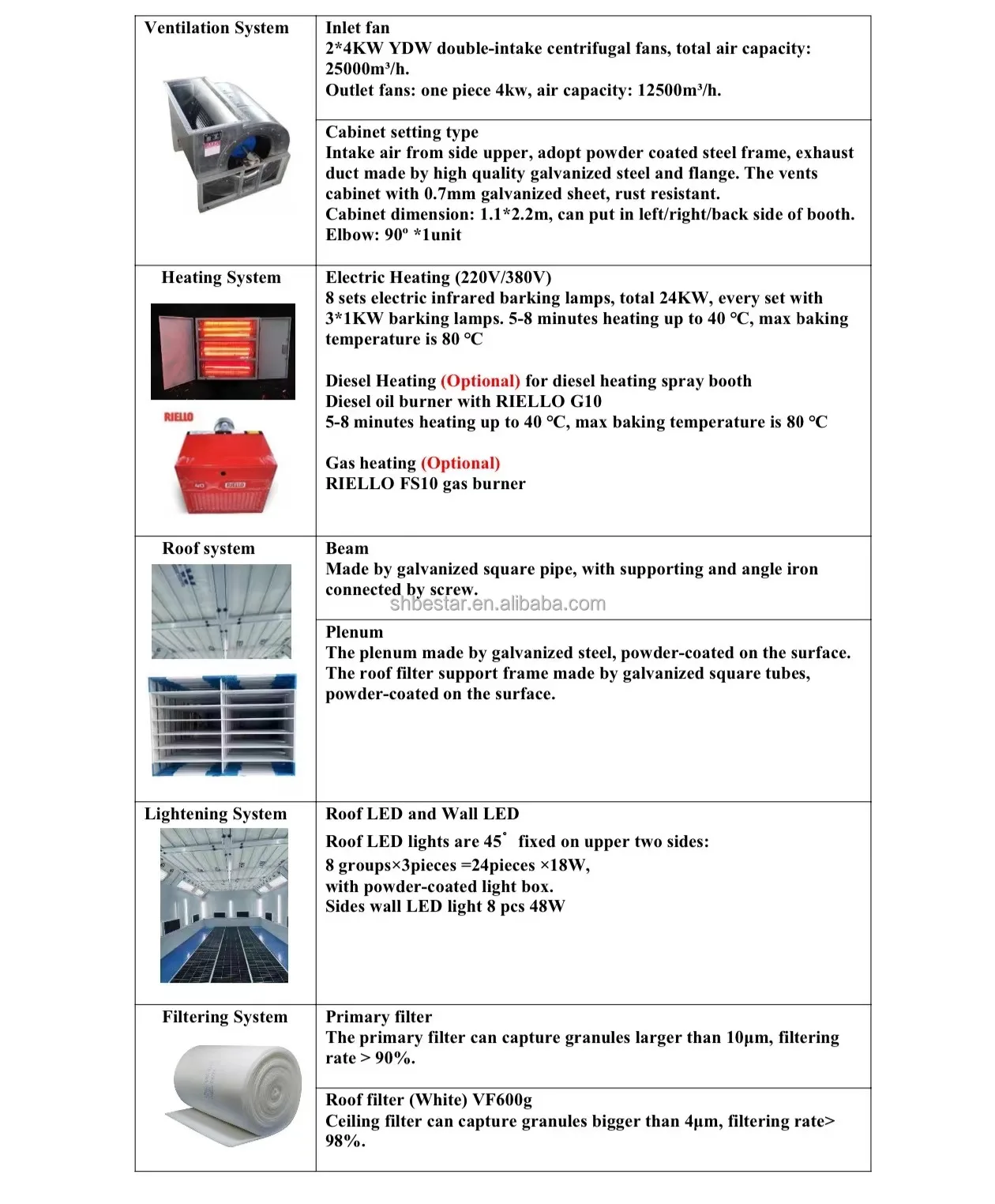

Ventilation system

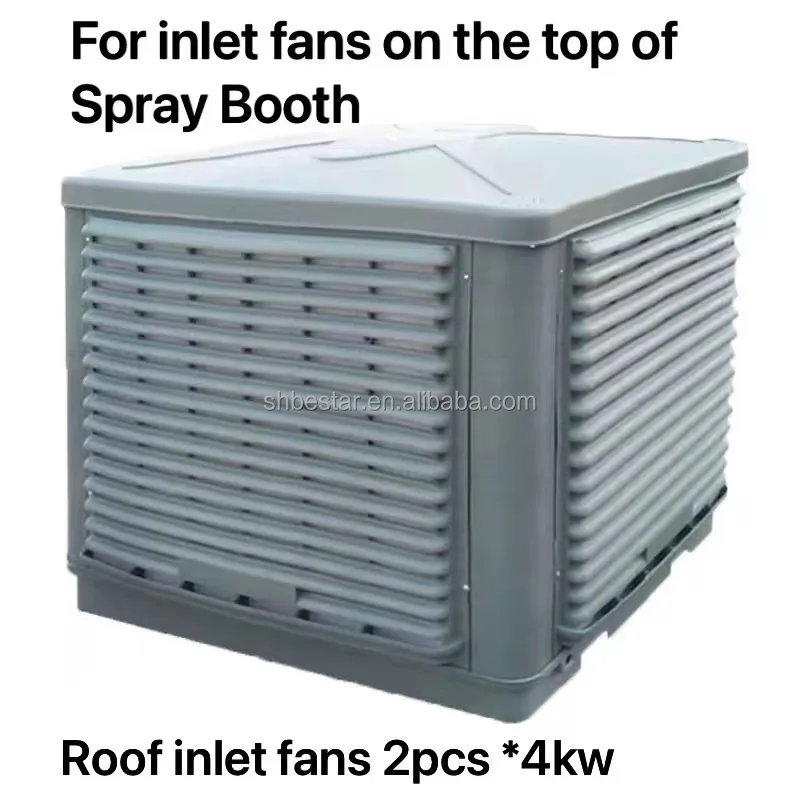

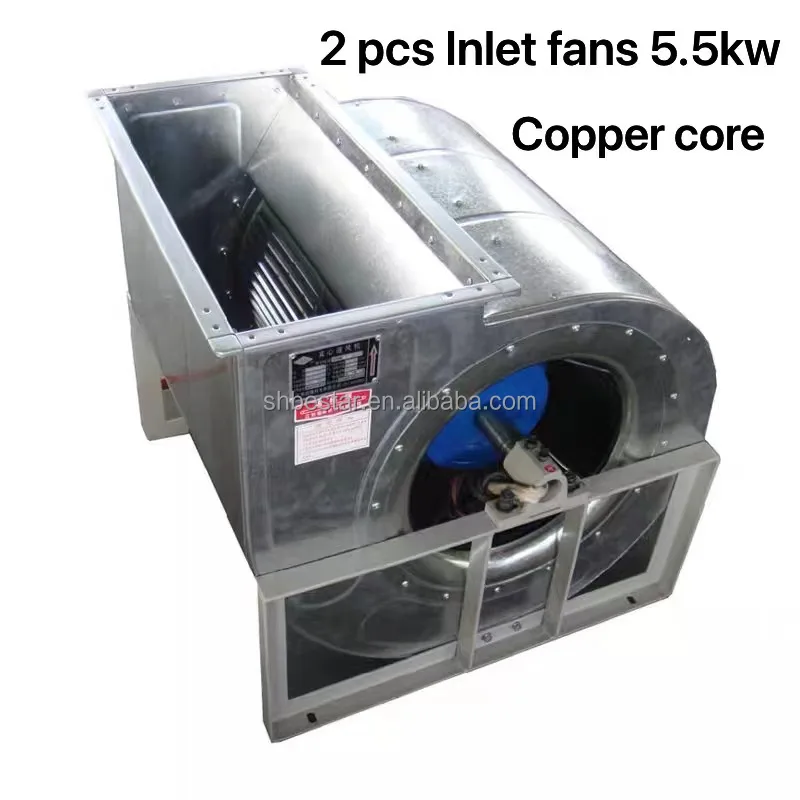

Inlet fan

2*4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h.

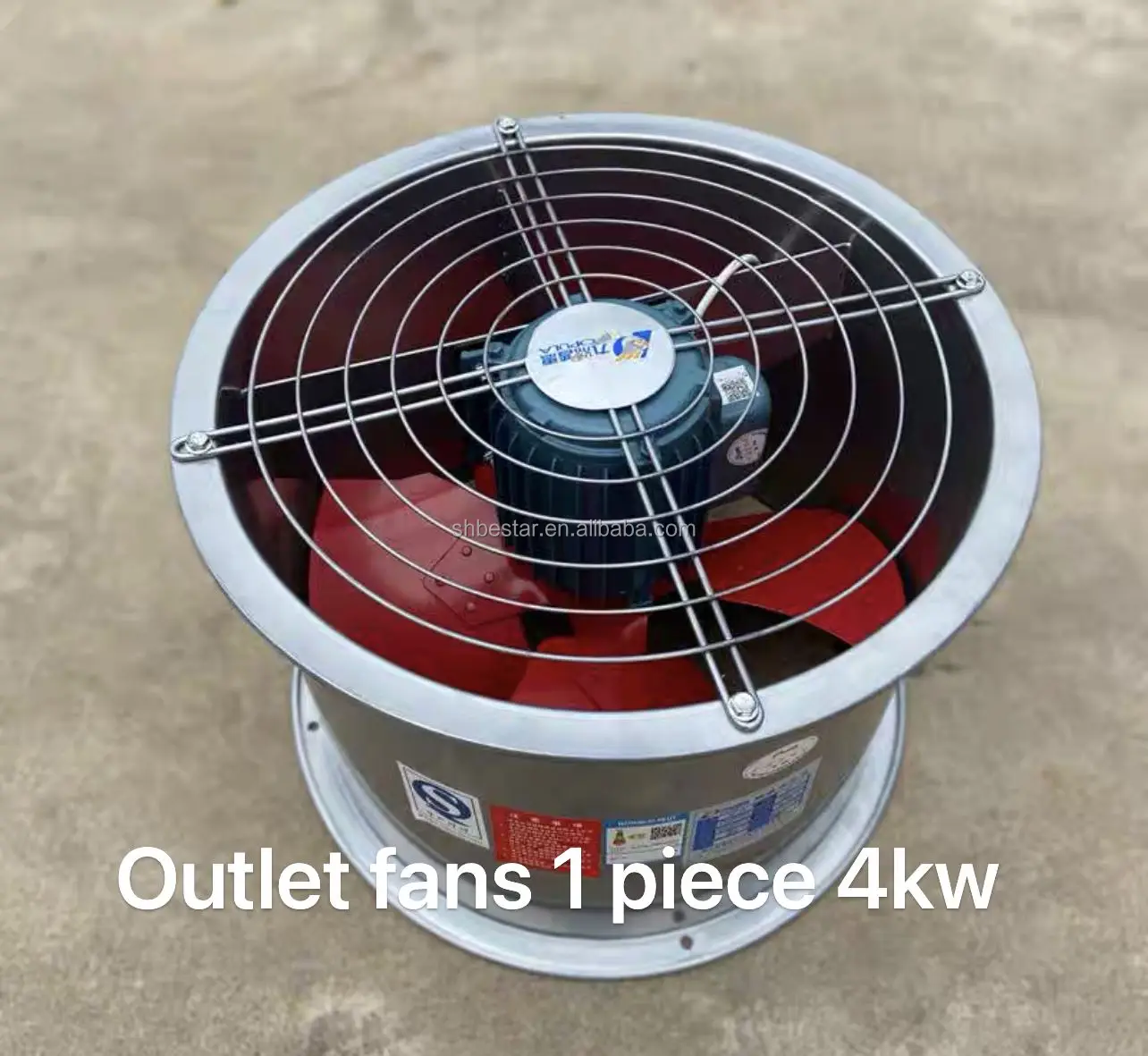

Outlet fan

One piece 4kw, air capacity: 12500m³/h.

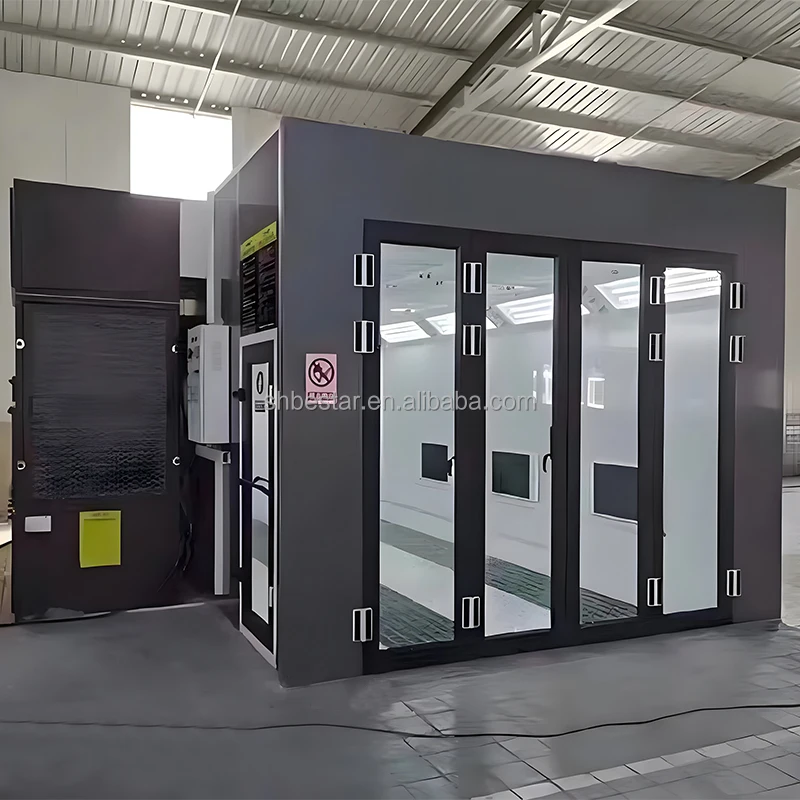

Cabinet setting type

- Intake air from side upper, adopt powder coated steel frame, exhaust duct made by high quality galvanized steel and flange. The
vents cabinet with 0.7mm galvanized sheet, rust resistant. - Cabinet dimension: 1.1*2.2m, can put in left/right/back side of
booth. - Elbow: 90º *1unit

Heating system

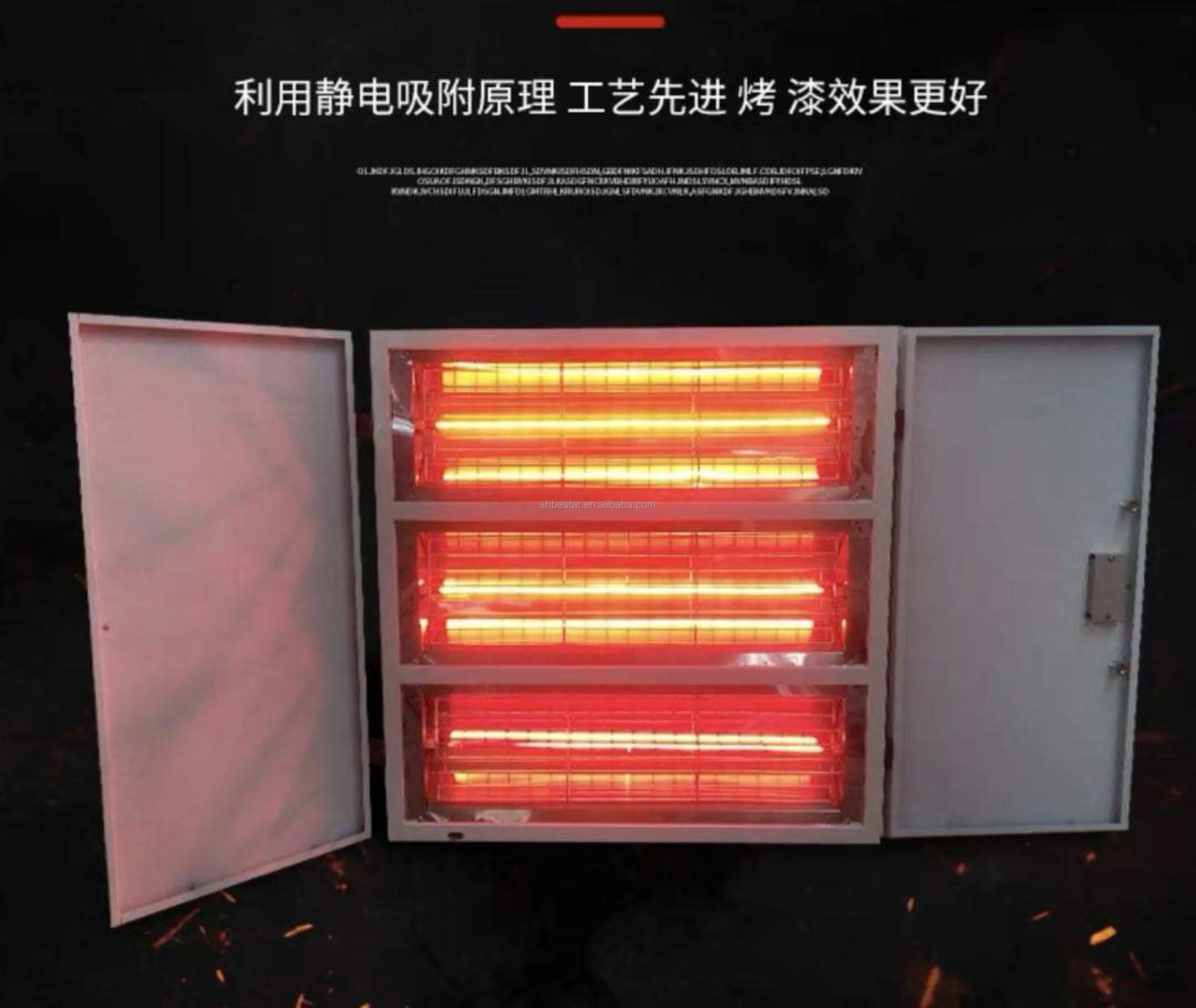

Electric heating

Electric Heating (220V/380V)
8 sets electric infrared barking lamps, total 24KW, every set with 3*1KW barking lamps. 5-8 minutes heating up to 40 ℃, max baking
temperature is 80 ℃

Diesel heating

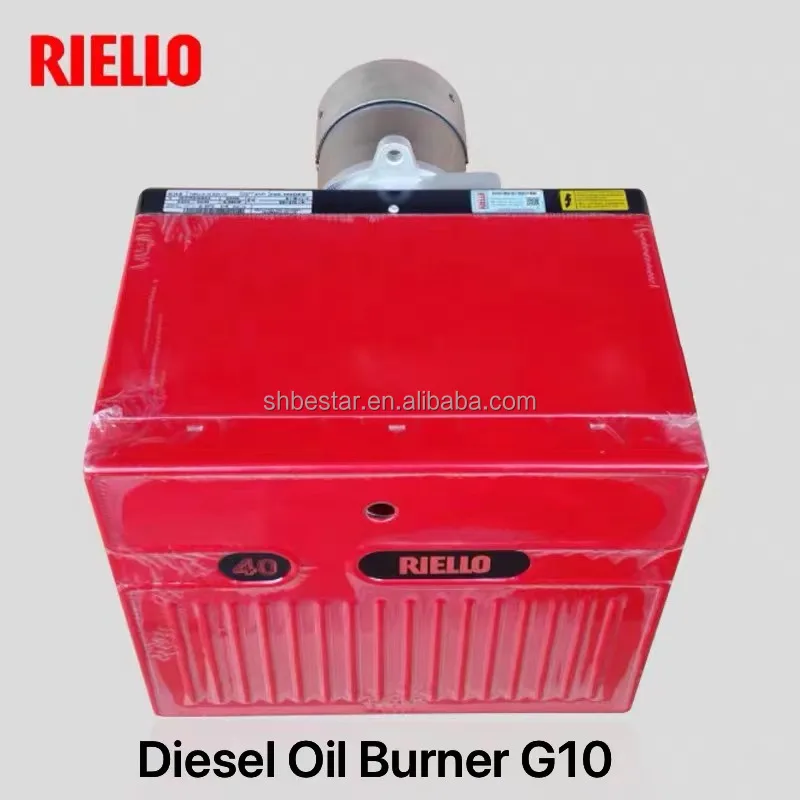

Diesel oil burner with RIELLO G10
5-8 minutes heating up to 40 ℃, max baking temperature is 80 ℃

Gas heating

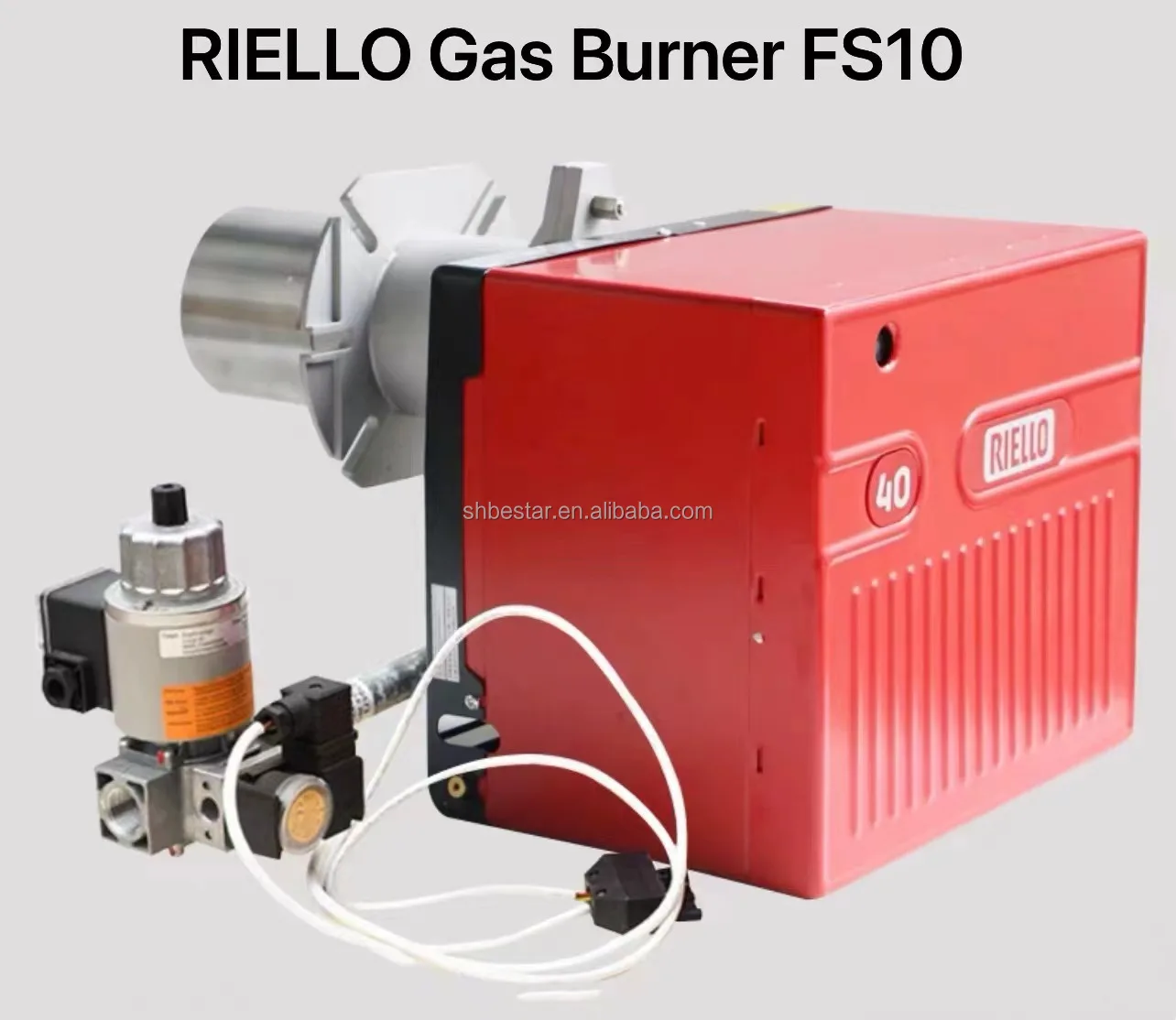

RIELLO FS10 gas burner

Filtering system

Primary filter

The primary filter can capture granules larger than 10μm, filtering rate > 90%

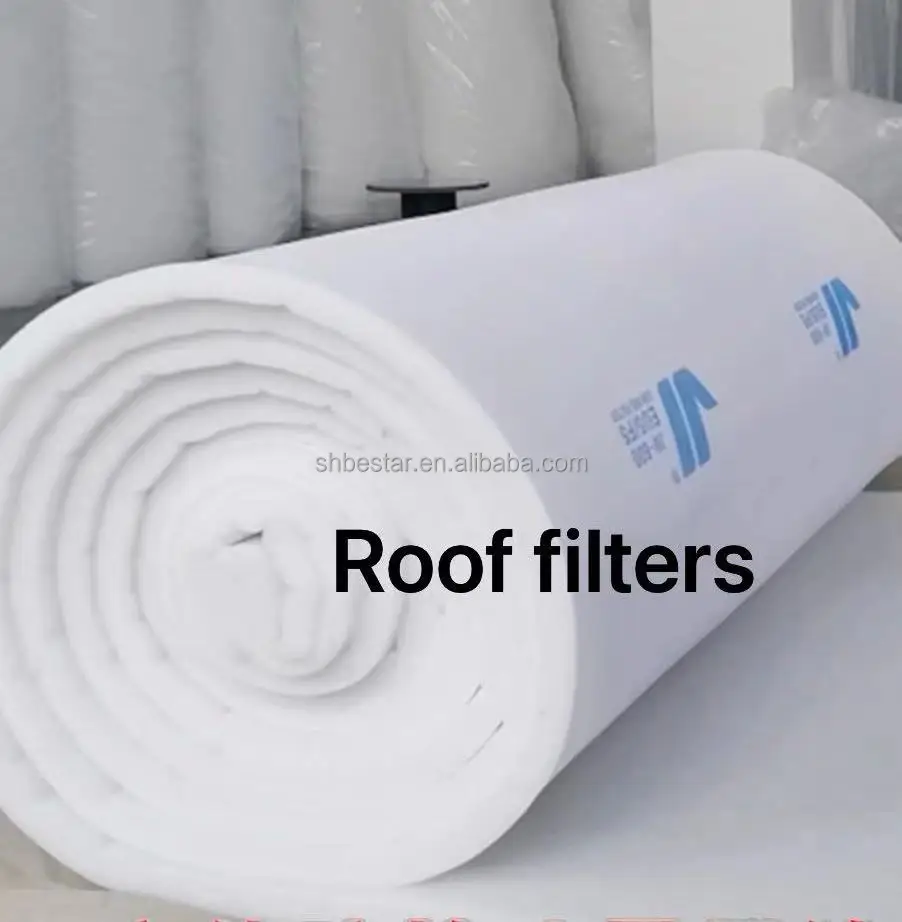

Roof filter (White) VF600g

Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%

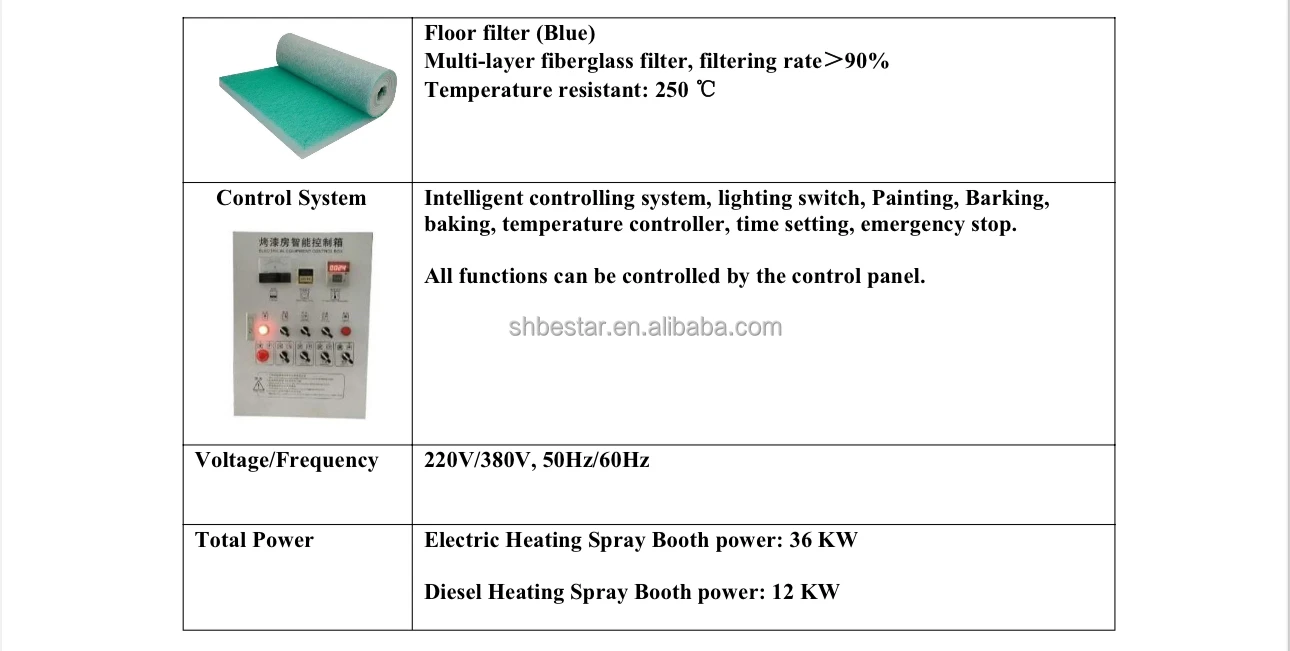

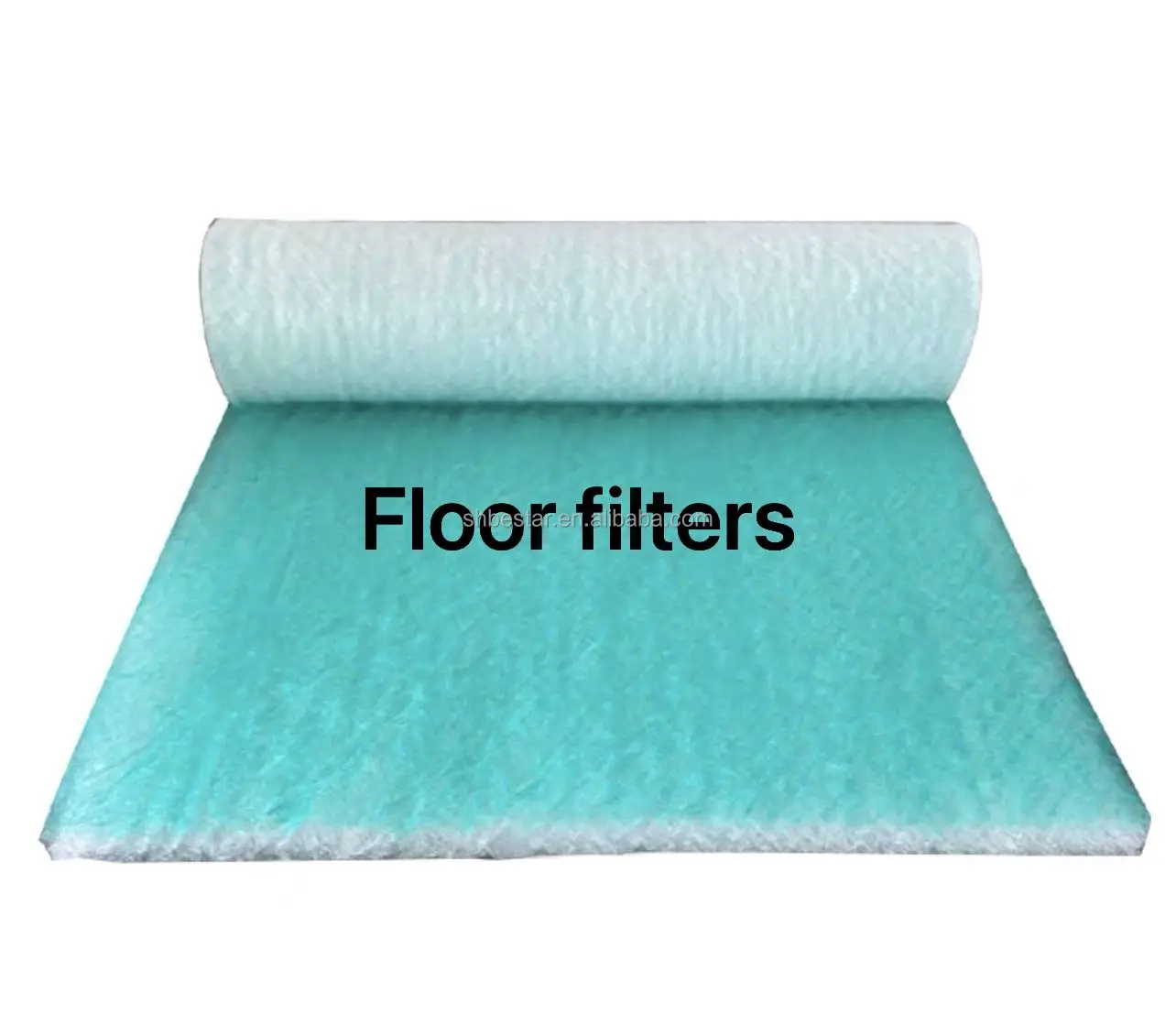

Floor filter (Green)

Multi-layer fiberglass filter, filtering rate> 90%
Temperature resistant: 250℃

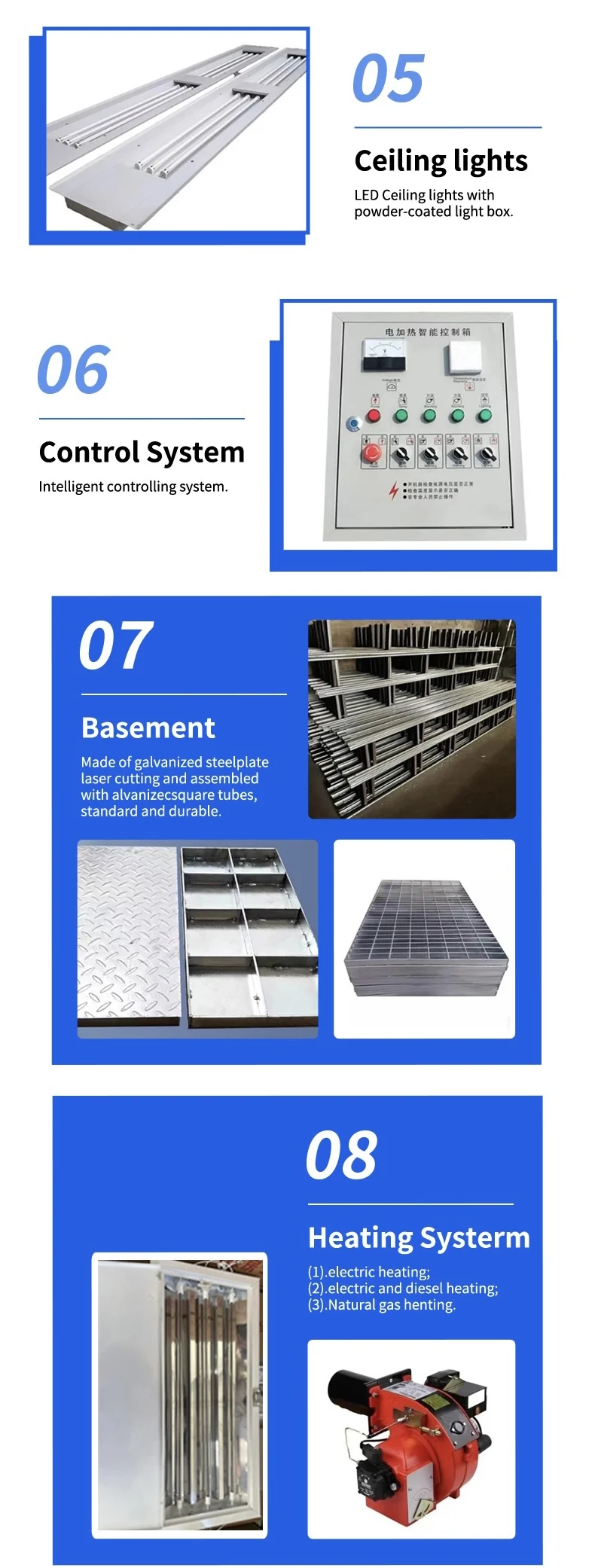

Lightening System

Roof LED and Wall LED

Roof LED lights are 45

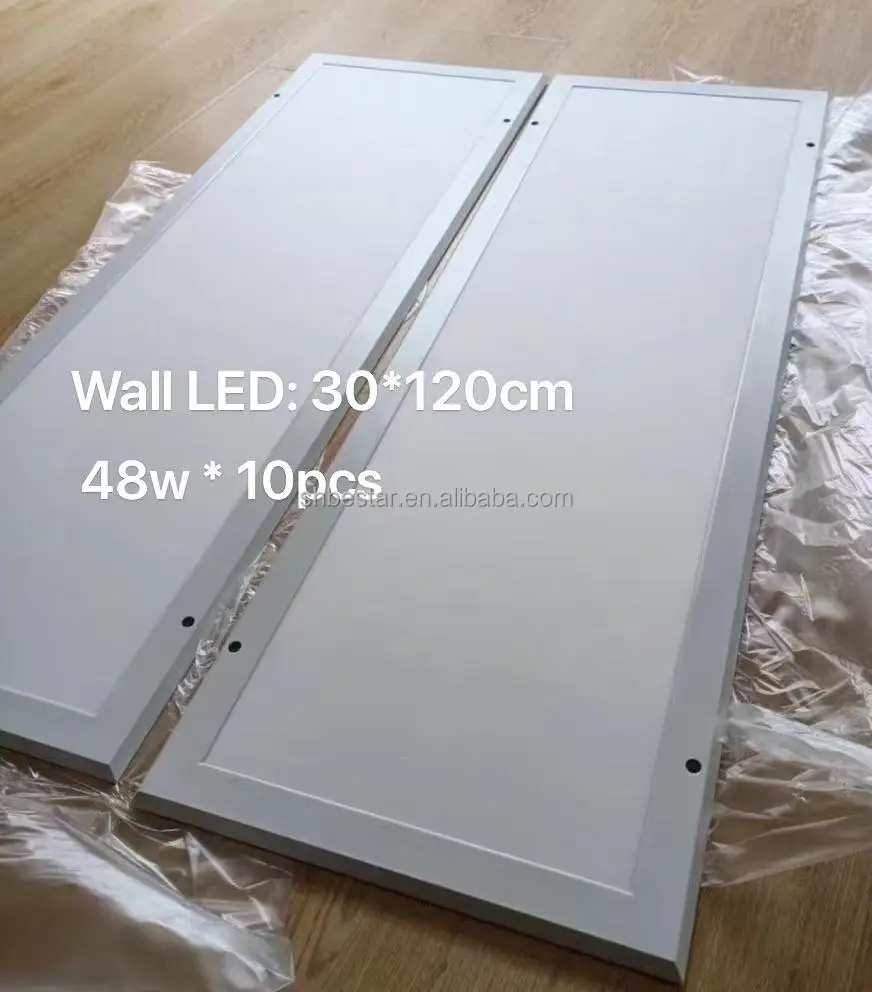

Sides wall LED

8 pcs 48W

Control System

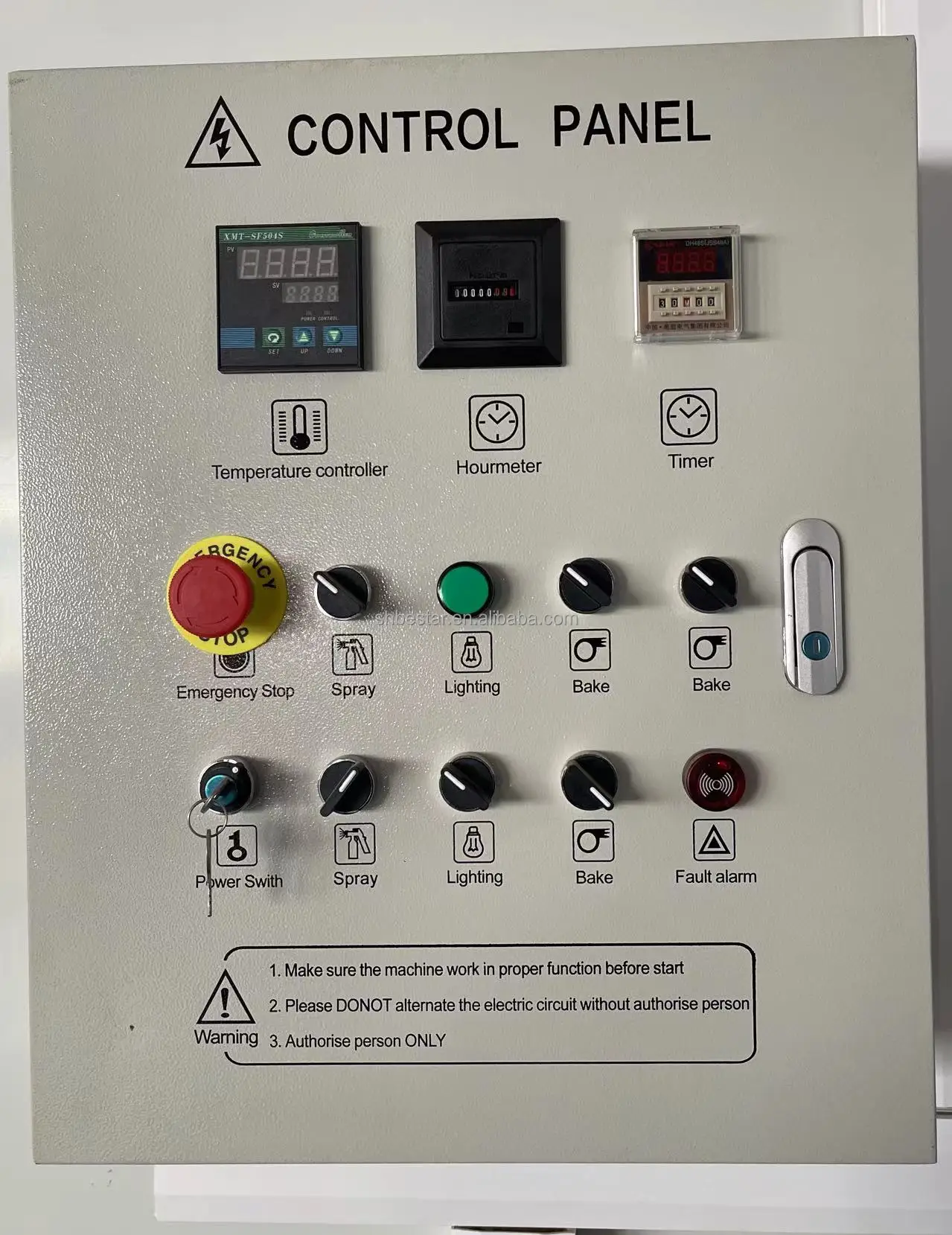

Control panel

Intelligent control system

Function

Intelligent controlling system, lighting switch, Painting, Barking, baking, temperature controller, time setting, emergency stop,
etc

Voltage/Frequency

220V/380V, 50Hz/60Hz

Total Power

Electric Heating Spray Booth power: 36 KW
Diesel Heating Spray Booth power: 12 KW
