D52 2042 AC Voltage Ammeter Digital and Dual display AC110V 220V 380V Household Multimeter for Three phase Din Rail Voltmeter

Product Overview

Description

D52-2042 AC Voltage Ammeter Digital and Dual display AC110V 220V 380V Household Multimeter for Three-phase Din Rail Voltmeter



Product Introducation:

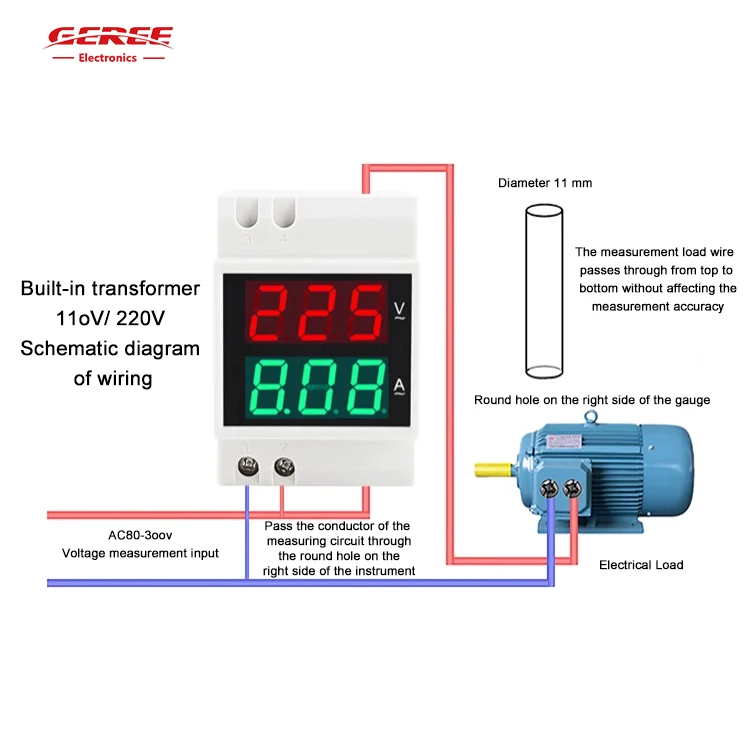

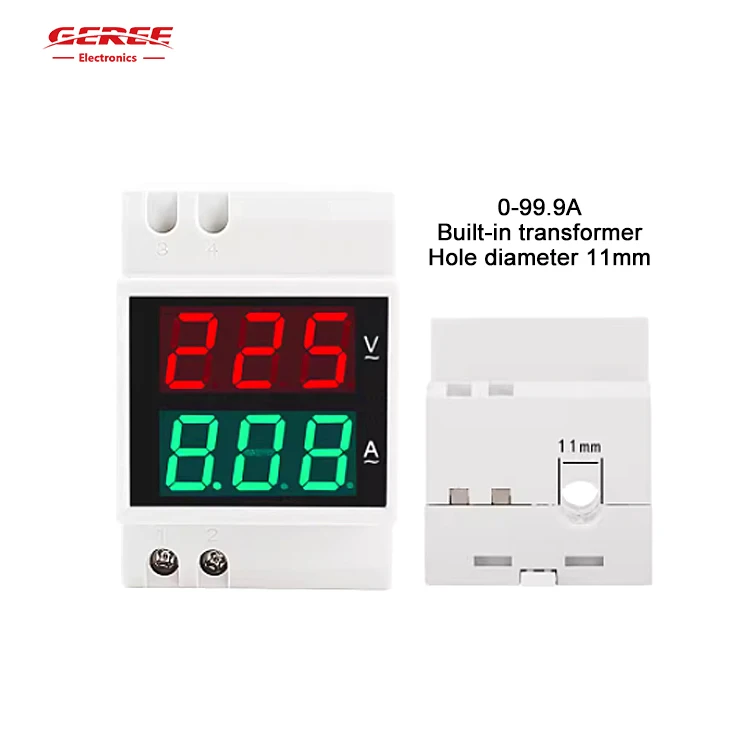

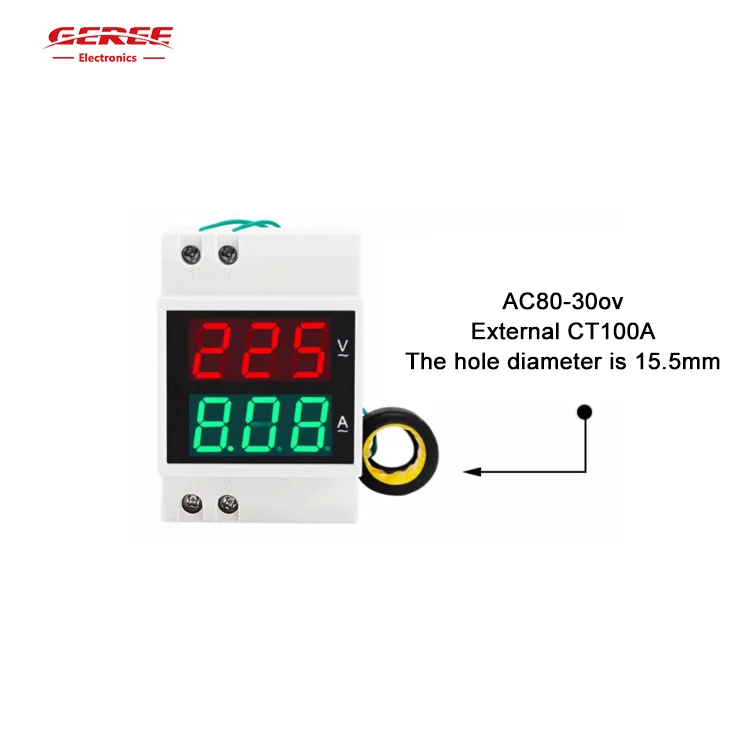

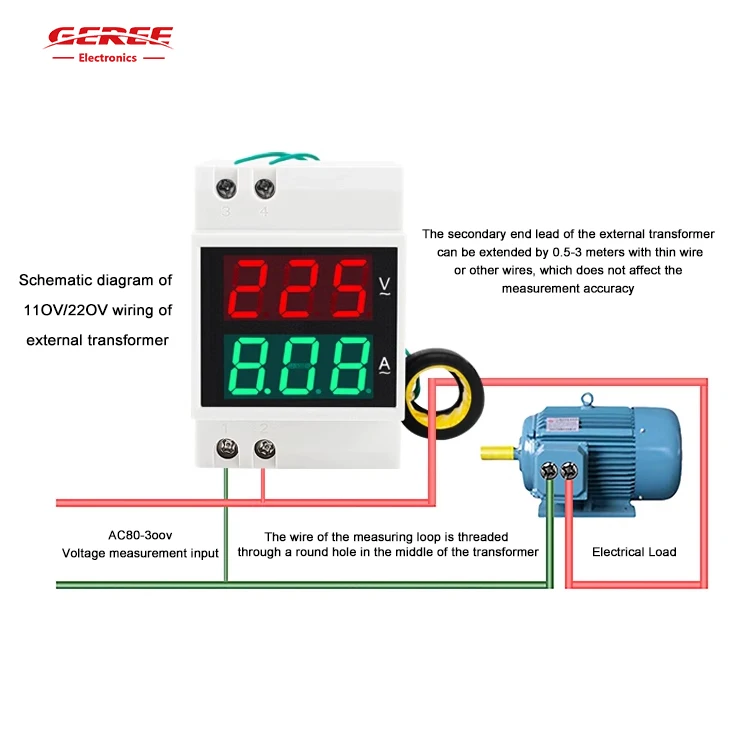

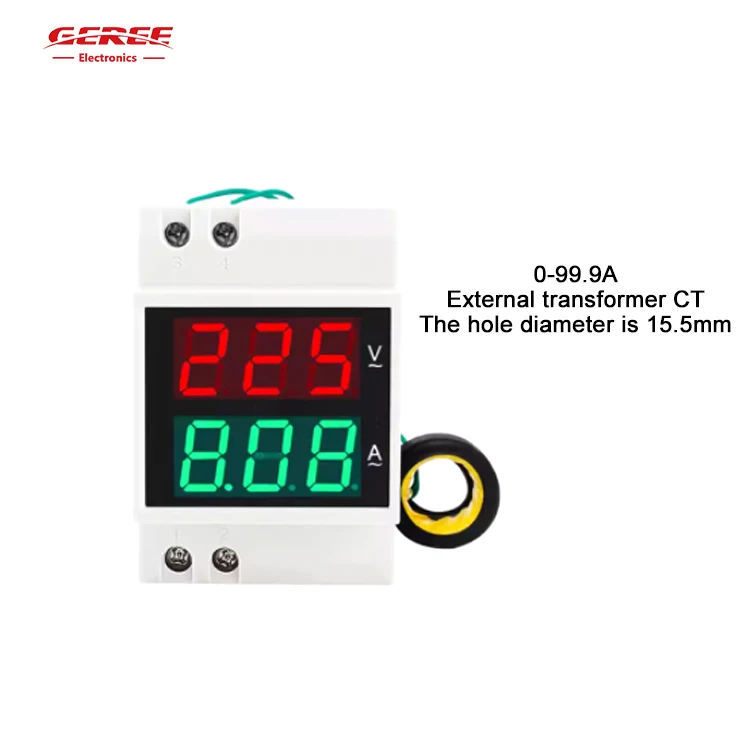

D52-2042-rail digital display AC voltage, current Three display table are displayed simultaneously measured AC voltage and AC current PF Active Power on the instrument. The ordered instrument measuring current range within 99.9A no external AC transformer. Simply measuring circuit wires through the small hole on the right side of the instrument can be completed current measurements. Or buy 99.9A external transformer.



Technical Parameters:

Name	Parameter
Product name	Guideway type AC dual display table
Product type	D52-2042
Supply voltage	AC 80V-300V, 200-450V (AC voltage)
Alternating current	AC0.00-99.9A (99.9A measuring range) AC1.0-199A (199A measuring range)
Display	0.5 inch LED digital tube
Measurement accuracy	1% (± 2 digits)
Power	consumption<0.2VA
Measuring speed	about 2 times per second
Dimensions	54*80*64mm



Application:

Applicable to all power distribution equipment table (such as distribution cabinet / household distribution box / appliance repair, etc. especially at home [DZ47 / C45 / air switch] to change the total lines installed by instrumentation, real-time monitoring of home appliances in use (voltage * current = power, thereby calculate the current use of all electrical power is also convenient when you go out to see if there is a large current show, has avoided forget to turn off household appliances when you go out to run some power, thus wasting electricity and resources!)

Packing list:

1*D52-2042 AC Voltemeter and Ammeter
