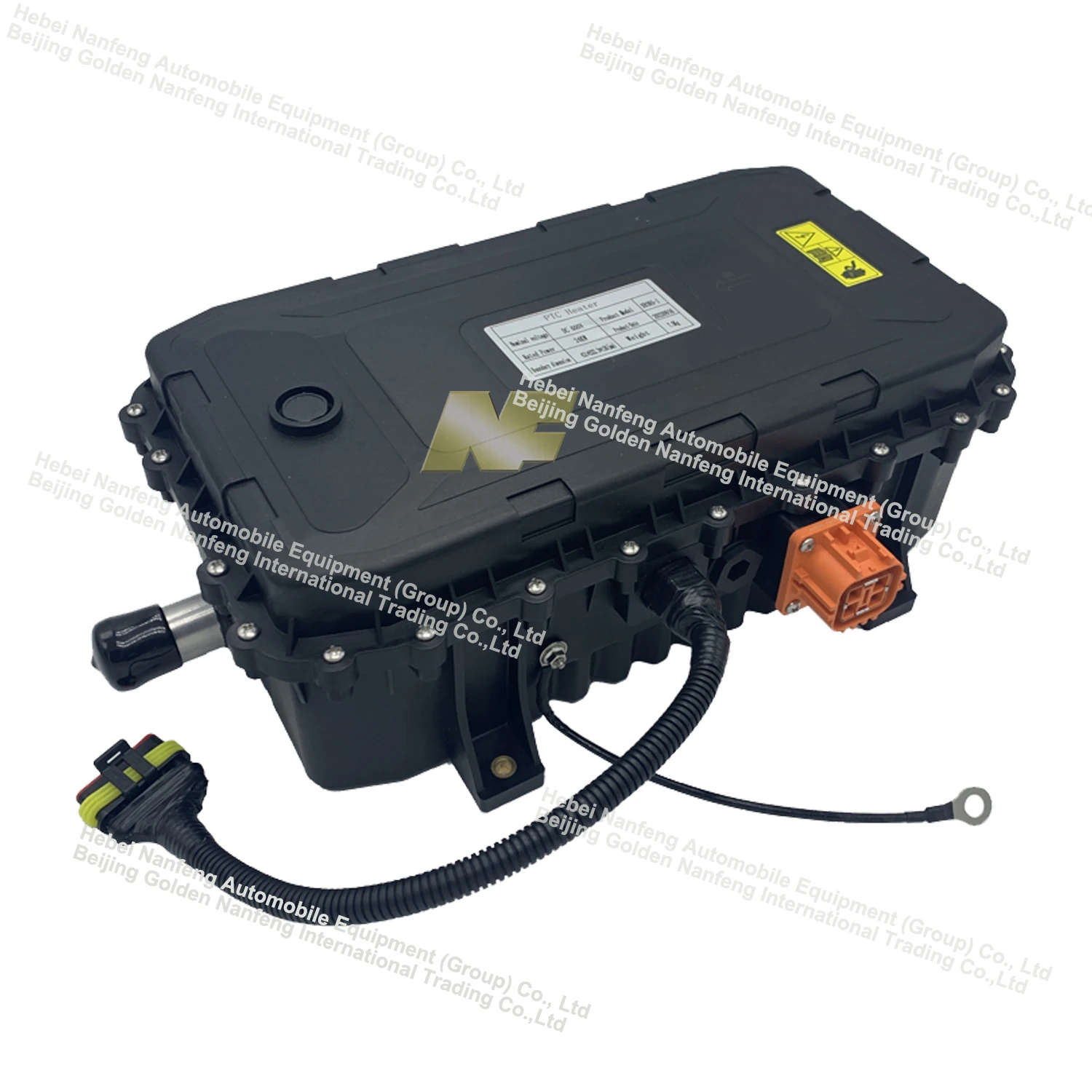

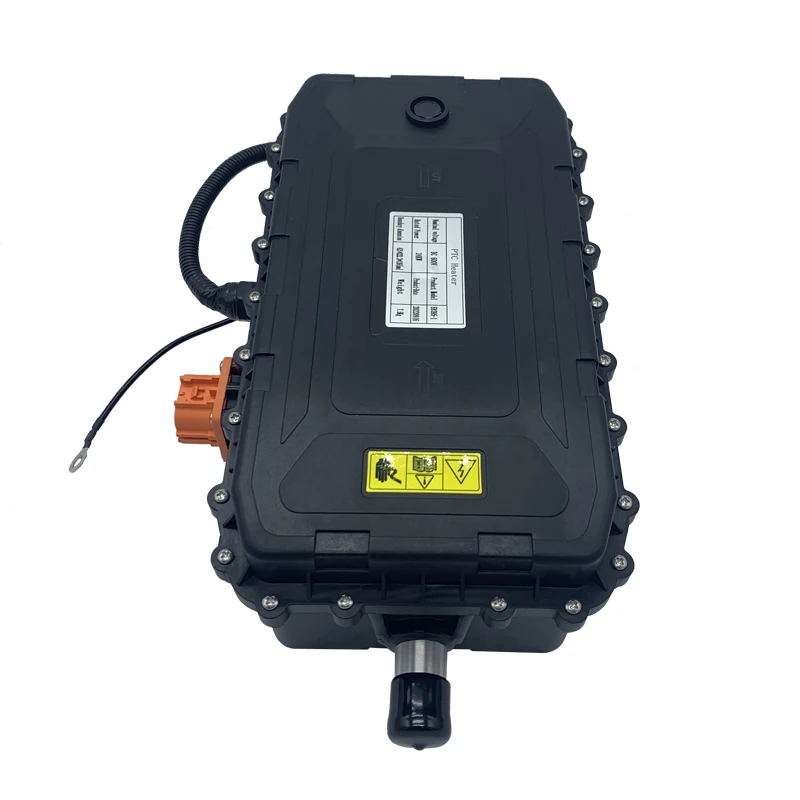

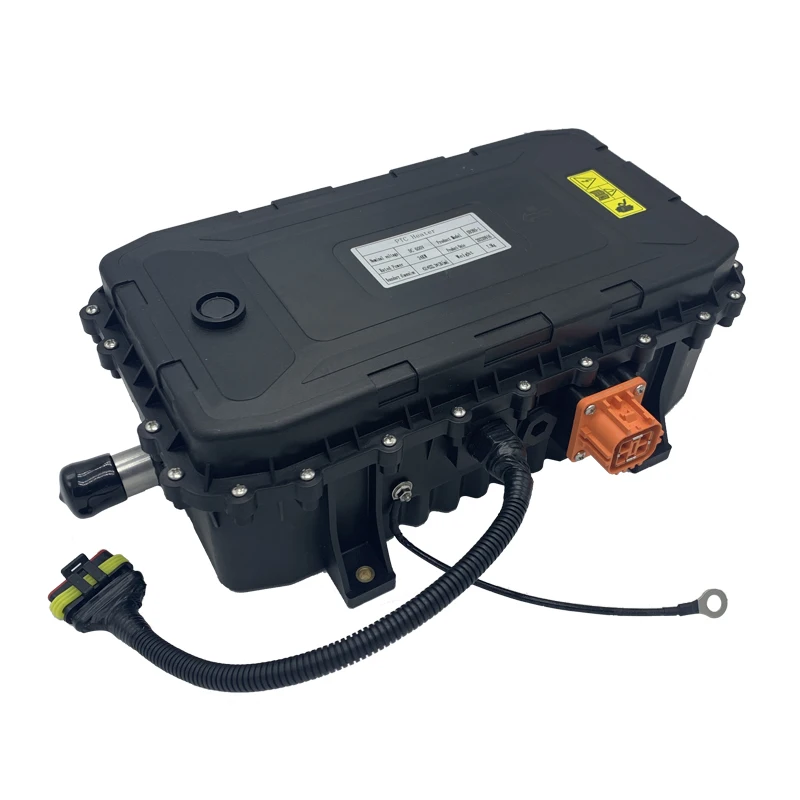

NF 24kw electric truck PTC water heater 600v electric bus high voltage coolant heater for electric vehicles
- Category: >>>
- Supplier: Beijing Golden Nanfeng International Trading Co. Ltd.
Share on (1601281255876):
Product Overview
Description

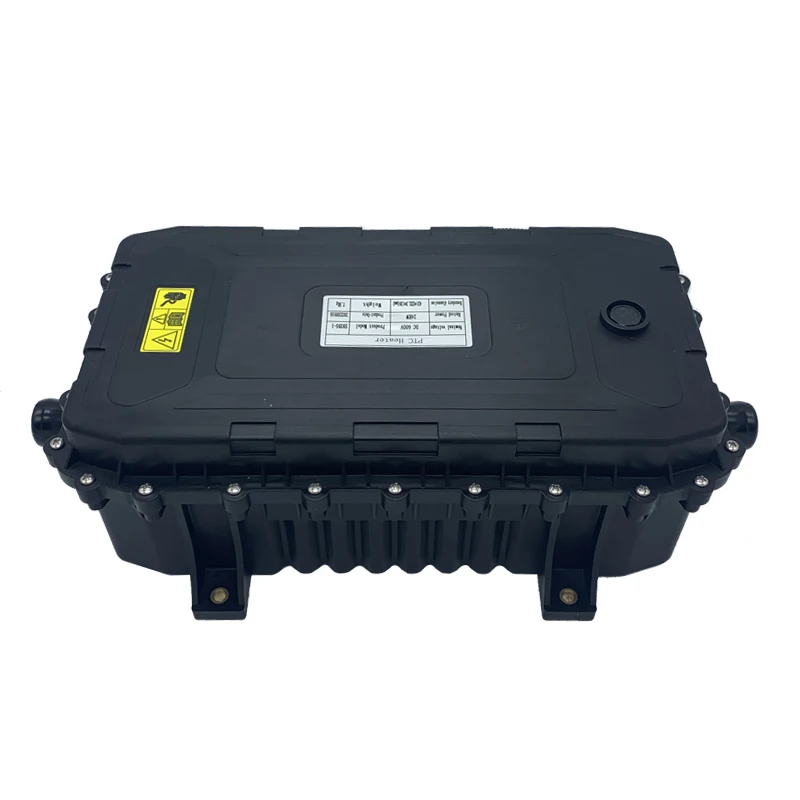

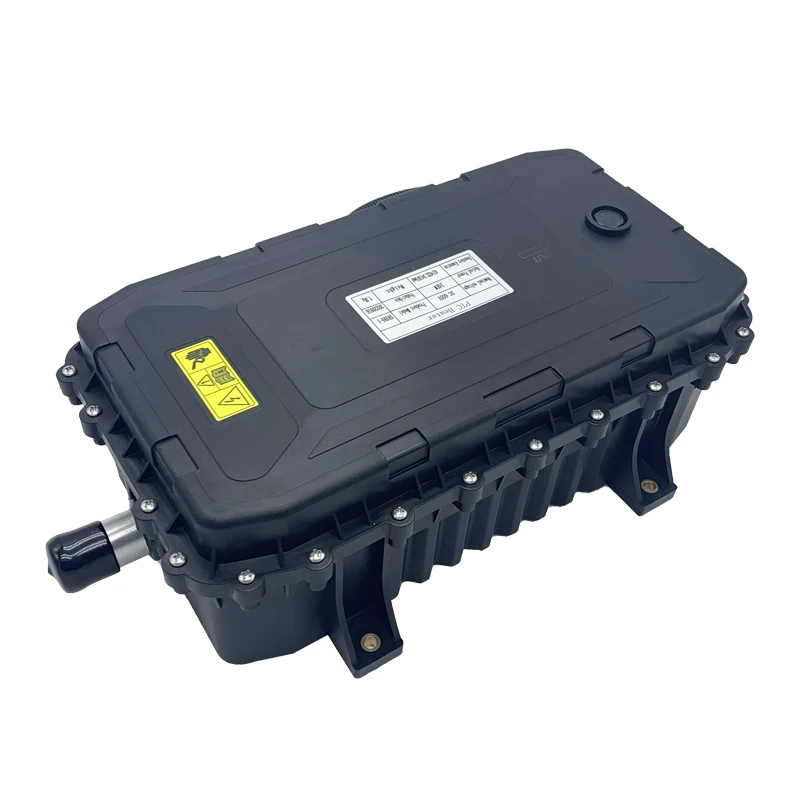

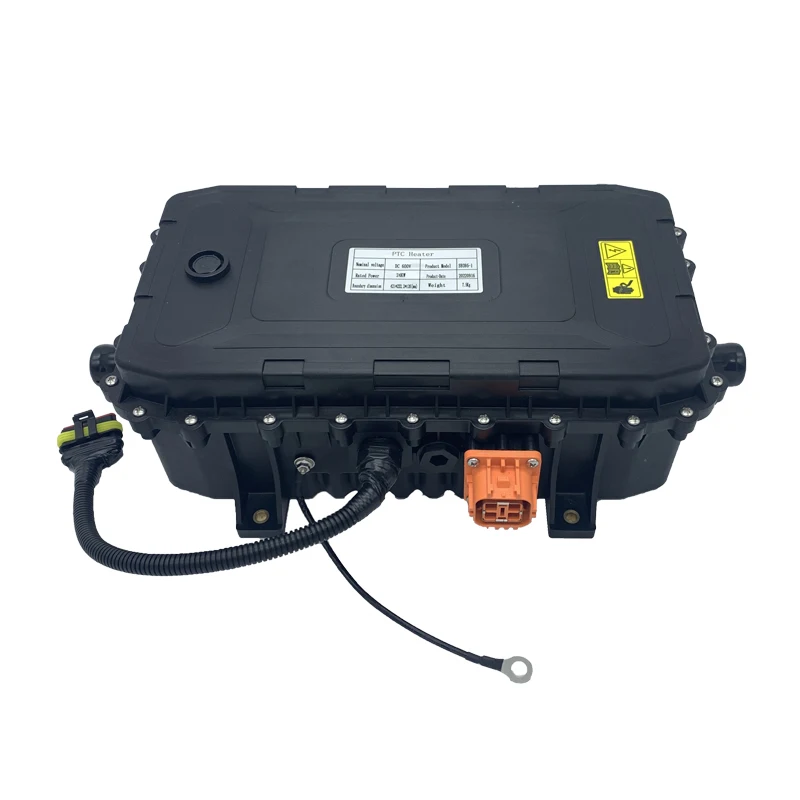

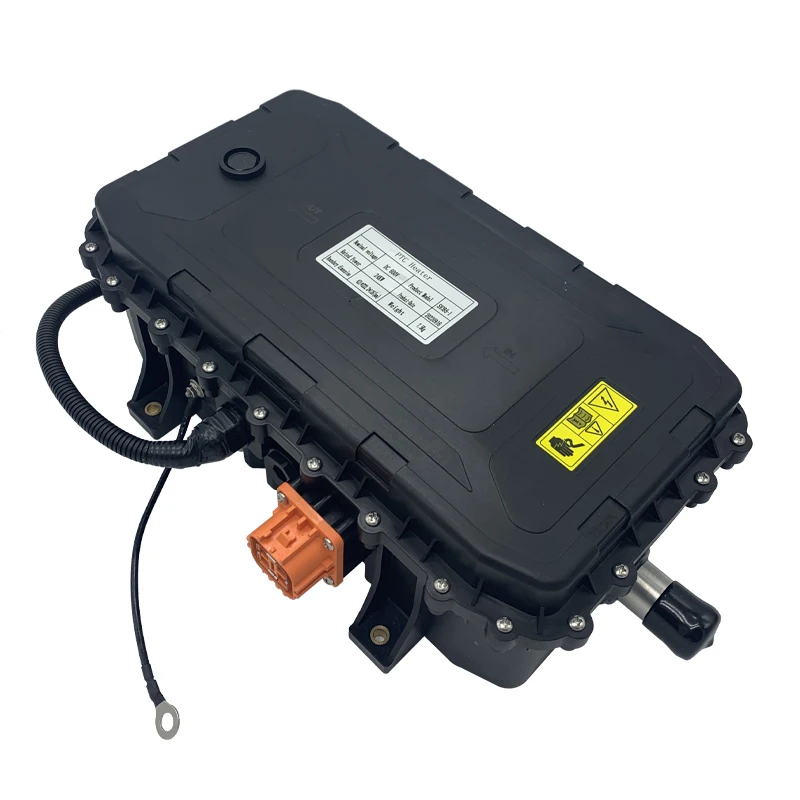

High Voltage Coolant Heater
Model | NFW15 |
Rated voltage | 600V |
Voltage range | 400-750V |
Rated power | 24KW±10%)@40L/min,Tin=40℃ |
Controller low voltage | 16-32V |
Control signal | CAN |
Protection level | IP67 |

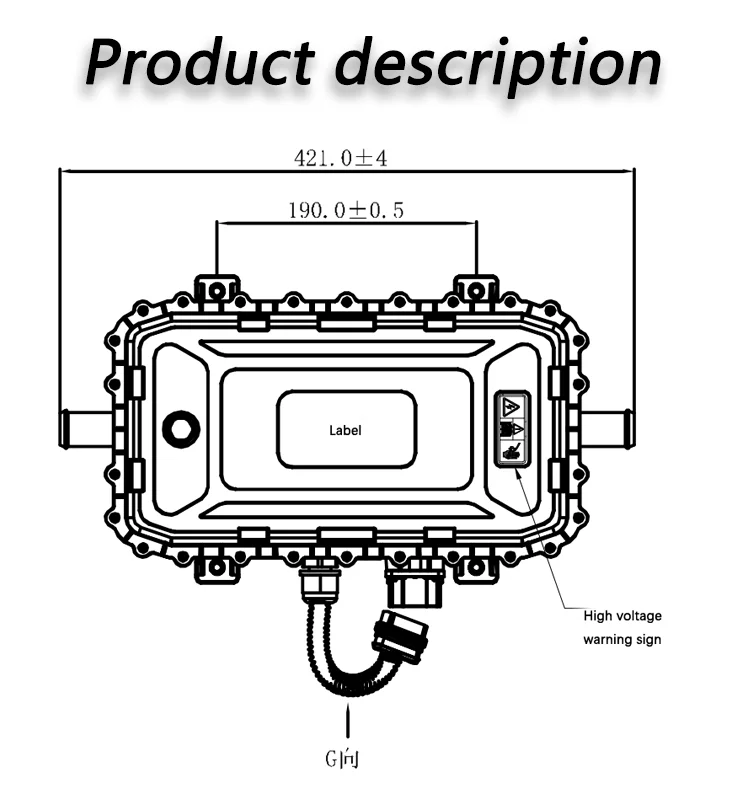

Overall dimension | 421*225.2*126mm |
Product characteristic：
The heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.
2.The accumulated heating time in the life cycle can reach up to 8000 hours;
3.In the power-on state, the working time of the heater can reach up to 10,000 hours (Communication is the working state);
4.Up to 50,000 power cycles;
5.The heater can be connected to constant electricity at low voltage during the whole life cycle. (Usually ,when the battery is not depleted; the heater will go into sleep mode after the car is turned off);
6.Provide high-voltage power to the heater when starting the vehicle heating mode;
7.The heater can be arranged in the engine room, but it cannot be placed within 75mm of the parts that continuously generate heat and the temperature exceeds 120℃.

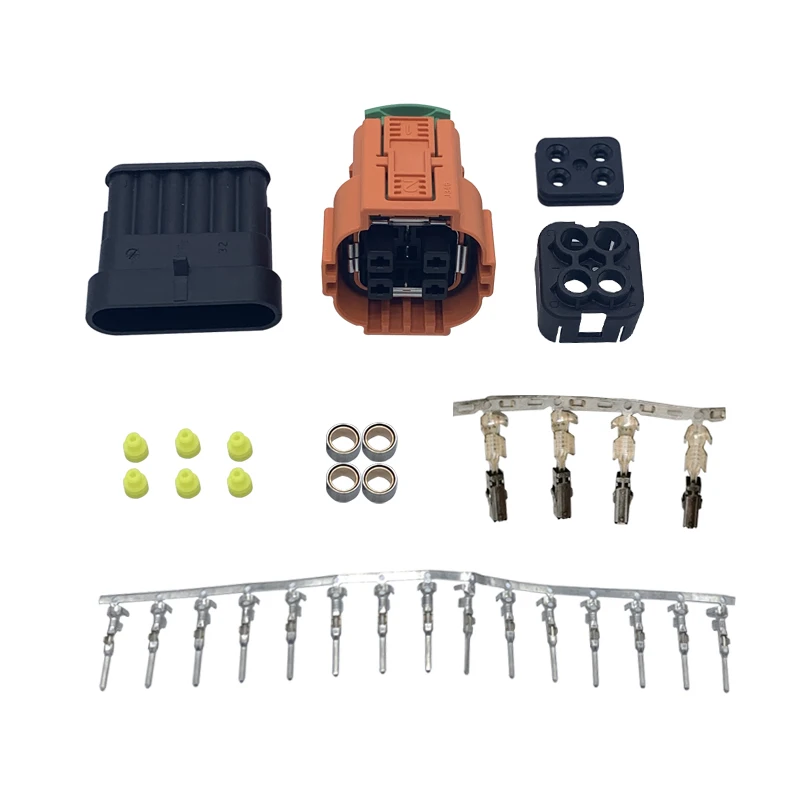

High Voltage Connectors：
PIN | Function |
1 | HV（+） |
2 | HV（-） |
3 | HV（-） |
4 | HV（+） |
Low-voltage connectors：
PN | Function |
P1 | 24VDC+ |
P2 | Groundwire |
P3 | CAN-H |
P4 | CAN-L |
P5 | Address selection1 |
P6 | Address selection2 |

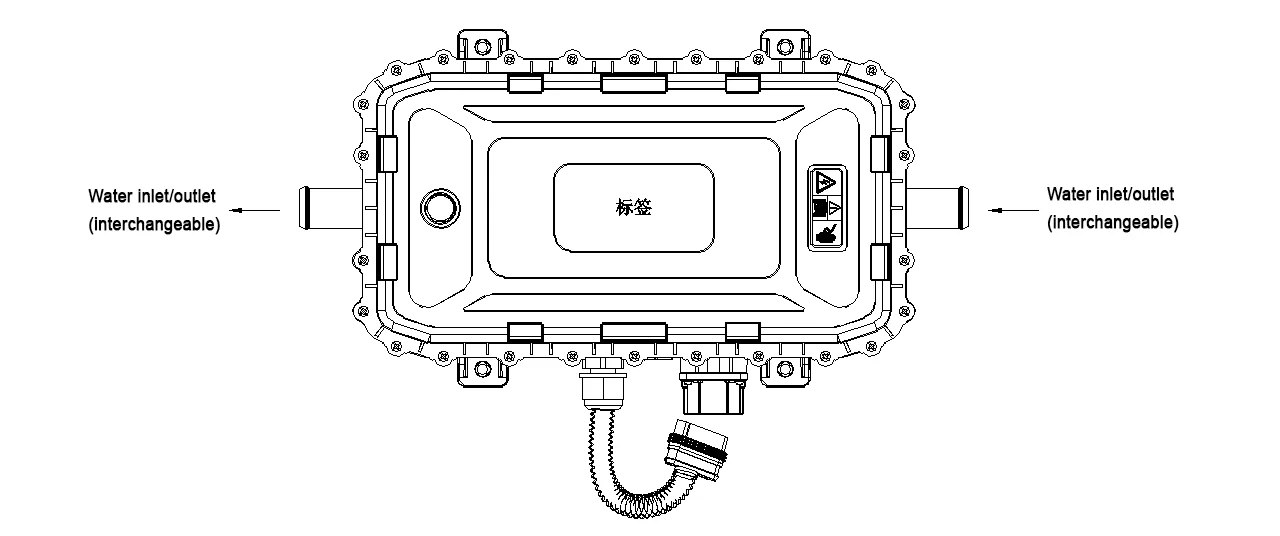

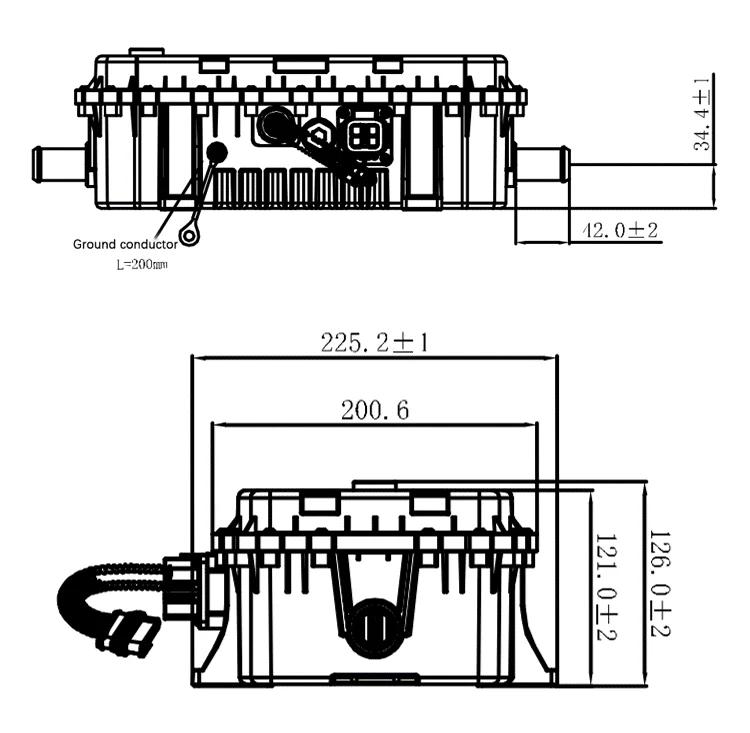

Location of heater inlet and outlet：
Coolant temperature-power diagram ↑
Coolant flow-power diagram ↑
Coolant voltage-power diagram ↑
By 2030, electric vehicles (EVs) will constitute 64% of global new car sales. As the greener and more cost-efficient alternative to fossil-fueled cars, EVs will soon be a fixture of everyday life.
Therefore, our main new products in recent years are electric vehicle parts, especially High Voltage coolant heater. Please check our catalog in attachment. From 2.6kw to 30kw, our heaters can meet all your requirements.
Our high-voltage coolant heaters can be used for improving battery energy performance in EVs and HEVs. In addition it allows comfortable cabin temperatures to be generated in a short time enabling a better driving and passenger experience.
We are now jointly developing with Bosch, and our product quality and production line are highly recognized by Bosch. We are your best choice in China.
If you are interested in our products, please click here to contact me.
Therefore, our main new products in recent years are electric vehicle parts, especially High Voltage coolant heater. Please check our catalog in attachment. From 2.6kw to 30kw, our heaters can meet all your requirements.
Our high-voltage coolant heaters can be used for improving battery energy performance in EVs and HEVs. In addition it allows comfortable cabin temperatures to be generated in a short time enabling a better driving and passenger experience.
We are now jointly developing with Bosch, and our product quality and production line are highly recognized by Bosch. We are your best choice in China.
If you are interested in our products, please click here to contact me.
Q1. Who are we?
A: We are a group company with 5 factories. We are the largest manufacturer of automotive heating and cooling systems in China anda designated supplier for Chinese military vehicles. We have been supporting many well-known domestic automobile factories and our products are exported to overseas and international markets.
Q2. What is your terms of payment?
A: T/T 100% in advance.
Q3. What can you buy from us?
A: Parking air heater, parking water heater, parking air conditioner, caravan air and water heater, electronic water pump,
electric heater, high voltage coolant heater,other auto parts and accessories, etc.
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
