Chinese factory sale mini lathe and milling bench metal manual bench lathe machine for hot sale
- Category: >>>
- Supplier: Yangzhou Kaiyun Machinery Co. Ltd.
Share on (1601281370940):
Product Overview
Description
Product Description
Specification | ||||||

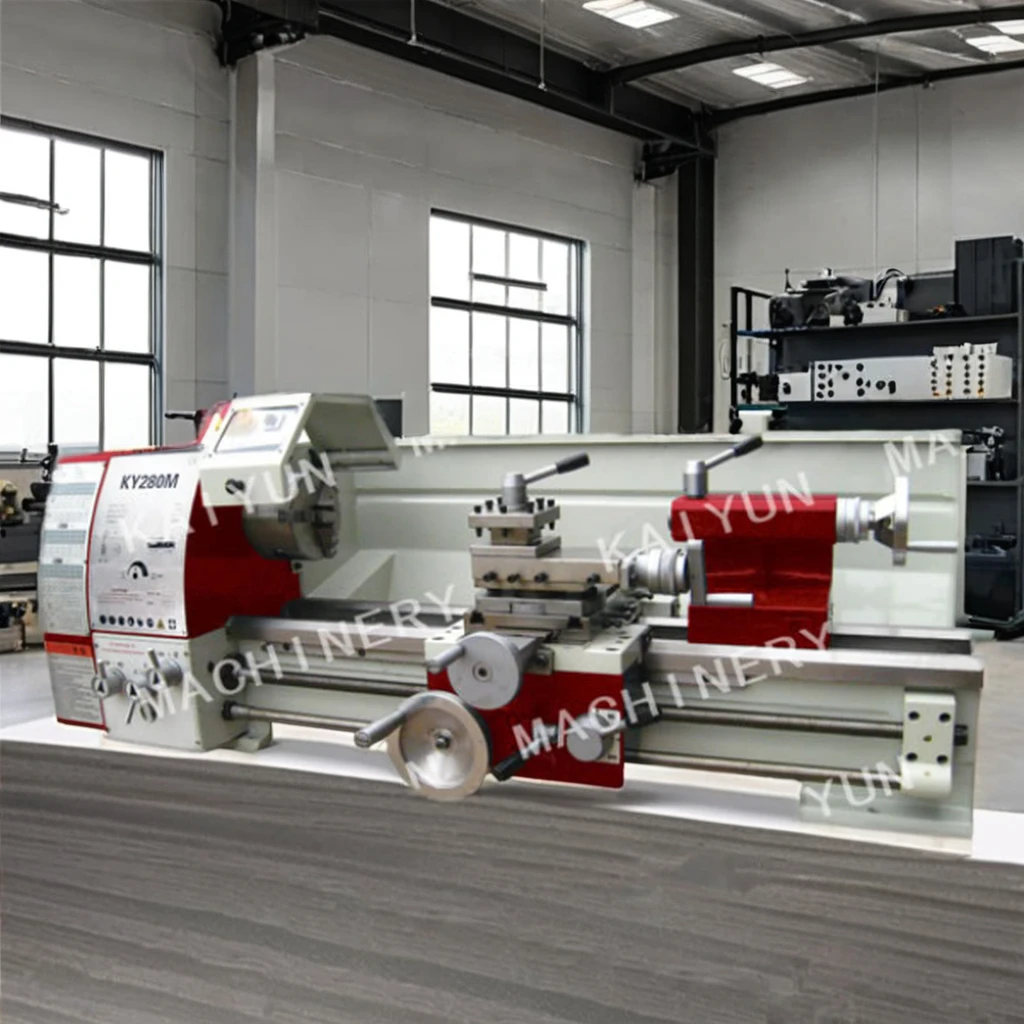

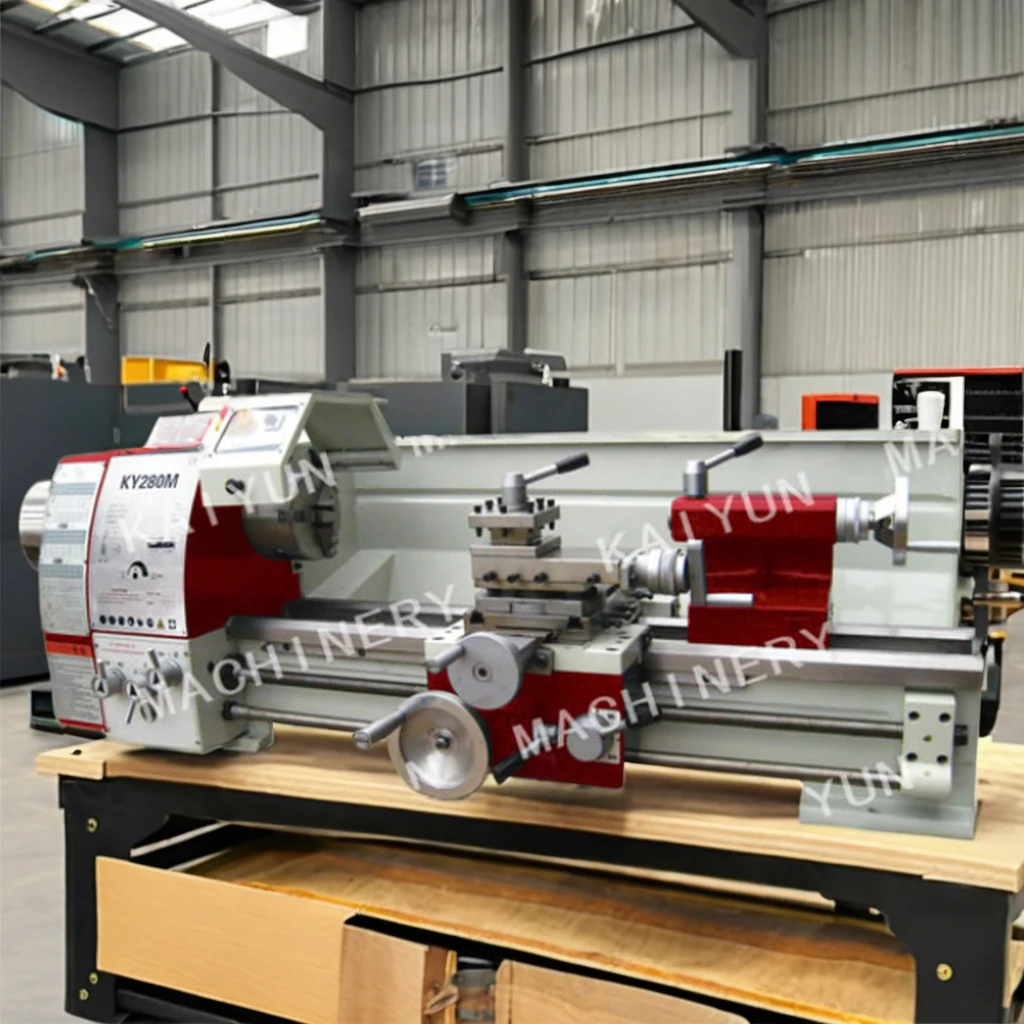

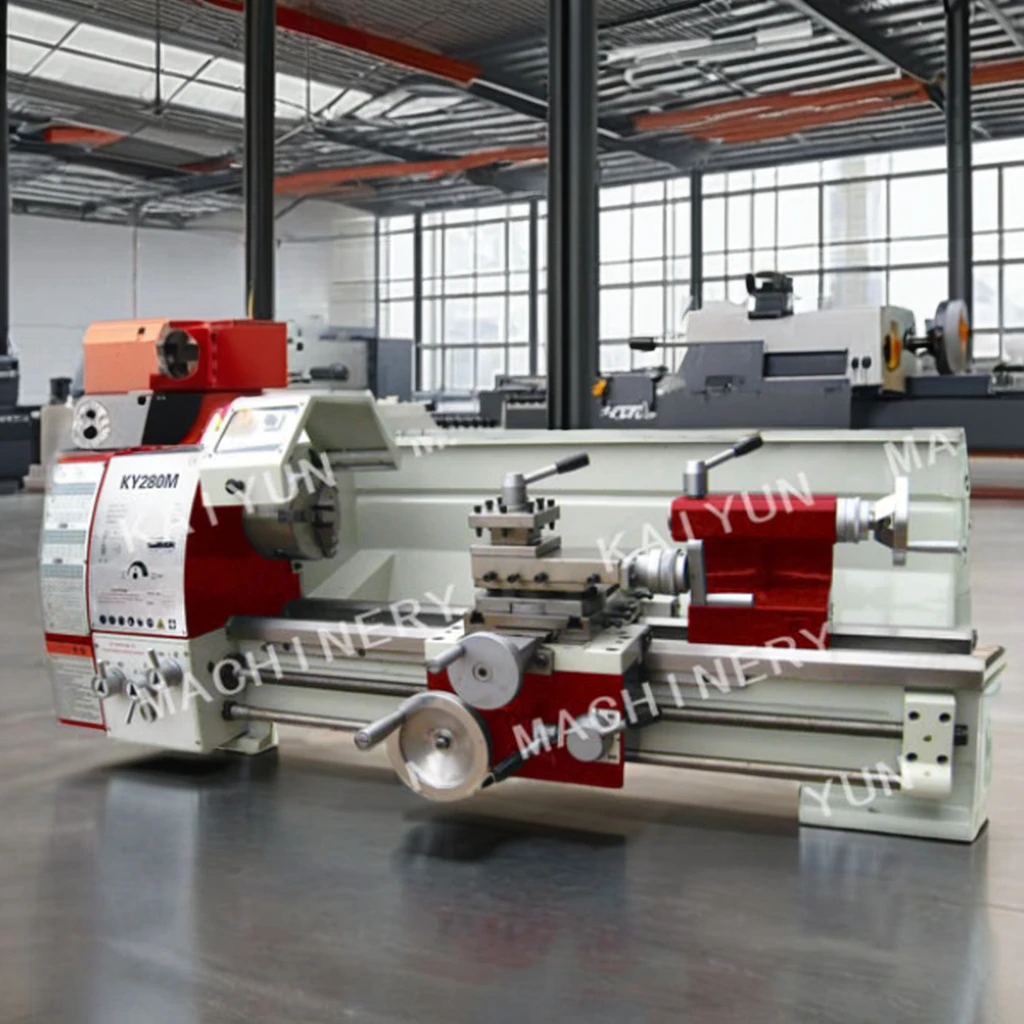

Model No. | KY280M | |||||
Distance between centers | 700mm | |||||
Swing over bed | 280mm | |||||
Swing over cross slide | 165mm | |||||
Width of bed | 180mm | |||||
Taper of spindle bore | MT4 | |||||
Spindle bore | 26mm | |||||
Number of spindle speeds | 6 | |||||
Range of spindle speeds | 125~2000rpm | |||||
Range of cross feeds | 0.02~0.28mm/r | |||||
Range of longitudinal feeds | 0.07-0.20mm/r | |||||
Range of inch threads | 8-56T.P.I | |||||
Range of metric threads | 0.4-3.5mm | |||||
Top Slide travel | 80mm | |||||
Cross slide travel | 140mm | |||||
Tailstock quill travel | 80mm | |||||
Taper of tailstock quill | MT2 | |||||
Motor | 0.85/1.1KW | |||||
Packing size | 1400*700*700mm | |||||
Net weight | 200kgs | |||||
Standard Accessories | ||||||
Splash guard | 1 pc | |||||
Chip tray | 1 pc | |||||
3-jaw chuck | 1 set | |||||
Toolbox & tools | 1 set | |||||
Optional Accessories | ||||||
4-jaw chuck(125mm) | 1 set | |||||
Backplate | 1 pc | |||||
Follow rest | 1 pc | |||||
Steady rest | 1 pc | |||||
Face plate(240mm) | 1 pc | |||||
Live center MT2 | 1 pc | |||||
Collet holder | 1 set | |||||
10mm turning tools(7pcs) | 1 set | |||||
Quick change tool post | 1 set | |||||
Stand | 1 set | |||||
Leadscrew cover | 1 set | |||||
