Calcite Kaolin Mica Coal Limestone Mine Used Ultra Fine Powder Grinding Mill
- Category: >>>
- Supplier: Shanghai Clirik Machinery Co. Ltd.
Share on (1601281389262):
Product Overview
Description
Charcoal Coal Gypsum Fly Ash Calcium Carbonate Ultra Fine Powder Grinding Mill Machine\t
*The final price will be determined by*
*YOUR SPECIFIC NEEDS*
*This price is just for referencing*
Product Description

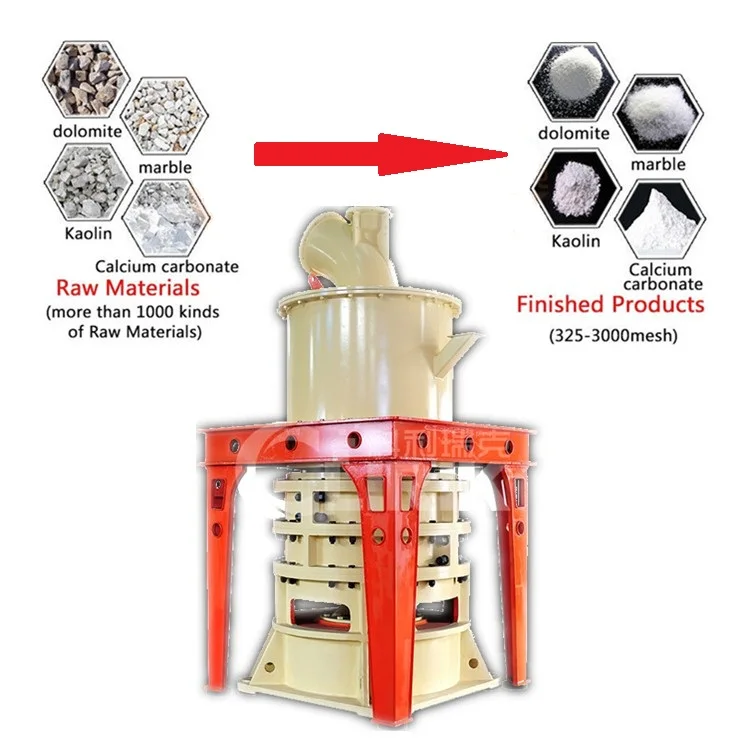

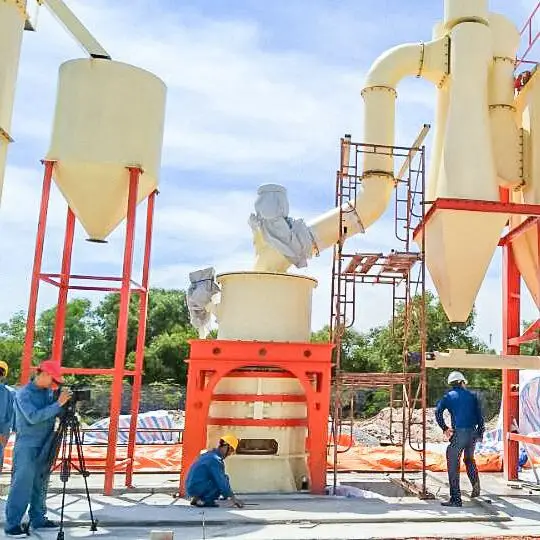

HGM Grinding Mill
Model: HGM series
Brand: Clirik
Powder Fineness Process Ability:
Brand: Clirik
Powder Fineness Process Ability:
150-3000 mesh
Capacity:
Capacity:
according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-45 t/h
Use Range:
Use Range:

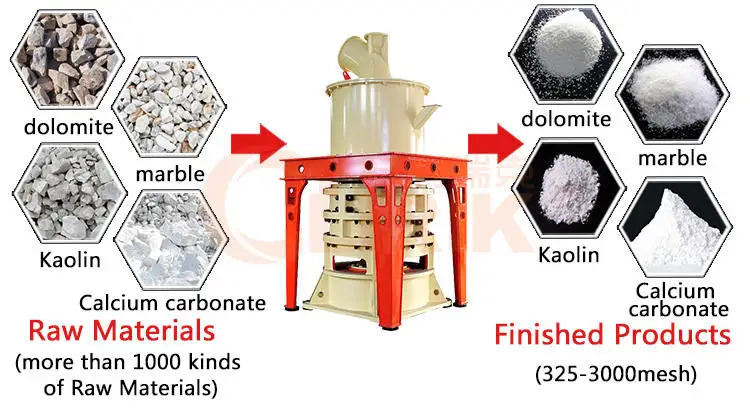

can be used in more than 300 kinds of stone materials powder grinding, such as: calcite, calcium carbonate, dolomite,gypsum, carbon black, gypsum, kaolin, marble and so on
Application: mining, chemical, transport and many other different areas
Specification
Model | HGM80 | HGM90L | HGM100L/100P | HGM125L | HGM1680L |
Ring Diameter(mm) | 800 | 900 | 1000 | 1250 | 1680 |
Ring Number(layer) | 3 | 3 | 4 | 4 | 4 |
Roller Number(piece) | 18-21 | 24-29 | 28-36 | 30-40 | 30-44 |
Main Shaft Speed(r.p.m) | 230-240 | 200-220 | 180-200 | 135-155 | 120-130 |
Input Size(mm) | ≦20 | ≦20 | ≦20 | ≦20 | ≦20 |
Finished Size(um/mesh) | 74-5 (200-2500) | 74-5 (200-2500) | 74-5 (200-2500) | 74-5 (150-2500) | 74-5 (150-2500) |
Capacity(t/h) | 0.5-4.5 | 0.5-6.5 | 1-9 | 2.8-20 | 5-45 |
Overall Dimension(L*W*H,m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 14*9*10.25 | 26.3*7.5*11.9 |
*Note: the capacity is based on the domestic CaCO3 powder factory's feedback
Clirik HGM Grinding Mill Certifications
As a professional grinding mill manufacturer in China, Shanghai Clirik had passed CE, ISO9001:2008, BV, SGS...and other many certification, and we also have our own patents.
1. Large pieces of material are crushed to the required size by the jaw crusher.
2. Crushed material is sent to the storage hopper by elevator.
3. Vibrating feeder send material to the main grinding chamber evenly and continuously for grinding.
4. The ground powder is taken away by the airflow of the fan and classified by the analyzer.
5. The finished product that meets the fineness is collected by the airflow through the pipe, then into the large selection air
collecting pipe.
6. The material is discharged through the powder outlet pipe to become the finished powder.
2. Crushed material is sent to the storage hopper by elevator.
3. Vibrating feeder send material to the main grinding chamber evenly and continuously for grinding.
4. The ground powder is taken away by the airflow of the fan and classified by the analyzer.
5. The finished product that meets the fineness is collected by the airflow through the pipe, then into the large selection air
collecting pipe.
6. The material is discharged through the powder outlet pipe to become the finished powder.
Recommend Products
If you need other mining use machines, you are welcome to visit our
there are several other mining use machines we can supply as following...
Why Choose Us
VR
Professional powder making machine manufacturer
Shanghai Clirik Machinery Co. Ltd., is specializing in research, manufacture and sales all kinds of mining equipment, We have many agents sell our products all over the world.Our products are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. We'll always follow your steps, pursue your value and achieve your profit.

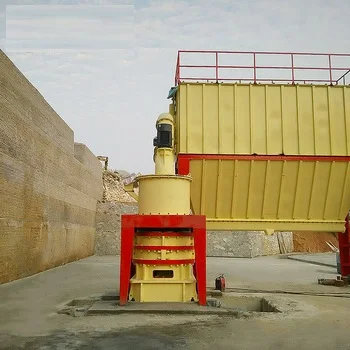

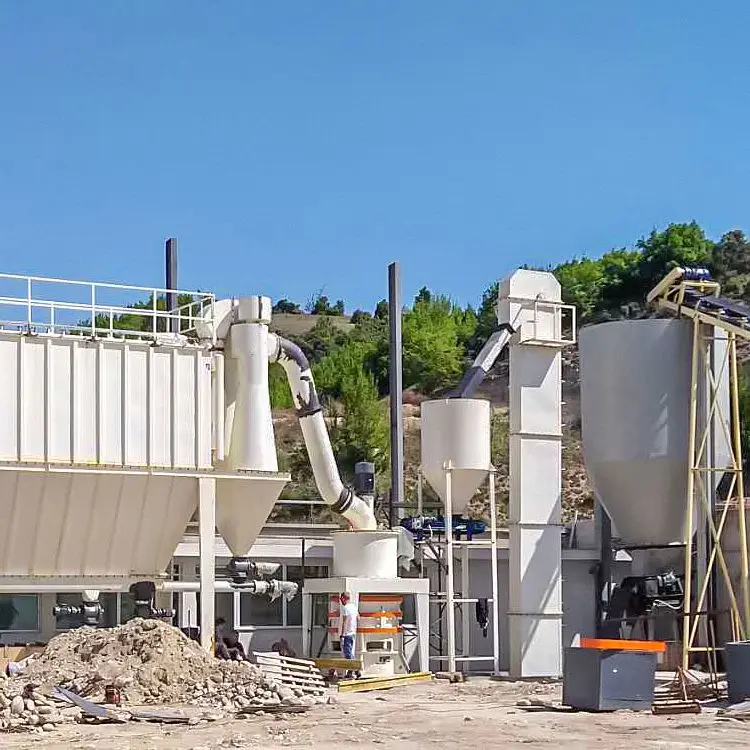

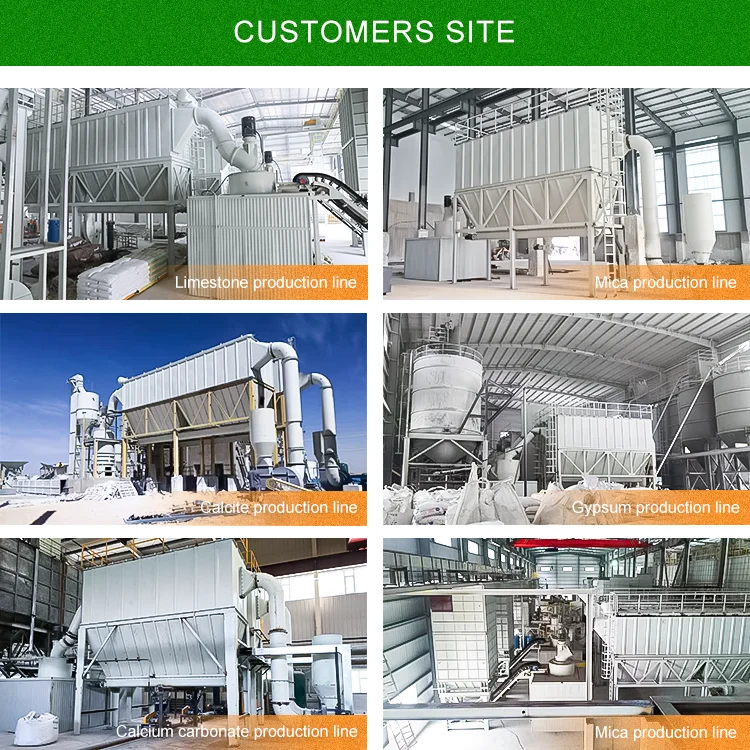

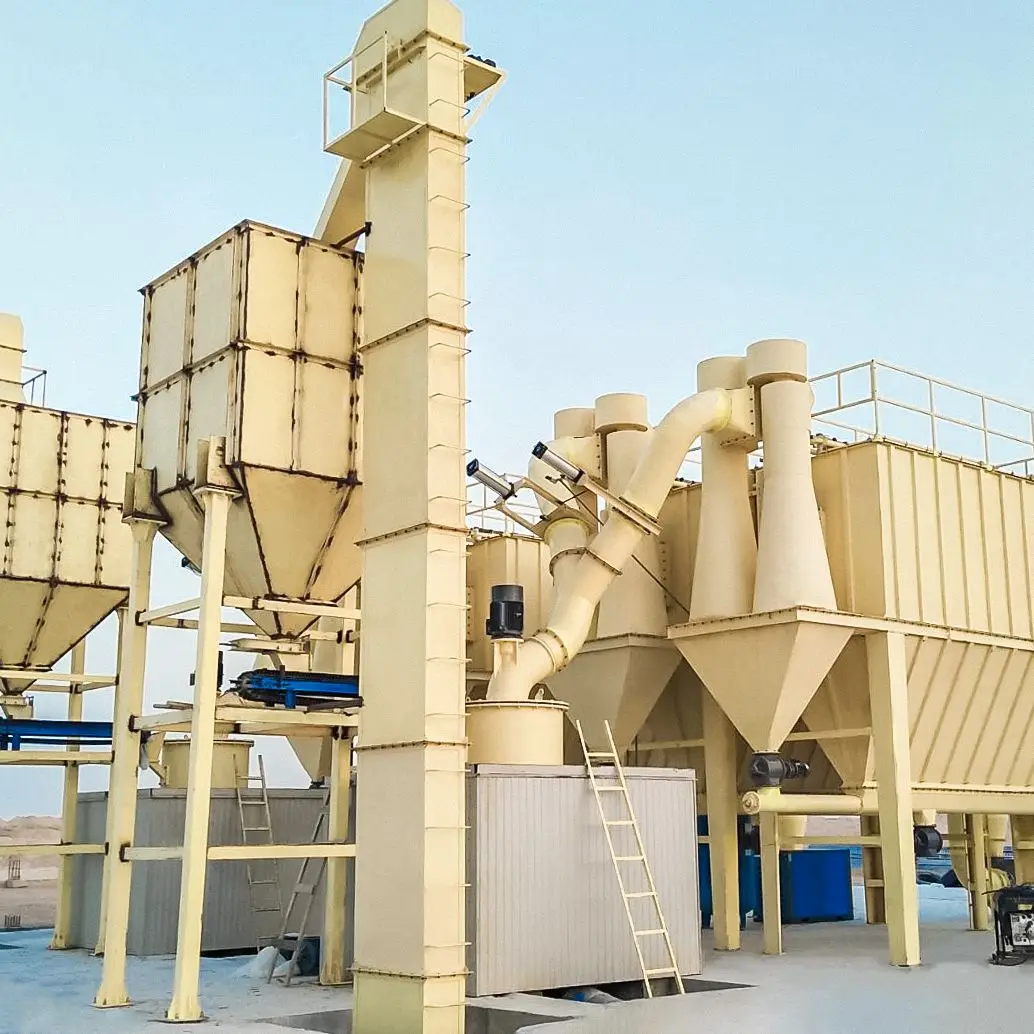

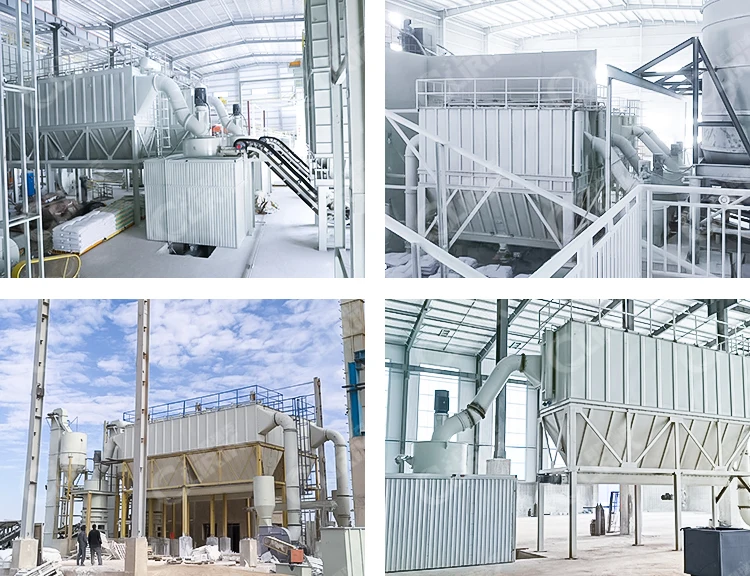

Customer Case
HGM calcium carbonate processing
in India
CLRM limestone powder making
in Haiti
CLUM Vertical Roller Mill
in China

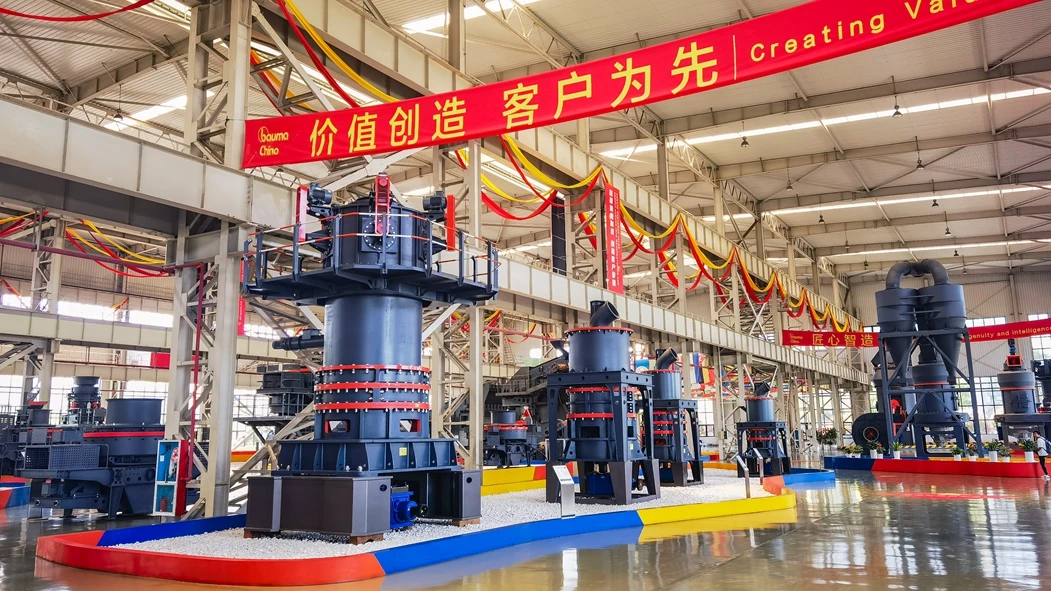

Our Factory

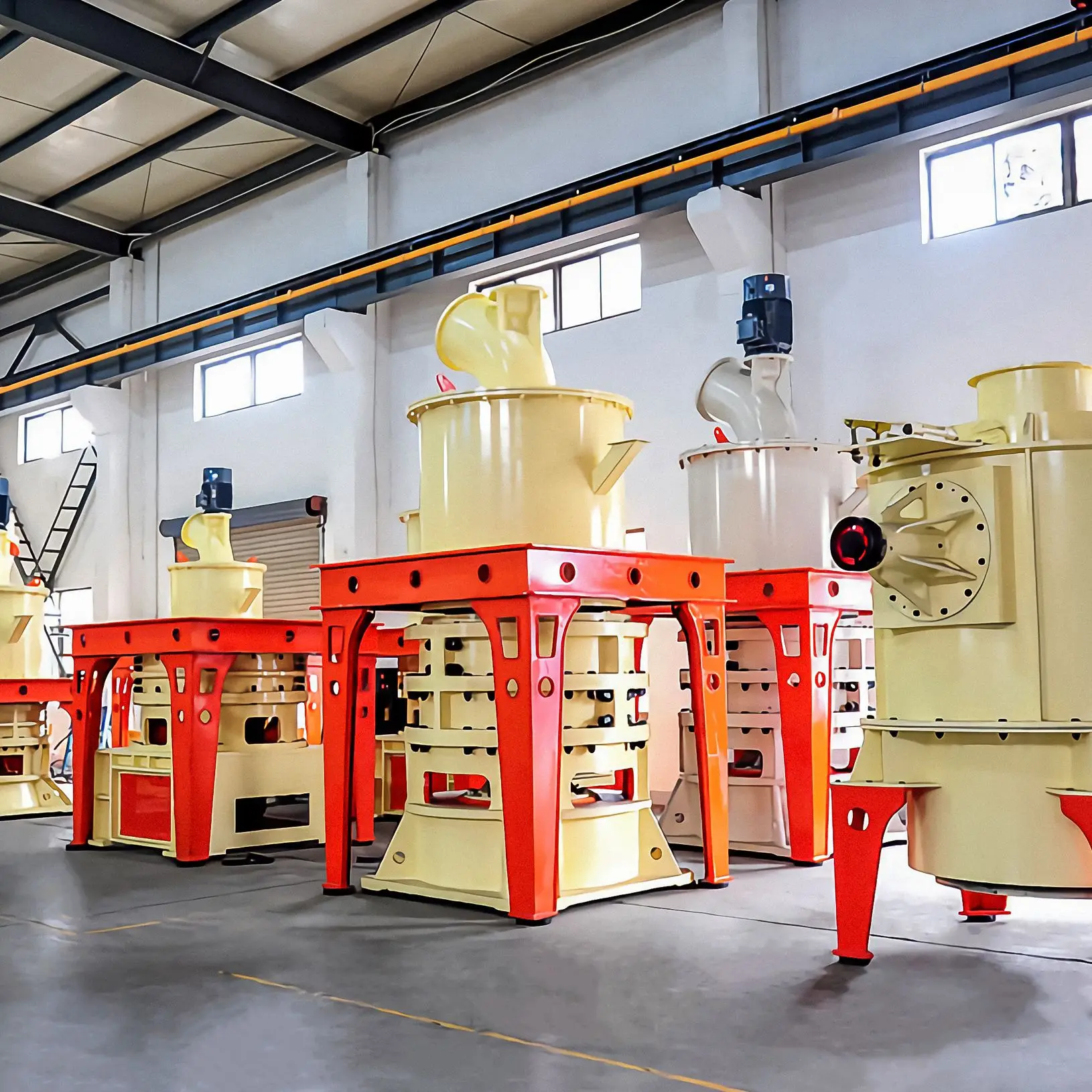

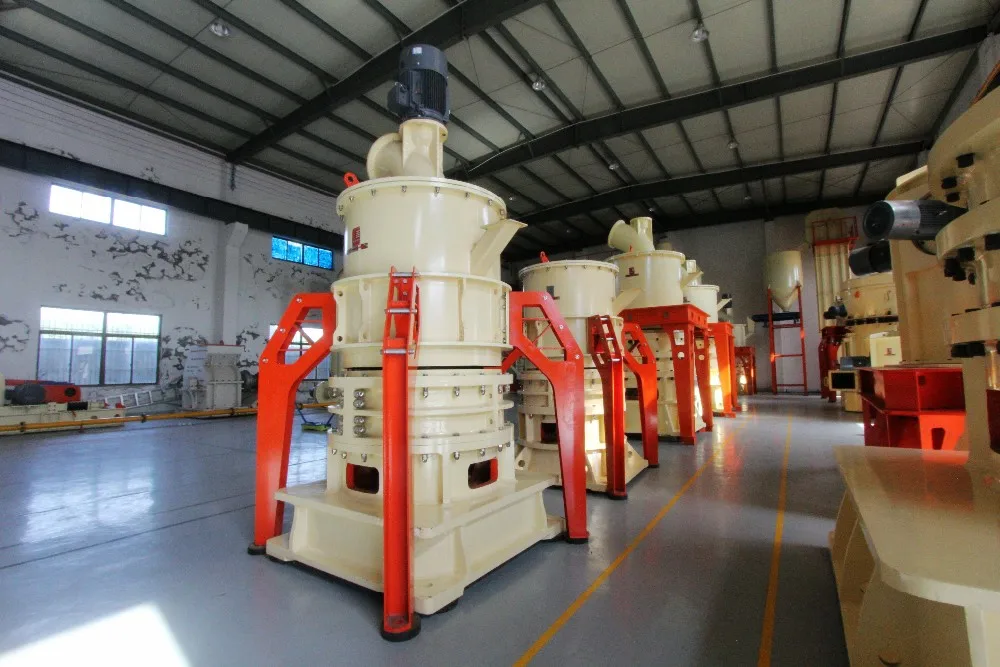

Work Shop
Exhibition
Our Office
Sales Team
Customer Visit
Pre-sale services
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
♥ Select equipment model;
♥ Sdeign and manufacture products according to clients' special requirement;
♥ Train technical personnel for clients.
♥ Select equipment model;
♥ Sdeign and manufacture products according to clients' special requirement;
♥ Train technical personnel for clients.
Services during the sale
Respect clients; devote ourselves to improving the total value of clients.
♥ Pre-check and accept products ahead of delivery;
♥ help clients to draft solution.
♥ Pre-check and accept products ahead of delivery;
♥ help clients to draft solution.
After-sales service
Provide considerate services to minimize clients' worries.
♥ Assist clients to prepare for the first construction scheme;
♥ Install and debug the equipment;
♥ Train the first-line operators on site;
♥ Examine the equipment regularly;
♥ Take initiative to eliminate the troubles rapidly at site;
♥ Provide technical exchanging;
♥ Provide maintenance for big items.
♥ Assist clients to prepare for the first construction scheme;
♥ Install and debug the equipment;
♥ Train the first-line operators on site;
♥ Examine the equipment regularly;
♥ Take initiative to eliminate the troubles rapidly at site;
♥ Provide technical exchanging;
♥ Provide maintenance for big items.
Clirik also can supply the door-to-door service for every customers, just set your order on Alibaba, we will transport the
grinding mill to you.
grinding mill to you.
FAQ
1. who are we?
Shanghai Clirik Machinery Co.Ltd., based in Shanghai, China, start from 2010,sell to Mid East(30.00%),Africa(20.00%),SoutheastAsia(19.00%),South Asia(15.00%),North America(3.00%),South America(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),EasternEurope(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grinding Mill(other needed mining equipment used in stone powder production line project)
4. why should you buy from Clirik not from other suppliers?
1. CE, ISO9001
2. factory sell directly
3. 30 years experience, professional
4. Sales market all over the world
5. good after sales serive
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDU,Express Delivery;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,French
Shanghai Clirik Machinery Co.Ltd., based in Shanghai, China, start from 2010,sell to Mid East(30.00%),Africa(20.00%),SoutheastAsia(19.00%),South Asia(15.00%),North America(3.00%),South America(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),EasternEurope(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grinding Mill(other needed mining equipment used in stone powder production line project)
4. why should you buy from Clirik not from other suppliers?
1. CE, ISO9001
2. factory sell directly
3. 30 years experience, professional
4. Sales market all over the world
5. good after sales serive
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDU,Express Delivery;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,French
