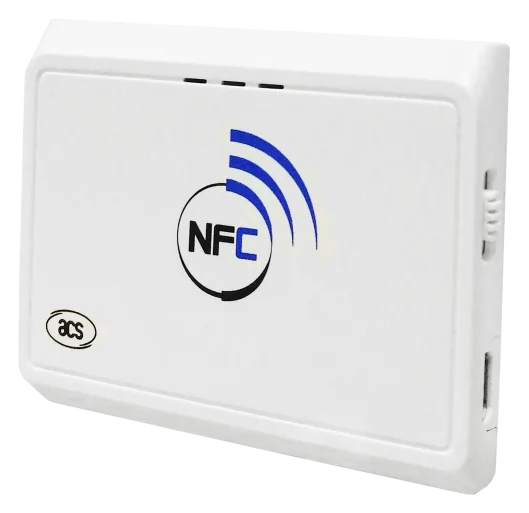

ACR1311 U Bluetooth NFC Card Reader Writer for Android Devices
- Category: >>>
- Supplier: Shenzhen Chuangxinji Smart Card Co. Ltd.
Share on (1601281419936):
Product Overview
Description
ACR1311-U Bluetooth NFC Card Reader Writer for Android Devices
The ACR1311-U Bluetooth NFC Card Reader Writer is an innovative solution designed for seamless contactless communication, offering a multitude of applications for Android devices. With its sleek design and advanced capabilities, this NFC reader is ideal for various uses, from mobile payments to access control systems. If you're looking for a reliable, efficient, and versatile NFC reader that offers excellent performance, the ACR1311-U is undoubtedly worth considering.
FAQs About the ACR1311-U
Q: Is the ACR1311-U compatible with both Android and iOS devices?
A: Yes, the ACR1311-U is compatible with a wide range of Android and iOS smartphones.
Q: What is the reading range of the ACR1311-U?
A: The ACR1311-U typically has a reading range of 5-10 cm.
Q: What protocols does the ACR1311-U support?
A: This device supports ISO14443A protocols, which are standard for NFC communication.
Q: How can I connect the reader to my device?
A: The ACR1311-U connects wirelessly via Bluetooth, providing convenient and flexible connectivity.
General
ACR1311U-N2 BLE ® NFC Reader combines the latest 13.56 MHz contactless technology with BLE ® Smart connectivity for on-the-go smart card and NFC applications.
Feature
1. USB 2.0 full speed interface
2. BLE 4.0 smart interface
3. Plug and Play – CCID support brings utmost mobility
4. USB Firmware Upgrade
5. Smart Card Reader
6. Application Programming Interface
7. Supports Android™ 4.3 and above
8. Supports IOS 5.0 and later
9. Built-in Peripherals
Physical characteristics | |
Dimensions | 60mm(L)*47.98mm(W)*12mm(H) |
Weight | 20g |
Color | White |
BLE Interface | |
Protocol | BLE Smart (BLE Low Energy /BLE 4.0) |
Power Source | Rechargeable Lithium-ion Battery (Charging through USB) |
Speed | 1Mbps |
USB Host Interface | |
Protocol | USB Full Speed |
Type | Four Line:+5V,GND,D+ and D- |
Connector Type | Micro USB |
Power Source | From USB Port |
Speed | USB Full Speed (12 Mbps) |
Cable Length | 1 m (Data cable) |
Firmware | Upgrade through USB Interface |
Contactless Smart Card Interface | |
Standard | ISO 14443 Type A&B,MI FARE,DES FIRE |
Protocol | ISO 14443 T=CL for ISO14443-4 compliant cards, and T+CL Emulation for MI FARE Classic 1k/4k and NFC tags |
Operating Frequency | 13.56MHz |
Operating Distance | Up to 25mm(depending on tag type) |
Smart Card Read/ Write Speed | 106Kbps,212Kbps,424Kbps |
Antenna Size | 28.00mm×32.00mm |
Built-in Peripherals | |
LED | 2bi-color, Red and Blue,Red and Green |
Buzzer | Monotone |
Operating Conditions | |
Temperature | 0℃-50℃ |
Humidity | Max.90%(non-condensing) |
MTBF | 500,000 hrs |
Application Programming Interface | |
PC-link Mode | PC/SC CT-API(through wrapper on top of PC/SC) |
Certifications/Compliance | EN60950/IEC 60950,ISO 14443,USB Full Speed, BLE Smart, PC/SC,CCID,RoHS 2, REACH, Microsoft® WHQL |
Device Driver Operating System Support | Windows®ME,Windows®98,Windows®2000,Windows®XP, Windows®Vista,Windows®7,Windows®8,Windows®8.1, Windows®10,Windows®Server2003,Windows®Sever2008, Windows,®Sever2008R2,Windows®Sever2012, Windows®Sever2012R2,Linux®,Mac OS®, Android, IOS |
