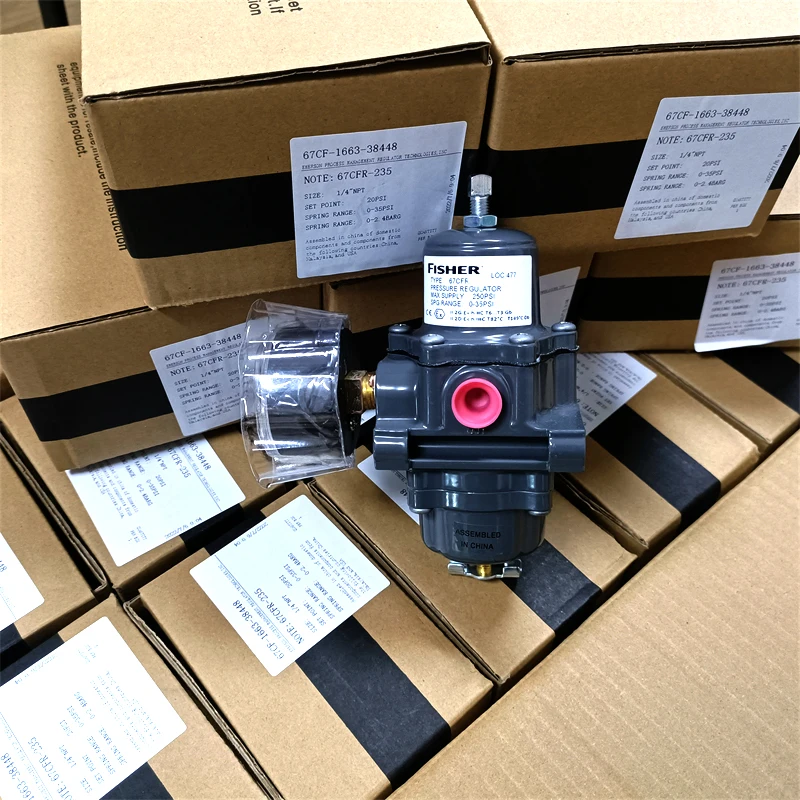

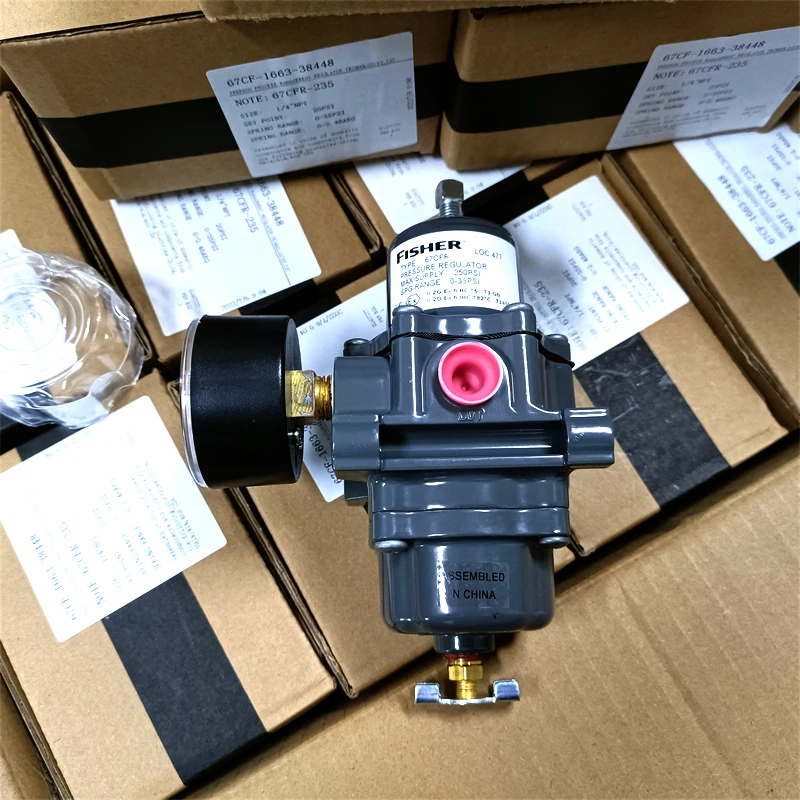

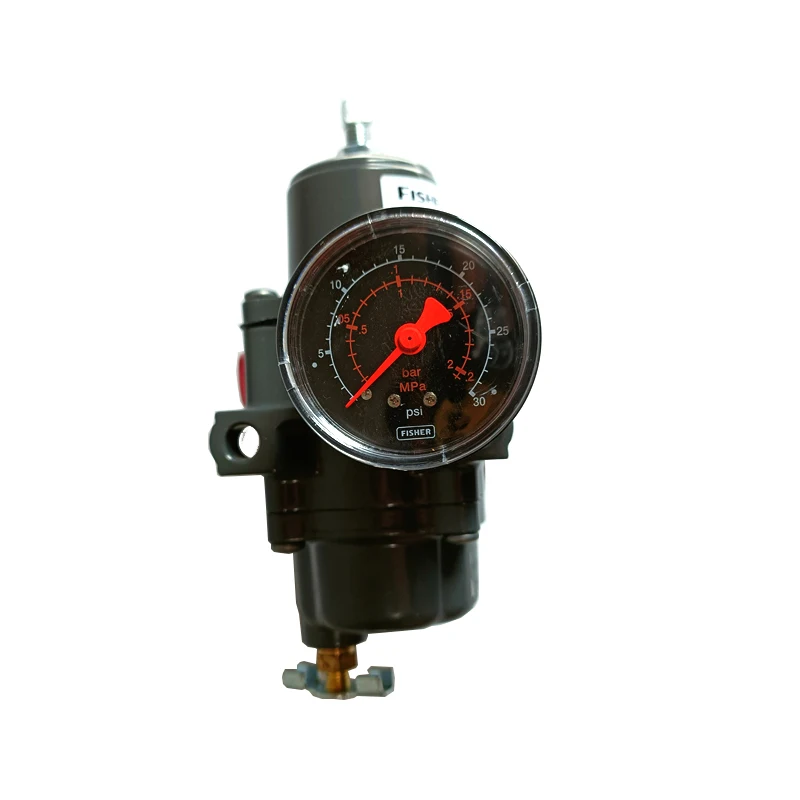

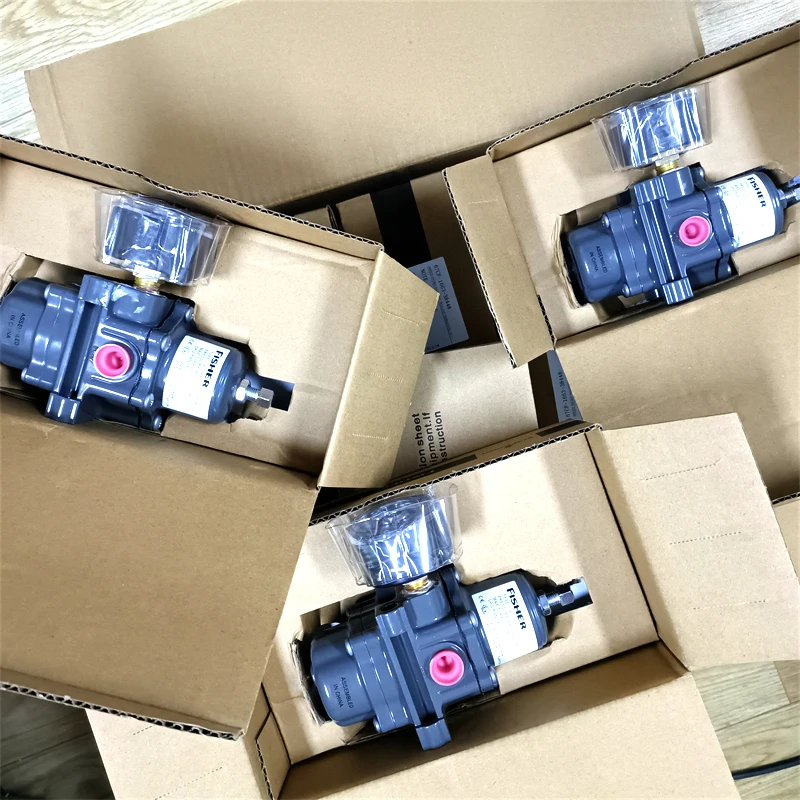

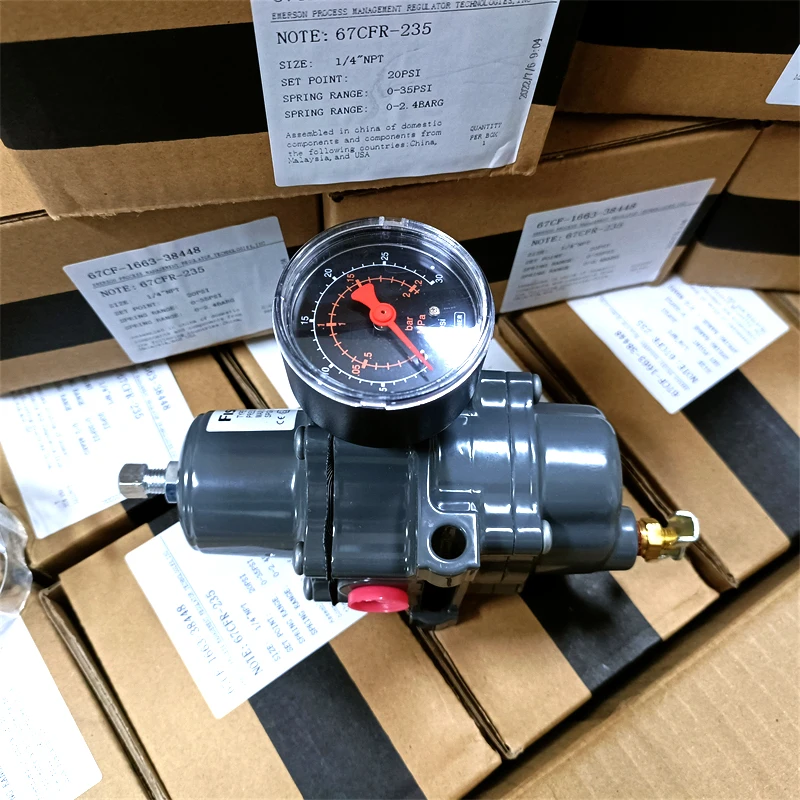

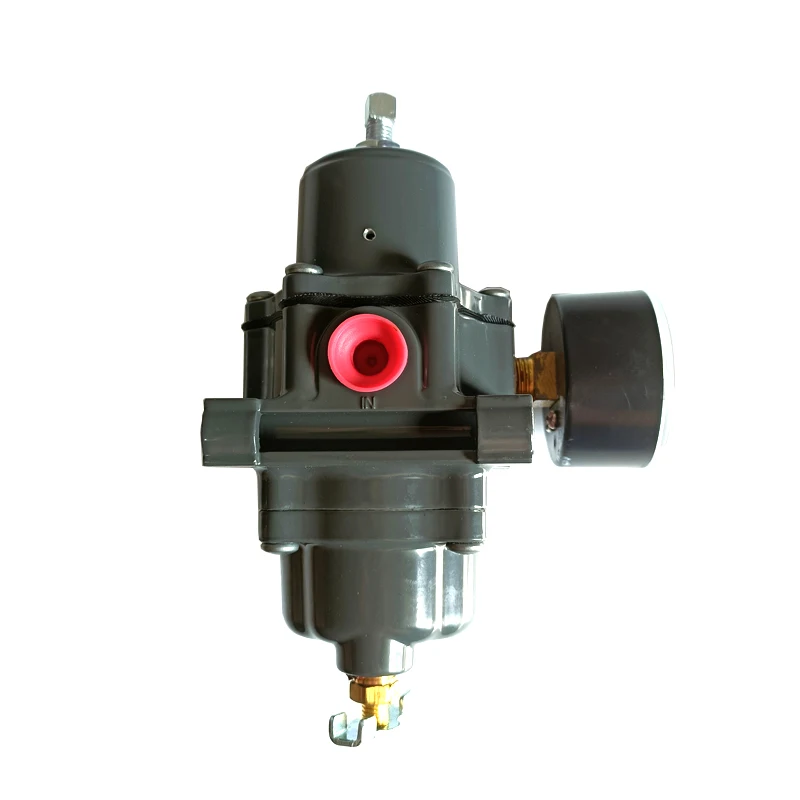

Emerson Fisher 67C Series Filtration Pressure Reducing Valve 67CFR 235 New, Genuine, Original
- Category: >>>
- Supplier: Helon Technology (chengdu) Co. Ltd.Helon Ltd.
Share on (1601281431609):
Product Overview
Description
Product Details
67C Series
Technical Specifications
Body Size, Inlet and Outlet Connection Type
1/4 in. NPT
Maximum inlet pressure (body pressure rating)1
All models except 67CS and 67CSR.
250 psig (17.2 bar)
Models 67CS and 67CSR: 400 psig (27.6 bar)
Outlet Pressure Range
See Table 1
Maximum Emergency Outlet Pressure(1)
50 psi (3.45 bar) over outlet pressure setting
Full Open Flow Coefficient
Main Valve:C:11.7: C:0.36;C.:32.2
Internal Pressure Relief Valve:C: 1.45, C:0.045;C,:32.8
IEC Selection Calculation Factors
Main valve:X:0.66;F:0.89,F0.50
Accuracy
Inlet Sensitivity: For every 25 psig (1.72 bar) change in inlet pressure, the change in outlet pressure is less than
For every 25 psig (1.72 bar) change in inlet pressure, the change in outlet pressure is less than 0.2 psig (0.014 bar).
Repeatability: 0.1 psig (0.007 bar) (2)
Air Consumption:Repeated testing has not revealed significant leakage
Model 67CR, 67CSR, 67CFR, and 67CFSR Internal Pressure Relief Valve Performance
Low flow capacity, available only for smaller seat leaks; if inlet
pressure exceeds the maximum pressure rating of the downstream equipment or exceeds the maximum outlet pressure rating of the regulator, the pressure relief valve will not operate.
the maximum outlet pressure rating of the regulator, other overpressure protection
measures must be provided.
Approximate Weights
Models 67C, 67CR, 67CF, and 67CFR.
1 lb (0.5 kg)
Models 67CS and 67CSR: 2.5 lbs.
2.5 lbs (1.1 kg)
Models 67CFS and 67CFSR: 4 lbs.
4 lbs (1.8 kg)
Temperature Range
Nitrile Rubber (NBR)
Standard bolting: -20° to 180*F (-29° to 82*C)
Stainless steel bolted: -40* to 180°F (-40* to 82°C)
Translated with www.DeepL.com/Translator (free version)
Technical Specifications
Body Size, Inlet and Outlet Connection Type
1/4 in. NPT
Maximum inlet pressure (body pressure rating)1
All models except 67CS and 67CSR.
250 psig (17.2 bar)
Models 67CS and 67CSR: 400 psig (27.6 bar)
Outlet Pressure Range
See Table 1
Maximum Emergency Outlet Pressure(1)
50 psi (3.45 bar) over outlet pressure setting
Full Open Flow Coefficient
Main Valve:C:11.7: C:0.36;C.:32.2
Internal Pressure Relief Valve:C: 1.45, C:0.045;C,:32.8
IEC Selection Calculation Factors
Main valve:X:0.66;F:0.89,F0.50
Accuracy
Inlet Sensitivity: For every 25 psig (1.72 bar) change in inlet pressure, the change in outlet pressure is less than
For every 25 psig (1.72 bar) change in inlet pressure, the change in outlet pressure is less than 0.2 psig (0.014 bar).
Repeatability: 0.1 psig (0.007 bar) (2)
Air Consumption:Repeated testing has not revealed significant leakage
Model 67CR, 67CSR, 67CFR, and 67CFSR Internal Pressure Relief Valve Performance
Low flow capacity, available only for smaller seat leaks; if inlet
pressure exceeds the maximum pressure rating of the downstream equipment or exceeds the maximum outlet pressure rating of the regulator, the pressure relief valve will not operate.
the maximum outlet pressure rating of the regulator, other overpressure protection
measures must be provided.
Approximate Weights
Models 67C, 67CR, 67CF, and 67CFR.
1 lb (0.5 kg)
Models 67CS and 67CSR: 2.5 lbs.
2.5 lbs (1.1 kg)
Models 67CFS and 67CFSR: 4 lbs.
4 lbs (1.8 kg)
Temperature Range
Nitrile Rubber (NBR)
Standard bolting: -20° to 180*F (-29° to 82*C)
Stainless steel bolted: -40* to 180°F (-40* to 82°C)
Translated with www.DeepL.com/Translator (free version)
