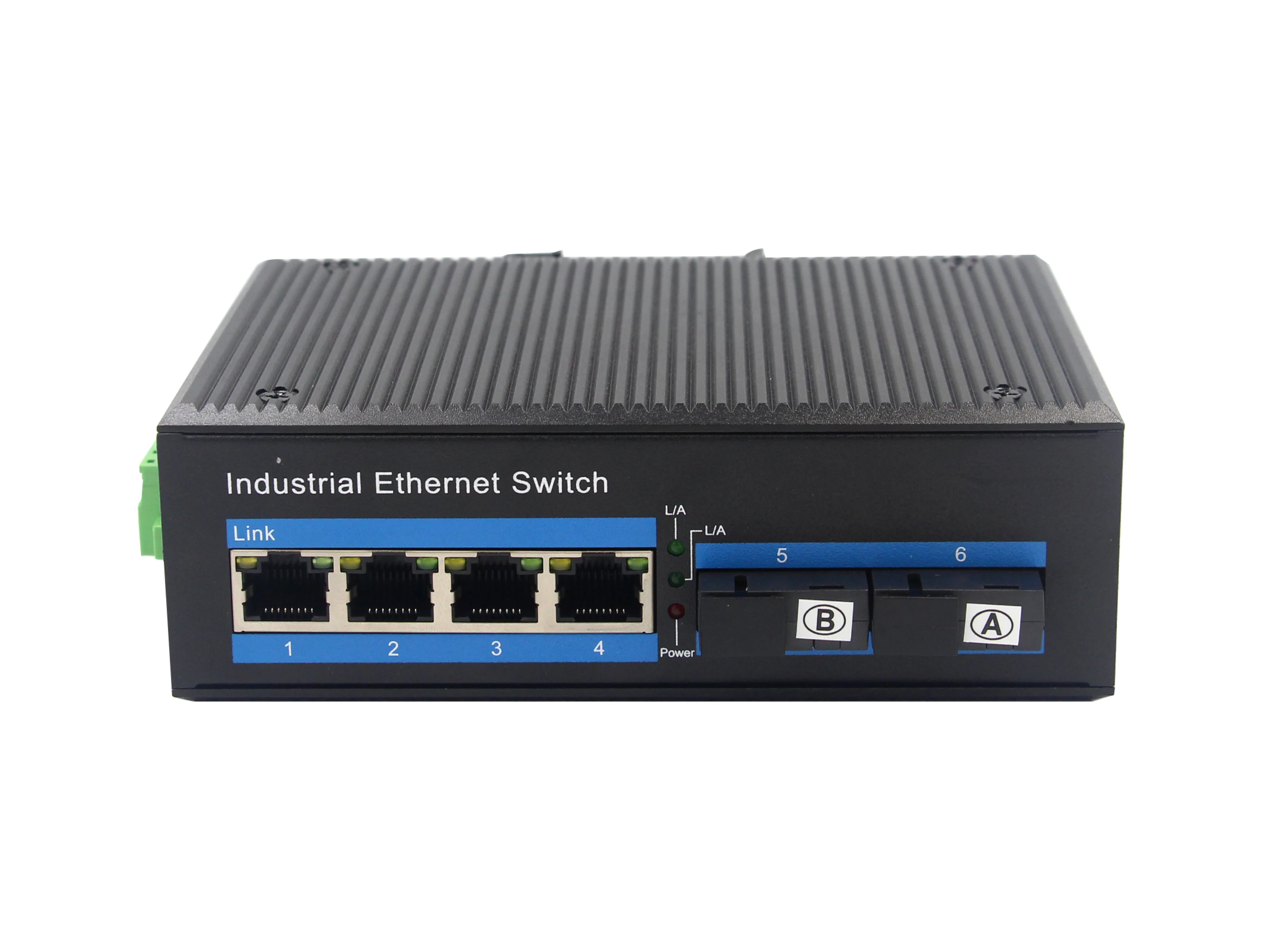

100M Industrial Fiber Switch 10/100M 2 fiber port and 4 RJ45 port SC single fiber SM 20km Unmanaged Industrial Switch
- Category: >>>
- Supplier: Shenzhen Nufiber Technology Co. Ltd.
Share on (1601281473960):
Product Overview
Description

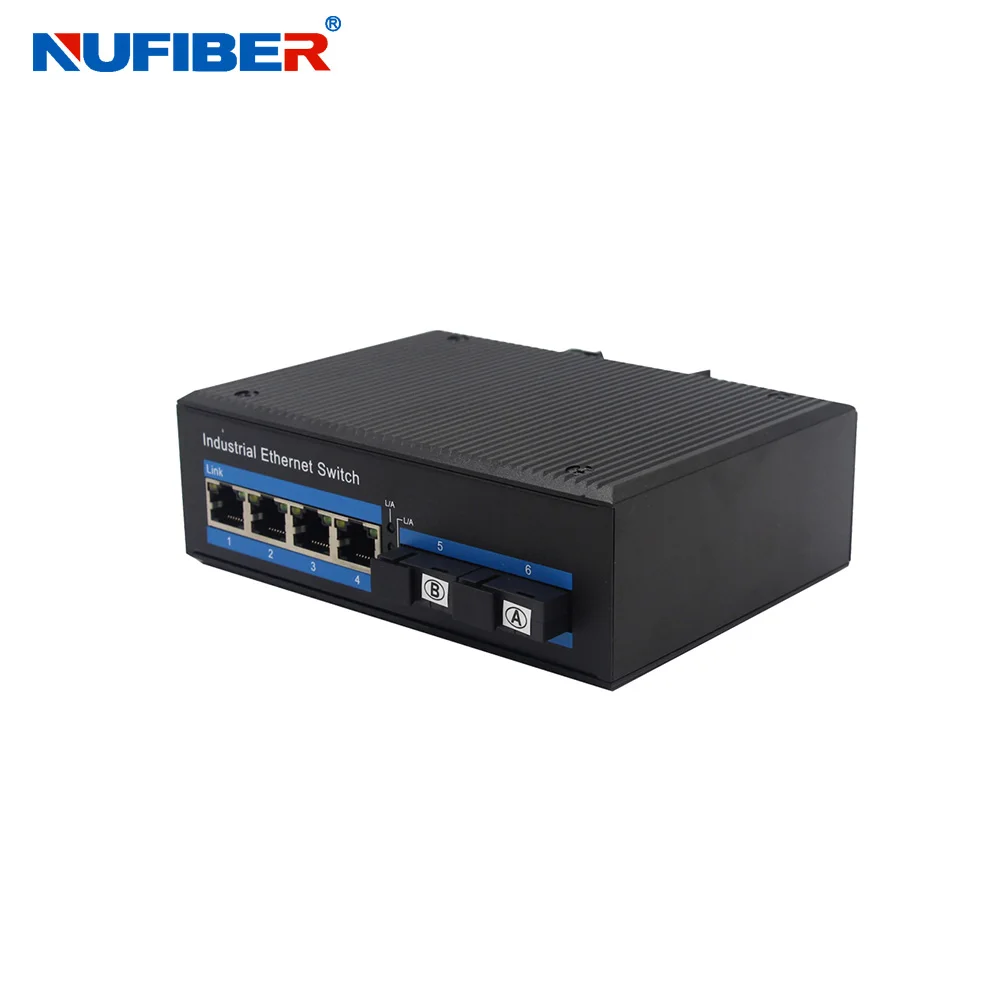

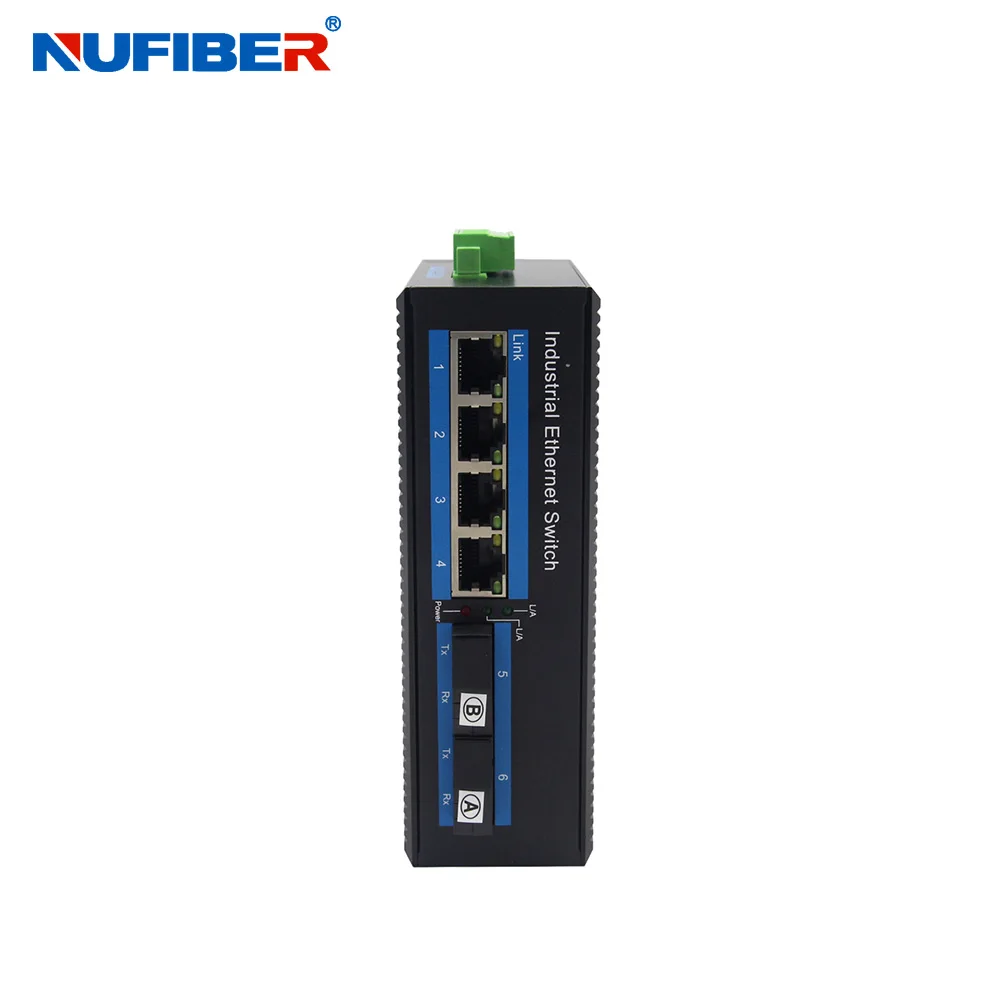

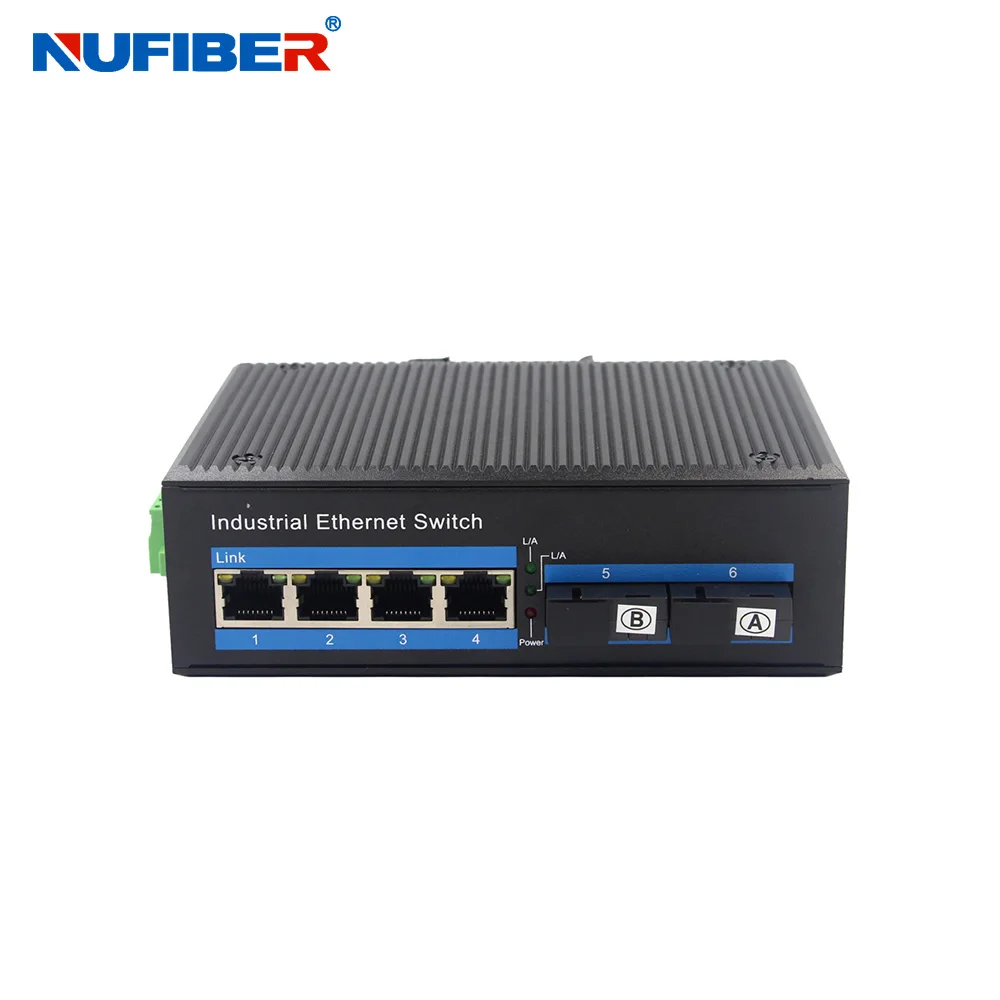

100M Industrial Fiber Switch 10/100M 2 fiber port and 4 RJ45 port SC single fiber SM 20km Unmanaged Industrial Switch
Product Description
NUFIBER 10/100Base-TX to 100Base-FX Industrial Media Converter, extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the NF524F-SC2, up to 20km with theNF524F-SC20 .
The NF524F series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40℃ to 85℃ allows the NF524F series to be placed in almost any difficult environment.
Key Features
- 4 port 10/100Mbps RJ45 with negotiation and auto-MDI/ MDI-X function
- 2-port 100Base-Fx interface SC/FC/ST/SFP
- Multi-Mode up to 2km
- Single-Mode up to 20km/40km/60km/80km

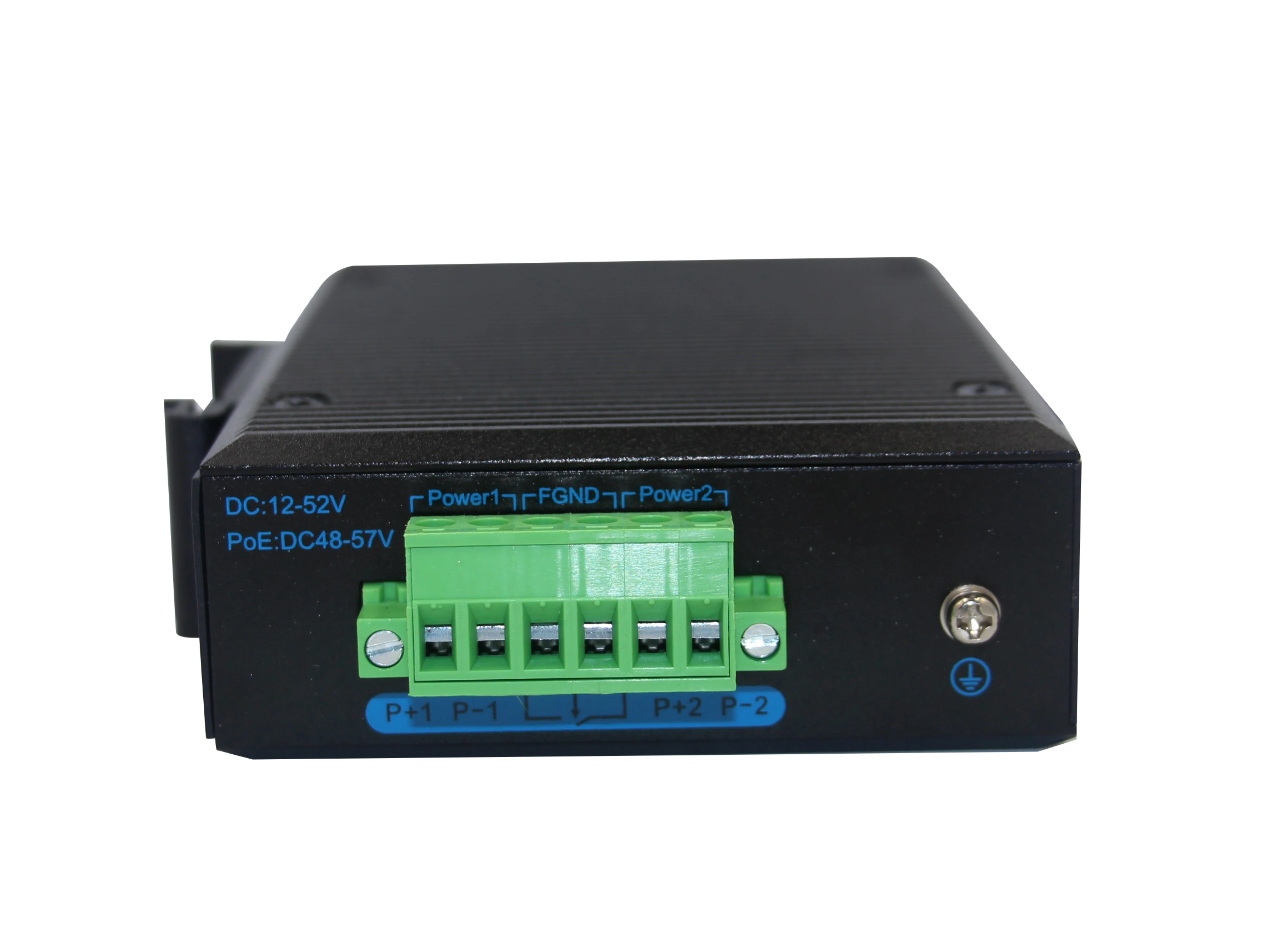

- 12V to 52V DC, redundant power input
- -40℃ to 85℃ operating temperature
- IP40 aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability

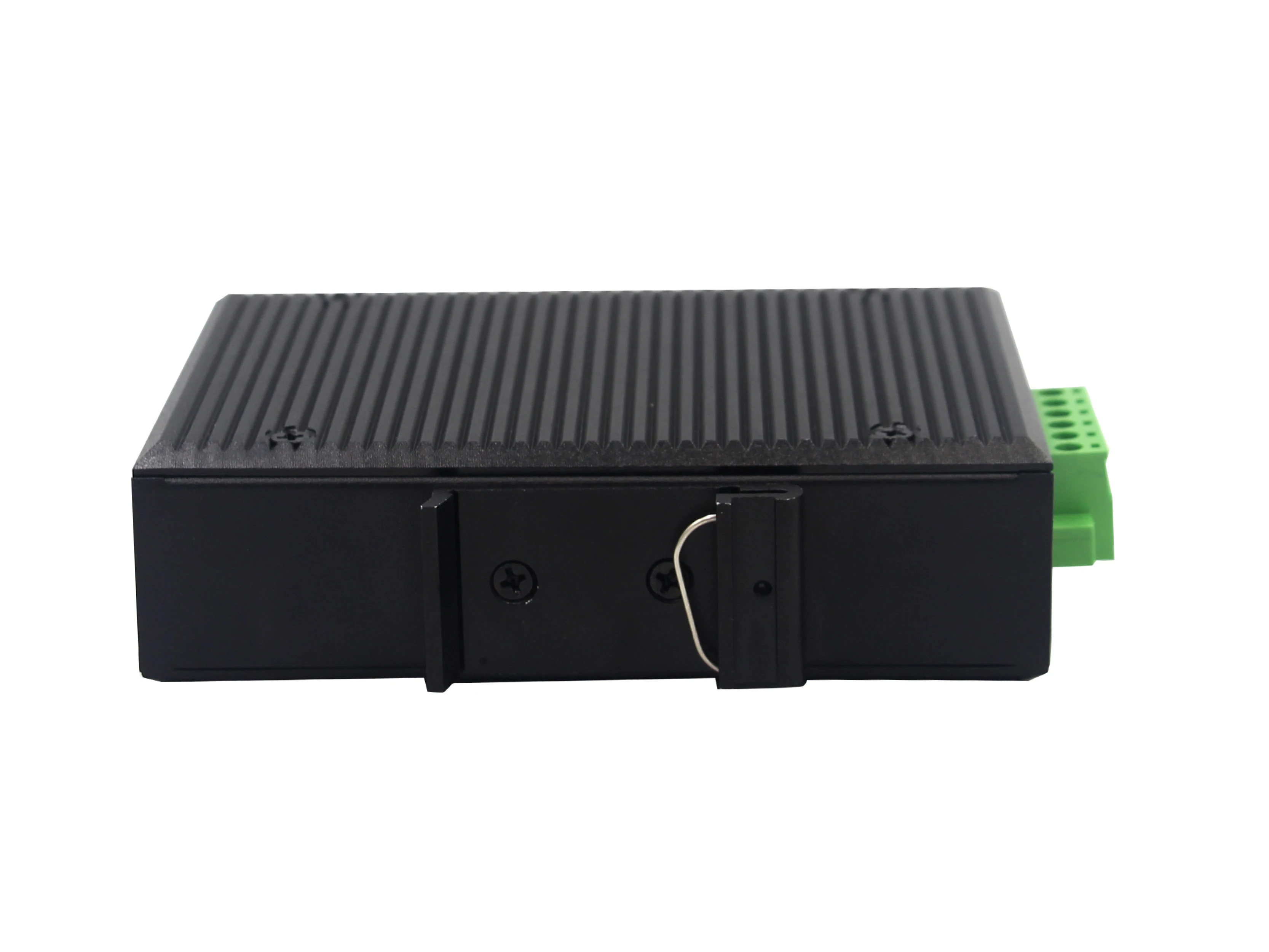

- DIN-rail and wall-mountable hardware design
Specifications
| Product Name | 4 Port 10/100Base Industrial Ethernet Switch |
| Product Model | NF524F-SC20A/B |
| Interface | 1x 10/100Base-T RJ45 port + 1x 100Mbps SC Fiber |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 1Gbps |
| Packet Buffer Memory: 512K | |
| Packet Forwarding Rate:148800pps/port | |
| MAC Address Table: 1K | |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~48VDC (Terminal Block) |

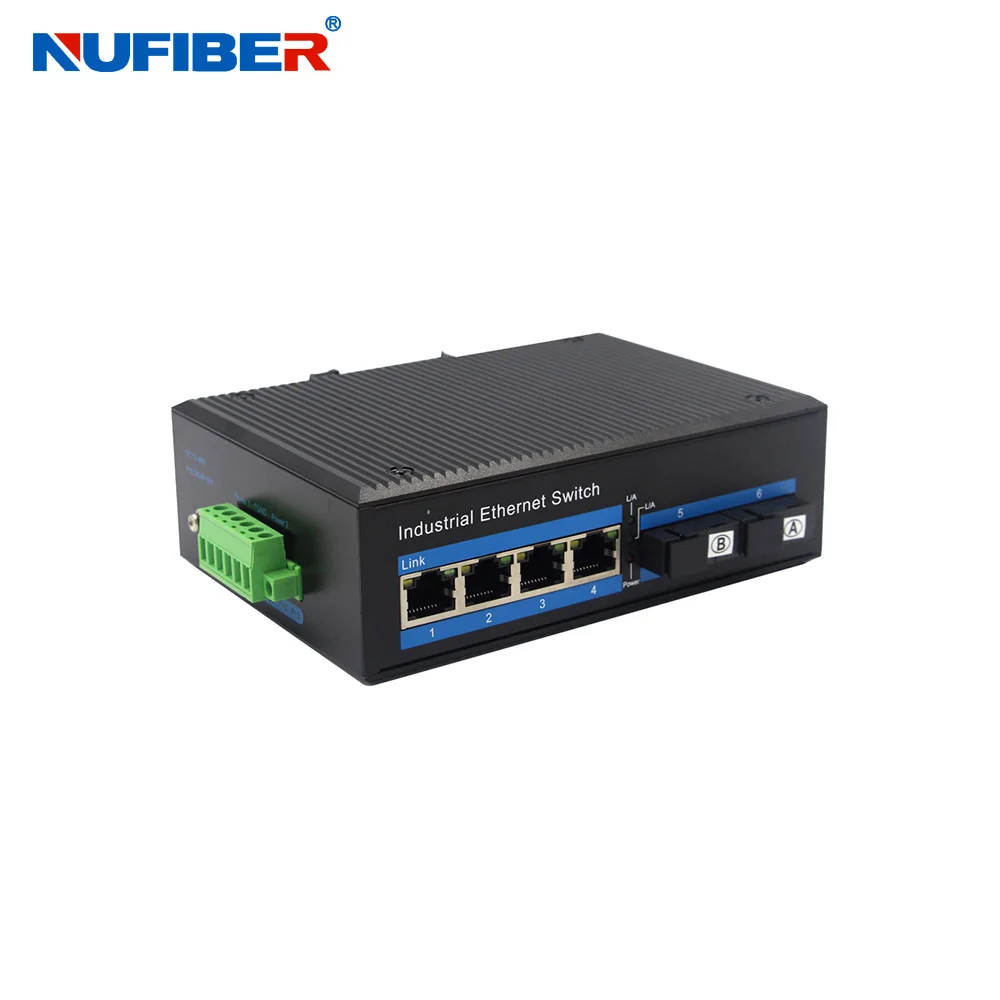

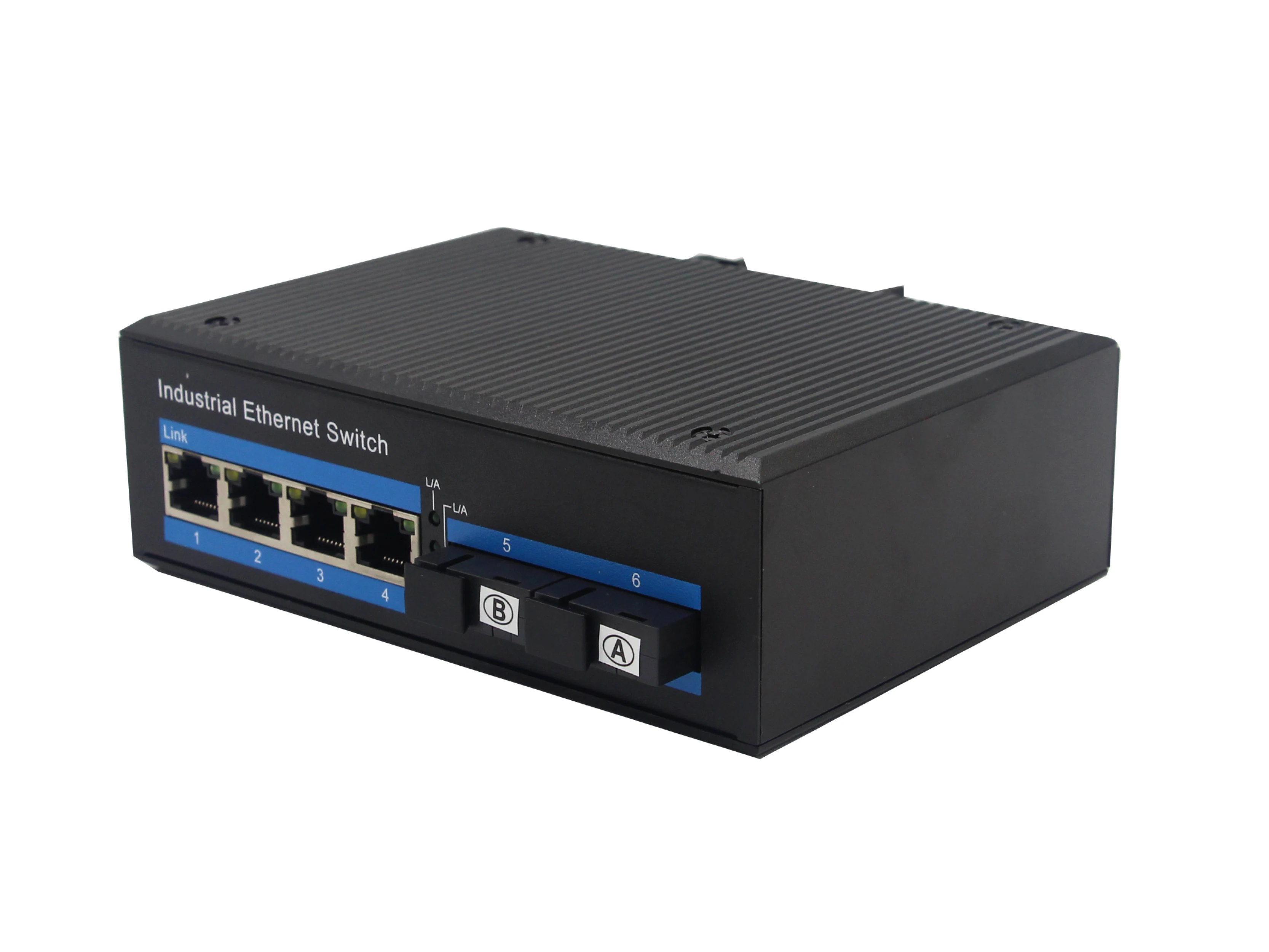

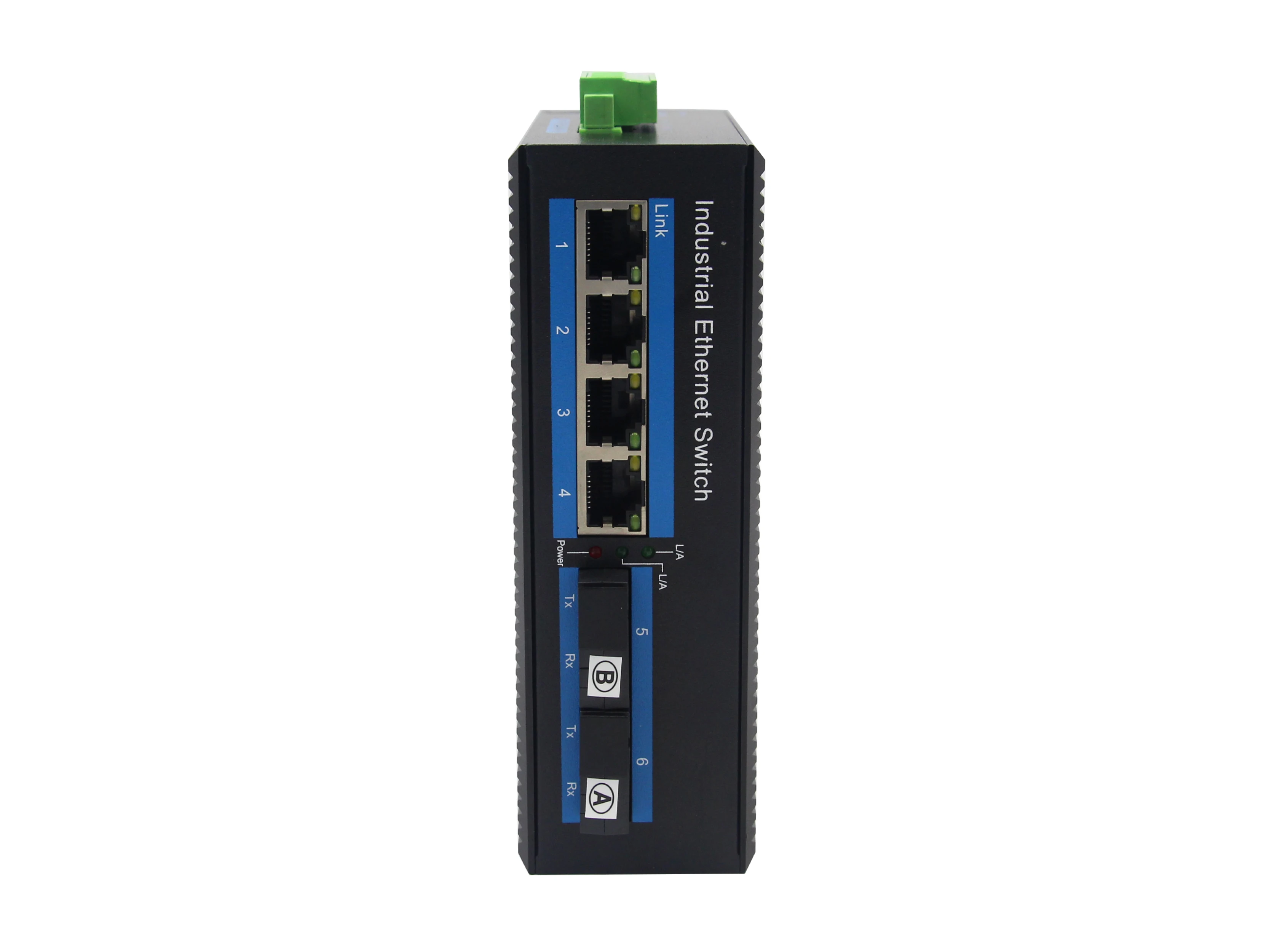

Products Show
Factory show

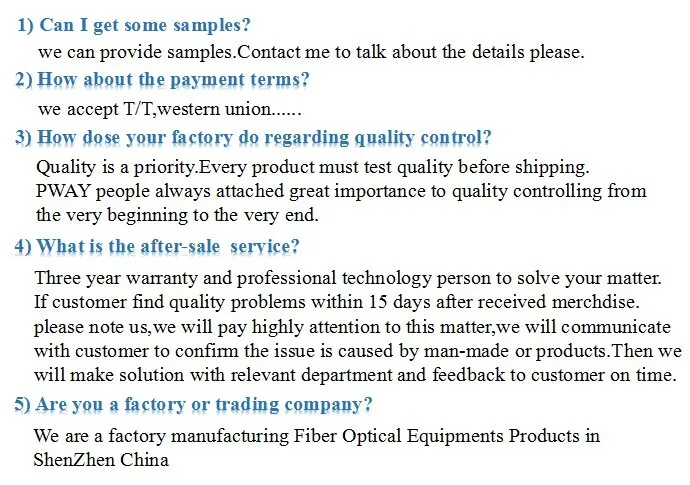

FAQ
Packaging & Shipping
Welcome to send us your inquiry,your any question will be reponsed within 24 hour.
