Epever Manufacturer 220v Power Bank Home Solar Energy System 2.5kw 2500W Power Station
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601281490351):
Product Overview
Description

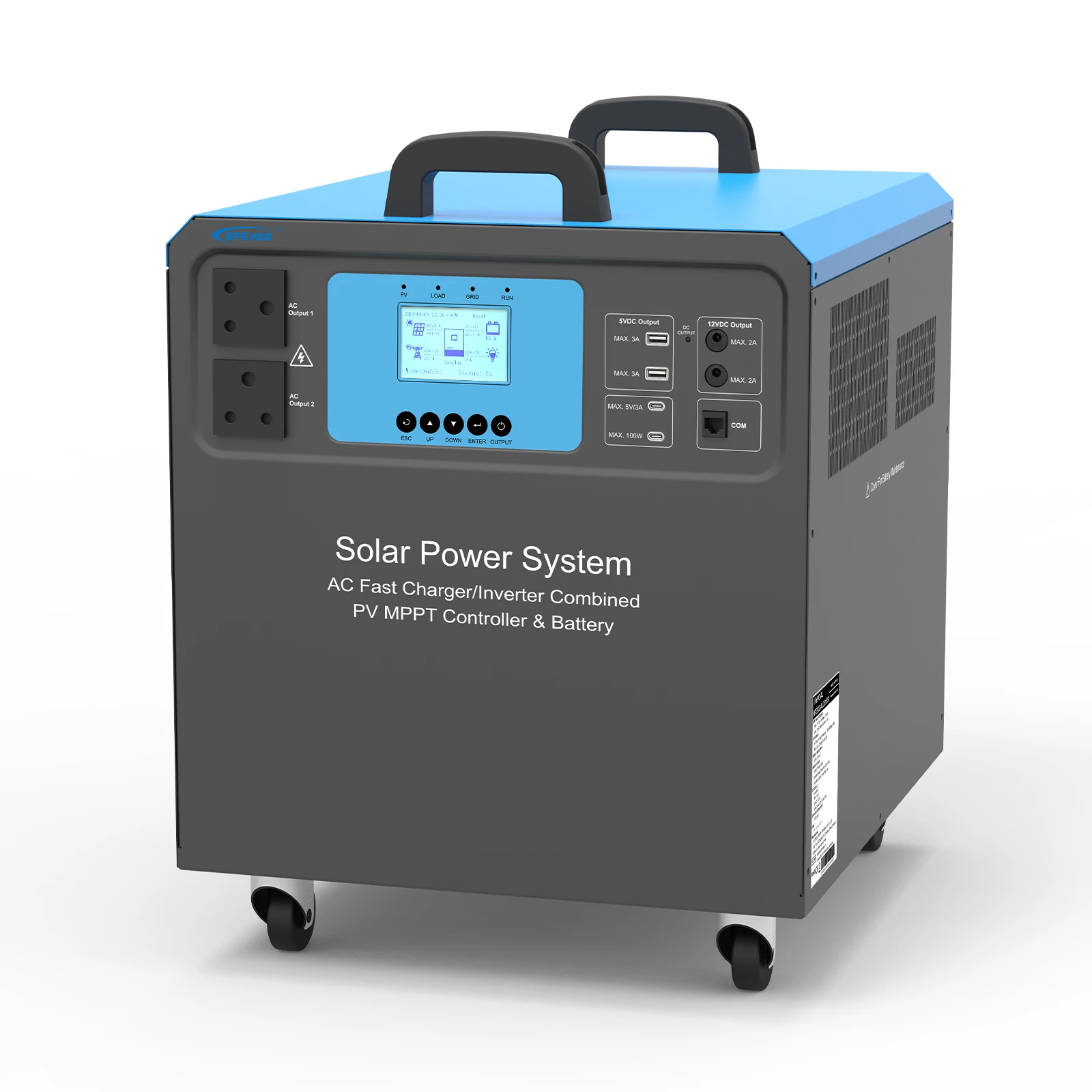

Solar Power System ER-2.5KW
Main Features
* Full intelligent digital energy storage equipment；
* Work continuously at full power for a long time；
* Built-in long-life and deep-cycle sealed valve-controlled GEL battery;
* Advanced SPWM technology and pure sine wave output;
*Active PFC is adopted for AC charging, power factor is close to 1,and settable constant voltage current limiting output control;
* Adopt the bidirectional isolation topology；
* Advanced MPPT technology, with efficiency no less than 99.5%;
* Bypass automatic switching function,the equipment has full automatic control and management function;
* Lightning protection circuit for the Utility input terminal;
* AC output electromagnetic compatibility;
* Overload relay at the Utility input terminal to disconnect the inverter/charger when the fault occurs；
* Circuit breaker at the PV input terminal to ensure the PV array safe running；
* Circuit breaker at the Battery output terminal to ensure the battery safe running;
* Remote temperature compensation feature for batteries;
* Optional 4G, WiFi module to remote control the inverter/charger by the RS485 com. port;
* Three-stage charging method;
* Work continuously at full power for a long time；
* Built-in long-life and deep-cycle sealed valve-controlled GEL battery;
* Advanced SPWM technology and pure sine wave output;
*Active PFC is adopted for AC charging, power factor is close to 1,and settable constant voltage current limiting output control;
* Adopt the bidirectional isolation topology；
* Advanced MPPT technology, with efficiency no less than 99.5%;
* Bypass automatic switching function,the equipment has full automatic control and management function;
* Lightning protection circuit for the Utility input terminal;
* AC output electromagnetic compatibility;
* Overload relay at the Utility input terminal to disconnect the inverter/charger when the fault occurs；
* Circuit breaker at the PV input terminal to ensure the PV array safe running；
* Circuit breaker at the Battery output terminal to ensure the battery safe running;
* Remote temperature compensation feature for batteries;
* Optional 4G, WiFi module to remote control the inverter/charger by the RS485 com. port;
* Three-stage charging method;

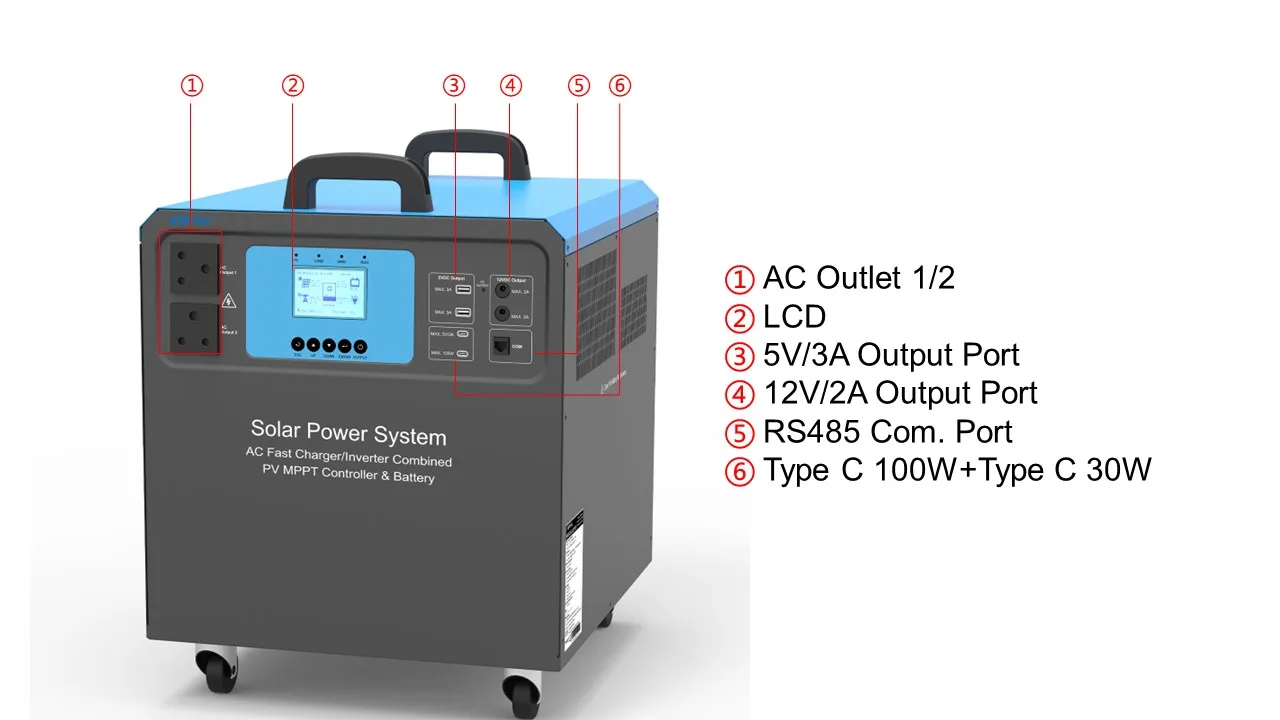

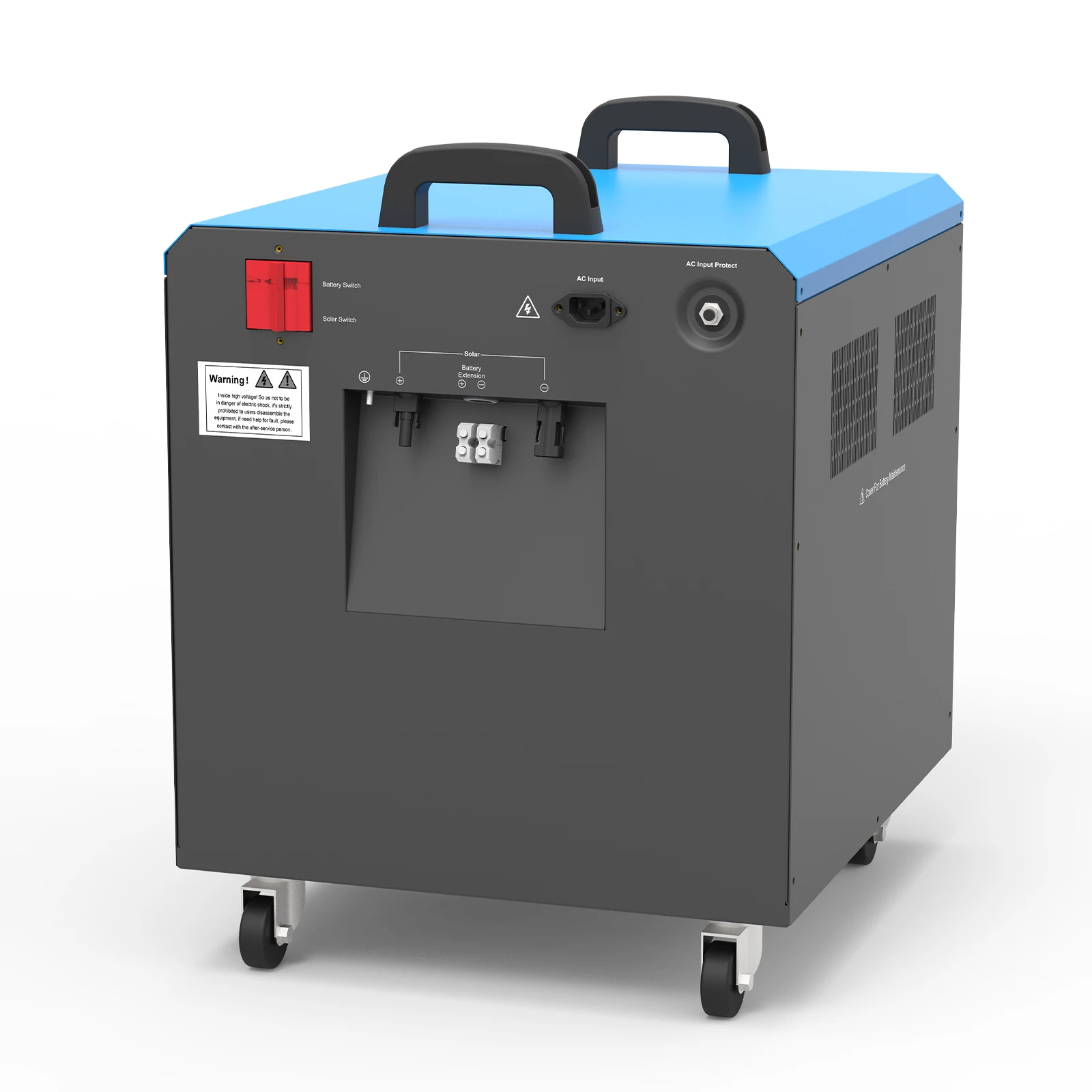

Details Images

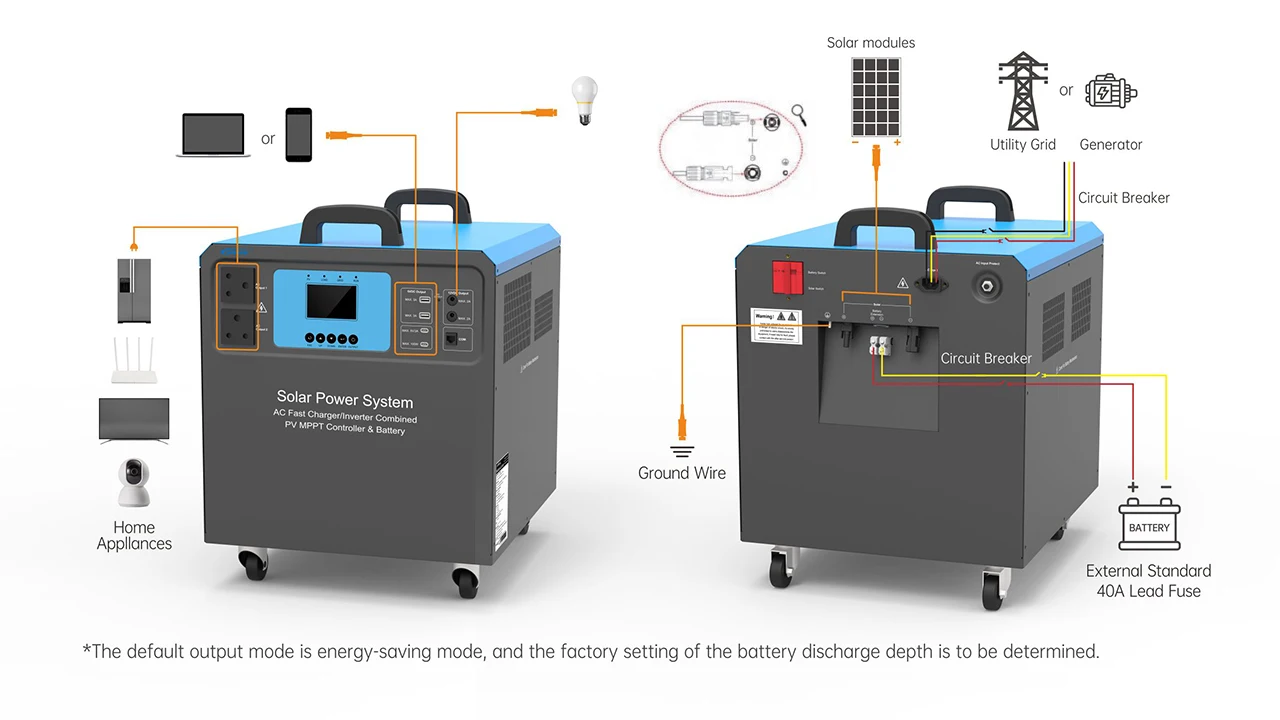

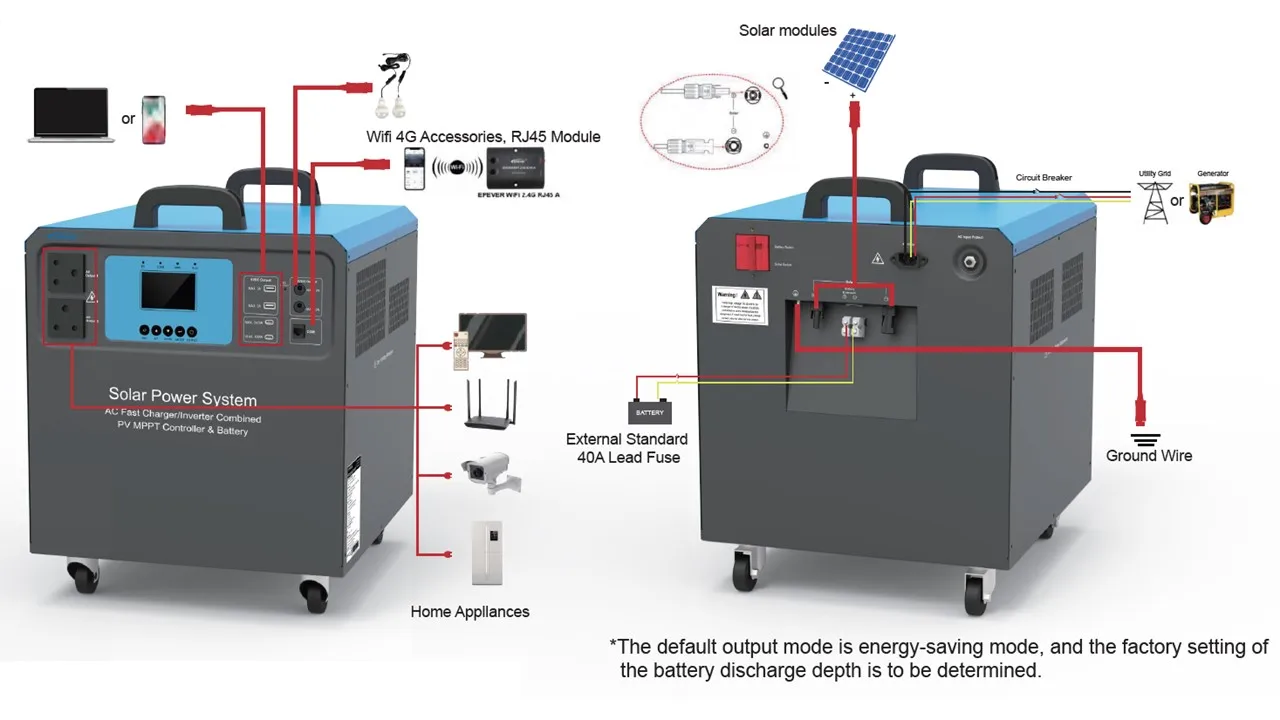

Solar System Connection
Technical Data
Model | HP2 522-AL0315S1 | |
Work Temperature Range | -20℃~55℃(when the environment temperature exceeds 25℃, the charging power and load power will be reduced appropriately; working of full load is not supported.） | |
Enclosure | IP20 | |
Communication Method | RS485（4G, Wifi Optional） | |
LCD | Monochrome LCD, English interface | |
Warranty | 2 years | |
Dimension (Length x Width x Height) | 435X504X574.5mm(Include Wheels And Handles） | |
Weight | 106.5kg | |
Utility Input | ||
Rated Utility Work Voltage | 220V | |
Utility Work Voltage Range | 176V~285Vac | |
Utility Input Frequency Range | 45Hz-65Hz | |
Max. Utility Input Current (Charging + Bypass) | Current for charging 3.5A+bypass load current 11.4A@220Vac | |
Utility Transfer Time (Bypass To Inverter) | Utility Transfer Time(Bypass to Inverter):＜10ms Utility Transfer Time(Inverter to Bypass):0ms | |
AC Input Overload Relay | YES | |
Inverter Output | ||
Continuous Output Power(@25℃) | 2500W | |
Surge Output Power(5s) | 4000W | |
Rated Output Voltage | 220V±3% | |
Rated Output Frequency | Default 50Hz/60Hz settable, erro r ± 0.2% | |
Output Wave | Pure Sine Wave | |
Output Distortion THD | THD≤3%(Resistive Load) | |
Output Soft Start | YES | |
Solar Controller | ||
Max. PV Input Withstand Voltage | 145V | |
Solar Controller Type | MPPT | |
MPPT Efficiency | ＞99.5% | |
MPPT Voltage Range | 30V~120V | |
MPPT Ways | One way | |
Max. PV Output Charging Current | 30A | |
Battery | ||
Battery Type | GEL | |
Rated Battery Voltage | 24VDC | |
Battery Work Voltage Range | 21VDC-32VDC | |
Battery Work Temperature Range | Discharging Mode:-20℃ ~55℃ Charging Mode:0℃~40℃ | |
Rated Battery Capacity | 12V·120Ah*2 | |
DC Output | ||
DC 12V Port | 12V2A* 2pcs | |
USB Port | 5V3A* 2pcs | |
TYPE C Port | Type C-100W * 1pcs (support PD3.0 and multiple protocols) Type C-5V/3A * 1pcs | |
DC Output Switch | YES | |
*Note 1: In any case, if PV input voltage exceeds 95V, the equipment will be damaged, which is not within the scope of warranty. | ||

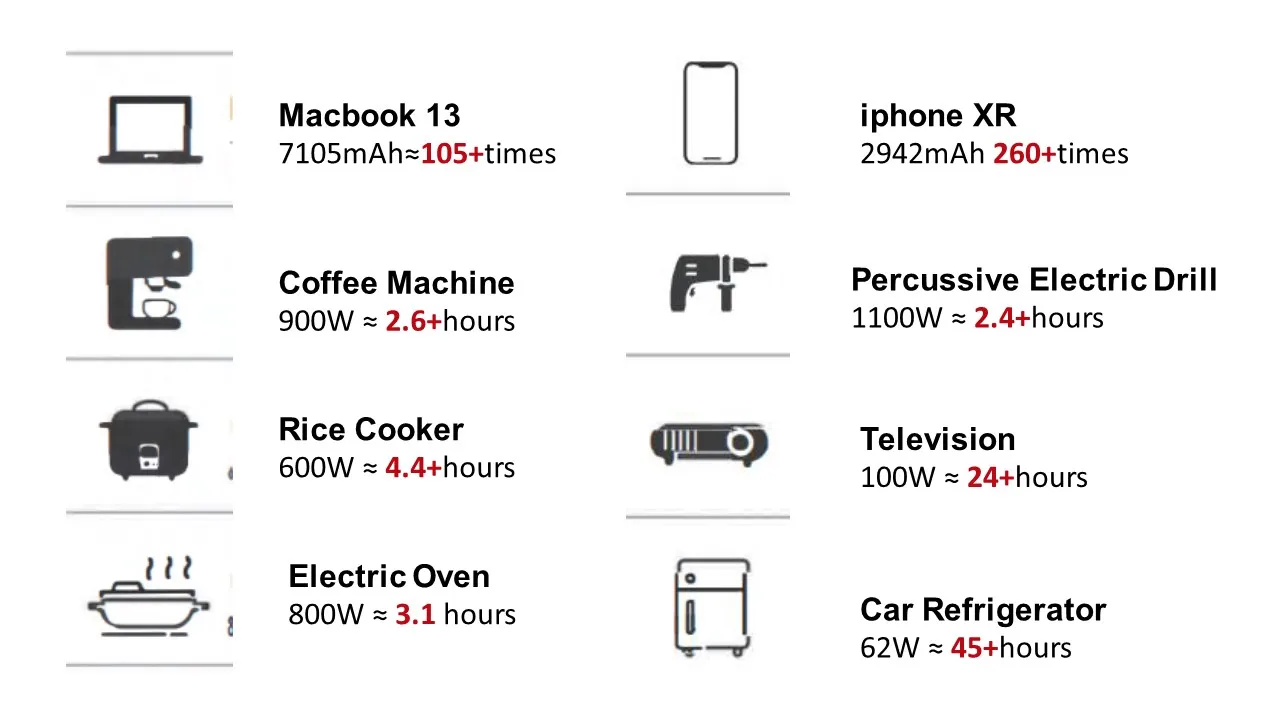

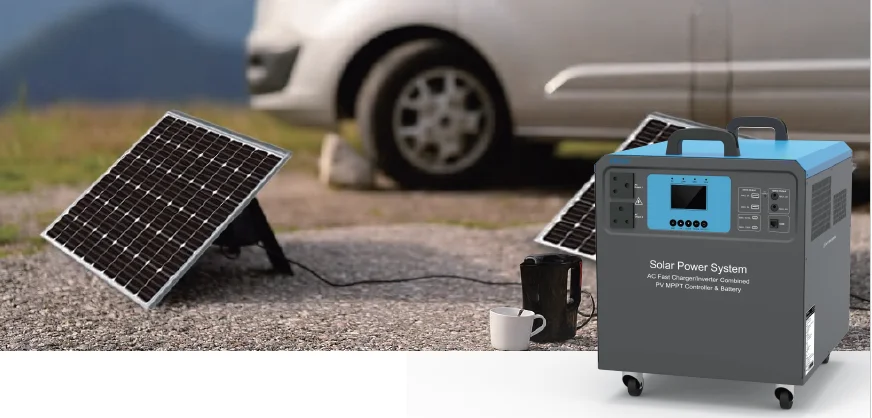

Portable Power Station

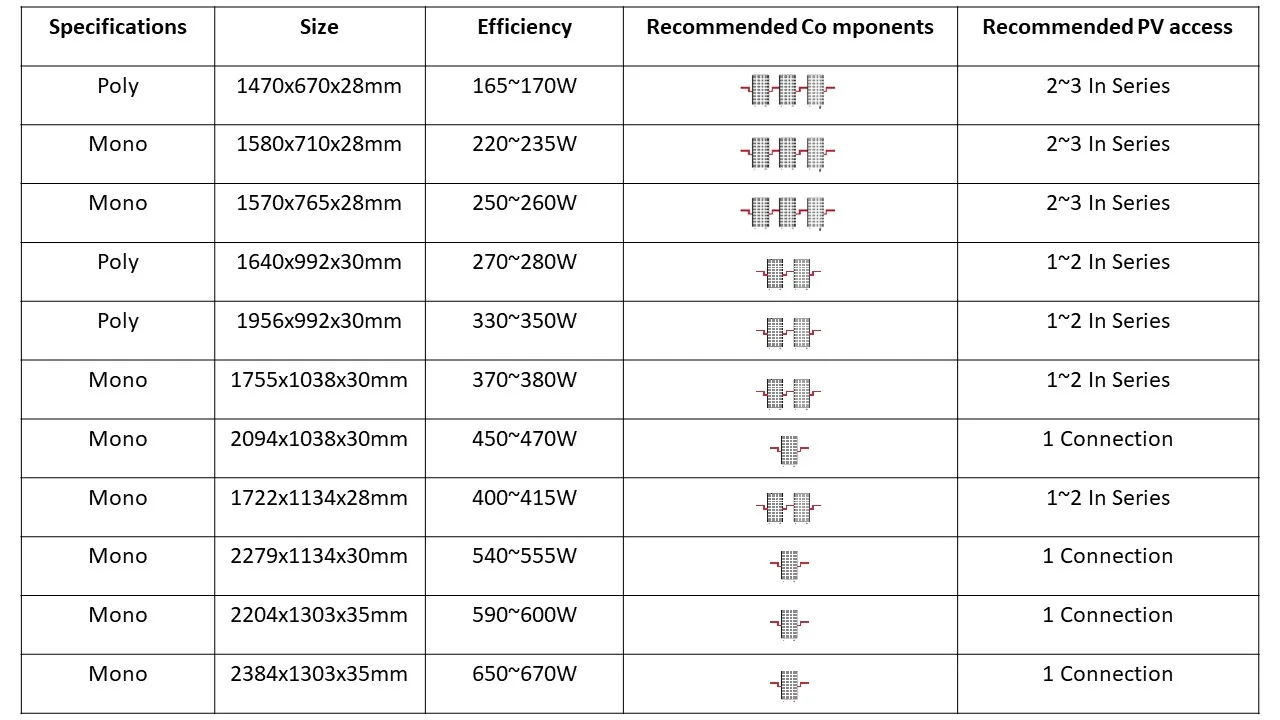

Recommended Component Configuration table
*This meter shall be checked according to the limit open circuit voltage at the lowest temperature, and shall not exceed 95V under any conditions.
