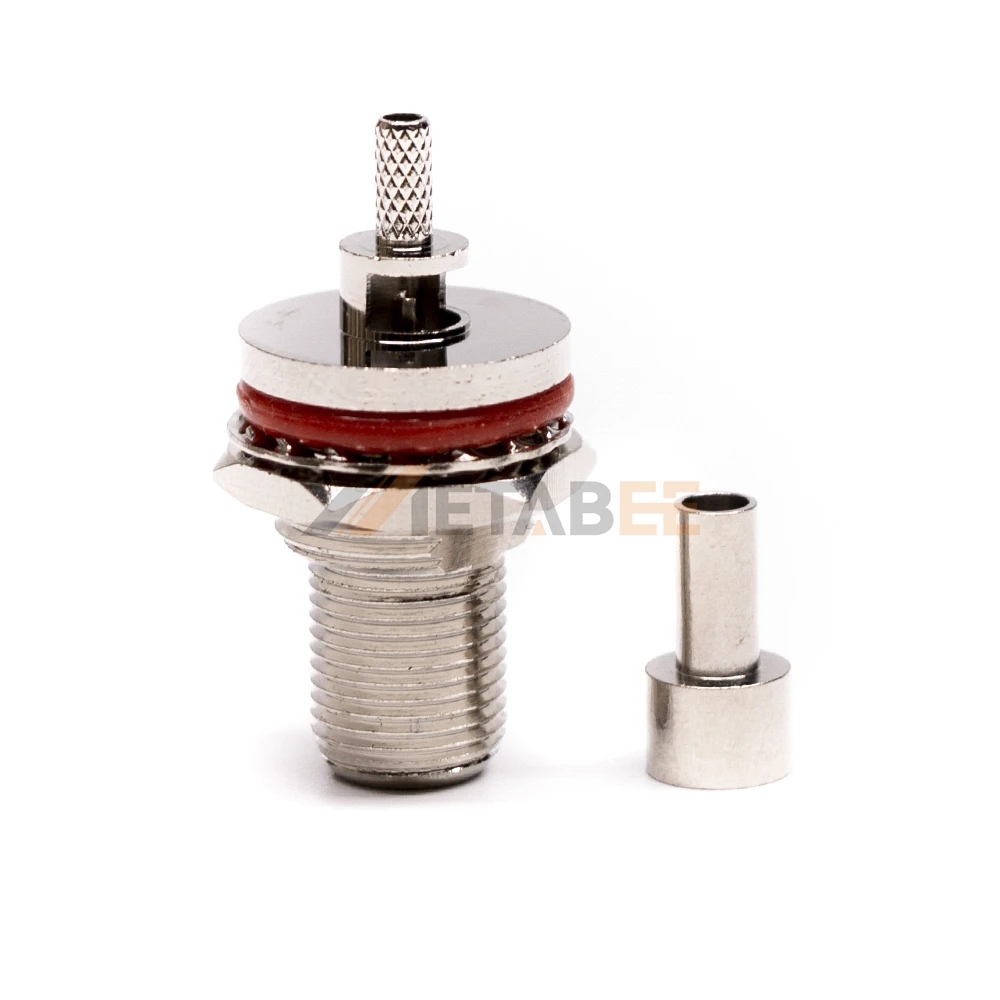

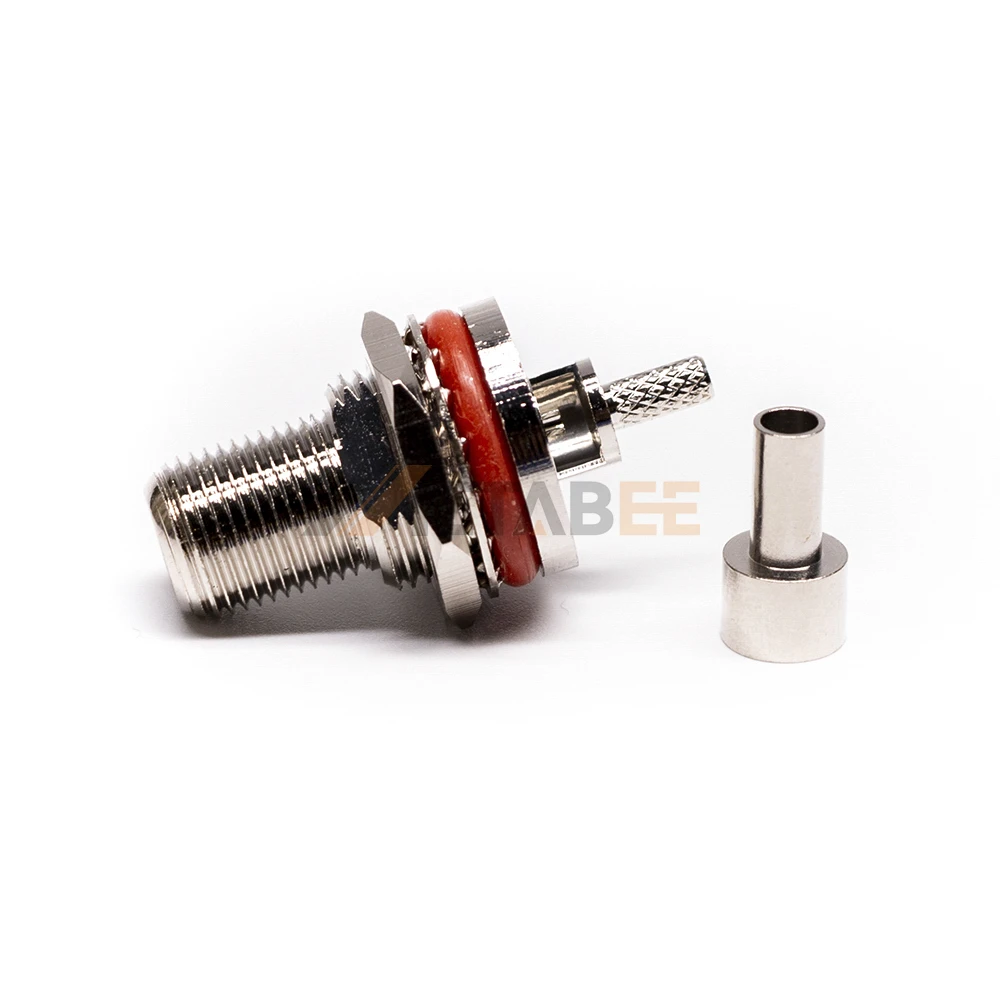

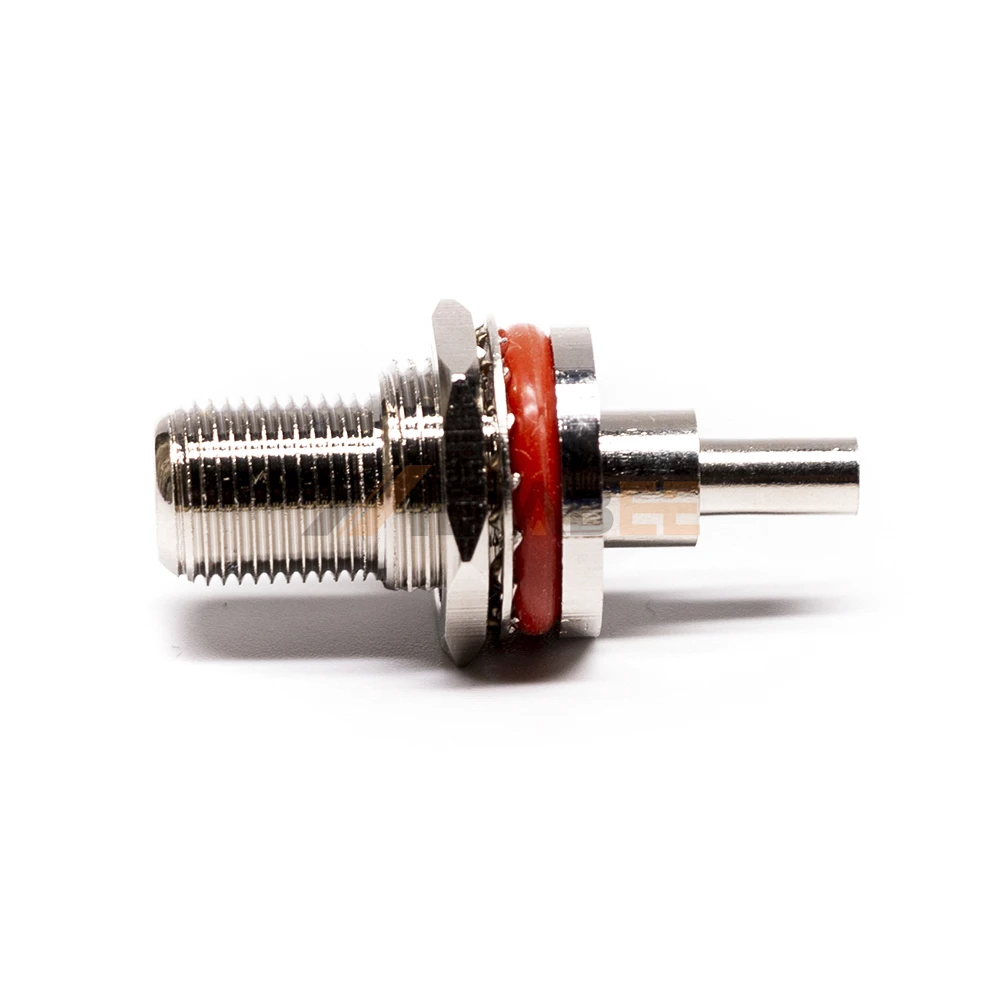

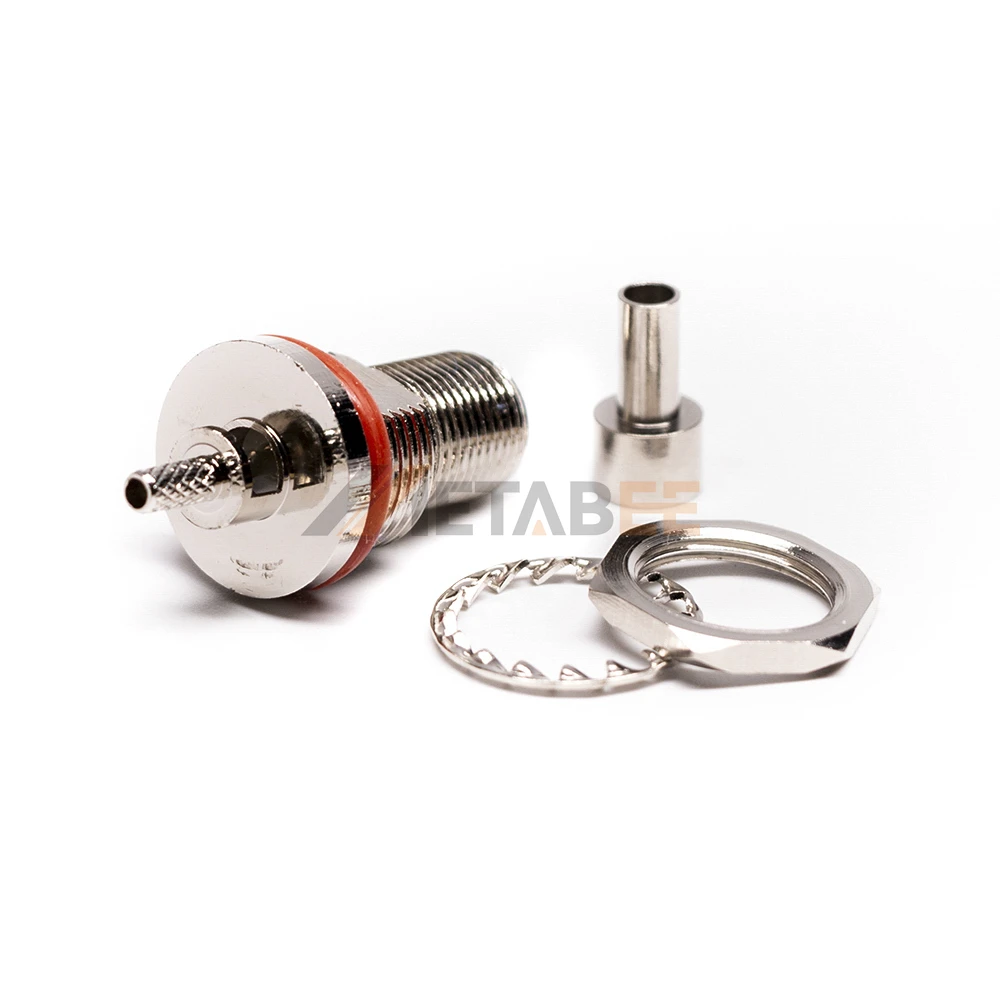

75ohm Nickel Plated Straight F Female Waterproof Connector Crimp for Cable
- Category: >>>
- Supplier: Yuanchuang Shidai (chengdu) Technology Co. Ltd.
Share on (1601281527686):
Product Overview
Description
Products Description
F Type Connectors: Reliable Connection, Stable Transmission
Impedance: 75 Ohm

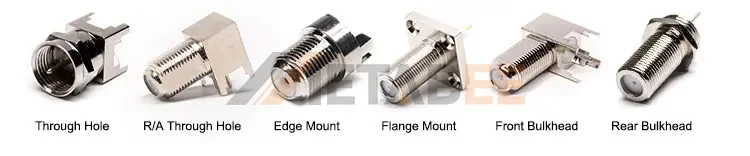

Body Style: Straight Plug | Right Angle Plug | Bulkhead Front Mount | Bulkhead Rear Mount | Straight Jack | Right Angle Jack
PCB Termination Style: Edge Mount | Through Hole

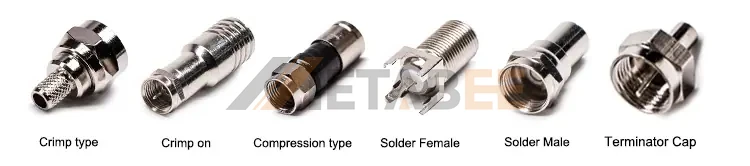

Cable Termination Style: Crimp | Clamp | Solder | Twist On
F Type Connector Features and Benefits
- Cylindrical coaxial contact provides superior RF performance and excellent insertion/withdrawal characteristics
- Multiple PCB mount packages: surface mount, edge mount, right angle and straight, meets many customer application needs
-Accommodates .022-.042 in. diameter conductor sizes
- One connector accommodates a wide range of cable sizes, reducing part numbers
- Multiple PCB mount packages: surface mount, edge mount, right angle and straight, meets many customer application needs
-Accommodates .022-.042 in. diameter conductor sizes
- One connector accommodates a wide range of cable sizes, reducing part numbers
F Type PCB/Panel Connector
F Type Cable Connector
Impedance | 75 Ohm |
Frequency Range | DC - 1 GHz (DC - 3 GHz on Extended Range Designs) |
Voltage Rating | 400 Volts RMS Continuous |
Dielectric Withstanding Voltage | 1200 VRMS Max |
RF Leakage | -100 dB Max @ 1 GHz |
Temperature Range | −40°C to +140°C |
Mating Cycles | 100 Min |
Coupling Mechanism | Threaded |
Interface Specification | ANSI/SCTE |
Mating Torque, Min Working | 1.7 N-m (15 in-lbs) Min |
FAQ
What is an F type connector?
The F-type connector is a coaxial RF connector commonly used for "over-the-air" wireless television, cable television, and general use in wireless television and cable modems. It generally uses RG-6/U-type cable or, in older installations, RG-59/U-type cable.
How to crimp an F type connector?
Crimping an F-type connector requires a specific crimping tool designed for F-type connectors and the connector itself. Here's a general guideline on how to crimp an F-type connector:
1. Strip cable: Following instructions, remove jacket and insulation to expose the center conductor. 2. Connect cable: Slide prepared cable into the connector.
3. Crimp connector: Use the appropriate crimping tool to firmly secure the connector onto the cable (follow tool's pressure instructions).
4. Inspect connection: Visually check for flaws or looseness. Gently tug on the cable for security.
In what fields can F Type connectors be applied?
- Head End Equipment - Set Top Boxes - CATV - High Speed Cable Modems - CIMs - Hybrid Fiber Coax Networks
Application
180+ Countries
30,000+ Project Cases
30,000+ Project Cases
Antennas | Broadcast (75 Ω) | Telecommunications | Automotive | Computers/LANs | Medical Equipment | Satcom | Base Stations | Cable Modems | Instrumentation | Aerospace
