Industrial 1.4GHz Long Range Point to Point Multipoint Mesh Network Radio Wireless Bridge Ethernet Data Transceiver
- Category: >>>
- Supplier: Shenzhen Thingsend Communication Tech Co. Ltd.
Share on (1601281595880):
Product Overview
Description
Product Description

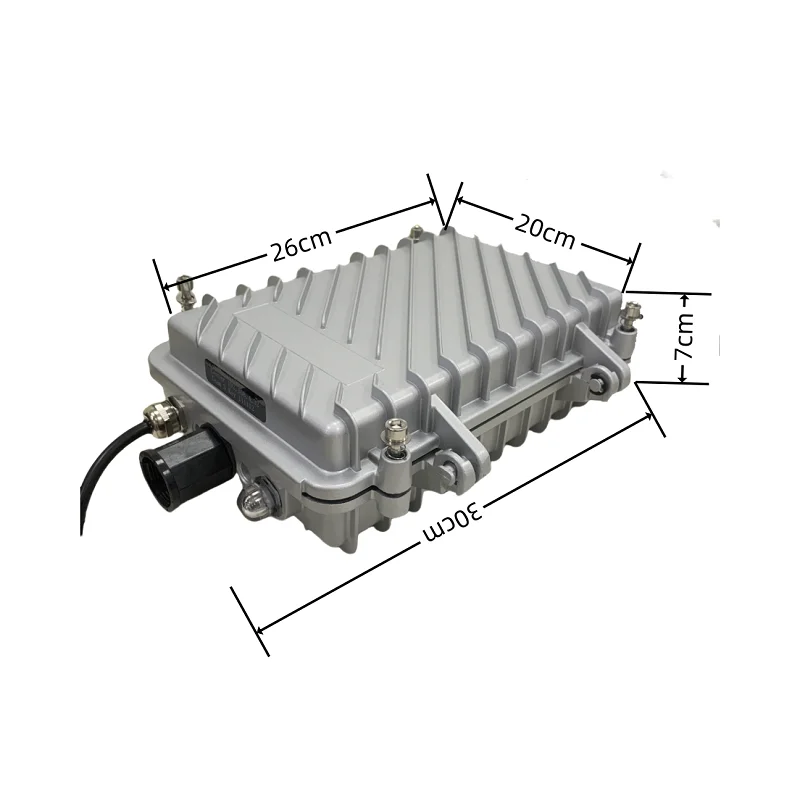

XZ-DT60-5L is a 5W high power Ethernet transparent transmission radio with IP65 cast aluminium waterproof box. The product has a super network self-adaptive function. Users do not need to configure the parameters of the radio. The end-to-end can be understood as an invisible network cable. The product has non-line-of-sight (NLOS) wireless high-speed data real-time transmission, supports point-to-point and point-to-multipoint networking, adaptive wireless bandwidth and signal strength, and timely transmission of up to 30Mbps. The product adopts efficient channel coding and decoding technology, and pays attention to ensuring the safety of the system, has strong anti-multipath interference ability, and supports communication under high-speed mobile state.
Products Features
♦With 2 100M LAN port
♦Support timely high-spped transmission of up to 30Mbps

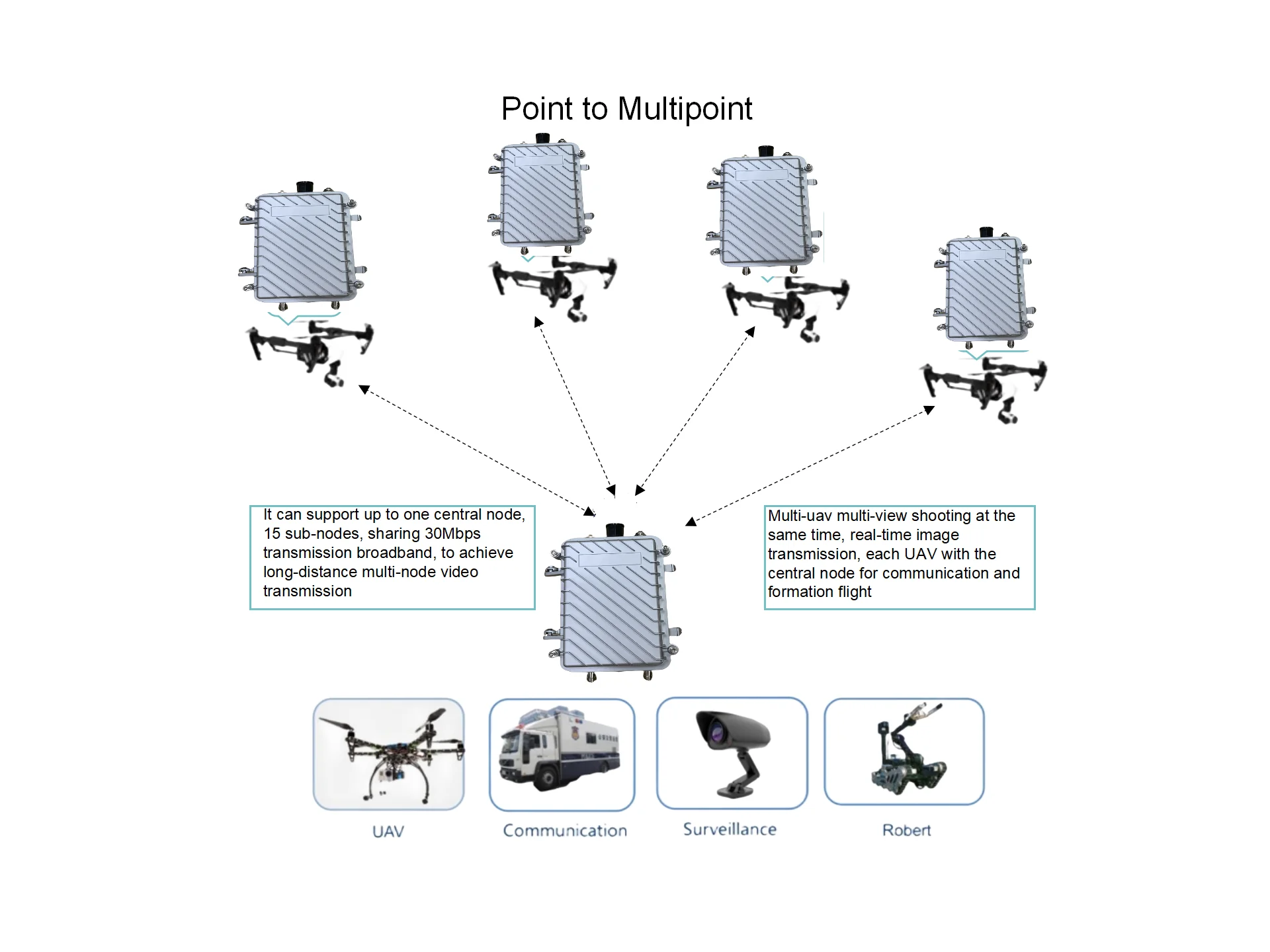

♦Support transparent point to point& point to multipoint network technique
♦Support high-speed mobile signals communication
♦Provide super network self-adaptive function,no need to configure
♦TDD-COFDM technology,with fast-moving,ultra-wideband, and transparent transmission.
♦Strong anti-multipath interference ability
♦Support ZUC,snow3g,AES encryption
♦Support timely high-spped transmission of up to 30Mbps
♦Support transparent point to point& point to multipoint network technique
♦Support high-speed mobile signals communication
♦Provide super network self-adaptive function,no need to configure
♦TDD-COFDM technology,with fast-moving,ultra-wideband, and transparent transmission.
♦Strong anti-multipath interference ability
♦Support ZUC,snow3g,AES encryption
♦ With IP65 cast aluminium waterproof case
Technical Parameters
Power supply： | DC 9±36V@0.5A |
Working frequency： | 1.4GHz（can be customized） |
Output power： | 37dB |
Modulation | TDD-COFDM |
Channel bandwidth | 3/5/10/20MHz |
Transmission bandwidth | at highest 30Mbps |
System latency | ≤30ms |
Data interface | Dual 100M LAN ports |
Transmission Distance | Dense building environment:1.5-3.5km |
Transmission Distance | Outdoor suburban environment:6-8Km |
Open space： 10-20KM |

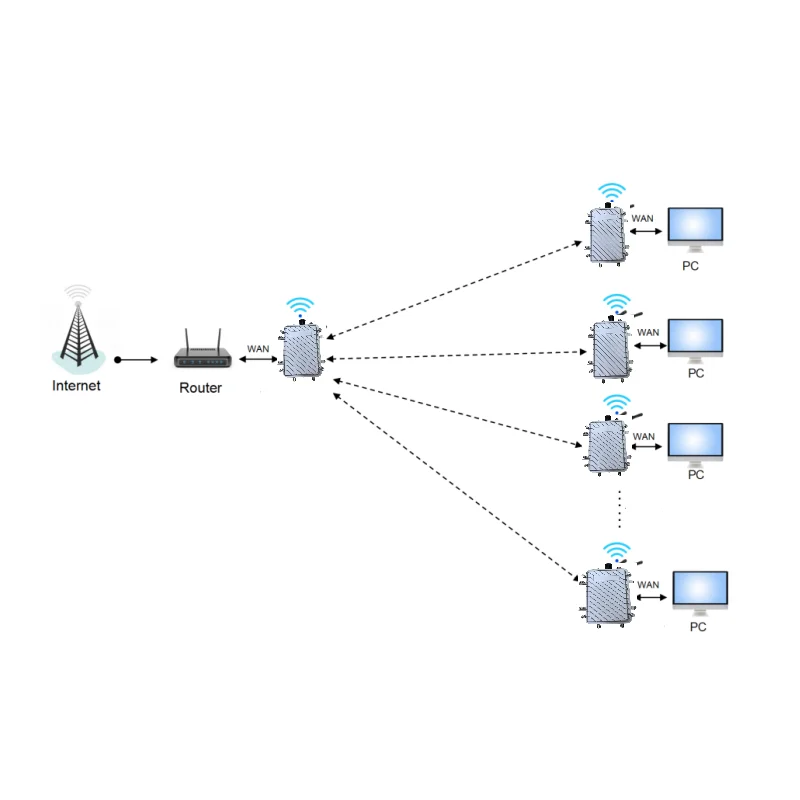

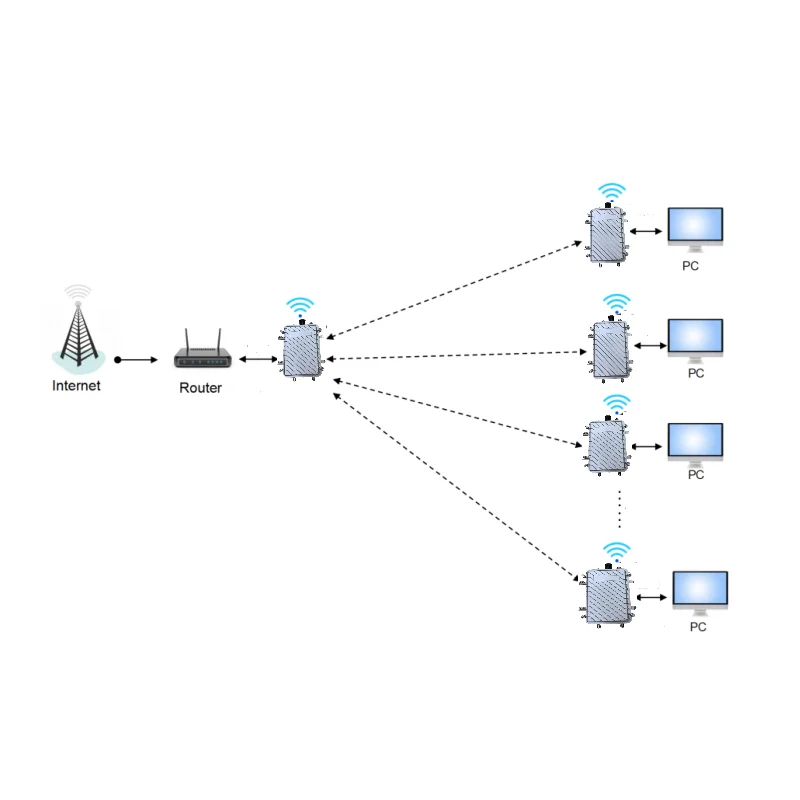

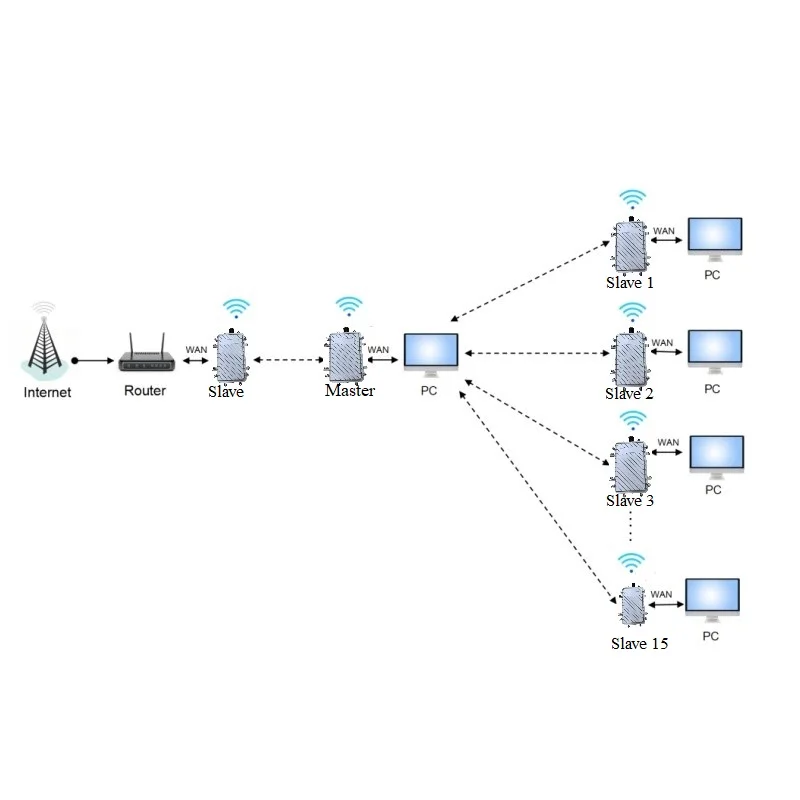

Networking Mode
Company Profile
OUR ADVANTAGES
FAQ
Q1. Is Thingsend manufacturer or a trading company?
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
Q2. Can I customize the product?
A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported.
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
Q2. Can I customize the product?
A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported.
