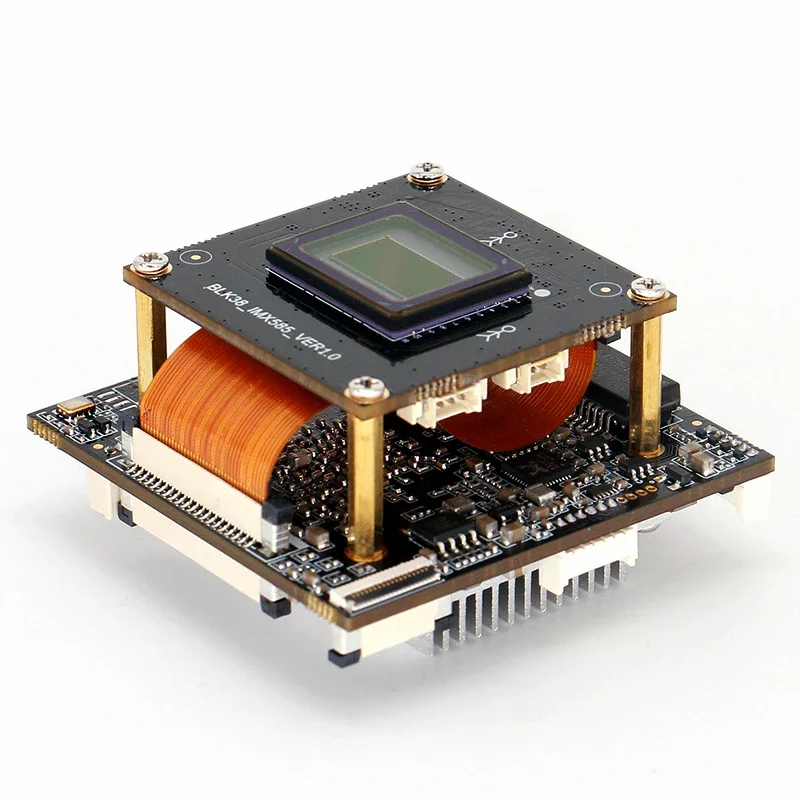

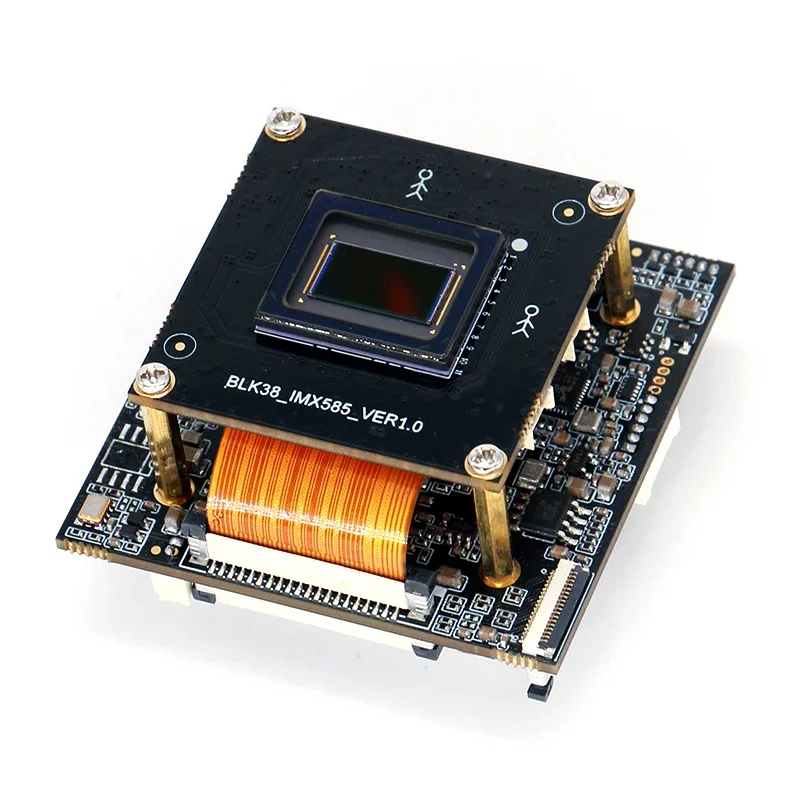

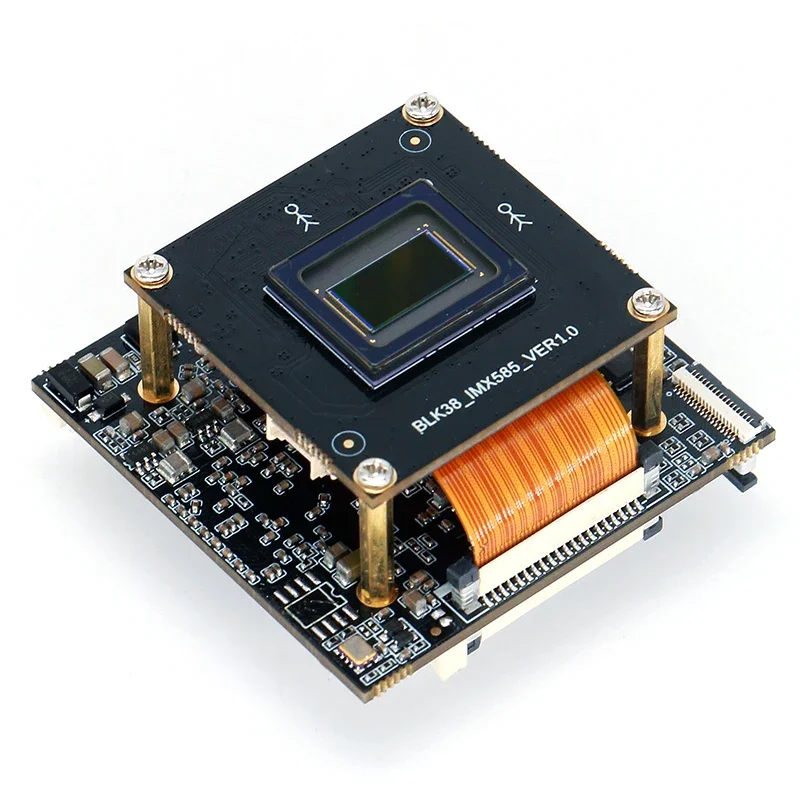

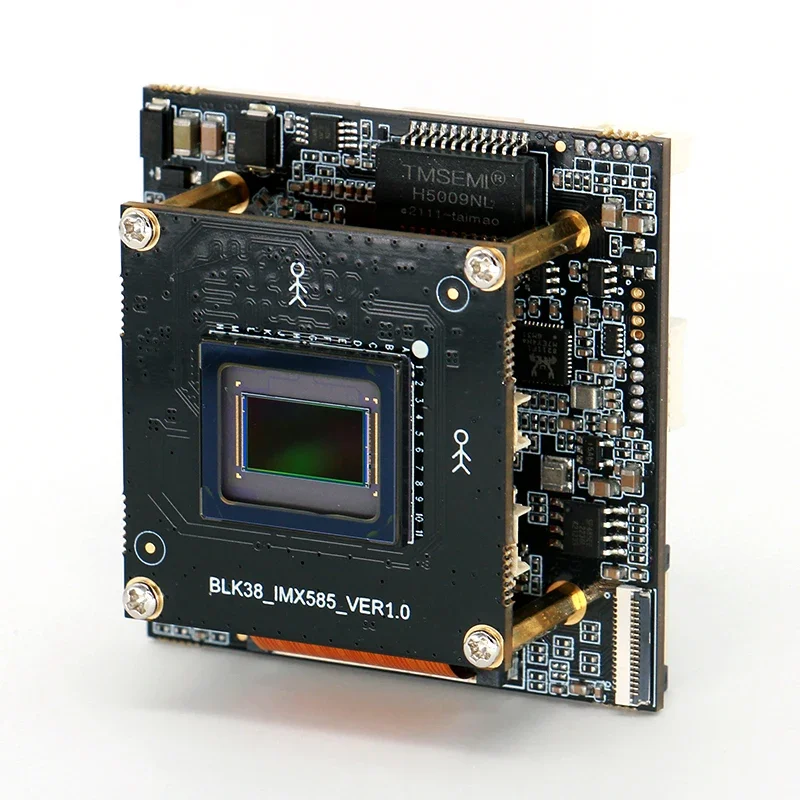

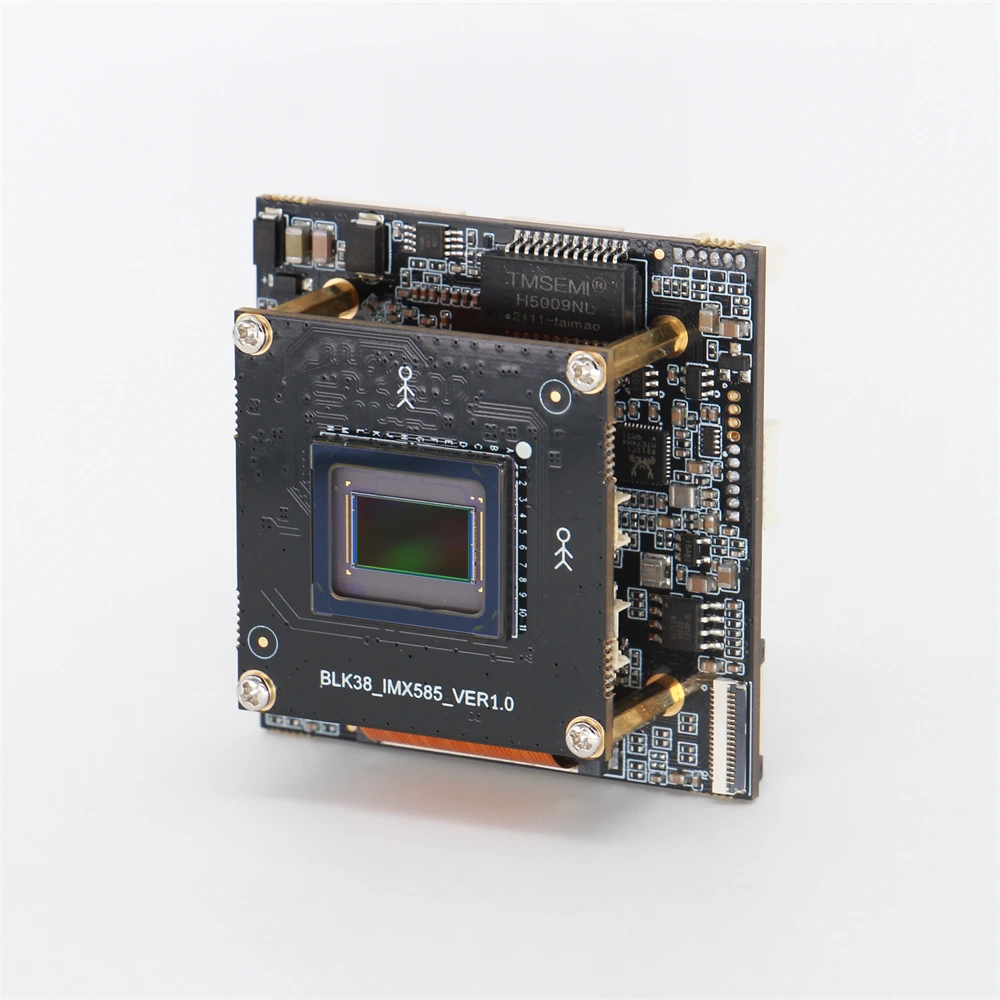

8MP H.265 60fps Super Starlight IP Camera Module High CCTV WiFi Camera Module OpenIPC SIP K585U2
- Category: >>>
- Supplier: Shenzhen Smart Technology Co. Ltd.
Share on (1601281634825):
Product Overview
Description
IP Camera Module
Ultra 8MP STARVIS 2 H.265 4K 8mp 60fps Super Starlight IP Camera Module High CCTV 4K Camera Module Optional HDMI
Model: SIP-K585U2
Model: SIP-K585U2
Product Description
- Highlights
> IMX585+SSD3402
> 1/1.2"SONY CMOS, 8.0mp 60fps

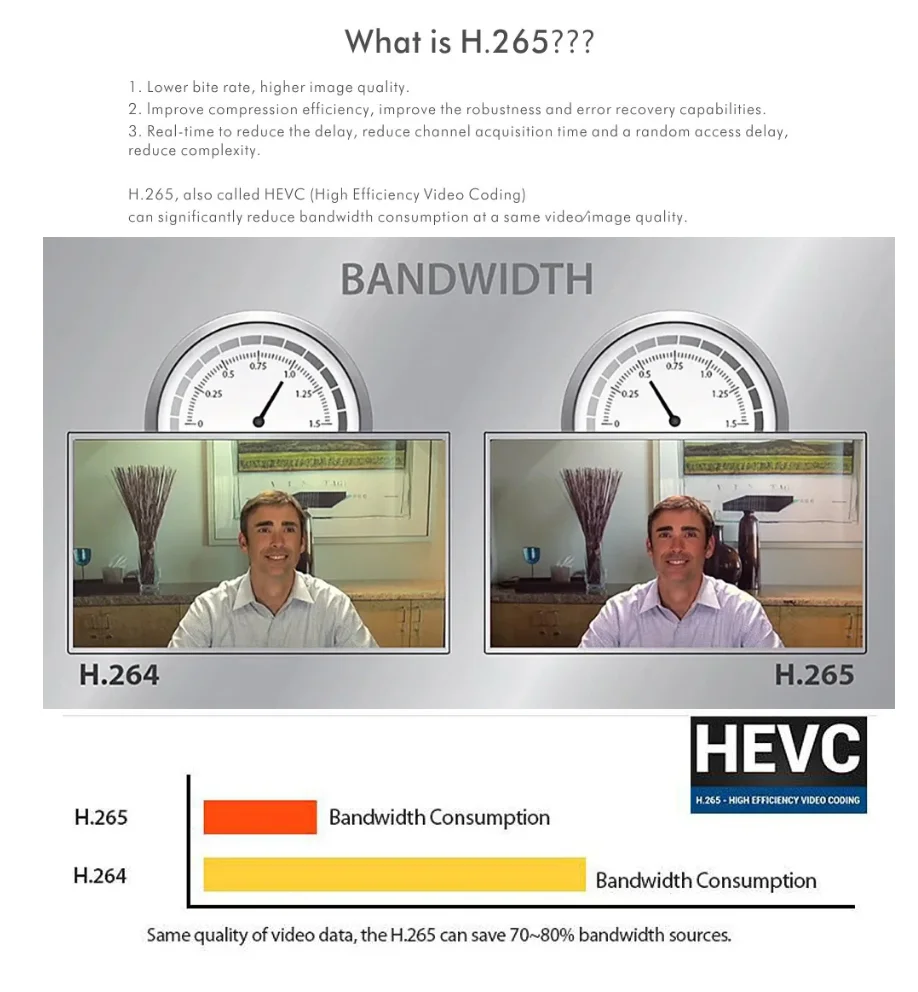

> H.265+/H.265/H.264/MJPEG
> DWDR,3DNR,Lens Correction,WB
> ONVIF,API,SDK,GB28181,CGI,RTSP
> Supports three streams and multiple resolutions
> Support for SMART LEDs
> Adjustable shutter, image, menu, etc.
> Support audio, USB,UART,Reset.
> Support RS485,Auto IRIS Lens
> Support character overlay
> Support Google Chrome
> Mobile phone monitoring(optional);
> Support custom development
> HDMI Output (optional)
Model | SIP-K585U2 |
Camera Type | H.265 4K 8.0mp Super Starlight IP Camera Module |
Camera | |
Image Sensor | 1/1.2" SONY IMX585 CMOS Sensor STARVIS 2 |
Effective Pixels | 3840 (H) × 2160 (V) approx. 8.29M pixel |
DSP | Hi3519AV200/SD3402/SS927,Quad-core ARM Cortex A55 1.4GHz,2.5Tops INT8 |
Min. Illumination | Color: 0.0001Lux F1.2(AGC ON), B/W: 0Lux(IR ON) |
S/N Ratio | ≥50dB(AGC OFF) |
Lens Mount | C Mount |
Ir-Cut | Support |
Day/Night | Color/B&W/Auto |
Smart IR/white light | Support |
Light mode | Low Level/High Level/PWM |
WDR | ≥120dB WDR |
3DNR | Support |
Tonal | Available to set |
Brightness | Available to set |
Sharpness | Available to set |
Contrast | Available to set |
Saturation | Available to set |
Gamma | Available to set |
BLC | Available to set |
Mirror image | Open/Close |
Flip | Open/Close |
HLC | Open/Close |
Video Format | PAL/NTSC |
Lens Correction | Open/Close |
Dehaze | Open/Close |
Exposure Strategy | Highlight Priority/Low Light Priority/Auto |
Exposure Mode | Auto / Manual |
AutoExposure Time | Auto / Manual(1/12s-1/8000s) |
Slow Shutter | Open/Close |
Gain Mode | Auto / Manual |
White Balance Mode | Auto/Manual/White Balance Scene Adjustable/White Balance Style Adjustable |
OSD Settings | Code stream information/display week/display time/channel title/watermark overlay |
OSD Display | Color/size/position adjustable |
Video/Audio | |
Video Coding | H.265+/H.265/H.264 |
Encoding Scheme | Baseline/Main Profile/High Profile |
Resolution | Main stream:3840X2160,2880X1620,2560X1440,1920X1080(1-60fps) |
Sub Stream/Three Streams:D1, VGA, (1-60fps) | |
Frame Rate | 1-60fps |
Bit Rate | 32Kbps-16Mbps |
Bitrate Type | Support VBR/CBR |
Audio Compression | G.711U/ G.711A/G.726/AAC |
Audio Input Mode | Mic In/Line In |
Audio Input Gain | Available To Set |
Audio Output Gain | Available To Set |
Echo | Open/Close |
Network | |
Data Storage | Video Record, Picture Format |
Trigger | Manual, automatic (motion detection, alarm, time) |
Alarm Data Transmission | Websocket, FTP, Browser |
Network Protocol | HTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SSL/TLS,UPNP,PPPOE,etc. |
Transfer Protocol | ONVIF/GB28181/SDK/CGI/WEBRTC |
Number Of Client Visits | Support 8 Users Login At The Same Time |
Browser | IE/Edge/Chrome/Firefox |
Network Lost Recording | Supports |
Motion Detection | Supports 4 Area |
Hide Detect | Supports 4 Area |
Interface | |
Network Interface | 100M/1000M Adaptive Ethernet Port |
Audio Input | 1Ch Audio Input |
Audio Output | 1Ch Audio Output |
USB interface | 1 USB2.0 interface (5V power supply), support extended 4G/WiFi function |
Uart port | 1Ch |
Reset interface | Support |
RS485 | 1Ch |
Auto IRIS Lens | Support |
Smart Phone | iPhone,iPad, Android |
TF storage function | Maximum Support 512G |
CVBS Output | 1 CH CVBS Output |
HDMI Output | 1 CH HDMI Output |
Wifi | Support 802.11bgn |
4G Function | Support 4G Cat.1, rate up to 10Mbps |
POE | IEEE802.3af/at |
Smart function | Support humanoid detection/area intrusion/flame detection/electric vehicle detection/license plate detection |
Function customization | Support function customization development, platform protocol docking, algorithm customization transplantation, hardware and software development |
General | |
Power Supply | DC12V1A |
Power Consumption | <3W |
Working Environment | -20°C~+60°C , Less Than 90% Rh |
Product Size(L/W/H) | 38X38+50X50mm |
Net Weight | 0.1KG |
Custom Sensor Selection
In all fields, a high level of technology is required, requiring high resolution, and low power consumption. Our well-trained R&D team would provide satisfying camera modules pro type and great support according to your application, from design to manufacturing, we offer a one-stop service so u could focus on what you are good at.
In all fields, a high level of technology is required, requiring high resolution, and low power consumption. Our well-trained R&D team would provide satisfying camera modules pro type and great support according to your application, from design to manufacturing, we offer a one-stop service so u could focus on what you are good at.
Resolution | 2MP，4MP，5MP，8MP，12MP |
Sensor | GC2053，GC2063，IMX307，IMX327，GC4653，IMX335，IMX347，IMX385，IMX485，IMX412，IMX226，IMX178 |
Size | 1/1.2"，1/1.8"，1/2.3"，1/2.8"，1/2.9"，1/3" |
Frame Frequency | 20fps，25fps，30fps，50fps，60fps，90fps，120fps |
DSP model | GK7205V200，GK7205V300，GK7605V100，Hi3516CV500，Hi3516DV300，HI3516AV300，HI3519AV100，SD3403，SD3402，Hi3516CV300，Hi3516DV100，HI3516AV100，HI3519AV101 |
Lenses / Custom Filter/FoV Options
From the field of view, it could be divided into ordinary lenses (about 50 degrees to 70 degrees), wide-angle lenses,ultra-wide-angle lenses and fisheye lenses.
From the field of view, it could be divided into ordinary lenses (about 50 degrees to 70 degrees), wide-angle lenses,ultra-wide-angle lenses and fisheye lenses.
The field of view of the wide-angle lens is generally around 80°, which is mainly used for shooting general scenes. The ultra-wide-angle lens is used for shooting scenes such as landscapes, buildings, and group photos. The fisheye lens is an extreme wide-angle lens and the view angle even reaches 180°, the diameter of the lens is very short and protrudes outward, similar to the eyes of fish, and is widely used in the fields of scene monitoring, robot navigation and measurement.
According to your FOV request, flexibly match the most suitable lens, a wide selection of view angles such as :
Diagonal (°) | Vertical (°) | Horizontal (°) |
180 | 180 | 180 |
170 | 161.1 | 166 |
120.0 | 90 | 111.1 |
115.2 | 81.2 | 102 |
107.1 | 73.9 | 95.1 |
90.5 | 61.9 | 82.4 |
80.1 | 53.1 | 73.7 |
63.4 | 37.8 | 54.4 |
46.8 | 27 | 39.6 |
34.4 | 19.5 | 28.8 |
Related Products

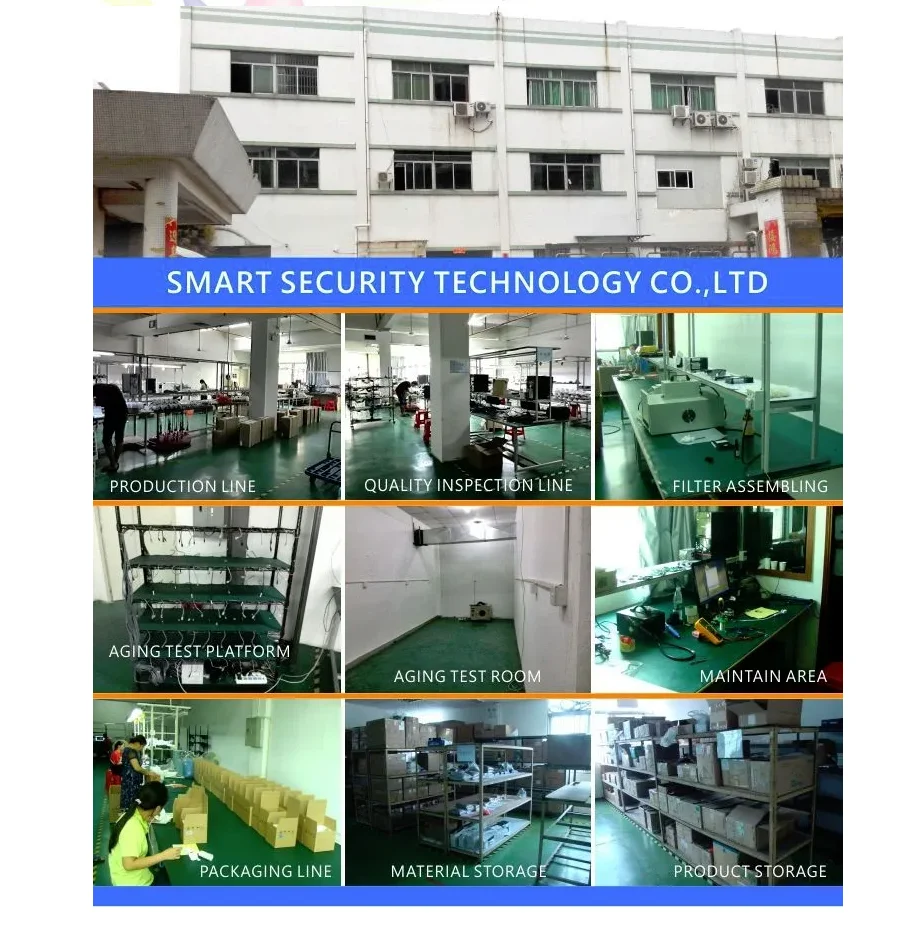

Company Introduction
