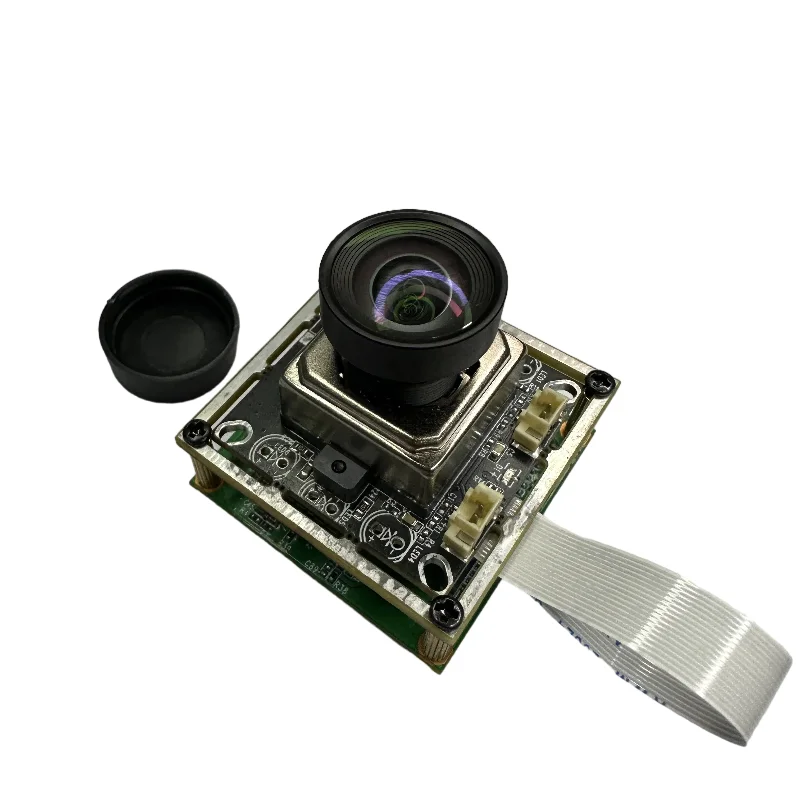

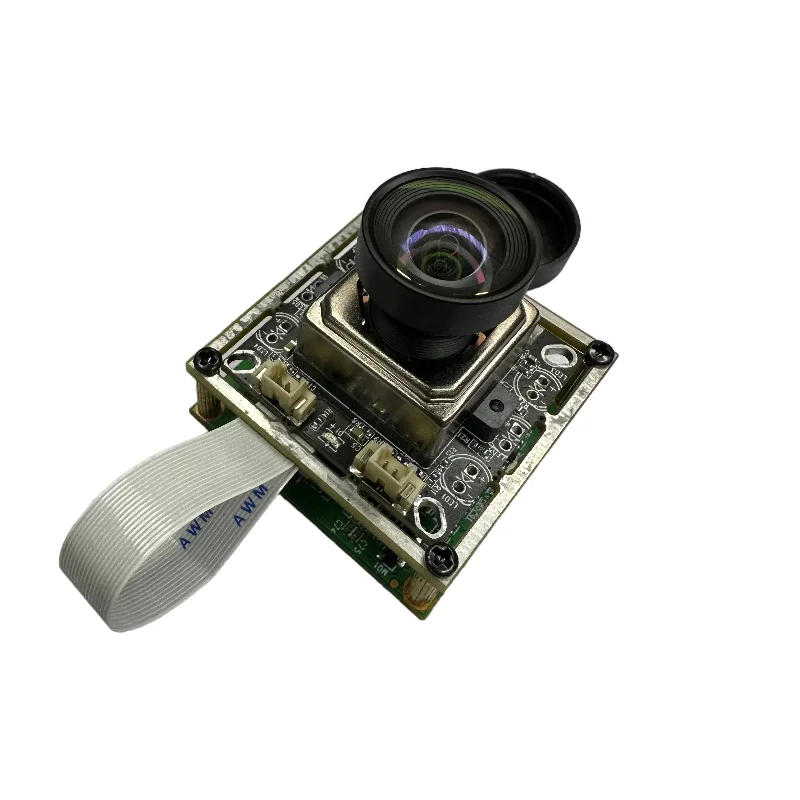

48MP HD Camera Module with Imx586 Sensor USB Free Drive for Industry Detection
- Category: >>>
- Supplier: Shenzhen Hstd Improt&export Co. Ltd.
Share on (1601281666854):
Product Overview
Description
Product Description
- 48MP Ultra-HD Imaging:Equipped with the IMX586 sensor, it delivers 48-megapixel ultra-high-definition imagery with crisp details and realistic visuals.
- Industrial-Grade Detection Accuracy:Specifically designed for industrial inspection, ensuring high-precision image capture to meet the needs of various industrial applications.
- USB Plug-and-Play without Driver Installation:Supports USB interface with driver-free installation, enabling easy and quick connection to enhance work efficiency.
- High-Performance Image Processing:Incorporates advanced image processing algorithms to optimize color rendition and noise reduction, enhancing image quality.
- Stable and Reliable Performance:Manufactured with high-quality materials and advanced craftsmanship to ensure long-term stable operation and minimize failure rates.

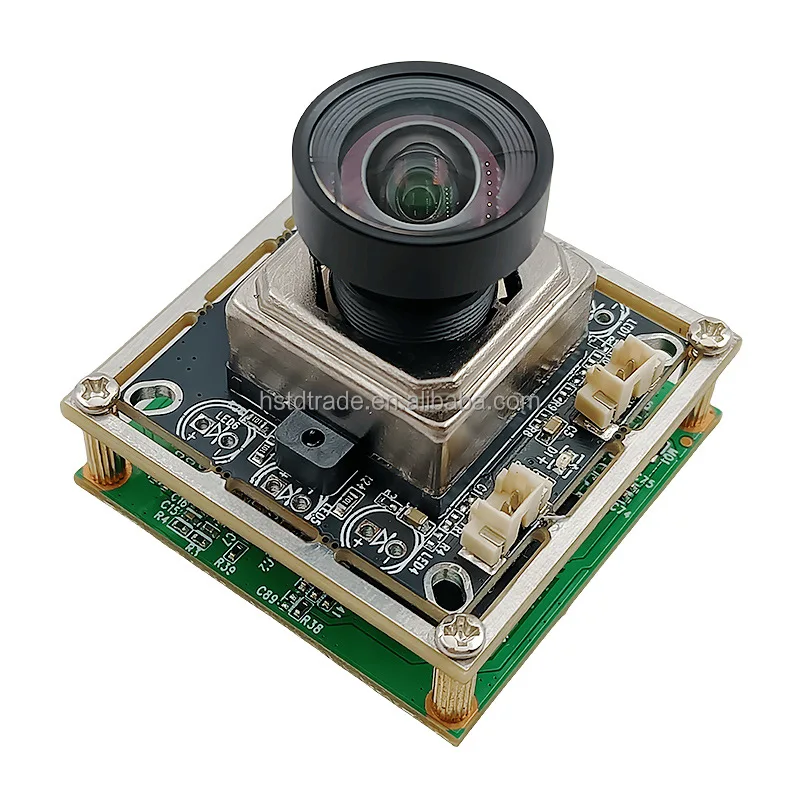

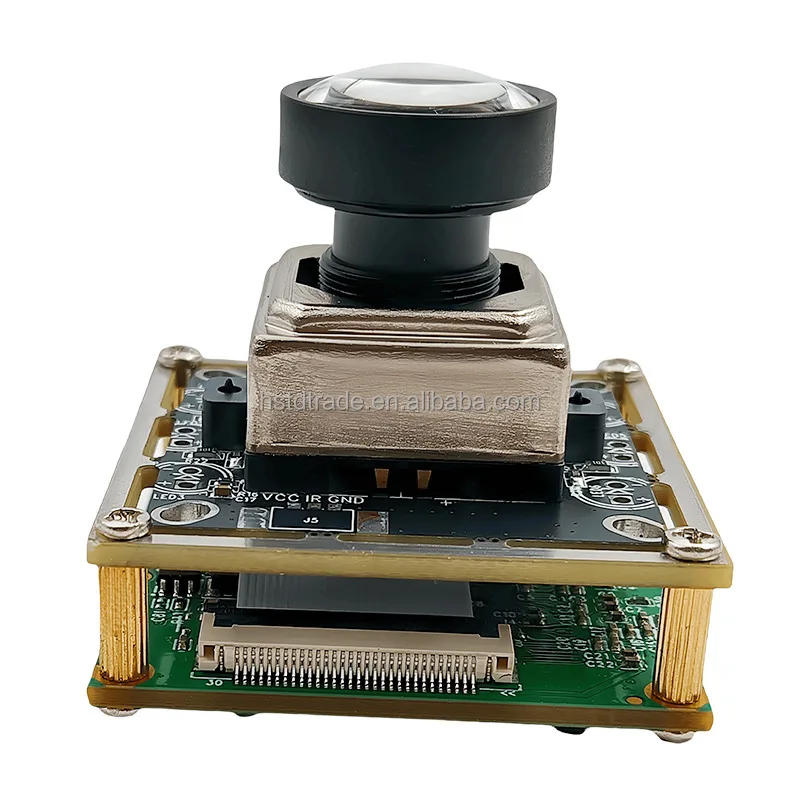

Detailed Photos
Product Parameters
| Module No | HSTD-IMX586-U48M-V1.0 | |
| Module Size | L38.00mm × W38.00mm × H35mm (customizable size) | |
| USB power supply voltage | DC5V±5% | |
| Digital interface | USB 2.0/480Mb/s SMD-5Pin-1.25 pitch (customizable) | |
| Temperature (Operation) | -20°C to 70°C | |
| Temperature (Storage) | -40°C to 75°C | |
| Assembly technique | Panel position: The camera is in the center of the board | |

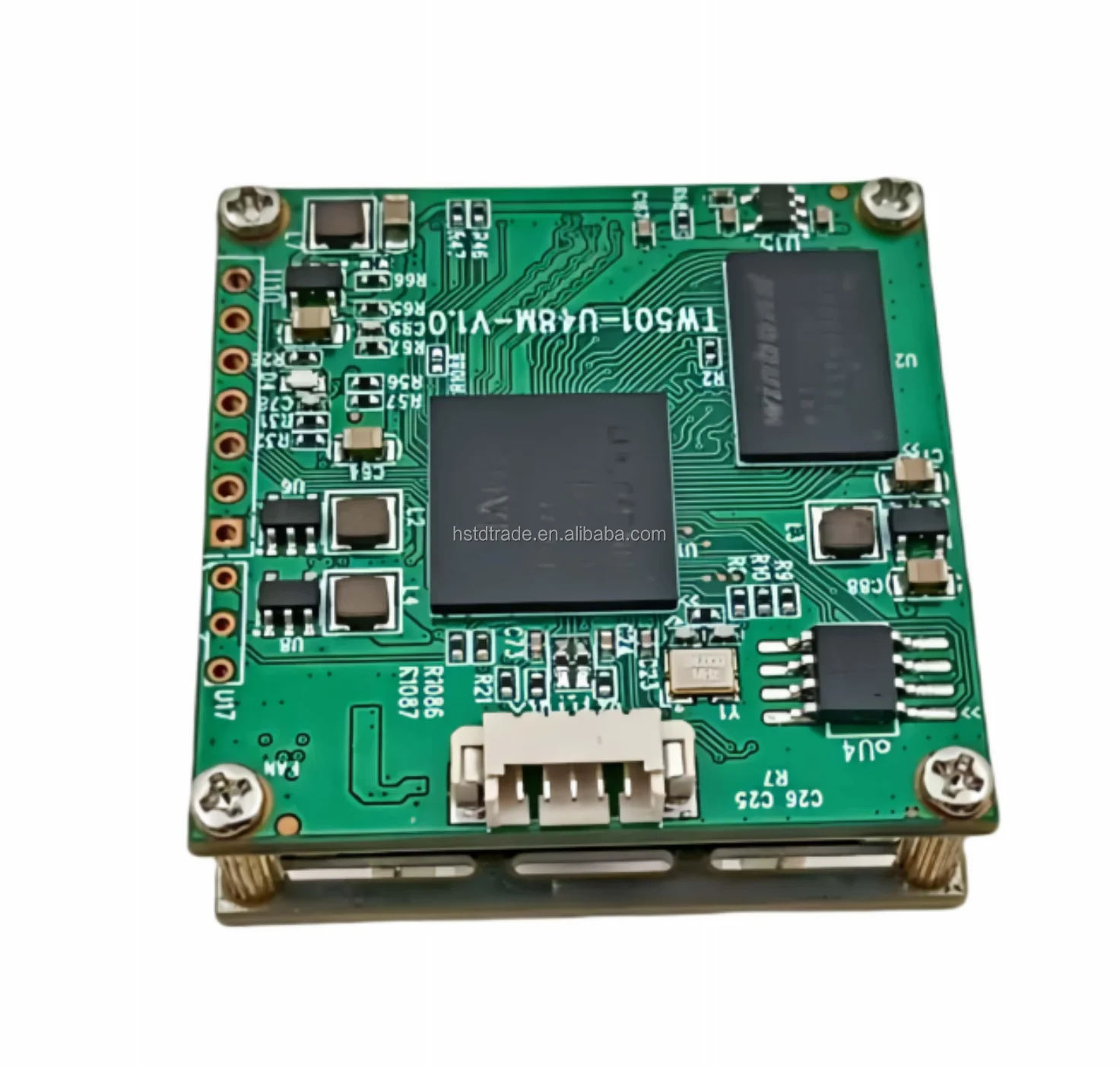

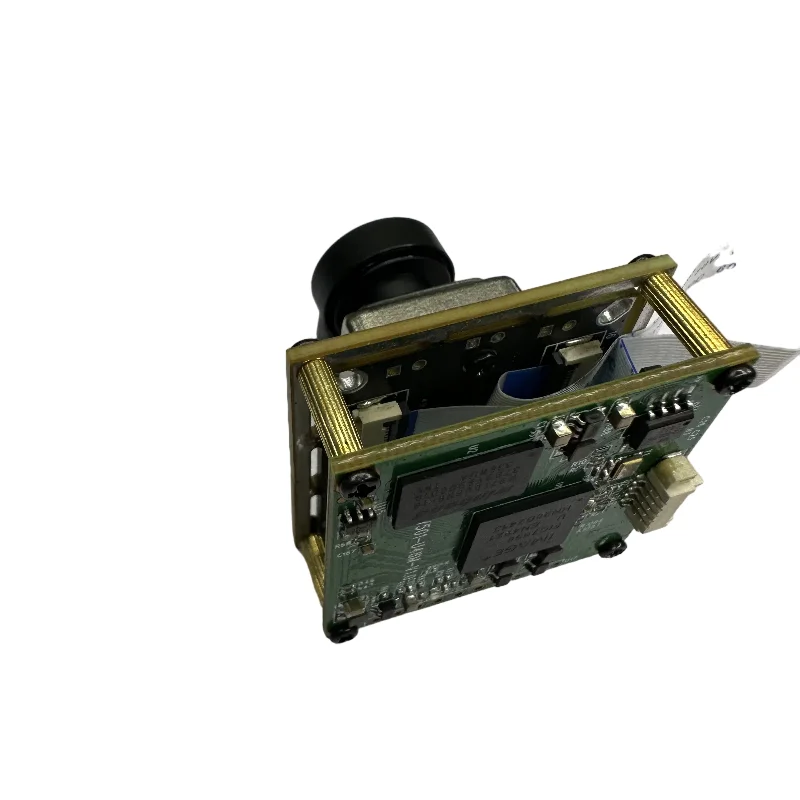

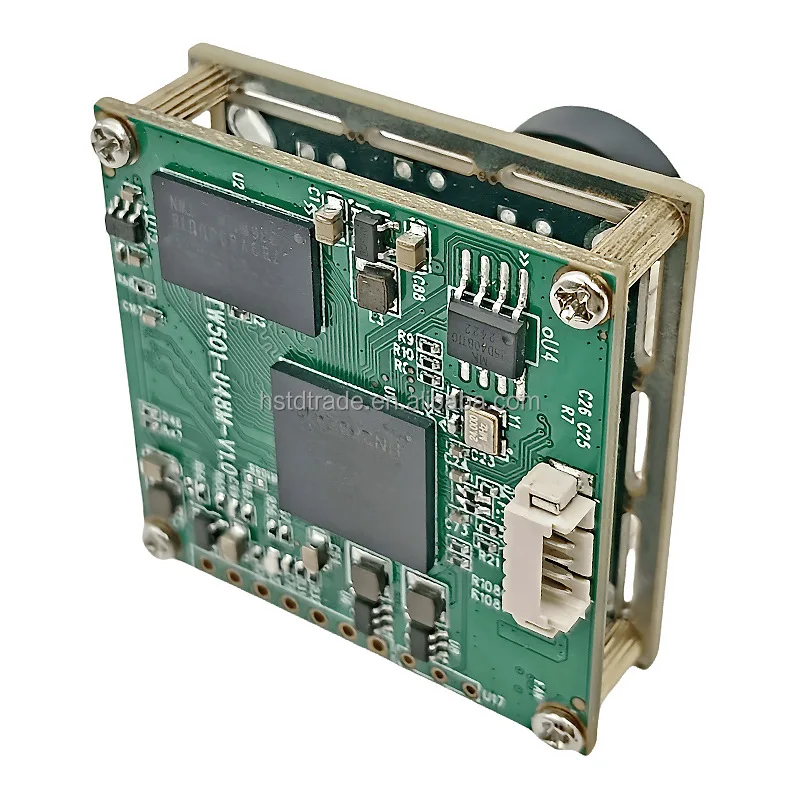

| PCB main control board + PCB sensor board stacked board | ||
| Technical process | Black /CE RoHS | |
| Object distance | Shooting distance: customizable distance range | |
| Applicable motherboard | All systems supporting UVC protocol | |
| Applicable screen | Horizontal and vertical screen | |
| MIC output | Dual digital microphones | |
| System compatibility | Compatible with Windows 32-bit / 64-bit (SP2, SP3) Windows XP/Vista/Win7/Win8/Win10/Win11, Linux with UVC (above linux-2.6.26), MAC-OS X 10.4.8 or OS with UVC driver, Android 4.0 or higher system devices. | |
| Sensor Type | RGB(1/2” ) IMX586 | |
| Support the compression formats | MJPEG, | YUY2 |
| Pixel Size & Image Frame Rate | 8000x6000at 5fps | 4000x3000at 5fps |
| 4000x3000at 15fps | 3840x2160 at 5fps | |
| 3840x2160 at 30fps | 2560x1400 at 5fps | |
| 2560x1400 at 30fps | 1920x1080 at 15fps | |
| 1920x1080 at 30fps | 1280x960 at 15fps | |
| 1280x960 at 30fps | 1280x720 at 30fps | |
| 1280x720 at 30fps | 1024x768 at 30fps | |
| 1024x768 at 30fps | 640x480 at 30 fps | |
| 640x480 at 30 fps | ||
| Max Dynamic range | The 83DB is able to capture details in both highlight and low-light areas. | |
| SNR | 36DB camera can provide clear images even in low light environment | |
| ISP Processing | Support 2D image noise reduction | |
| AGC/AEC/Whiter balance | (auto control) | |
| Min. Illumination | ≥0.2LUX | |
| Analyze the value | 1800LW/PH(center)/1200LW/PH(center) | |
| The focus speed | 200ms | |
| Sensitivity | 1.4V/lux-sec@550nm,Capture high-quality images even in lower light conditions.. | |
| Fixed Pattern Noise | < 0.03% of VPEAK-TO-PEAK | |
| Shutter type | Electronic rolling shutter / Frame exposure | |
| Power supply refresh frequency | 50HZ&60HZ | |
| Lens Construction | RGB:8GP+IR650nm | |
| Lens size | 45293 | |
| FOV | D: 85°/ H:79°/ V:73°(Customizable) | |
| F/No | 3.0mm(Customizable) | |
| EFL | 3.2mm(Customizable) | |
| LED Control Mode | Can light up when the image is displayed or always light up/NC | |
| Line length | 1.5 meters (other lengths can be customized)/NC | |
Certifications
Packaging & Shipping
Installation Instructions
FAQ
Q: Who we are?

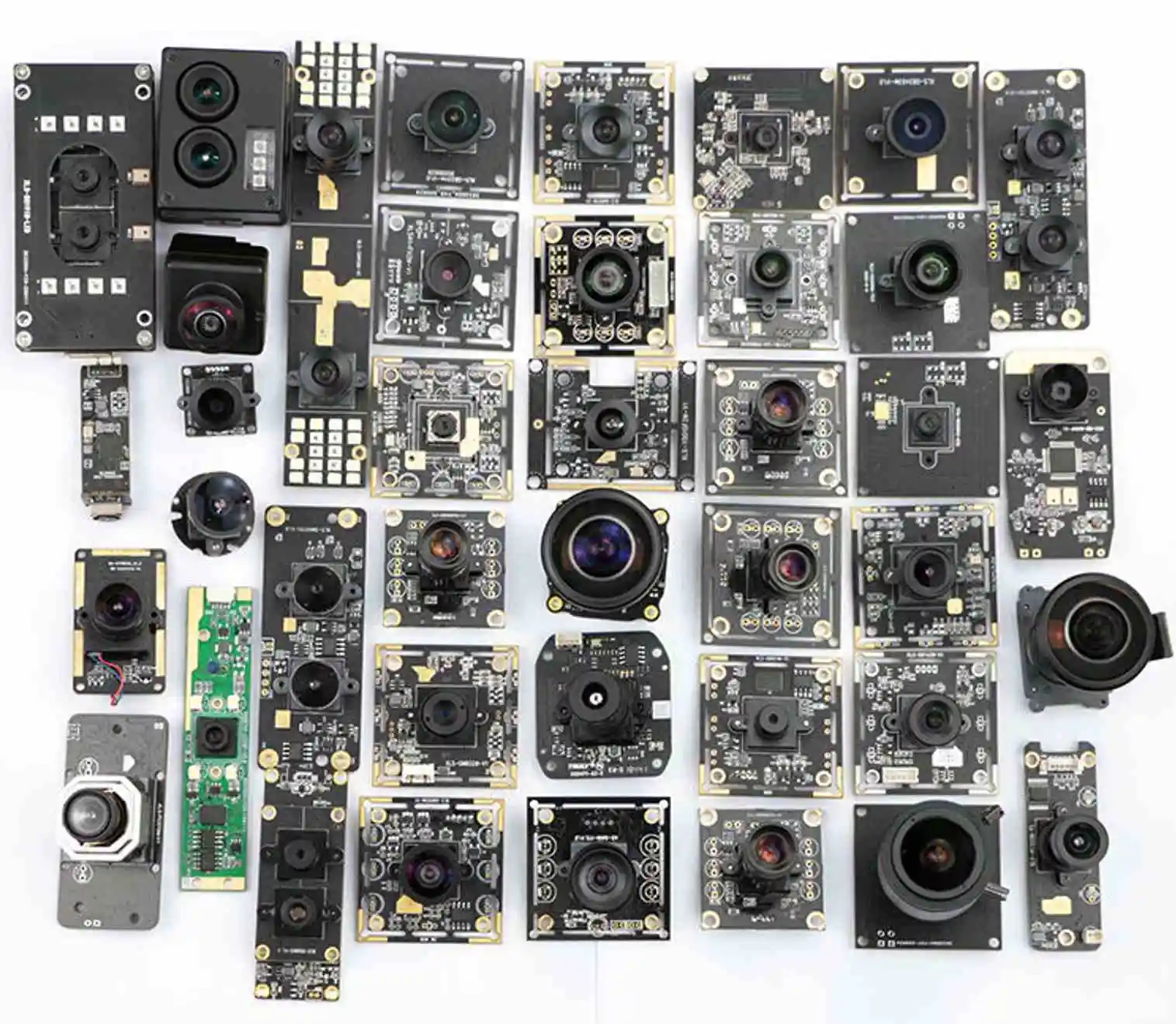

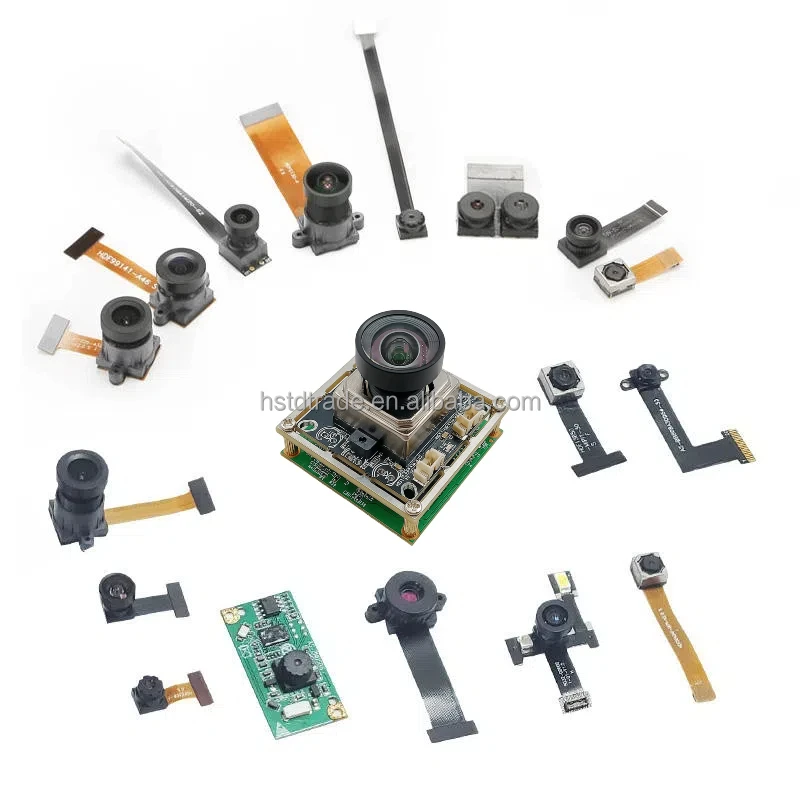

A: We are a Global leading high-tech enterprise engaged in R&D development and production of camera module.We customize all kinds of USB /MIPI /DVP /IPC/AHD/HDMI camera module from 1 MP to 50 MP
Q: Could you support OEM&ODM?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time?
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface & RF indicators & sensitivity & meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
