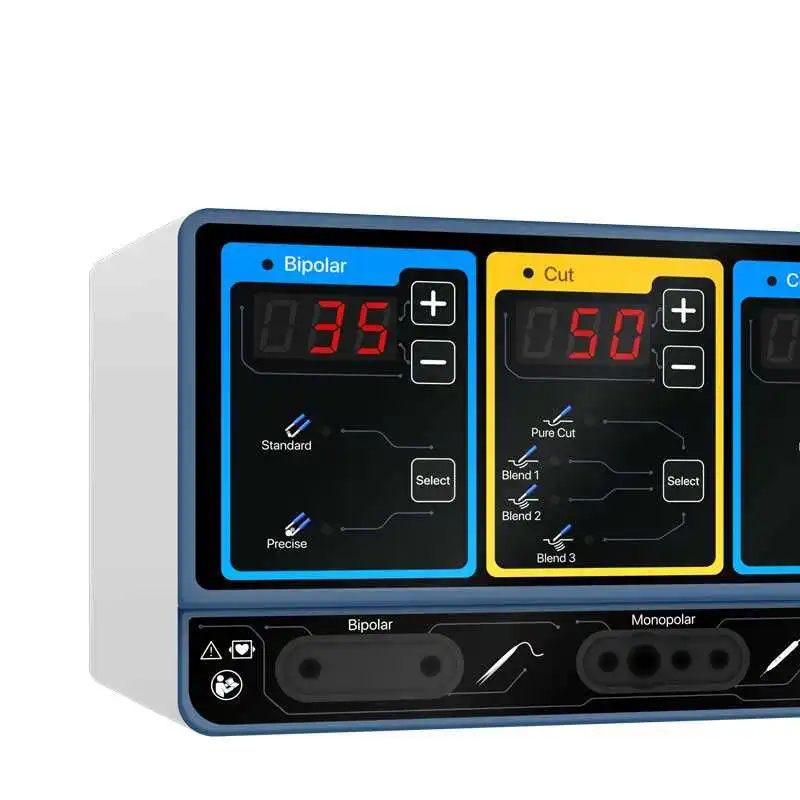

Taktvoll ES 120LEEP 8 Work High Frequency Electrosurgical Generator Top Level Leep Surgical Equipment Electric Medical Forceps
- Category: >>>
- Supplier: Icen Technology Company Limited
Share on (1601281852122):
Product Overview
Description
Product Description

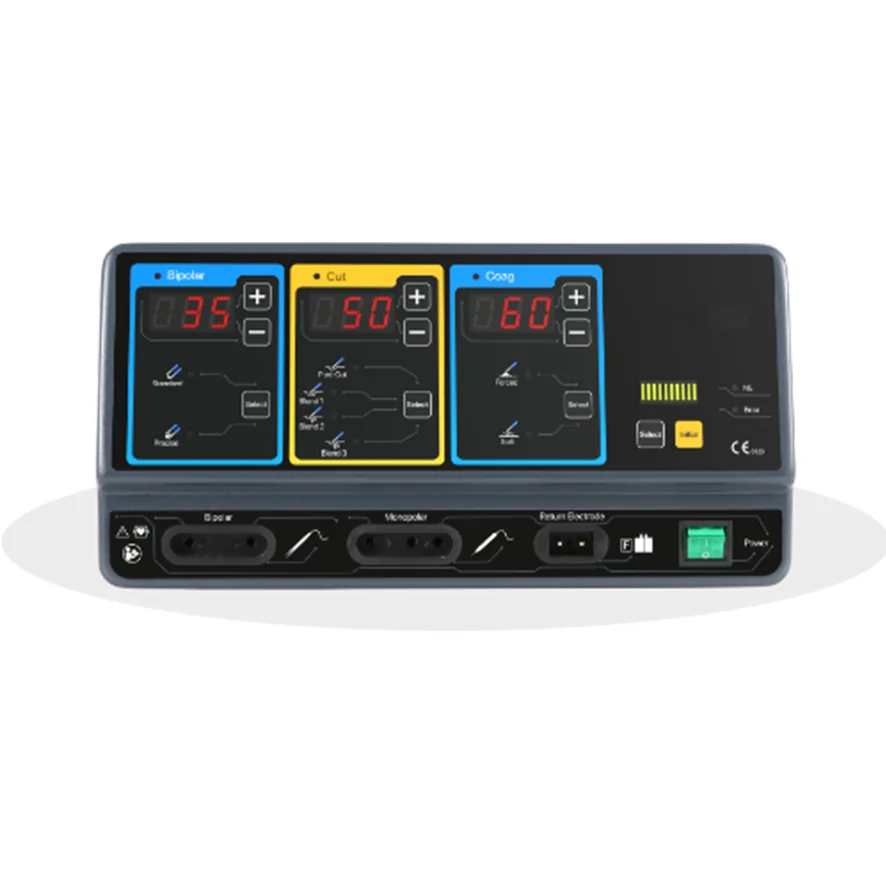

Taktvoll ES-120LEEP Advanced electrosurgical generator in gynecology

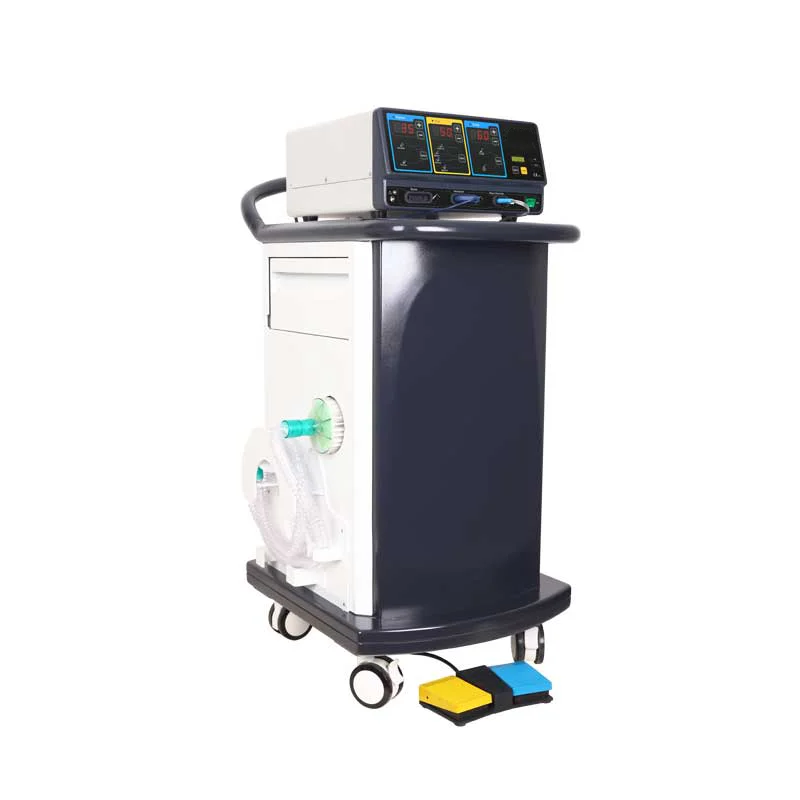

After years of continuous listening to professional suggestions and innovation, Taktvoll ES-120LEEP advanced electrosurgical generator adopts a new generation of intelligent real-time output power feedback technology, excellent cutting performance, less damage to tissues, REM circuit detection safety system effectively avoids burns, protects patient safety, One-key operation cut/ coagulation, super-large digital display, fast, intuitive and convenient, removable smoking evacuator greatly improves the convenience of surgery and smoking effect.
Taktvoll ES-120LEEP advanced electrosurgical generator is a multifunctional device in in gynecology with 8 working modes, including 4 monopolar cutting modes, 2 monopolar coagulation modes, and 2 bipolar modes. At the same time, it has contact quality monitoring system to monitor high frequency Leakage current provides safety guarantee for gynecological surgery.
4 monopolar cutting modes: pure cut, blend 1, blend 2, blend 3.
4 coagulation modes: soft coagulation, forced coagulation, standard coagulation and fine coagulation
CQM contact quality monitoring system
Electrosurgical pens and foot switch control
Start with the recently used mode, power and other parameters
Volume adjustment function
Cut and coagulate in an intermittent manner
The monopolar mode of the device includes monopolar cutting and monopolar coagulation. The bipolar mode includes standard mode and fine mode. The output power is adjustable.
Monopolar mode- Monopolar cutting
Monopolar cutting mode includes pure cut, blend 1, blend 2, blend 3. The output power can be adjustable
Pure cut: cut the tissue cleanly and accurately without coagulation
blend 1: Use when the cutting speed is slightly slow and a small amount of hemostasis is required.
blend 2: Compared with blend 1, it is used when the cutting speed is slightly slower and the better hemostatic effect is needed.
blend 3: Compared with blend 2, it is used when the cutting speed is slower and the much better hemostatic effect is needed.

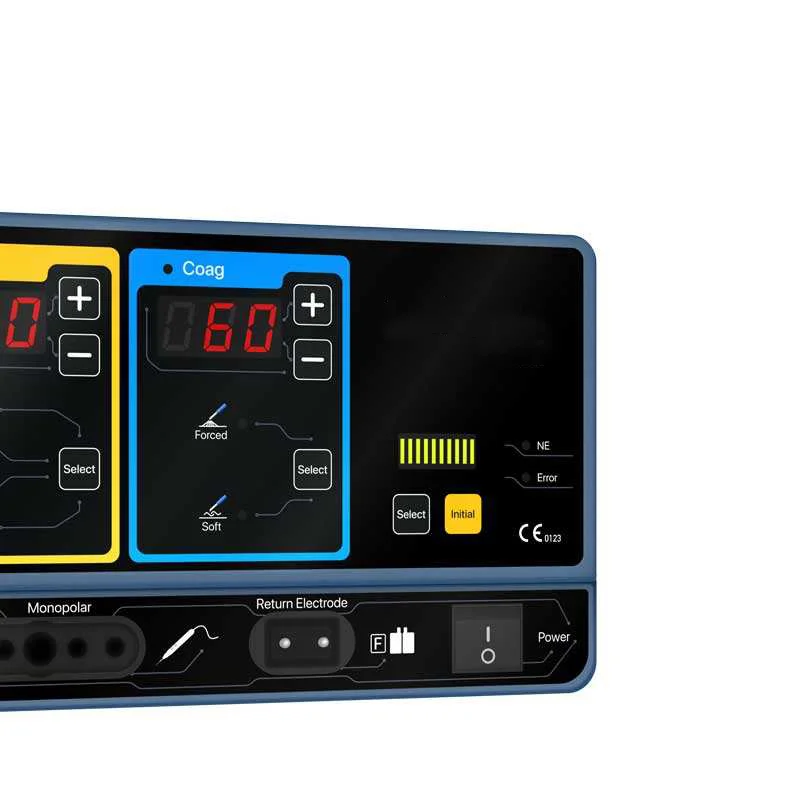

Monopolar modes- monopolar coagulation
Monopolar coagulation mode includes forced coagulation and soft coagulation, and the output power is adjustable.
forced coagulation: It’s non-contact coagulation. The output threshold voltage is lower than spray coagulation. It’s suitable for coagulation in a small area.
soft coagulation: Mild coagulation penetrates deeply to prevent tissue carbonization and reduce electrode adhesion to tissue.
Bipolar mode
The bipolar mode includes standard mode, fine mode. The output power is adjustable
Standard mode: It’s suitable for most bipolar applications. Keep the low voltage to prevent sparks.
Fine mode: It’s used for high precision and fine control of drying amount. Keep the low voltage to prevent sparks.
Monopolar cutting mode includes pure cut, blend 1, blend 2, blend 3. The output power can be adjustable
Pure cut: cut the tissue cleanly and accurately without coagulation
blend 1: Use when the cutting speed is slightly slow and a small amount of hemostasis is required.
blend 2: Compared with blend 1, it is used when the cutting speed is slightly slower and the better hemostatic effect is needed.
blend 3: Compared with blend 2, it is used when the cutting speed is slower and the much better hemostatic effect is needed.
Monopolar modes- monopolar coagulation
Monopolar coagulation mode includes forced coagulation and soft coagulation, and the output power is adjustable.
forced coagulation: It’s non-contact coagulation. The output threshold voltage is lower than spray coagulation. It’s suitable for coagulation in a small area.
soft coagulation: Mild coagulation penetrates deeply to prevent tissue carbonization and reduce electrode adhesion to tissue.
Bipolar mode
The bipolar mode includes standard mode, fine mode. The output power is adjustable
Standard mode: It’s suitable for most bipolar applications. Keep the low voltage to prevent sparks.
Fine mode: It’s used for high precision and fine control of drying amount. Keep the low voltage to prevent sparks.
Taktvoll ES-120LEEP advanced electrosurgical generator is widely used in medical institutions, especially in electrosurgery, cutting and coagulating human tissue. It’s reliable and easy to use, deeply trusted.
It is often used in: condyloma acuminatum, uterine erosion, cervical polyps, cervical cancer, vaginal biopsy, Lietz surgery; uterine myomectomy and other cervical disease-related surgery.
It is often used in: condyloma acuminatum, uterine erosion, cervical polyps, cervical cancer, vaginal biopsy, Lietz surgery; uterine myomectomy and other cervical disease-related surgery.
Cytological or colposcopy biopsy suspected of cervical intraepithelial neoplasia (CIN); especially when CIN II is suspected;
Suspected early cervical invasive carcinoma or carcinoma in situ;
Chronic cervicitis cannot be cured for a long time;
Those who are inconvenient to continue CIN or CIN follow-up;
CCT prompts ASCUS or symptomatic cervical valgus;
Neoplasms in the cervix (large polyps, multiple polyps, large sacs, etc.);
Cervical genital warts;
Cervical CIN with genital warts.
Suspected early cervical invasive carcinoma or carcinoma in situ;
Chronic cervicitis cannot be cured for a long time;
Those who are inconvenient to continue CIN or CIN follow-up;
CCT prompts ASCUS or symptomatic cervical valgus;
Neoplasms in the cervix (large polyps, multiple polyps, large sacs, etc.);
Cervical genital warts;
Cervical CIN with genital warts.
*Electrosurgical generator belongs to surgical products, and its contraindications are related to the type of electrosurgery performed. The device itself has no absolute contraindications. Patients with implantable cardiac pacemakers or other metal implants should be careful to avoid high-frequency current paths flowing near the implant.

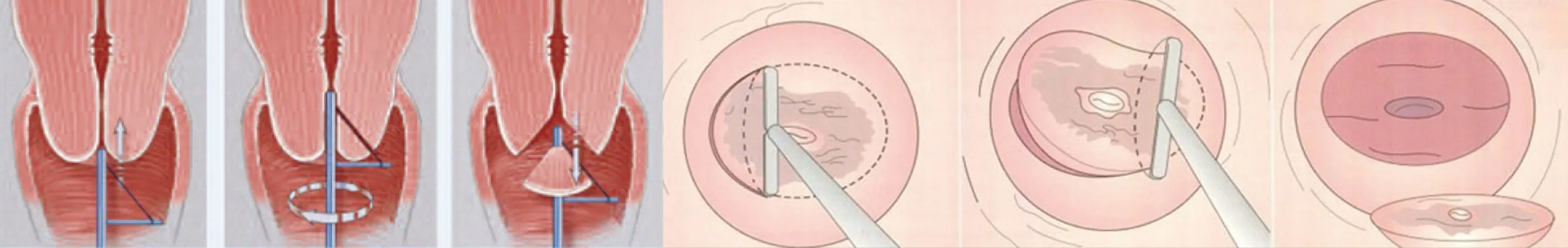

Cone-cutting electrode can improved control effect during cone-cut biopsy
Cone-cutting electrode can improved control effect during cone-cut biopsy

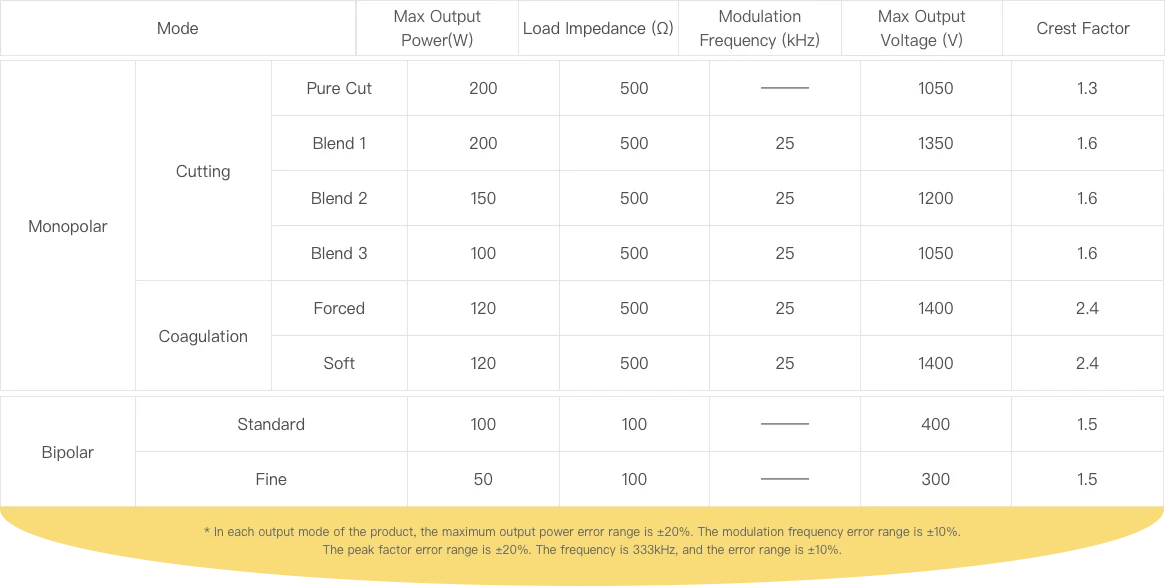

Specification
item | value |
Place of Origin | China |
Brand Name | Taktvoll |
SE1Model Number | ES-120LEEP |
Power Source | Electric |
Warranty | 2 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Shelf Life | 1years |
Quality Certification | ce |
Instrument classification | Class I |
Safety standard | MOL |
Keyword | Electrosurgical Generator |
Certificate | CE ISO |
Warranty | 1 Year |

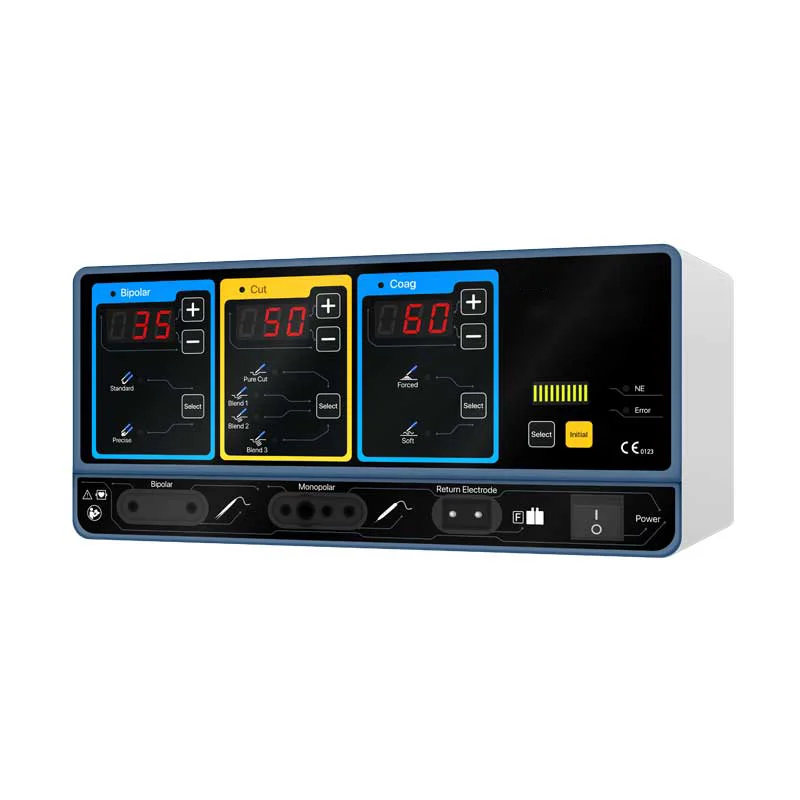

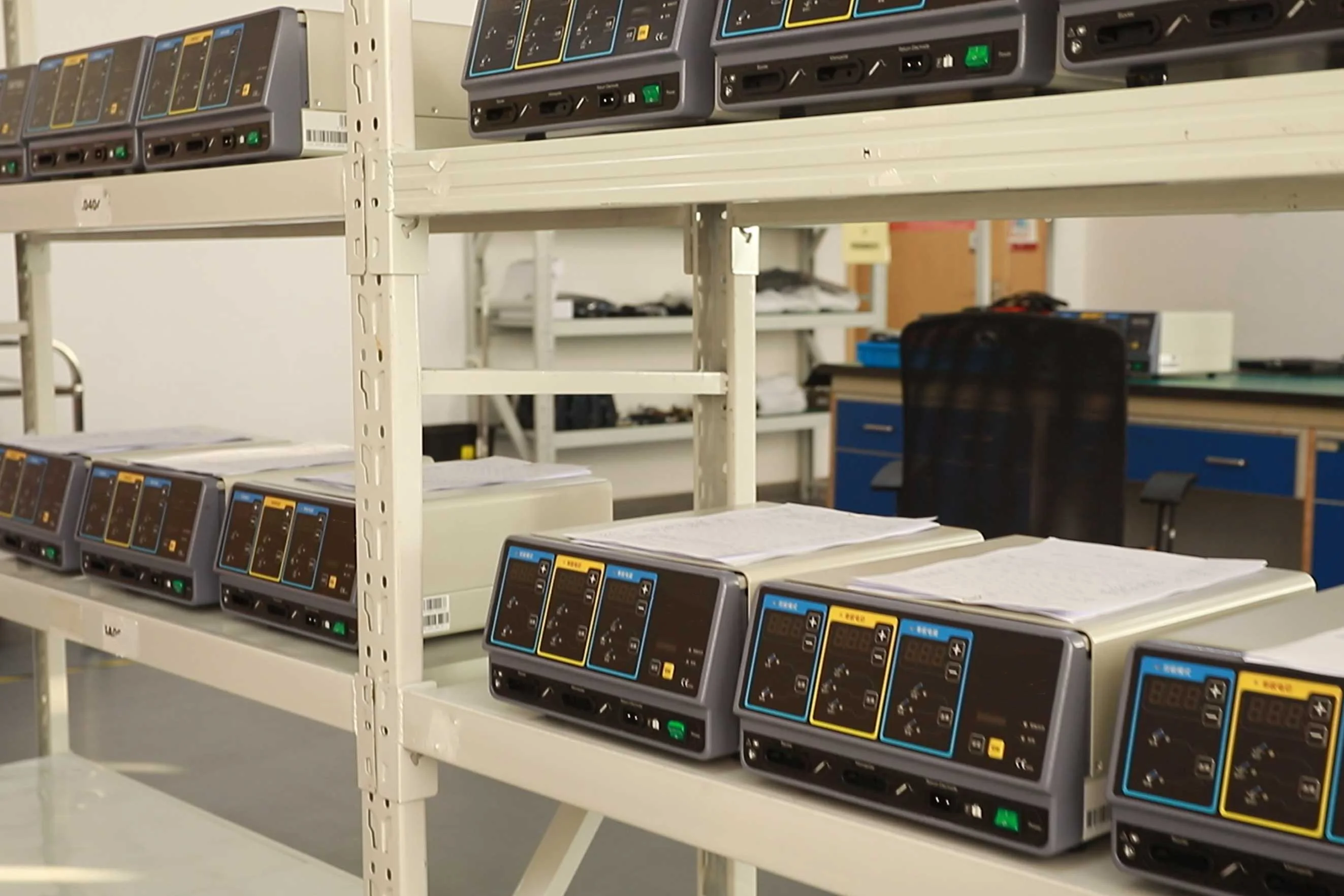

Physical picture
