Product Overview
Description
Products Description
D80 Introduction | The Hicorpwell D80 filber has precision grinding end face, large core diameter, air gap and sapphire D80 connector. It can transfer high power laser to 600W by single fiber. Transmission can reach more than 90% stably. The connector adopts no glue technology, which can improve the heat dissipation effect and service life, and meet the requirements of high power transmission such as laser welding and cutting. | ||||||
Product model(µm) | ST200E | ST300E | ST400E | ST600F | |||
Core diameter(µm) | 200 | 300 | 400 | 600 | |||
Cladding diameter(µm) | 500 | 500 | 500 | 750 | |||
Coating diameter | 780 | 780 | 780 | 1100 | |||
Core material | Pure quarta(Low-OH) | ||||||
Cladding material | Doped quartz material | ||||||
Numerical aperture(NA) | 0.22 | ||||||
Two cladding numericail(NA) | NA 0.37 OR NA 0.46 | ||||||
Operating wavelength(nm) | 400-2400 | ||||||
Length(m) | 3, 5, 10(the default length is 5 meters, which can be customized) | ||||||
Specifications of D80 Fiber Cables for High-Power Laser | ||
Fiber Core Diameter (μm) | 200, 300, 400, 600, 800 | |
Fiber Core Material | High purity fused silica (Low-OH) | |
Fiber Type | Step-index fiber as standard; Graded-index fiber on request | |
Numerical Aperture (NA) | 0.22 as standard, others on request | |
Operating Wavelength (nm) | 400-2400 | |
Protection Tube Diameter (mm) | 8 | |
Cable Lengths (m) | 3, 5, 10, 20, etc. (customizable) | |
Brief Info on D80 fiber cables
D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns(200μm, 300μm, 400μm, 600μm, 800μm).
Heat dissipation plays a crucial role in the coupling of high-power. In principle,
Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser
transmission.
Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser
transmission.
FEATURES OF D80 FIBER CABLES

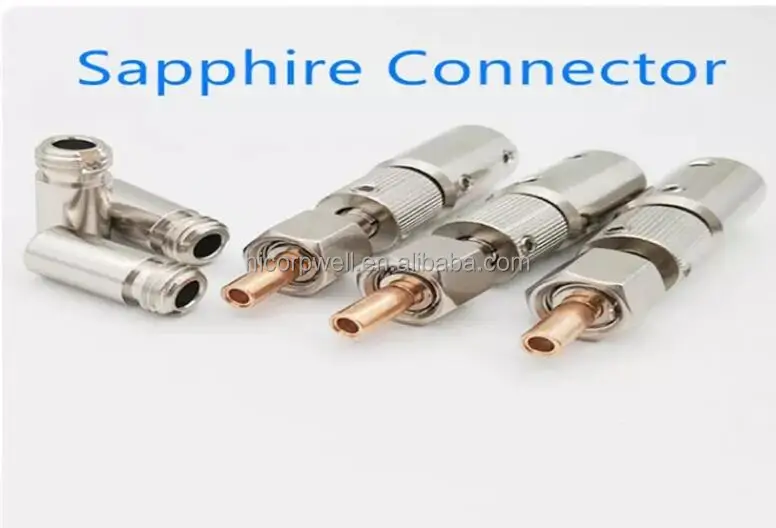

* Sapphire and Air Gap Protection
* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request
* Sapphire and Air Gap Protection
* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request
General info on D80 High Power Laser Cable
For a better protection, it introduces a sapphire and air gap into the D80 fiber connectors so that the D80 fiber cables can sustain laser power up to hundreds of watts in a single fiber with more than 90% transmission efficiency depending on the fiber core diameters and laser specifications. It’s an excellent choice for fiber-coupled laser systems in avelength ranges from visible to near infrared (VIS-NIR, typically 400-2400 nm), such as high-power semiconductor lasers, solid-state lasers, and fiber lasers.
General info on D80 High Power Laser Cable
Areas of application include high power laser transmission, laser welding, laser cutting, and so onD80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns (200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power.
In principle, Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission.

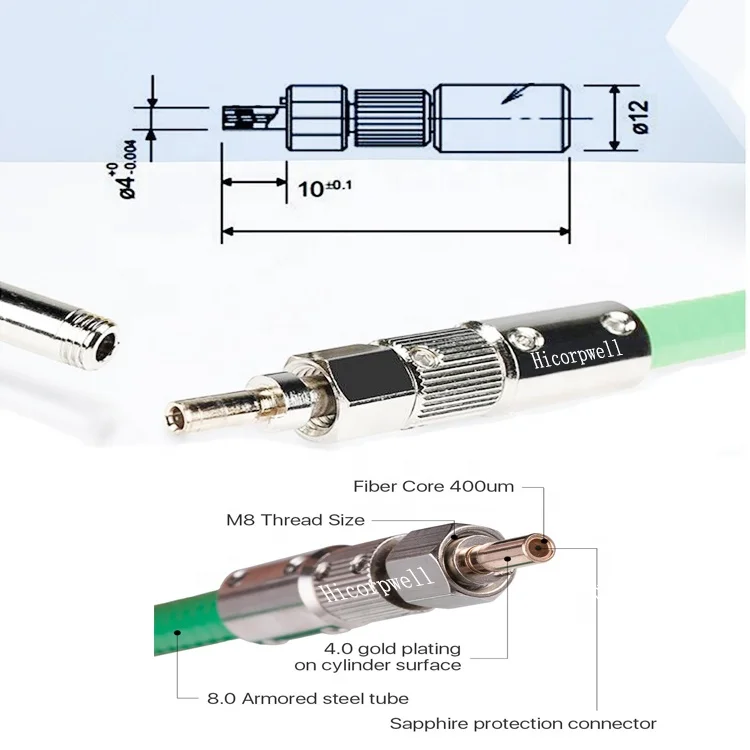

Product Features:
1. Sapphire D80 connector with air gap,
2. High quality stainless steel jacket,
3. Large core diameter.
Main Application:
1. High power laser transmission,
2.L aser welding and cutting,
3. Laser marking,
4. Atmospheric spectrum measurement,
5. Laser cleaning.
Features:
Sapphire protected connector; Protective layer of high quality stainless steel armored hose;
Large core power fiber; Advanced non adhesive process; A variety of specifications optional.
Large core power fiber; Advanced non adhesive process; A variety of specifications optional.
Application:
High power laser flexible transmission;Laser welding and cutting;
Laser marking;Atmospheric spectrum measurement;Laser cleaning.
High power laser flexible transmission;Laser welding and cutting;
Laser marking;Atmospheric spectrum measurement;Laser cleaning.
