high pressure water blasting machine for building industry

Water Jet Cleaner For Industry Building

Ship hull surface preparation

Painting removal

Rust removal

Water tank/Oil tank deposits removal

Industrial high pressure cleaning

Water blasting

 Hydro jetting

Pressure testing

Industrial tube/pipe cleaning,etc

 Product parameters:

PW-303-ED

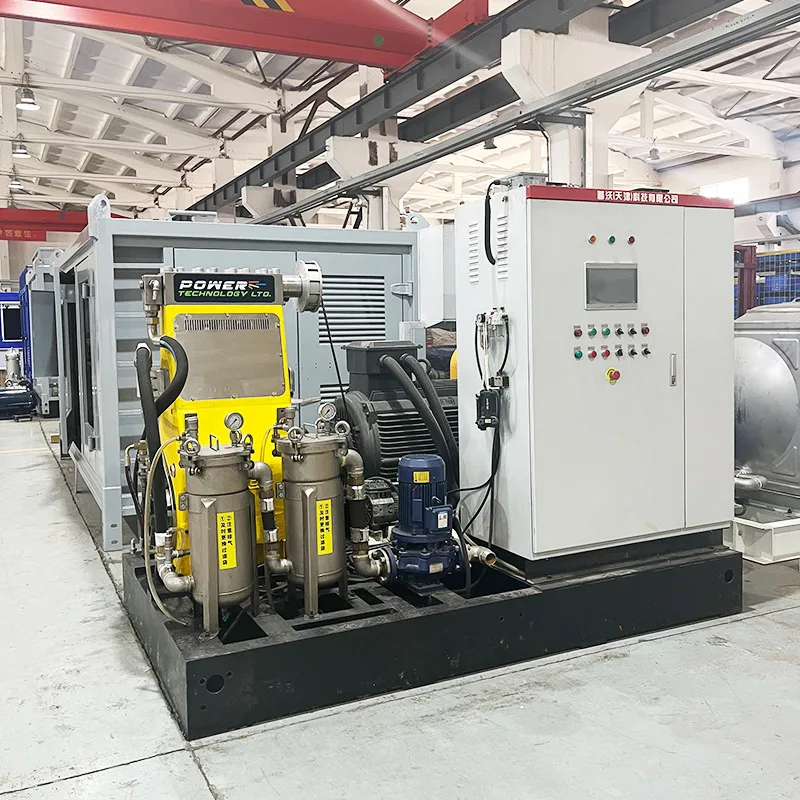

    Power PW-303-ED ultra-high-pressure electric motor pump unit is the most advanced and efficient water blasting pump in the industry. It is powered by the electric motor of 300kw(408HP). Optional Cummins, Weichai, Caterpillar electric motor as the client's request.

Advantages:

1.Durable: the latest design makes the compact structure, the reducer ratio 3.5:1 makes the low speed 425 rpm of pump. So that the service life is longer than the old type of pump.
2. Reliable: The twin helical gear transmission which horizontally oposed helical gears to eliminate the axilal stress makes the low noise, high efficiency and more reliable. The liquid end is seperated with the power end, the plunger and liner can be changed in 5 minuts. so the pump units can run continously. The rotating speed of pump can be reduced to 425rpm with the helical gears box, the low rpm means the long service life under the high pressure.

  The water is discharged from the outer cover to ensure that the unit is not in contact with high-pressure water around the unit to prevent pipe explosion accidents. The fully enclosed stainless steel water tank has automatic water refill. Booster pump for high efficiency, high water supply pressure special custom large impeller centrifugal pump to provide high pressure pump sufficient water supply to reduce cavitation phenomenon. The system is equipped with three levels of filtration, two cloth bag stainless steel filters at the end, and the final filter bag accuracy reaches 1 micron.
