K7 Waterproof IP67 Wearable Beacon Ble Eddystone bluetooth beacon card tag
- Category: >>>
- Supplier: KKM Company Limited
Share on (1601281995458):
Product Overview
Description
Product Description

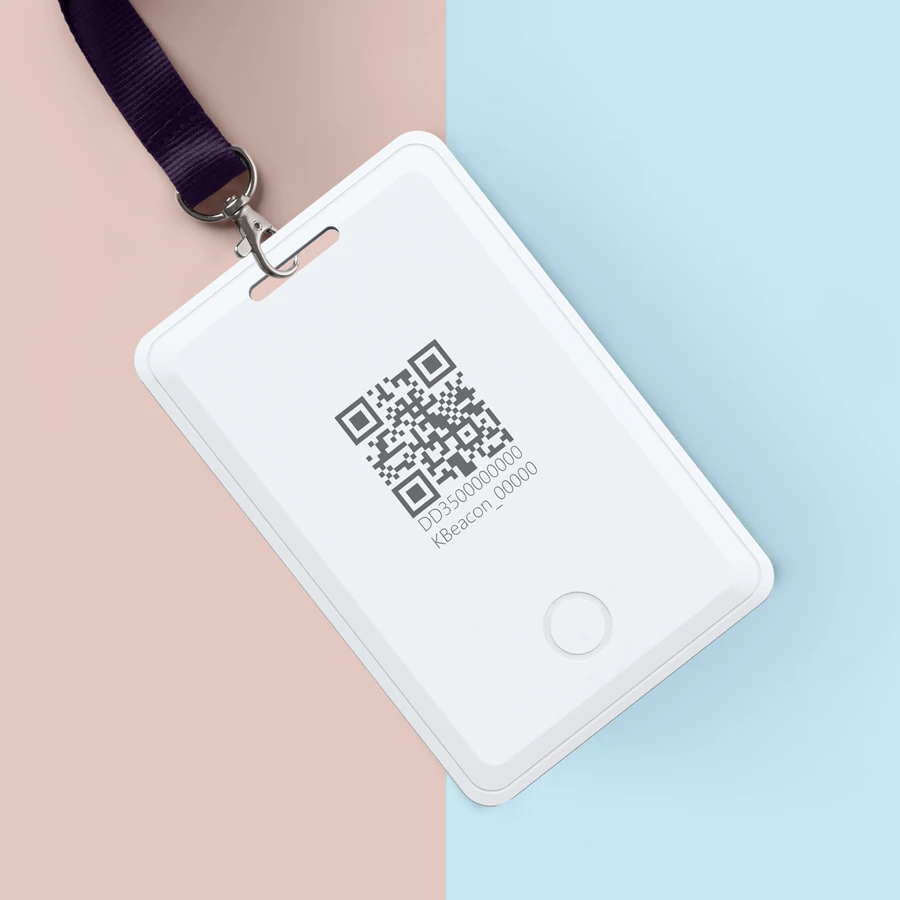

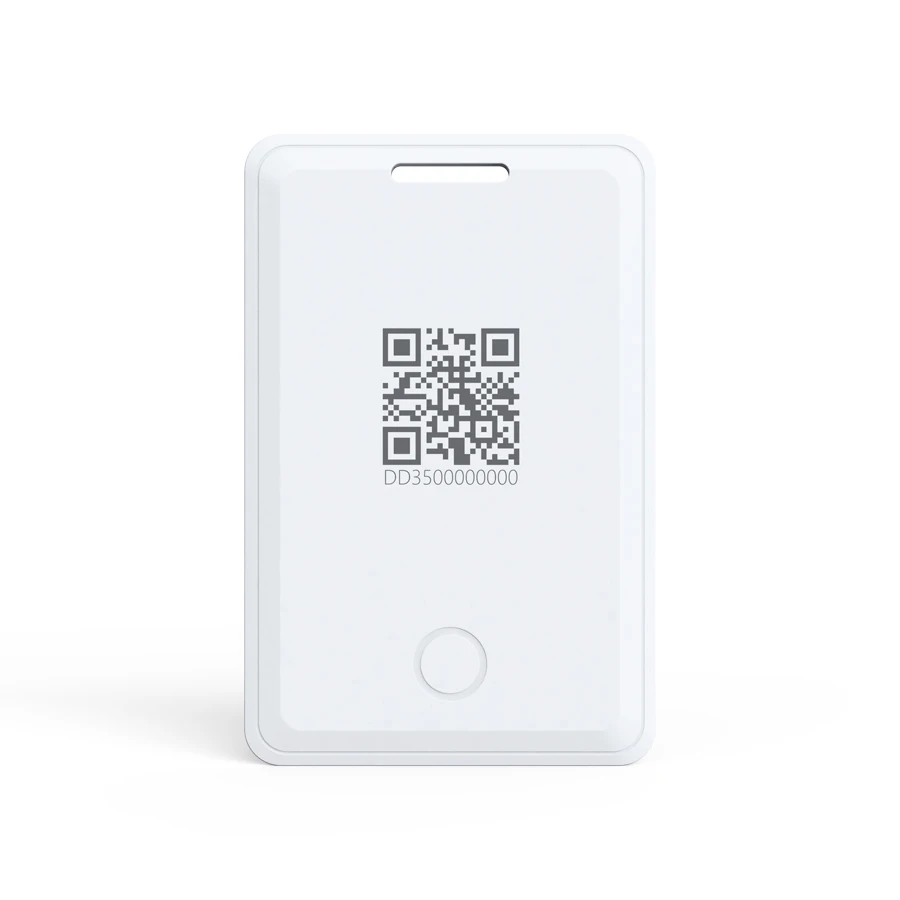

Waterproof IP67 smart iBeacon Card Beacon

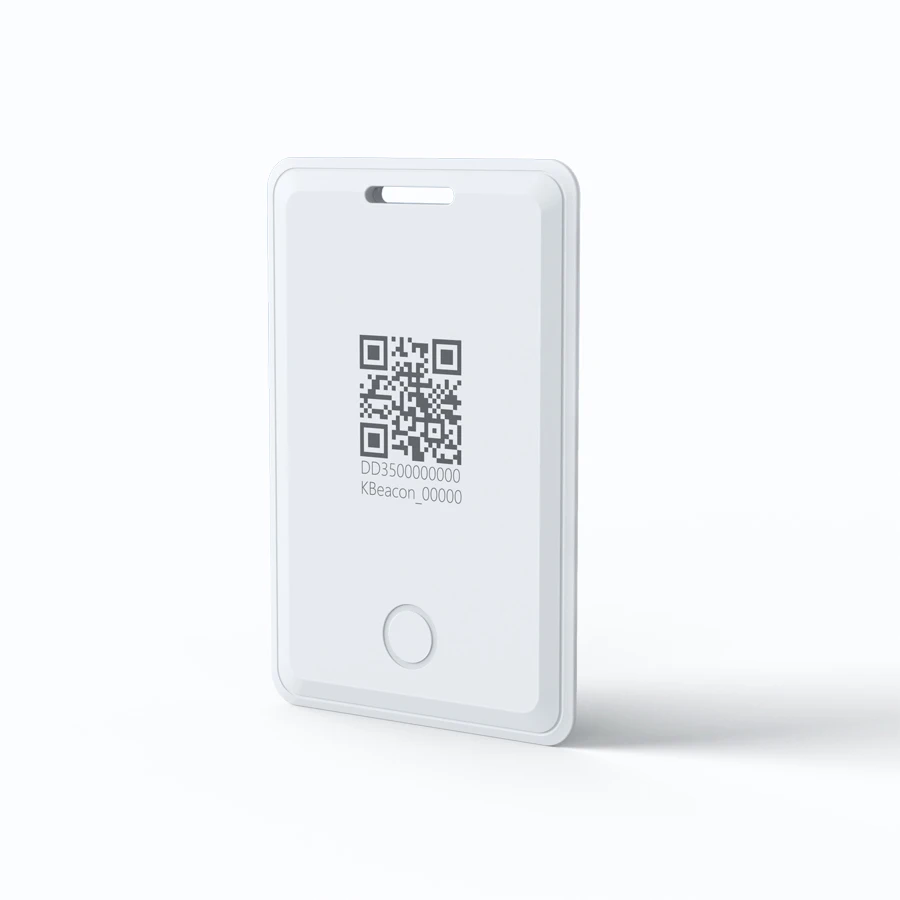

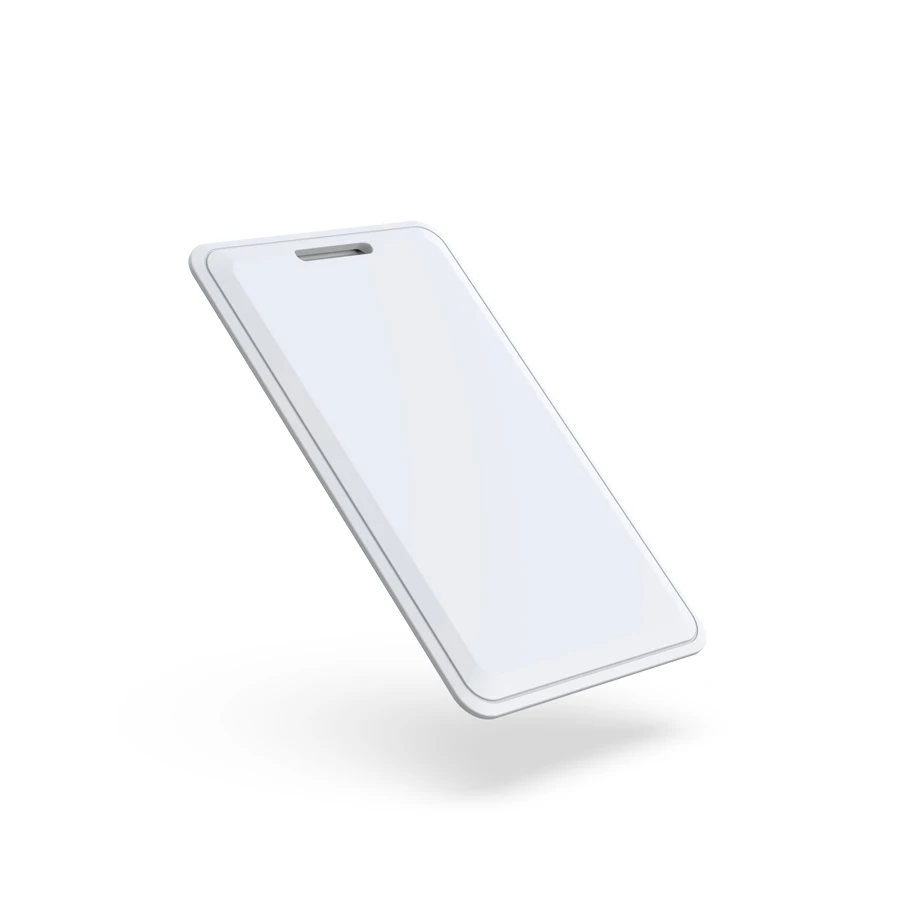

K7 Card Beacon

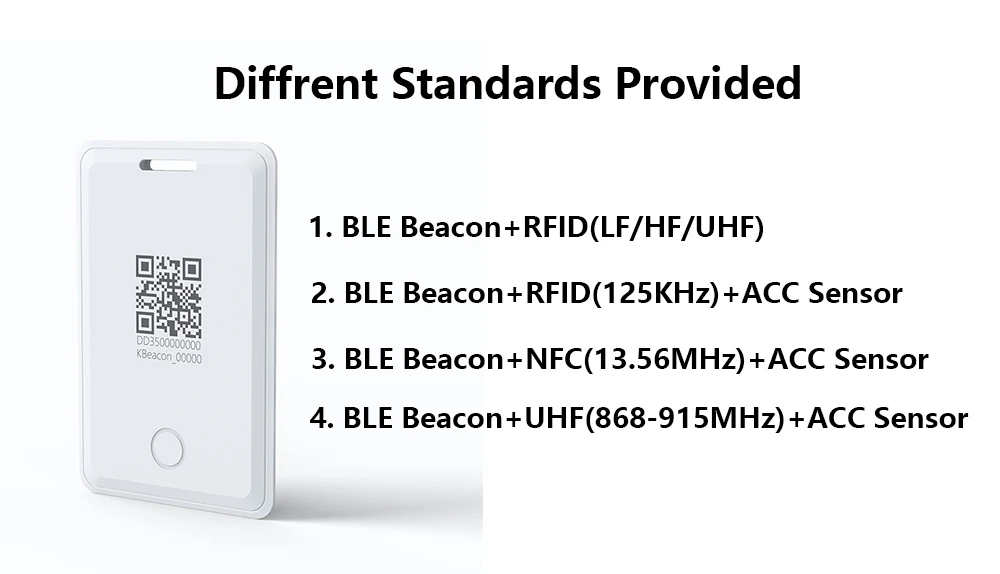

● NFC/RFID optional
● Support SOS button
● Accelerometer sensor
● Chip: Nordic nRF52 series
● Chip: Nordic nRF52 series
● 850mAH capacity, 4 years battery life
● Bluetooth range: 100 meters

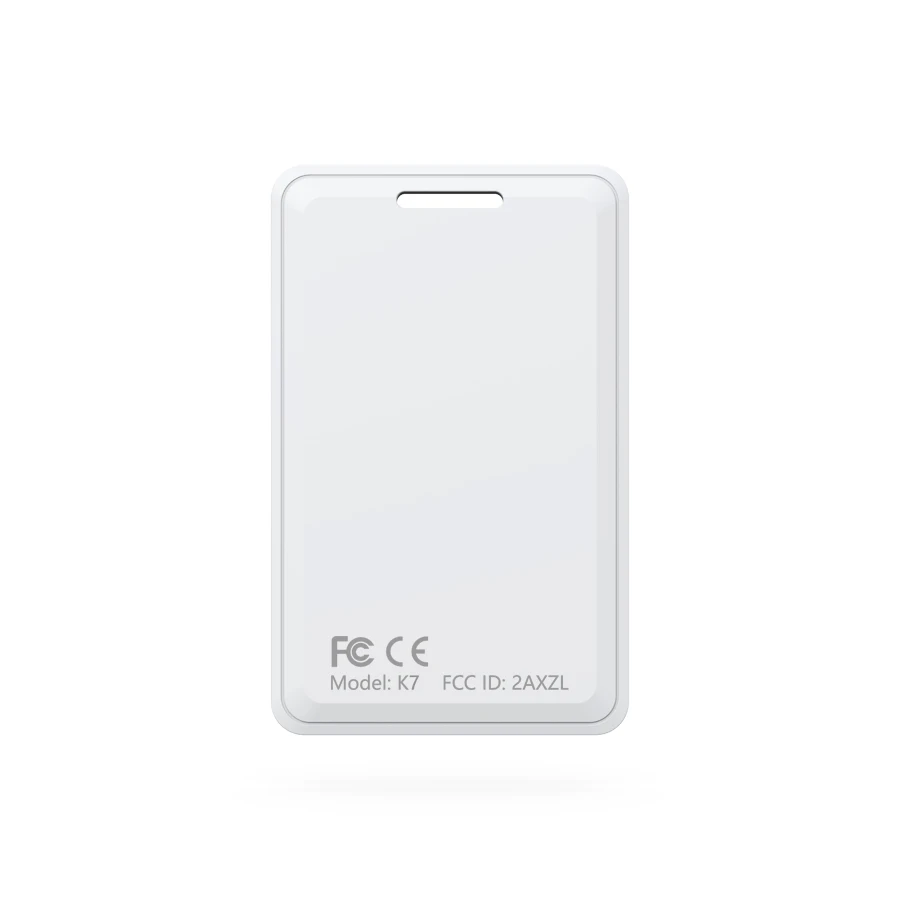

● CE/FCC certified
● IP67 waterproof
● Support iBeacon/Eddystone/KSensor
● K7 is a IP67 waterproof portable Beacon with ultra low power consumption , it has strong signal, designed for personnel
management, patients tracking and indoor location solutions.
management, patients tracking and indoor location solutions.

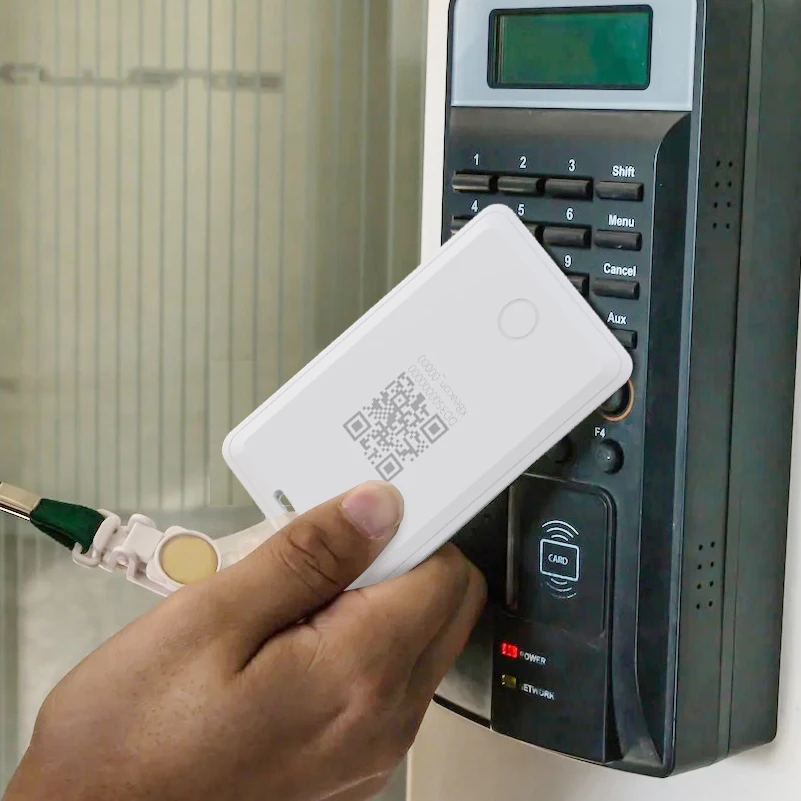

● K7 supports a variety of NFC/RFID standards, can be used in door access, payment and etc.

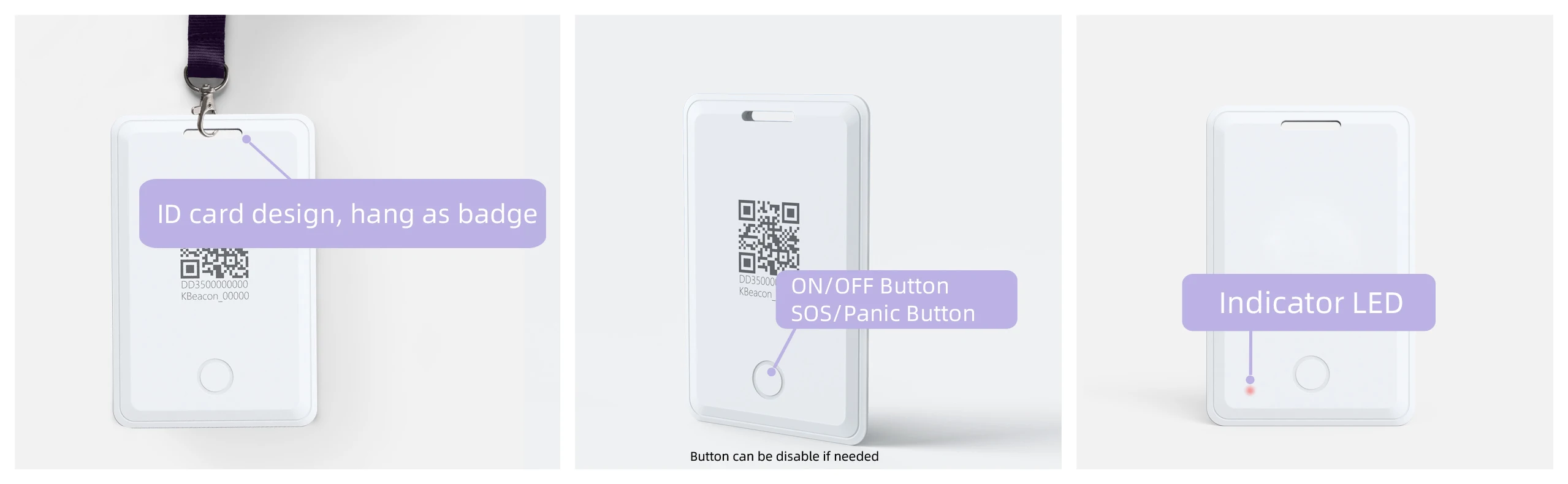

● K7 has a push button and LED light, supports button trigger, can be used as SOS button.
● Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
● The Mac address, MajorID and MinorID is unique in each beacon.
● K7 has a push button and LED light, supports button trigger, can be used as SOS button.
● Device Name, TX Power, Advertisement period, UUID, Major ID, Minor ID can be configured with KBeacon APP.
● The Mac address, MajorID and MinorID is unique in each beacon.
● We can also customize or configure the parameter you need.
Details Images

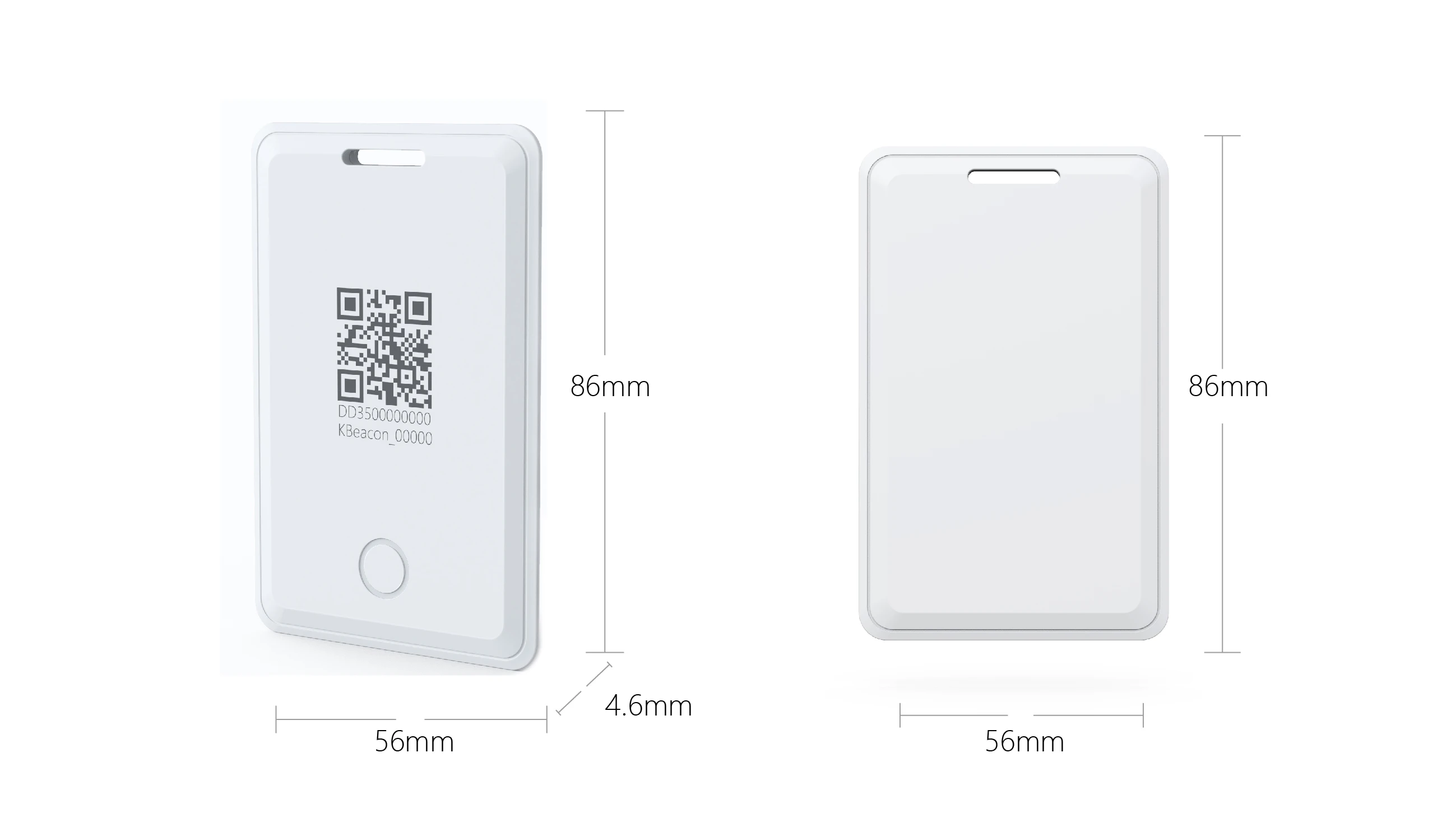

Size | 86mm*56mm*4.6mm | BLE Version | BLE5.0 |
Material | ABS | Protocol | iBeacon/Eddystone/Ksensor |
Weight | 20g (with battery) | OTA | YES |
Battery | Li-polymer battery (non-replaceable) | Button | 1 button |
Battery Life | 4 years (Base on Broadcast Interval 1s and TX power 0dBm) | Sensor | Acceleration sensor |
Certification | CE/FCC | Working Temperuature | -40°C ~+70°C |
Chipset | nRF52 series | Storage Temperature | 10°C ~+25°C, ≤65%RH |
Product Usage
How it works
1, You can use smartphone App to connect to the K7 Beacon and read the data. We can provide the SDK and library for you to develop your own App and do integration.

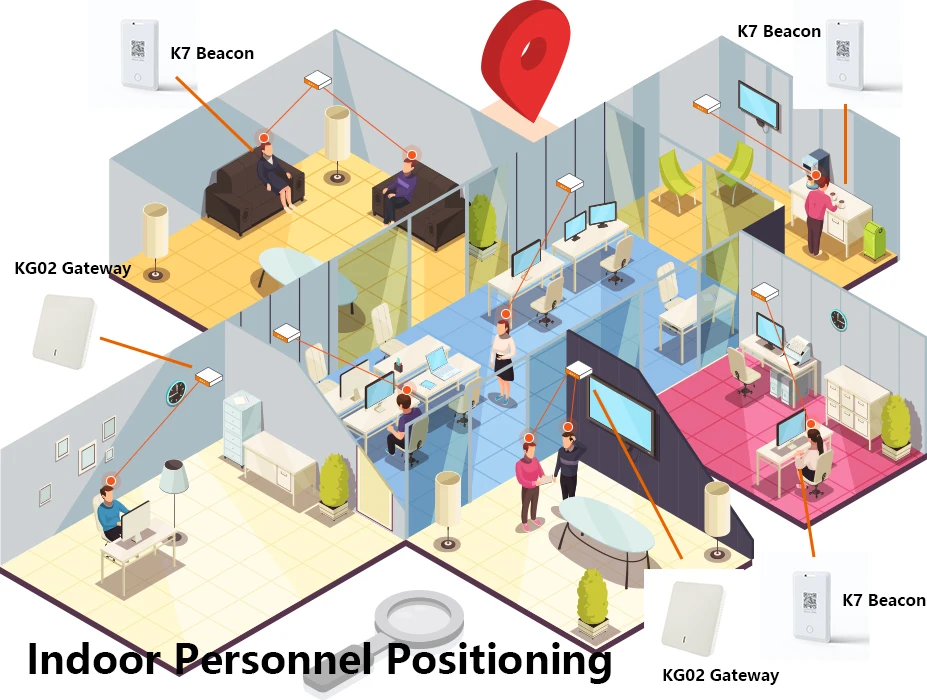

2, The K7 Beacon can also connect to KGateway KG01/ KG02 via Bluetooth. The KGateway can collect K11 Beacon data and upload to cloud server via LTE/WIFI/Ethernet in real-time. KKM will provide you the KGateway API to do integration to your system.

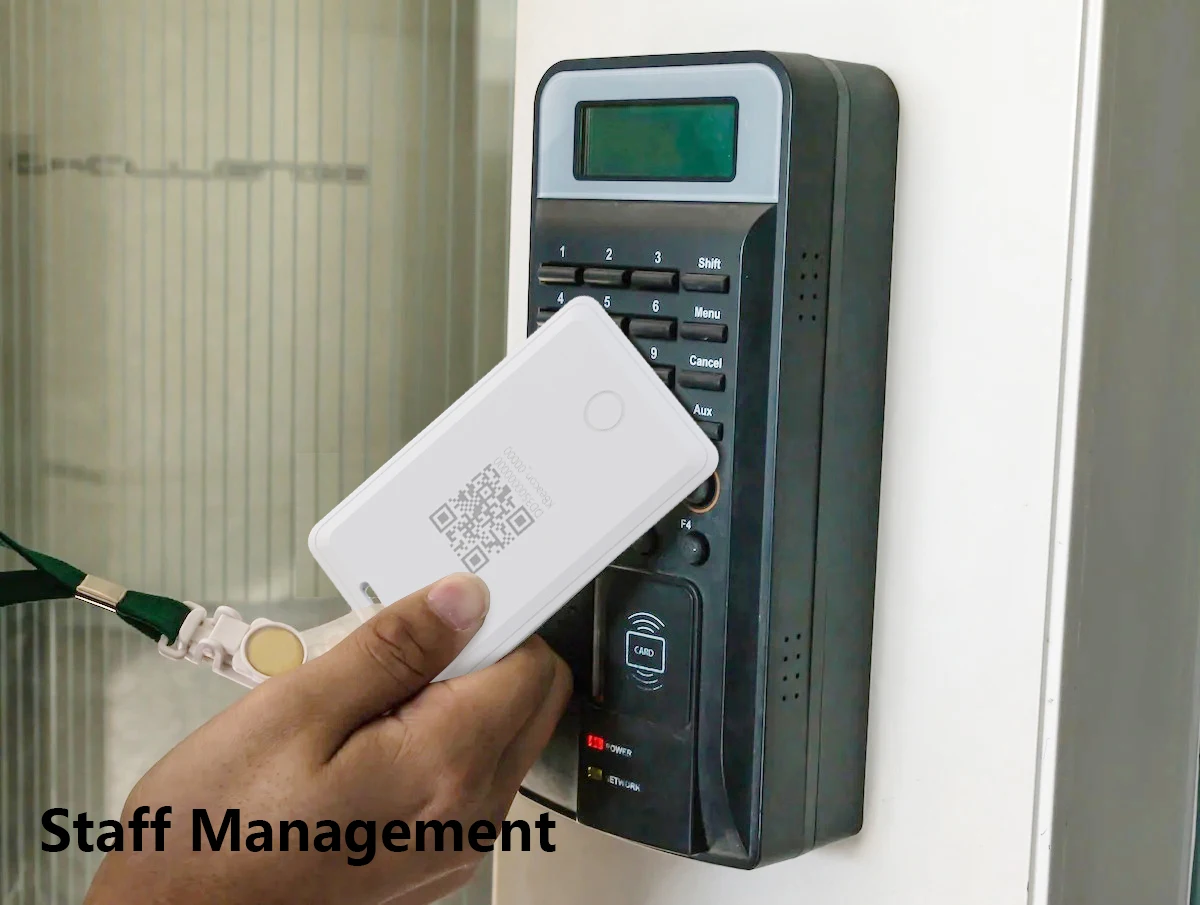

--Employee management

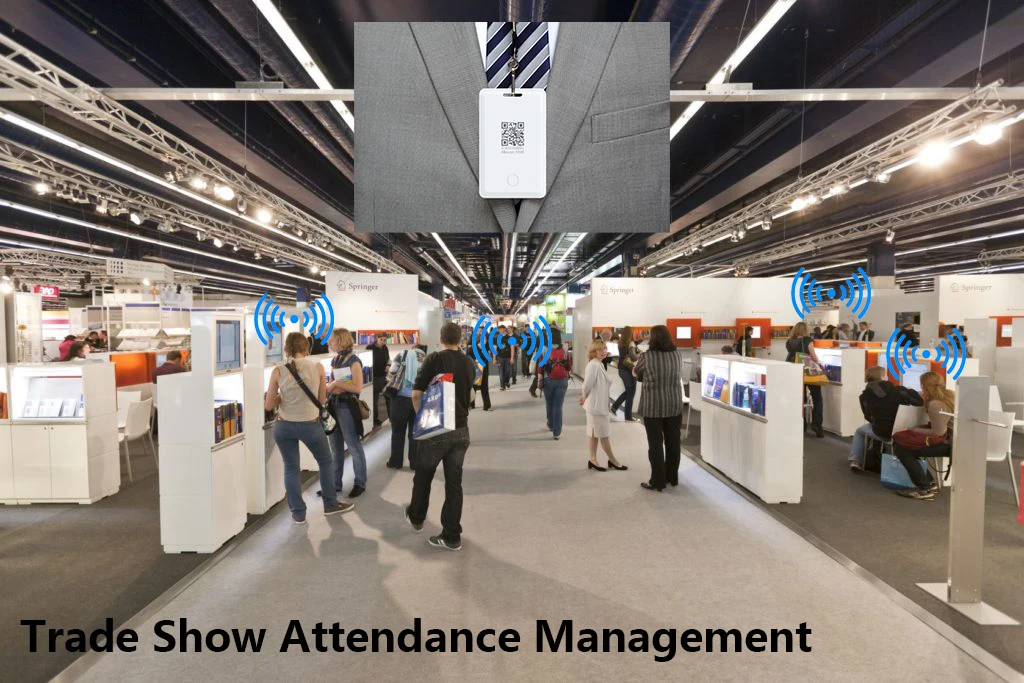

--Trade show attendance management
--Door access
--And more
--Trade show attendance management
--Door access
--And more
Our Service

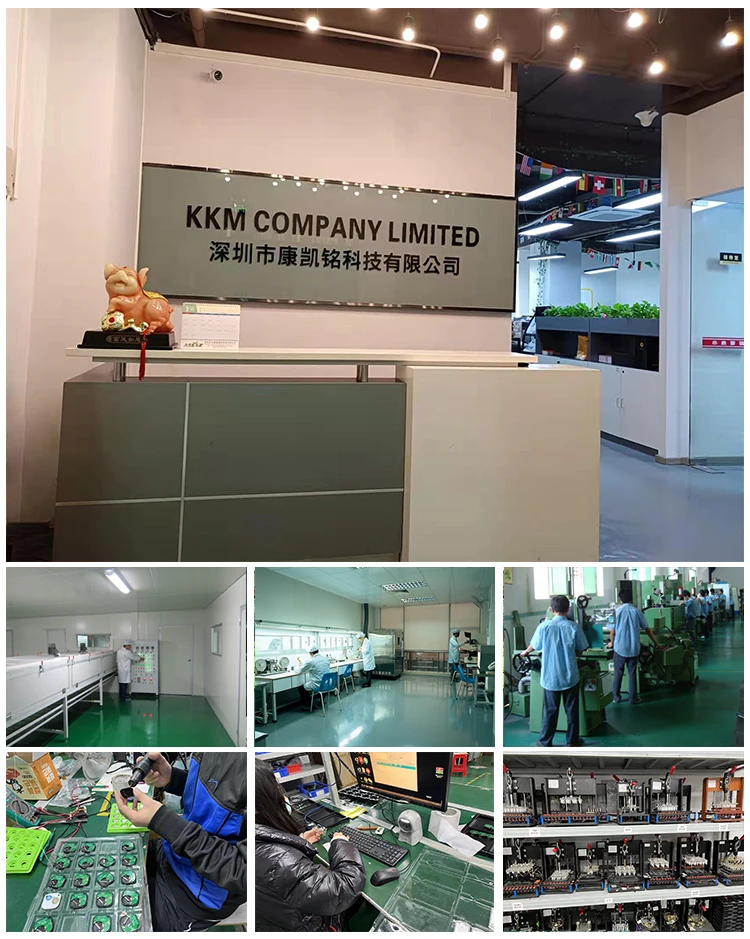

Company Introduction
About Us：

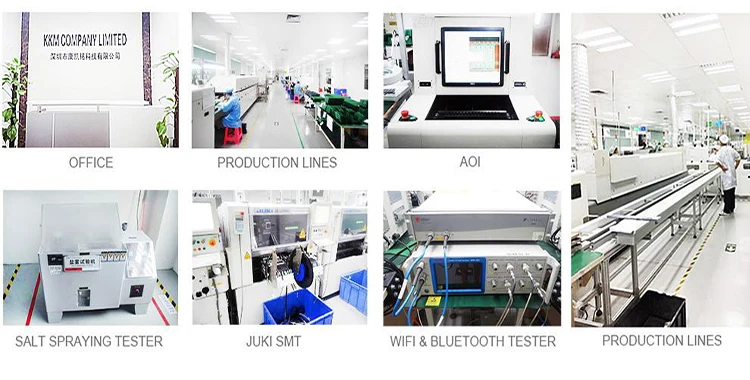

Founded in 2008, KKM is one of the top IoT product manufacturer in China.We specialized in iBeacon/Eddystone beacon, Bluetooth Gateway, Bluetooth Key Finder, ESL, Smart lock etc.We export more than 2,000,000 IoT products every year.
Our Strength:
* Experienced and professional hardware & software R&D team. We have our own mold workshop. We provide turn-key solution on from prototype to productions.
* We are High-tech enterprises, also member of SIG, our product is BQB certified.
* We have over 50 patents. We also respect and protect our clients’ intellectual property.
* We are ISO9001 certified, our products are all FCC, CE and RoHS qualified.
* As original factory, we provide a competitive service & cost for you.
Our Strength:
* Experienced and professional hardware & software R&D team. We have our own mold workshop. We provide turn-key solution on from prototype to productions.
* We are High-tech enterprises, also member of SIG, our product is BQB certified.
* We have over 50 patents. We also respect and protect our clients’ intellectual property.
* We are ISO9001 certified, our products are all FCC, CE and RoHS qualified.
* As original factory, we provide a competitive service & cost for you.
FAQ
1.-Can I get some samples?
-Yes, sample orders are welcome.
2. -Could I use my own LOGO or design on goods?
-Yes, customized logo and design on mass production are available.
3.-What is the delivery time?
-A week for sample;7-30 days for mass production.
4. -Can I trust you?
-Absolutely yes. We are"Alibaba" verified supplier, manufacturer with experience of 7 years. We only provide products with
excellent quality. And our quality meets CE, FCC, RoHS or EMC Standard.
5. -May I visit your factory?
-Sure, welcome at any time.We can also pick you up at airport and station.
-Yes, sample orders are welcome.
2. -Could I use my own LOGO or design on goods?
-Yes, customized logo and design on mass production are available.
3.-What is the delivery time?
-A week for sample;7-30 days for mass production.
4. -Can I trust you?
-Absolutely yes. We are"Alibaba" verified supplier, manufacturer with experience of 7 years. We only provide products with
excellent quality. And our quality meets CE, FCC, RoHS or EMC Standard.
5. -May I visit your factory?
-Sure, welcome at any time.We can also pick you up at airport and station.
