Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Easy to Operate and Intelligent Operation Automatic Tube Laser Cutting Machine for square round pipes
- Category: >>>
- Supplier: Liaocheng Xianming Laser Co. Ltd.
Share on (1601282092353):
Product Overview
Description
Characteristics
High Precision
The laser tube cutting machine ensures precise and clean cuts, reducingthe need for post-processing.It can handle intricate designs and complexgeometries with ease.
Efficiency
Equipped with advanced automation features, it significantly reduces production time and labor costs.The machine can cut tubes and pipes at high speeds without compromising on quality.
Multifunctionality
Capable of cutting a wide range of materials, including stainless steel,carbon steel, aluminum, brass, and copper.Suitable for cutting various shapes such as round, square, rectangular, and oval tubes.
High stability and durability
Constructed with robust materials and components, ensuring long-term durability and minimal maintenance.The machine' s stability during operation ensures consistent cutting quality.
Cost savings
Reduces material wastage and energy consumption, leading to cost savings in the long run.The multifunctional capability of cutting different types and shapes of tubes and pipes eliminates the need for multiple machines.
Flexibility and customization
Allows for easy adjustment and customization of cutting parameters to meet specific project requirements.Can be integrated with other manufacturing processes for streamlined production.
Environmental friendliness
Produces less noise and emissions compared to traditional cutting methods, making it an environmentally friendly option.
Product Introduction

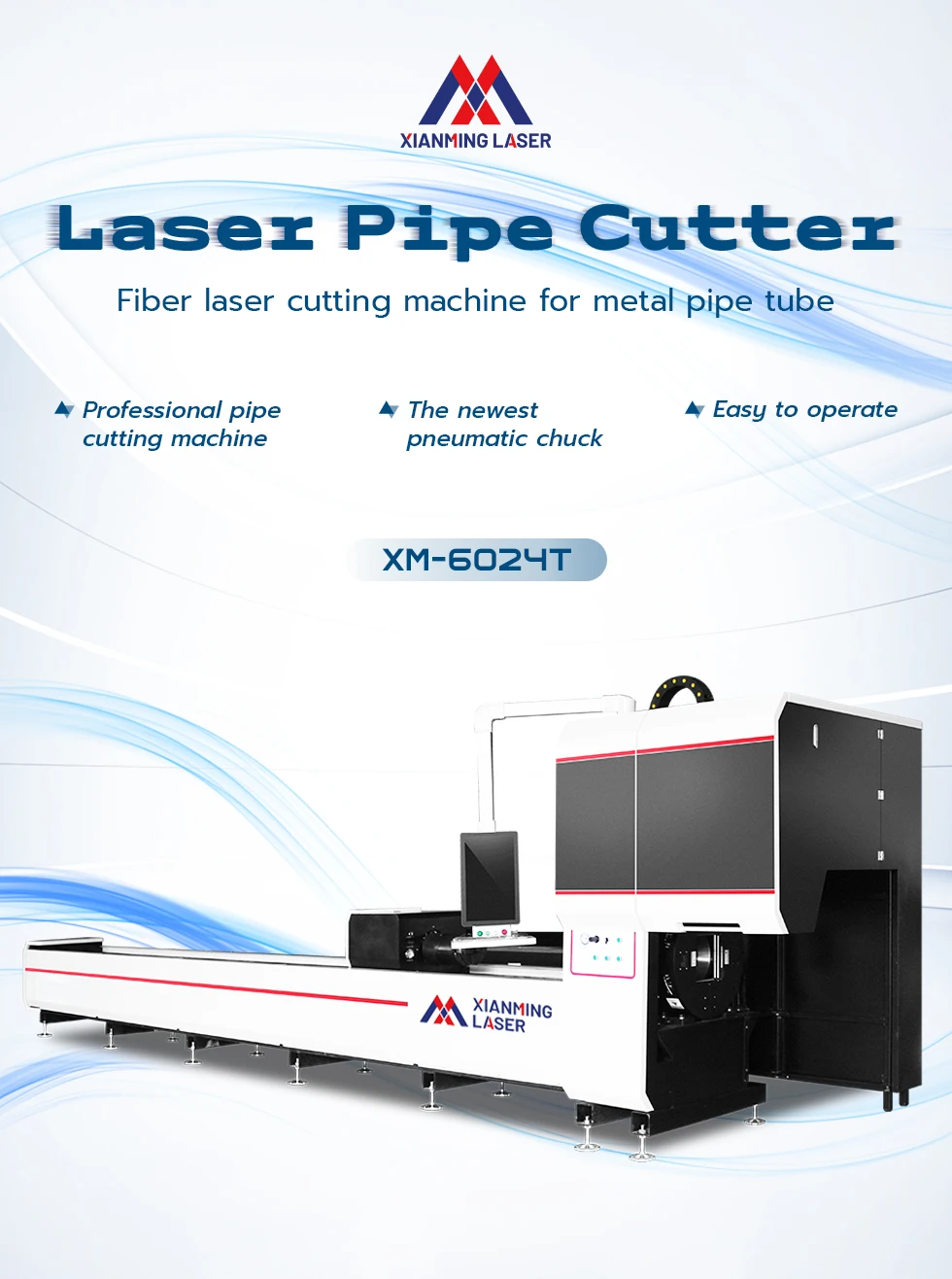

XM-6024T
Laser tube cutting machines are advanced equipment designed for the precise and efficient cutting of metal tubes and pipes. These machines utilize high-powered laser beams to achieve clean, accurate cuts with minimal material wastage. They are widely used in various industries such as automotive, aerospace, construction, and manufacturing due to their ability to handle complex cutting tasks with high precision.
What does the Affordable Metal Tube Laser
Cutting Machine XM-6024T cut?
MaterialCarbon | 1500W | 2000W | 3000W |
Steel (mm) | 1-10mm | 1-10mm | 1-16mm |
Stainless Steel (mm) | 1-6mm | 1-6mm | 1-8mm |
Aluminum (mm) | 1-4mm | 1-6mm |
Product Parameters
Model | XM-6024T | ||||||
Working area(mm) | 6000 *φ10-240mm | ||||||
Laser Power | 1500W/2000W/3000W/4000W/6000W etc. | ||||||
Working table | Tube Y: 6000mm X: 250mm Z:200mm | ||||||
Cooling Method | Water Cooling Protection | ||||||
Cutting Head | Raytools/OSPR/Au3tech/WSX/Precitec | ||||||
Control system | TubePro | ||||||
Laser source | Raycus/Max/Reci/IPG | ||||||
Maximum Acceleration | 1G | ||||||
Positioning Accuracy | ±0.05mm | ||||||
Maximum Rotational Speed | 85r/min | ||||||

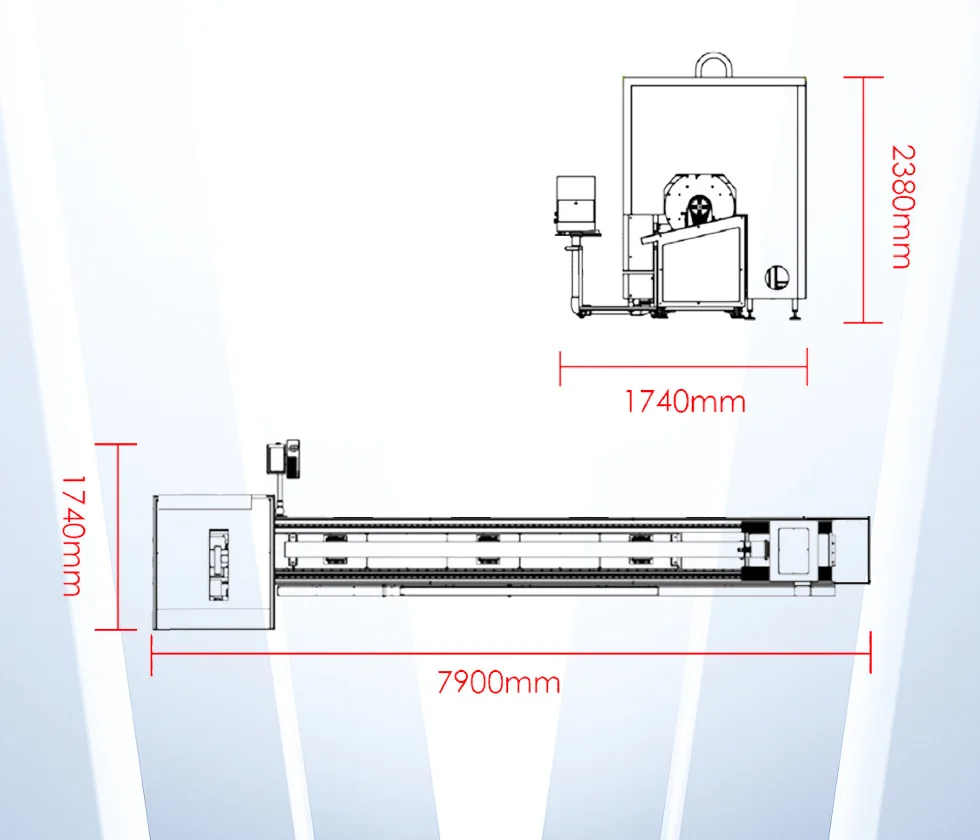

Machine Size(mm) | 7900*1740*2380 | ||||||
Table Maximum Load(KG) | 300KG | ||||||
Power Parameters | Three-phase AC 380V 50Hz(Can be customized) | ||||||
Machine weight | 4T | ||||||

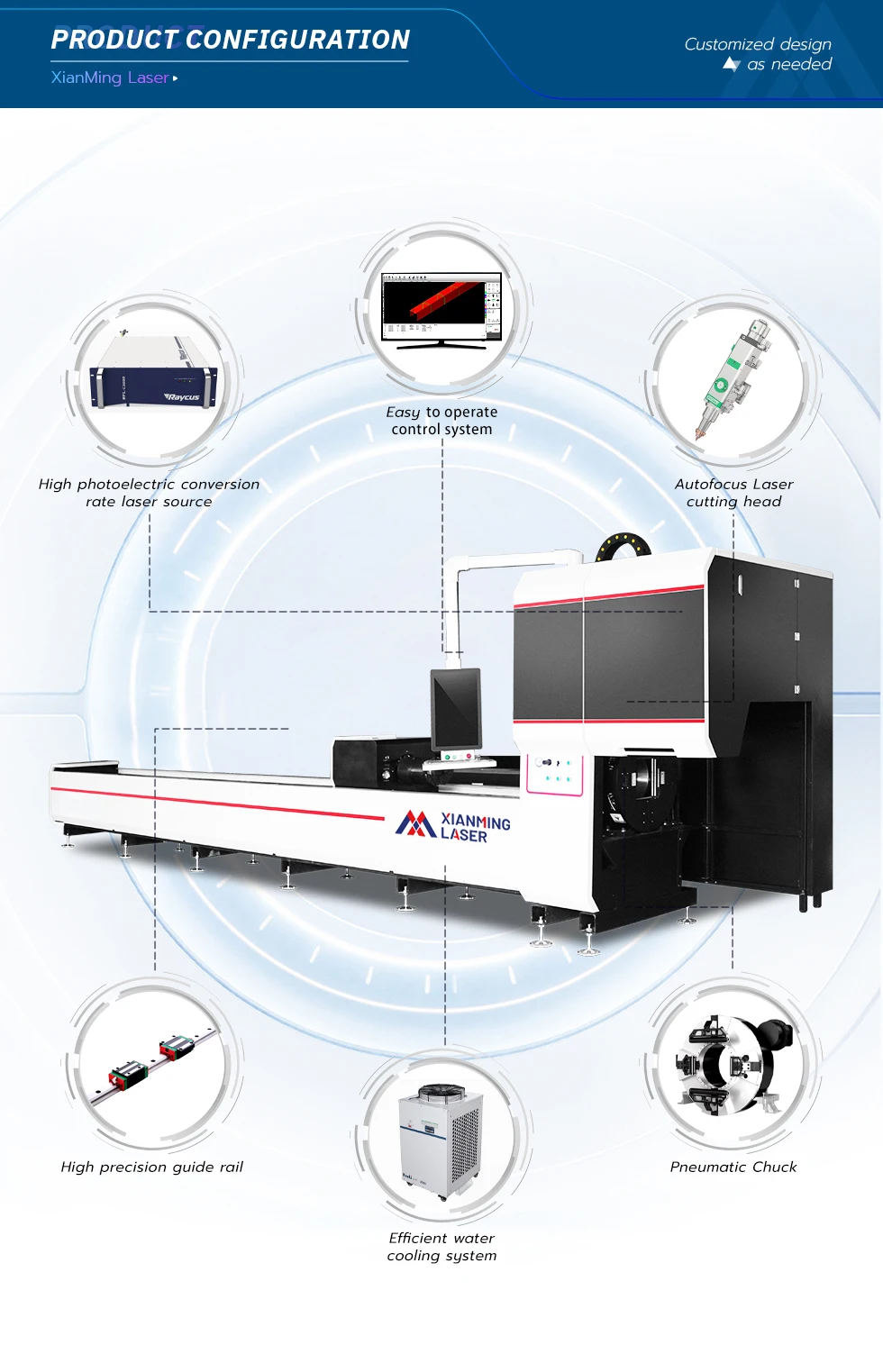

Detail Presentation

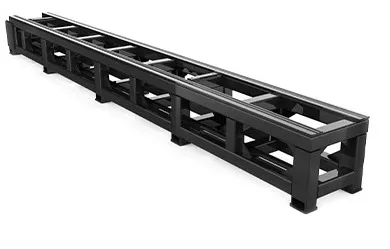

Adopting high-quality carbon steel welding bed, it is more stable and durable. Which has strong structural rigidity. small
deformation, and low vibration to ensure cuttingaccuracy.
deformation, and low vibration to ensure cuttingaccuracy.

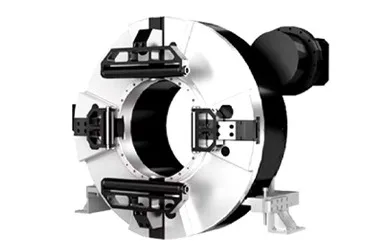

MIDDLE CHUCK
The middle chuck adopts a fully sealed appearance dust-proof structure to prevent dust from entering, and is beautiful and generous with aluminum alloy panel + stainless steel cover buckle. Full stroke clamping range without gripper transposition adjustment, clamping force and load bearing force is strong, stable performance, high efficiency and clamping accuracy.

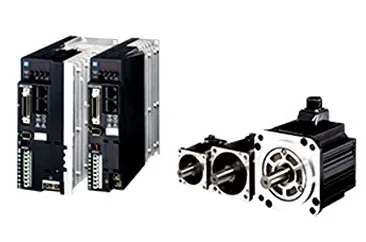

SERVO DRIVER AND SERVO MOTOR
Servo motors stabilise and drive the beam to control the movement of the XYZ axis according to the programmed instructions to complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs.

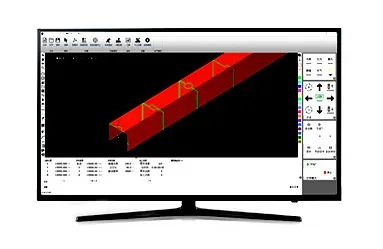

TUBE & PROFILE CUTTING SOFTWARE
TubePro designed for professional tube cutting, supports production of tube and profile of various shape. It works with TubesT
nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need.
nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need.

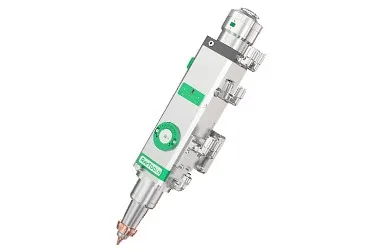

HIGH-PERFORMANCE CUTTING HEAD
The laser head enables high-precision cutting ofboth plates and tubes, ensuring smooth, burr-freeedges.Equipped with automatic focusing capabilities, thelaser head adjusts the focus based on different materialsand thicknesses, enhancing cutting efficiency and quality.
AUTOMATIC LOADING AND UPLOADING
The machine is equipped with automatic loading and unloading, which can improve the utilization rate of the machine tool andimprove the work efficiency, save a lot of human resources, and meet the needs of a variety of simple material handling until the full automatic operation.
Stable voltage to ensure smooth operation of equipment. (Optional)
It is a essential tool for cutting stainless steel and thin carbon steel materials.More cost saving. (Optional)
APPLICATIONS AND EXAMPLES

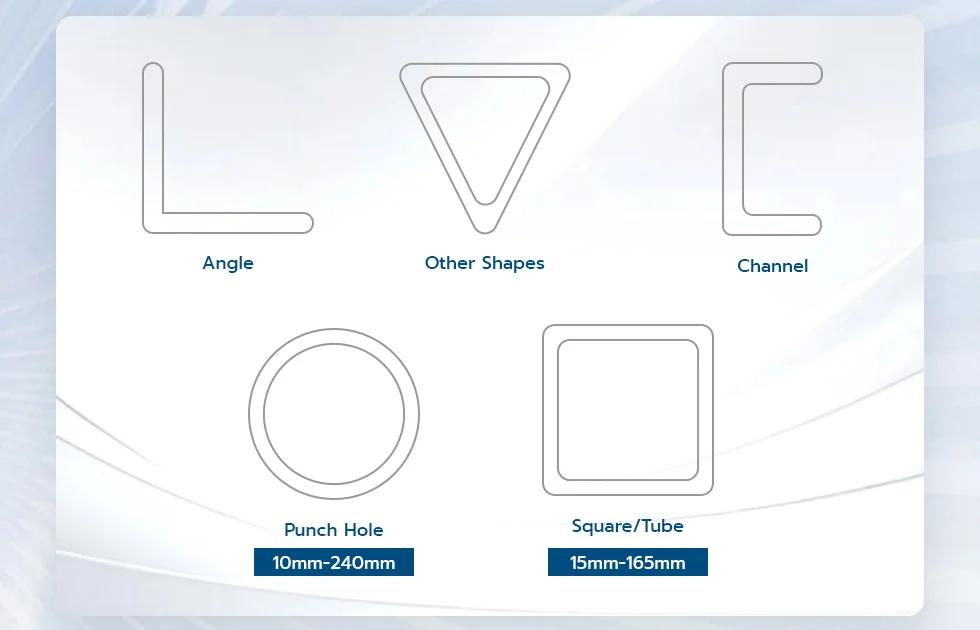

Cutting capacity
Fiber laser tube cutting machine provides exceptional versatility, capable of working with a wide range of materials including carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized pipe, silicon steel tube, electrolytic pipe, titanium alloy, manganese alloy, etc.. It effortlessly handles various shapes and sizes of metal tubes, accommodating diverse project requirements.
Intelligent Recognition
With contour recognition system, it can automatically identifystandard round, oval, square andother special-shaped pipes.Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section's cutting accuracy within O.15mm.

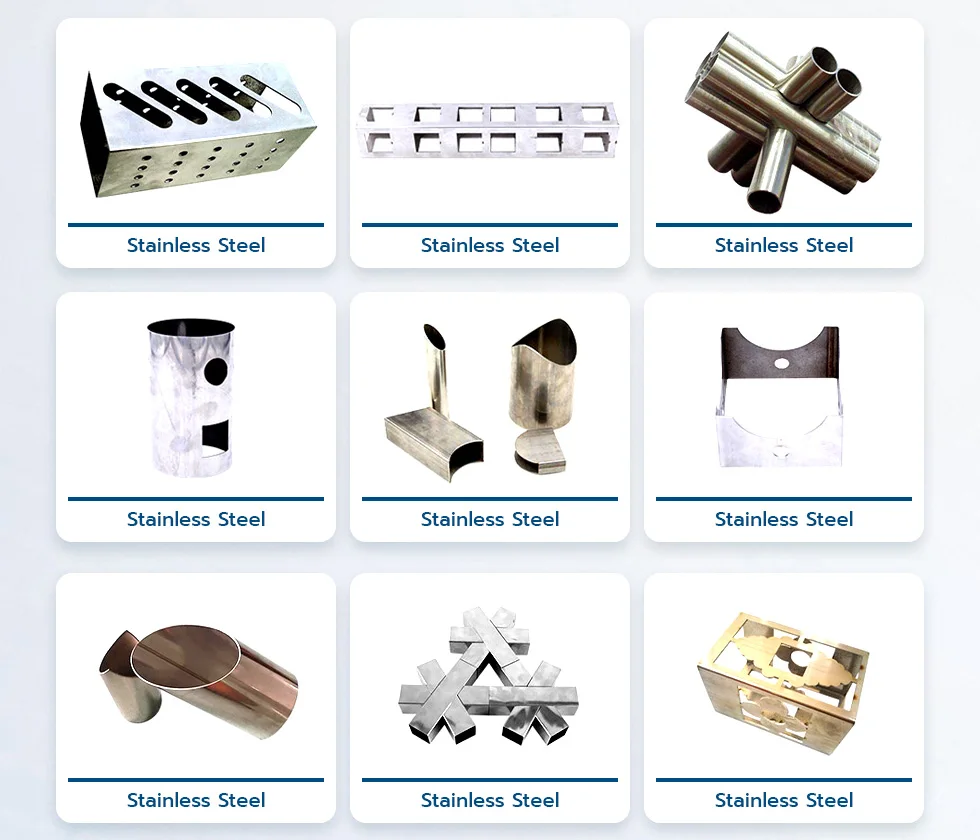

Sample display
Application field
The sheet metal laser cutting machine has extensive applications in decoration, infra-structure, construction, microelectronic, advertising, kitchen appliance, automobile andother equipment manufacturing, and other industries.
COMPANY INTRODUCTION
Liaocheng Xianming Laser Co., Ltd is a professional manufacturer of laser engravingmachine, laser cutting machine, laser marking machine for 18 years. Since 2004, Xianming Laser focused on thedevelopment and production of various types of laser engravingcutting / marking machine with the advancedmanagement, strong research strength and steady globalization strategy, Xianming Laser establish more perfect productsales and service system in China and around the world, make the worlds brand in laser industry.
Our target is scientific management, high quality, high reputation and takes continuous development as ourpolicy, regards customers as our center, double win with our customers" and we adhere to our tenet of"take themarket demand as the quide, continue to take innovation andmake improvement". We will try our best to provide thehigh qualityproducts and perfect service for clients.
Furthermore, we pay much attention to after-sales service. Good serviceand good quality is same important forFoster Laser will follow the spintCredibility and integrity, try best to provide customer more superproduct andbetter service.
Xianming Laser-rellable professionalLaser equipment supplier.
Welcome to cooperate with us and achieve win-win!
FAQ
FAQ
Q: I KNEW NOTHING ABOUT THIS MACHINE WHAT KIND OF MACHINE I SHOULD CHOOSE?Q: I KNEW NOTHING ABOUT THIS MACHINE WHAT KIND OF MACHINE I SHOULD CHOOSE?
A: VERY EASY TO CHOOSE. JUST TELL US WHAT YOU WANT TO DO BY USING CNC LASER MACHINE, THEN LET US GIVE YOU PERFECT SOLUTIONS AND
SUGGESTIONS.
Q: WHAT CAN IT CUT? HOW THICK CAN IT CUT AT MOST?
A：LASER MACHINE FOR METAL USUALLY DEAL WITH CARBON STEEL, STAINLESS STEEL, ALUMINUM, BRASS AND ALLOY. THEI MAXIMUM THICKNESS IS
DIFFERENT BETWEEN DIFFERENT MODELSI AND MATERIALS. PLEASE CHECK IN THE PRODUCT INTRODUCTION PAGE.
Q: CAN I VISIT YOUR FACTORY?
A：OF COURSE.PLEASE CONTACT US ANY TIME. WE WILL ARRANGE IN ADVANCE.
Q: DO YOU HAVE ENGINEER TO TEACH ME/MY WORKERS?
A：YES, WE OFFER FREE VIDEO TRAINING FOR EACH CUSTOMER.WE PROMISE TO HELP UNTIL EVERYTHING GETS RIGHT.
SUGGESTIONS.
Q: WHAT CAN IT CUT? HOW THICK CAN IT CUT AT MOST?
A：LASER MACHINE FOR METAL USUALLY DEAL WITH CARBON STEEL, STAINLESS STEEL, ALUMINUM, BRASS AND ALLOY. THEI MAXIMUM THICKNESS IS
DIFFERENT BETWEEN DIFFERENT MODELSI AND MATERIALS. PLEASE CHECK IN THE PRODUCT INTRODUCTION PAGE.
Q: CAN I VISIT YOUR FACTORY?
A：OF COURSE.PLEASE CONTACT US ANY TIME. WE WILL ARRANGE IN ADVANCE.
Q: DO YOU HAVE ENGINEER TO TEACH ME/MY WORKERS?
A：YES, WE OFFER FREE VIDEO TRAINING FOR EACH CUSTOMER.WE PROMISE TO HELP UNTIL EVERYTHING GETS RIGHT.
