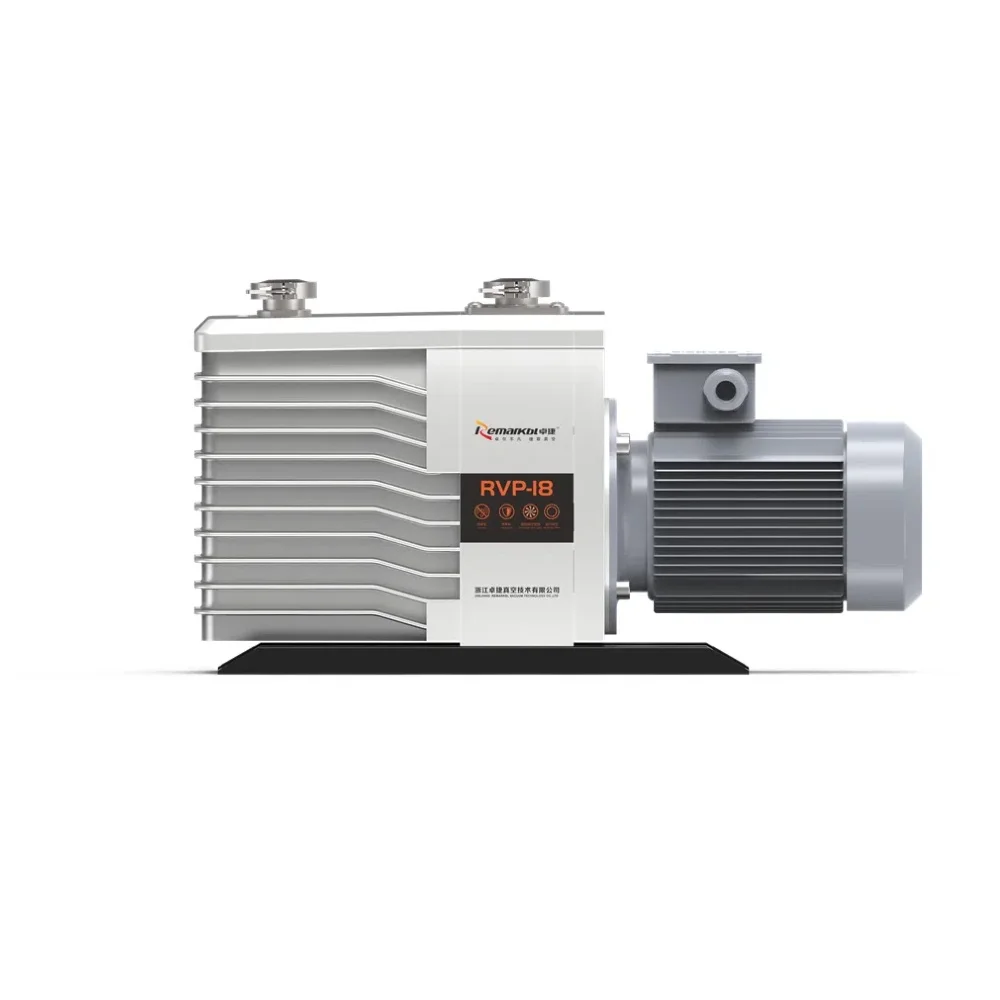

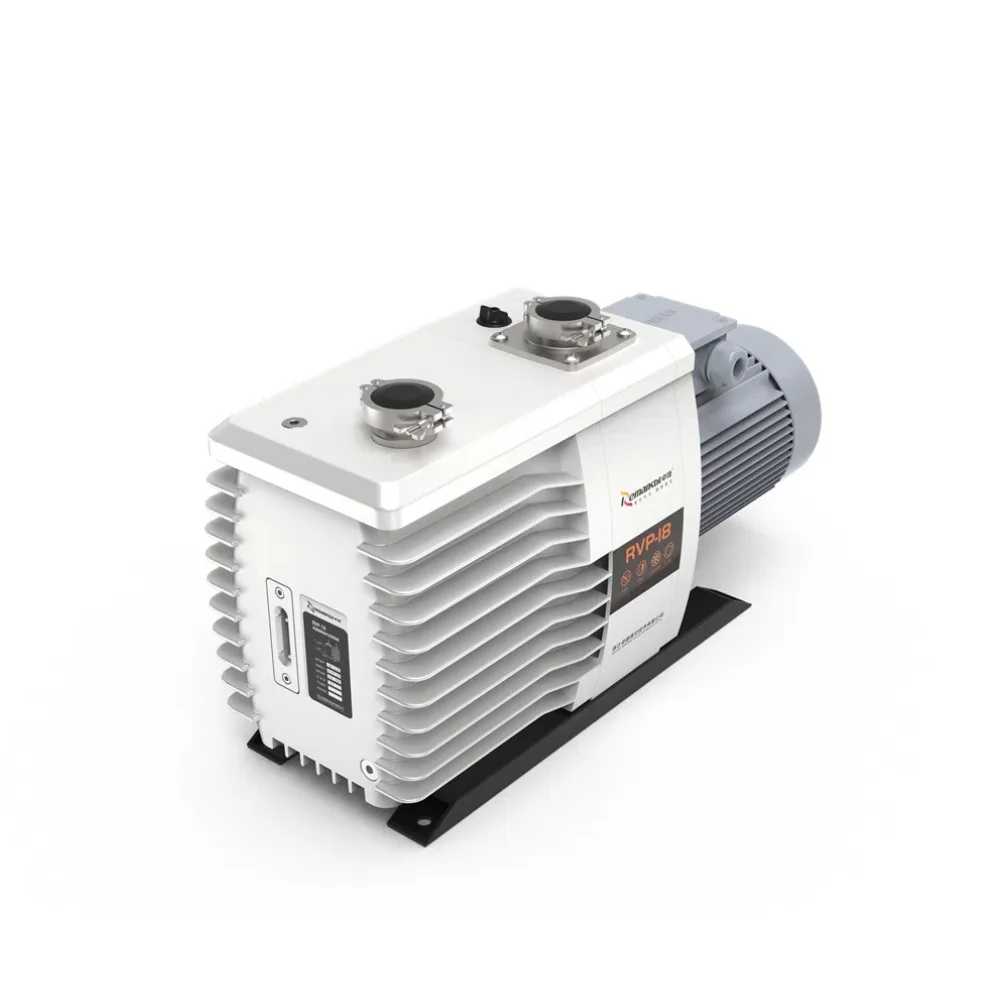

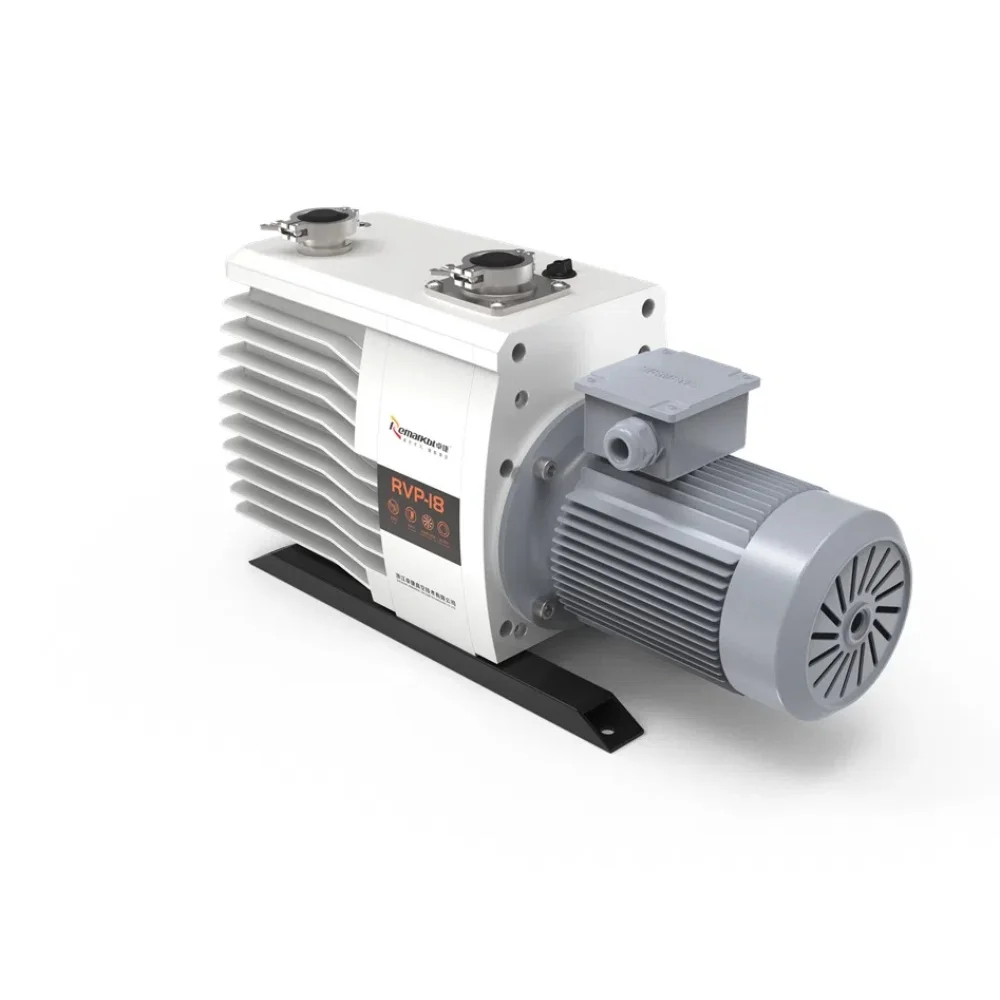

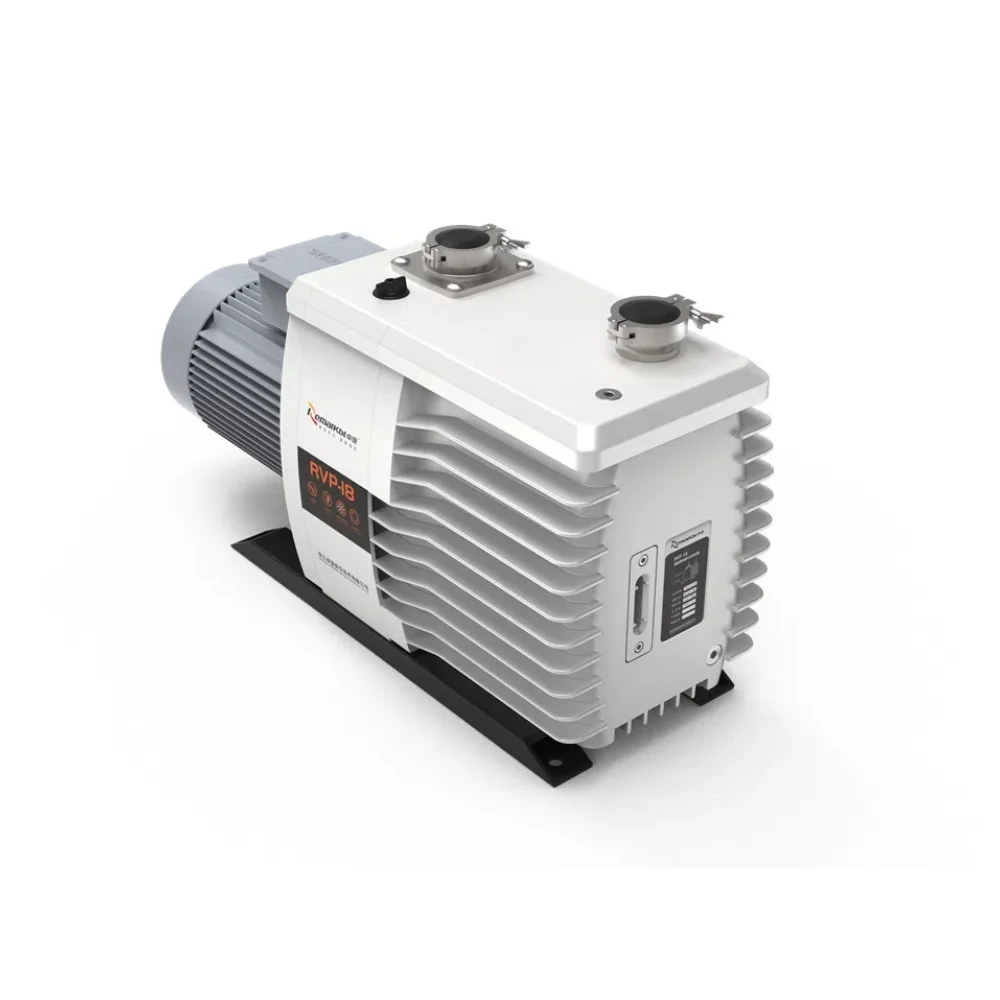

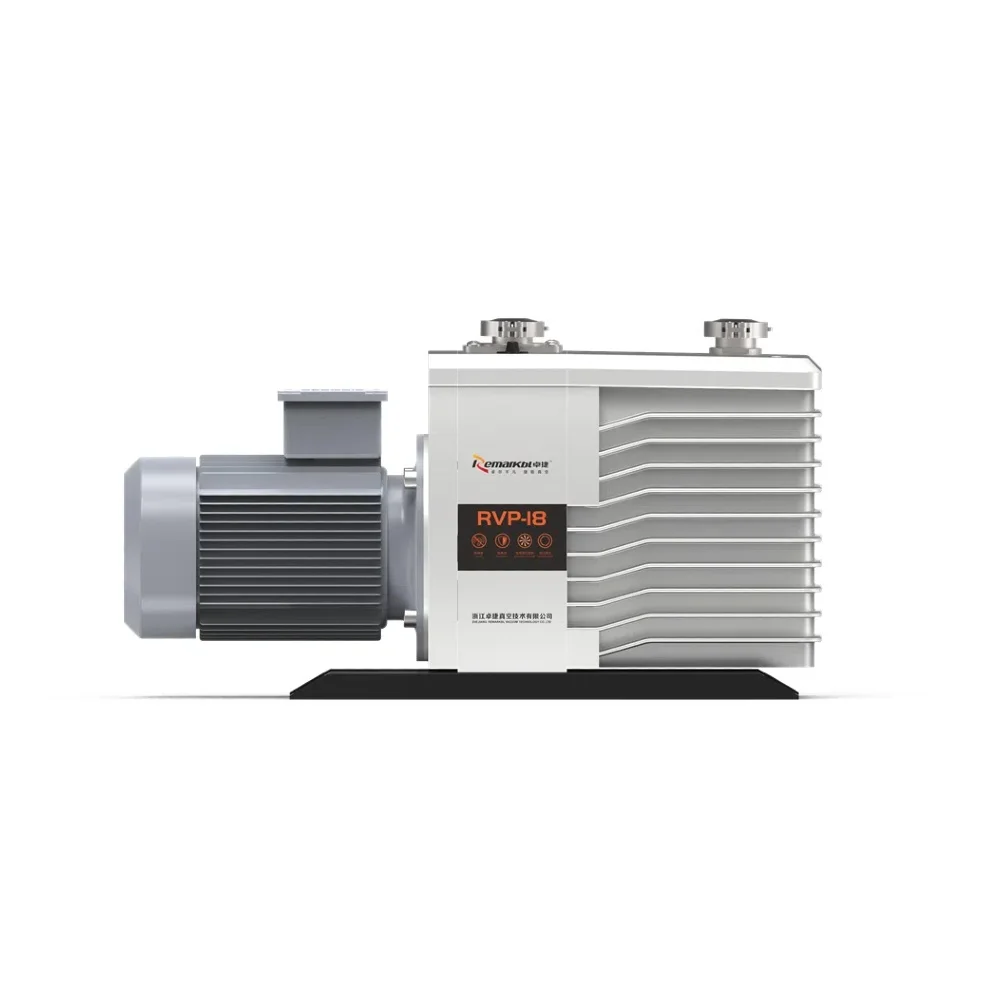

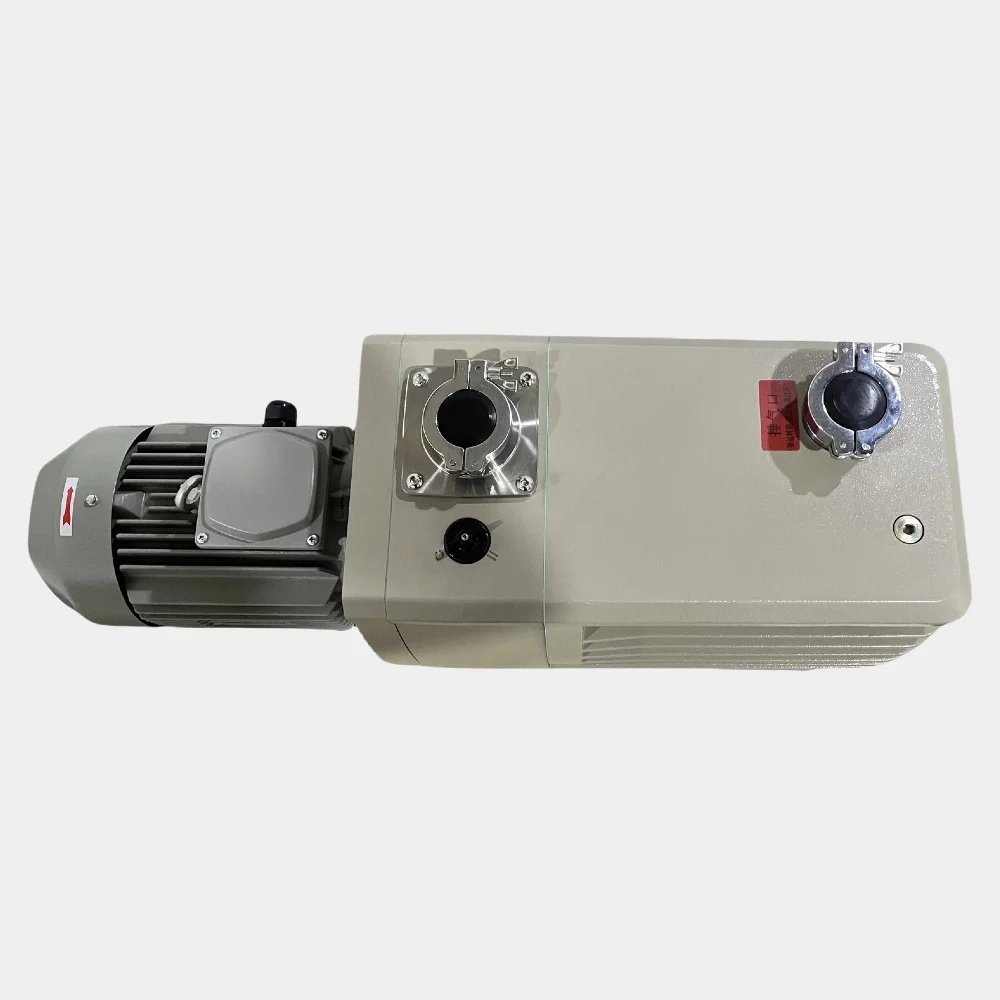

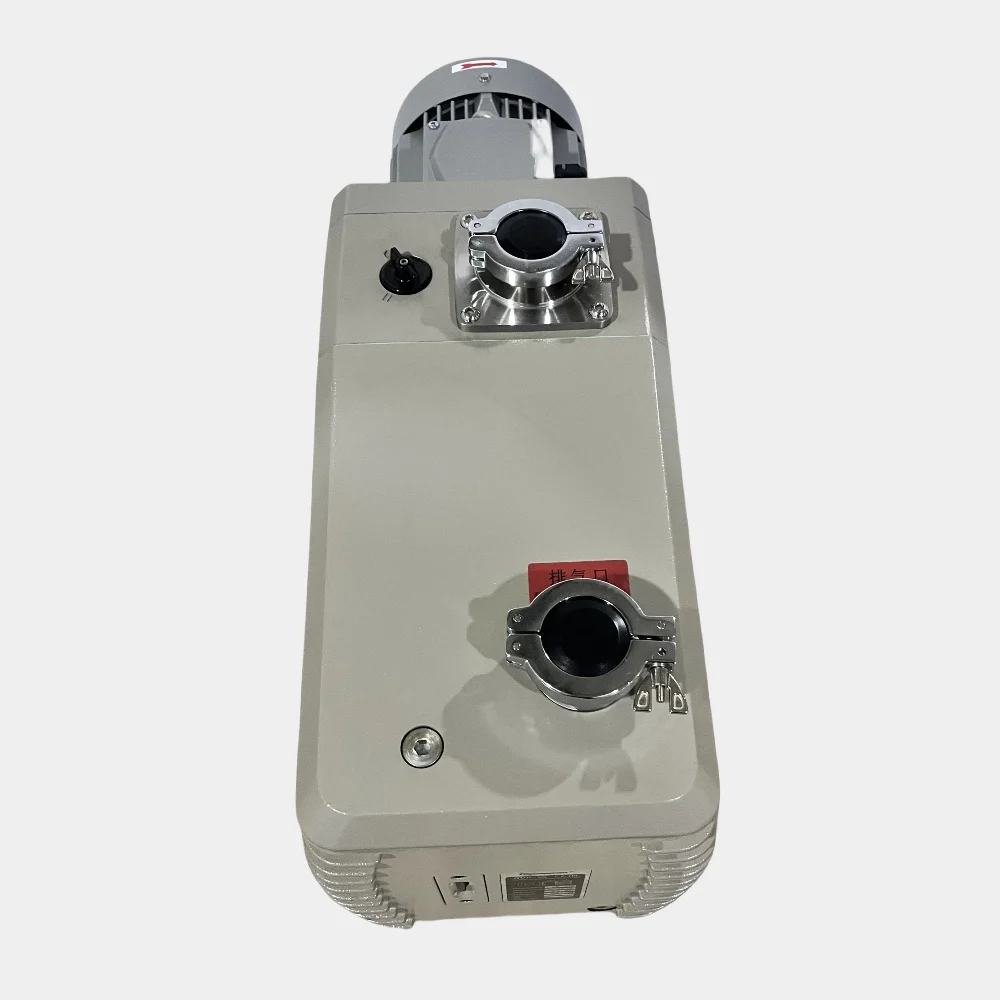

RVP18 2 Stage Two Stage High Quality Vacuum Pump
- Category: >>>
- Supplier: Hefei Dongwei E-Commerce Co. Ltd.Hefei Ltd.
Share on (1601282116976):
Product Overview
Description
The RVP series vacuum pump introduces the UK's cutting-edge vacuum rotary vane technology, with the classic gas wave designand with the proven circulating oil lubrication system, RvP series vacuum pump perfect balances the strong pumping force.smooth operation and extremely low noise, which makes the RvP series vacuum pump became a new generation of classicproduction.Since the RvP series vacwum pumps entered Chinese market, we put all our efforts in development and research. Based on theactual domestic application scenarios, we have produced the extreme reliability and stability of the products, the RVp seriesvacuum pumps can be operated safely in extremely harsh environments, The simple installation and easy way maintenancemethods allow you to choose and use with more confidence!

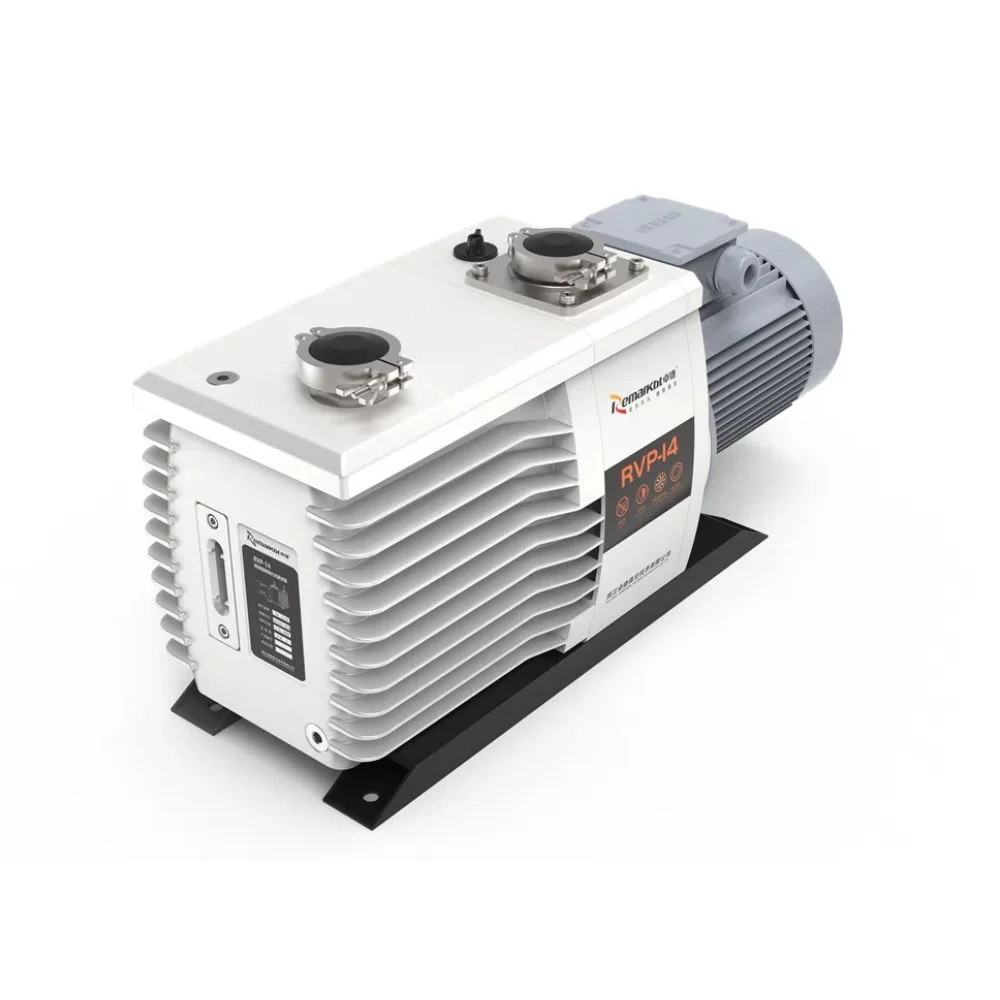

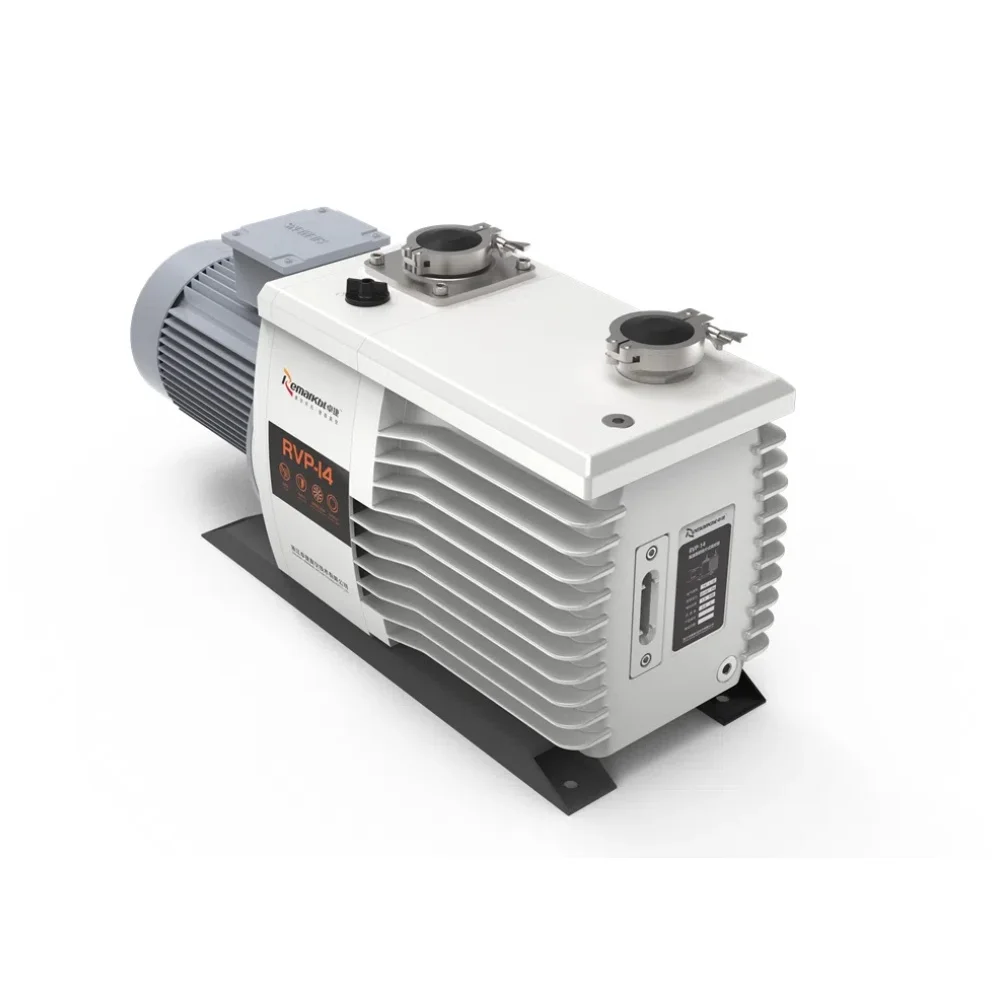

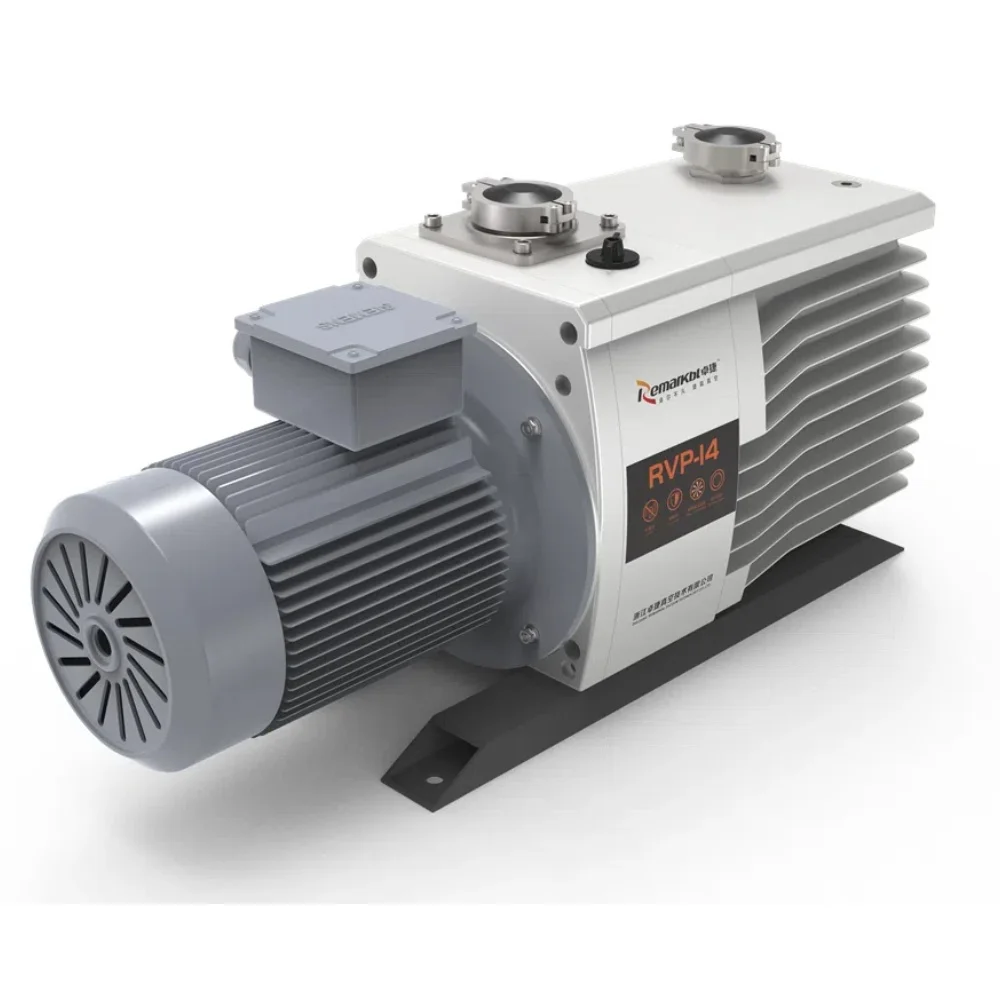

RVP14 Parameters | ||
pumping rate | 14L/s | |
840L/min | ||
28CFM | ||
49m3/h | ||
ultimate pressure(Pa) | 4X10-2 | |

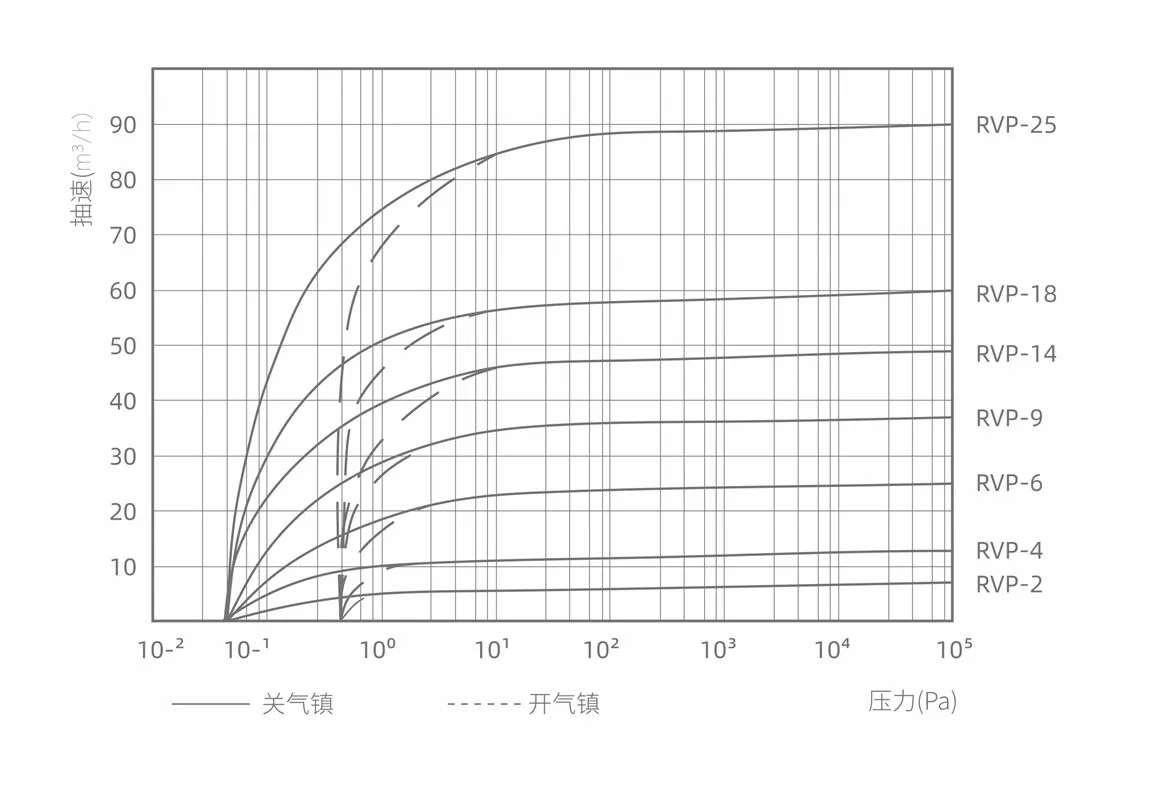

Model | Unit | RVP-2 | RVP-4 | RVP-6 | RVP-9 |
Displacement speed | L/s | 2 | 4 | 6 | 9 |
Ultimate partial pressure - gas ballast close | Pa | 4×10⁻² | 4×10⁻² | 4×10⁻² | 4×10⁻² |
Ultimate total pressure - gas ballast close | Pa | 4×10⁻¹ | 4×10⁻¹ | 4×10⁻¹ | 4×10⁻¹ |
Ultimate partial pressure - gas ballast open | Pa | 1.2 | 1.2 | 1.2 | 1.2 |
Ultimate total pressure - gas ballast open | Pa | 3 | 3 | 3 | 3 |
Motor speed (50Hz) | rpm | 1400 | 1400 | 1400 | 1400 |
Motor Power (single phase/three phase) | kw | 0.55/0.4 | 0.55/0.4 | 0.75/0.75 | /0.75 |
Inlet diameter | DN | KF25 | KF25 | KF25 | KF25(40) |
Outlet diameter | DN | 25KF | 25KF | 25KF | 25KF |
Oil capactiy | L | 1.2 | 1.1 | 1.8 | 2.2 |
Ambient temerature | ℃ | 8-40 | 8-40 | 8-40 | 8-40 |
Noise level(50Hz) | dB（A) | ≤50 | ≤50 | ≤53 | ≤53 |
Weight | Kg | 23 | 26 | 38 | 40 |

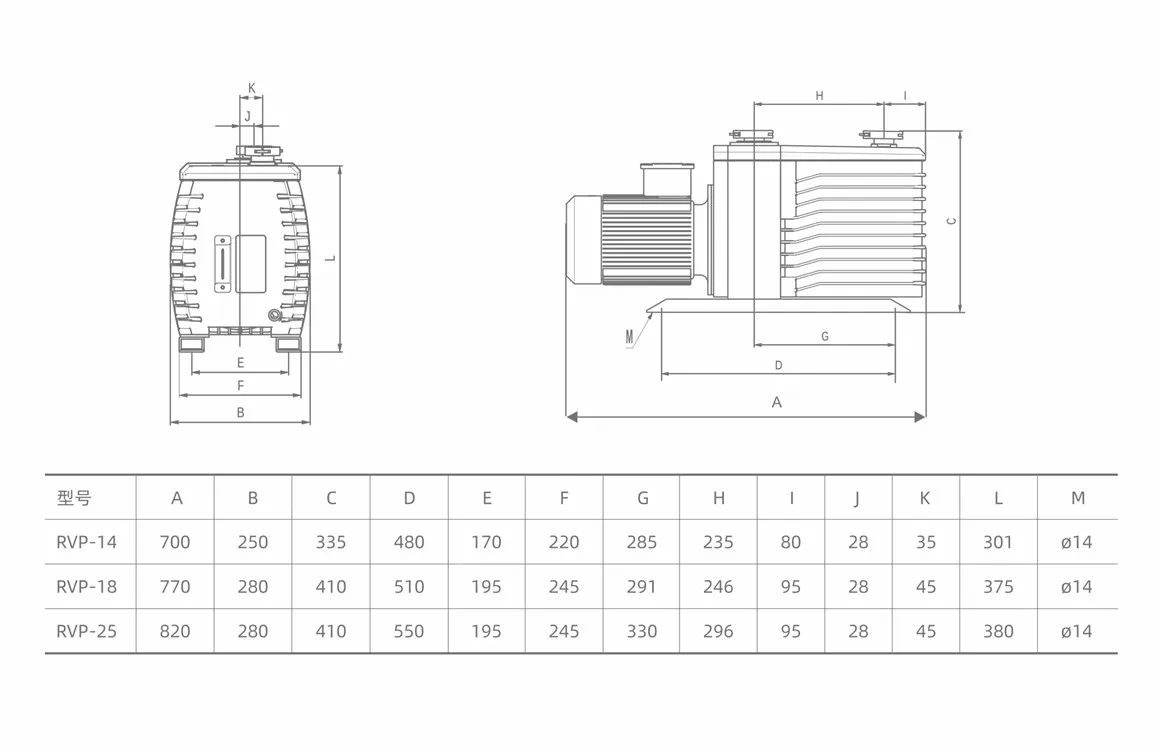

Model | Unit | RVP-14 | RVP-18 | RVP-25 |
Displacement speed | L/s | 14 | 18 | 25 |
Ultimate partial pressure - gas ballast close | Pa | 4×10⁻² | 4×10⁻² | 4×10⁻² |
Ultimate total pressure - gas ballast close | Pa | 4×10⁻¹ | 4×10⁻¹ | 4×10⁻¹ |
Ultimate partial pressure - gas ballast open | Pa | 1.2 | 1.2 | 1.2 |
Ultimate total pressure - gas ballast open | Pa | 3 | 3 | 3 |
Motor speed (50Hz) | rpm | 1400 | 1400 | 1400 |
Motor Power (single phase/three phase) | kw | /1.5 | /2.2 | /2.2 |
Inlet diameter | DN | KF40 | KF40 | KF40 |
Outlet diameter | DN | KF40 | KF40 | KF40 |
Oil capactiy | L | 3.9 | 5.0 | 5.5 |
Ambient temerature | ℃ | 8-40 | 8-40 | 8-40 |
Noise level(50Hz) | dB（A) | ≤58 | ≤60 | ≤62 |
Weight | Kg | 66 | 85 | 90 |
