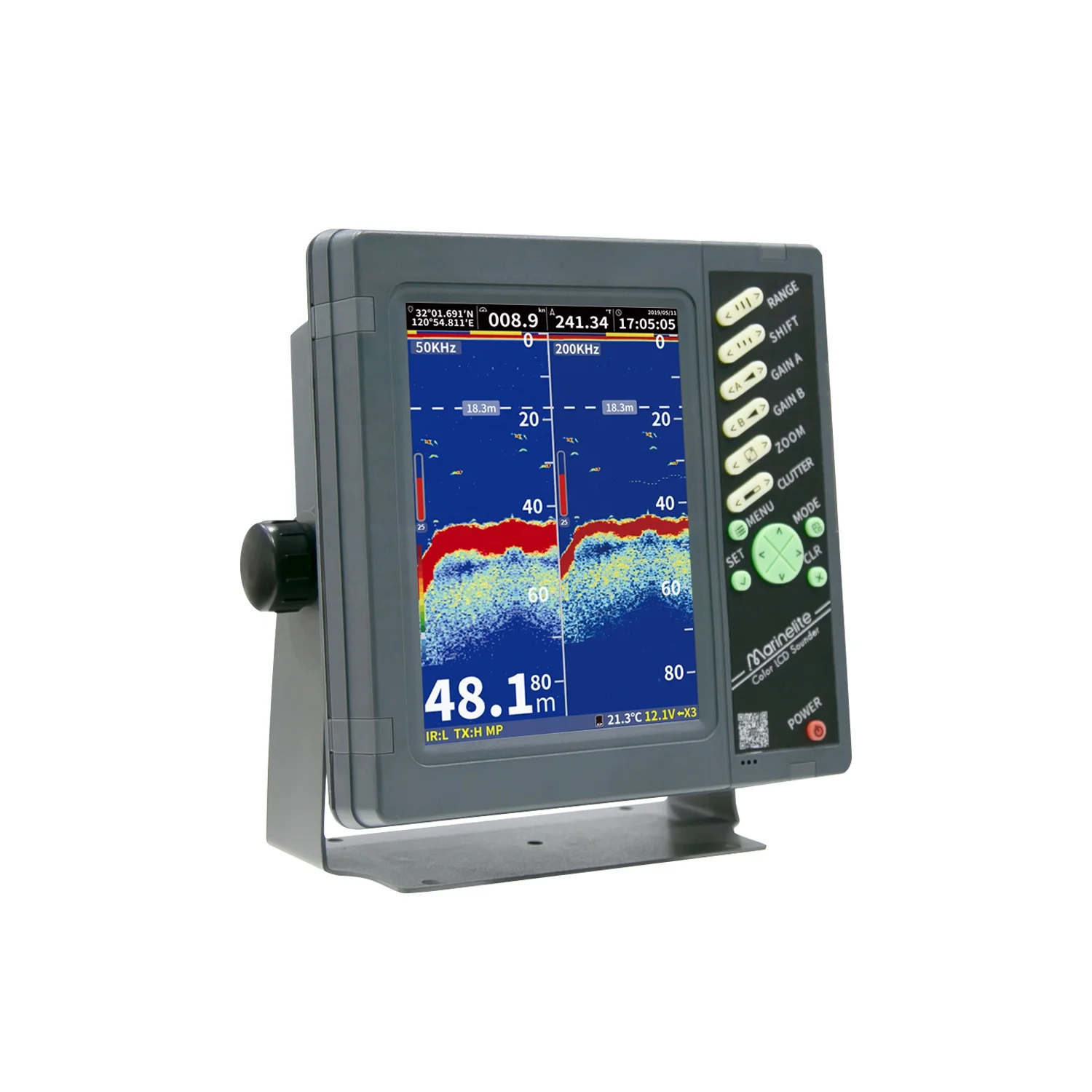

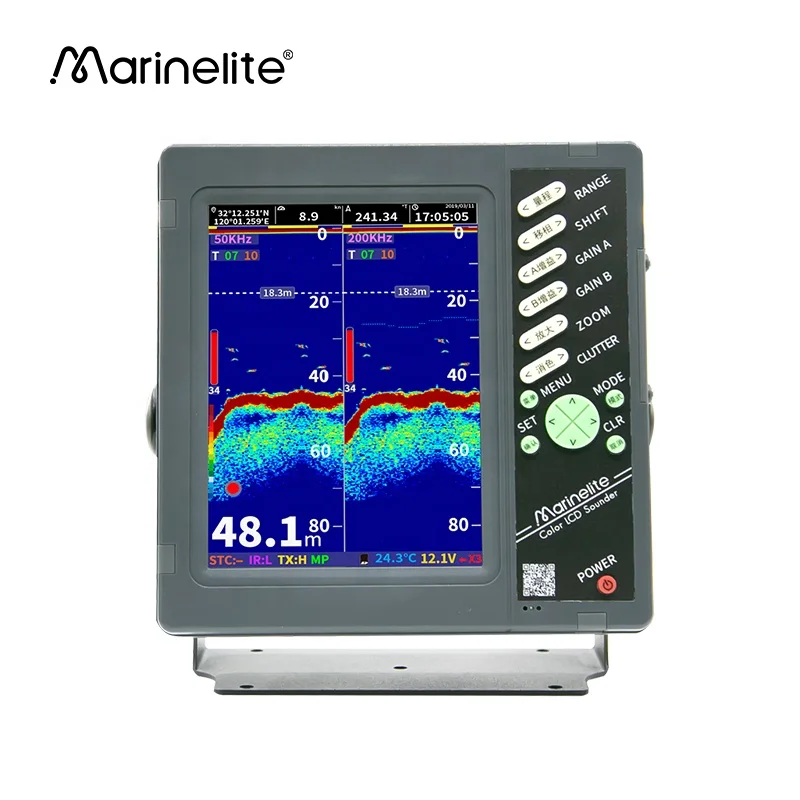

10 Inch fish finder sonar device fish finder 300 meter deep for fishing
10 Inch fish finder sonar device fish finder 300 meter deep for fishing
10 Inch fish finder sonar device fish finder 300 meter deep for fishing
10 Inch fish finder sonar device fish finder 300 meter deep for fishing
10 Inch fish finder sonar device fish finder 300 meter deep for fishing
10 Inch fish finder sonar device fish finder 300 meter deep for fishing
10 Inch fish finder sonar device fish finder 300 meter deep for fishing

10 Inch fish finder sonar device fish finder 300 meter deep for fishing

Share on (1601282142283):


Price:$926.00-1,068.00

Quantity:


Product Overview

Description







Product Description


Underwater ultrasonic detection equipment
which can locate Fish and Shrimp by detecting reflected pulse of sound energy as in sonar
Display measurements of reflected sound on a graphical display
Explore new field for professional fish finder
DSP high technology professional fishing
Sea /River/ Lake , commercial /sports fishing boat or leisure yacht/barge/vessel

Features:
Strong Anti-interference
Built-in GPS/ compass location modules are available
Switch Screen Horizontal screen Vertical screen
1-year limited warranty
Clear graph by high speed sampling in 1 cm
Trackback /Playback function
Fish depth voltage water temperature Alarm
Four kind of languages:Chinese English Korean Vietnamese
Other appearance languages and functions can be designed for your needs


Model
FS1001B
Display Size
10" Color TFT LCD
Resolution
640x480
Processing
Digital Signal Processing(DSP)
External Dimension
285mmx285mmx128.5mm
Language
Chinese, English, Korean, Vietnamese
Voltage Range
12~36V DC
Frequency
50&200KHz dual frequency
Output Transmit Power
1000~3000W
Emission Rate
3600 times/minute on top
Pulse Length
0.12~3.0ms
Measuring Accuracy
0.1m
Sensitivity
7 dBμV
Depth Range
0~2000m
Auto Range
OFF/ON
Auto Gain
OFF/L/M/H
A-Mode
OFF/ON
Fish School Alarm
OFF/Small/Large
Temperature Alarm
OFF/In Range/ Out Range
(Optional with temperature sensing transducer)
Depth Alarm
OFF/In Range/ Out Range
Voltage Alarm
OFF/ON
Expansion Mode
OFF/Auto/Manual/Bottom Lock
Expansion Rate
X2, X4, X8, XR(Actual Resolution)
Amplify Mode/Zoom Mode
OFF/Bottom Lock/Auto/Manual
Picture Advance Speed
7 steps(stop, 1/8, 1/4, 1/2, x1, x2, x3)
Background Color
4 kinds
Color Assortment
7 kinds
Depth Unit
Meter(m), Feet(ft), Fathom(fa)
Scale Line
OFF/ON
Clutter
Yes
STC
OFF/L/M/H
TX Power
OFF/L/M/H
SD Card
Storage and replay function, software update

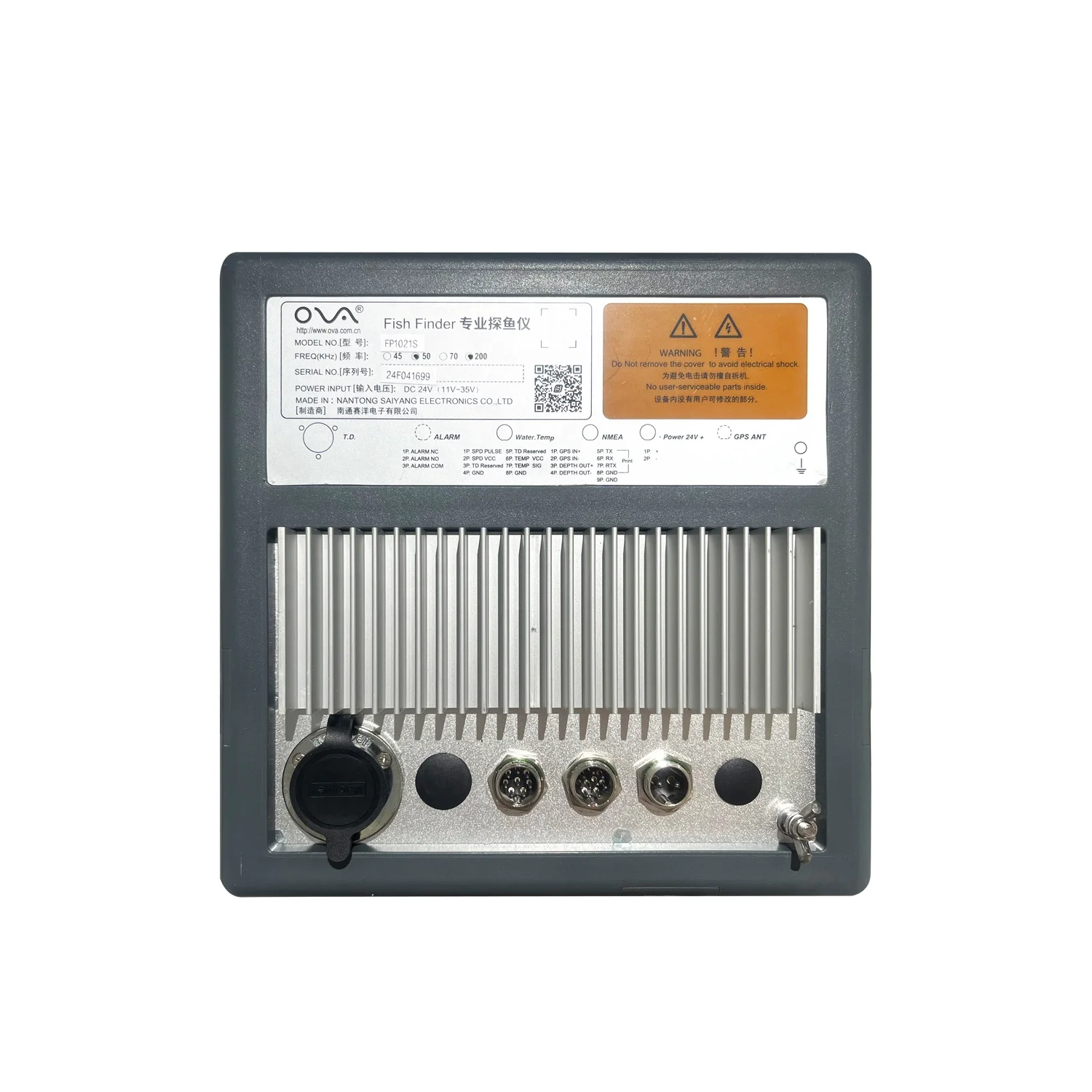

Interface
NMEA0183 Input: GPS Information(GGA, RMC, VTG)
NMEA0183 Output:Depth Data(DPT,DBT)
Water Temperature Interface:x1

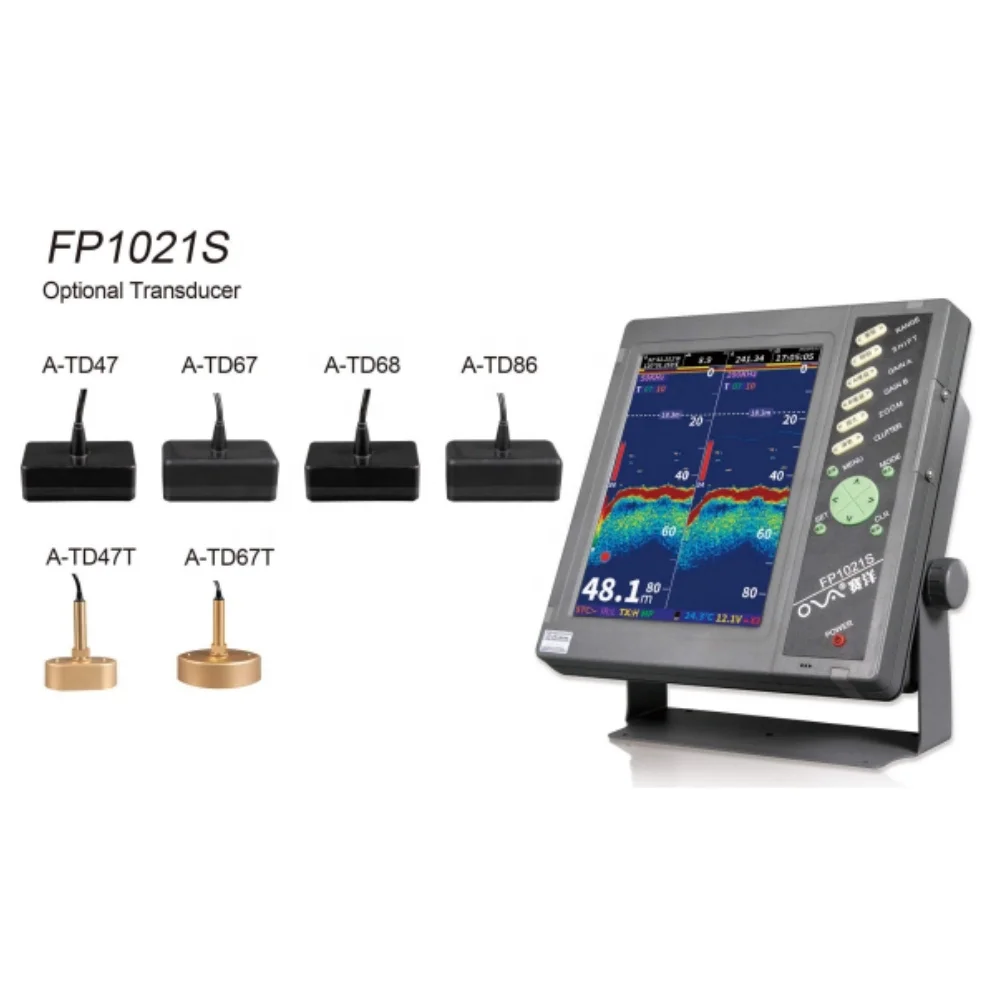

Transducer Interface:x3
Power Interface:DC 24V
Environment
Temperature:-10℃~40℃
