Product Overview
Description
Product Description

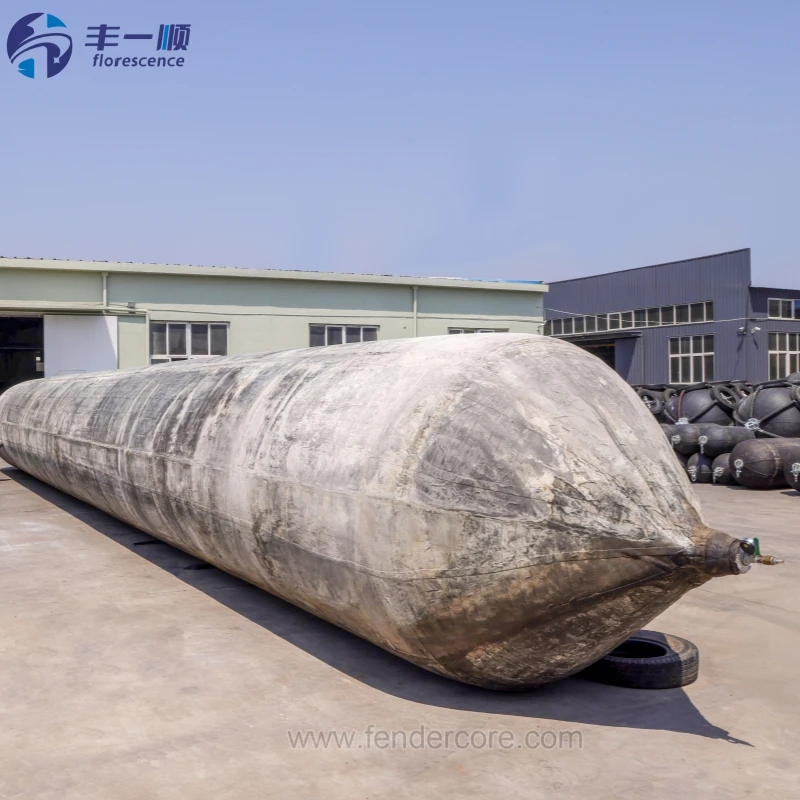

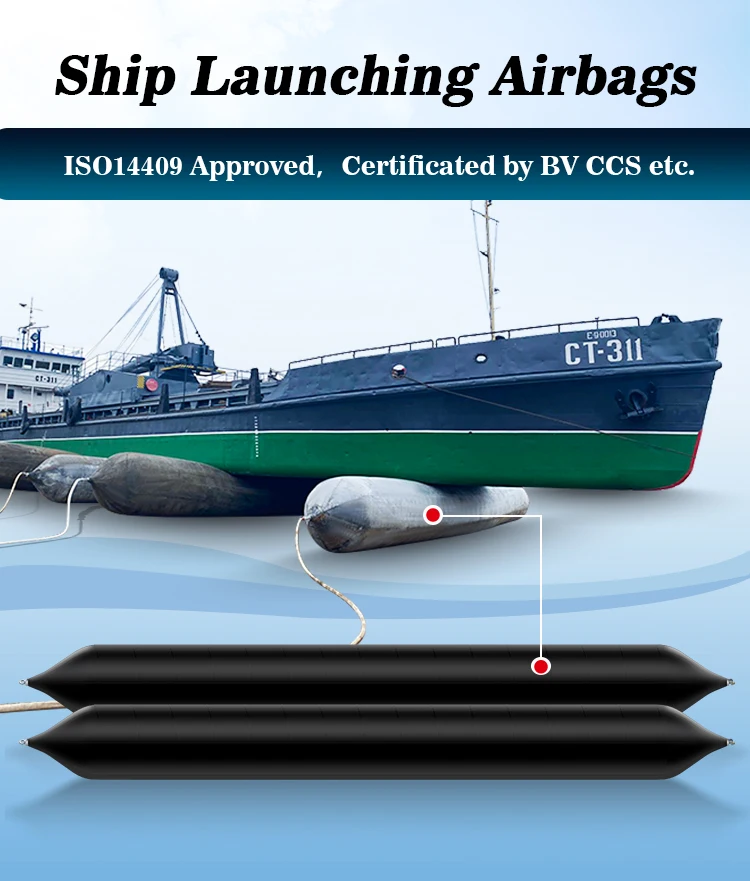

Ship launching airbag also known as rubber airbag, marine airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship launching airbag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.

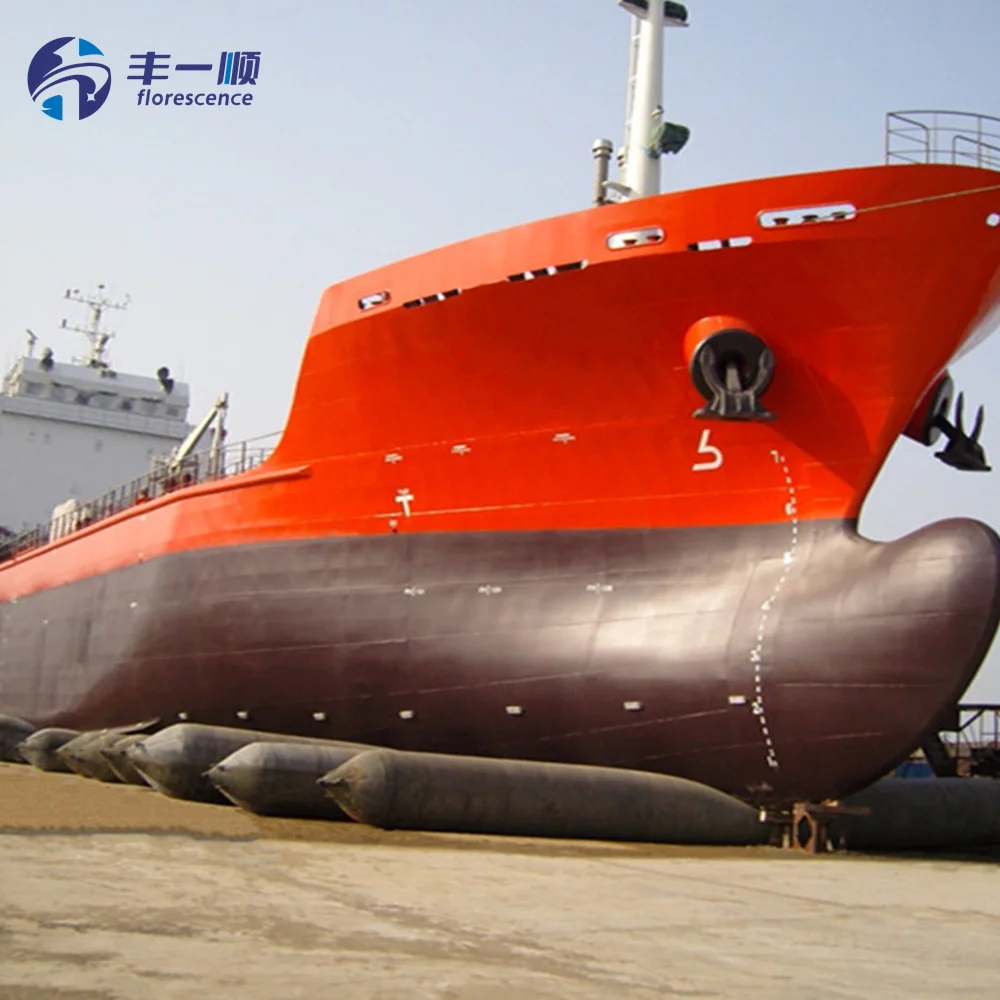

Ship launching airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.Ship launching airbags are very popular with shipyard, ship owner, and marine supplies company now.
Ship launching airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.Ship launching airbags are very popular with shipyard, ship owner, and marine supplies company now.

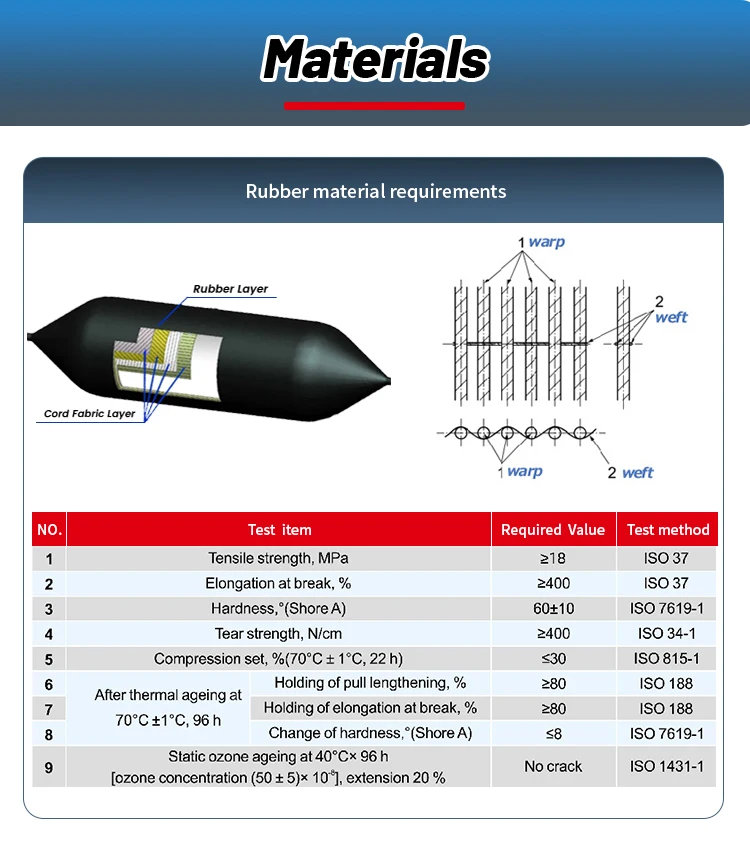

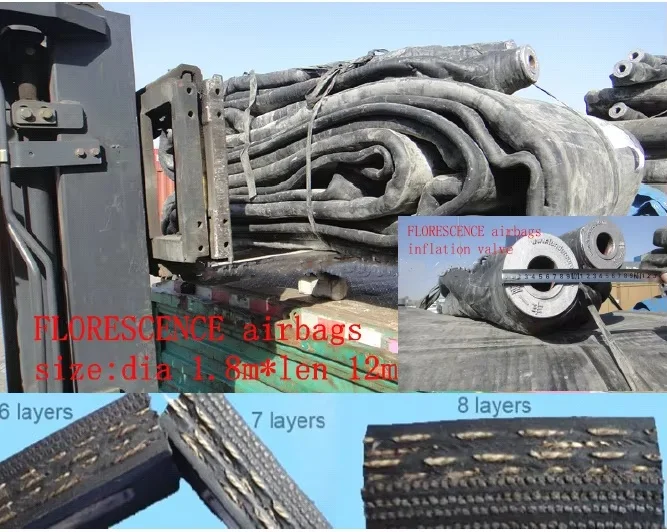

Construction of ship launching airbags
1) Outer Rubber Layer
The outer rubber layer that covers the outside of marine airbag to protect under layers from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.
2) Inner Rubber Layer
The inner rubber layer seals pressurized air inside marine airbags.
3) Synthetic-Tire-Cord Layer as Reinforcement
The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.
The outer rubber layer that covers the outside of marine airbag to protect under layers from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.
2) Inner Rubber Layer
The inner rubber layer seals pressurized air inside marine airbags.
3) Synthetic-Tire-Cord Layer as Reinforcement
The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.

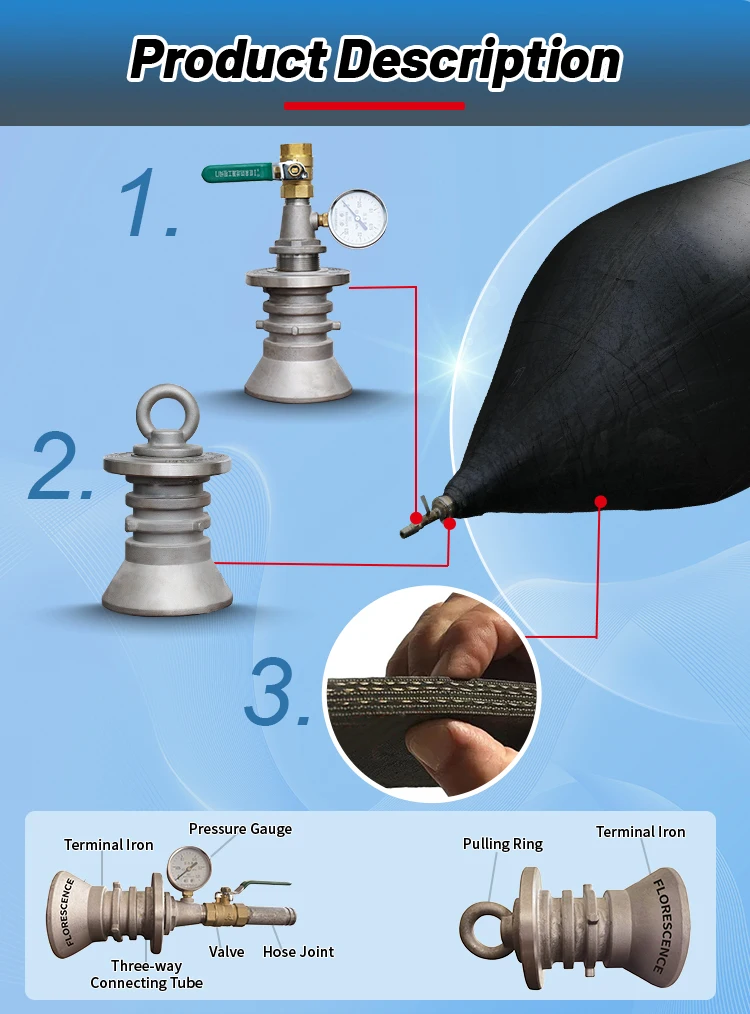

It is composed by airbag body and terminal iron part.The airbag body is composed by natural rubber and strength fiber material through vulcanization processing.

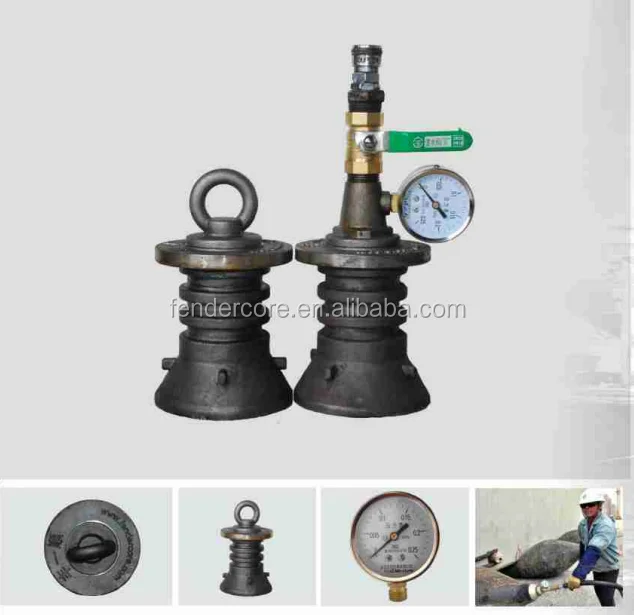

The terminal iron part is made of cast iron,it is combined closely with the bag body.One end is for pulling when move the airbag,and the other end is for charging and discharging the air.

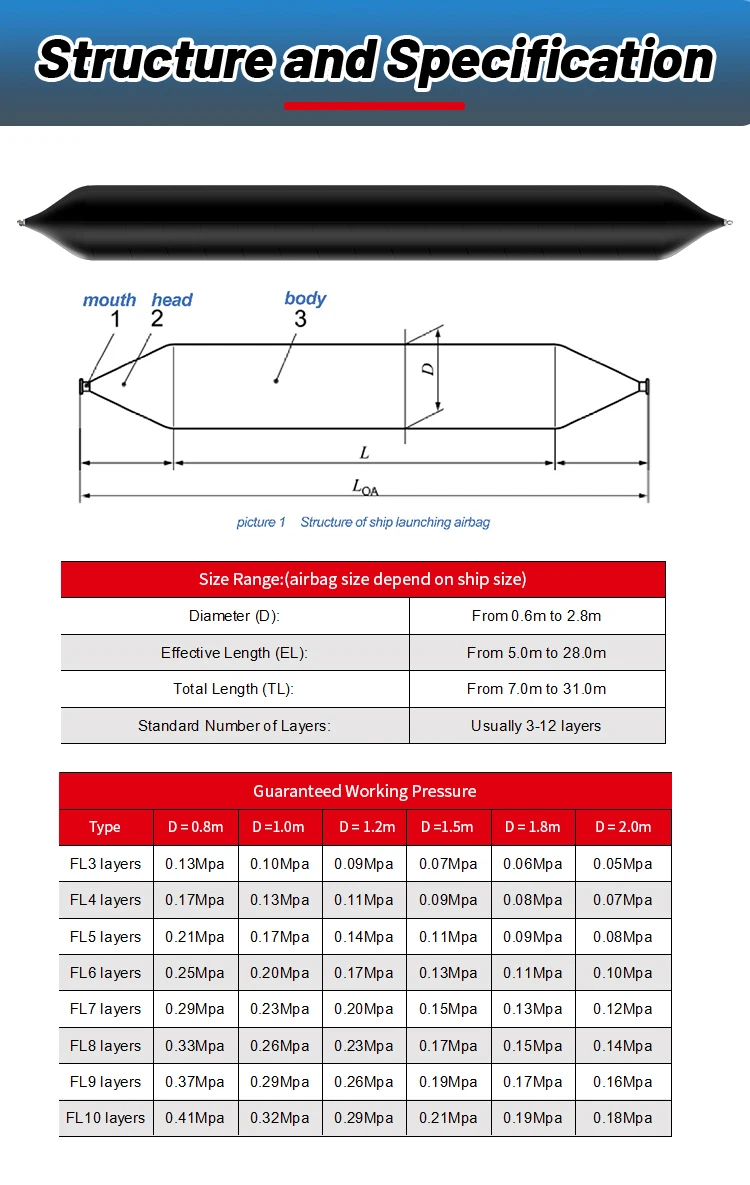

Specification
Product Name | Ship Rubber Airbag | Brand Name | QINGDAO FLORESCENCE |
Place of Origin | Shandong,China | Diameter | 0.6-2.8m |
Effective Length | 5-24m | Number Of Layers | 3-10 layers |
Size Range:(airbag size depend on ship size) | ||
Diameter(D): | From 0.6m to 2.8m | |
Effective Length(EL): | From 5.0m to 25.0m | |
Total Length(TL): | From 7.0m to 28.0m | |
Standard Number of Layers: | Usually 3-10 layers | |
Guaranteed Working Pressure | ||||||||||||
Type | D=0.8M | D=1.0M | D=1.2M | D=1.5M | D=1.8M | D=2.0M | ||||||
FL3 layers | 0.13Mpa | 0.10Mpa | 0.09Mpa | 0.07Mpa | 0.06Mpa | 0.05Mpa | ||||||
FL4 layers | 0.17Mpa | 0.13Mpa | 0.11Mpa | 0.09Mpa | 0.08Mpa | 0.07Mpa | ||||||
FL5 layers | 0.21Mpa | 0.17Mpa | 0.14Mpa | 0.11Mpa | 0.09Mpa | 0.08Mpa | ||||||
FL6 layers | 0.25Mpa | 0.20Mpa | 0.17Mpa | 0.13Mpa | 0.11Mpa | 0.10Mpa | ||||||
FL7 layers | 0.29Mpa | 0.23Mpa | 0.20Mpa | 0.15Mpa | 0.13Mpa | 0.12Mpa | ||||||
FL8 layers | 0.33Mpa | 0.26Mpa | 0.23Mpa | 0.17Mpa | 0.15Mpa | 0.14Mpa | ||||||
FL9 layers | 0.37Mpa | 0.29Mpa | 0.26Mpa | 0.19Mpa | 0.17Mpa | 0.16Mpa | ||||||
FL10 layers | 0.41Mpa | 0.32Mpa | 0.29Mpa | 0.21Mpa | 0.19Mpa | 0.18Mpa | ||||||
How to choose airbag size?
Before to provide suitable airbag size and quantity for your ship, please provide below information:
1.Ship length,width and weight.
2.Type of ground ship is built on? (Dirt, concrete, etc.)
3.Type of ship?
4.Depth in meters of the water where the ship first enters the water?
5.What's the angle degree of slipway? (Land, not under water)
6.Please provide the low/high tide schedule at site.
7.The working height? (The block stand height under the ship)
8.Distance from bottom of propeller to the water level?
9.Distance from back of ship (in dry dock) to the water entry point?
*If possible, please provide photos of the launch area.
1.Ship length,width and weight.
2.Type of ground ship is built on? (Dirt, concrete, etc.)
3.Type of ship?
4.Depth in meters of the water where the ship first enters the water?
5.What's the angle degree of slipway? (Land, not under water)
6.Please provide the low/high tide schedule at site.
7.The working height? (The block stand height under the ship)
8.Distance from bottom of propeller to the water level?
9.Distance from back of ship (in dry dock) to the water entry point?
*If possible, please provide photos of the launch area.

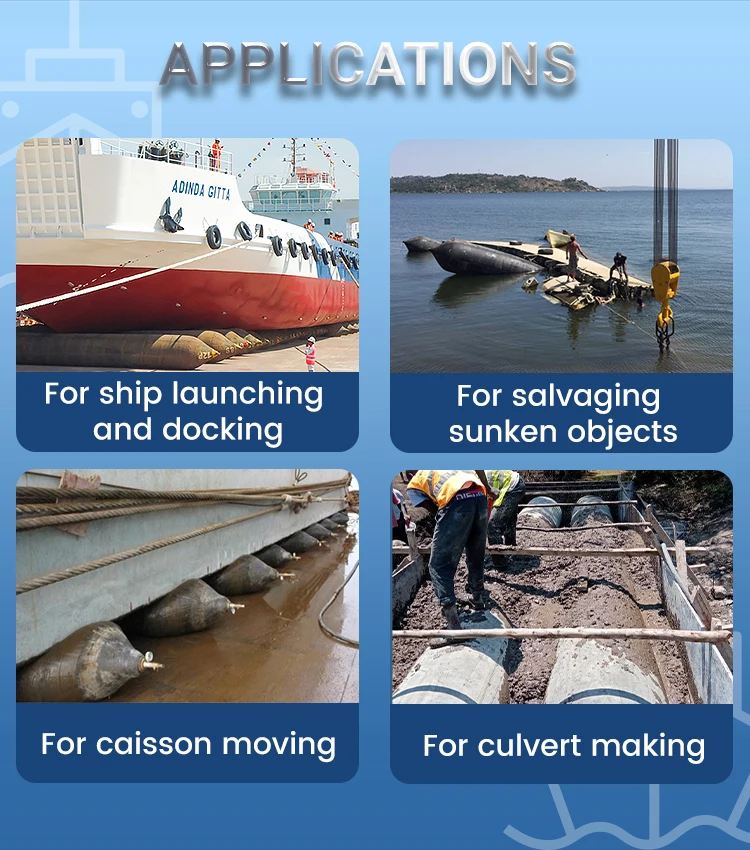

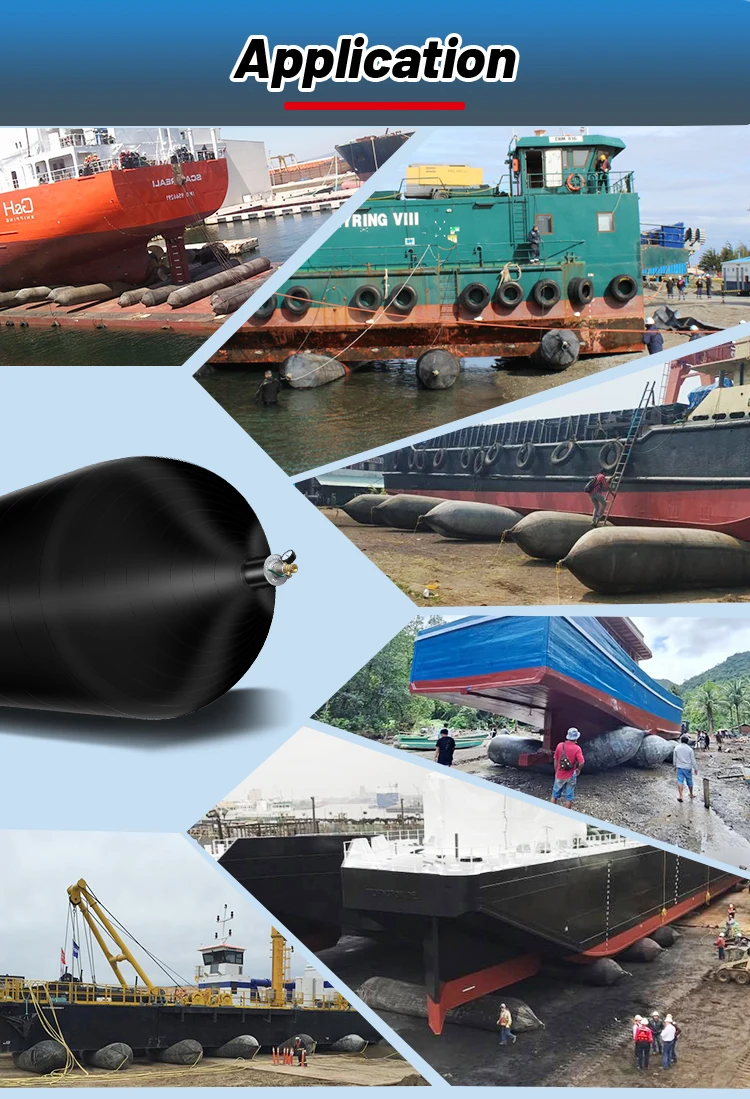

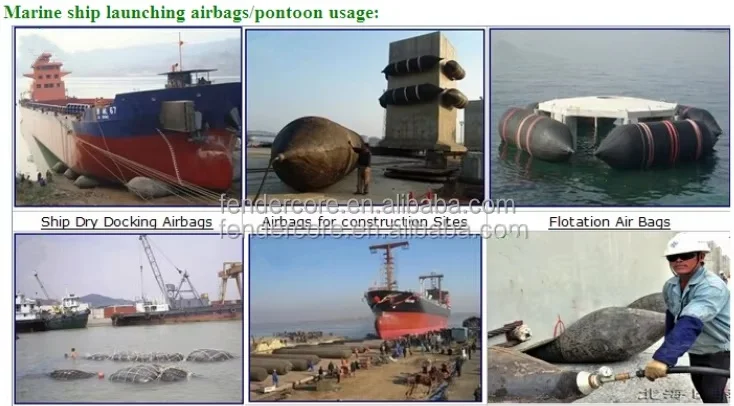

Main Application Of Airbags

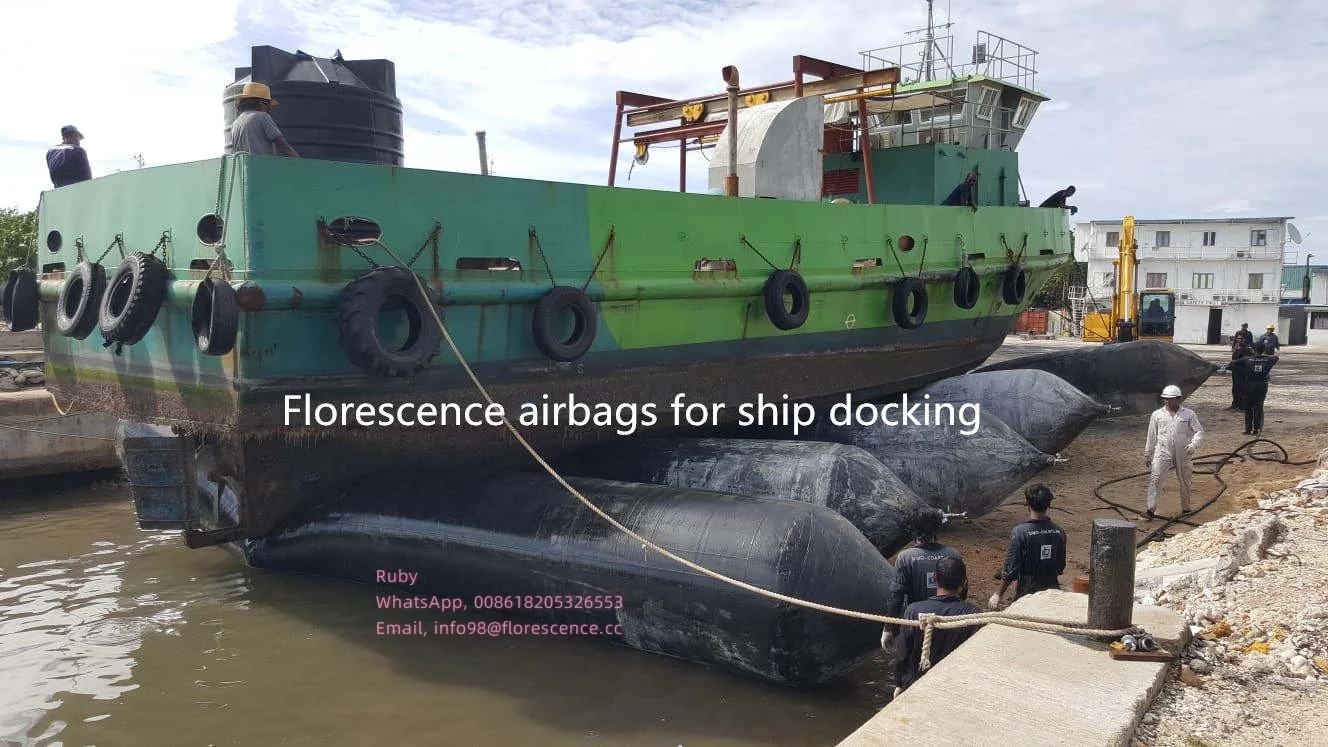

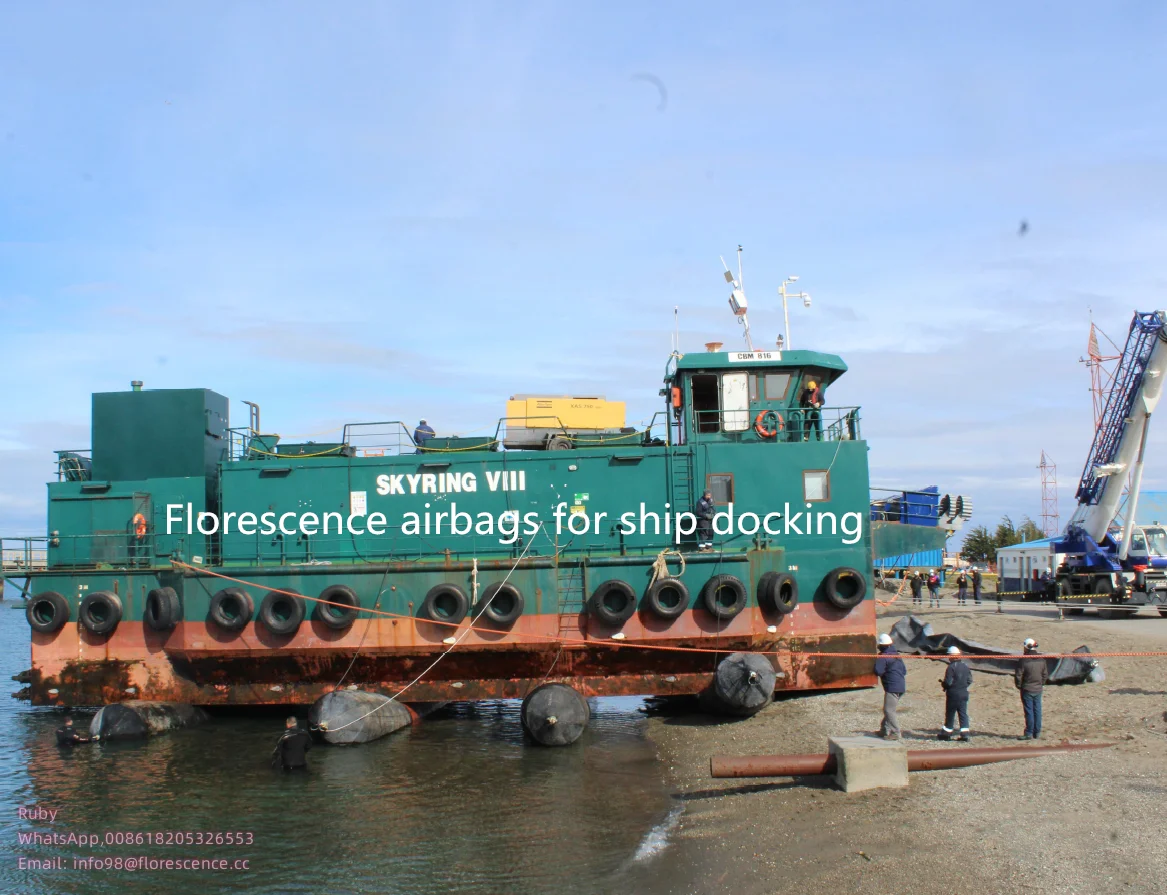

1. Ship launching, lifting and refloating
2. Floating bridge and dock construction

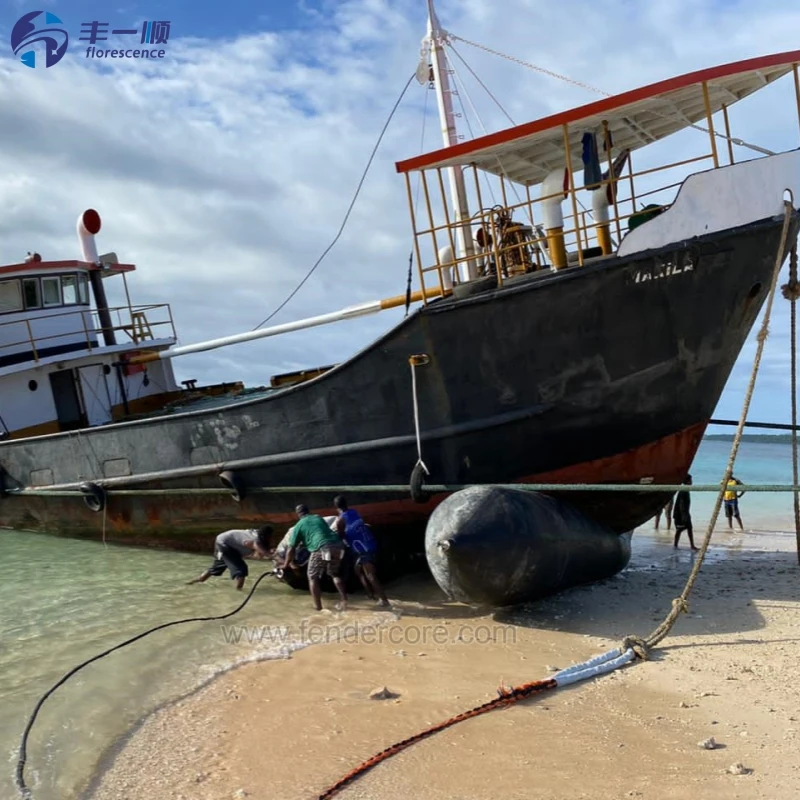

3. Rescue and remove of wrecked ship
4. Setting up temporary pontoon bridge pier and water transport channel
5. Blocking debacle of anti-flood and anti typhoon dam
6. Applying to short distance transport of the bridge, concrete piers, drilling equipment
2. Floating bridge and dock construction
3. Rescue and remove of wrecked ship
4. Setting up temporary pontoon bridge pier and water transport channel
5. Blocking debacle of anti-flood and anti typhoon dam
6. Applying to short distance transport of the bridge, concrete piers, drilling equipment

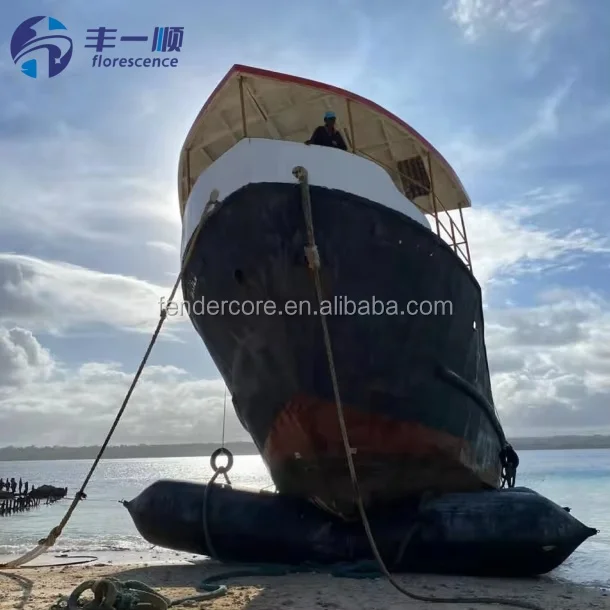

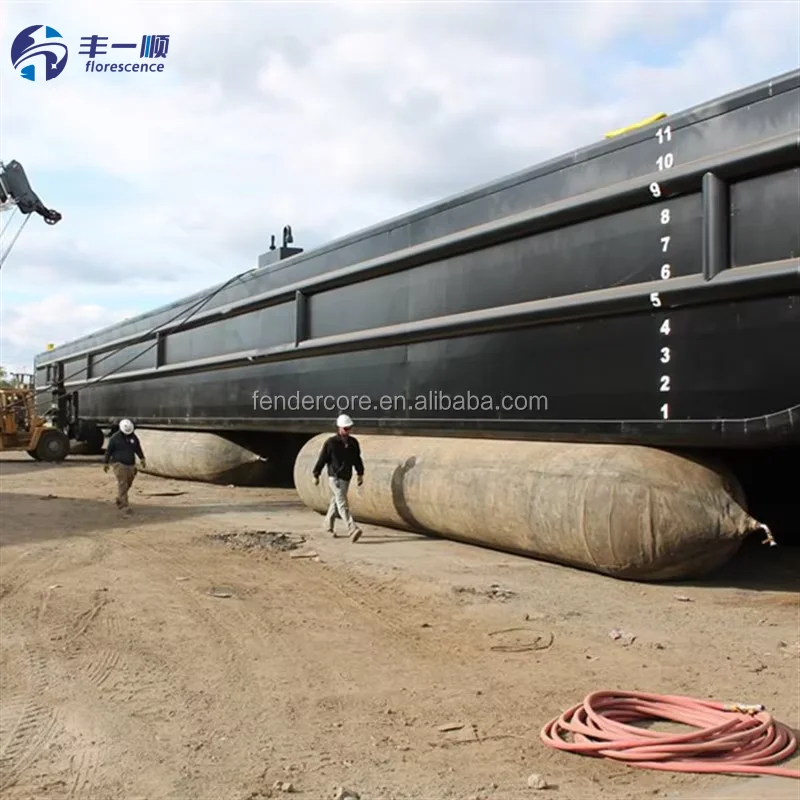

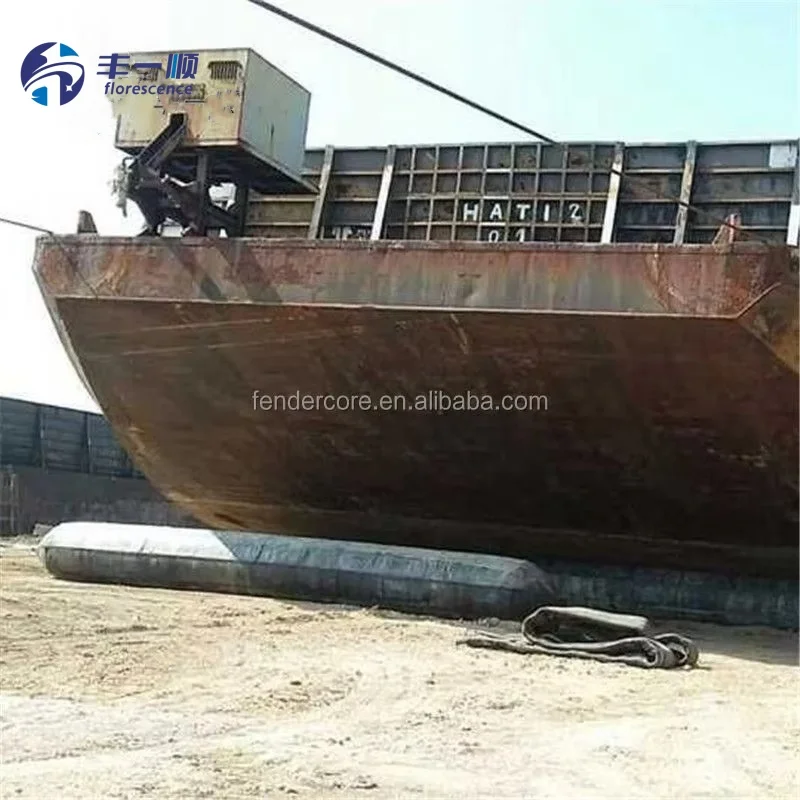

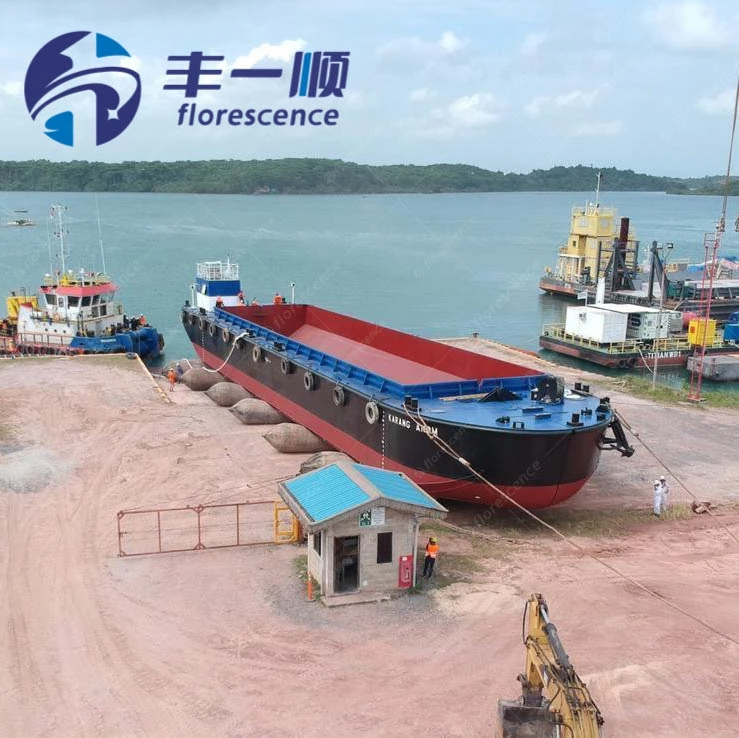

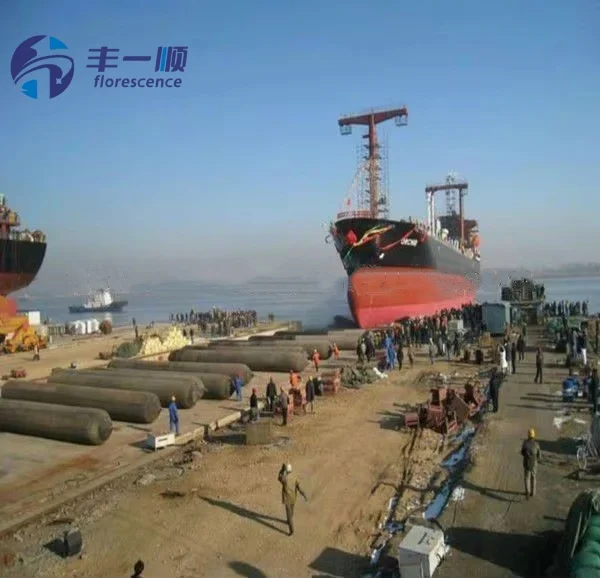

Procedure of Launch a ship by rubber airbags
1.Pre launch preparation work for shipyard
Slipway Enhancement
Water survey
Ground anchor
Seal thruster holes if there are.

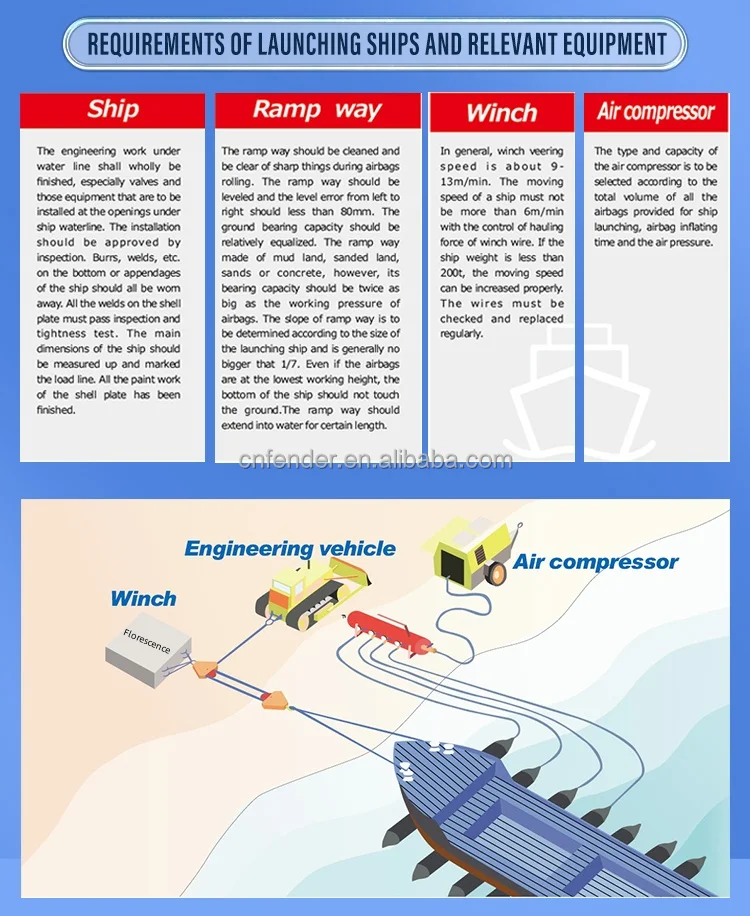

2.Basic equipment needed for ship launching
Rigging equipment:Winch,Pulley,Swivel,Lug,Shackle,Wire sling,Ground Anchor
Inflate equipment: Air Compressor, Inflating Pipe
Airbag moving equipment: Forklift, mobile crane
3.Crew preparation
4.Rigging Arrangements
5.Lifting the blocks
6.Move vessel forward

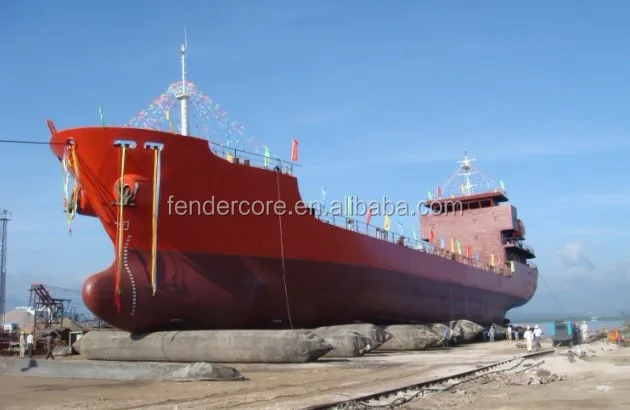

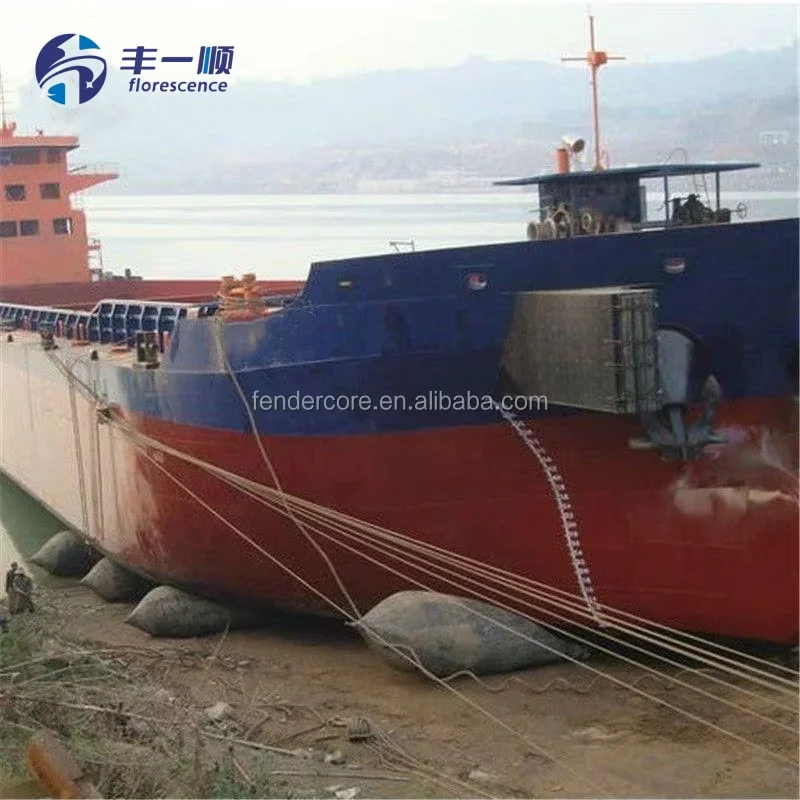

7.Vessel Launching
Slipway Enhancement
Water survey
Ground anchor
Seal thruster holes if there are.
2.Basic equipment needed for ship launching
Rigging equipment:Winch,Pulley,Swivel,Lug,Shackle,Wire sling,Ground Anchor
Inflate equipment: Air Compressor, Inflating Pipe
Airbag moving equipment: Forklift, mobile crane
3.Crew preparation
4.Rigging Arrangements
5.Lifting the blocks
6.Move vessel forward
7.Vessel Launching
Company Profile
Qingdao Florescence Marine Supply Co., Ltd. is a comprehensive marine supply enterprise, integrating the scientific research design, product development with technical services since 1992.We specialize in manufacturing pneumatic rubber fenders, foam fenders,various marine rubber fenders and ship rubber airbags.Florescence fenders are designed, manufactured, and tested per ISO 17357 and ISO 9001:2000 requirements. And every unit robustly built to the stringent requirements of ship surveyors such as BV,CCS, etc.
Equipped with advanced manufacture, test and R&D equipment, Florescence becomes a Chinese leading marine supplier with the longest history, fastest development, most abundant capital and technology and the most competitive products. Located in the Port of Qingdao, Florescence can respond effectively to any urgent requirements of fenders and airbags with its comprehensive range of products.
With 30 years experiences, our high quality products sell well worldwide,while delivering the highest levels of customer service and product reliability in the industry. Our highly trained staff are able to travel to your site to undertake repair or refurbishment work on pneumatic or foam filled fenders.
Qingdao Florescence Marine Supply Co., Ltd. is fully committed to promoting our customers development and exceeding our customers expectations in services quality. All the Florescence staff work carefully and treat people honestly. We expect to cooperate with more customers worldwide and create a better future together.
