LS220 0 3500um ruby tip probe High precision Coating Thickness Gauge Plastic Gauges Thickness Gauge Paint Thickness Tester
- Category: >>>
- Supplier: Guangzhou Siguang Technology Co. Ltd.
Share on (1601282178126):
Product Overview
Description
Specification

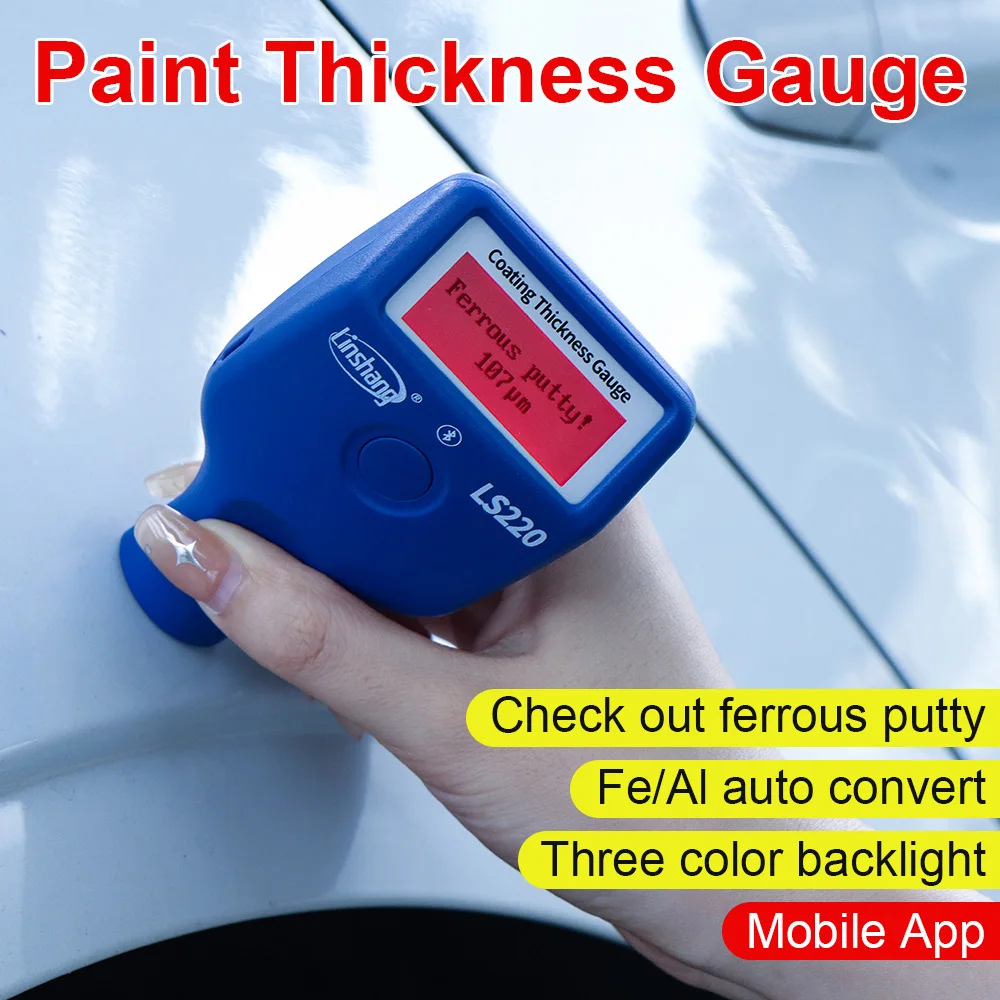

Automotive paint meter, also called car paint meter, is a special instrument for detecting the automobile substrate surface
coating thickness. Using a automotive paint meter can directly determine the sheet metal and spray paint of a car. It can also
indirectly determine the damage degree of the car. The LS220 automotive paint meter can identify metallic putty and iron
galvanized car body as well as discovering iron, aluminum and non-ferrous substrate of a car. This car paint thickness gauge has
the characteristics of fast test speed, stable test data, high measurement accuracy and so on.
coating thickness. Using a automotive paint meter can directly determine the sheet metal and spray paint of a car. It can also
indirectly determine the damage degree of the car. The LS220 automotive paint meter can identify metallic putty and iron
galvanized car body as well as discovering iron, aluminum and non-ferrous substrate of a car. This car paint thickness gauge has
the characteristics of fast test speed, stable test data, high measurement accuracy and so on.
item | value |
Product name | Coating Thickness Gauge |
Accuracy | ≤±(3%H+2μm) |
Size | 101*62*28mm |
Weight | 79g |
Probe tip | Ruby |
Measuring principle | Fe:Hall Effect / Al: Eddy current |
Measuring range | 0.0-3500μm |
Resolution | 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-3.00mm) |
Unit | μm / mil |
Measuring interval | 0.5s |
Minimum measuring area | Diameter = 25mm |
Minimum curvature | Convex:5mm / Concave:25mm |
Minimum substrate thickness | Fe:0.2mm / Al:0.05mm |
Product Description
Company Profile
FAQ
1. Do you have certifications?
2. Can you do customization?
---- Yes , We accept client’s requests of OEM & ODM, can do customized logo on products body or package with your
own brand names , also we can do private label stick on each package.
3. How to make an order?
---- Please send us your email,
receiving address and contact phone number, then order request link would be sent to you to check and make the payment.
4. What is your payment terms and payment methods?
---- We can do 30% deposit before production, 70% balance before shipment delivery.Payment
can be done via T/T, western union, or PayPal, escrowing security order payment on Alibaba.
5. What is your terms of delivery?
---- We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
---- Yes , we have products certification of Rohs, CE, FCC and product patent .
2. Can you do customization?
---- Yes , We accept client’s requests of OEM & ODM, can do customized logo on products body or package with your
own brand names , also we can do private label stick on each package.
3. How to make an order?
---- Please send us your email,
receiving address and contact phone number, then order request link would be sent to you to check and make the payment.
4. What is your payment terms and payment methods?
---- We can do 30% deposit before production, 70% balance before shipment delivery.Payment
can be done via T/T, western union, or PayPal, escrowing security order payment on Alibaba.
5. What is your terms of delivery?
---- We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
