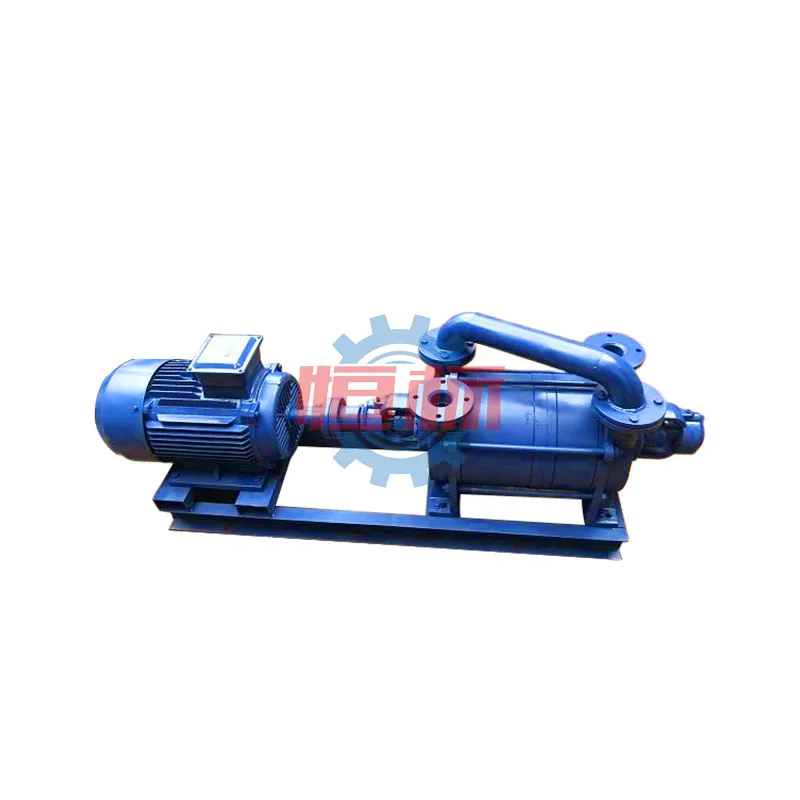

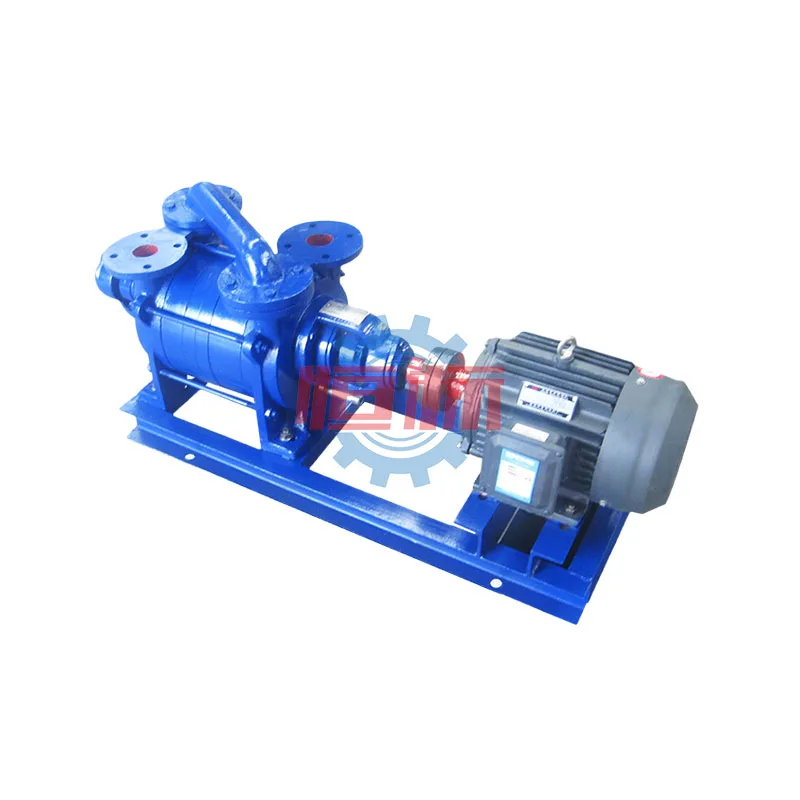

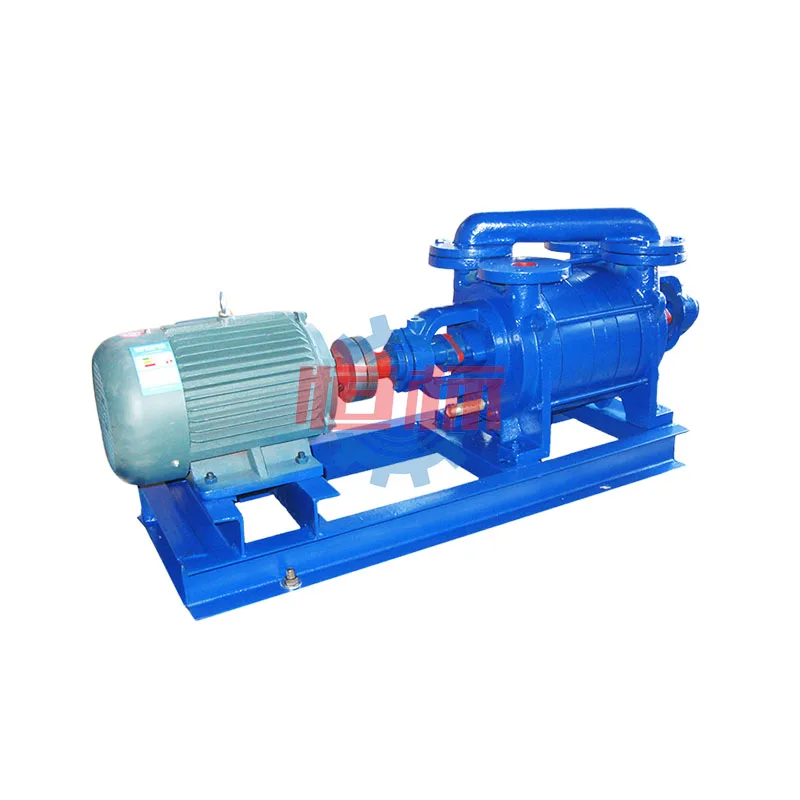

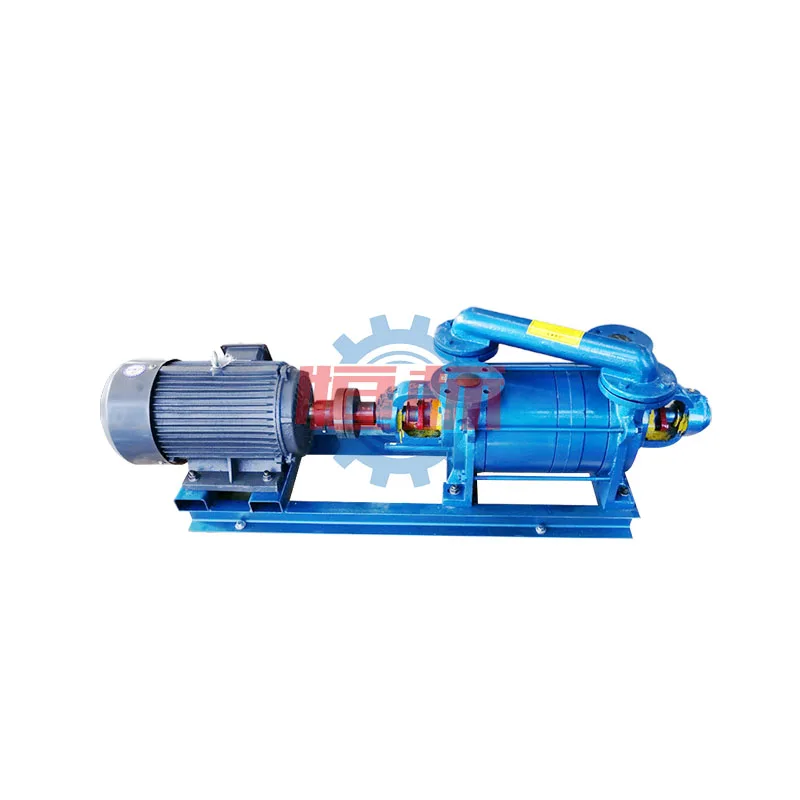

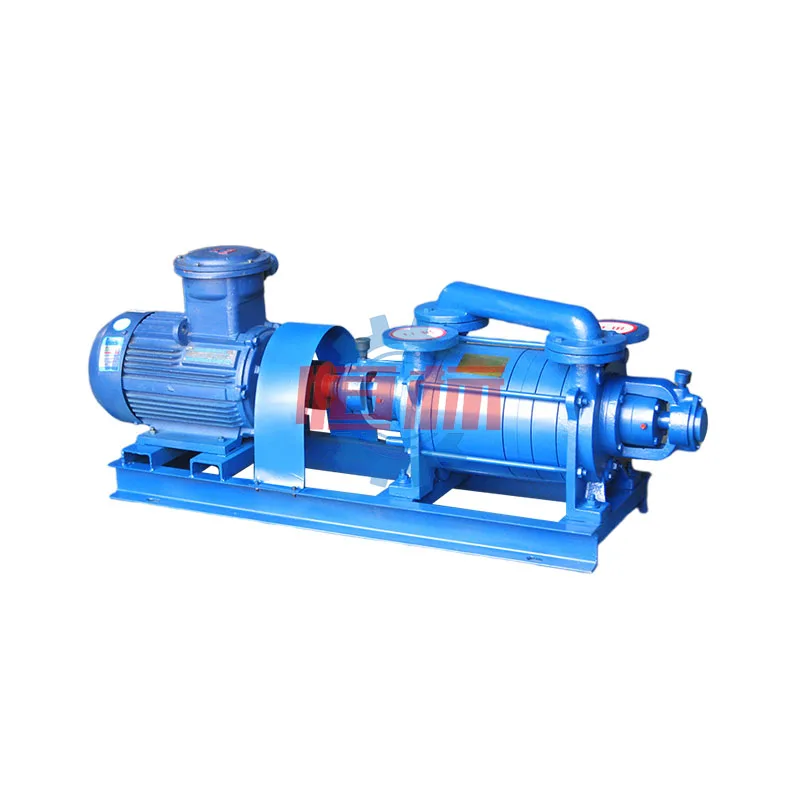

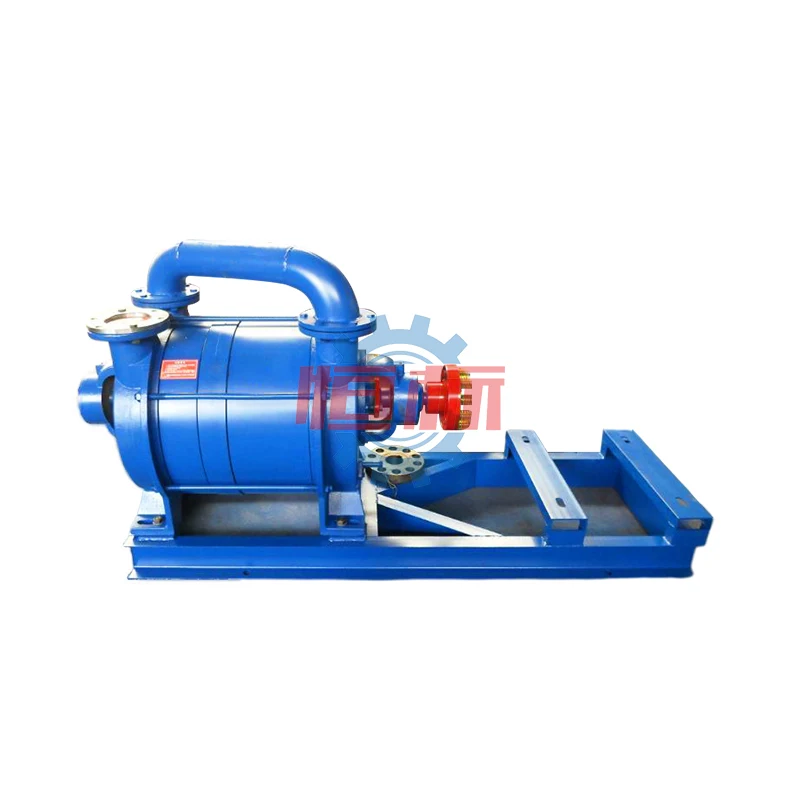

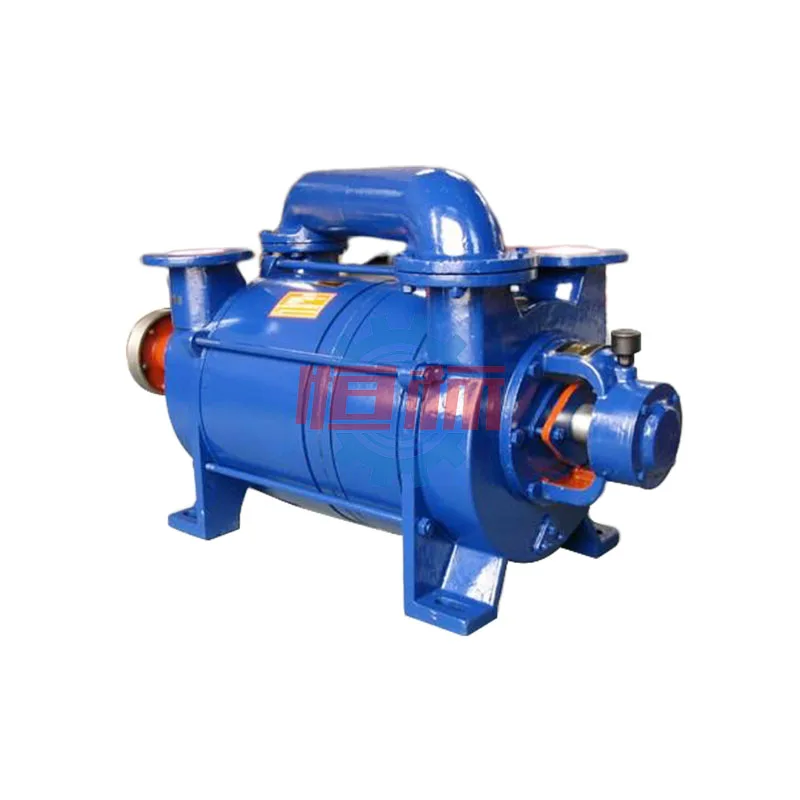

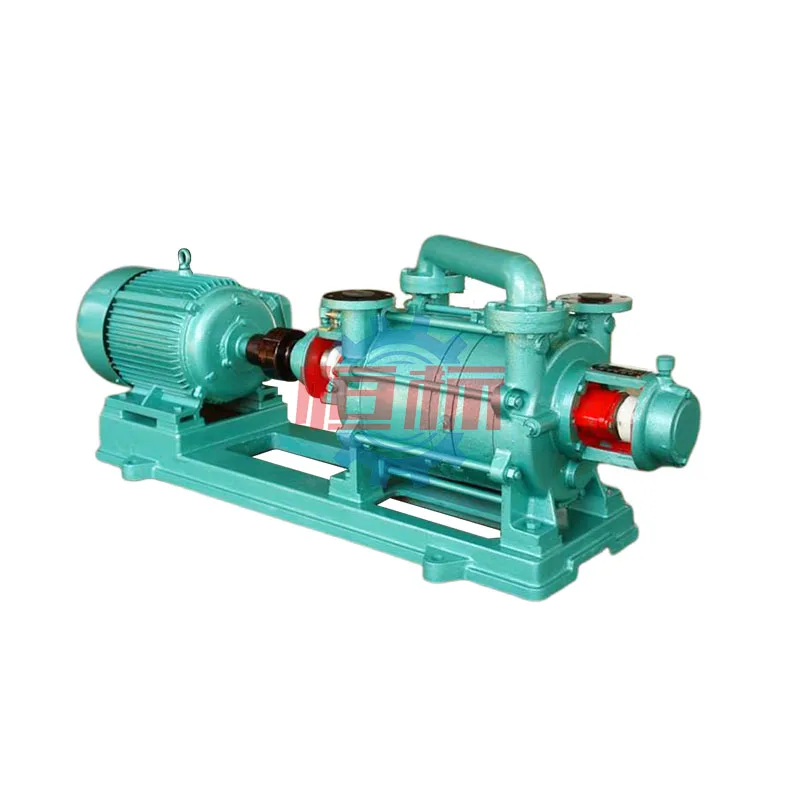

Air vacuum pump 7.5kw low noise liquid vacuum pump 2SK,SK pump
- Category: >>>
- Supplier: Hebei Shenghui Pump Co. Ltd.
Share on (1601282196997):
Product Overview
Description
Product Description

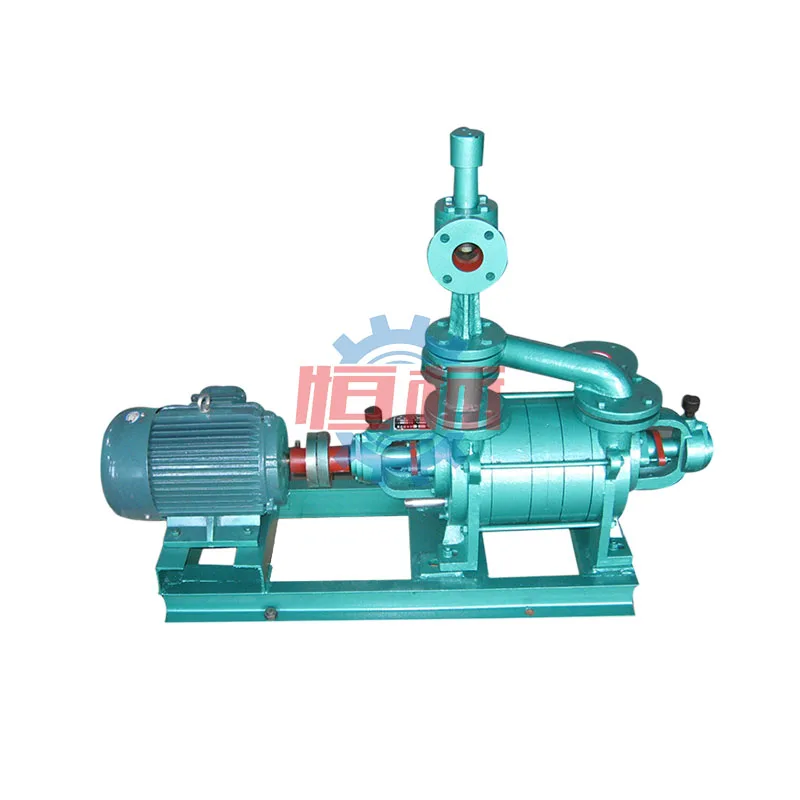

2SK series water ring vacuum pumps and 2SK-P1 series two-stage water ring vacuum pumps—atmospheric jet pump units are used to extract air and other non-corrosive, water-insoluble, and non-solid particles-free gases in order to obtain a higher vacuum in a closed container.
It is widely used in vacuum evaporation, vacuum concentration, vacuum regaining, vacuum impregnation, vacuum drying and vacuum smelting in the fields of food, weaving, chemical, pharmaceutical and metallurgical industries and electronics.
It is widely used in vacuum evaporation, vacuum concentration, vacuum regaining, vacuum impregnation, vacuum drying and vacuum smelting in the fields of food, weaving, chemical, pharmaceutical and metallurgical industries and electronics.

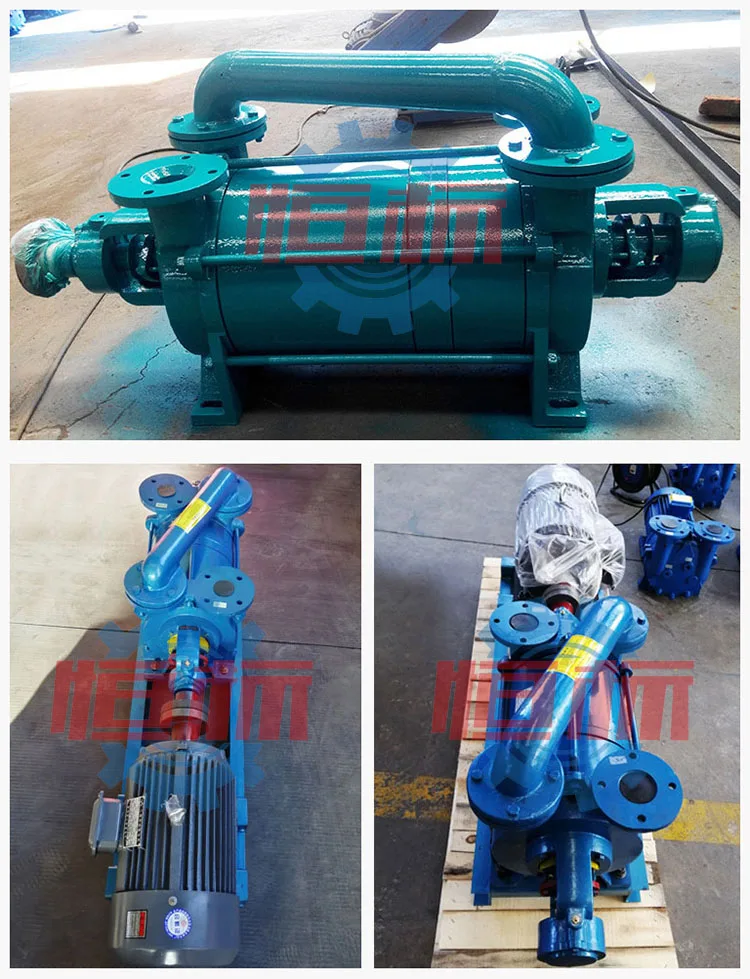

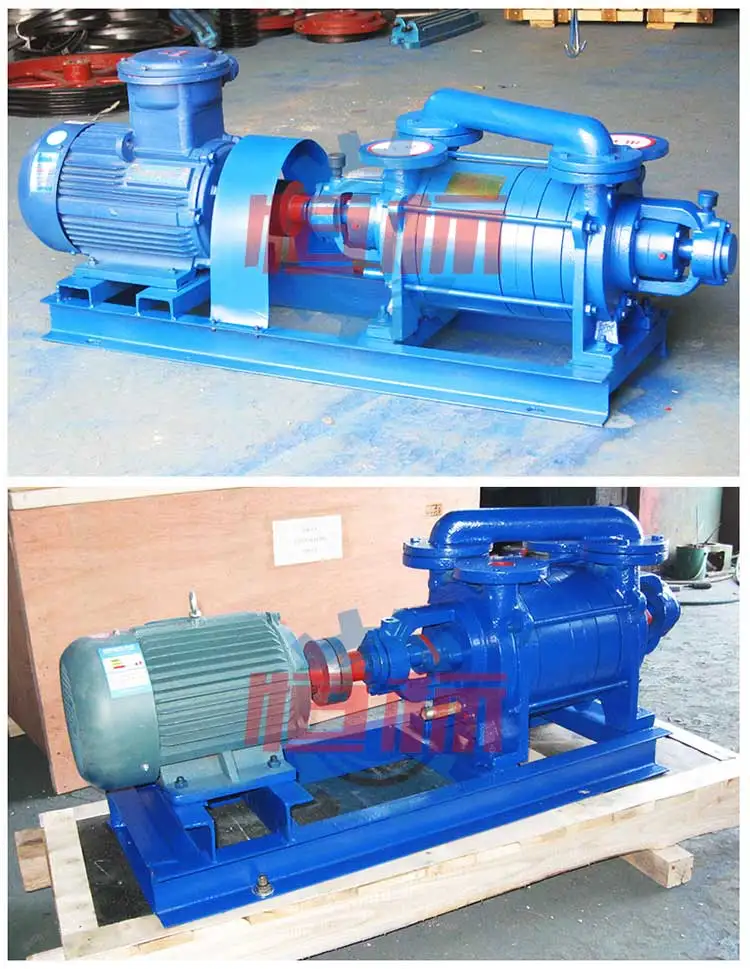

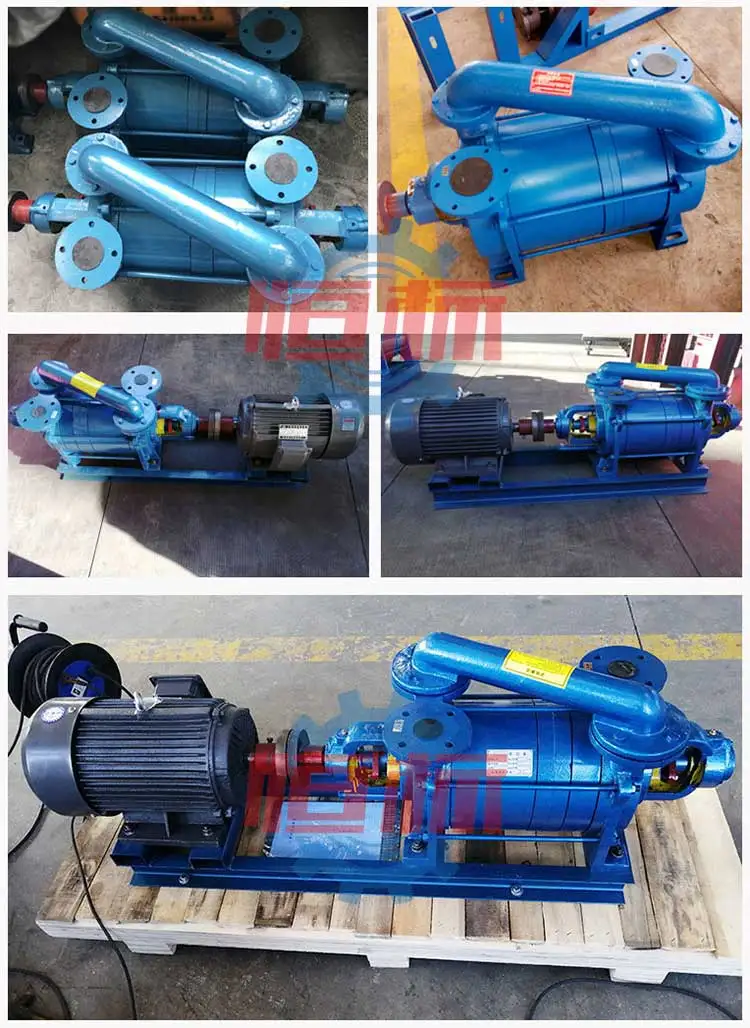

Details Images
Product Paramenters
Model | Pumping capacity (m3/min) | Ultimate vacuum pressure | Motor power | Speed | Water consumption | Caliber(mm) | ||||
Max | When the suction pressure is -0.093MPa | (MPa)(mmHg) | (KW) | (r/min) | (L/min) | Inlet | Outlet | |||
(-700mmHg) | ||||||||||
2SK-1.5 | 1.5 | 0.9 | -0.097(-725) | 4 | 1440 | 10-15 | 40 | 40 | ||
2SK-3 | 3 | 2 | -0.097(-725) | 7.5 | 1440 | 15-20 | 40 | 40 | ||
2SK-6 | 6 | 4 | -0.098(-735) | 15 | 1460 | 25-35 | 50 | 50 | ||
2SK-12 | 12 | 8 | -0.098(-735) | 22 | 970 | 40-50 | 100 | 100 | ||
2SK-20 | 20 | 14 | -0.098(-735) | 45 | 740 | 60-80 | 125 | 125 | ||
2SK-30 | 30 | 20 | -0.098(-735) | 55 | 741 | 60-80 | 125 | 125 | ||
Application
Water ring vacuum pump is used to pump air and other non corrosive, insoluble in water, no solid particles in order to obtain a higher vacuum in a closed container. It has the characteristics of high vacuum degree, high pumping speed in high vacuum area, compact structure and convenient maintenance.1. 2SK two-stage water ring vacuum pump has the characteristics of high vacuum and high pumping speed in high vacuum area;
2. Compact structure and convenient maintenance;
3. It has a wide range of applications, which can extract various gases containing steam, flammable, explosive, a small amount of dust, and a small amount of liquid;
4. Mainly water is used as the working medium, and the maintenance cost is low;
5. It can work in a harsher environment.
2. Compact structure and convenient maintenance;
3. It has a wide range of applications, which can extract various gases containing steam, flammable, explosive, a small amount of dust, and a small amount of liquid;
4. Mainly water is used as the working medium, and the maintenance cost is low;
5. It can work in a harsher environment.
Packaging&Shipping
Comanpy information
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology and get clients' acceptation to cooperate with Globe 500 enterprises .Rely on high precision numerical control and advanced testing equipments, and level B bed stand, the company can ensure the products quality and precision. The company has passed ISO9001:2008 certificate.
Our products are consist of gear pump,screw pump,centrifugal pump,high viscosity rotator pump series and the main products are RY hot oil pump, KCB gear pump,YCB arc gear pump,2CY gear pump,3RP cam follower rotator pump,SHGB cam follower rotator pump,3G,SN,SM three screw pump,3GCL vertical screw pump,3GB heat preservation pitch three screw pump,2W.W sealing twin screw pump,G single screw pump,NYP,GNB inner ring high viscosity pump,LYB vertical arc gear pump,JQB turbine shear pump,CYZ self-suction centrifugal oil pump,KCG,2CG high temperature gear pump,LC,LCW roots pump,LCB pitch heat preservation pump,TSB chemical decoloration pump,LB refrigerating pump,ZYB,ZYB-B coke oil pump,oil pump,RJB solvent pump,CBN thickened oil pump,AH,H,M slurry pump,vertical slurry pump,YHCB circular gear pump,FXA-FXB stainless outer lubrication gear pump,ZA,ZE petrochemical process pump,IH single suction centrifugal pump,IHF fluoroplastic centrifugal pump,pneumatic and electric diaphragm pump,water ring and rotary vacuum pump,FB,AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.
Contact Us
Contact us for pump price and catalog
In order to confirm which type gear pump suitable for your job, could you please help us to confirm the following information:
1.What is your project with our gear pump,and which medium is required to be delivered?
2.What temperature is required for the liquid?
3.What is the pump flow,head,power,caliber,voltage,frequency and quantity? We could give you an accurate quotation.
1.What is your project with our gear pump,and which medium is required to be delivered?
2.What temperature is required for the liquid?
3.What is the pump flow,head,power,caliber,voltage,frequency and quantity? We could give you an accurate quotation.
Please kindly Contact us below:
