Proculus 7inch Embedded hmi Touch Screen Panel intelligent serial port LCD Display resistive Touch screen TTL Lcd Modules
- Category: >>>
- Supplier: Suzhou Proculus Technologies Co. Ltd.
Share on (1601282225874):
Product Overview
Description
Product Description
Model Number | P10600-070T-L0101 |
Display Size | 7.0 Inches |
Resolution | 1024*600 |
Brightness | 300 cd/m² |
Memory | 128MB |
Interface | TTL/CMOS |
Product Details

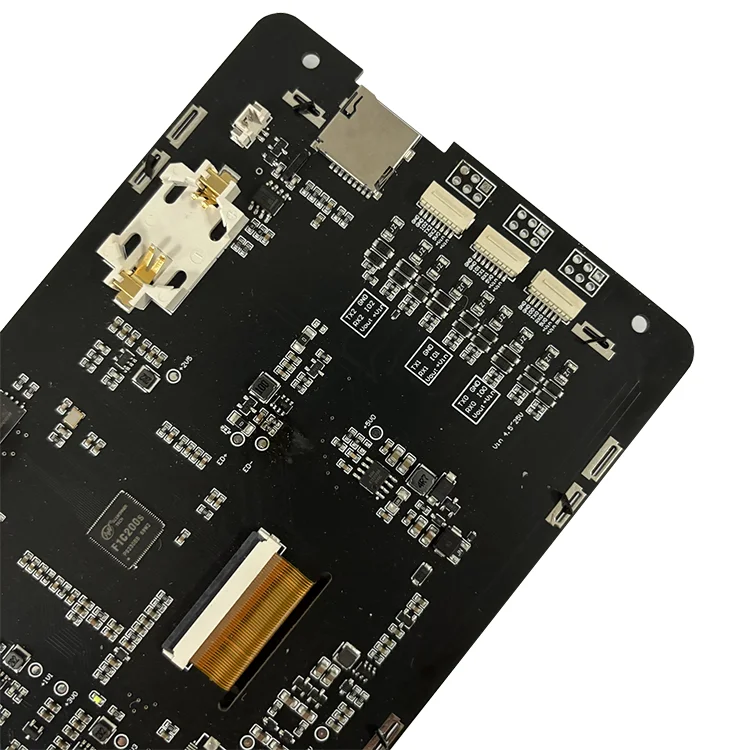

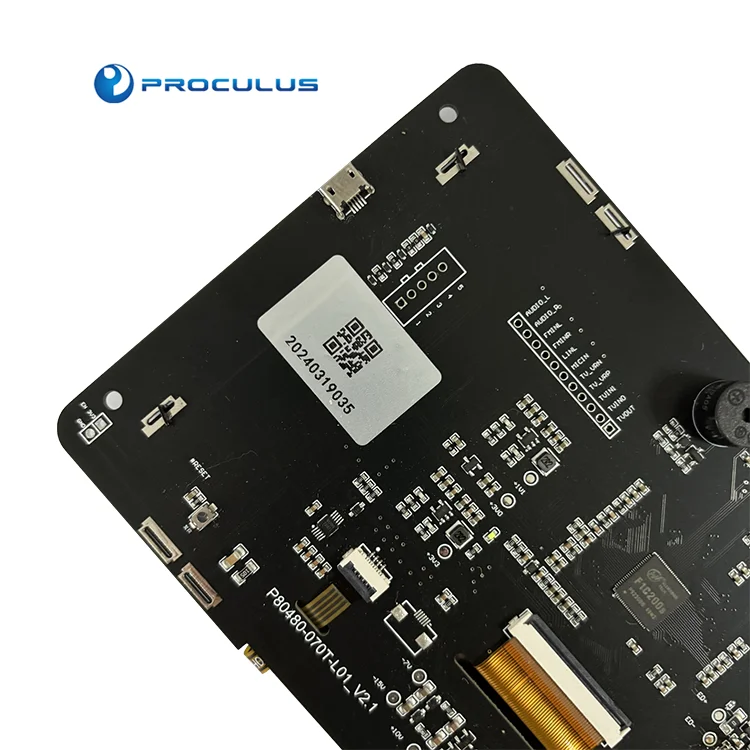

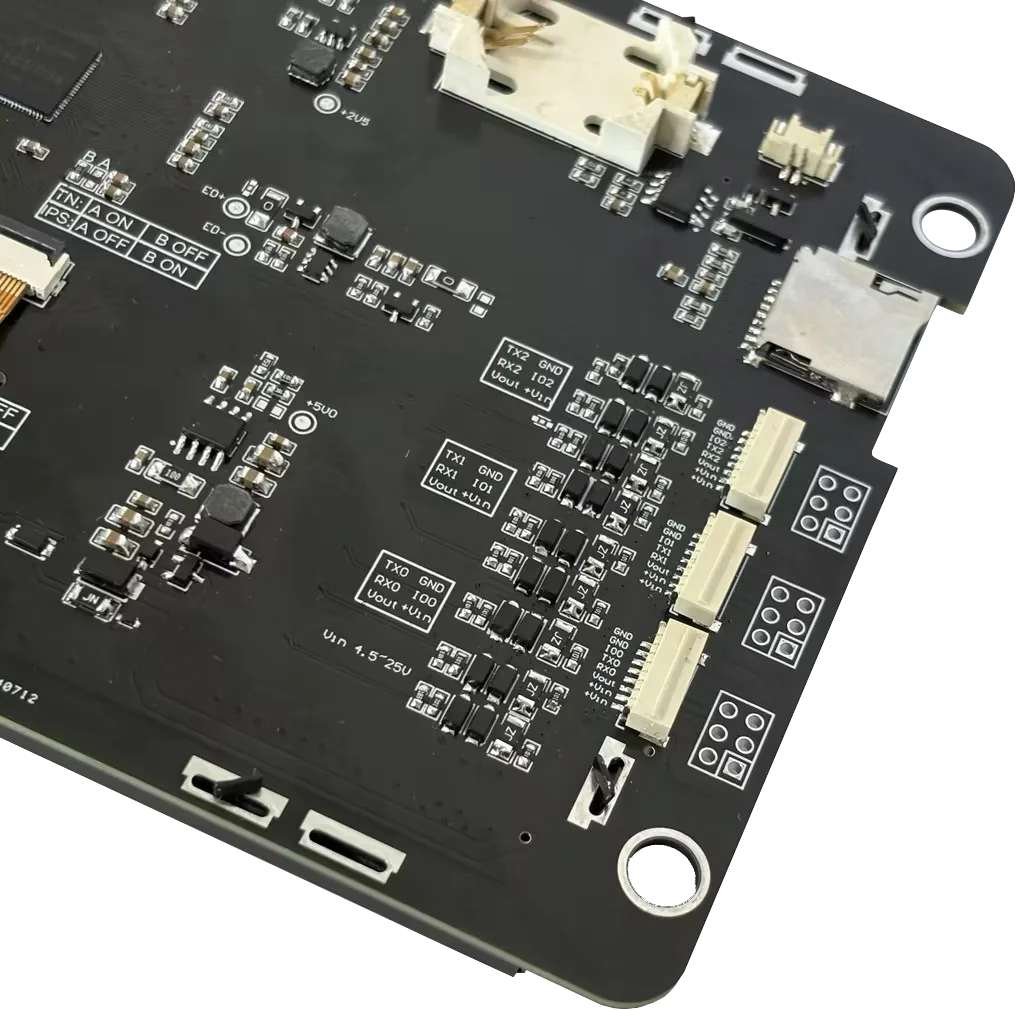

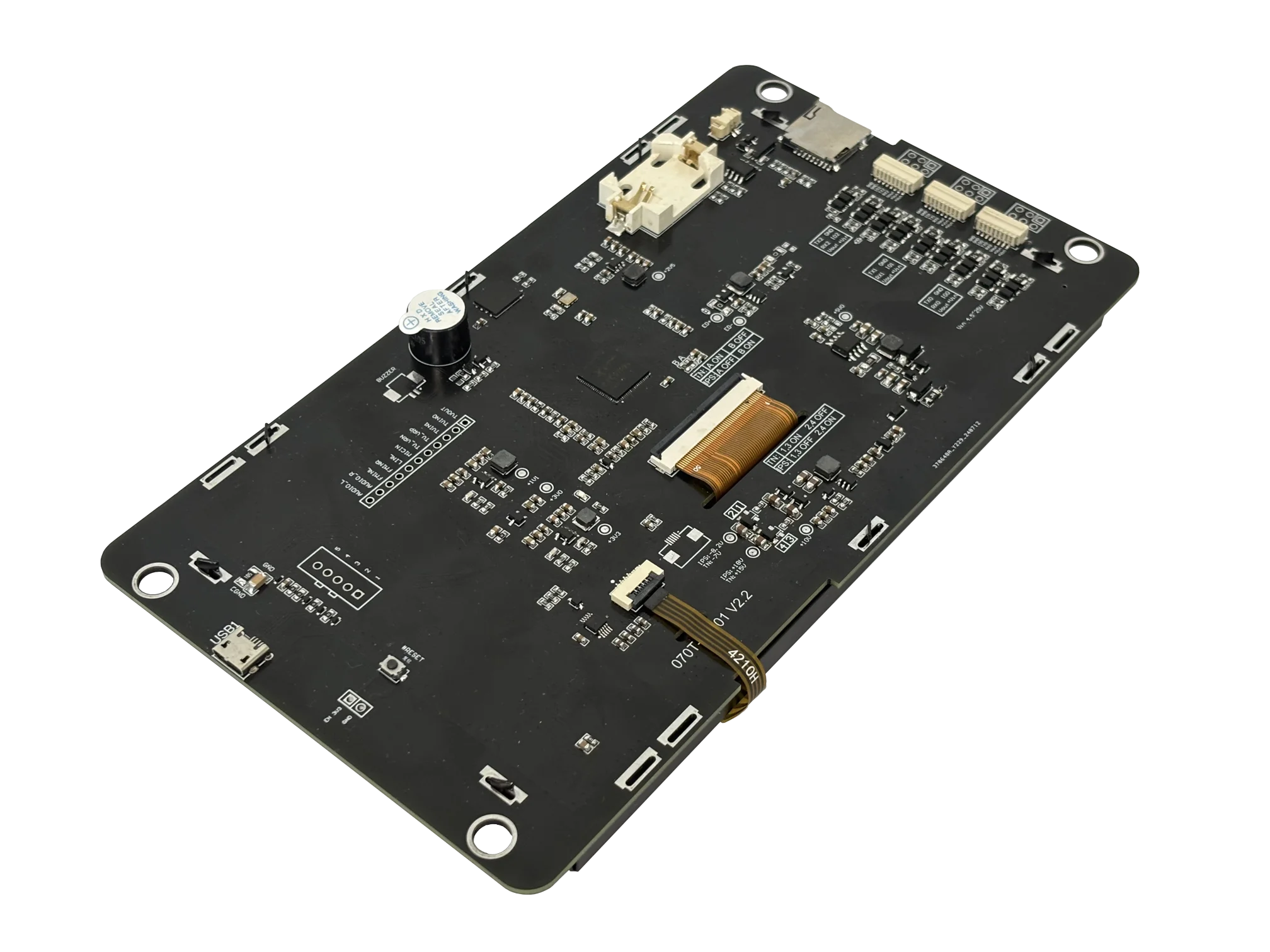

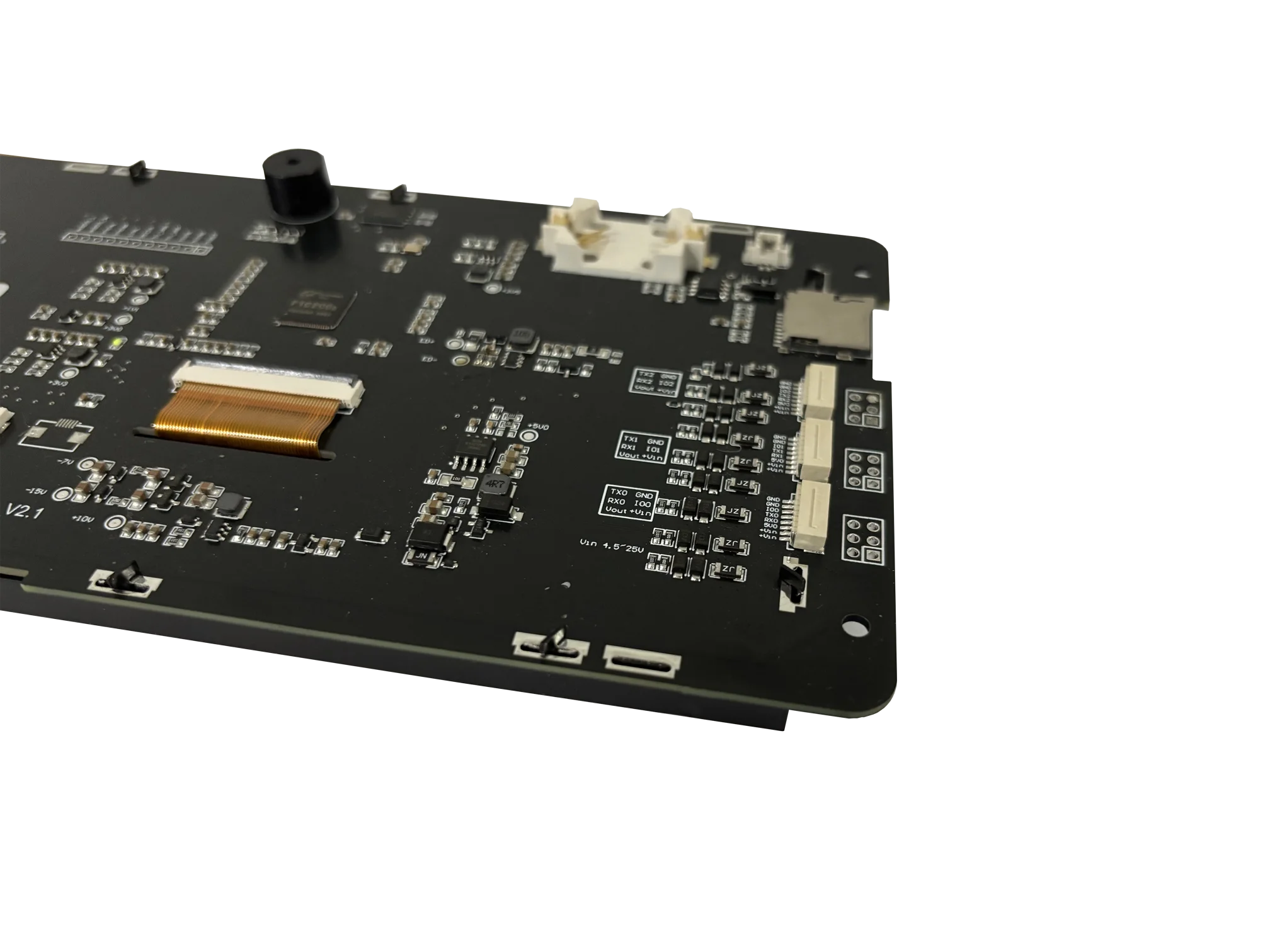

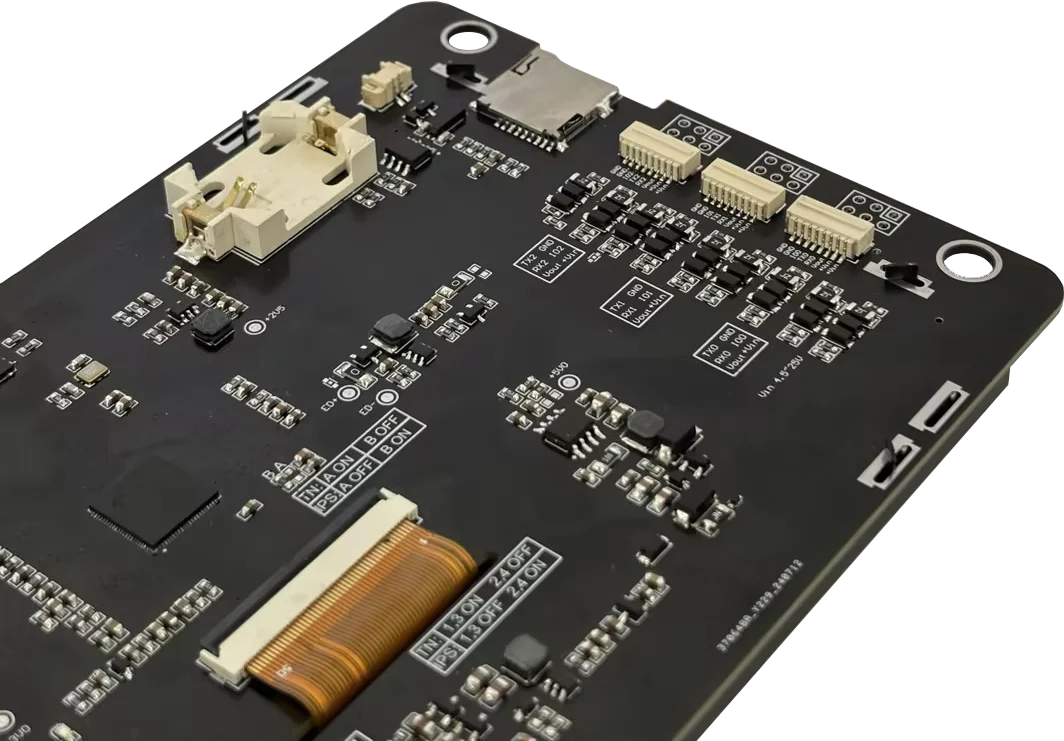

Interface

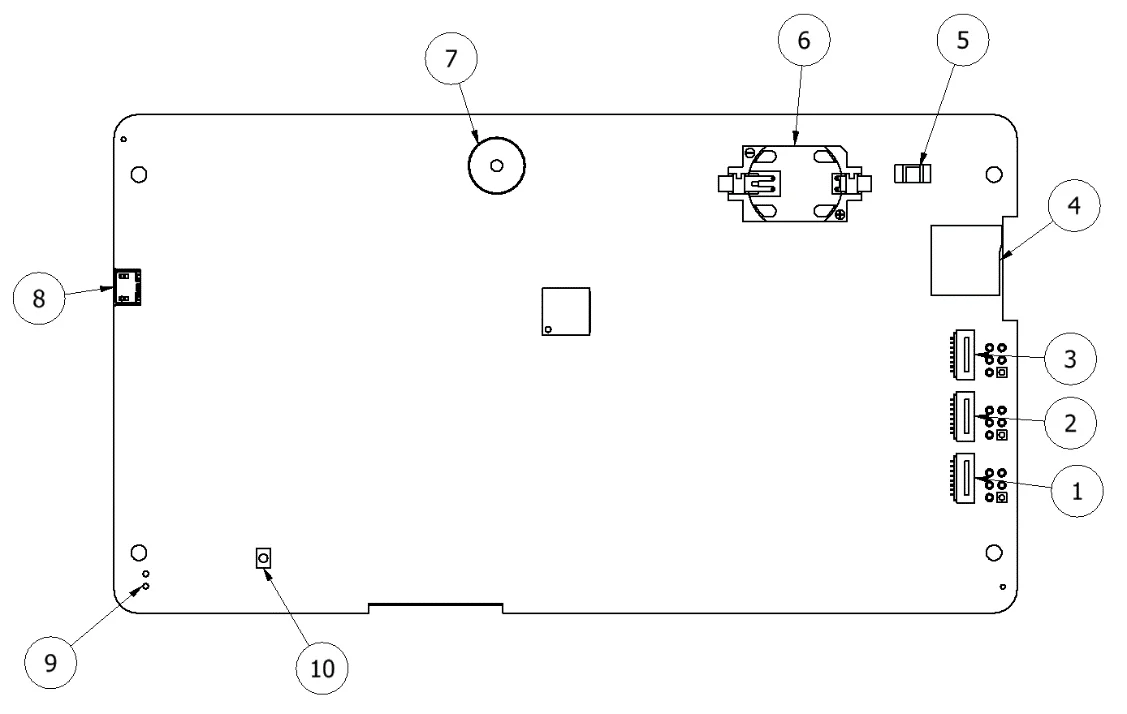

Item | Description |
1 | UART0 Connector |
2 | UART1 Connector |
3 | UART2 Connector |
4 | SD Card Connector |
5 | RTC external battery connector (3V3) |
6 | RTC Battery Connector CR2032 (3V3) |
7 | Buzzer |
8 | Reserved. Not to be used |
9 | Connector for RESET |
10 | RESET button |

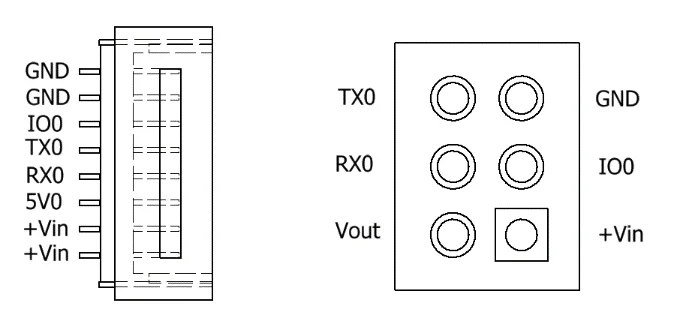

Pin | Description | Notes |
+VIN | Supply Voltage | — |
5V0 | Output Voltage for Perirerics | For use on accessories only |
RX0 | UART0 Reception | — |
TX0 | UART0 Transmission | — |
IO0 | Reserved | Do Not Connect |
Due to differences in version batches and raw material suppliers, the product is constantly optimized and iterated. There may be differences in the color of the base plate/interface position between the pictures and the actual product while ensuring the same functionality. We suggest that you contact our staff to obtain the latest product information before placing an order.
Easy-to-use Software

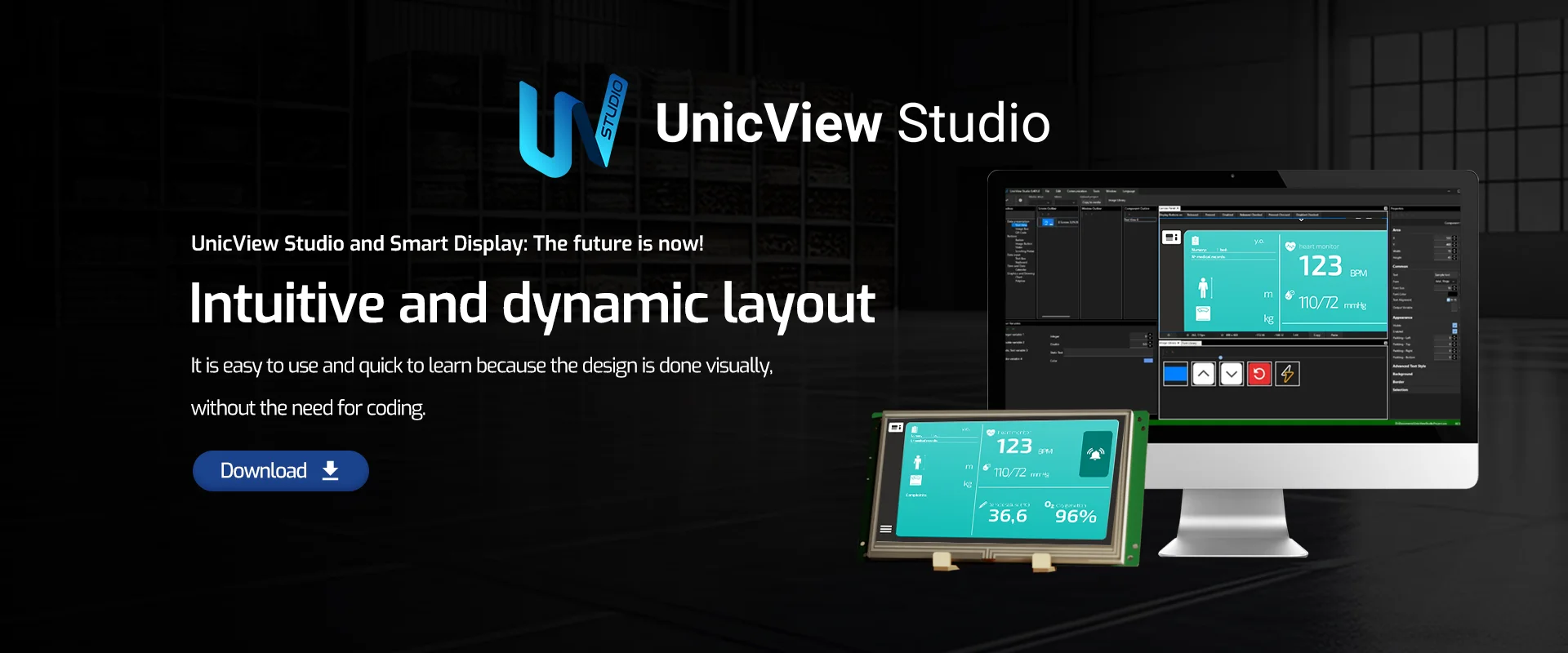

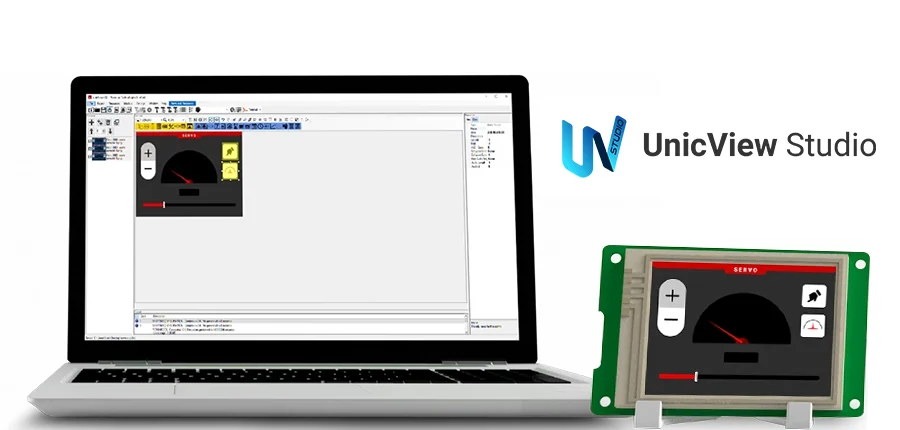

UnicView Studio
