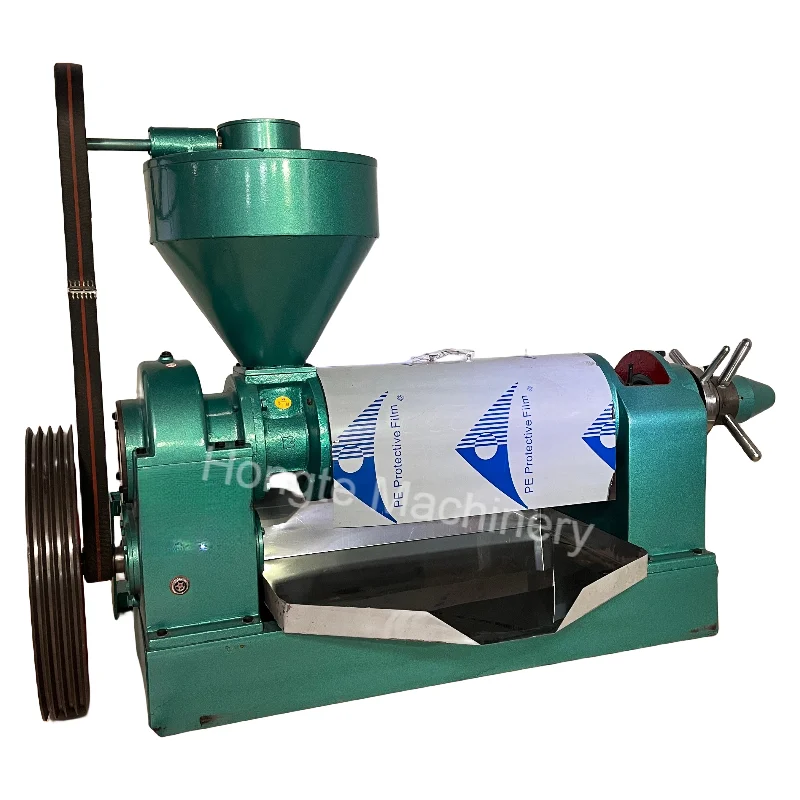

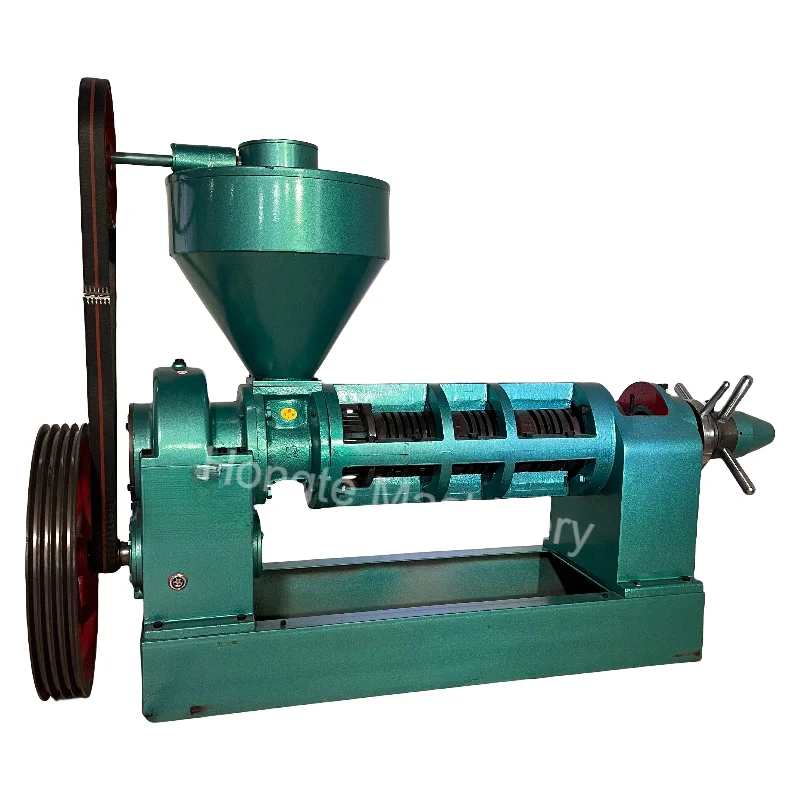

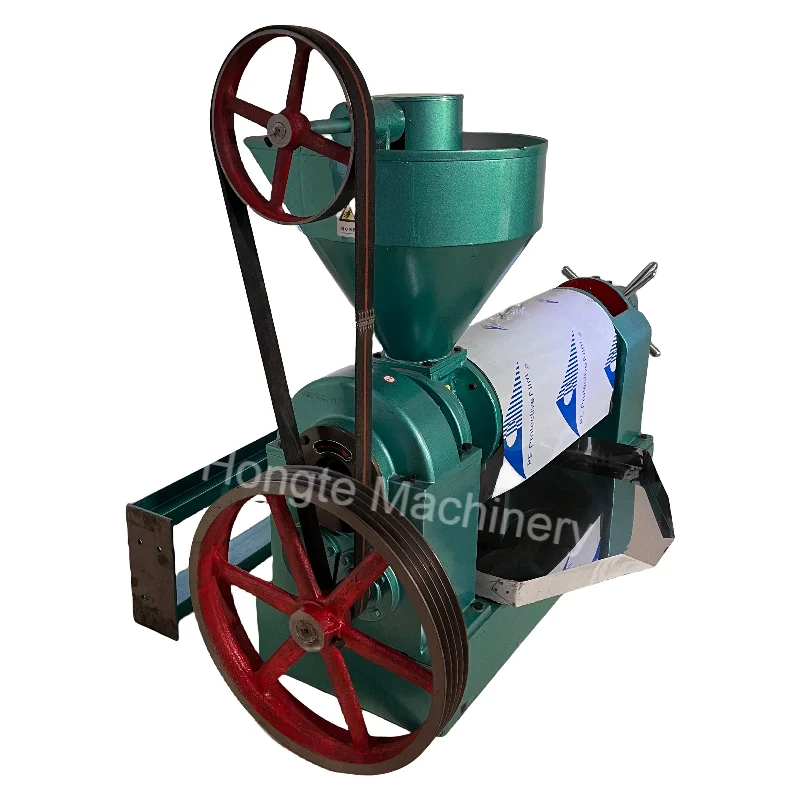

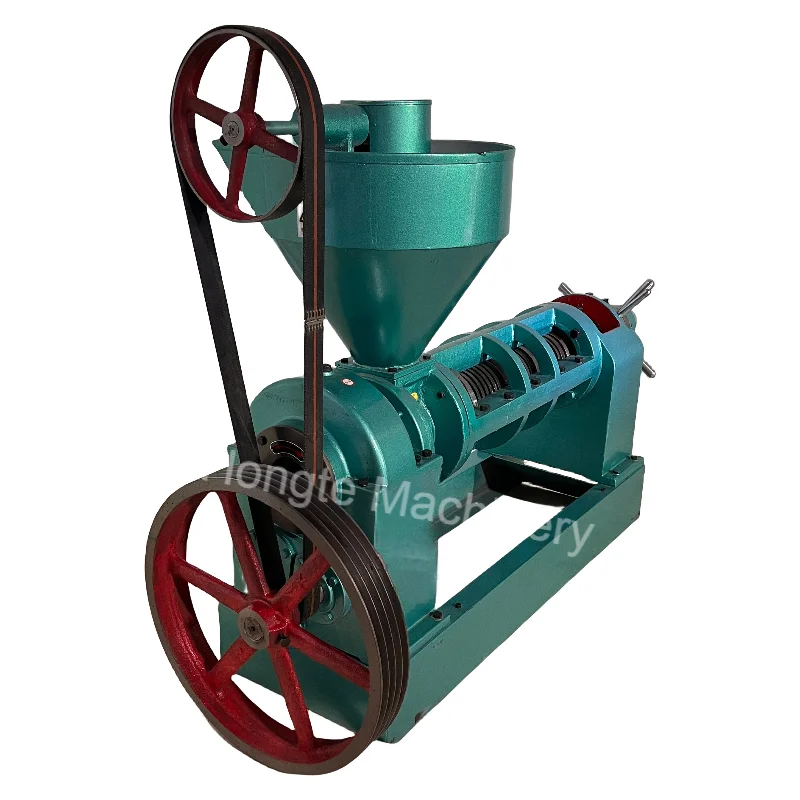

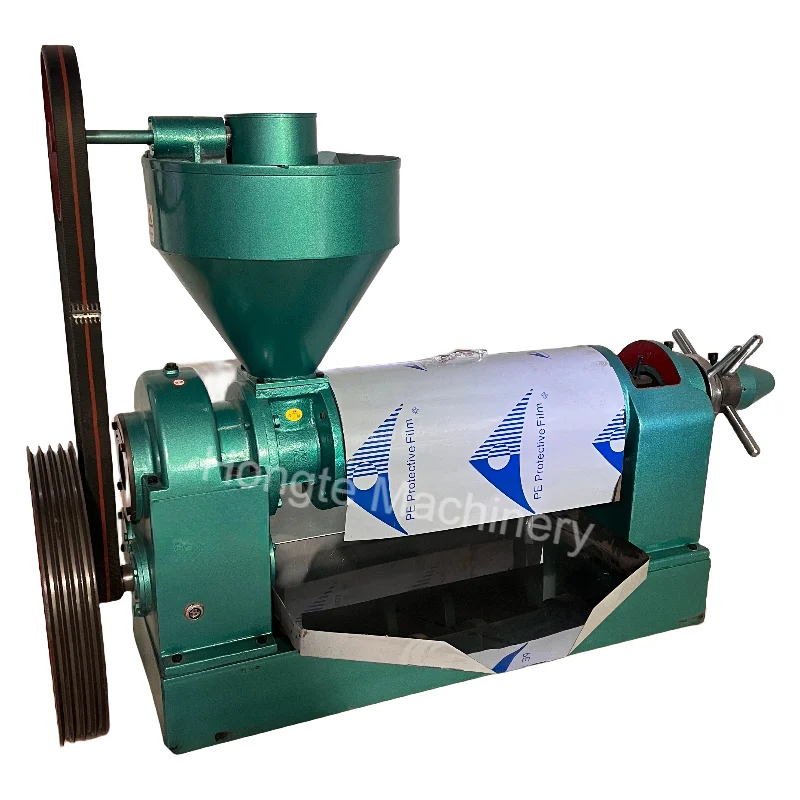

Easy operate Cheap Price Rapeseed, Soybean, Peanut, Oil Sunflower Oil Processing Machine
- Category: >>>
- Supplier: Zhengzhou Hongte Machinery Import And Export Co. Ltd.
Share on (1601282250335):
Product Overview
Description
Products Description
The raw material enters from the hopper, and the spiral squeezer pushes the material forward. In the press process, the material is squeezed, and the oil will be discharged from the bar. After the vacuum filter system, the oil can reach edible grade.
Our screw oil press machine is characterized by their simple design, easy to use, wide suitability, continuous operation, high productivity and high oil output rate.Moreover, they are suitable for various raw materials, as ground nuts, bean, rapeseed, peanut, cotton seeds, sesame, olive, sunflower, coconuts, cocoa, grass seeds and so on. Besides, they are suitable for home-use, medium-small sized oil making workshops or professional farmers. Certainly, they can be used for repressing in submerging oil workshops, too.
Our screw oil press machine is characterized by their simple design, easy to use, wide suitability, continuous operation, high productivity and high oil output rate.Moreover, they are suitable for various raw materials, as ground nuts, bean, rapeseed, peanut, cotton seeds, sesame, olive, sunflower, coconuts, cocoa, grass seeds and so on. Besides, they are suitable for home-use, medium-small sized oil making workshops or professional farmers. Certainly, they can be used for repressing in submerging oil workshops, too.
Product Paramenters
Model | HT-120 |
Processing Capacity(t/24h) | 6.5 |
Motor Power(kw) | 11 or 15 |
Machine weight (kg) | 680 |
Machine Size (L*W*H) (cm) | 186*74*1275 |
Oil content of dry cakes (%) | ≤7.0 |
Spiral axes rotate speed(r/min) | 28-40 |

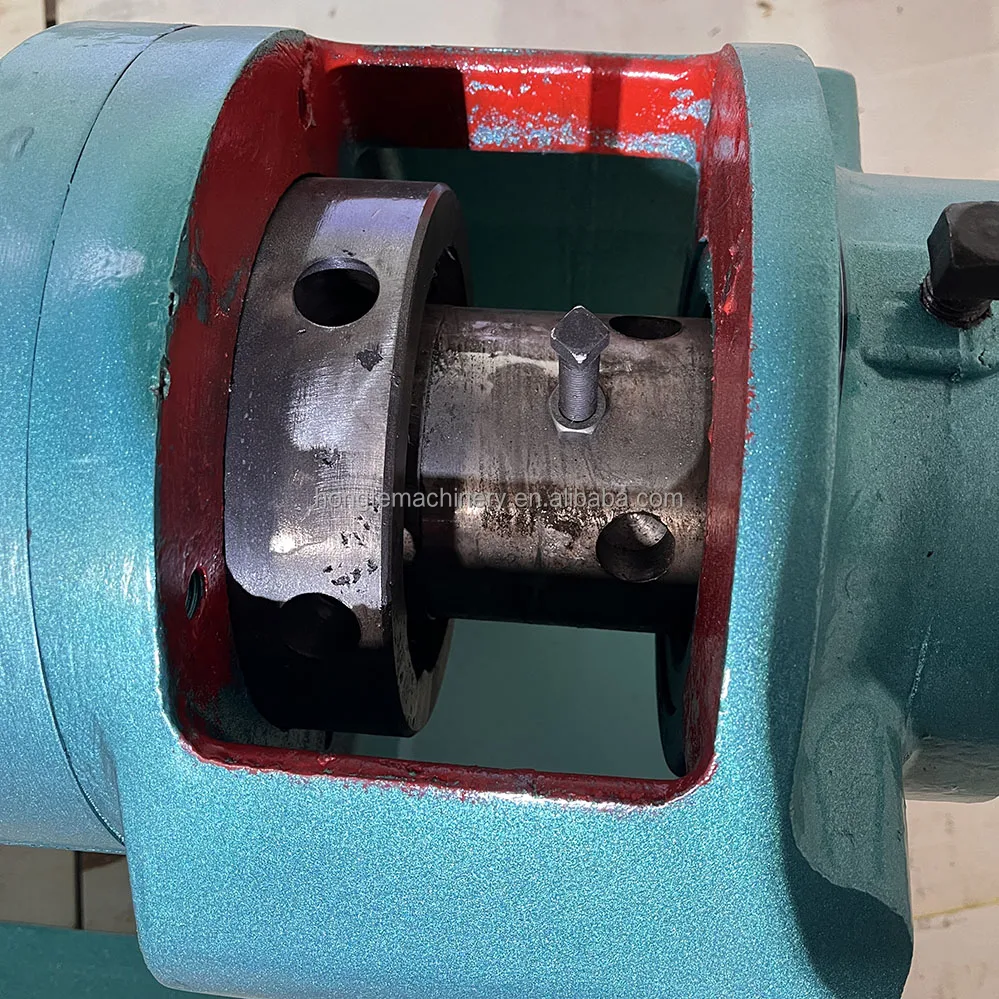

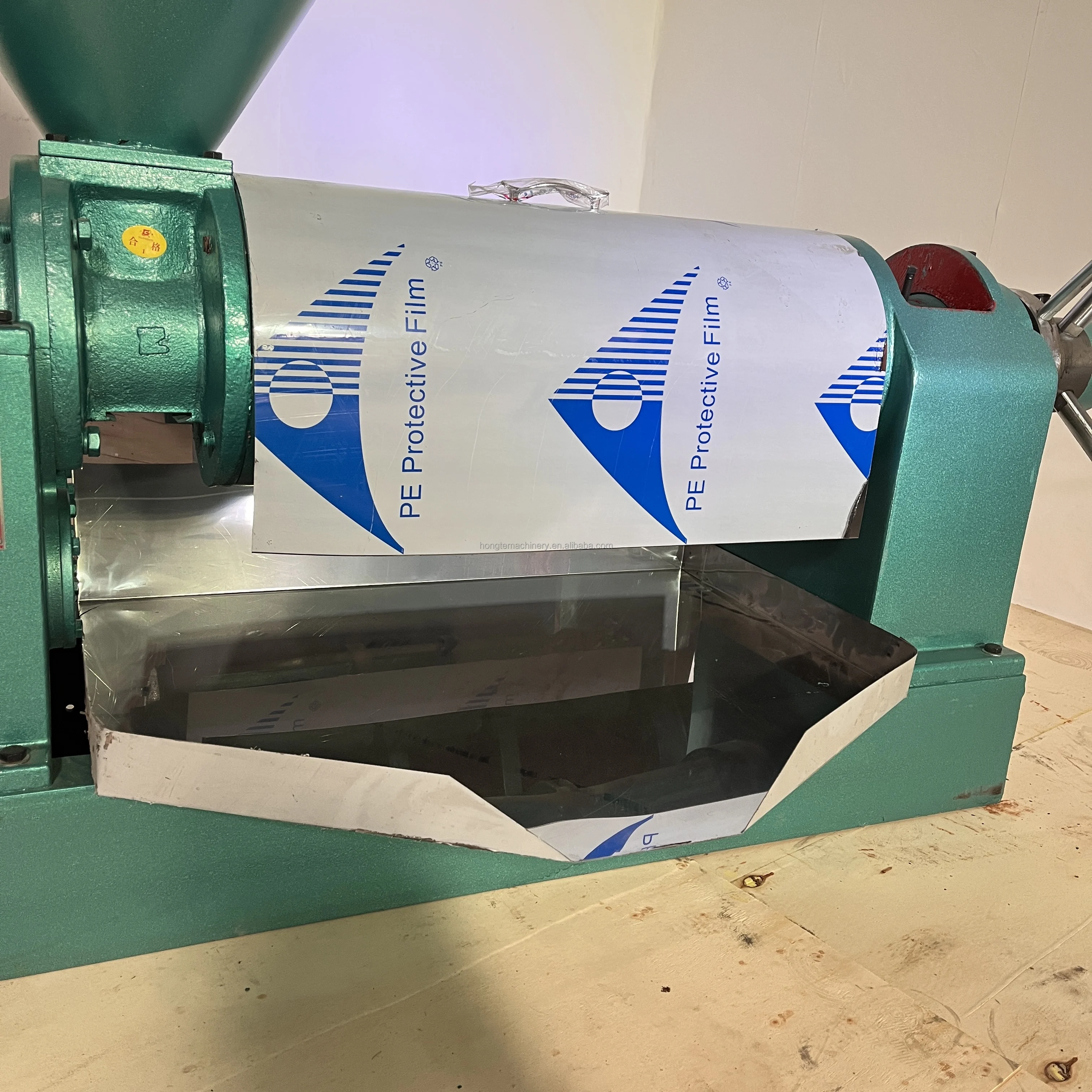

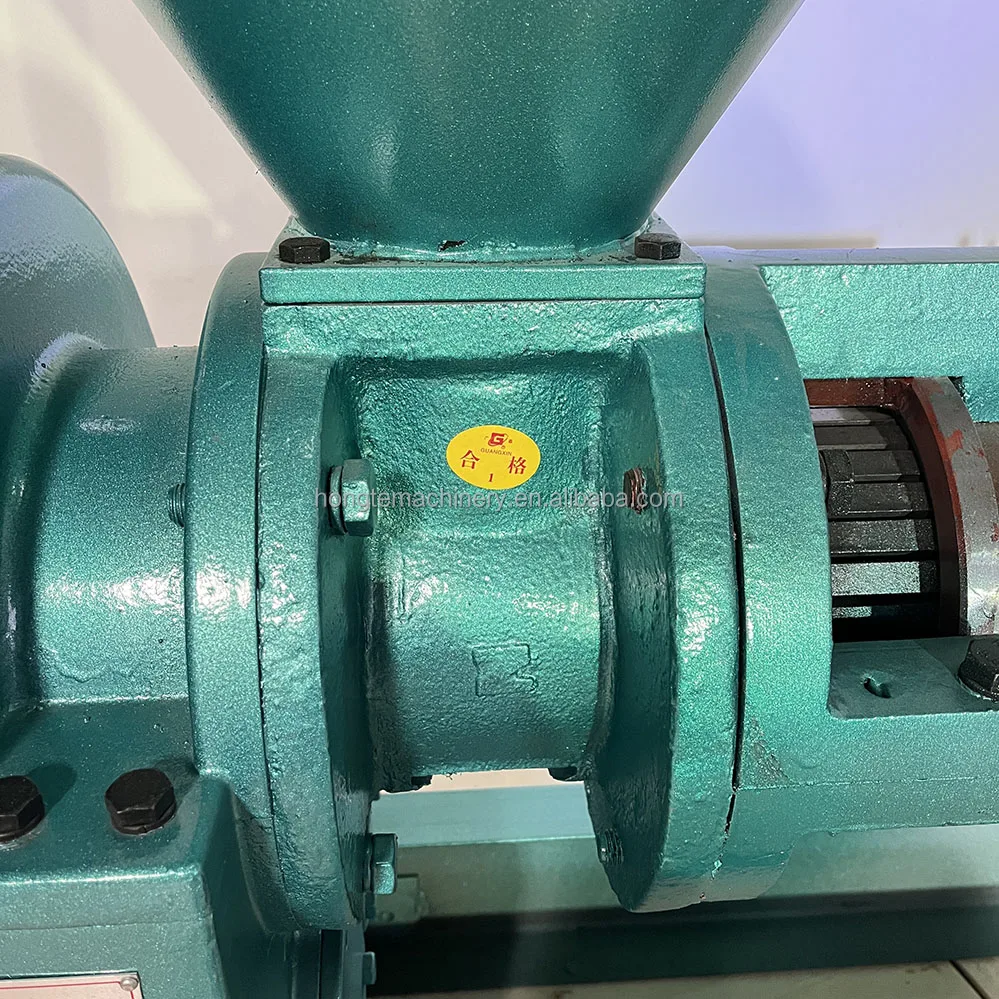

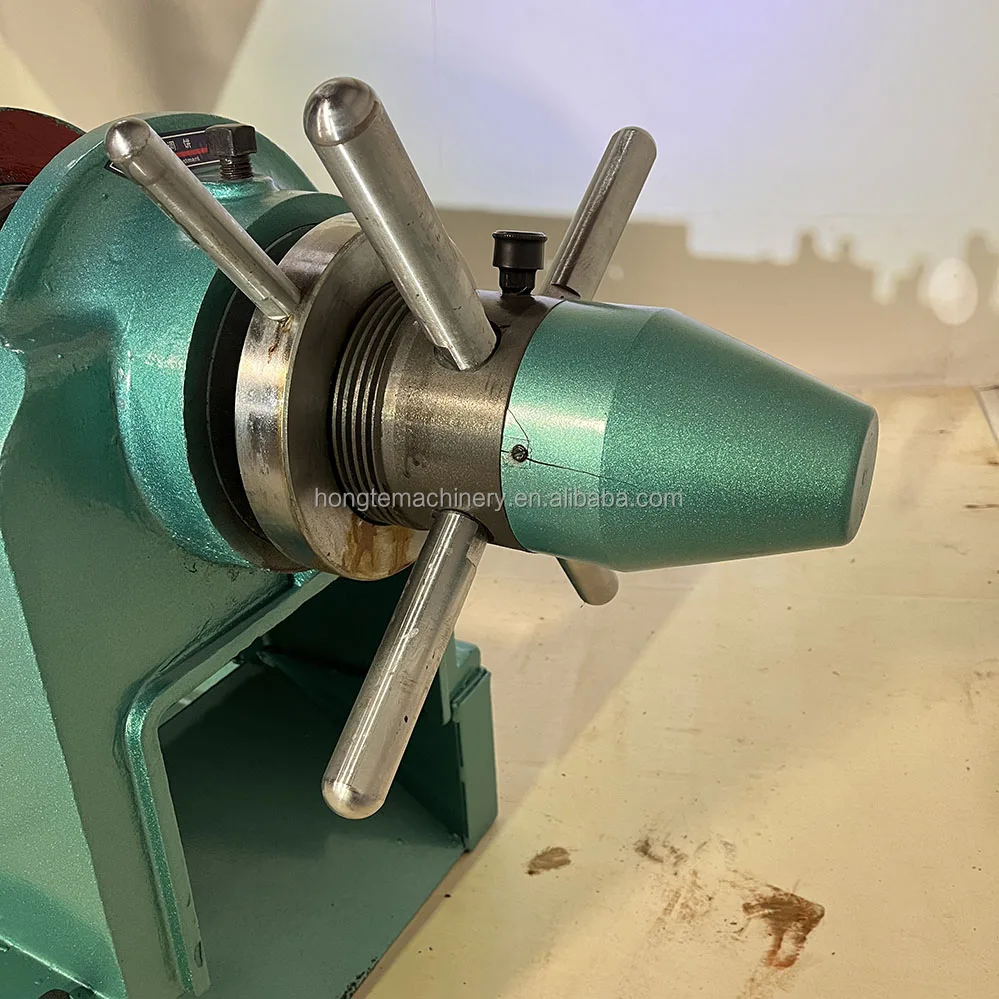

Details Images
Our Advantages
Compared with other manufacturers, our product shared with the below main advantages:
1. High efficiency
1. High efficiency
Residual oil of the cake is less than 7.8%
2. Low cost
2. Low cost
Our machine have more favorable price compared with our competitors
3. Easy operation
3. Easy operation
Our machines are easy to be operated, we also provide thoroughly operation manual in English and Chinese for your reference.
4. Long durability
4. Long durability

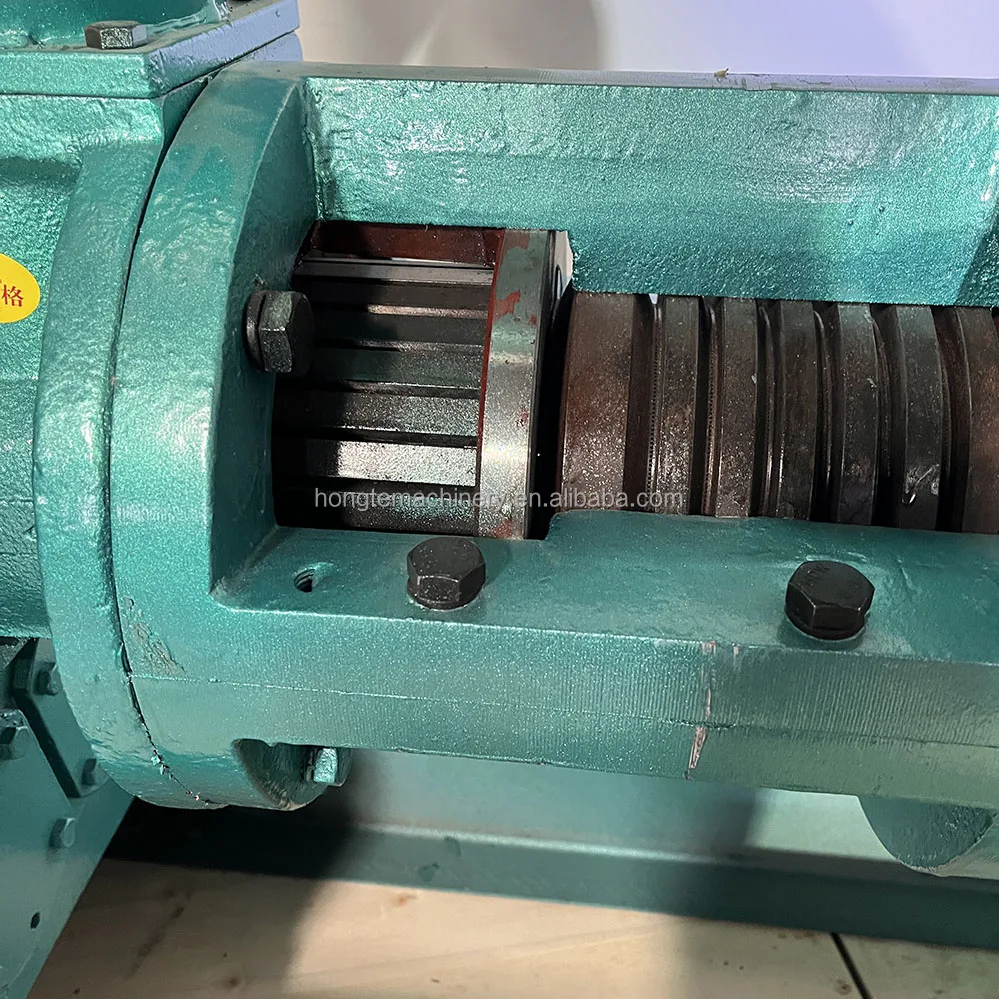

Squeezing loop and squeezing spiral are conducted heat treatment as carburizing and quenching.The lifetime of our machines reach over 10 years, plus, we produce almost all the parts of the machines in our own plant, so the wearing parts and spare parts are available all year round, which solve your after-service concerns.

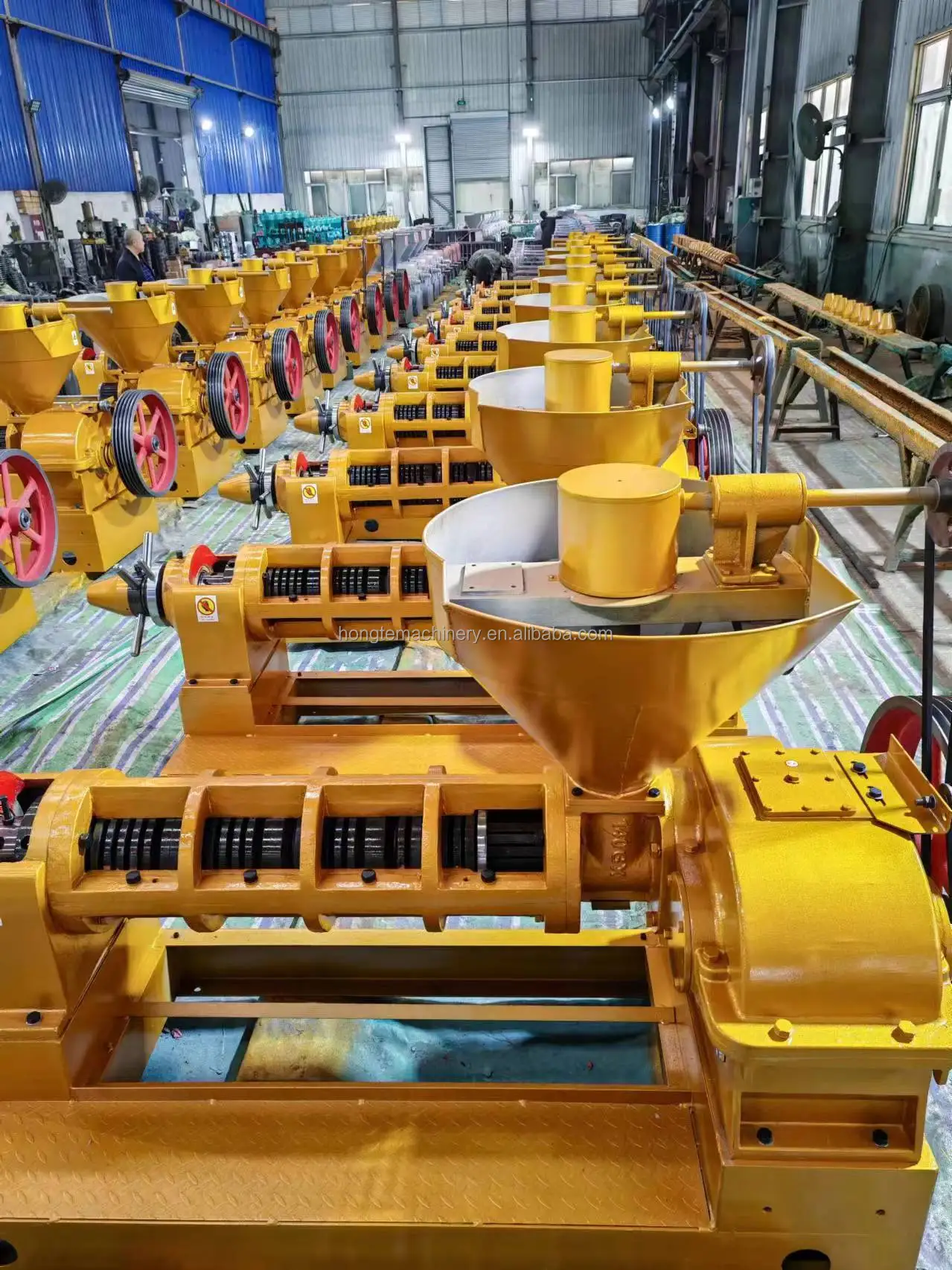

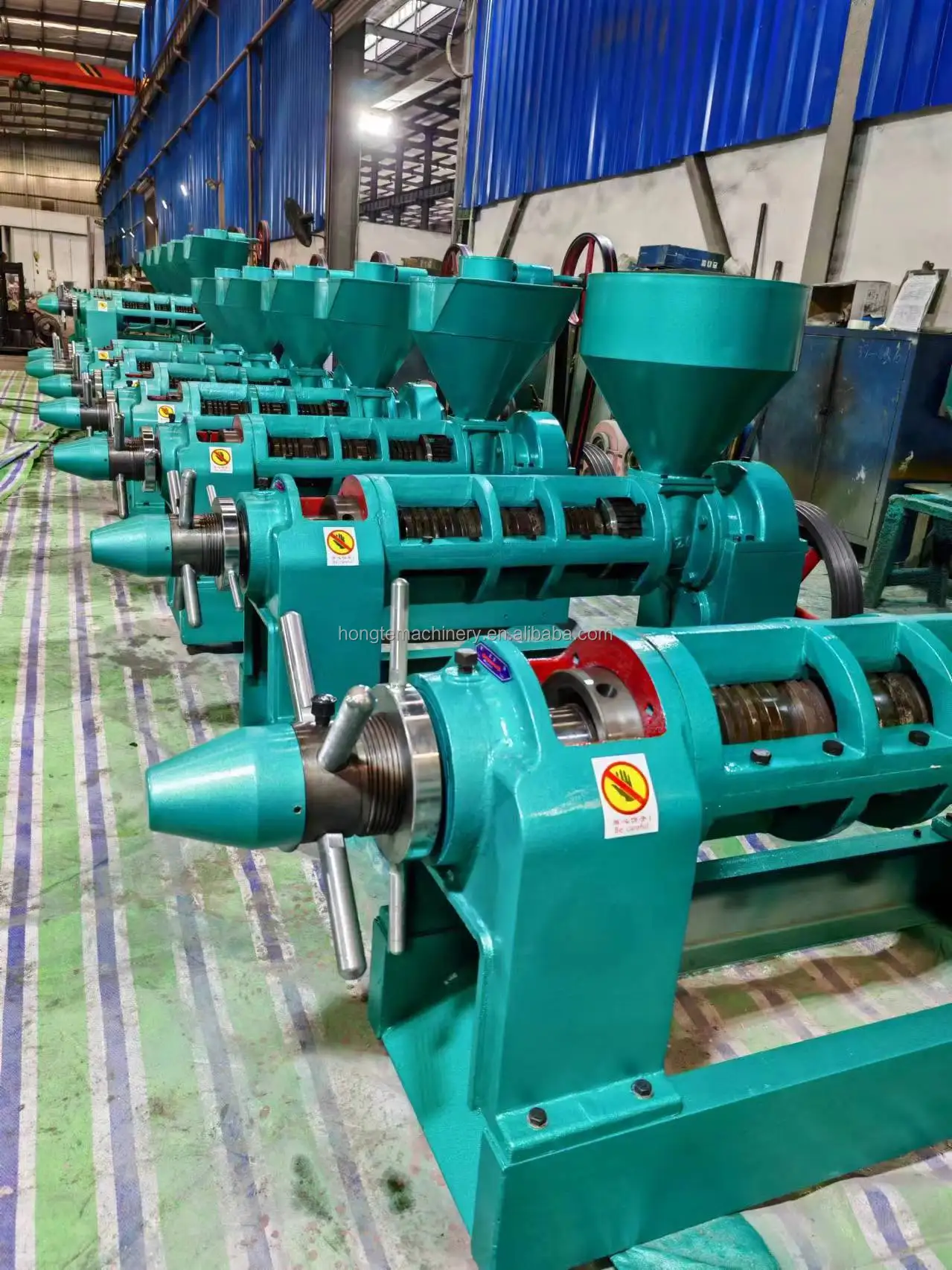

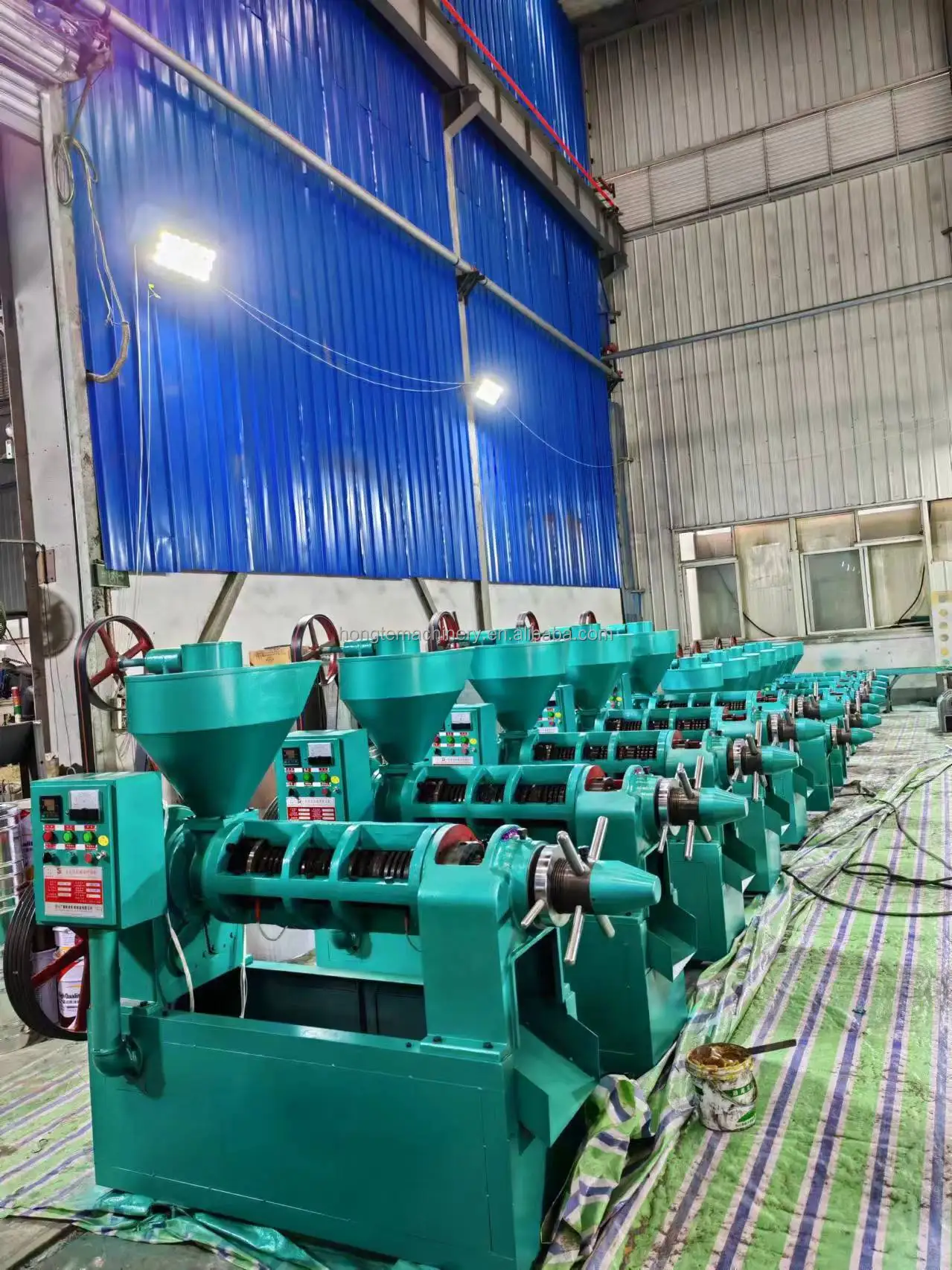

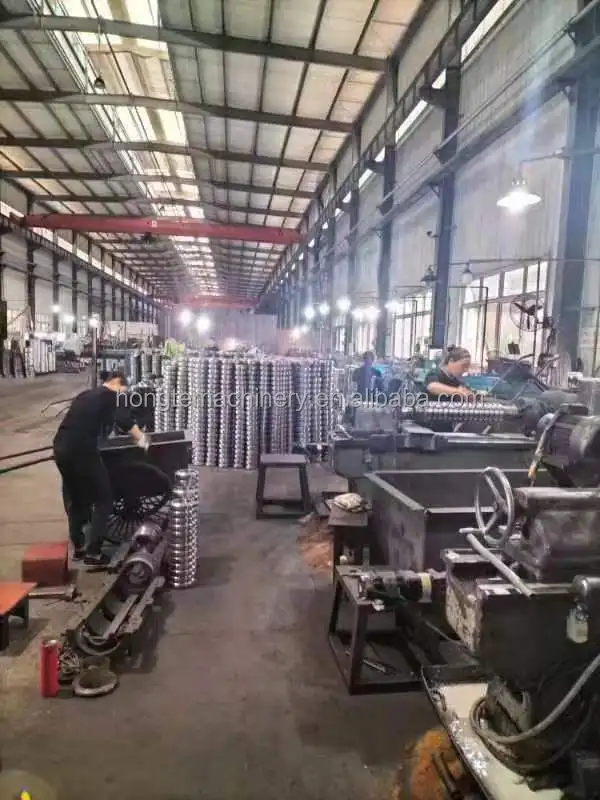

Our factory
Installation case
Application
This oil press machine HT-120 can be used in various different raw materials,such as peanut seed, sesame, Rapeseed,Sesame knerel,Tea seed,Almond, Olive seed,Walnut and so on.
FAQ
1. Delivery time.
---10 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.
4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
---10 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.
4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
