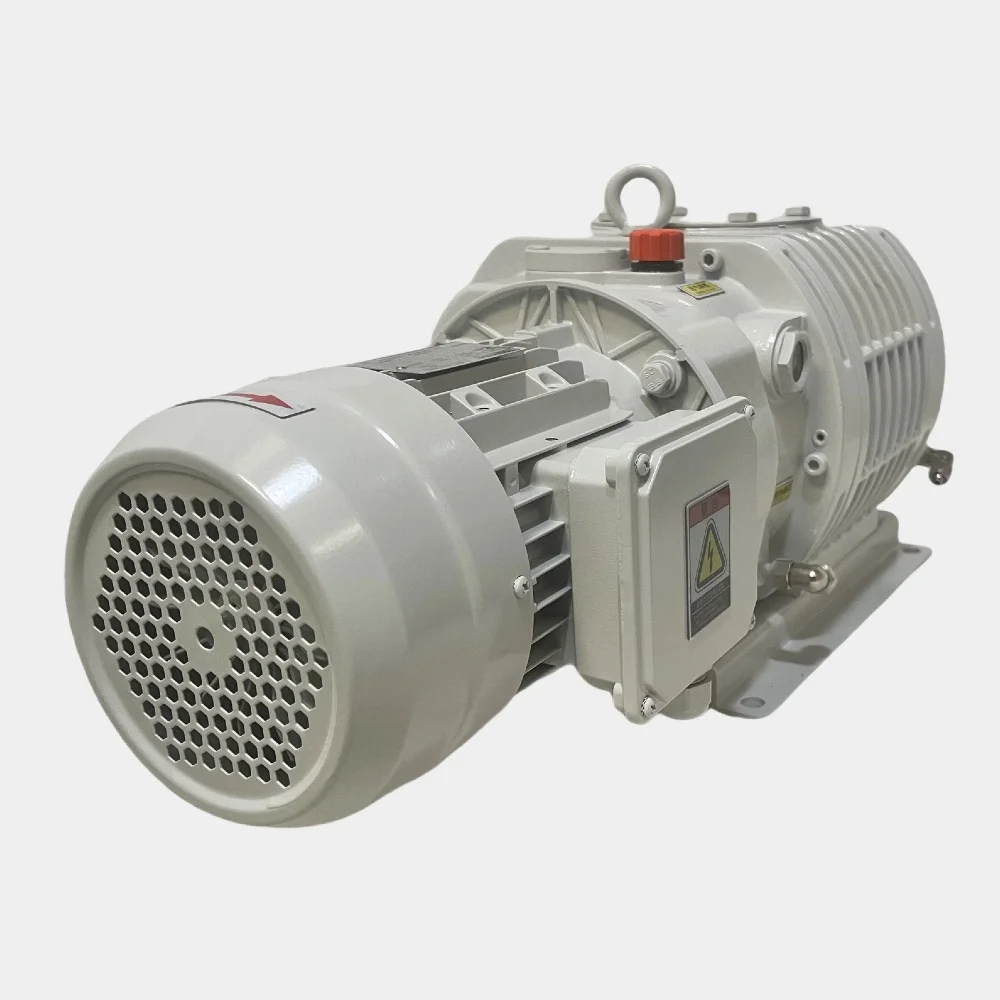

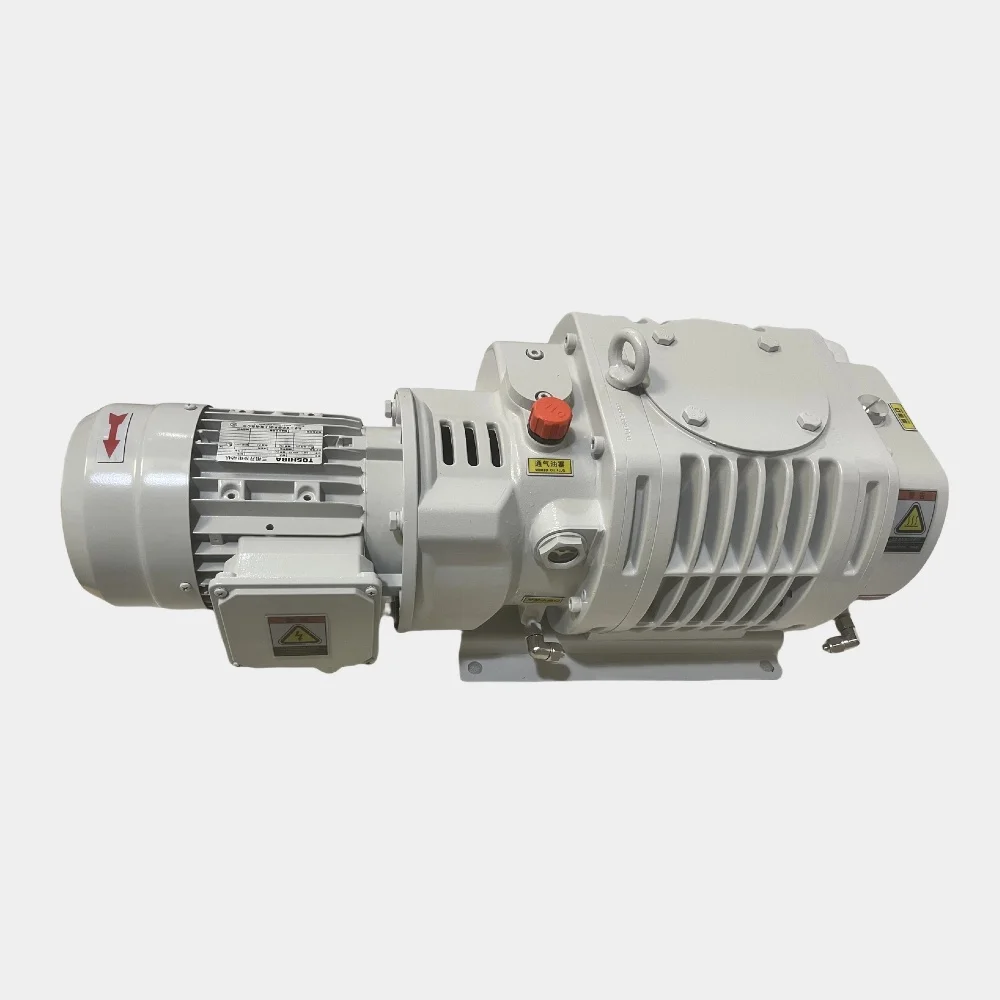

booster vacuum roots vacuum pump high precision roots vacuum pump

Name: booster vacuum roots vacuum pump high precision roots vacuum pump
SKU: 1601282288943
Price: $1,600.00 USD
Availability: InStock

Price:$1,600.00

Quantity:

Products Description

Model		BSJ100Z	BSJ70L	BSJ150L	BSJ300L
Pumping Ratem³/H(L/Min)	50HZ	95(1580)	280(4670)	500(8330)	1000(16667)
Pumping Ratem³/H(L/Min)		60HZ	115(1920)	330(5500)	600(1000)	1200(20000)
Max. Inletpressure(When Continuous Work)	50HZ	1.3X10³	1.2X10³	1.3X10³	1.3X10³
Max. Inletpressure(When Continuous Work)		60HZ	1.3X10³	9.3X10²	1.1X10³	1.1X10³
Maximum Allowable Pressuredifference(Pa)	50HZ	8.0X10³	4.0X10³	7.3X10³	7.3X10³
Maximum Allowable Pressuredifference(Pa)		60HZ	6.7X10³	3.3X10³	6.0X10³	6.0X10³
Ultimate Pressure(Pa)			4X10^-1
Motor(2poles)KW		0.4	0.75	2.2	3.7
Lubricating Oil Specification		Vacuum Pump Oil
Oil Capacity L		0.4	0.8	1.6	2
Cooling Water	Flow L/min	/	2	2	3
		Pressure Difference MPa	/	0.1
		Water Temp 0C	/	5~30
Weight Kg		30	51	79.5	115
Inlet Dia. Mm		50	80	80	100
OutletDia.Mm		50	80	80	80

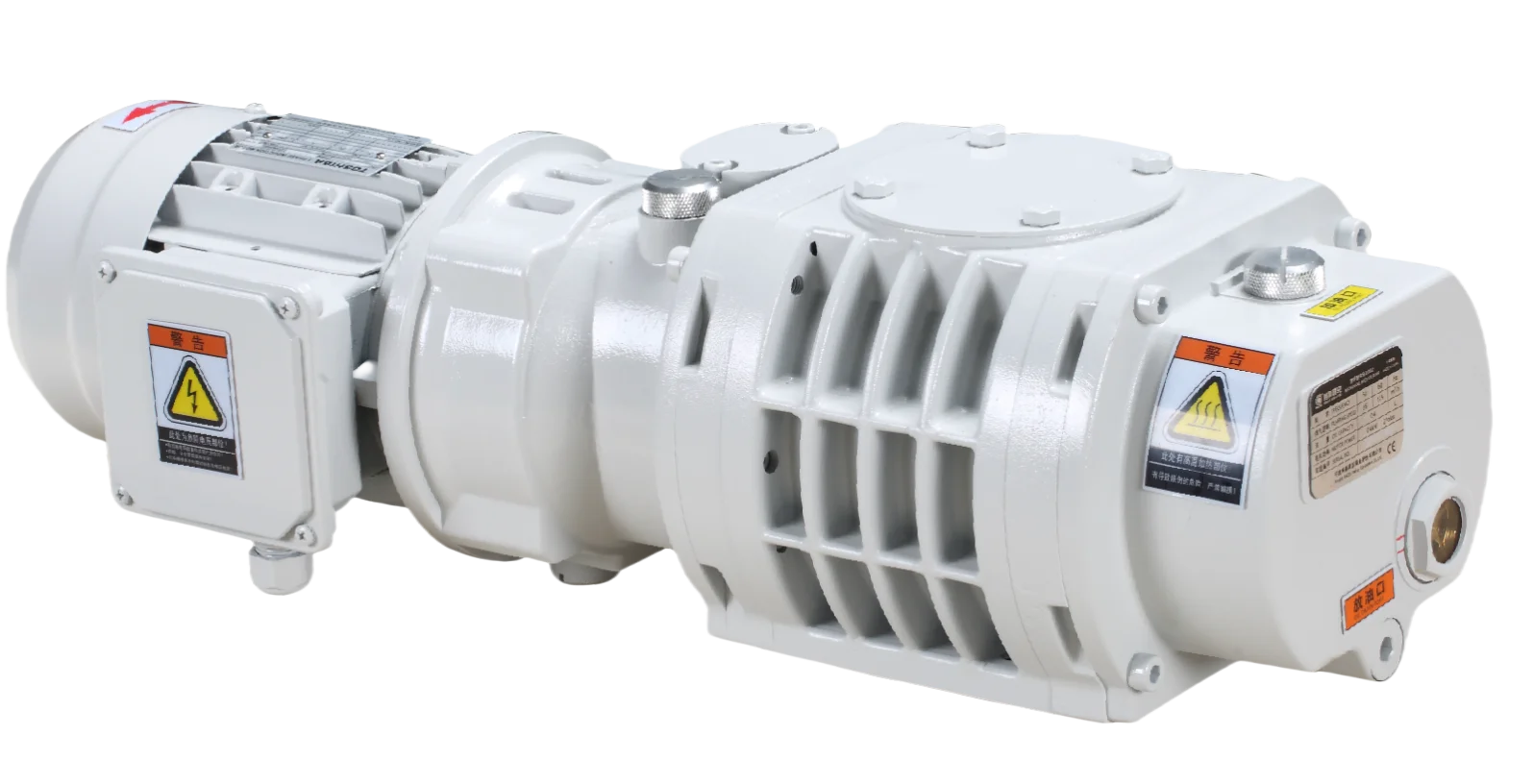

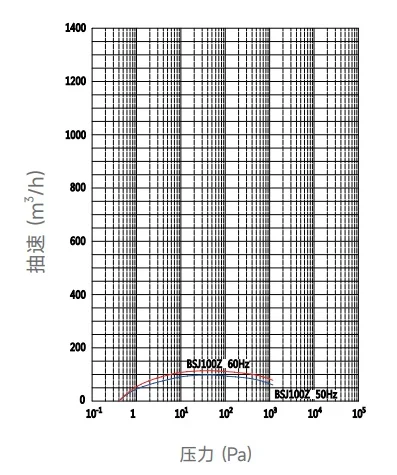

BSJ-100Z

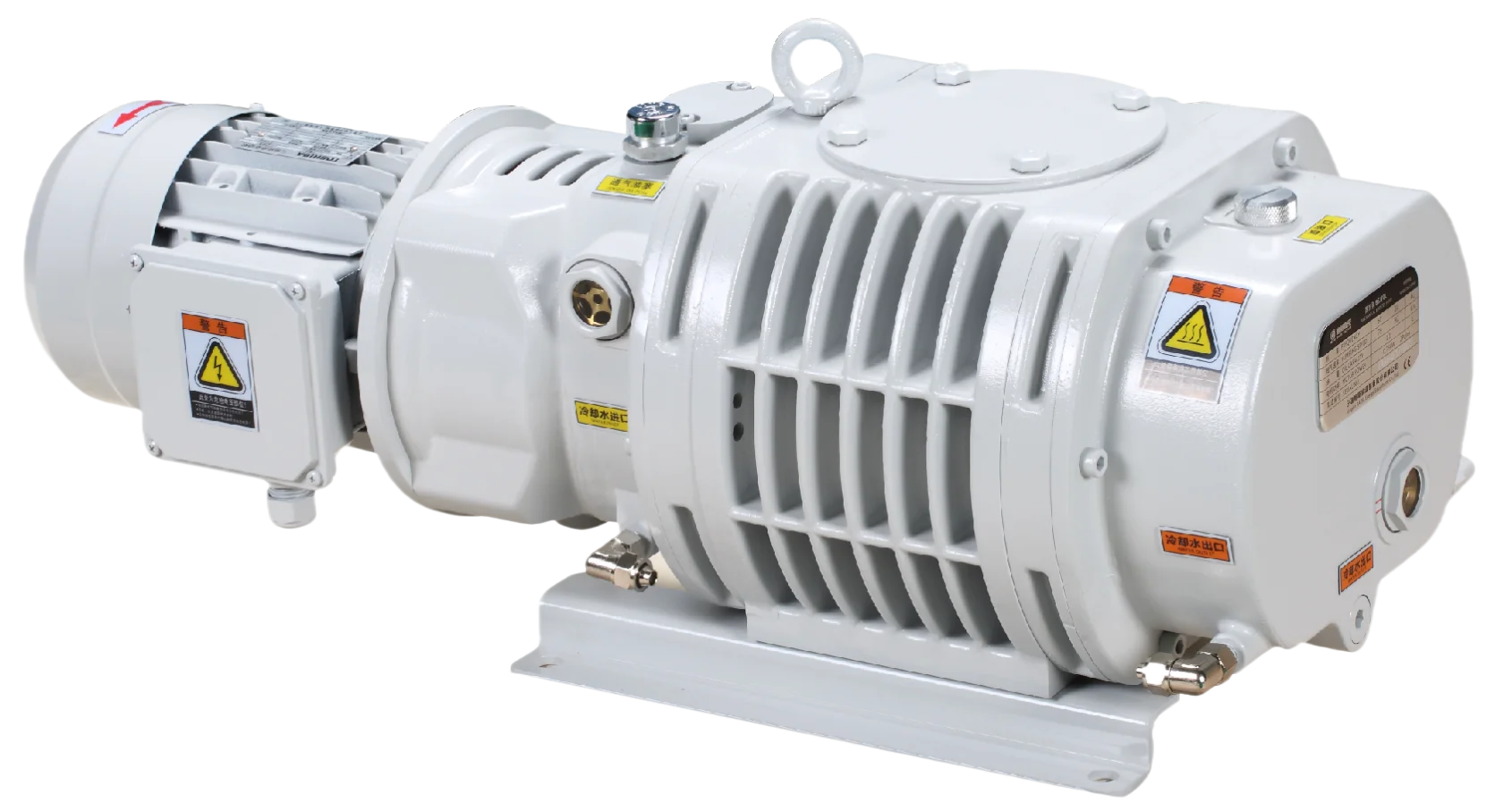

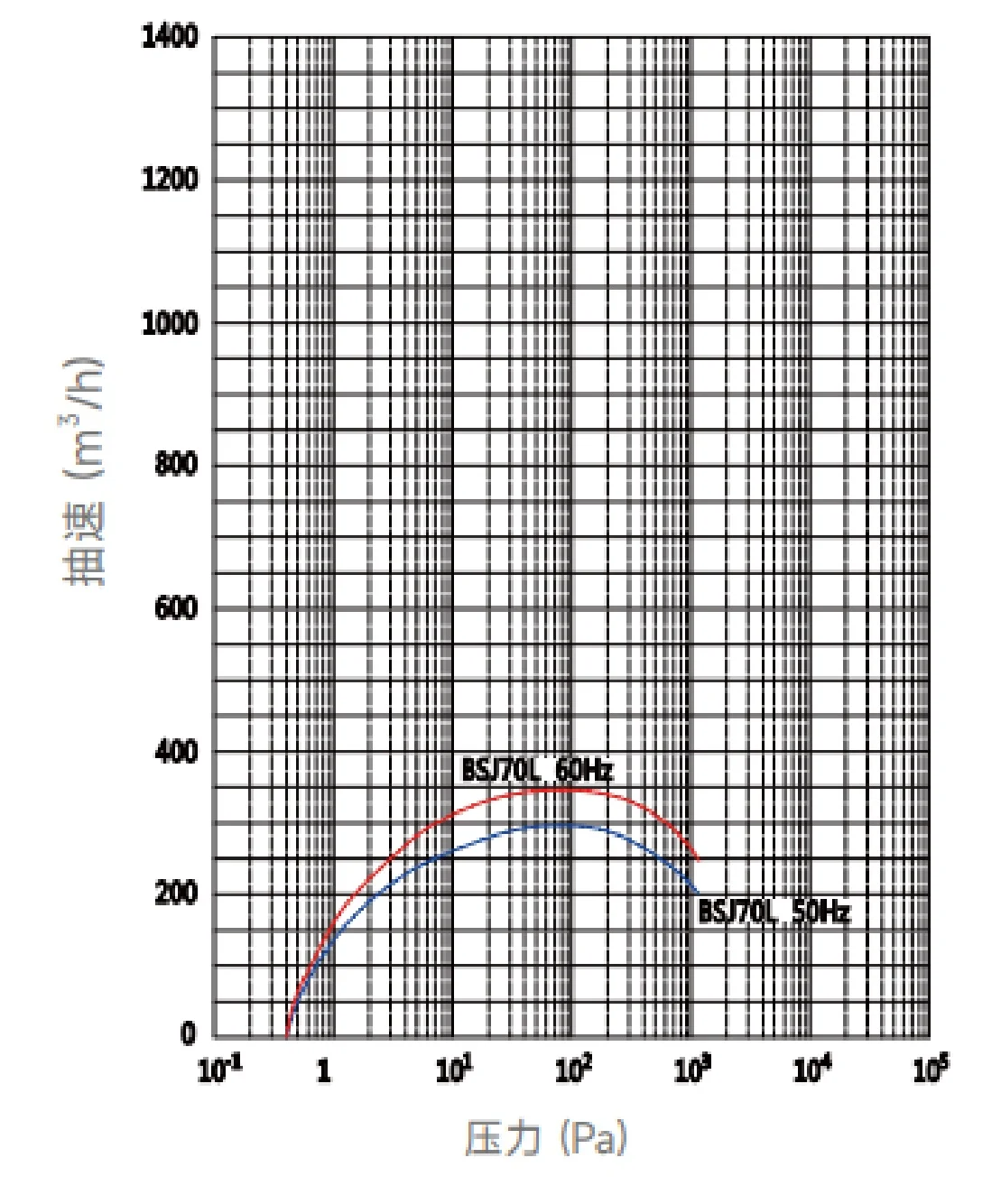

BSJ-70L

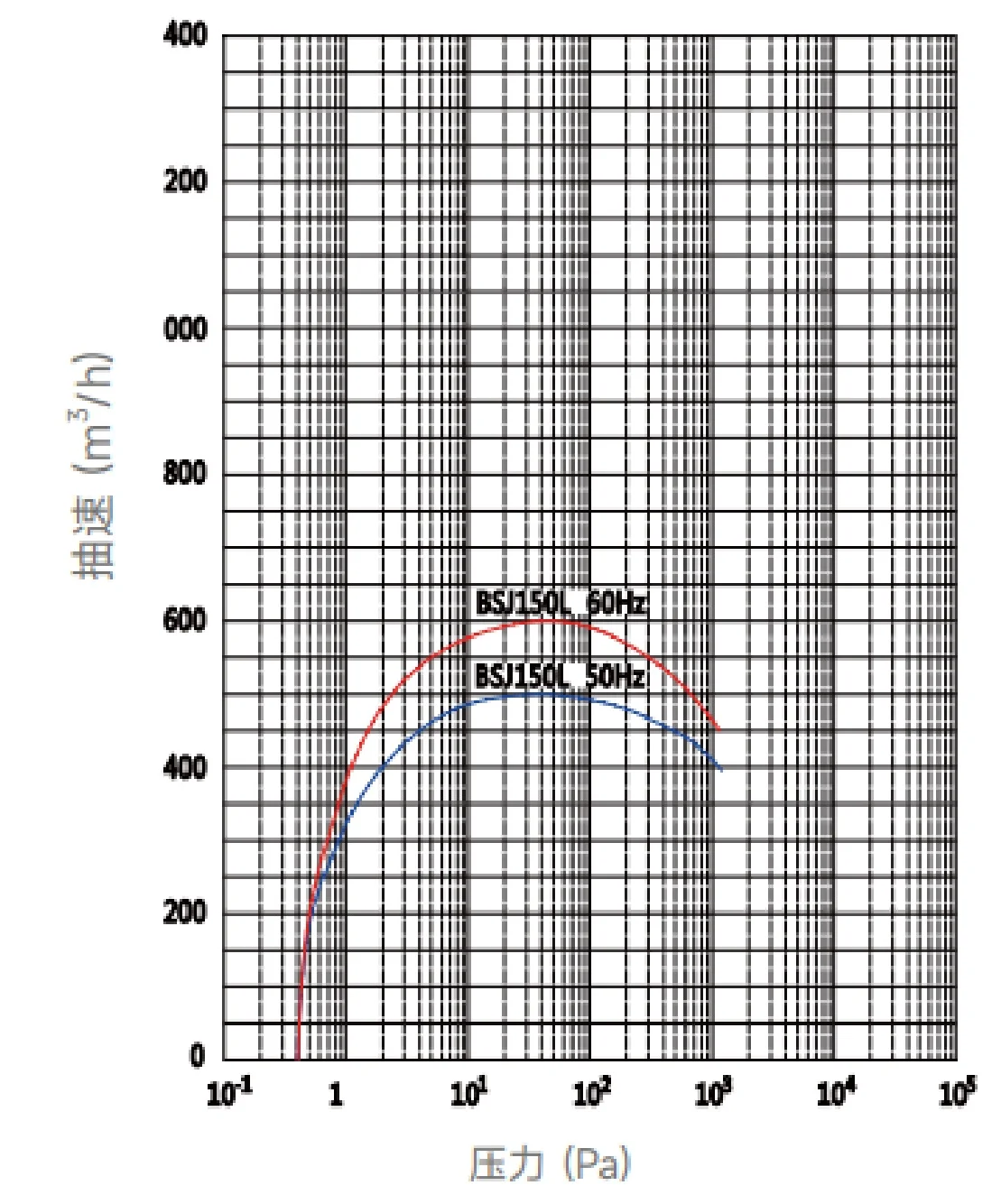

BSJ-150L

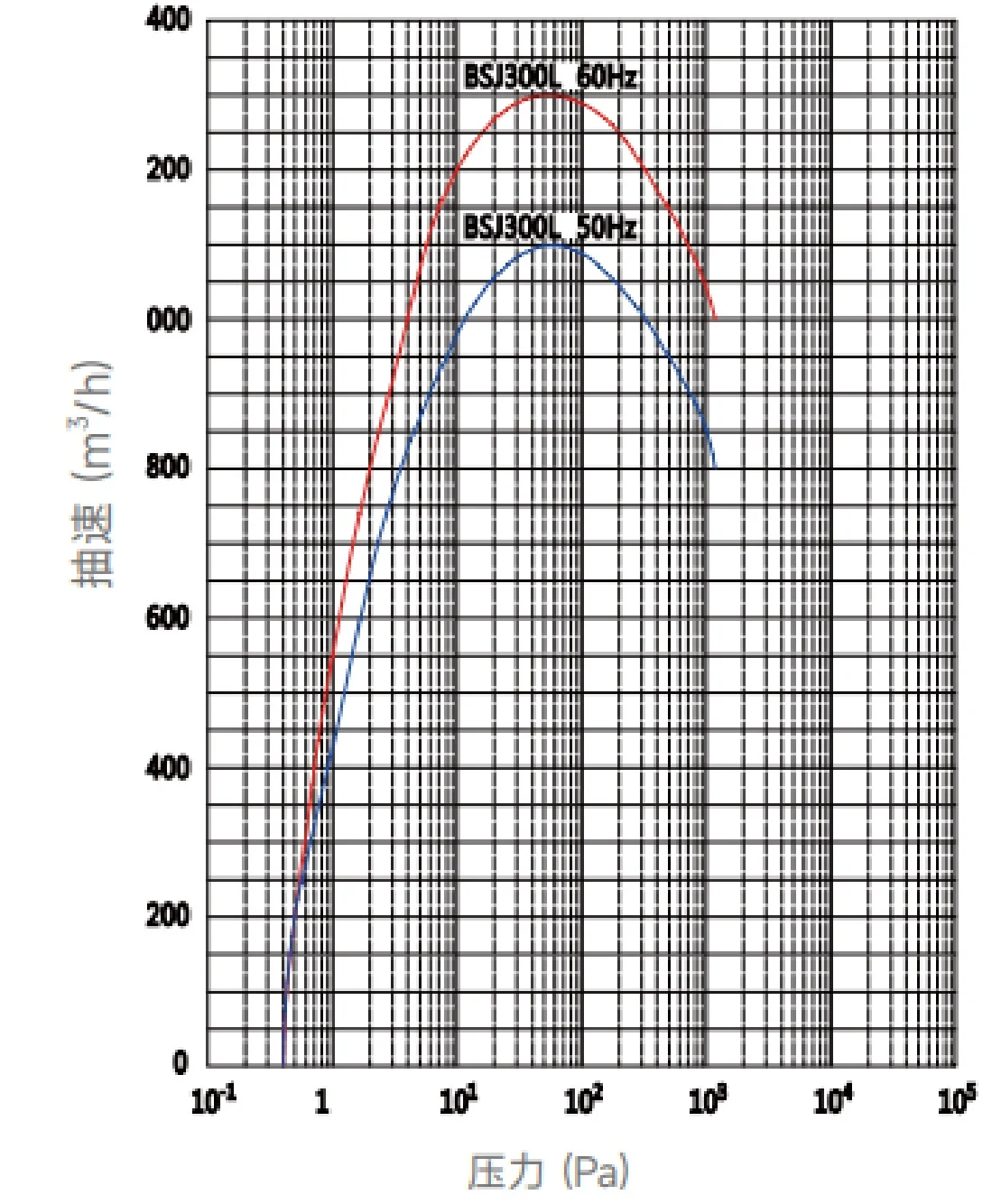

BSJ-300L

Model		BSJ300LC	BSJ600LC	BSJ1200LC
Pumping Ratem3/H(L/Min)	50HZ	1195	2590	4140
Pumping Ratem3/H(L/Min)		60HZ	1435	3110	4985
Max. Inletpressure(When Continuous Work)	50HZ	1.0X10⁵
Max. Inletpressure(When Continuous Work)		60HZ	1.0X10⁵
Maximum Allowable Pressuredifference(Pa)	50HZ	9.0X10³	8.0X10³	6.0X10³
Maximum Allowable Pressuredifference(Pa)		60HZ	7.5X10³	6.7X10³	5.0X10³
Ultimate Pressure(Pa)		4.0X10^-1
Motor(2poles)KW		3	7.5	11
Lubricating Oil Specification		BSO-46
Oil Capacity L		1.5+2.5+0.15	3.5+6.5+1.5
Cooling Water	Flow L/min	3	6	6
		Pressure Difference MPa	0.2~0.6
		Water Temp 0C	5~35
Weight Kg		155	350	425
Inlet Dia. Mm		ISO160	ISO250	ISO250
OutletDia.Mm		ISO100

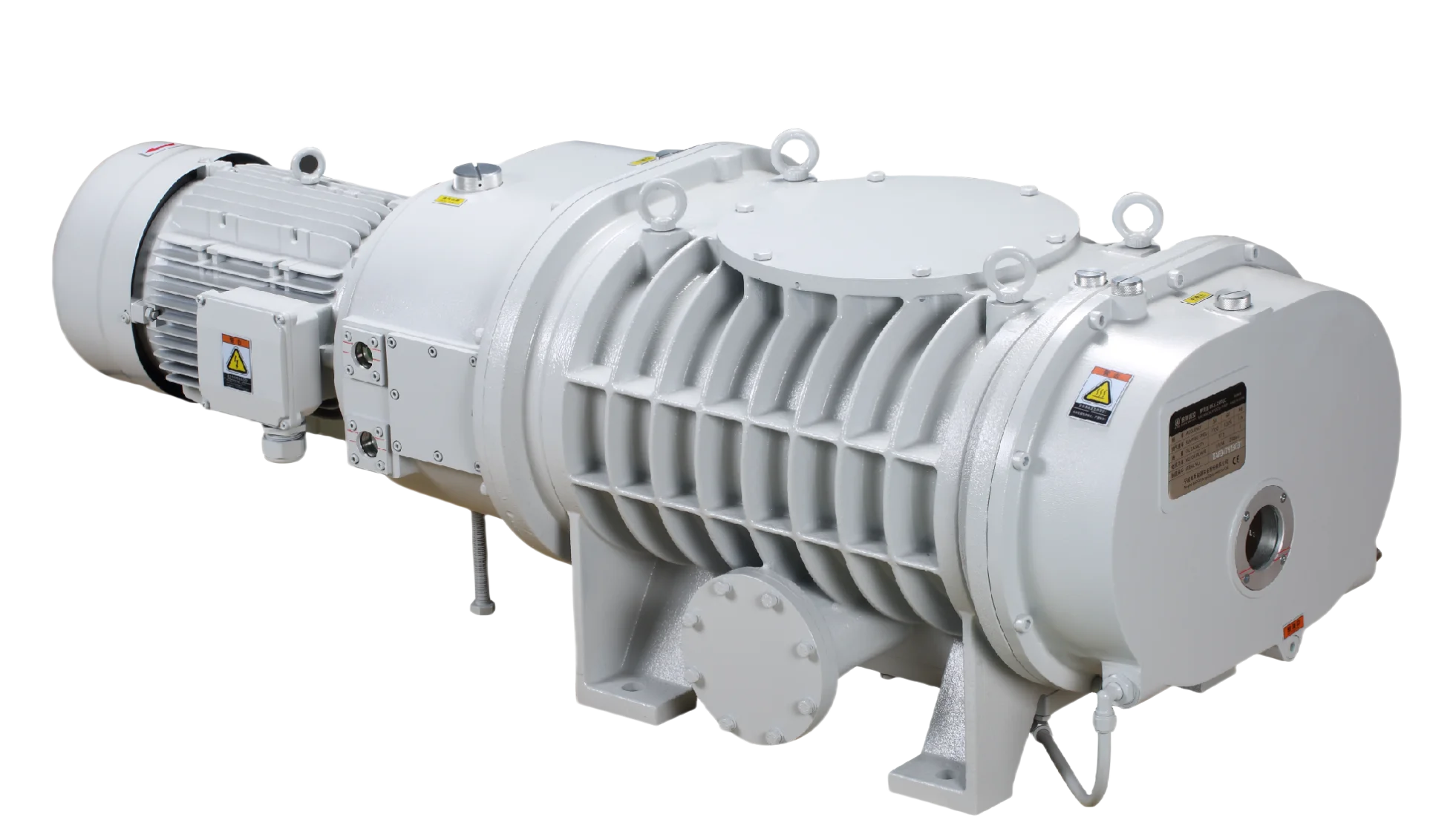

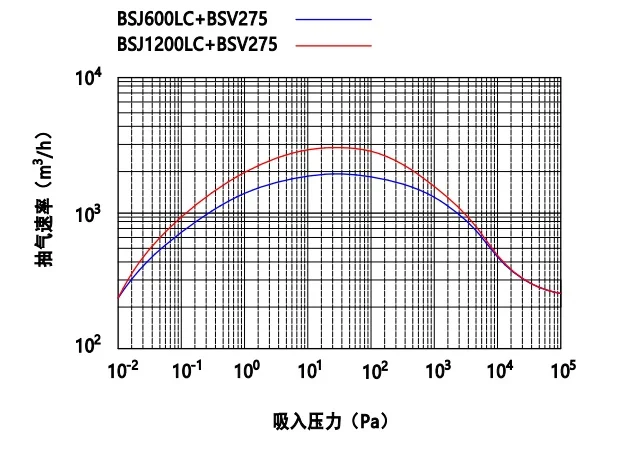

BSJ-1200LC
